1

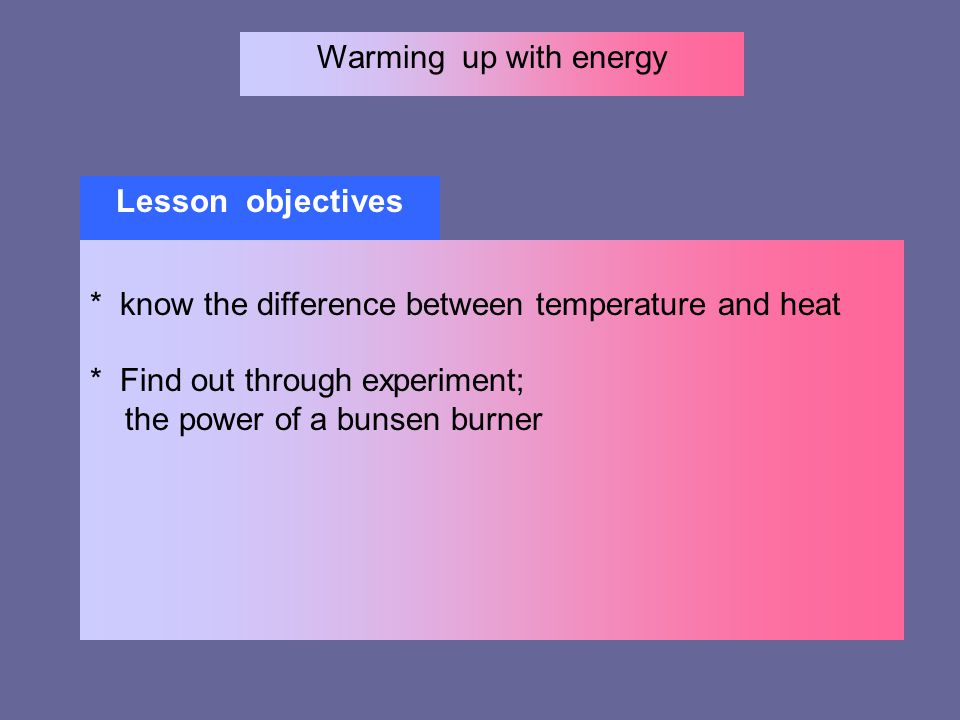

Warming up with energy Lesson objectives * know the difference between temperature and heat * Find out through experiment; the power of a bunsen burner

2
Warming up with energy

5
HEAT 50cm 3 water thermometer Experiment to compare boiling times for different amounts of water Prediction: ……………………………………………………….. Conclusion: ……………………………………………………….. Temp / C For 50 cm 3 water Time / min 180.0 1.0 2.0 3.0 50 80 92 4.0100

6
2 4 6 8 0 20 40 60 80 100 Temp / C TIME / mins

7
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Temp / C For 50 cm 3 water Time / min 180.0 1.0 2.0 3.0 50 80 92 4.0100

8
0 Temp / C For 50 cm 3 water Time / min 180.0 1.0 2.0 3.0 50 80 92 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 4.0100

9
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp Δ time

10
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t

11
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t = (68 -33) C 60 sec =

12
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t = (68 -33) C 60 sec = 0.58 C / sec

13
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t = (68 -33) C 60 sec = 0.58 C / sec Bunsen power: (assuming no energy loss) Δ U = m c Δ T Δ t =

14
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t = (68 -33) C 60 sec = 0.58 C / sec Bunsen power: (assuming no energy loss) Δ U = m c Δ T Δ t = 0.05 x 4200 x 0.58 =

15
0 Temp / C TIME / mins 100 80 60 40 20 2 4 6 8 Gradient = Δ temp = Δ T Δ time Δ t = (68 -33) C 60 sec = 0.58 C / sec Bunsen power: (assuming no energy loss) Δ U = m c Δ T Δ t = 0.05 x 4200 x 0.58 = 121 W
