1 Black Hat Briefings 2000: Strategies for Defeating Distributed Attacks Simple Nomad Hacker Nomad Mobile Research Centre Occam Theorist RAZOR Security Team, BindView Corporation

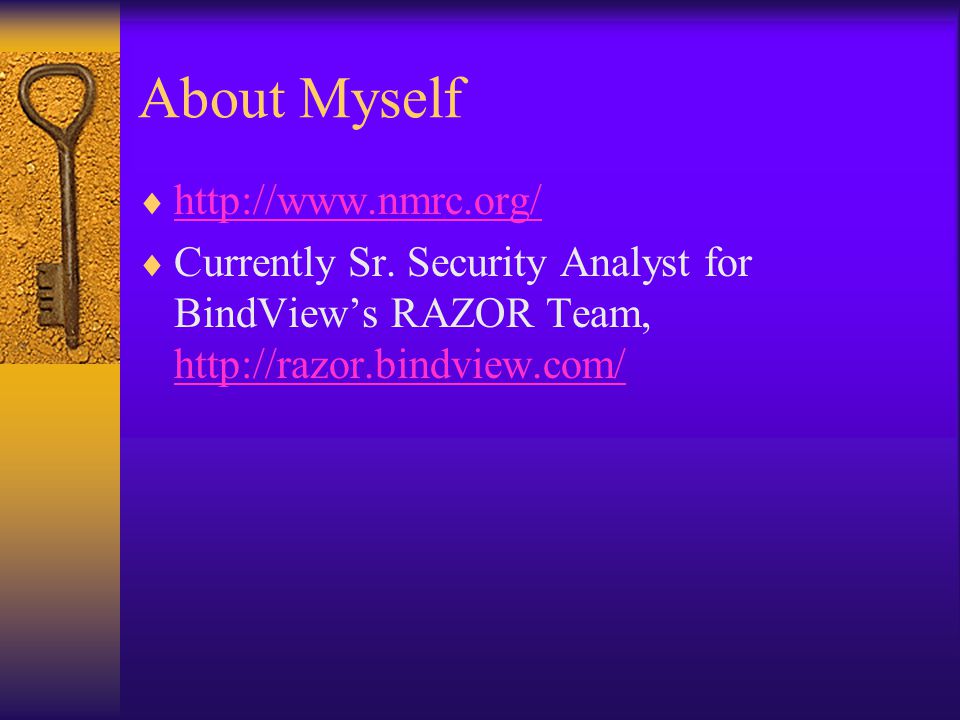

2 About Myself   Currently Sr. Security Analyst for BindView’s RAZOR Team,

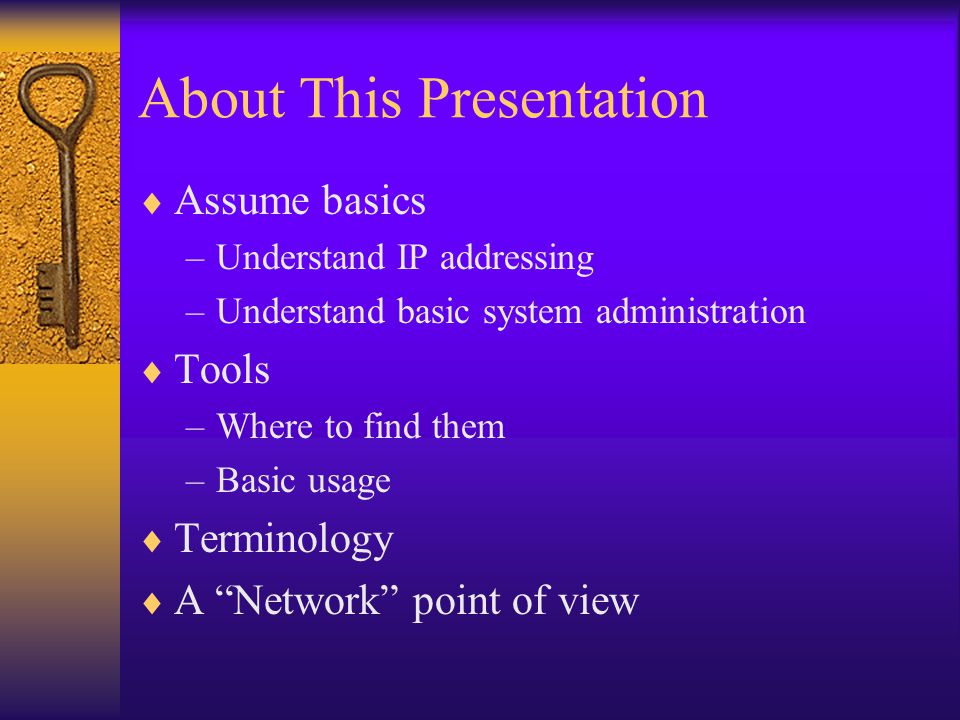

3 About This Presentation  Assume basics –Understand IP addressing –Understand basic system administration  Tools –Where to find them –Basic usage  Terminology  A “Network” point of view

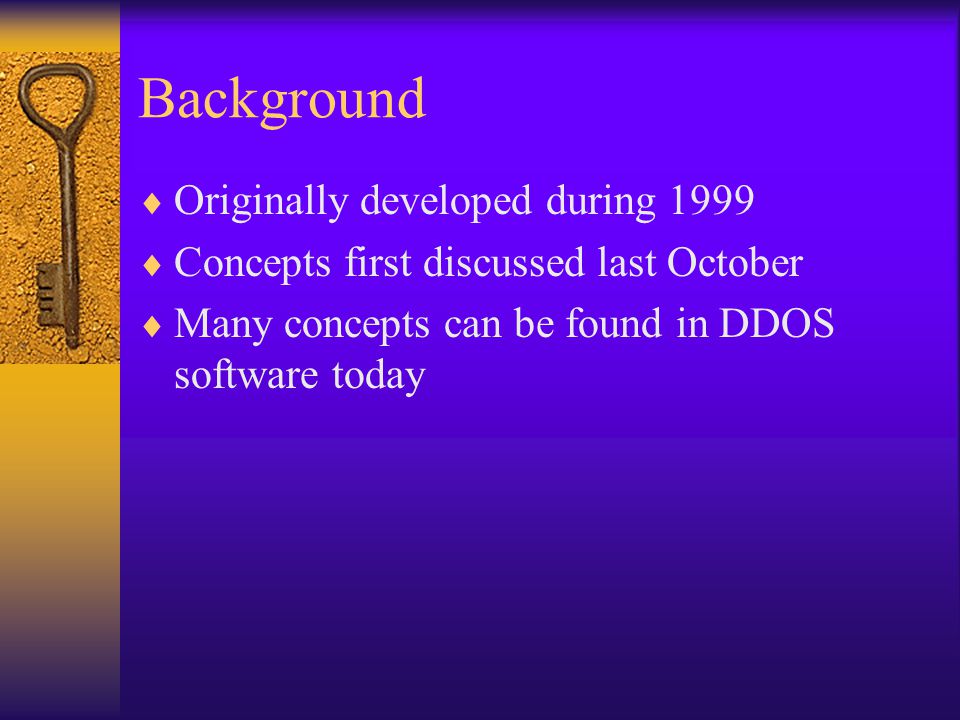

4 Background  Originally developed during 1999  Concepts first discussed last October  Many concepts can be found in DDOS software today

5 Attack Recognition Basics  Pattern Recognition –Examples: Byte sequence in RAM Packet content in a network transmission Half opens against a server within a certain time frame –Considered “real-time”

6 Attack Recognition Basics Cont.  Effect Recognition –Examples Unscheduled server restart in logs Unexplainable CPU utilization System binaries altered –Considered “non” real-time

7 Attack Recognition Problems  Blended “pattern” and “effect” attacks  Sniffing attacks  Decoys and false identification of attack source

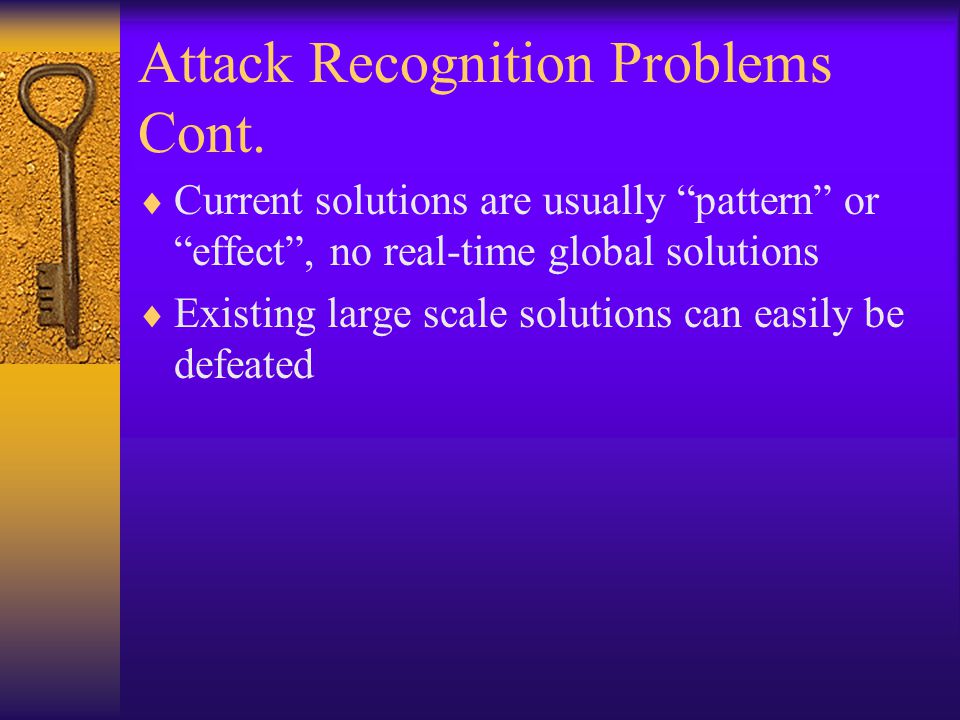

8 Attack Recognition Problems Cont.  Current solutions are usually “pattern” or “effect”, no real-time global solutions  Existing large scale solutions can easily be defeated

9 Common Thwarting Techniques  Rule-based systems can be tricked  Log watchers can be deceived  Time-based rules can be bypassed

10 What is Needed  The “Overall Behavior Network/Host Monitoring Tool” (which doesn’t exist)

11 What Do We Do?  “Trickle Down Security” –Solutions for distributed attacks will introduce good security overall  Off-the-shelf is not enough  Learn about attack types  Defensive techniques

12 Changing Attack Patterns  More large-scale attacks  Better enumeration and assessment of the target by the attacker

13 Two Basic Distributed Attack Models  Attacks that do not require direct observation of the results  Attacks that require the attacker to directly observe the results

14 Basic Model ServerAgent Client Issue commands Processes commands to agents Carries out commands

15 More Advanced Model TargetAttacker Forged ICMP Timestamp Requests ICMP Timestamp Replies Sniffed Replies

16 Even More Advanced Model Target FirewallFirewall

17 Even More Advanced Model Target FirewallFirewall Upstream Host

18 Even More Advanced Model Target Attack Node FirewallFirewall Upstream Host Master Node

19 Even More Advanced Model Target Attack Node FirewallFirewall Upstream Host Attacks or Probes Master Node

20 Even More Advanced Model Target Attack Node FirewallFirewall Upstream Host Attacks or Probes Replies Master Node

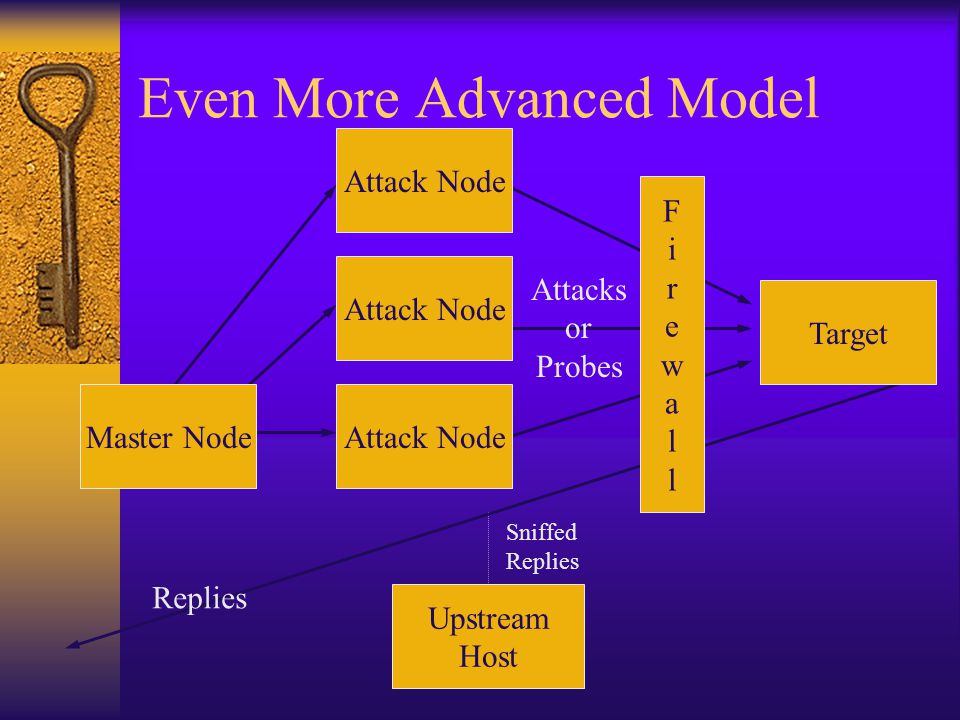

21 Even More Advanced Model Target Attack Node Sniffed Replies Attack Node FirewallFirewall Upstream Host Attacks or Probes Replies Master Node

22 Even More Advanced Model Target Attack Node Sniffed Replies Attack Node FirewallFirewall Upstream Host Attacks or Probes Replies Master Node

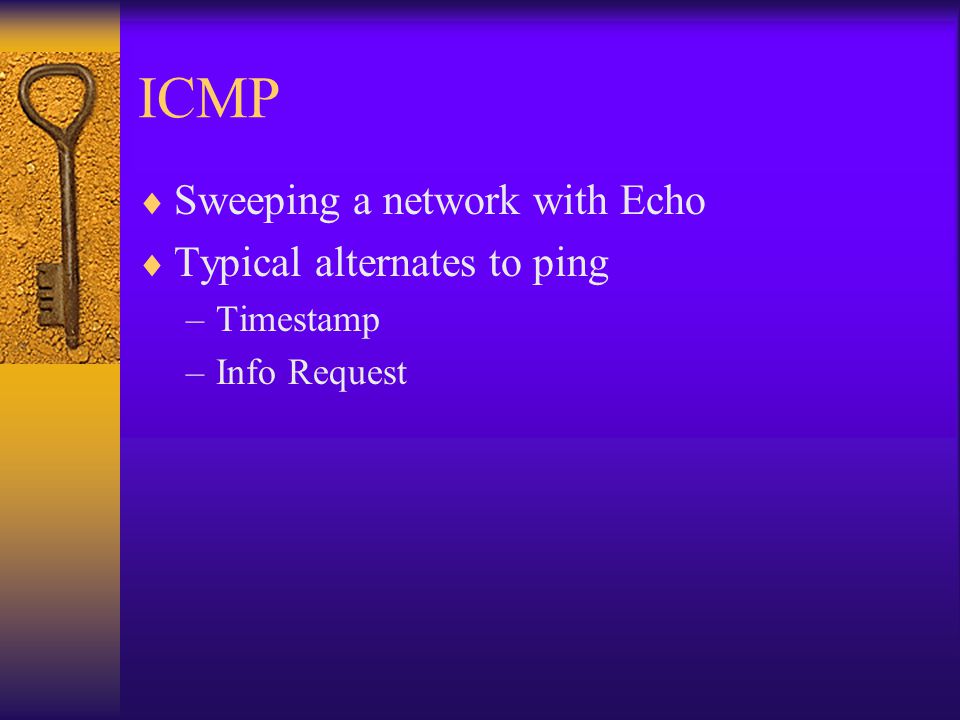

23 ICMP  Sweeping a network with Echo  Typical alternates to ping –Timestamp –Info Request

24 Fun with ICMP  Advanced ICMP enumeration

25 Host Enumeration #./icmpenum -i 2 -c xxx.xx xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up xxx.xx is up

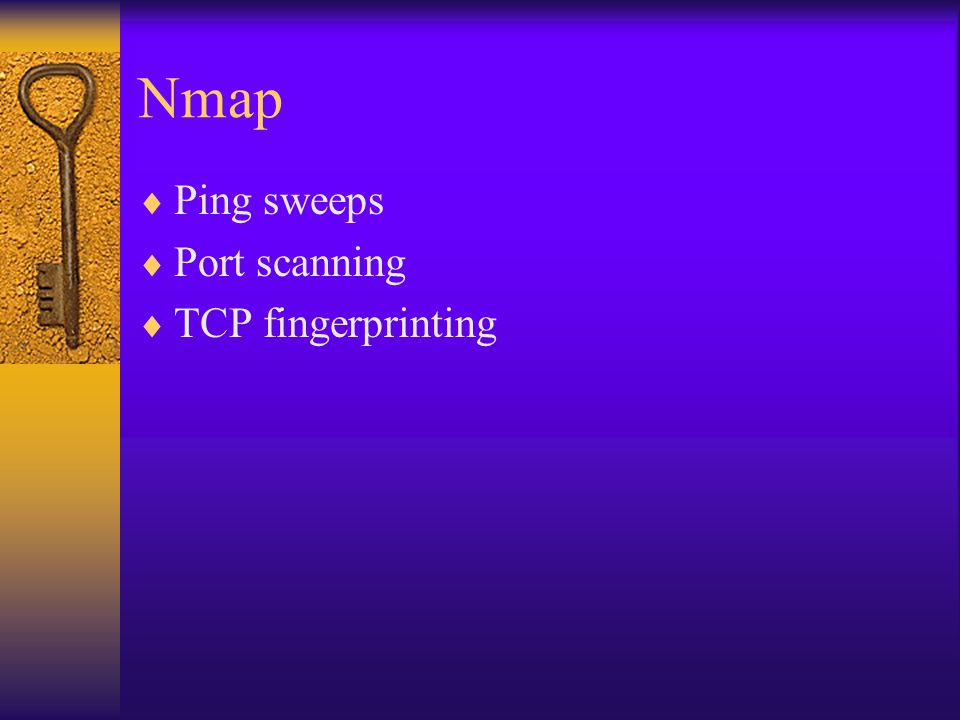

26 Nmap  Ping sweeps  Port scanning  TCP fingerprinting

27 Fun with Nmap  Additional features

28 Addition Probes  Possible security devices  Sweep for promiscuous devices

29 Network Mapping  Determine network layout  Traceroute

30 Network Mapping cw swb Internet Routers

31 Network Mapping cw swb Internet Routers

32 Network Mapping Firewall DMZ cw swb VPN Internet Routers

33 Network Mapping Firewall DMZ www ftp cw swb VPN Internet Routers

34 Network Mapping Firewall DMZ www ftp cw swb VPN Internet Routers

35 Network Mapping Sun Linux Firewall NT Hosts InsideDMZ www ftp cw swb VPN Internet Routers

36 Network Mapping Sun Linux Firewall NT Hosts InsideDMZ www ftp cw swb VPN Internet Routers Linux xxx.xx.48.2 AIX xxx.xx.48.1 Checkpoint Firewall-1 Solaris 2.7 xxx.xx Checkpoint Firewall-1 Nortel Extranet xxx.xx Cisco xxx.xxx Nortel CVX x.xxx IDS?

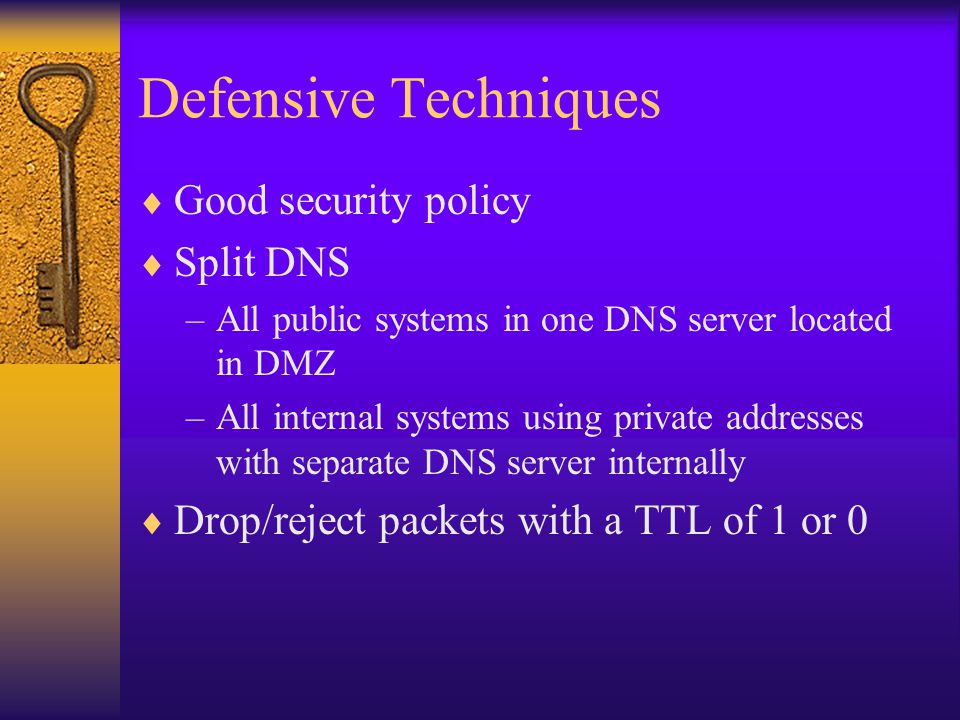

37 Defensive Techniques  Good security policy  Split DNS –All public systems in one DNS server located in DMZ –All internal systems using private addresses with separate DNS server internally  Drop/reject packets with a TTL of 1 or 0

38 Defensive Techniques Cont.  Minimal ports open  Stateful inspection firewalls  Modified kernels/IDS to look for fingerprint packets

39 Defensive Techniques Cont.  Limit ICMP inbound to host/destination unreachable  Limit outbound ICMP

40 DMZ Server Recommendations  Split services between servers  Current patches  Use trusted paths, anti-buffer overflow settings and kernel patches  Use any built-in firewalling software  Make use of built-in state tables

41 Firewall Rules  Limit inbound to only necessary services  Limit outbound via proxies to help control access  Block all outbound to only necessary traffic

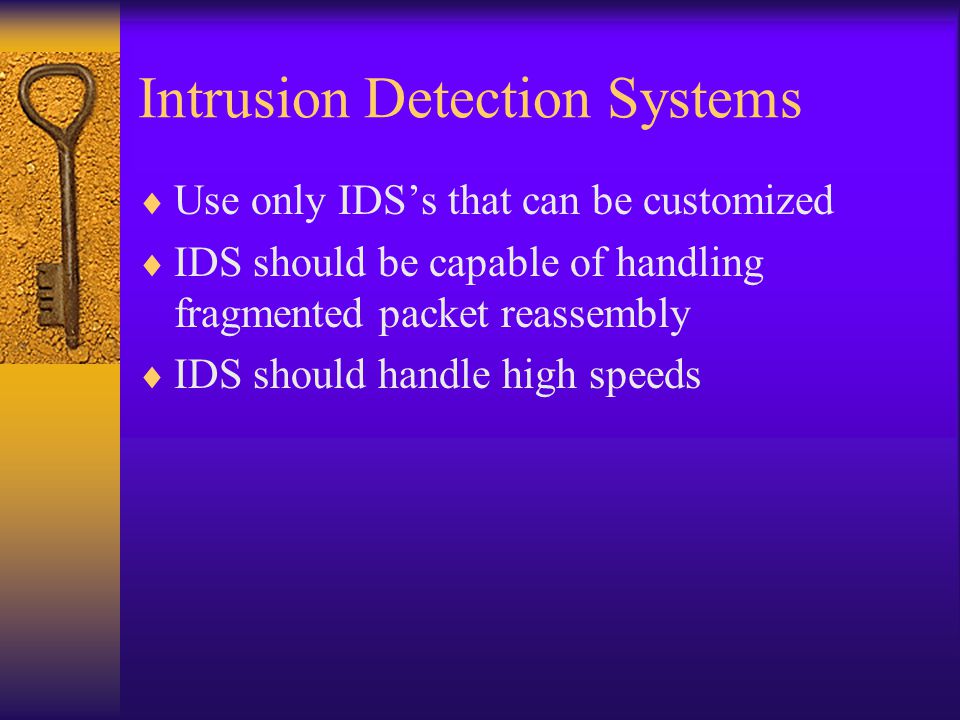

42 Intrusion Detection Systems  Use only IDS’s that can be customized  IDS should be capable of handling fragmented packet reassembly  IDS should handle high speeds

43 Spoofed Packet Defenses  Get TTL of suspected spoofed packet  Probe the source address in the packet  Compare the probe reply’s TTL to the suspected spoofed packet

44 Questions, etc.  For followup: –http://razor.bindview.com/http://razor.bindview.com/  References: –David Dittrich’s web site –"Network Cat and Mouse", SANS Network Security '99, New Orleans; security presentation, –"The Paranoid Network", SANS 2000, Orlando; security presentation, –NMap, –Icmpenum, –Martin Roesch’s web site –“Strategies for Defeating Distributed Attacks”, –“Distributed Denial of Service Defense Tactics”,

45 Late Breaking News  HackerShield RapidFire Update 208 –With SANS Top Ten checks, including comprehensive CGI scanner –http://www.bindview.com/products/hackershield/index.html  VLAD the Scanner –Freeware open-source security scanner, including same CGI checks as HackerShield –Focuses only on SANS Top Ten –http://razor.bindview.com/tools/index.shtml  Despoof –Detects possible spoofed packets through active queries against suspected spoofed IP address –http://razor.bindview.com/tools/index.shtml
