Presentation on theme: "Jacobs Vane and top of Gin-Pole Hap welded and rebuilt the pivots on the vane. Hap designed and fabricated the cross arms for the gin-pole."— Presentation transcript:

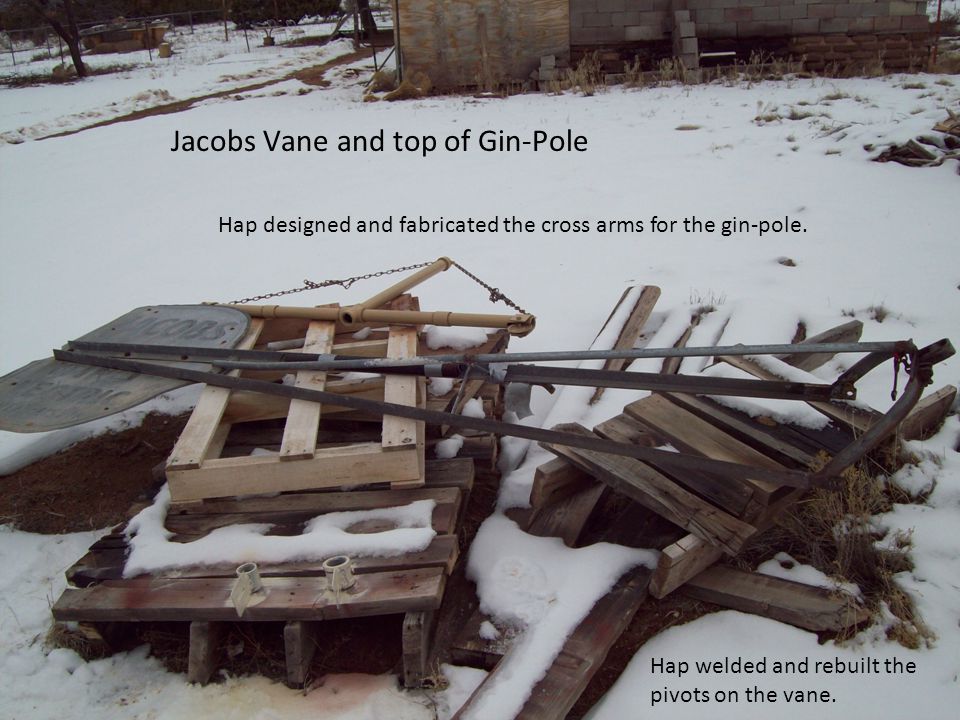

1 Jacobs Vane and top of Gin-Pole Hap welded and rebuilt the pivots on the vane. Hap designed and fabricated the cross arms for the gin-pole.

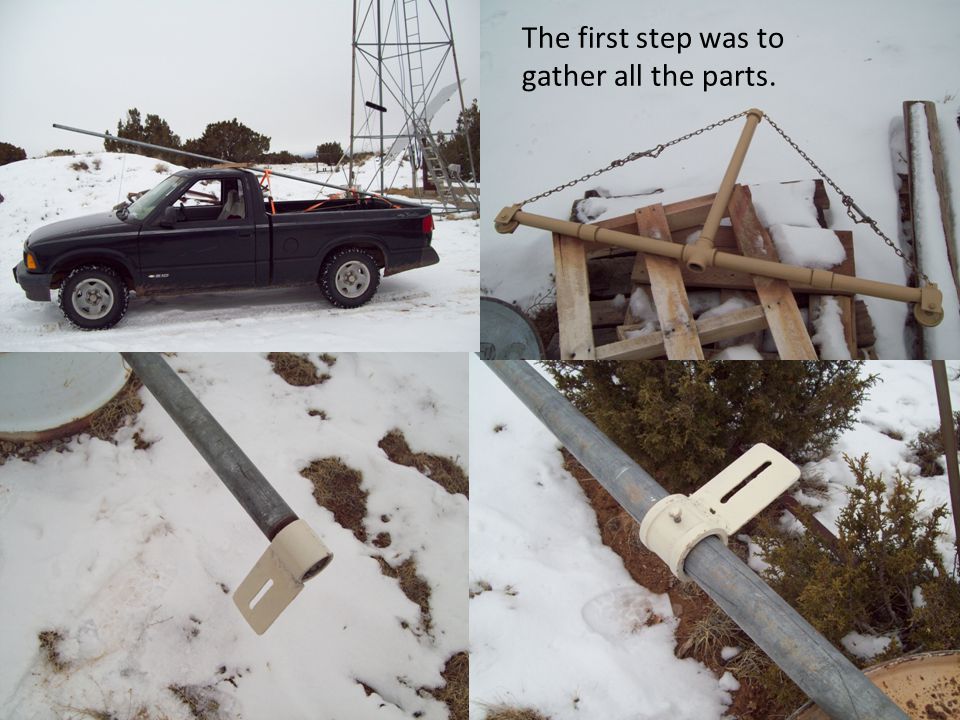

2 The first step was to gather all the parts.

3 Then assemble the parts into something that works.

4 In position!

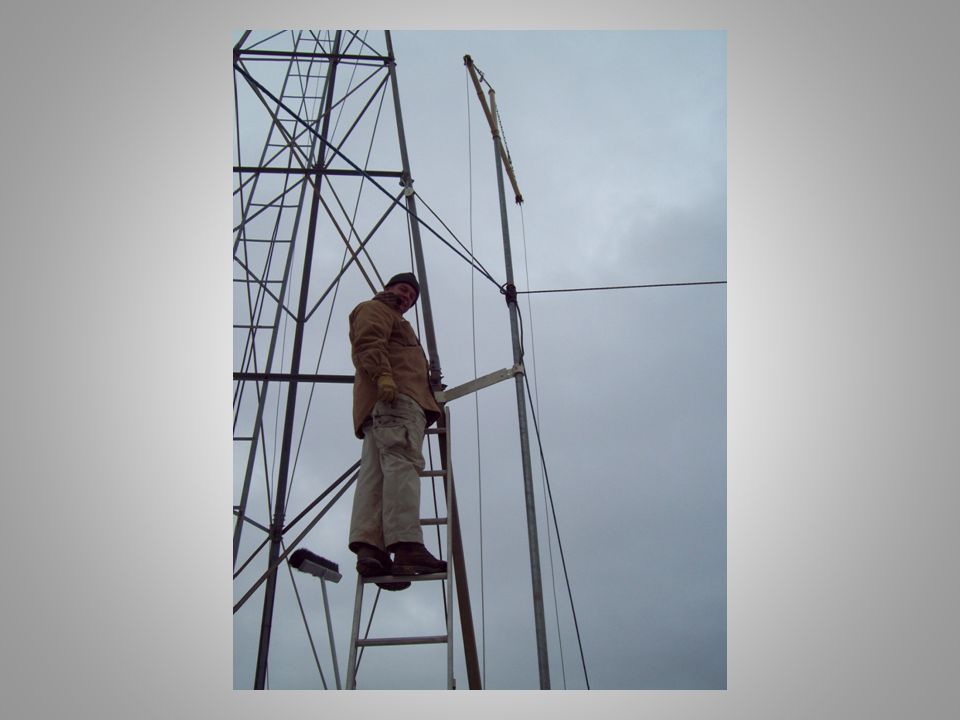

5 Grey

6 Time to test the system It Works! CLICK ON ABOVE BLOCK FOR VIDEO.

7 Next we will raise the Gin-Pole to the top of the tower. Finally, we will lower the Jacobs Turbine to the ground. Grey Chisholm 21 January Sendero de Toho, Santa Fe County, New Mexico
