1 LM dipole status & plans – Fred Nobrega 1 Long Quadrupole (LQ) Workshop, February 7-9, 2007 BNL - FNAL - LBNL - SLAC Long Dipole Mirror (LM) Status and Plan Fred Nobrega Long Quadrupole (LQ) Workshop February 7-9, 2007

2 LM dipole status & plans – Fred Nobrega 2 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM Status 2m copper cable practice coil impregnation complete 2m (LM01) PIT mirror:  cured, reacted, and impregnation complete  coil measurement complete  begin instrumentation followed by yoke assy 4m (LM02) RRP mirror :  winding tooling ready for installation & shake down Long magnet infrastructure:  ~ 90% complete Dipole Mirror Cross Section Schematic

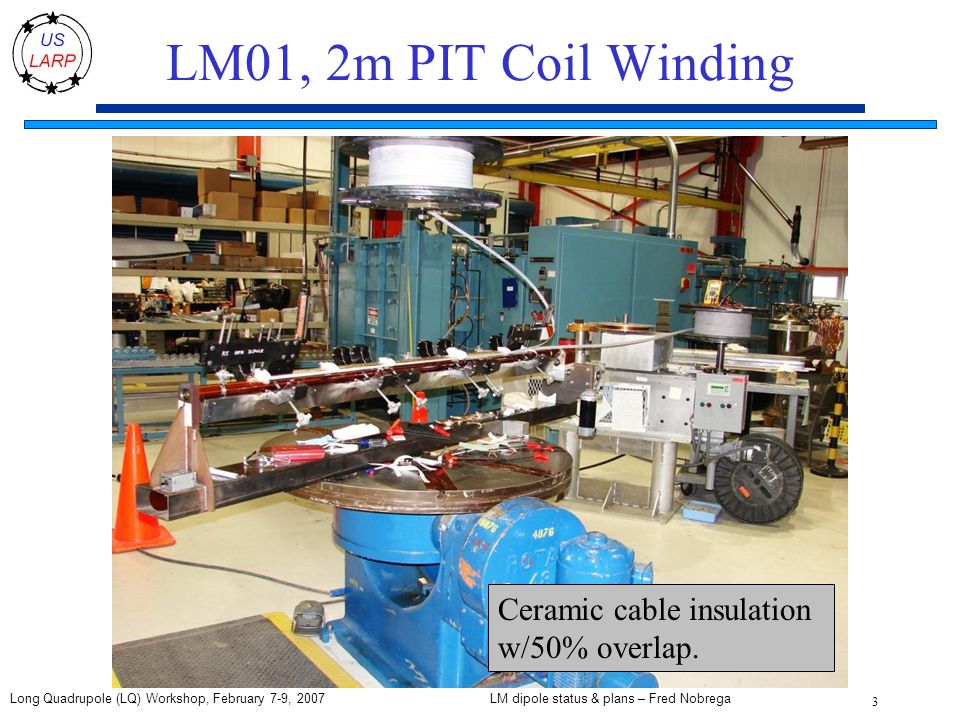

3 LM dipole status & plans – Fred Nobrega 3 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m PIT Coil Winding Ceramic cable insulation w/50% overlap.

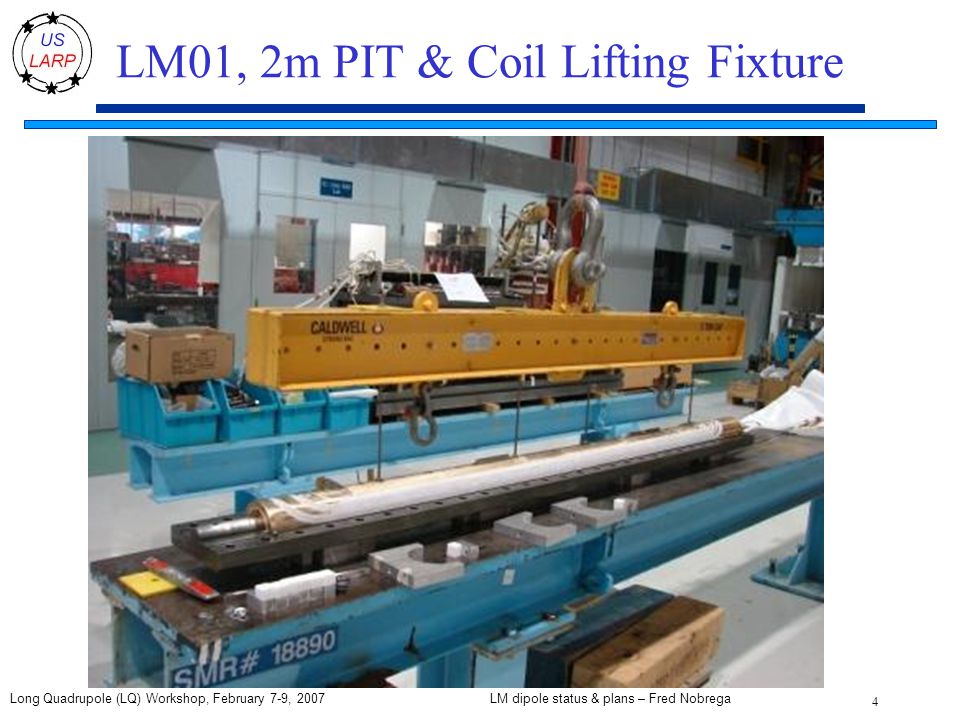

4 LM dipole status & plans – Fred Nobrega 4 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m PIT & Coil Lifting Fixture

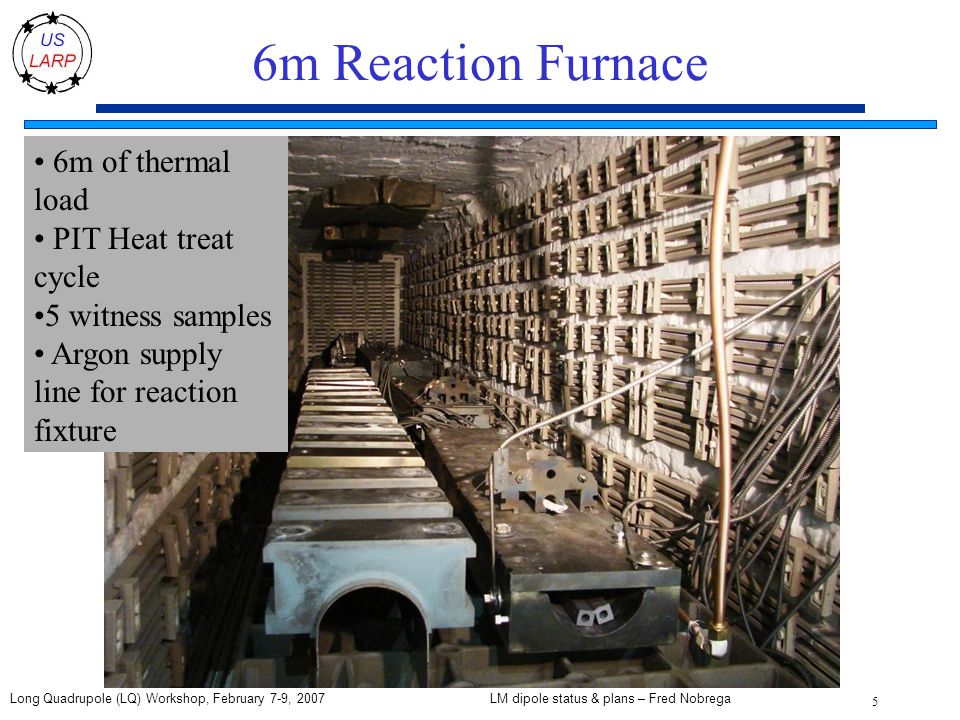

5 LM dipole status & plans – Fred Nobrega 5 Long Quadrupole (LQ) Workshop, February 7-9, m Reaction Furnace 6m of thermal load PIT Heat treat cycle 5 witness samples Argon supply line for reaction fixture

6 LM dipole status & plans – Fred Nobrega 6 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m Coil Heat Treat

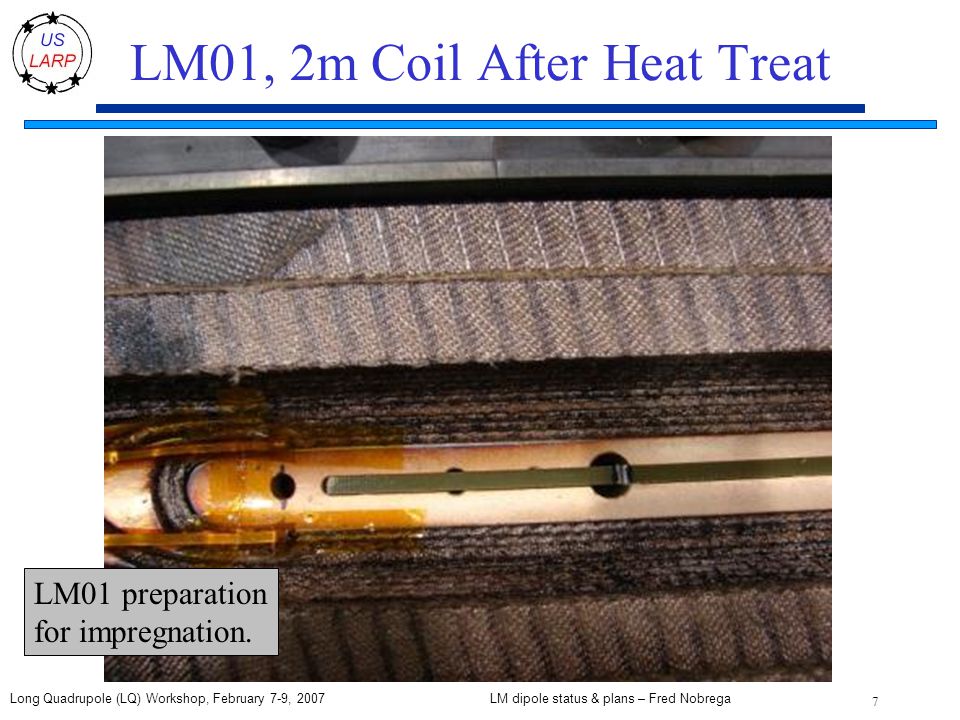

7 LM dipole status & plans – Fred Nobrega 7 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m Coil After Heat Treat LM01 preparation for impregnation.

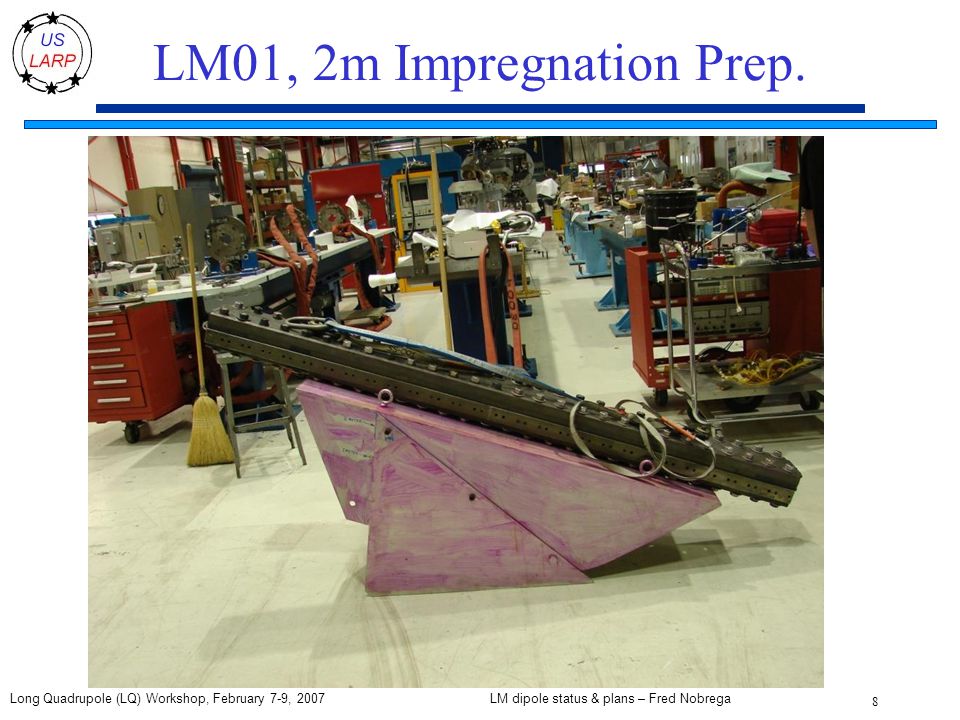

8 LM dipole status & plans – Fred Nobrega 8 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m Impregnation Prep.

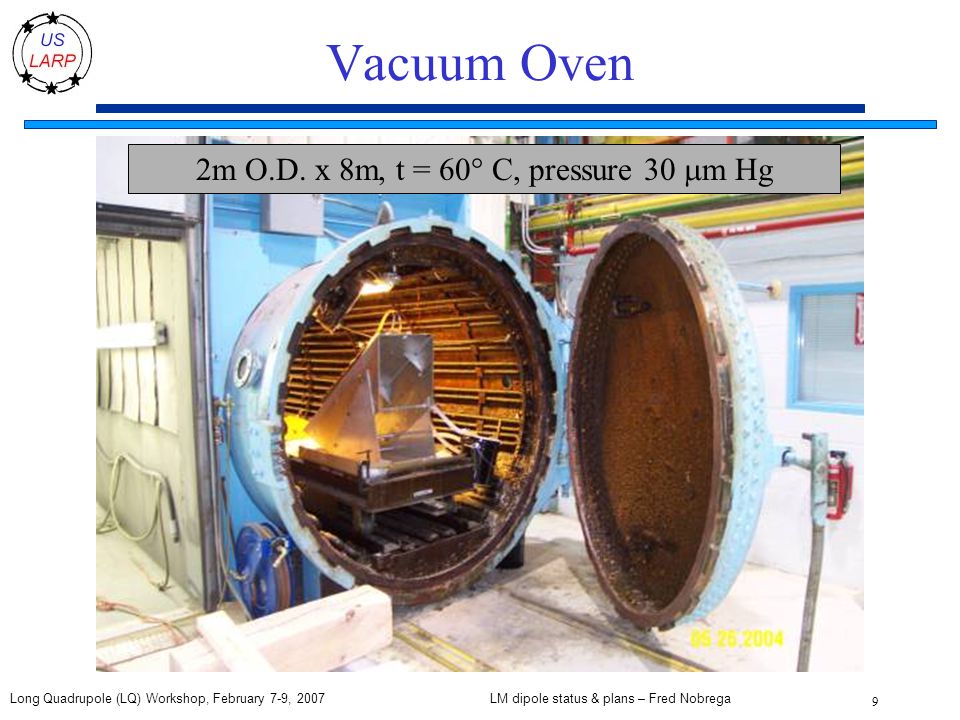

9 LM dipole status & plans – Fred Nobrega 9 Long Quadrupole (LQ) Workshop, February 7-9, m O.D. x 8m, t = 60° C, pressure 30  m Hg Vacuum Oven

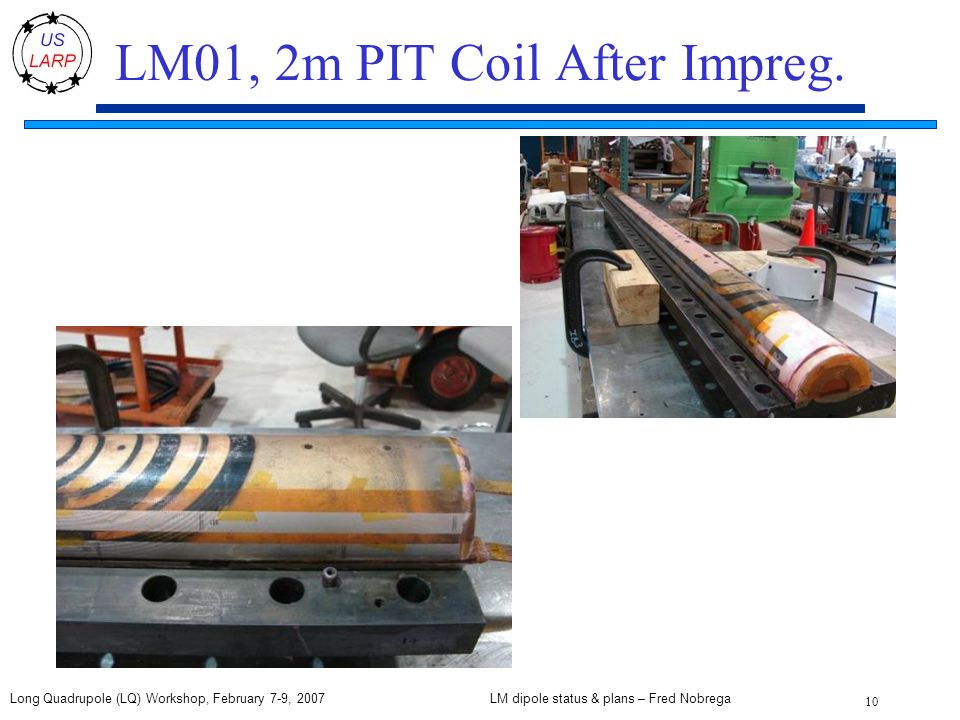

10 LM dipole status & plans – Fred Nobrega 10 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01, 2m PIT Coil After Impreg.

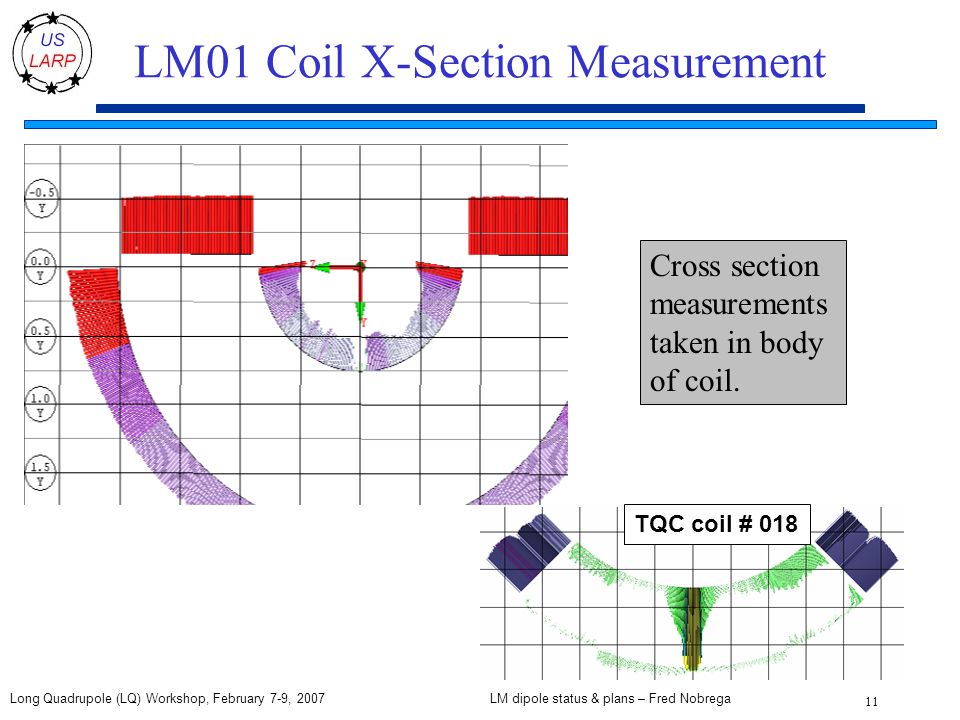

11 LM dipole status & plans – Fred Nobrega 11 Long Quadrupole (LQ) Workshop, February 7-9, 2007 LM01 Coil X-Section Measurement TQC coil # 018 Cross section measurements taken in body of coil.

12 LM dipole status & plans – Fred Nobrega 12 Long Quadrupole (LQ) Workshop, February 7-9, 2007 IB3 Fabrication Floor Jan. 2006

13 LM dipole status & plans – Fred Nobrega 13 Long Quadrupole (LQ) Workshop, February 7-9, 2007 IB3 Fabrication Floor, Feb 2007

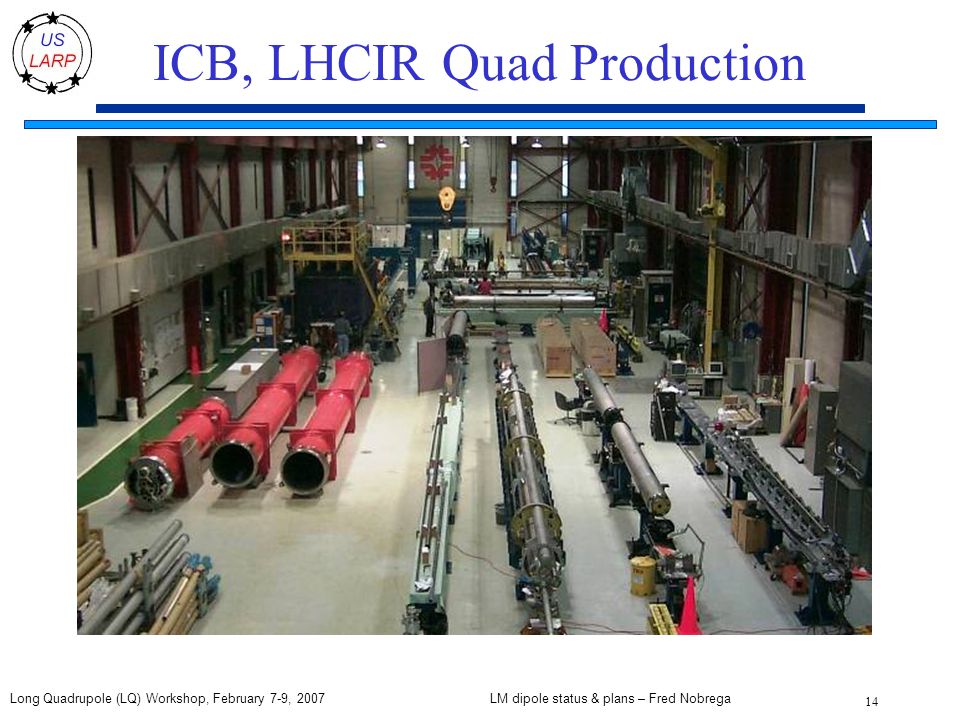

14 LM dipole status & plans – Fred Nobrega 14 Long Quadrupole (LQ) Workshop, February 7-9, 2007 ICB, LHCIR Quad Production

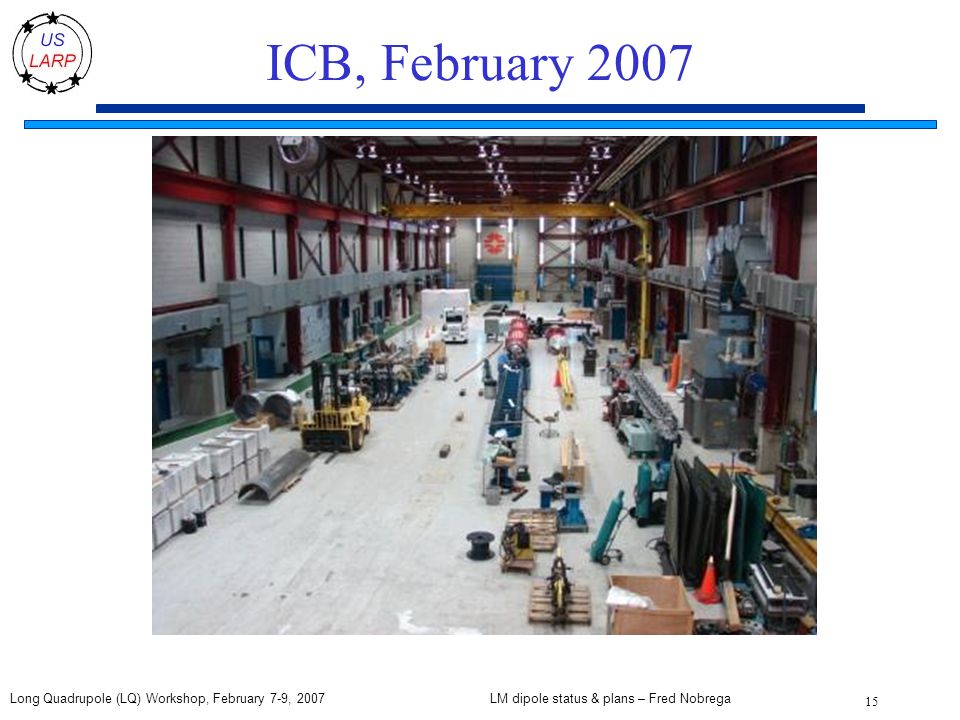

15 LM dipole status & plans – Fred Nobrega 15 Long Quadrupole (LQ) Workshop, February 7-9, 2007 ICB, February 2007

16 LM dipole status & plans – Fred Nobrega 16 Long Quadrupole (LQ) Workshop, February 7-9, 2007 FY07 LM Plan Start (PIT) 2m dipole mirror winding, Oct 2006 Analyze practice coil process results, Nov m winding, curing, impregnation tooling shake down, Nov 2006 Start 4m practice winding, Dec 2006 Test (PIT) 2m dipole mirror, Jan 2007 Complete ICB tooling move to IB3, Jan 2007 Test (RRP) 4m dipole mirror, Jun 2007

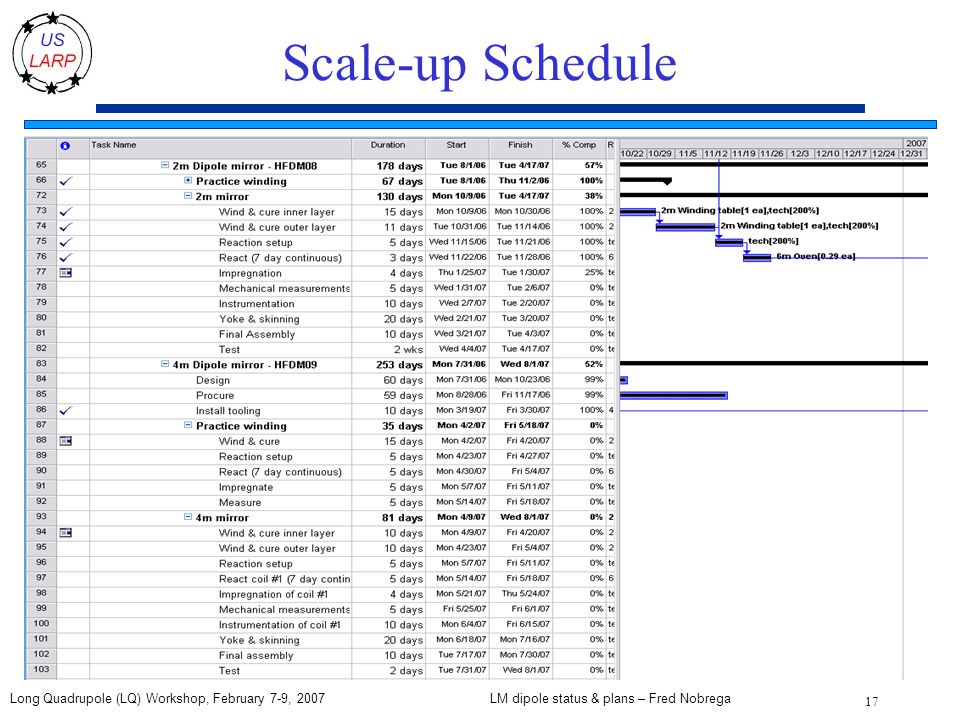

17 LM dipole status & plans – Fred Nobrega 17 Long Quadrupole (LQ) Workshop, February 7-9, 2007 Scale-up Schedule

18 LM dipole status & plans – Fred Nobrega 18 Long Quadrupole (LQ) Workshop, February 7-9, 2007 Conclusion The scale up of the 1m model PIT magnets to 2m (PIT) & 4m (RRP) long mirror magnets is progressing without major surprises (so far). Design specific long tooling and manufacturing processes are a scale up of the 1m dipole magnet. Long generic tooling is from the LHC quadrupole program and will soon all be in IB3.
