Presentation on theme: "CDMA 1x and EV-DO Network Enhancement China Telecom Wang Yuezhen 2012.06.14."— Presentation transcript:
CDMA 1x and EV-DO Network Enhancement China Telecom Wang Yuezhen 2012.06.14

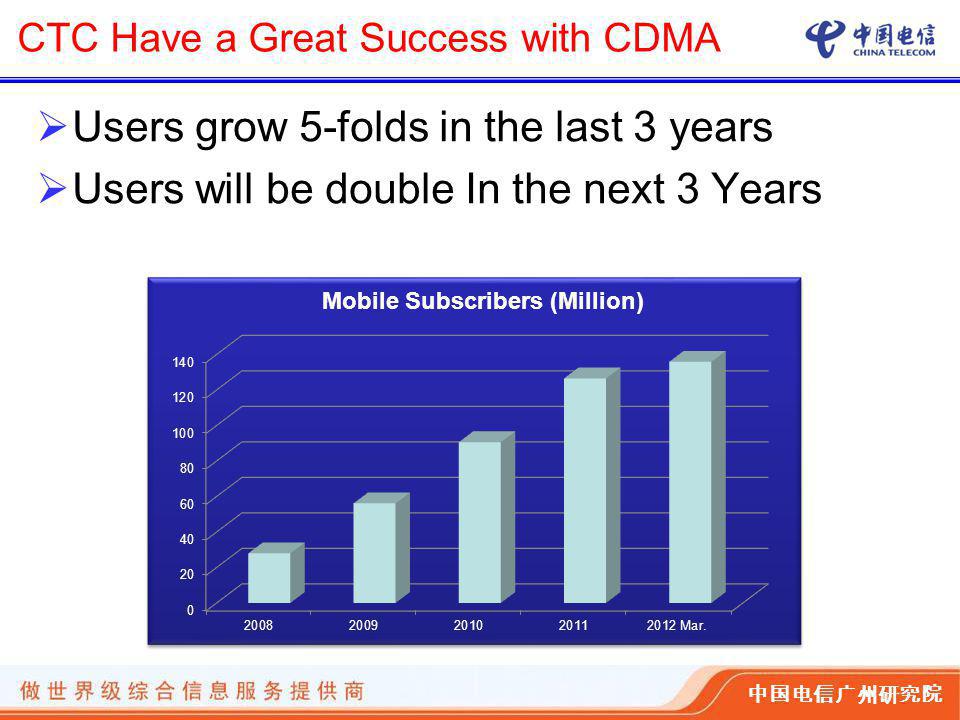

中国电信广州研究院 CTC Have a Great Success with CDMA Users grow 5-folds in the last 3 years Users will be double In the next 3 Years

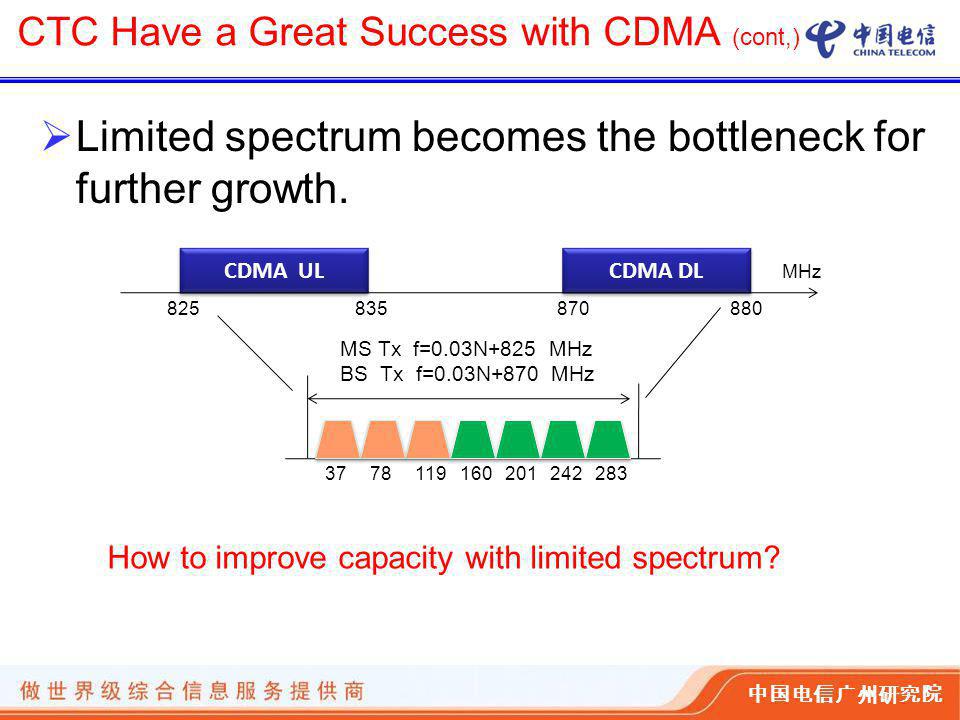

中国电信广州研究院 Limited spectrum becomes the bottleneck for further growth. 3778119160201242283 CDMA UL 825835 CDMA DL 870880 MS Tx f=0.03N+825 MHz BS Tx f=0.03N+870 MHz MHz How to improve capacity with limited spectrum? CTC Have a Great Success with CDMA (cont,)
中国电信广州研究院 Network Enhancements 1x Network Enhancement EVRC-B QLIC MRD Early Termination New PC Mode EVRC-NW Smart Blanking QOF RLIC DO Network Enhancement NLB SCM DNS SCML Multi-AT Paging …… Phase I Phase II Completed In progress

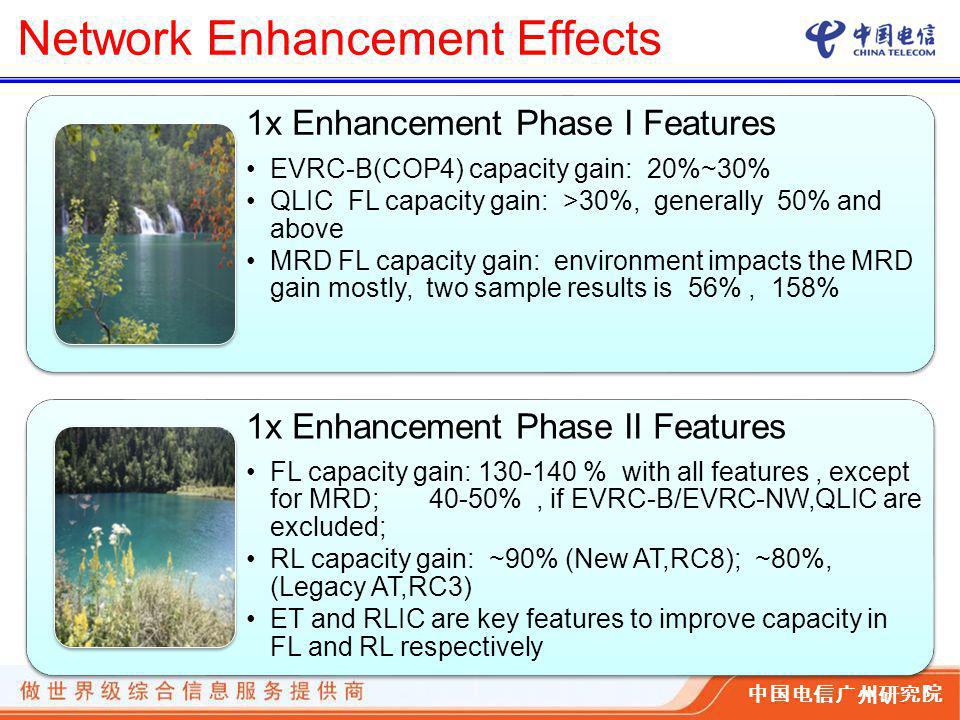

中国电信广州研究院 Network Enhancement Effects 1x Enhancement Phase I Features EVRC-B(COP4) capacity gain: 20%~30% QLIC FL capacity gain: >30%, generally 50% and above MRD FL capacity gain: environment impacts the MRD gain mostly, two sample results is 56%, 158% 1x Enhancement Phase II Features FL capacity gain: 130-140 % with all features, except for MRD; 40-50%, if EVRC-B/EVRC-NW,QLIC are excluded; RL capacity gain: ~90% (New AT,RC8); ~80%, (Legacy AT,RC3) ET and RLIC are key features to improve capacity in FL and RL respectively

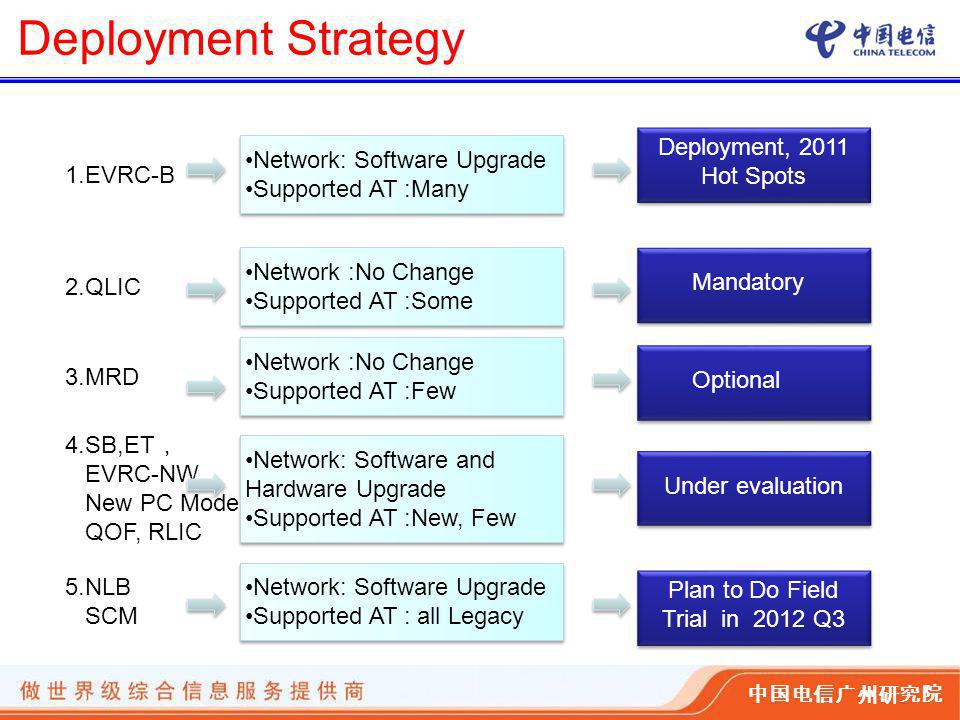

中国电信广州研究院 Deployment Strategy 1.EVRC-B Network: Software Upgrade Supported AT :Many Network: Software Upgrade Supported AT :Many 2.QLIC Network :No Change Supported AT :Some Network :No Change Supported AT :Some 3.MRD Network :No Change Supported AT :Few Network :No Change Supported AT :Few Network: Software and Hardware Upgrade Supported AT :New, Few Network: Software and Hardware Upgrade Supported AT :New, Few 5.NLB SCM Network: Software Upgrade Supported AT : all Legacy Network: Software Upgrade Supported AT : all Legacy Deployment, 2011 Hot Spots Mandatory Optional Plan to Do Field Trial in 2012 Q3 Under evaluation
