Molecular Biology Databases NCBI, DDBL, EMBL and others.

Similar presentations


Presentation on theme: "Molecular Biology Databases NCBI, DDBL, EMBL and others."— Presentation transcript:

1 Molecular Biology Databases NCBI, DDBL, EMBL and others

2 What is a Database? A database can be defined as "a collection of data arranged for ease and speed of search and retrieval.“ A DNA database contains individual records or data entries of the DNA sequences as well as information about the sequences. A DNA database often contains flat-files. These are relatively simple database systems in which each database is contained in a single table. In contrast, relational database systems can use multiple tables to store information, and each table can have a different record format.

3 GenBank as a Database GenBank is the National Institute of Health (NIH) genetic sequence database, an annotated collection of all publicly available DNA sequences. It is maintained by the National Center for Biotechnology Information (NCBI) within the National Institute of Health (NIH).

4 Anatomy of a Genome InfoSystem Information structure – Records of hierarchical, complex documents; Tables of rows and columns of numbers, letters, words – Table of contents, Reports, Indexing (as a reference book) – Browse thru available structure. – Search and retrieve according to biological questions – Bulk data selection & retrieval for other uses Information content – Primary: Literature (referenced, abstracted and curated), Sequence and feature analyses, maps, controlled vocabulary/ontologies relevant to biology, people, research methods, contacts, etc. – Metadata describing primary data, along with protocols, notes, sources Informatics / software – “Back-end” database, data collection, management, with some analyses – “Front-end” information services (hypertext web, document search/retrieval methods); ease of understanding and usage (HCI) – “Middleware” glue code, software, etc. – Specialized application for genome data: maps, BLAST searches, ontologies

5 History of Sequence Databases The first bioinformatics databases were constructed a few years after the first protein sequences began to become available. The first protein sequence reported was that of bovine insulin in 1956, consisting of 51 residues. Nearly a decade later, the first nucleic acid sequence was reported, that of yeast alanine tRNA with 77 bases. Just a year later, Dayhoff gathered all the available sequence data to create the first bioinformatic database. The Protein DataBank followed in 1972 with a collection of ten X-ray crystallographic protein structures, and the SWISSPROT protein sequence database began in 1987.

6 GenBank History DNA databases began in the early 1980s with a database called GenBank, which was originated by the U.S. Department of Energy to hold the short stretches of DNA sequence that scientists were just beginning to obtain from a range of organisms. In the early days of GenBank, rooms of technicians sat at keyboards consisting of only the four letters A, C, T and G, tediously entering the DNA-sequence information published in academic journals.

7 The National Center for Biotechnology Information Created as a part of NLM in 1988 –Establish public databases U.S. National DNA Sequence Database –Perform research in computational biology –Develop software tools for sequence analysis –Disseminate biomedical information

8 GenBank History Newer communication technologies enabled researchers to dial up GenBank and dump in their sequence data directly. The administration of GenBank was transferred to National Institutes of Health's National Center for Biotechnology Information (NCBI). With the advent of the World Wide Web, researchers could access the data in GenBank for free from around the globe. Once the Human Genome Project (HGP) began in 1990, DNA-sequence data in GenBank began to grow exponentially. With the introduction in the 1990s of high-throughput sequencing additions to GenBank skyrocketed.

9 An Interesting Metaphor For Bioinformatics Information Flow and Databases Cooks generate and enter the data. Data Management makes it into a stew of blended information. The waiters take the data from the servers to the public. The diners are placing orders for the information they wish to consume.

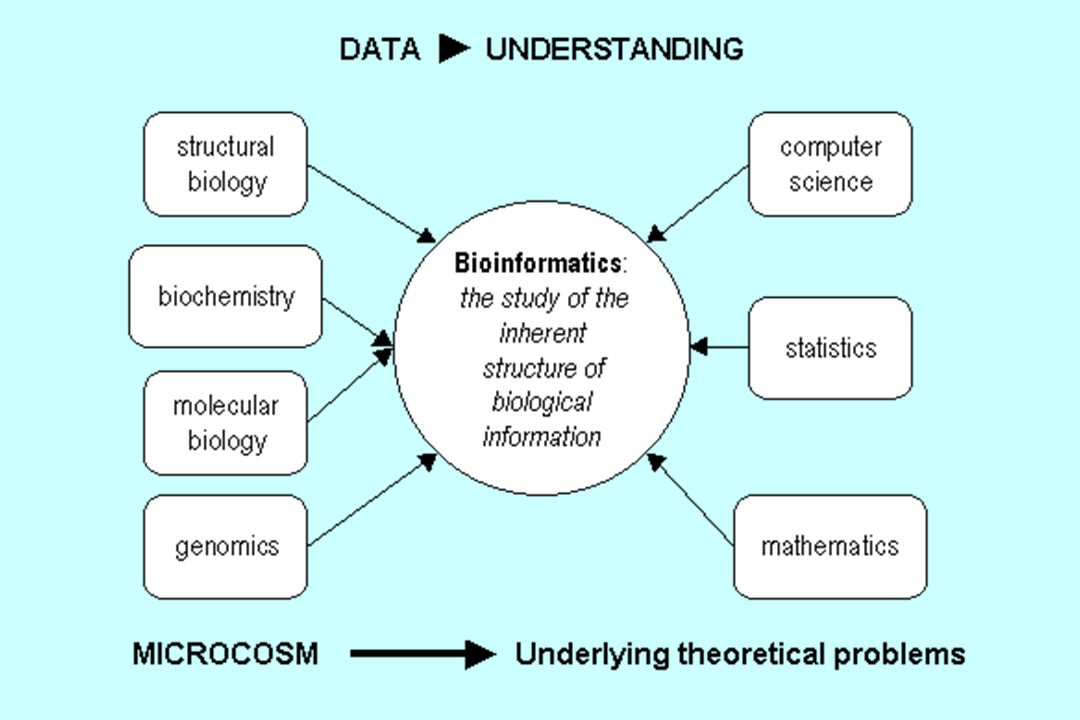

10

11 Molecular Databases Primary Databases –Original submissions by experimentalists –Database staff organize but don’t add additional information Example: GenBank,SNP, GEO Derivative Databases –Human curated compilation and correction of data Example: SWISS-PROT, NCBI RefSeq mRNA –Computationally Derived Example: UniGene –Combinations Example: NCBI Genome Assembly

12 What, the scientists submit their own DNA sequences? Who checks for error? Who makes people actually send their data to the database so all can share it? Learn from success, failure of GenBank/EMBL extensive publicly shared bio-data Carrot/stick approach. Granting agencies and journals began requiring scientists to publish sequence data. Patented sequences must be entered in the databases too. However, there is significant public databank error due to data ownership by scientists; no inducements to update or go back and correct errors.

13 ATTGACTA Primary vs. Derivative Databases ACGTGC TTGACA CGTGA ATTGACTA TATAGCCG ACGTGC TTGACA CGTGA ATTGACTA TATAGCCG GenBank TATAGCCG AT GA C ATT GA ATT C C GA ATT C C GA ATT C C GA ATT C C Sequencing Centers GA ATT C C GA ATT C C UniGene RefSeq Genome Assembly Labs Curators Algorithms TATAGCCG AGCTCCGATA CCGATGACAA

14 GenBank is NCBI’s Primary Sequence Database Nucleotide only sequence database Archival in nature GenBank Data –Direct submissions (traditional records ) –Batch submissions (EST, GSS, STS) –ftp accounts (genome data) Three collaborating databases –GenBank –DNA Database of Japan (DDBJ) –European Molecular Biology Laboratory (EMBL) Database

15 Why use Bioinformatics Databases? Speed of information retrieval Increasing size of data sets Amount of information available Save time and money by simulating experiments prior to actual experiment (a.k.a. in silico)

16 How do you access Databases? Search engines –Programs that allow you to search the database Links from other sites to the search engines Programs that directly link to the search engines

17 Boolean Logic Why do we use Boolean operators –To narrow your search –get fewer superfluous results –* (Wildcard) -looks for ALL entries that contain the term with the * after it –NOT (or BUTNOT)-looks for entries with one term but not the other –OR-looks for entries with one term or the other What are the Boolean Operators –AND-looks for entries with both terms

18 AND Citations that contain the descriptors Food ‘AND’ Allergy only. Food Allergy

19 OR Citations that contain the descriptors Food ‘OR’ Allergy. This is a bigger set. Food Allergy

20 NOT Citations that contain the descriptors Allergy ‘NOT’ Food

21 * (Wildcard) Food Allerg* Citations that contain the descriptors Allerg* (Allergies, Allergy, Allergen

22 GenBank as a Database GenBank identifiers are unique combination of numbers and letters used to index GenBank sequence entries. They can be used to retrieve information about a particular gene or DNA sequence from the GenBank database. This information also includes links to similar sequence entries and other public databases, making it a relational database as well as a flat file database.

23 What is GenBank? NCBI’s Primary Sequence Database Nucleotide only sequence database Archival in nature GenBank Data –Direct submissions individual records (BankIt, Sequin) –Batch submissions via email (EST, GSS, STS) –ftp accounts sequencing centers Data shared three collaborating databases –GenBank –DNA Database of Japan (DDBJ). –European Molecular Biology Laboratory Database (EMBL) at EBI.

24 EBI GenBank DDBJ EMBL EMBL Entrez SRS getentry NIG CIB NCBI NIH Submissions Updates Submissions Updates Submissions Updates The International Sequence Database Collaboration

25 GenBank: NCBI’s Primary Sequence Database full release every two months incremental and cumulative updates daily available only through internet ftp://ftp.ncbi.nih.gov/genbank/ Release 131August 2002 18,197,119Records 22,616,937,182Nucleotides 110,000 +Species 83.65 Gigabytes of data

26 GenBank: NCBI’s Primary Sequence Database full release every two months incremental and cumulative updates daily available only through internet ftp://ftp.ncbi.nih.gov/genbank/ Release 135April 2003 24,027,936Records 31,099,264,455Nucleotides 120,000 +Species 114 Gigabytes

27 GenBank: NCBI’s Primary Sequence Database Release 139December 2003 30,968,418 Records 36,553,368,485 Nucleotides >140,000Species 138 Gigabytes 570 files full release every two months incremental and cumulative updates daily available only through internet ftp://ftp.ncbi.nih.gov/genbank/

28 Sequence Records (millions) Total Base Pairs (billions) '82'84'85'86'87'88'90'91'92'93'95'96'97'98'00'01'02'03 0 5 10 15 20 25 30 35 0 5 10 15 20 25 30 35 40 Sequence records Release 139: 31.0 million records 36.6 billion nucleotides Average doubling time ≈ 12 months Total base pairs The Growth of GenBank

29 The Entrez System

30 Entrez Nucleotides Primary GenBank / EMBL / DDBJ 35,116,960 Derivative RefSeq 259,219 Third Party Annotation 3,182 PDB 4,703 Total 35,384,248

31 Entrez Protein GenPept (GB,EMBL, DDBJ) 3,442,298 RefSeq 856,191 Third Party Annotation 3,834 Swiss Prot 144,508 PIR 282,821 PRF 12,079 Total 3,442,298 BLAST nr 1,642,191

32 Organization of GenBank: GenBank Divisions Records are divided into 17 Divisions. 1 Patent (11 files) 5 High Throughput 11 Traditional Traditional Divisions: Direct Submissions (Sequin and BankIt) Accurate Well characterized BULK Divisions: Batch Submission (Email and FTP) Inaccurate Poorly characterized EST (288) Expressed Sequence Tag GSS (98) Genome Survey Sequence HTG (61) High Throughput Genomic STS (3) Sequence Tagged Site HTC (3) High Throughput cDNA PRI (27) Primate PLN (10) Plant and Fungal BCT (8) Bacterial and Archeal INV (6) Invertebrate ROD (11) Rodent VRL (3) Viral VRT (4) Other Vertebrate MAM (1) Mammalian (ex. ROD and PRI) PHG (1) Phage SYN (1) Synthetic (cloning vectors) UNA (1) Unannotated Entrez query: gbdiv_xxx[Properties]

33 Traditional GenBank Divisions BCTBacterial and Archeal INVInvertebrate MAMMammalian (ex. ROD and PRI) PHGPhage PLNPlant and Fungal PRI Primate RODRodent SYNSynthetic (cloning vectors) VRLViral VRT Other Vertebrate Direct Submissions (Sequin and BankIt) Accurate Well characterized

34 A Helpful Resource This is a link to a sample annotated GenBank Record. Click on any of the underlined links to learn more about the file structure. http://www.ncbi.nlm.nih.gov/Sitemap/sampler ecord.html

35 What is an Accession Number? An accession number is label that used to identify a sequence in the various databases. It is a string of letters and/or numbers that corresponds to a molecular sequence. Examples (all for retinol-binding protein, RBP4): –X02775GenBank genomic DNA sequence –NT_030059Genomic contig –Rs7079946dbSNP (single nucleotide polymorphism) –N91759.1An expressed sequence tag (1 of 170) –NM_006744RefSeq DNA sequence (from a transcript) –NP_007635RefSeq protein –AAC02945GenBank protein –Q28369SwissProt protein –1KT7Protein Data Bank structure record

36 GenBank Flat File Format When you click on an entry, you have opened a GenBank Flat File Information includes: –The Name of the gene –The Accession number –Journal articles

37 Information (Cont) –Structural information of the gene (eg intron/exon boundaries, promoters,etc) –The code for the protein –The code for the DNA (RNA-if mRNA it is the cDNA for the mRNA sequenced) GenBank Flat File Format

38 LOCUS AF062069 3808 bp mRNA INV 02-MAR-2000 DEFINITION Limulus polyphemus myosin III mRNA, complete cds. ACCESSION AF062069 VERSION AF062069.2 GI:7144484 KEYWORDS. SOURCE Atlantic horseshoe crab. ORGANISM Limulus polyphemus Eukaryota; Metazoa; Arthropoda; Chelicerata; Merostomata; Xiphosura; Limulidae; Limulus. REFERENCE 1 (bases 1 to 3808) AUTHORS Battelle,B.-A., Andrews,A.W., Calman,B.G., Sellers,J.R., Greenberg,R.M. and Smith,W.C. TITLE A myosin III from Limulus eyes is a clock-regulated phosphoprotein JOURNAL J. Neurosci. (1998) In press REFERENCE 2 (bases 1 to 3808) AUTHORS Battelle,B.-A., Andrews,A.W., Calman,B.G., Sellers,J.R., Greenberg,R.M. and Smith,W.C. TITLE Direct Submission JOURNAL Submitted (29-APR-1998) Whitney Laboratory, University of Florida, 9505 Ocean Shore Blvd., St. Augustine, FL 32086, USA REFERENCE 3 (bases 1 to 3808) AUTHORS Battelle,B.-A., Andrews,A.W., Calman,B.G., Sellers,J.R., Greenberg,R.M. and Smith,W.C. TITLE Direct Submission JOURNAL Submitted (02-MAR-2000) Whitney Laboratory, University of Florida, 9505 Ocean Shore Blvd., St. Augustine, FL 32086, USA REMARK Sequence update by submitter COMMENT On Mar 2, 2000 this sequence version replaced gi:3132700. A Traditional GenBank Record NCBI’s Taxonomy ACCESSION AF062069 VERSION AF062069.2 GI:7144484 Accession Number Version Number GI Number Definition =Title

39 FEATURES Location/Qualifiers source 1..3808 /organism="Limulus polyphemus" /db_xref="taxon:6850" /tissue_type="lateral eye" CDS 258..3302 /note="N-terminal protein kinase domain; C-terminal myosin heavy chain head; substrate for PKA" /codon_start=1 /product="myosin III" /protein_id="AAC16332.2" /db_xref="GI:7144485" /translation="MEYKCISEHLPFETLPDPGDRFEVQELVGTGTYATVYSAIDKQA NKKVALKIIGHIAENLLDIETEYRIYKAVNGIQFFPEFRGAFFKRGERESDNEVWLGI EFLEEGTAADLLATHRRFGIHLKEDLIALIIKEVVRAVQYLHENSIIHRDIRAANIMF SKEGYVKLIDFGLSASVKNTNGKAQSSVGSPYWMAPEVISCDCLQEPYNYTCDVWSIG ITAIELADTVPSLSDIHALRAMFRINRNPPPSVKRETRWSETLKDFISECLVKNPEYR PCIQEIPQHPFLAQVEGKEDQLRSELVDILKKNPGEKLRNKPYNVTFKNGHLKTISGQ BASE COUNT 1201 a 689 c 782 g 1136 t ORIGIN 1 tcgacatctg tggtcgcttt ttttagtaat aaaaaattgt attatgacgt cctatctgtt 3781 aagatacagt aactagggaa aaaaaaaa // GenBank Record: Feature Table /protein_id="AAC16332.2" /db_xref="GI:7144485" GenPept Protein IDS

40 Multiple Formats are available for Sequence Data Historically, all the DNA and Protein software was written concurrent with the establishment of the databases. So the formats needed in the databases and the software co-evolved. Sequence analysis software needs simpler formats than databases for speed- or else the program must be allowed to ignore most of the excess information.

41 >gi|603218|gb|U18238.1|MSU18238 Medicago sativa glucose-6-phosphate dehyd CCACCAGATATAATTAAGTAGATCAGAGTAGAAGAAGATGGGAACAAATGAATGGCATGTAGAAAGAAGA GATAGCATAGGTACTGAATCTCCTGTAGCAAGAGAGGTACTTGAAACTGGCACACTCTCTATTGTTGTGC TTGGTGCTTCTGGTGATCTTGCCAAGAAGAAGACTTTTCCTGCACTTTTTCACTTATATAAACAGGAATT GTTGCCACCTGATGAAGTTCACATTTTTGGCTATGCAAGGTCAAAGATCTCCGATGATGAATTGAGAAAC AAATTGCGTAGCTATCTTGTTCCAGAGAAAGGTGCTTCTCCTAAACAGTTAGATGATGTATCAAAGTTTT TACAATTGGTTAAATATGTAAGTGGCCCTTATGATTCTGAAGATGGATTTCGCTTGTTGGATAAAGAGAT TTCAGAGCATGAATATTTGAAAAATAGTAAAGAGGGTTCATCTCGGAGGCTTTTCTATCTTGCACTTCCT CCTTCAGTGTATCCATCCGTTTGCAAGATGATCAAAACTTGTTGCATGAATAAATCTGATCTTGGTGGAT GGACACGCGTTGTTGTTGAGAAACCCTTTGGTAGGGATCTAGAATCTGCAGAAGAACTCAGTACTCAGAT TGGAGAGTTATTTGAAGAACCACAGATTTATCGTATTGATCACTATTTAGGAAAGGAACTAGTGCAAAAC ATGTTAGTACTTCGTTTTGCAAATCGGTTCTTCTTGCCTCTGTGGAACCACAACCACATTGACAATGTGC AGATAGTATTTAGAGAGGATTTTGGAACTGATGGTCGTGGTGGATATTTTGACCAATATGGAATTATCCG AGATATCATTCCAAACCATCTGTTGCAGGTTCTTTGCTTGATTGCTATGGAAAAACCCGTTTCTCTCAAG CCTGAGCACATTCGAGATGAGAAAGTGAAGGTTCTTGAATCAGTACTCCCTATTAGAGATGATGAAGTTG TTCTTGGACAATATGAAGGCTATACAGATGACCCAACTGTACCGGACGATTCAAACACCCCGACTTTTGC AACTACTATTCTGCGGATACACAATGAAAGATGGGAAGGTGTTCCTTTCATTGTGAAAGCAGGGAAGGCC CTAAATTCTAGGAAGGCAGAGATTCGGGTTCAATTCAAGGATGTTCCTGGTGACATTTTCAGGAGTAAAA AGCAAGGGAGAAACGAGTTTGTTATCCGCCTACAACCTTCAGAAGCTATTTACATGAAGCTTACGGTCAA GCAACCTGGACTGGAAATGTCTGCAGTTCAAAGTGAACTAGACTTGTCATATGGGCAACGATATCAAGGG ATAACCATTCCAGAGGCTTATGAGCGTCTAATTCTCGACACAATTAGAGGTGATCAACAACATTTTGTTC GCAGAGACGAATTAAAGGCATCATGGCAAATATTCACACCACTTTTACACAAAATTGATAGAGGGGAGTT GAAGCCGGTTCCTTACAACCCGGGAAGTAGAGGTCCTGCAGAAGCAGATGAGTTATTAGAAAAAGCTGGA TATGTTCAAACACCCGGTTATATATGGATTCCTCCTACCTTATAGAGTGACCAAATTTCATAATAAAACA AGGATTAGGATTATCAGGAGCTTATAAATAAGTCTTCAATAAGCTTGTGAAATTTTCGTTATAATCTCTC TCATTTTGGGGTGTATATCAAGCATTTAAGCGCGTGTTTGACACAGTTTGTGTAATAGATTTGGCTCTGA ATGAAAATAAACGGGAATTGTTTCTTTTTGTTTTA > FastA format is a very popular solution FASTA Definition Line >gi|603218|gb|U18238.1|MSU18238 gi number Database Identifiers gbGenBank embEMBL dbjDDBJ spSWISS-PROT pdbProtein Databank pirPIR prf PRF refRefSeq Accession number Locus Name

42 FASTA format

43 Graphics format

44 ASN.1 Format ASN.1, or Abstract Syntax Notation One, is an International Standards Organization (ISO) data representation format used to achieve interoperability between platforms. NCBI uses ASN.1 for the storage and retrieval of data such as nucleotide and protein sequences, structures, genomes, and MEDLINE records. ASN.1 permits computers and software systems of all types to reliably exchange both the data structure and content.

45 NCBI Software Development Tool Kit The "NCBI Toolbox" is a set of software and data exchange specifications used by NCBI to produce portable, modular software for molecular biology. The software in the Toolbox is primarily designed to read ASN.1 format records. It is available to the public in the toolbox/ncbi_tools directory of NCBI's ftp site, and can be used in its own right or as a foundation for building tools with similar properties. The readme files in the toolbox and toolbox/ncbi_tools directories of the FTP site contain more information about the toolbox and ASN.1.

46 Seq-entry ::= set { level 1, class nuc-prot, descr { title "Medicago sativa glucose-6-phosphate dehydrogenase mRNA, and translated products", source { org { taxname "Medicago sativa subsp. sativa", db { { db "taxon", tag id 56147 } }, orgname { name binomial { genus "Medicago", species "sativa", subspecies "subsp. sativa" }, mod { Abstract Syntax Notation: ASN.1 FASTA Nucleotide FASTA Protein GenPeptGenBank ASN.1

47 /************************************************************************ * * asn2ff.c * convert an ASN.1 entry to flat file format, using the FFPrintArray. * **************************************************************************/ #include #include "asn2ff.h" #include "asn2ffp.h" #include "ffprint.h" #include #ifdef ENABLE_ID1 #include #endif FILE *fpl; Args myargs[] = { {"Filename for asn.1 input","stdin",NULL,NULL,TRUE,'a',ARG_FILE_IN,0.0,0,NULL}, {"Input is a Seq-entry","F", NULL,NULL,TRUE,'e',ARG_BOOLEAN,0.0,0,NULL}, {"Input asnfile in binary mode","F",NULL,NULL,TRUE,'b',ARG_BOOLEAN,0.0,0,NULL}, {"Output Filename","stdout", NULL,NULL,TRUE,'o',ARG_FILE_OUT,0.0,0,NULL}, {"Show Sequence?","T", NULL,NULL,TRUE,'h',ARG_BOOLEAN,0.0,0,NULL}, NCBI Toolbox Toolbox Sources ftp> open ftp.ncbi.nih.gov. ftp> cd toolbox ftp> cd ncbi_tools ftp://ftp.ncbi.nlm.gov/toolbox/ncbi_tools

48 Database Tools aren’t keeping pace Despite the huge progress in sequencing and expression analysis technologies, and the corresponding magnitude of more data that is held in the public, private and commercial databases, the tools used for storage, retrieval, analysis and dissemination of data in bioinformatics are still very similar to the original systems gathered together by researchers 15-20 years ago. Many are simple extensions of the original academic systems, which have served the needs of both academic and commercial users for many years. These systems are now beginning to fall behind as they struggle to keep up with the pace of change in the pharma industry.

49 Database Tools aren’t keeping pace Databases are still gathered, organized, disseminated and searched using flat files. Relational databases are still few and far between, and object-relational or fully object oriented systems are rarer still in mainstream applications. Interfaces still rely on command lines, fat client interfaces, which must be installed on every desktop, or HTML/CGI forms. Whilst they were in the hands of bioinformatics specialists, pharmas have been relatively undemanding of their tools. Now the problems have expanded to cover the mainstream discovery process, much more flexible and scalable solutions are needed to serve pharma R&D informatics requirements.

50 There are more than one type of DNA sequence in Genebank Genomic sequences made from genomic DNA- these do contain introns and LOTS of DNA that never becomes messenger RNA. mRNA codes for proteins. cDNA sequences made from mRNA- these don’t contain the introns ESTS (short stretches of cDNA sequences that are sort of a “rough draft” mtDNA from mitochondrial genomes SNP single nucleotide polymorphisms with some DNA variation.

51 Quality of the Sequence is Variable Some of the DNA is sequenced several times before it is added to the databases. Some of the DNA is sequenced very quickly on automated equipment and is input directly from the computers. Both are important types of information. The “draft” is corrected by curators who assemble the pieces into the genome.

52 Genome Sequencing Draft Sequence ( HTG division ) shredding Whole BAC insert (or genome) cloning isolating assembly sequencing GSS division or trace archive

53 Working Draft Sequence gaps

54 Assembly Required. All the data is still in the pieces used to assemble the genomes. So, that means all the overlapping pieces are still in the databases. So, searching comes up with many versions and shorter subclones: pieces which are used to assemble the “genomic contigs” or contiguous pieces which are assembled into whole chromosomes. Sometimes you want to use the smaller pieces, since handling the whole chromosome is awkward in sequence analysis.

55 40,000 to > 350,000 bp phase 1 phase 2 phase 3 ROD Acc = AC109609.1 Acc =AC109609.6 Acc = AC109609.10 HTG HTG Division: High Throughput Genome

56 40,000 to > 350,000 bp HTG Division: High Throughput Genome

57 Whole Genome Shotgun

58 STS Division : Sequence Tagged Sites Segment of gene, EST, mRNA or genomic DNA of known position (microsatellite) PCR with STS primers gives one product per genome Basis of Radiation Hybrid Mapping –UniGene –Genome Assembly Related resource: Electronic PCR http://www.ncbi.nlm.nih.gov/genome/sts/epcr.cgi

59 Be aware of errors in the databases Sequence errors: genome projects’ error rate is 1/10,000 nucleotides; ESTs’ error rate is 1/100 nucleotides. Annotation errors: Many databases annotate their sequences using automated computer programs. These programs do not always give correct annotations. SwissProt is a protein database curated and annotated manually by biologists. It’s regarded as the most reliable database, but does not have the most up-to-date sequence information.

60 There is a Lot of Sequence in the Databases One problem is finding what you are looking for in the database. Try putting in the search term human beta hemoglobin into the nucleotide database. It won’t be easy to find the sequence in the 88 pages of hits! RefSeq was invented to help you find some of the common sequences based on a human (or now, a computer) looking over all the similar submissions of the same sequence to the database. RefSeq corrects some of those sequence errors by comparing lots of sequences.

61 RefSeq: NCBI’s Derivative Sequence Database Curated transcripts and proteins –reviewed –human, mouse, rat, fruit fly, zebrafish, arabidopsis, C. elegans Human model transcripts and proteins Assembled Genomic Regions (contigs) –draft human genome –mouse genome Chromosome records –microbial –organelle

62 RefSeq Benefits non-redundancy explicitly linked nucleotide and protein sequences updates to reflect current sequence data and biology data validation format consistency distinct accession series stewardship by NCBI staff and collaborators

63 The RefSeq Accession Numbers NCBI Reference Sequences mRNAs and Proteins NM_123456 Curated mRNA NP_123456 Curated Protein NR_123456Curated non-coding RNA XM_123456 Predicted Transcript (human, mouse) XP_123456 Predicted Protein (human, mouse) XR_123456Predicted non-coding RNA Gene Records NG_123456 Reference Genomic Sequence (human) Assemblies NT_123456 Contig (Mouse and Human) NW_123456 WGS Supercontig (Mouse) NC_123455 Chromosome (Microbial, Arabidopsis ) human mouse rat fruit fly zebrafish Arabidopsis Microbial

64 GenBank Sequences: Human Lipoprotein Lipase

65 Curated RefSeq Records: NM_, NP_

66 Alignment Based Models

67 AA change

68 Alignment GeneratedTranscripts: XM_,XP_

69 RefSeq Contig: NT_, NW_

70 LOCUS NC_002695 5498450 bp DNA circular BCT 02-OCT-2001 DEFINITION Escherichia coli O157:H7, complete genome. ACCESSION NC_002695 VERSION NC_002695.1 GI:15829254 KEYWORDS. SOURCE Escherichia coli O157:H7. ORGANISM Escherichia coli O157:H7 Bacteria; Proteobacteria; gamma subdivision; Enterobacteriaceae; Escherichia. REFERENCE 1 (sites) AUTHORS Makino,K., Yokoyama,K., Kubota,Y., Yutsudo,C.H., Kimura,S., Kurokawa,K., Ishii,K., Hattori,M., Tatsuno,I., Abe,H., Iida,T., Yamamoto,K., Ohnishi,M., Hayashi,T., Yasunaga,T., Honda,T., Sasakawa,C. and Shinagawa,H. TITLE Complete nucleotide sequence of the prophage VT2-Sakai carrying the verotoxin 2 genes of the enterohemorrhagic Escherichia coli O157:H7 derived from the Sakai outbreak JOURNAL Genes Genet. Syst. 74 (5), 227-239 (1999) MEDLINE 20198780 PUBMED 10734605 RefSeq Chromosomes: NC_

71 Integrated WWW Access: BLAST and Entrez

72 Some Web Statistics -25 million hits per day -150,000  190,000  240,000 users/per day -1.2 million Entrez searches -PubMed alone: 1 million searches -BLAST alone: 80,000 searches per day 3 terabytes of data dowloaded daily via FTP July 2001

73 Users per day 1997 1998 1999 2000 2001 Christmas Day

74 Bulk GenBank Divisions ESTExpressed Sequence Tag STSSequence Tagged Site GSSGenome Survey Sequence HTGHigh Throughput Genomic Batch Submission and htg (email and ftp) Inaccurate Poorly Characterized

75 EST Division: Expressed Sequence Tags RNA gene products nucleus 30,000 genes 80-100,000 unique cDNA clones in library - isolate unique clones -sequence once from each end make cDNA library 5’ 3’ >IMAGE:275615 3', mRNA sequence NNTCAAGTTTTATGATTTATTTAACTTGTGGAACAAAAATAAACCAGATTAACCACAACCATGCCTTACT TTATCAAATGTATAAGANGTAAATATGAATCTTATATGACAAAATGTTTCATTCATTATAACAAATTTCC AATAATCCTGTCAATNATATTTCTAAATTTTCCCCCAAATTCTAAGCAGAGTATGTAAATTGGAAGTTAA CTTATGCACGCTTAACTATCTTAACAAGCTTTGAGTGCAAGAGATTGANGAGTTCAAATCTGACCAAGAT GTTGATGTTGGATAAGAGAATTCTCTGCTCCCCACCTCTANGTTGCCAGCCCTC >IMAGE:275615 5' mRNA sequence GACAGCATTCGGGCCGAGATGTCTCGCTCCGTGGCCTTAGCTGTGCTCGCGCTACTCTCTCTTTCTGGCC TGGAGGTATCCAGCGTACTCCAAAGATTCAGGTTTACTCACGTCATCCAGCAGAGAATGGAAAGTCAAAT TTCCTGAATTGCTATGTGTCTGGGTTTCATCCATCCGACATTGAAGTTGACTTACTGAAGAATGGAGAGA GAATTGAAAAAGTGGAGCATTCAGACTTGTCTTTCAGCAAGGACTGGTCTTTCTATCTCTTGTACTACAC TGAATTCACCCCCACTGAAAAAGATGAGTATGCCTGCCGTGTTGAACCATGTNGACTTTGTCACAGNCCC AAGTTNAGTTTAAGTGGGNATCGAGACATGTAAGGCAGGCATCATGGGAGGTTTTGAAGNATGCCGCNTT TTGGATTGGGATGAATTCCAAATTTCTGGTTTGCTTGNTTTTTTAATATTGGATATGCTTTTG

76 Unigene A gene-oriented view of sequence entries UniGene collects expressed sequence tags (ESTs) into clusters, in an attempt to form one gene per cluster. Use UniGene to study where your gene is expressed in the body, when it is expressed, and see its abundance.

77 MegaBlast based automated sequence clustering Nonredundant set of gene oriented clusters Each cluster a unique gene Information on tissue types and map locations Includes well-characterized genes and novel ESTs Useful for gene discovery and selection of mapping reagents http://www.ncbi.nlm.nih.gov/UniGene/ UniGene

78 EST hits A.t. serine protease mRNA A.t. mRNA 5’ EST hits 3’ EST hits

79 Arabidopsis UniGene Statistics 39,855mRNAs + gene CDSs 87,006 EST, 3'reads 42,137 EST, 5'reads + 32,571 EST, other/unknown ---------- 201,569 total sequences in clusters Final Number of Clusters (sets) =============================== sets total 25,474 sets contain at least one known gene 17,654 sets contain at least one EST 16,326 sets contain both genes and ESTs UniGene Build 14 Apr. 9th, 2002 26,808 115,000,000 bp 25,498 expected genes 5% uncharacterized transcripts

80 Hs UniGene Statistics 73,419mRNAs + gene CDSs 1,181,855 EST, 3'reads 1,461,928 EST, 5'reads + 616,609 EST, other/unknown ---------- 3,333,811 total sequences in clusters Final Number of Clusters (sets) =============================== sets total 22,431 sets contain at least one known gene 97,618 sets contain at least one EST 21,233 sets contain both genes and ESTs UniGene Build 148 Apr. 8th, 2002 98,816 3,000,000 base pairs 30 K expected genes 80% uncharacterized transcripts

81 UniGene Collections Jul, 2002 SequencesClusters Homo sapienshuman 3,569,546 101,602 Mus musculusmouse 2,332, 864 84,247 Rattus norvegicusrat 334,582 62,220 Danio reriozebrafish 197,266 15,404 Bos tauruscow 128,914 10,295 Xenopus laevisfrog 162,269 18,984 D.melanogasterfruit fly 250,655 11, 115 Anopholes gambiaemosquito 43,126 2,556 Plants Arabidopsis thalianathale cress 210,693 26,875 Oryzia sativarice 78,632 15,802 Triticum aestivumwheat 139,447 12,575 Hordeum vulgarebarley 160,518 7,324 Zea maysmaize (corn) 131,668 10,301
