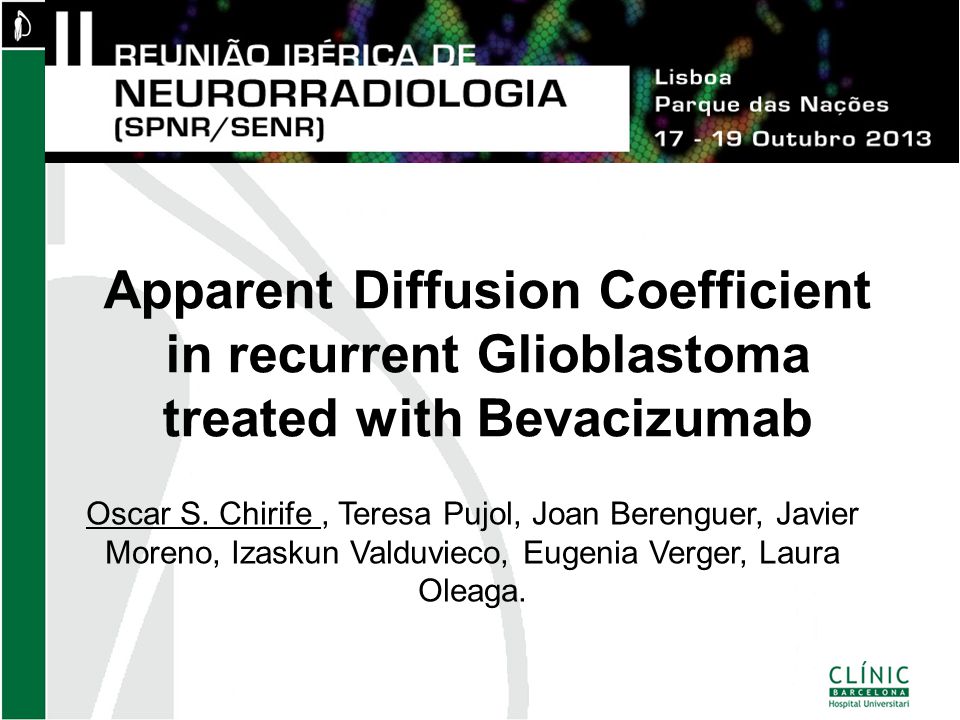

1 Apparent Diffusion Coefficient in recurrent Glioblastoma treated with Bevacizumab Oscar S. Chirife, Teresa Pujol, Joan Berenguer, Javier Moreno, Izaskun Valduvieco, Eugenia Verger, Laura Oleaga.

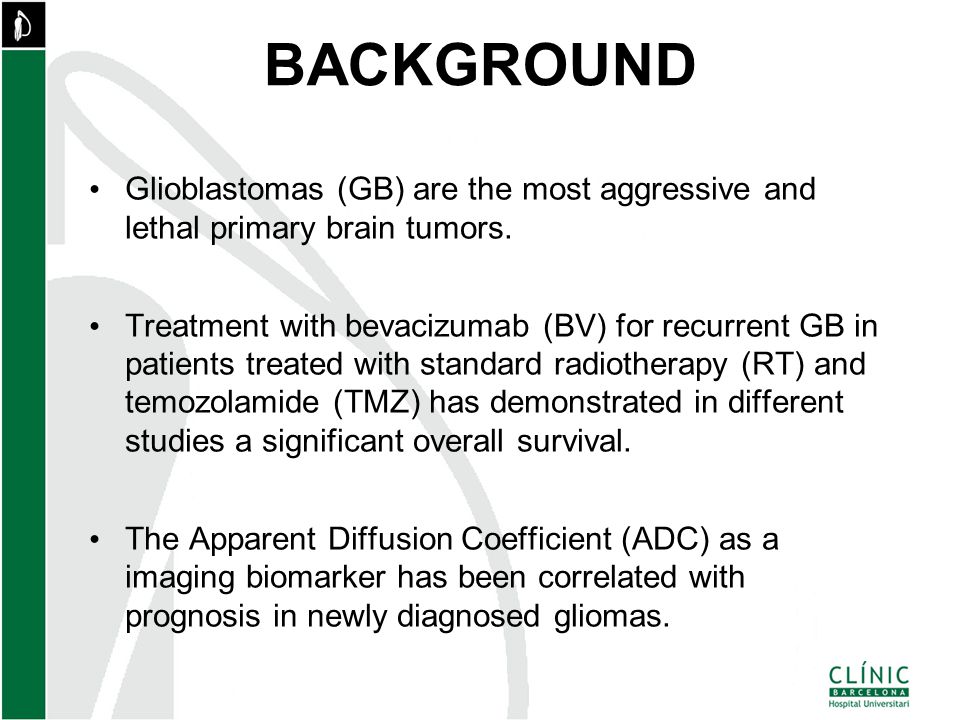

2 BACKGROUND Glioblastomas (GB) are the most aggressive and lethal primary brain tumors. Treatment with bevacizumab (BV) for recurrent GB in patients treated with standard radiotherapy (RT) and temozolamide (TMZ) has demonstrated in different studies a significant overall survival. The Apparent Diffusion Coefficient (ADC) as a imaging biomarker has been correlated with prognosis in newly diagnosed gliomas.

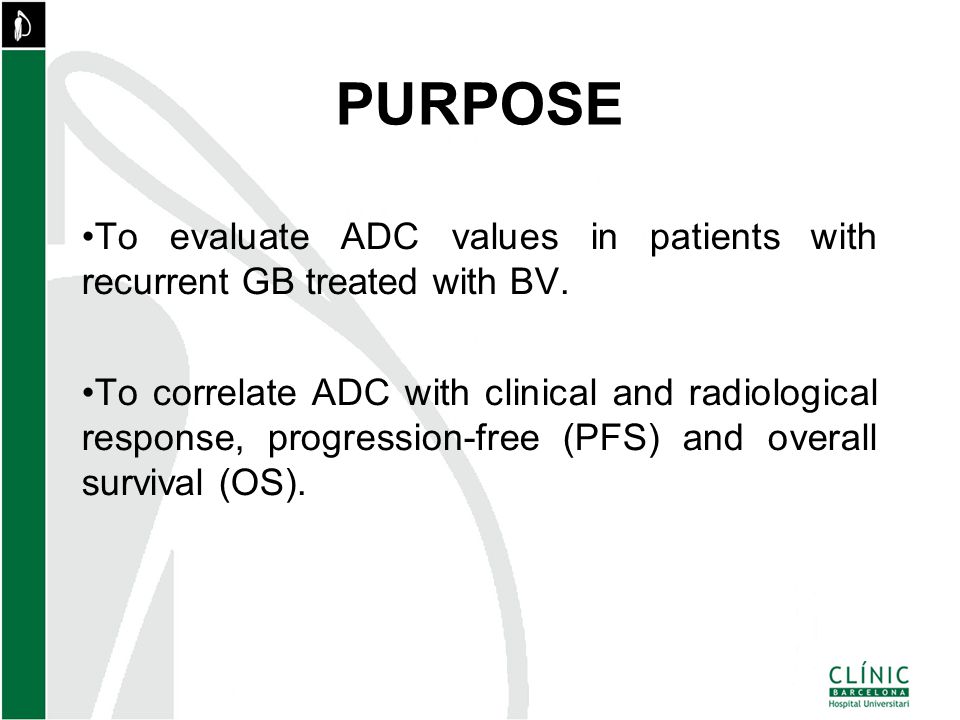

3 To evaluate ADC values in patients with recurrent GB treated with BV. To correlate ADC with clinical and radiological response, progression-free (PFS) and overall survival (OS). PURPOSE

4 MATERIAL AND METHODS PATIENTS Ten consecutive adult patients with proven recurrent or progressive GB after RT/ TMZ therapy determined by the RANO criteria and treated with BV, were enrolled. Clinical status was assessed using the Karnofsky Performance Scale (KPS).

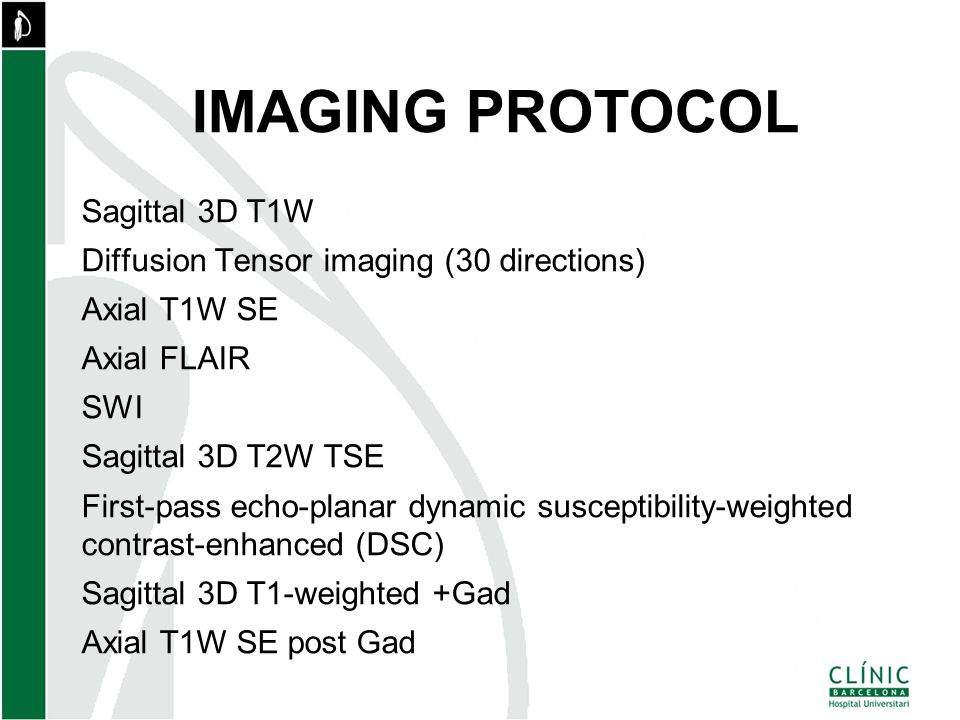

5 IMAGING PROTOCOL Sagittal 3D T1W Diffusion Tensor imaging (30 directions) Axial T1W SE Axial FLAIR SWI Sagittal 3D T2W TSE First-pass echo-planar dynamic susceptibility-weighted contrast-enhanced (DSC) Sagittal 3D T1-weighted +Gad Axial T1W SE post Gad

6 MR ASSESSMENT Both pre and first post BV MR were analyzed. The evaluation was performed by two experienced neuroradiologists active members of the multidisciplinary brain tumor board (LO y TP).

7

8 STATISTICAL ANALYSIS The correlation of the ADC value with the response to BV was evaluated using the Fisher’s exact test PFS and OS were correlated with the ADC values using Kaplan-Meier and log-rank test Statistical analyses were performed using the statistical package SPSS 17

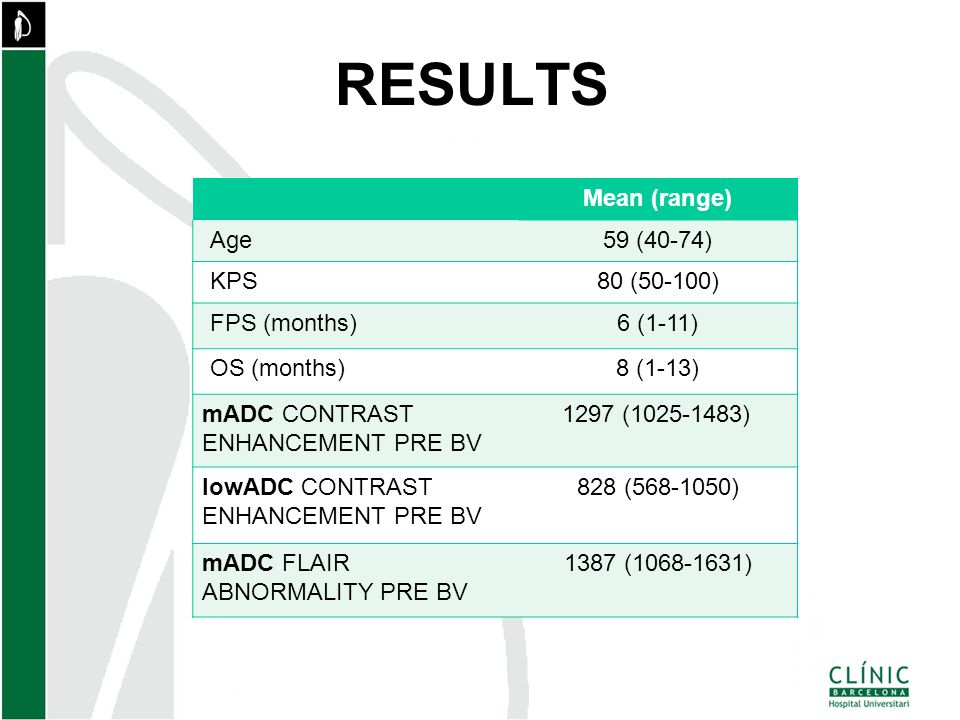

9 RESULTS Mean (range) Age59 (40-74) KPS80 (50-100) FPS (months)6 (1-11) OS (months)8 (1-13) mADC CONTRAST ENHANCEMENT PRE BV 1297 ( ) lowADC CONTRAST ENHANCEMENT PRE BV 828 ( ) mADC FLAIR ABNORMALITY PRE BV 1387 ( )

10

11

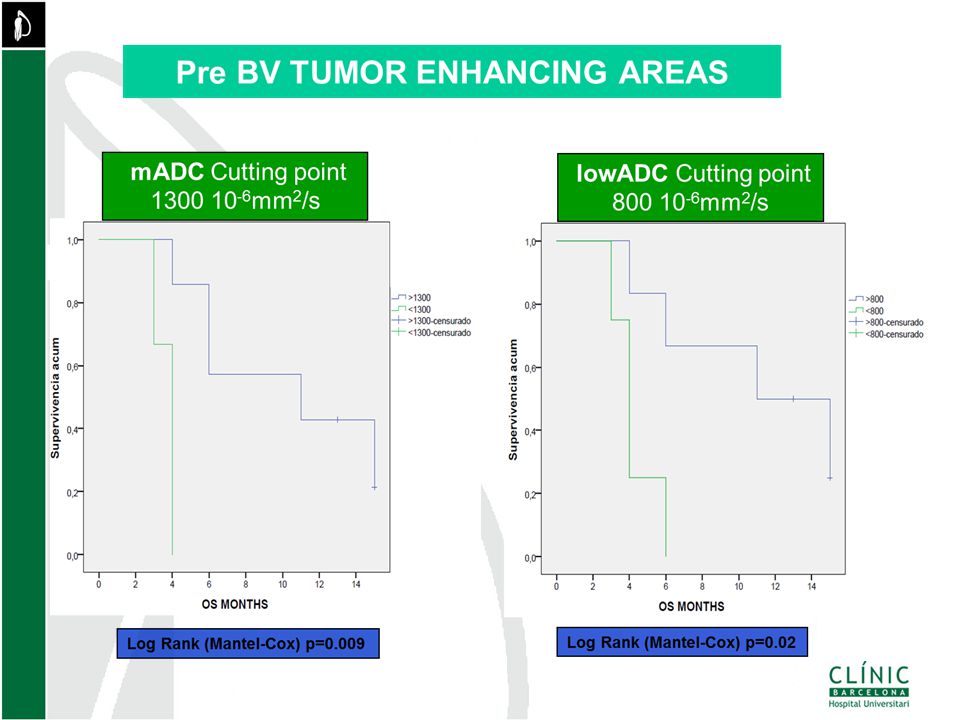

12 ADC VALUES AND PROGRESSION

13

14 CONCLUSIONS Patients with high ADC values (mADC> mm 2 /s and lowADC> mm 2 /s) in the pretreatment study show a higher OS, and can be useful to predict survival in patients with recurrent GB treated with bevacizumab. This is a preliminary study (working progress) and more patients should be included to confirm results.

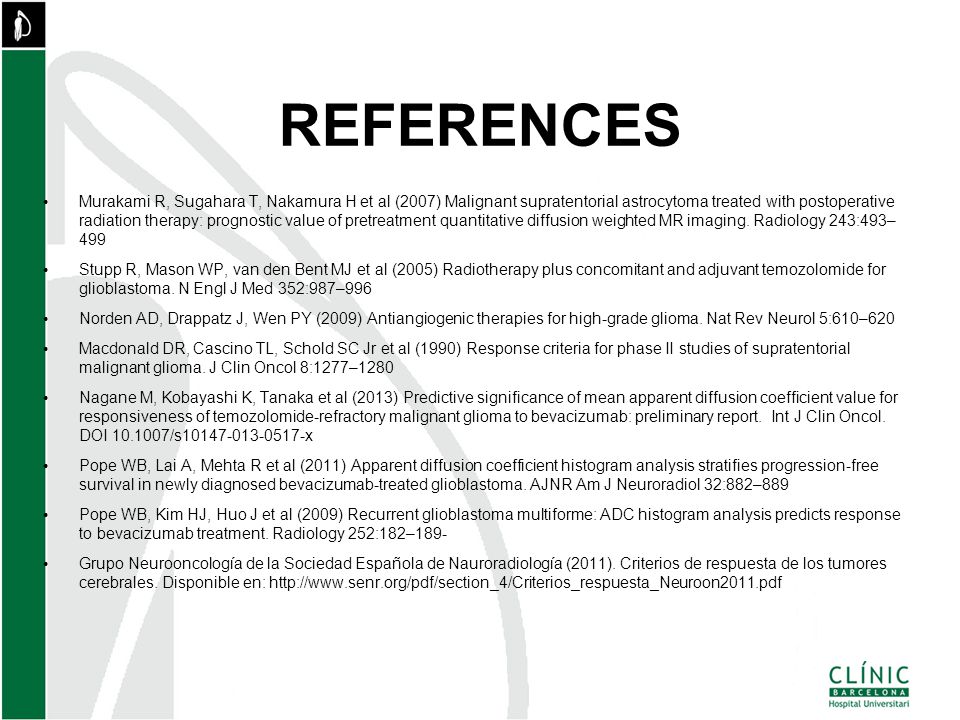

15 REFERENCES Murakami R, Sugahara T, Nakamura H et al (2007) Malignant supratentorial astrocytoma treated with postoperative radiation therapy: prognostic value of pretreatment quantitative diffusion weighted MR imaging. Radiology 243:493– 499 Stupp R, Mason WP, van den Bent MJ et al (2005) Radiotherapy plus concomitant and adjuvant temozolomide for glioblastoma. N Engl J Med 352:987–996 Norden AD, Drappatz J, Wen PY (2009) Antiangiogenic therapies for high-grade glioma. Nat Rev Neurol 5:610–620 Macdonald DR, Cascino TL, Schold SC Jr et al (1990) Response criteria for phase II studies of supratentorial malignant glioma. J Clin Oncol 8:1277–1280 Nagane M, Kobayashi K, Tanaka et al (2013) Predictive significance of mean apparent diffusion coefficient value for responsiveness of temozolomide-refractory malignant glioma to bevacizumab: preliminary report. Int J Clin Oncol. DOI /s x Pope WB, Lai A, Mehta R et al (2011) Apparent diffusion coefficient histogram analysis stratifies progression-free survival in newly diagnosed bevacizumab-treated glioblastoma. AJNR Am J Neuroradiol 32:882–889 Pope WB, Kim HJ, Huo J et al (2009) Recurrent glioblastoma multiforme: ADC histogram analysis predicts response to bevacizumab treatment. Radiology 252:182–189- Grupo Neurooncología de la Sociedad Española de Nauroradiología (2011). Criterios de respuesta de los tumores cerebrales. Disponible en:
