1 CE-Marking 2008 Technical Advisory Service

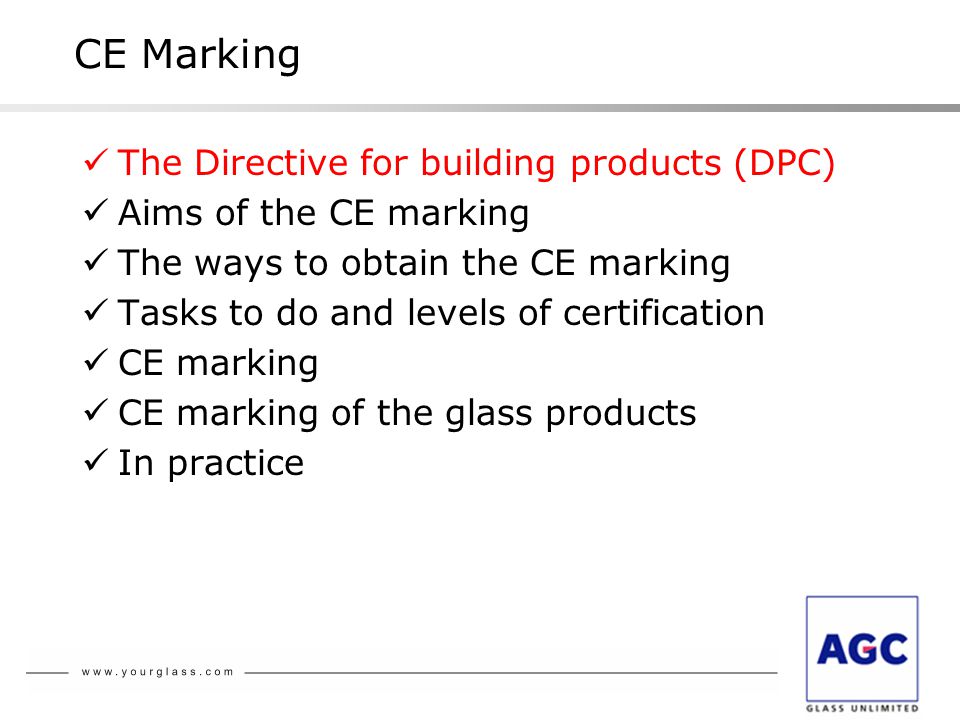

2 CE Marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

3 Directive « CPD » 89/106/CEE 6 essential requirements : -mechanical resistance and stability -safety in case of fire -hygiene, health, environment -safety in use -sound protection -energy insulation Glass Mandate to draft EN standards (TC 129 : glass in building) European Open market (1975) Same product evaluation base in Europe The Directive for building products (DPC)

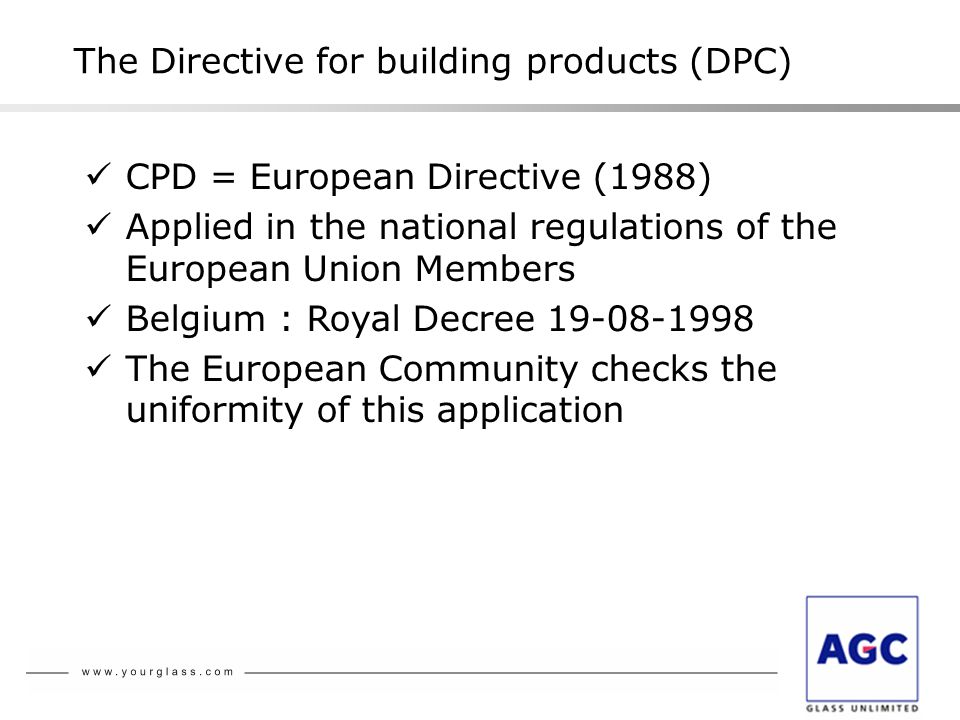

4 CPD = European Directive (1988) Applied in the national regulations of the European Union Members Belgium : Royal Decree The European Community checks the uniformity of this application The Directive for building products (DPC)

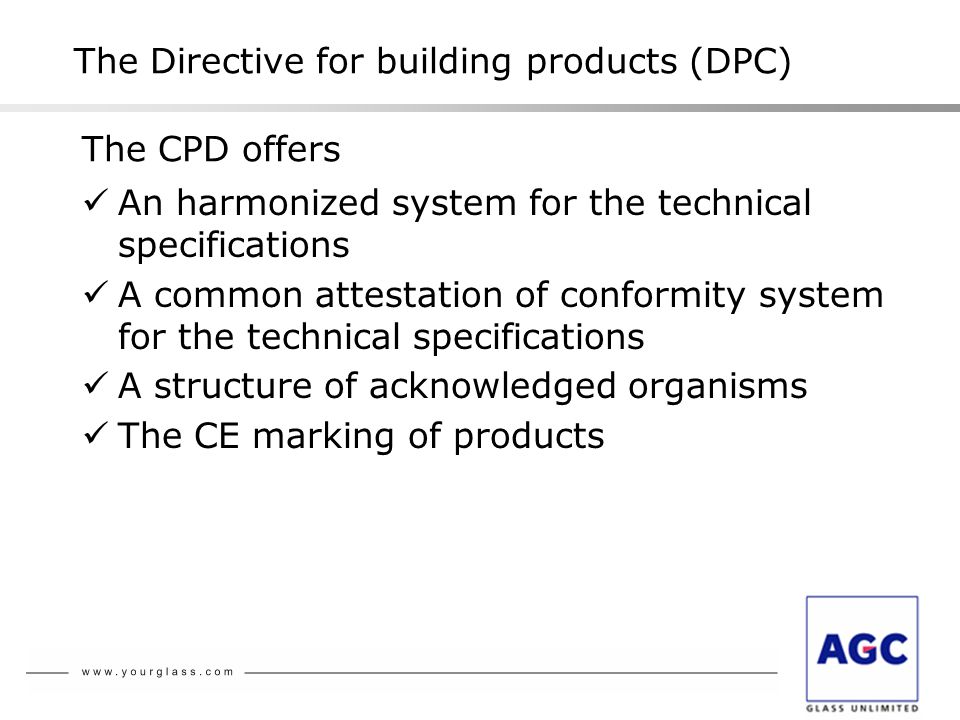

5 The CPD offers An harmonized system for the technical specifications A common attestation of conformity system for the technical specifications A structure of acknowledged organisms The CE marking of products The Directive for building products (DPC)

6 The CE Marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

7 What is CE marking ? Official definitifion: the CE marking represents the fact that a product is accurate with all the DPC applications regulations Pratical definition: a passport allowing the product to go over all european borders Aims of the CE Marking

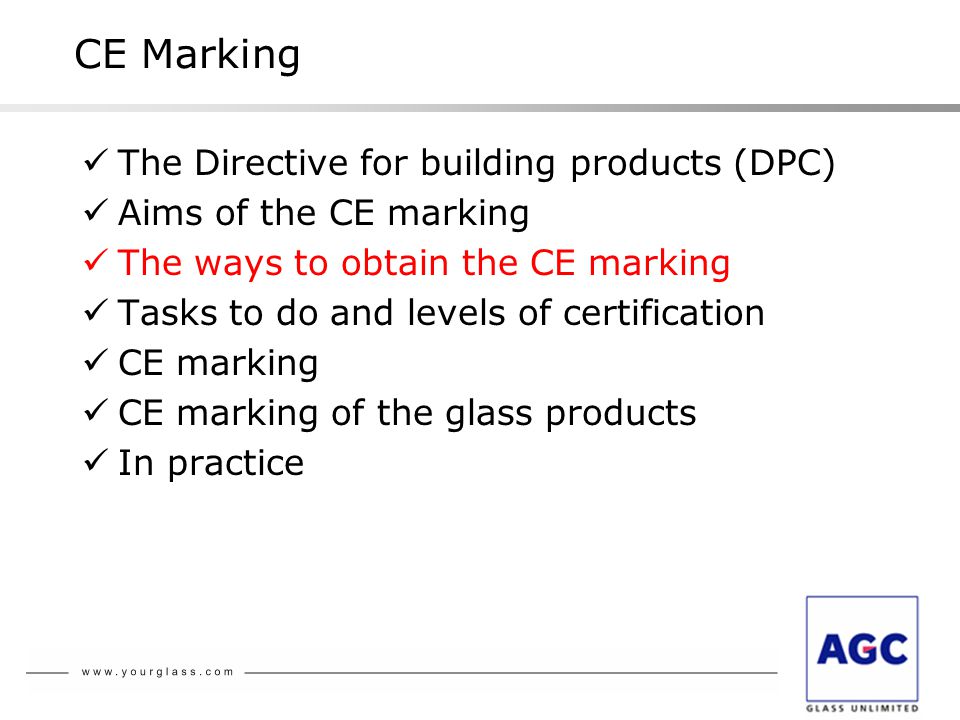

8 CE Marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

9 CE Marking Transposition into national laws Harmonized standards Mandates for CEN CE Marking (ETAG) National procedure for ETA Transposition into national laws ETAG guides Mandates for EOTA CE Marking Interpretative Documents CPD transposition in the national laws for basic principles and structures The ways to obtain the CE marking CUAP (EOTA)

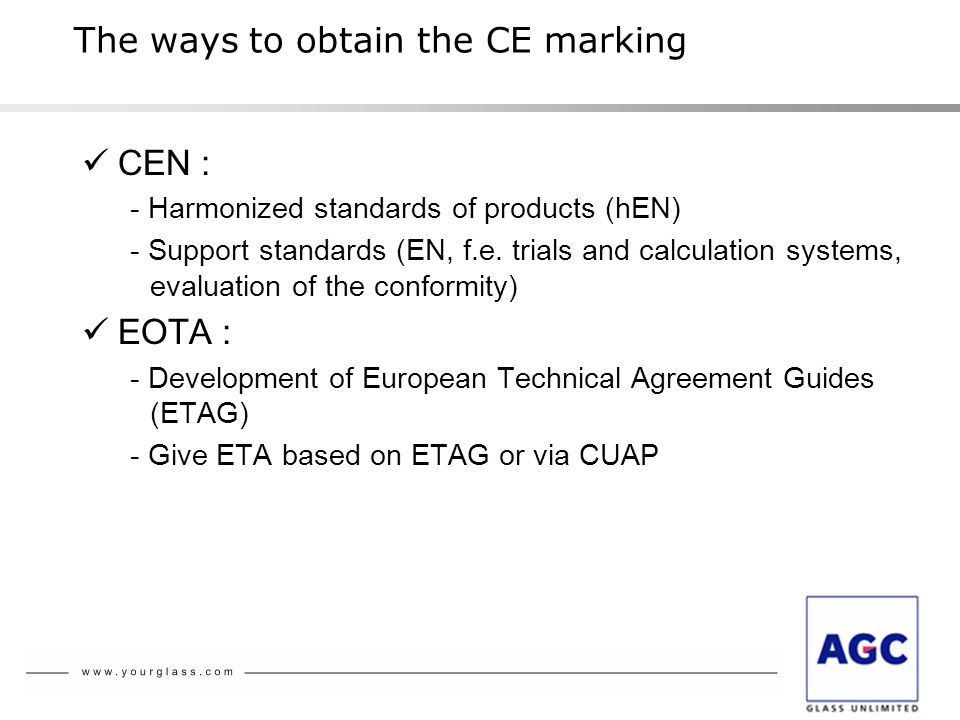

10 CEN : - Harmonized standards of products (hEN) - Support standards (EN, f.e. trials and calculation systems, evaluation of the conformity) EOTA : - Development of European Technical Agreement Guides (ETAG) - Give ETA based on ETAG or via CUAP The ways to obtain the CE marking

11 The CE Marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

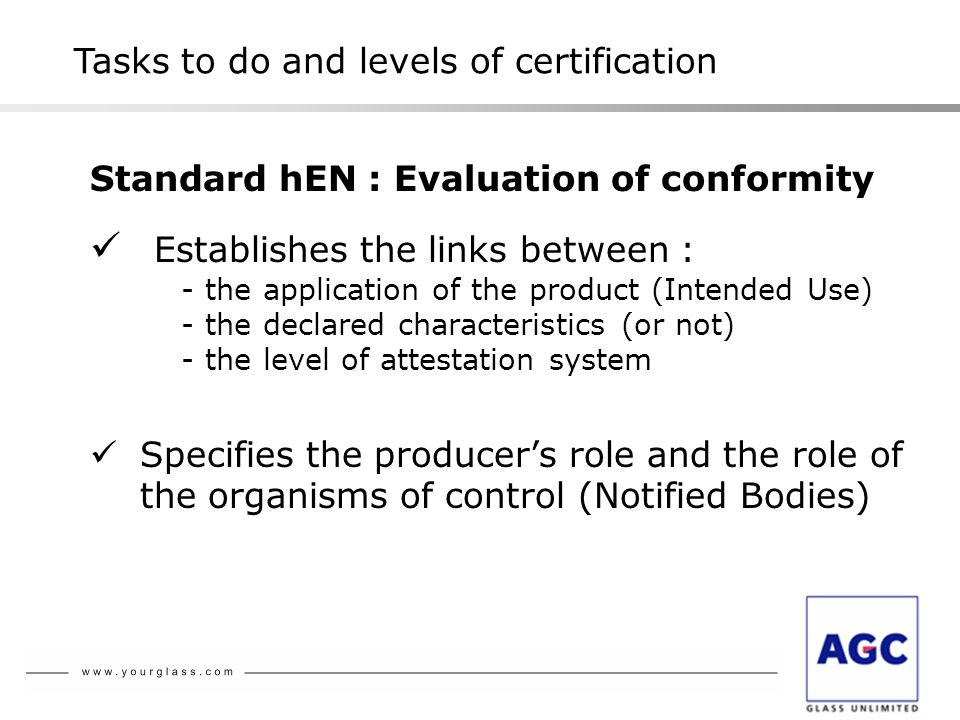

12 Standard hEN : Evaluation of conformity Establishes the links between : - the application of the product (Intended Use) - the declared characteristics (or not) - the level of attestation system Specifies the producer’s role and the role of the organisms of control (Notified Bodies) Tasks to do and levels of certification

13 Standard hEN : Evaluation of conformity Defines the Initial Type Test and the way of establishing the conformity of the manufactured product Defines the Factory Production Control Contains the Appendix ZA which becomes obligatory after the edition of the Official Paper and gives practical details of the CE Marking Tasks to do and levels of certification

14 Initial type testing (evaluation) Test on manufactured samples Audit test on samples Internal control of production Initial inspection of manufacturing and internal control by a notified body Continuous supervision, evaluation and judgement of the internal control of manufacturing by a notified body Tasks to do Tasks to do and levels of certification

15 4 levels of certification are foreseen According to the level, the tasks to be done by the notified body are more or less important Tasks to do and levels of certification Levels of certification

16 Tasks to do and levels of certification Tasks for the producer 1. Factory Production Control (FPC) yes 2. Test on samples yes xxx 3. Initial Type Testing (ITT) xxyes x Tasks for the notified body 4. Initial Type Testing (ITT) yes xx x 5. Initial inspecion of FPC yes xx 6. Inspection of FPC yes xxx 7. Test on samples from the factory yesxxxxx

17 Notified body Organism of certification, inspection and test laboratory approved by a state member of the E.U. for a specific work Notified by a state member of the EU Published by the European Committee Tasks to do and levels of certification

18 The CE Marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

19 The CE Marking Represents the fact that the product fulfils the DPC’s requirements, as mentioned in the different harmonized standards or the ETA’s Indicates that the product has been properly evaluated regarding the conformity contained in the CPD

20 0123 CE Sign of conformity Identification of the notified organism Any Company The registered address Any Factory Year CPD-0456 EN CEM I 42,5R Identification of the producer Registered address of the producer Name or identification of the plant of manufacturing Year Identification of the certificate of conformity Reference of the European Standard Type and class of the product The CE Marking Datas to indicate

21 Apposition of the CE Marking How ? - Visibly - Readable - In order to be indelebile Where ? - Directly on the product - On a fixed label - On the packaging - On the commercial delivery documents -On a website The CE Marking

22 The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice

23 CEN TC 129 «Glass in Building» –Deals about the usual glass products –Harmonized standards of products (evaluation of the conformity) –Support standards (product description, test and calculation systems) CE Marking of the glass products

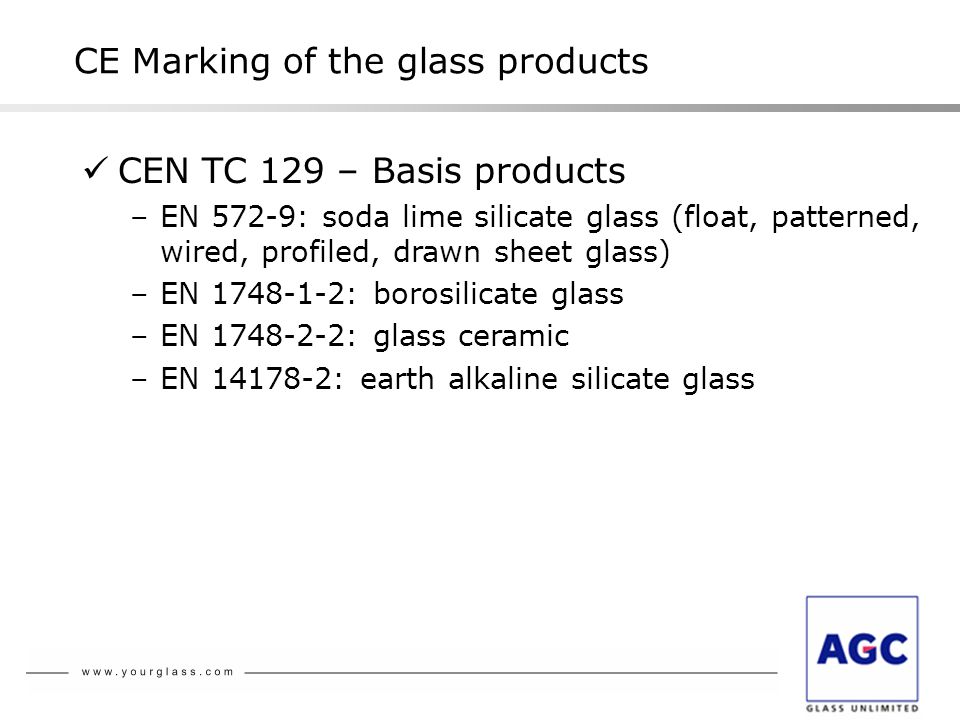

24 CEN TC 129 – Basis products –EN 572-9: soda lime silicate glass (float, patterned, wired, profiled, drawn sheet glass) –EN : borosilicate glass –EN : glass ceramic –EN : earth alkaline silicate glass CE Marking of the glass products

25 CEN TC 129 – Reinforced products –EN : thermally toughened soda lime silicate safety glass –EN : chemically strenghened soda lime silicate glass –EN : heat strenghened soda lime silicate glass –EN : Heat Soaked thermally toughened soda lime silicate safety glass –EN : thermally toughened boro silicate safety glass –EN : thermally toughened alkaline earth silicate safety glass CE Marking of the glass products

26 CEN TC 129 – Laminated glass –EN 14449: Laminated glass and safety glass CE Marking of the glass products CEN TC 129 – Insulating glass –EN : Insulating glass unit CEN TC 129 – Coated glass –EN : Coated glass

27 CEN TC 129 – Mirrors –EN : Mirrors from silver-coated float glass for internal use CE Marking of the glass products CEN TC 129 – Glass blocks –EN : Glass blocks and glass paver units

28 CE Marking of the glass products

29

30 EOTA –ETAG 002 «Structural sealant glazing» CE Marking of the glass products

31 CE marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice –Communication of 13 characteristics –ITT and test reports

32 In practice AGC Flat Glass Europe must communicate about the products: First part of the information is on the product labels The 13 glass characteristics are available on the website (available for everybody)

33

34 In practice YourGlass - PDF files YourGlass - Product Finder YourGlass – Glass Configurator

35 In practice

36

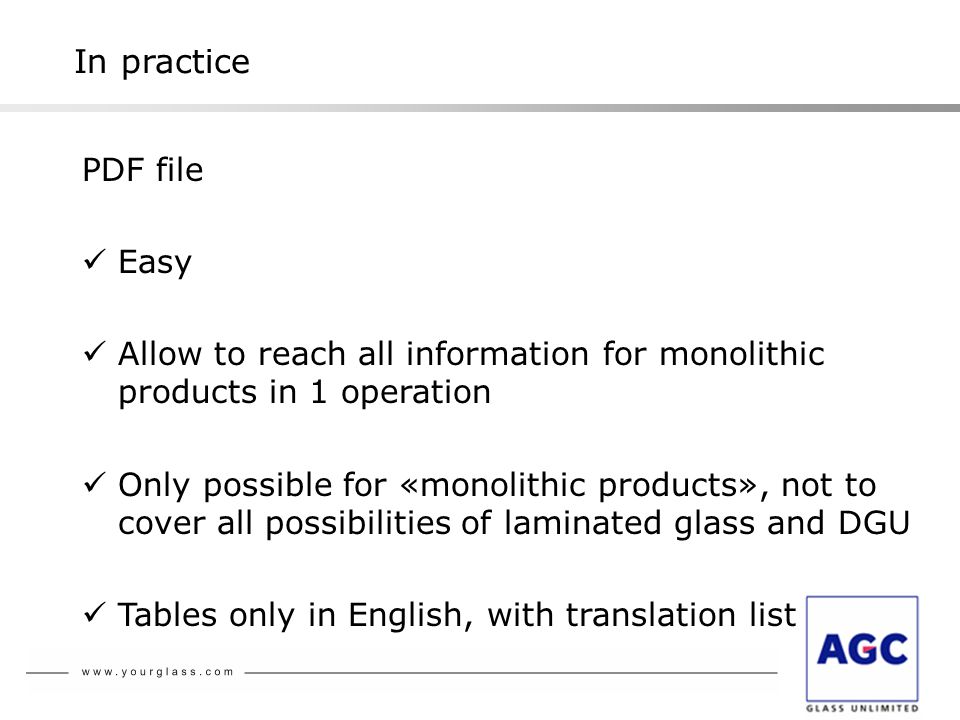

37 PDF file Easy Allow to reach all information for monolithic products in 1 operation Only possible for «monolithic products», not to cover all possibilities of laminated glass and DGU Tables only in English, with translation list

38 In practice YourGlass - PDF files YourGlass - Product Finder YourGlass – Glass Configurator

39 In practice

40

41

42

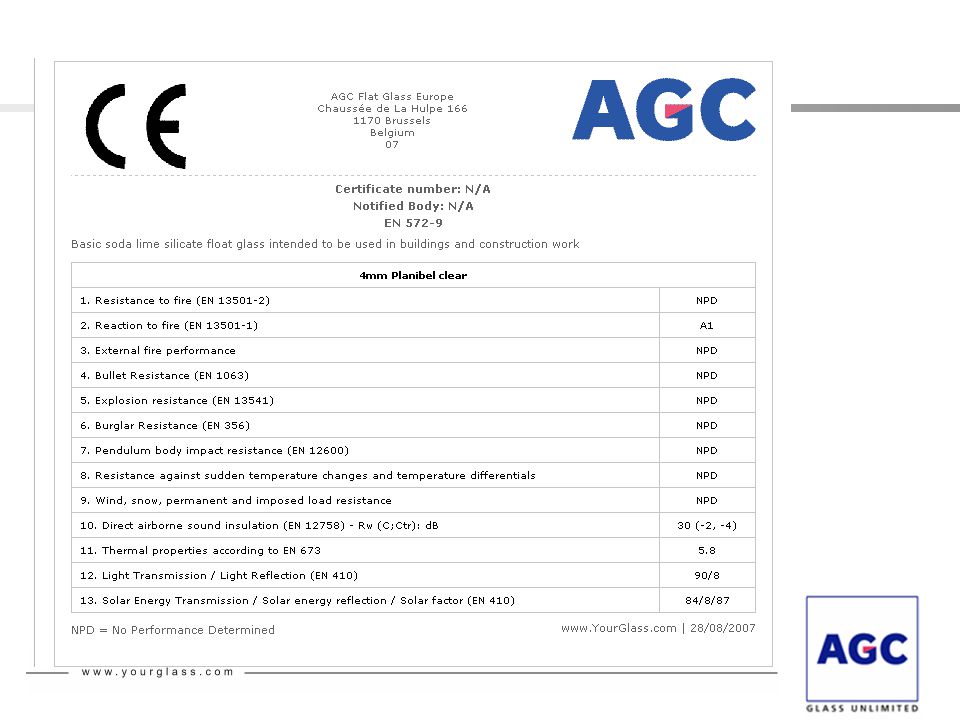

43 Product Finder Allow to print a datasheet for 1 specific product Available in 22 languages In practice

44 YourGlass - PDF files YourGlass - Product Finder YourGlass – Glass Configurator

45 In practice

46 Marquage CE

47 In practice YourGlass - PDF files YourGlass - Product Finder YourGlass – Glass Configurator

48 CE marking The Directive for building products (DPC) Aims of the CE marking The ways to obtain the CE marking Tasks to do and levels of certification CE marking CE marking of the glass products In practice –Communication of 13 characteristics –ITT and test reports

49 In practice ITT are in the button «Quality».

50 In practice

51 Performances certificates are in the button «Quality» or «Certificates».

52 In practice

53 ITT et test reports The test reports and the certificates of performances are available on the website only for AGC people It is internal information It is necessary to use his password to acces to these reports In practice
