1
OWL - DL

2
DL System A knowledge base (KB) comprises two components, the TBox and the ABox The TBox introduces the terminology, i.e., the vocabulary of an application domain, The ABox contains assertions about named individuals in terms of this vocabulary.

3
vocabulary The vocabulary consists of concepts, which denote sets of individuals, and roles, which denote binary relationships between individuals. DL systems allow their users to build complex descriptions of concepts and roles by using atomic concepts and roles The TBox can be used to assign names to complex descriptions.

4

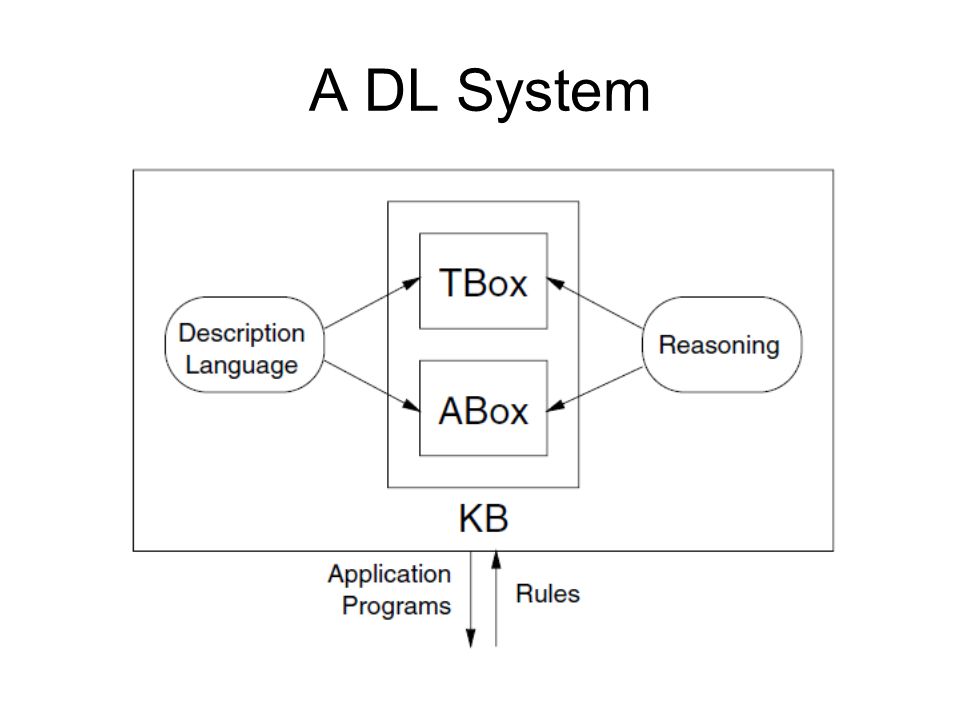

A DL System

5
Another representation..

6

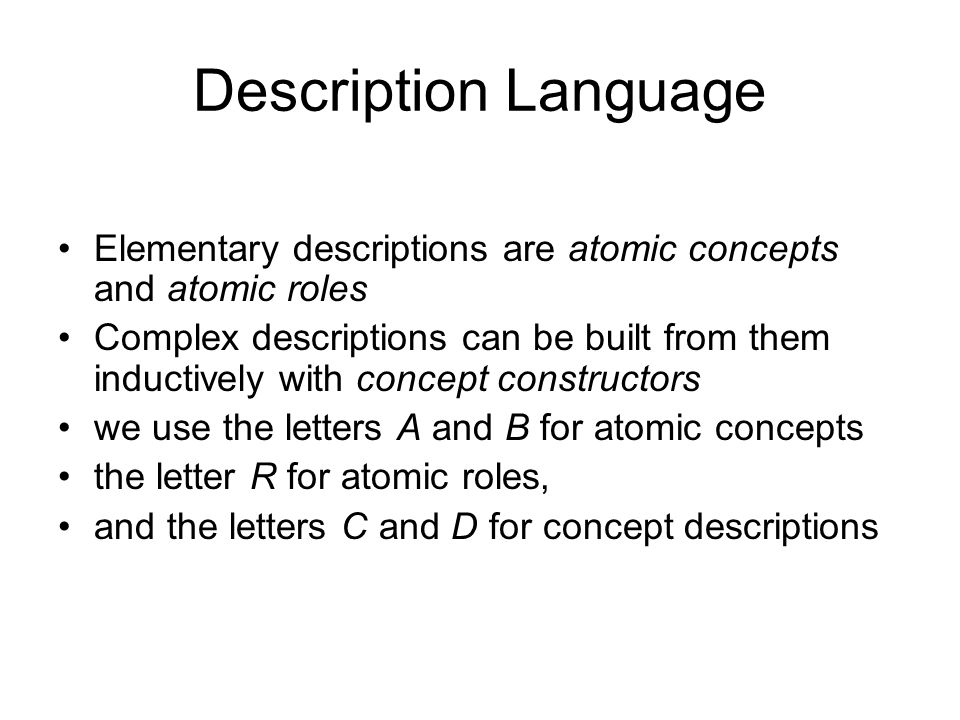

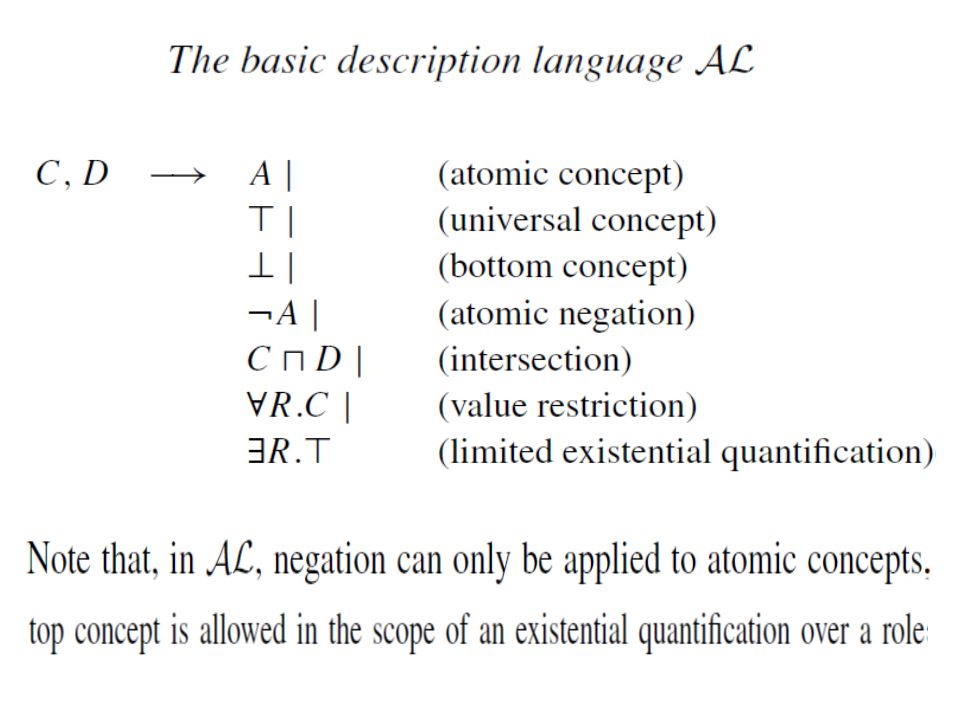

Description Language Elementary descriptions are atomic concepts and atomic roles Complex descriptions can be built from them inductively with concept constructors we use the letters A and B for atomic concepts the letter R for atomic roles, and the letters C and D for concept descriptions

8
Examples

9

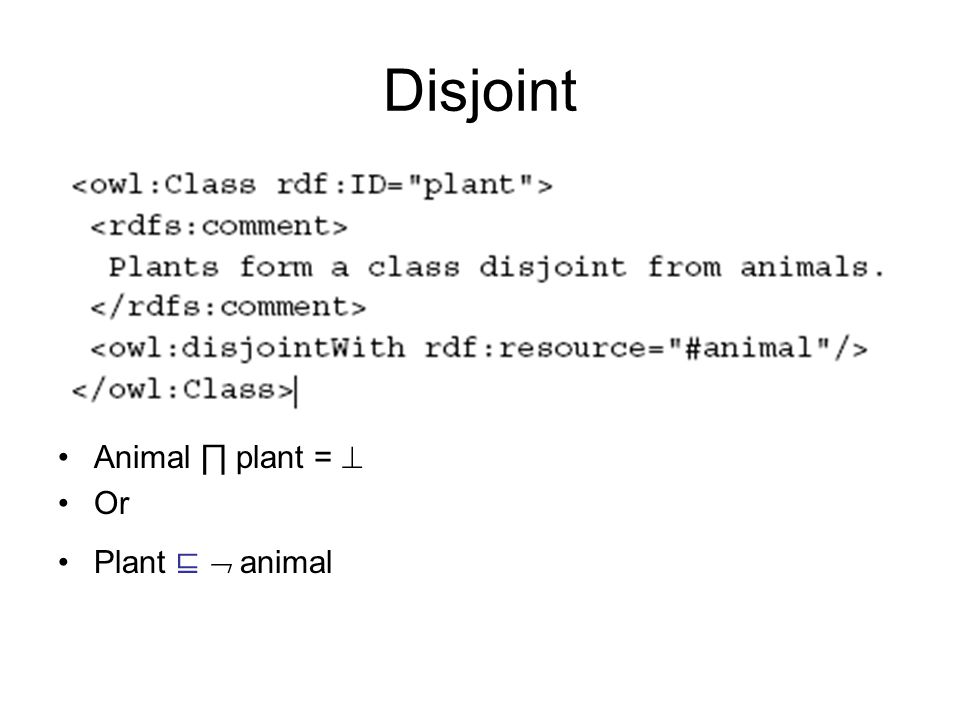

Disjoint Animal ∏ plant = Or Plant ⊑ animal

10
subsumtion Tree ⊑ plant

11
All values from Branch ⊑ Is_part_of.tree

12

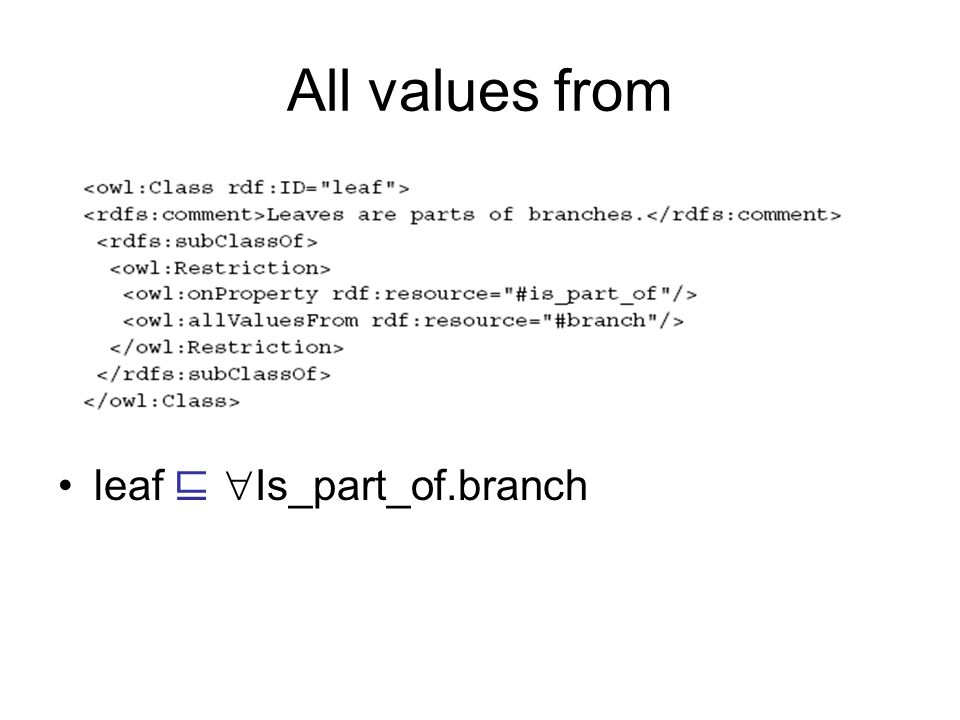

All values from leaf ⊑ Is_part_of.branch

13
All values from, role union Herbivors=animals ∏ eats.(plant U is_part_of.plant )

14
Some values from Carnivore = animal ∏ eats.animal

15
giraffe = herbivores ∏ eats.leaf

16

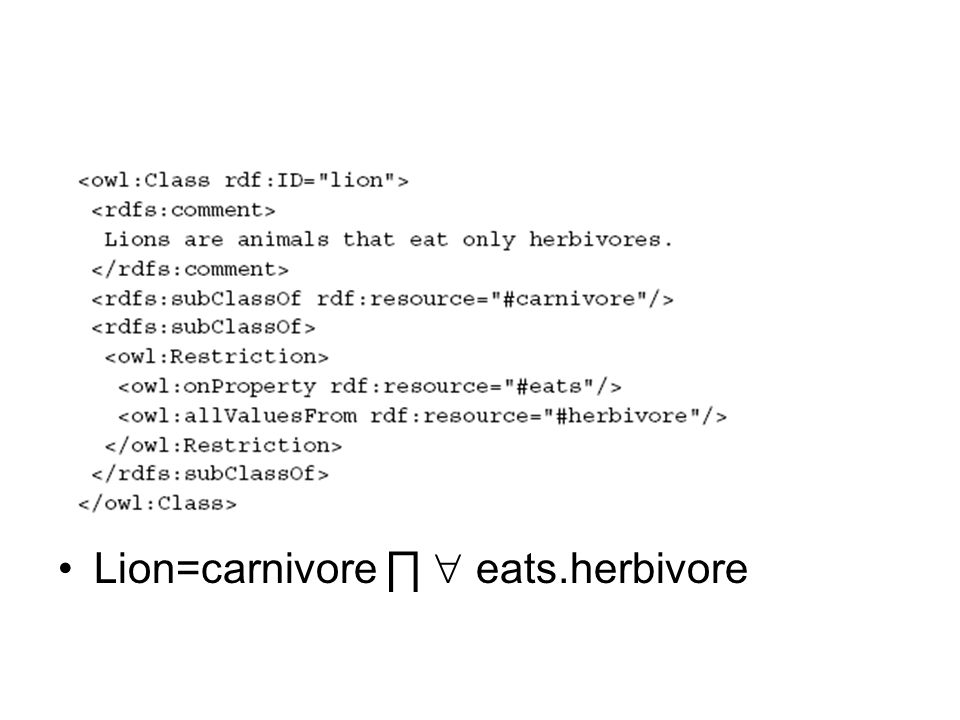

Lion=carnivore ∏ eats.herbivore

17

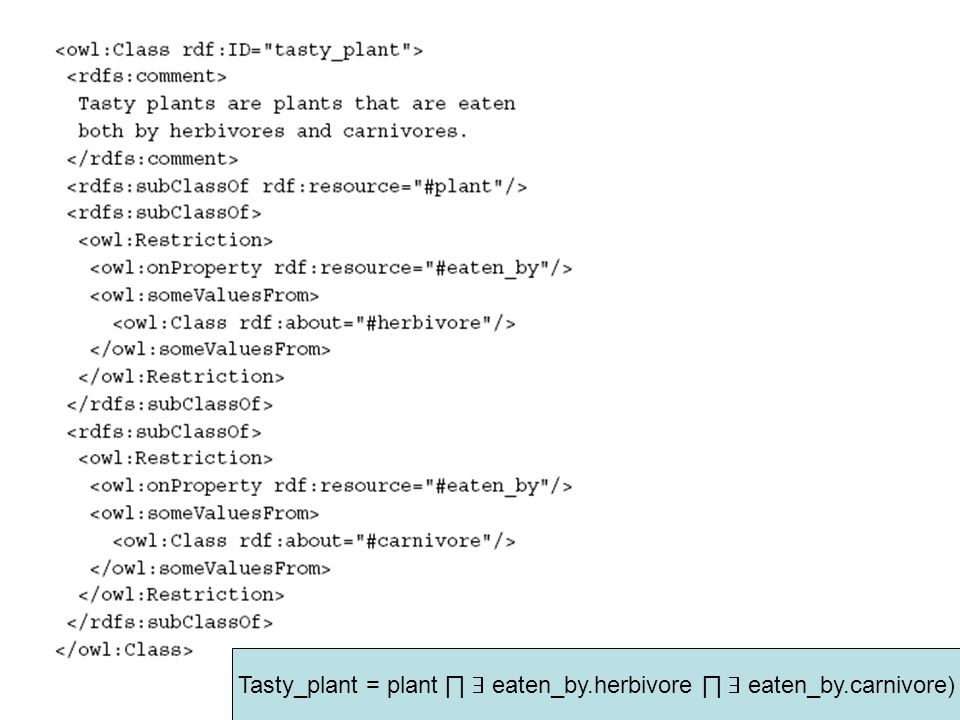

Tasty_plant = plant ∏ eaten_by.herbivore ∏ eaten_by.carnivore)

18
Back to DL

19
Suppose that Person and Female are atomic concepts those persons that are female Those that are not female suppose that hasChild is an atomic role, those persons that have a child those persons all of whose children are female those persons without a child

21
there is a set of objects that are Trees and a binary relation has-branch between objects that leads from a tree to its subtrees. Then the binary trees are the trees with at most two subtrees that are themselves binary trees:

22
A world description (ABox).

23

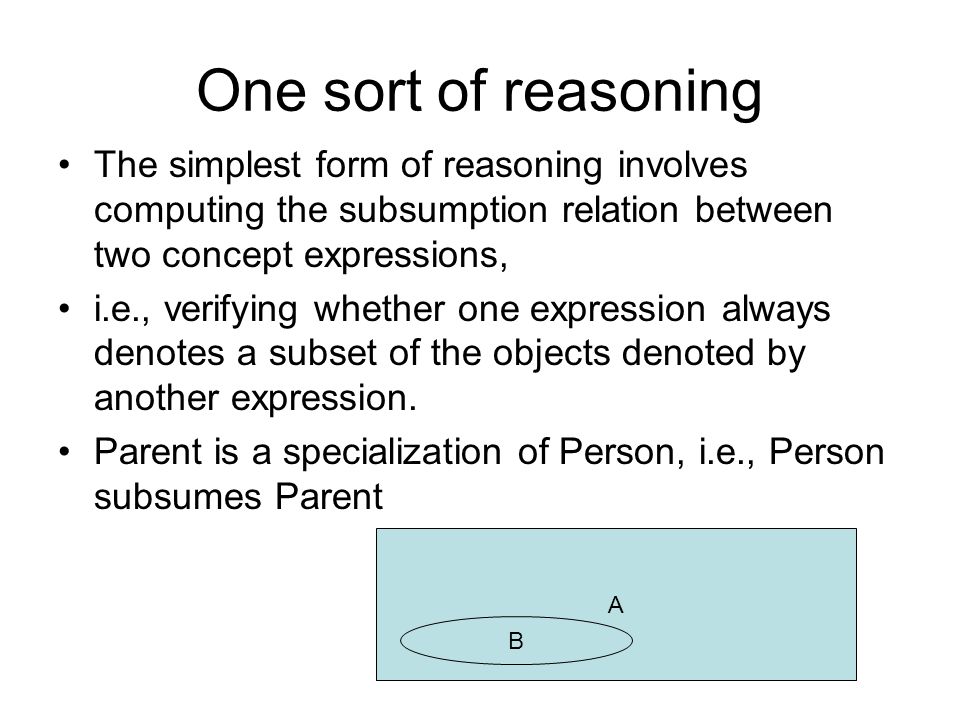

One sort of reasoning The simplest form of reasoning involves computing the subsumption relation between two concept expressions, i.e., verifying whether one expression always denotes a subset of the objects denoted by another expression. Parent is a specialization of Person, i.e., Person subsumes Parent A B

24
Another sort of reasoning A more complex reasoning task consists in checking whether a certain assertion is logically implied by a knowledge base. For example, Bill is an instance of Parent.

26

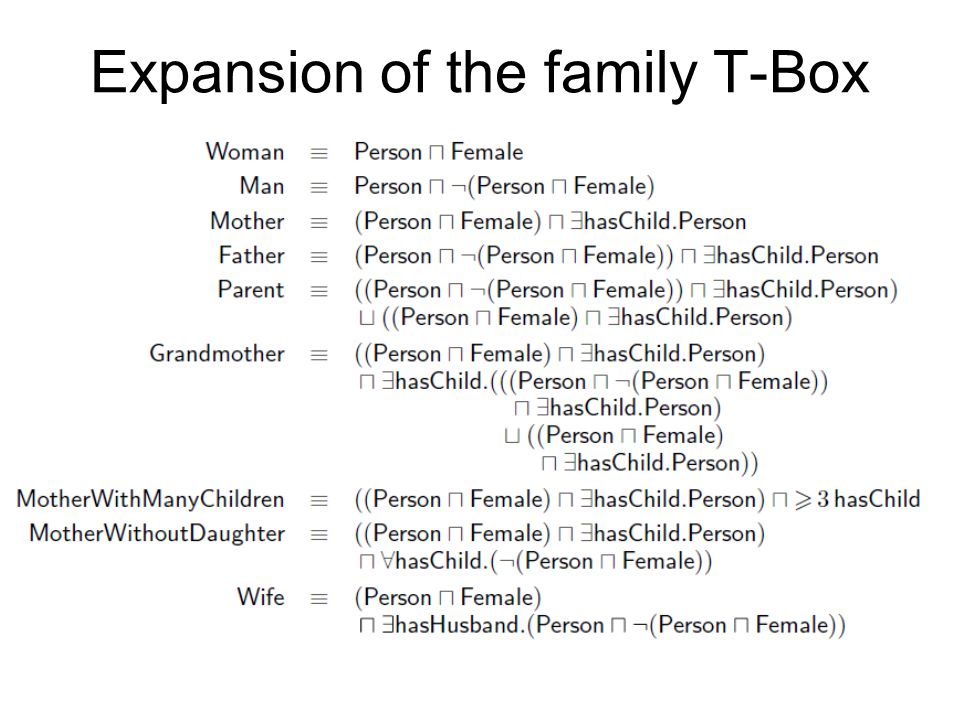

Expansion of the family T-Box

28
ABox

29
Owl-DL Constructs

30
Owl-DL Axioms

31
Reasoning

32
Inference

34
DL Inferences

35
Structural Subsumption Normalize descriptions Compare syntactical structure of normal forms

36

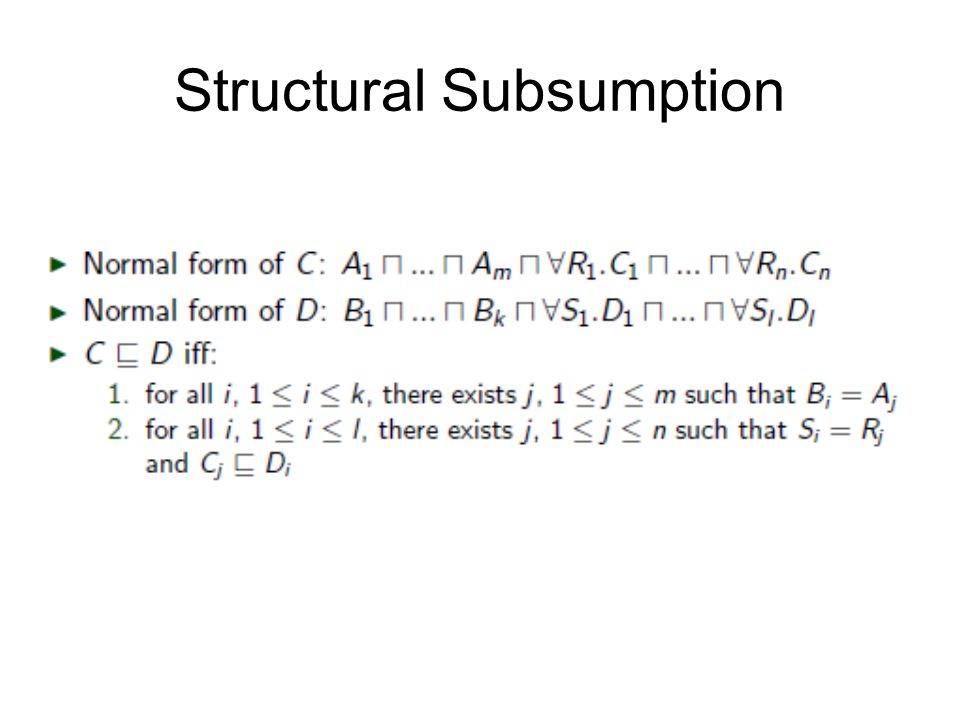

Structural Subsumption

38
Example: Structural Subsumption

39
More expressive DLs

41
Negation Normal Form (NNF) Example

42

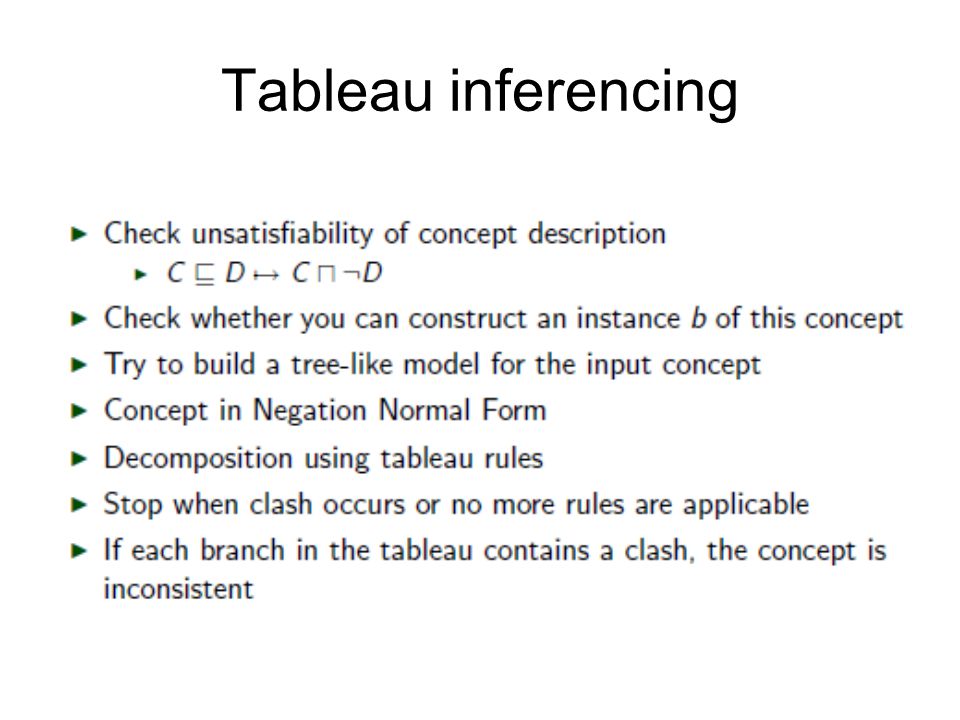

Tableau inferencing

43
Tableau

44
Transformation rules Example

45
Example - Tableau Proof

46
Mad Cow Example
