MODEL ERROR ESTIMATION Cooperative Institute for Research in the Atmosphere Research Benefits to NOAA:This is a novel research approach, providing an optimal.

Similar presentations


Presentation on theme: "MODEL ERROR ESTIMATION Cooperative Institute for Research in the Atmosphere Research Benefits to NOAA:This is a novel research approach, providing an optimal."— Presentation transcript:

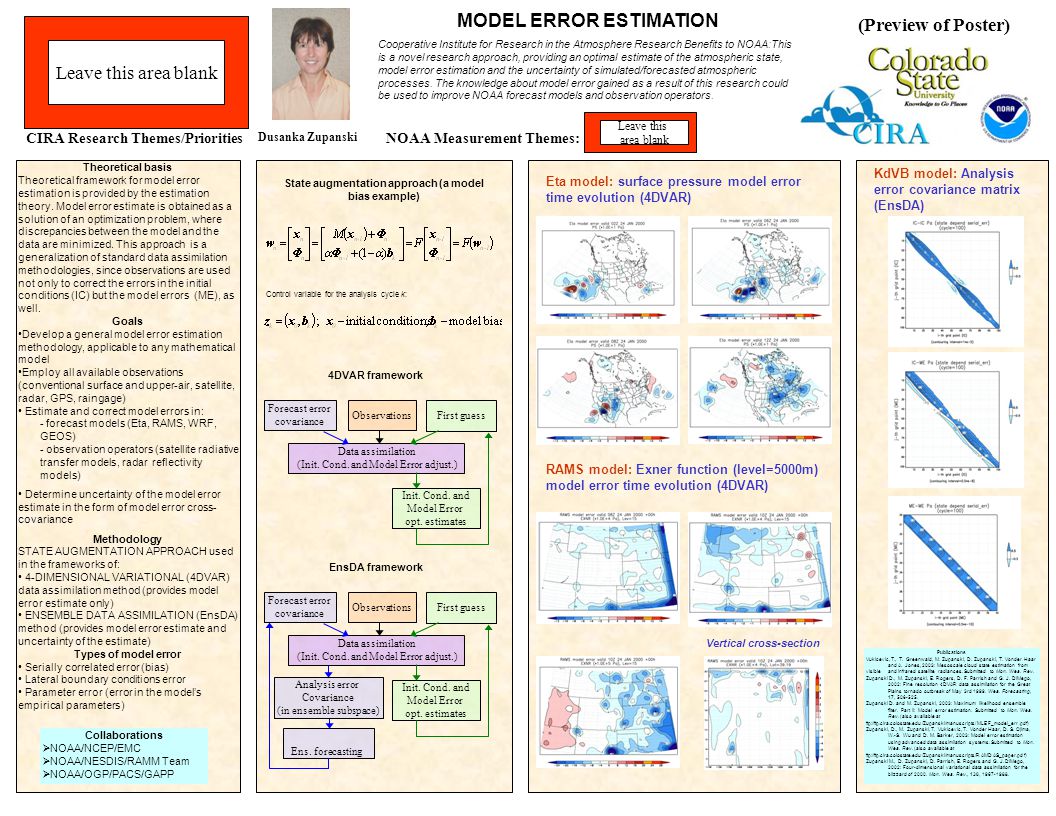

1 MODEL ERROR ESTIMATION Cooperative Institute for Research in the Atmosphere Research Benefits to NOAA:This is a novel research approach, providing an optimal estimate of the atmospheric state, model error estimation and the uncertainty of simulated/forecasted atmospheric processes. The knowledge about model error gained as a result of this research could be used to improve NOAA forecast models and observation operators. Theoretical basis Theoretical framework for model error estimation is provided by the estimation theory. Model error estimate is obtained as a solution of an optimization problem, where discrepancies between the model and the data are minimized. This approach is a generalization of standard data assimilation methodologies, since observations are used not only to correct the errors in the initial conditions (IC) but the model errors (ME), as well. Goals Develop a general model error estimation methodology, applicable to any mathematical model Employ all available observations (conventional surface and upper-air, satellite, radar, GPS, raingage) Estimate and correct model errors in: - forecast models (Eta, RAMS, WRF, GEOS) - observation operators (satellite radiative transfer models, radar reflectivity models) Determine uncertainty of the model error estimate in the form of model error cross- covariance Methodology STATE AUGMENTATION APPROACH used in the frameworks of: 4-DIMENSIONAL VARIATIONAL (4DVAR) data assimilation method (provides model error estimate only) ENSEMBLE DATA ASSIMILATION (EnsDA) method (provides model error estimate and uncertainty of the estimate) Types of model error Serially correlated error (bias) Lateral boundary conditions error Parameter error (error in the model’s empirical parameters) Publications Vukicevic, T., T. Greenwald, M. Zupanski, D. Zupanski, T. Vonder Haar and A. Jones, 2003: Mesoscale cloud state estimation from visible and infrared satellite radiances. Submitted to Mon. Wea. Rev. Zupanski D., M. Zupanski, E. Rogers, D. F. Parrish and G. J. DiMego, 2002: Fine resolution 4DVAR data assimilation for the Great Plains tornado outbreak of May 3rd Wea. Forecasting, 17, Zupanski D. and M. Zupanski, 2003: Maximum likelihood ensemble filter. Part II: Model error estimation. Submitted to Mon. Wea. Rev. (also available at ftp://ftp.cira.colostate.edu/Zupanski/manuscripts/MLEF_model_err.pdf) Zupanski, D., M. Zupanski, T. Vukicevic, T. Vonder Haar, D. S. Ojima, W.-S. Wu and D. M. Barker, 2003: Model error estimation using advanced data assimilation systems. Submitted to Mon. Wea. Rev. (also available at ftp://ftp.cira.colostate.edu/Zupanski/manuscripts/RAMDAS_paper.pdf) Zupanski M., D. Zupanski, D. Parrish, E. Rogers and G. J. DiMego, 2002: Four-dimensional variational data assimilation for the blizzard of Mon. Wea. Rev., 130, Collaborations  NOAA/NCEP/EMC  NOAA/NESDIS/RAMM Team  NOAA/OGP/PACS/GAPP Dusanka Zupanski NOAA Measurement Themes:CIRA Research Themes/Priorities (Preview of Poster) Leave this area blank Leave this area blank Forecast error covariance Data assimilation (Init. Cond. and Model Error adjust.) Observations First guess Init. Cond. and Model Error opt. estimates Ens. forecasting Analysis error Covariance (in ensemble subspace) EnsDA framework State augmentation approach (a model bias example) Control variable for the analysis cycle k: 4DVAR framework Forecast error covariance Data assimilation (Init. Cond. and Model Error adjust.) Observations First guess Init. Cond. and Model Error opt. estimates Eta model: surface pressure model error time evolution (4DVAR) RAMS model: Exner function (level=5000m) model error time evolution (4DVAR) Vertical cross-section KdVB model: Analysis error covariance matrix (EnsDA)


Download ppt "MODEL ERROR ESTIMATION Cooperative Institute for Research in the Atmosphere Research Benefits to NOAA:This is a novel research approach, providing an optimal."
