INTERN BASICS Acid-Base August 9, 2005 Jeremy Marcus MD

2
ACID BASE – Why it’s “hard” -It’s Math -Everyone does it differently -Everyone thinks they know the “best” way to do it and/or teach it -Emphasis on numbers instead of clinical correlation

3

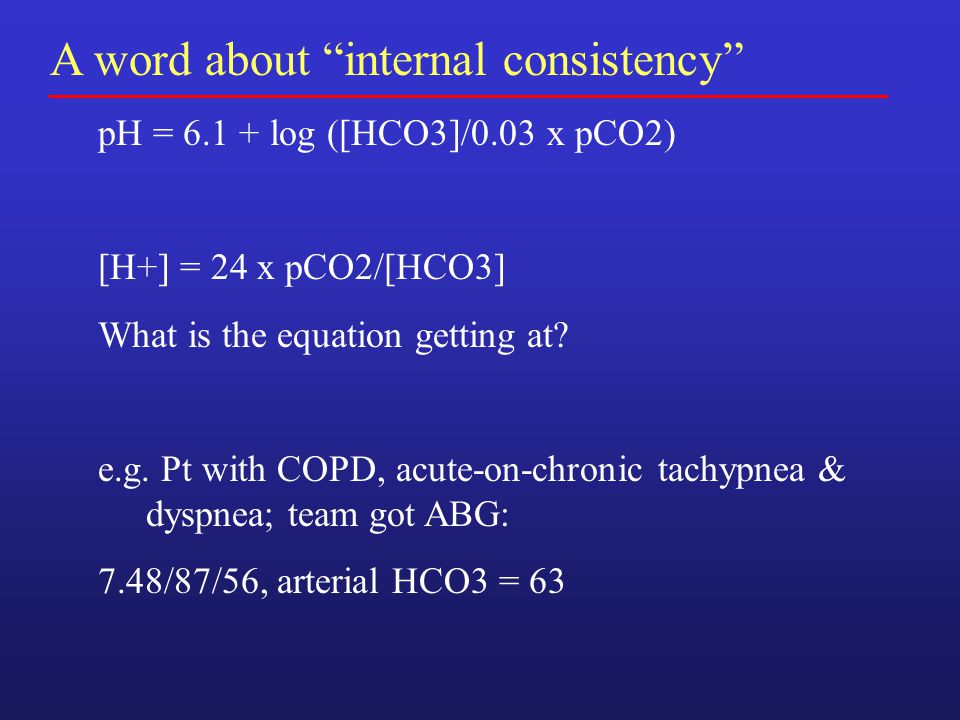

A word about “internal consistency” pH = 6.1 + log ([HCO3]/0.03 x pCO2) [H+] = 24 x pCO2/[HCO3] What is the equation getting at? e.g. Pt with COPD, acute-on-chronic tachypnea & dyspnea; team got ABG: 7.48/87/56, arterial HCO3 = 63

4

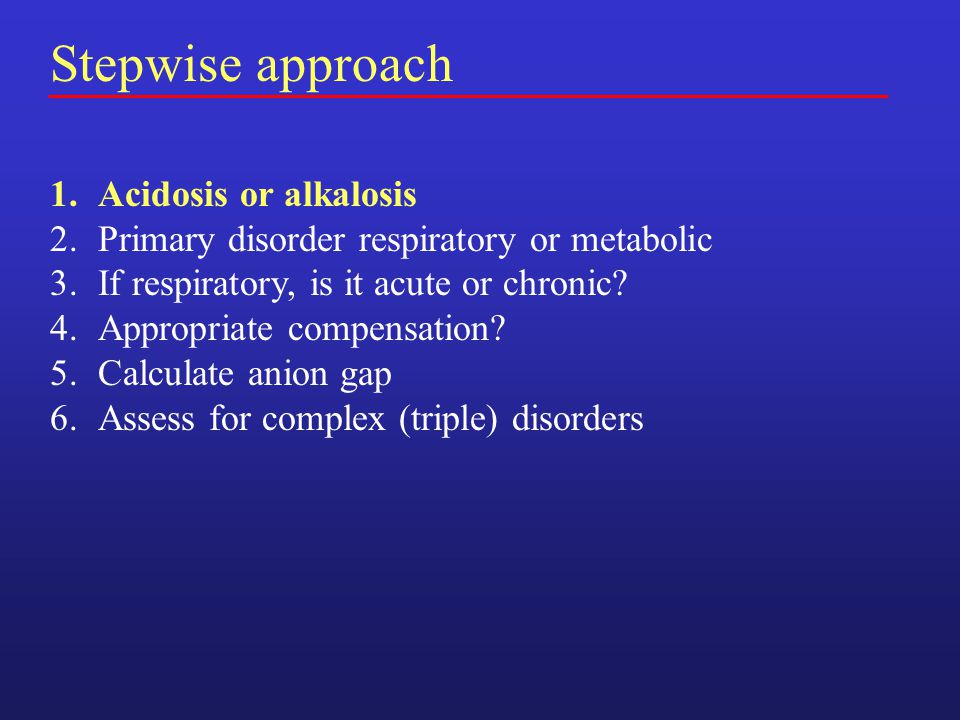

Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

5

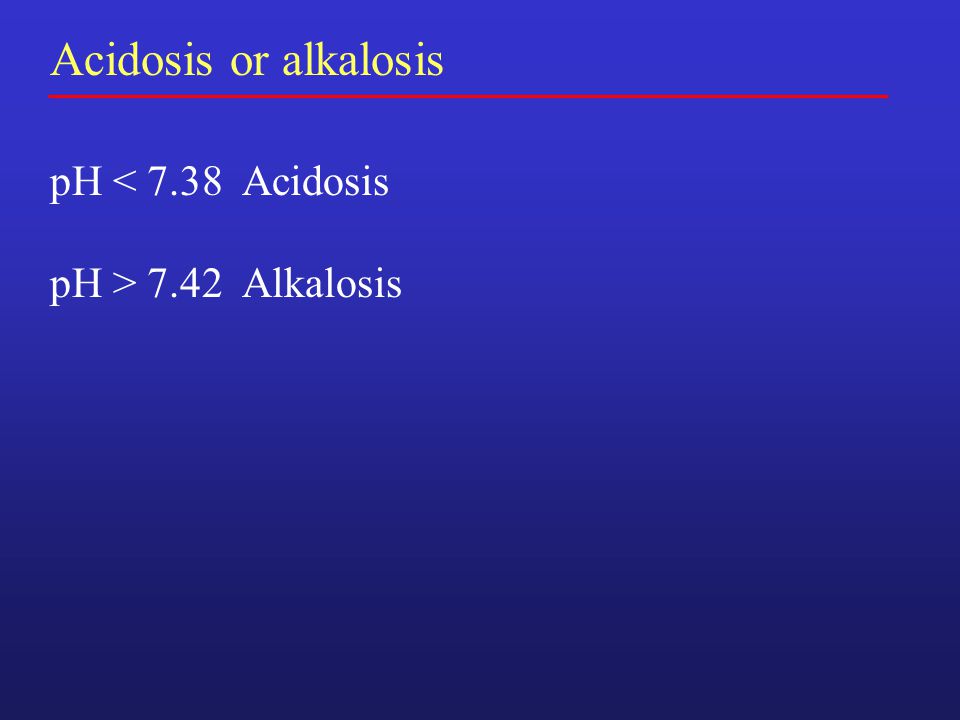

Acidosis or alkalosis pH < 7.38 Acidosis pH > 7.42Alkalosis

6

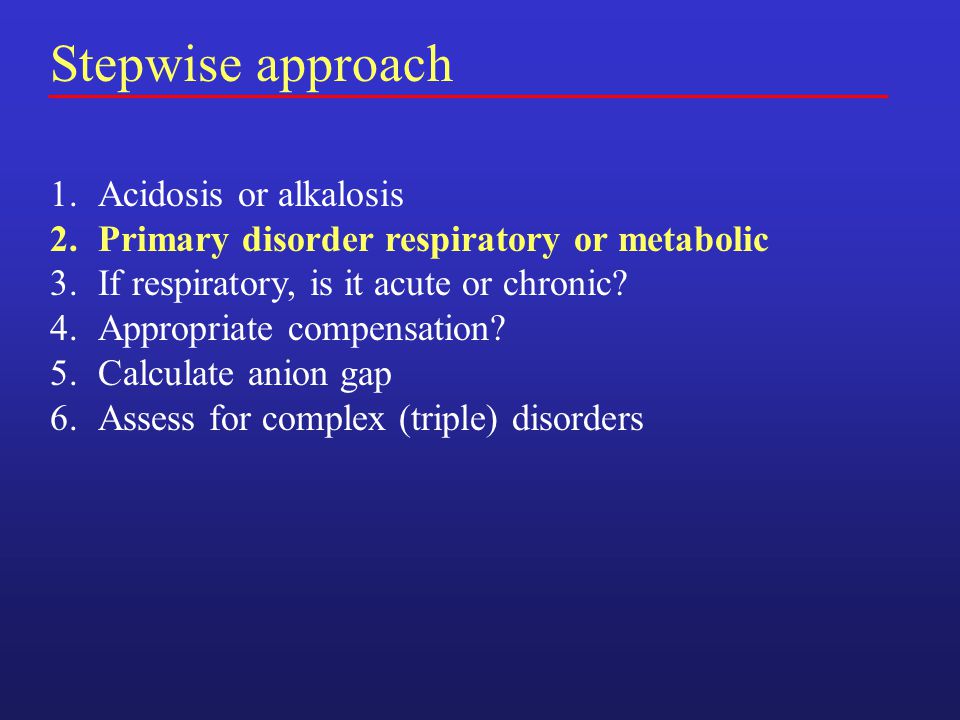

Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

7
Primary disorder respiratory or metabolic? In respiratory acidosis, pCO2 and HCO3 both go up In metabolic acidosis, pCO2 and HCO3 both go down In respiratory alkalosis, pCO2 and HCO3 both go down In metabolic alkalosis, pCO2 and HCO3 both go up Examples: 7.32/28/83 HCO3 14 7.31/70/75HCO3 34 7.10/50/55 HCO3 15

8

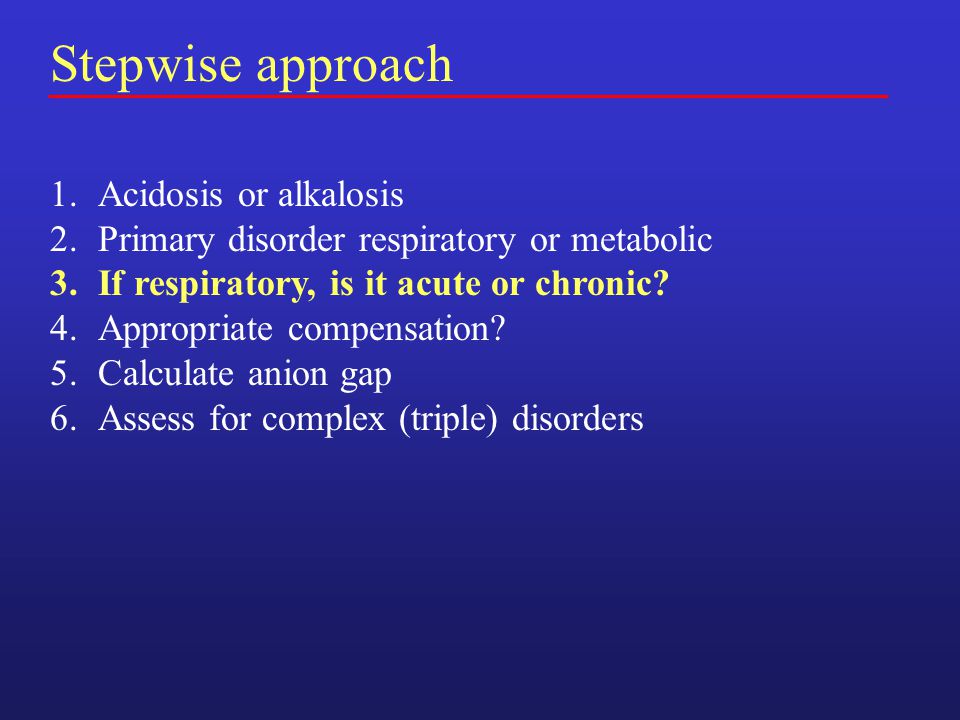

Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

9

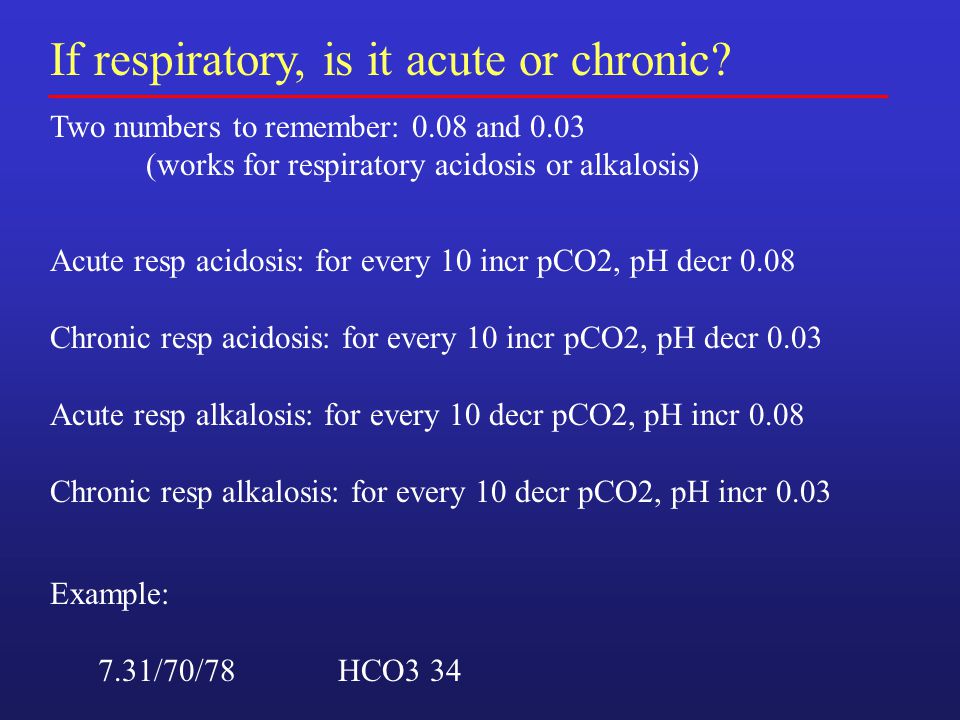

If respiratory, is it acute or chronic? Two numbers to remember: 0.08 and 0.03 (works for respiratory acidosis or alkalosis) Acute resp acidosis: for every 10 incr pCO2, pH decr 0.08 Chronic resp acidosis: for every 10 incr pCO2, pH decr 0.03 Acute resp alkalosis: for every 10 decr pCO2, pH incr 0.08 Chronic resp alkalosis: for every 10 decr pCO2, pH incr 0.03 Example: 7.31/70/78HCO3 34

10

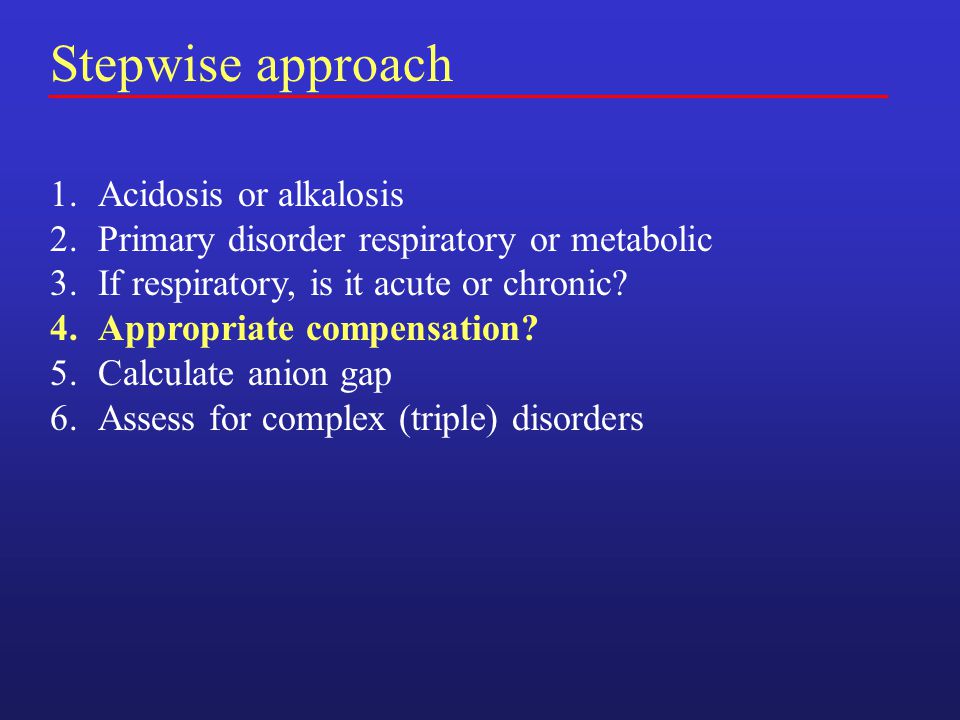

Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

11
Appropriate compensation Metabolic acidosis: Winter’s formula pCO2 = 1.5 [HCO3] + 8 2 Alternative: For every HCO3 decr 1, pCO2 decr 1 Respiratory acidosis/alkalosis: Acute resp acidosis: for every 10 incr pCO2, HCO3 incr 1 Chronic resp acidosis: for every 10 decr pCO2, HCO3 incr 4 Acute resp alkalosis: for every 10 incr pCO2, HCO3 decr 2 Chronic resp alkalosis: for every 10 decr pCO2, HCO3 incr 5 Metabolic alkalosis: pCO2 should never be >55 If pCO2 is elevated, pH should be alkalemic For every HCO3 incr 10, pCO2 should incr 7

12

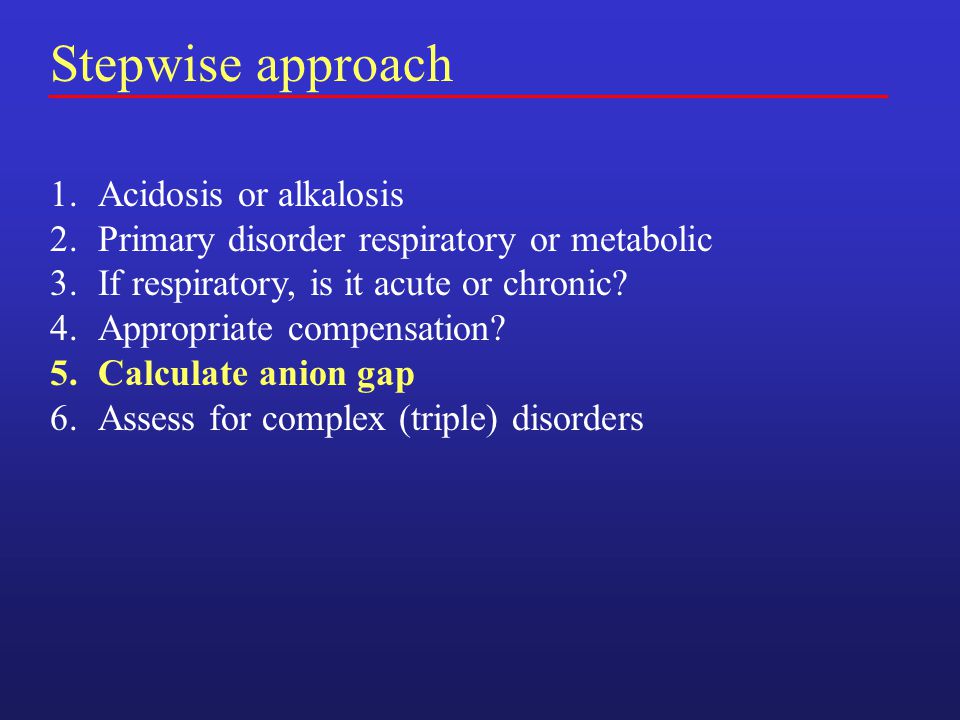

Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

13
Calculate the anion gap … every time! Unmeasured Anions Unmeasured Cations Proteins (albumin) 15 mEq/L Calcium 5 mEq/L Organic acids 5 mEq/L Potassium 4.5 mEq/L Phosphates 2 mEq/L Magnesium 1.5 mEq/L Sulfates 1 mEq/L Totals: 23 mEq/L 11 mEq/L Difference = 12 mEq/L = normal anion gap -Correct for albumin (2.5 for every drop of 1 below 3.0) -If anion gap > 20 with metabolic alkalosis, there’s an additional acidosis

14
Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders

15

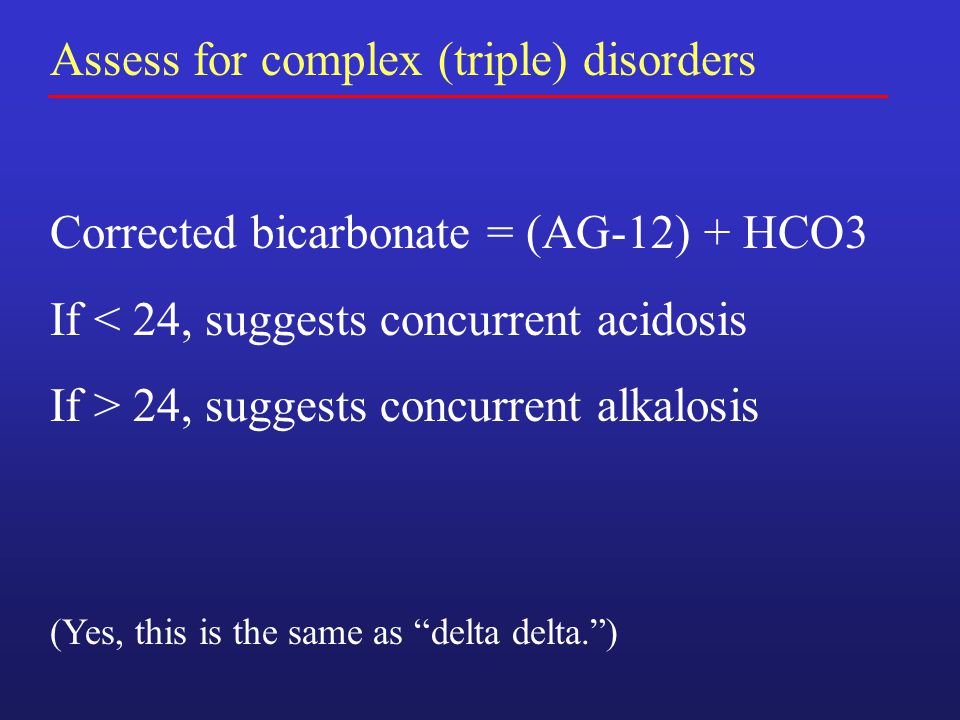

Assess for complex (triple) disorders Corrected bicarbonate = (AG-12) + HCO3 If < 24, suggests concurrent acidosis If > 24, suggests concurrent alkalosis (Yes, this is the same as “delta delta.”)

16
Stepwise approach 1.Acidosis or alkalosis 2.Primary disorder respiratory or metabolic 3.If respiratory, is it acute or chronic? 4.Appropriate compensation? 5.Calculate anion gap 6.Assess for complex (triple) disorders 7.CORRELATE CLINICALLY!

17

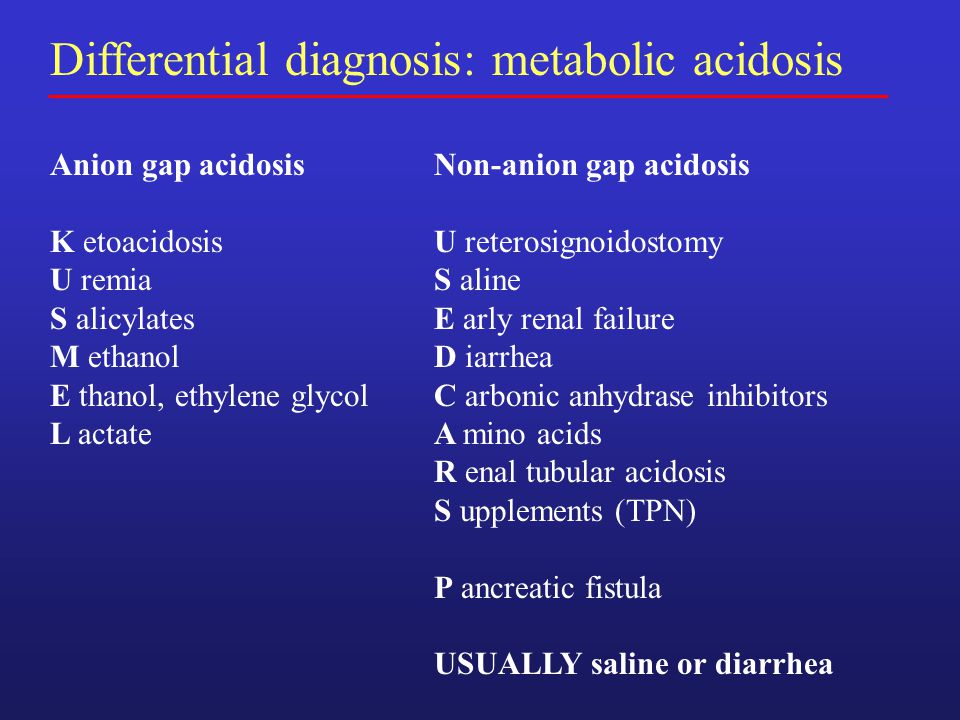

Differential diagnosis: metabolic acidosis Anion gap acidosisNon-anion gap acidosis K etoacidosisU reterosignoidostomy U remiaS aline S alicylatesE arly renal failure M ethanolD iarrhea E thanol, ethylene glycolC arbonic anhydrase inhibitors L actateA mino acids R enal tubular acidosis S upplements (TPN) P ancreatic fistula USUALLY saline or diarrhea

18
Differential diagnosis: metabolic alkalosis Volume contraction (vomiting, overdiuresis, ascites) Hypokalemia Alkali ingestion (bicarbonate) Excess gluco- or mineralocorticoids Bartter's syndrome USUALLY vomiting or overdiuresis

19
Differential diagnosis: respiratory acidosis Central Nervous System Depression (Sedatives, CNS disease, Obesity Hypoventilation syndrome) Pleural Disease (Pneumothorax) Lung Disease (COPD, pneumonia) Musculoskelatal disorders (Kyphoscoliosis, Guillain-Barre, Myasthenia Gravis, Polio) Practically, think about “tiring” (even a little respiratory acidosis in asthma is often a harbinger of badness)

20
Differential diagnosis: respiratory alkalosis Catastrophic CNS event (CNS hemorrhage) Drugs (salicylates, progesterone) Pregnancy (especially the 3 rd trimester) Decreased lung compliance (interstitial lung disease) Liver cirrhosis Anxiety/Pain

21

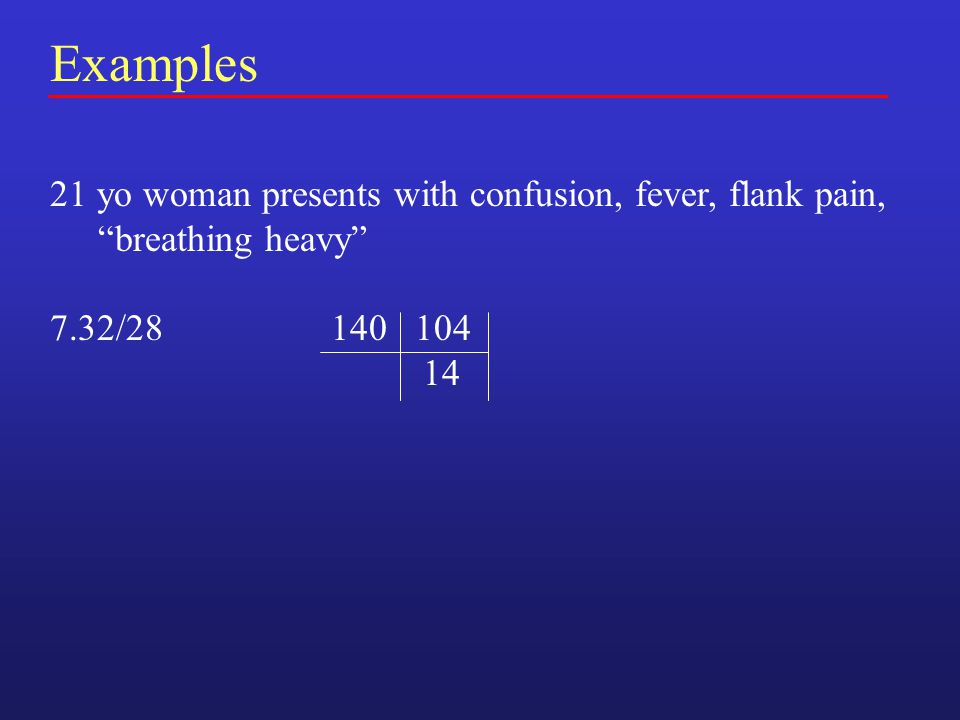

Examples 21 yo woman presents with confusion, fever, flank pain, “breathing heavy” 7.32/28 140 104 14

22

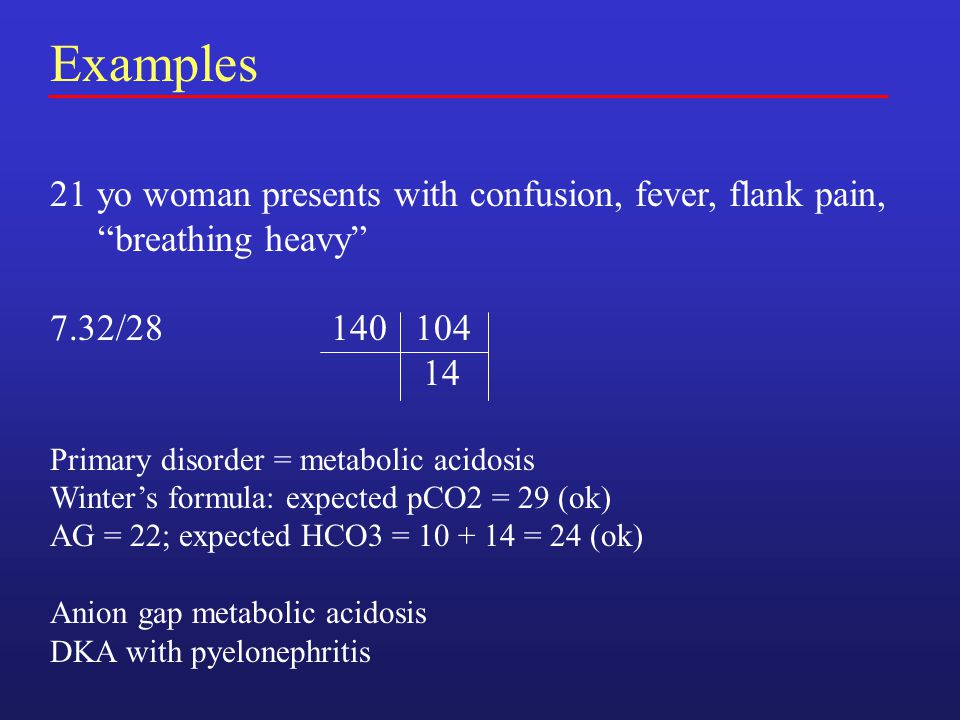

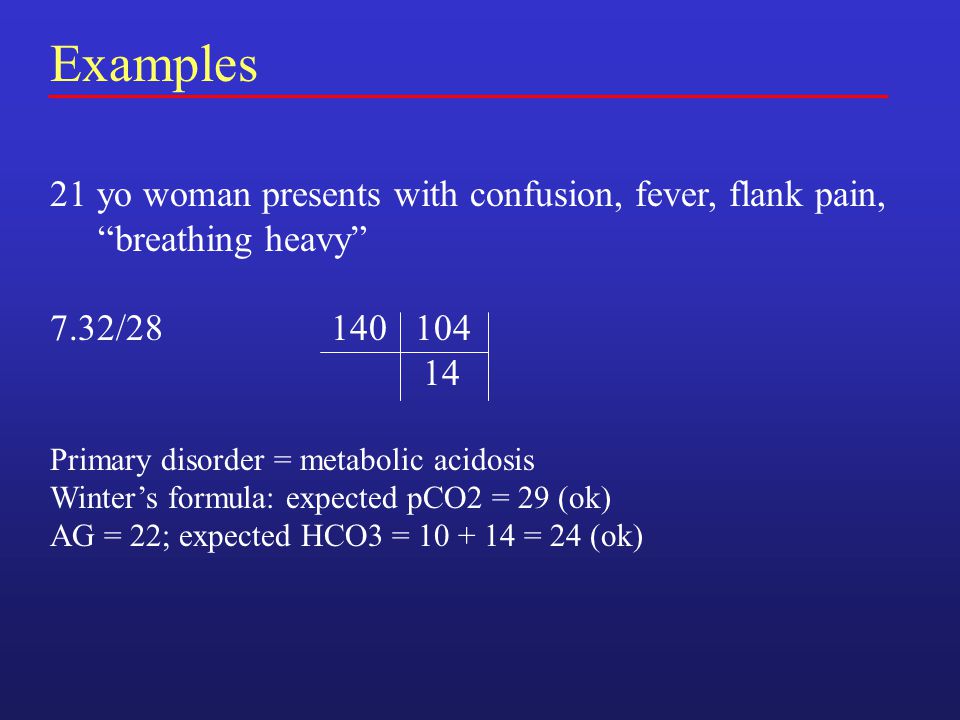

Examples 21 yo woman presents with confusion, fever, flank pain, “breathing heavy” 7.32/28 140 104 14 Primary disorder = metabolic acidosis Winter’s formula: expected pCO2 = 29 (ok) AG = 22; expected HCO3 = 10 + 14 = 24 (ok)

23
Examples 21 yo woman presents with confusion, fever, flank pain, “breathing heavy” 7.32/28 140 104 14 Primary disorder = metabolic acidosis Winter’s formula: expected pCO2 = 29 (ok) AG = 22; expected HCO3 = 10 + 14 = 24 (ok) Anion gap metabolic acidosis DKA with pyelonephritis

24

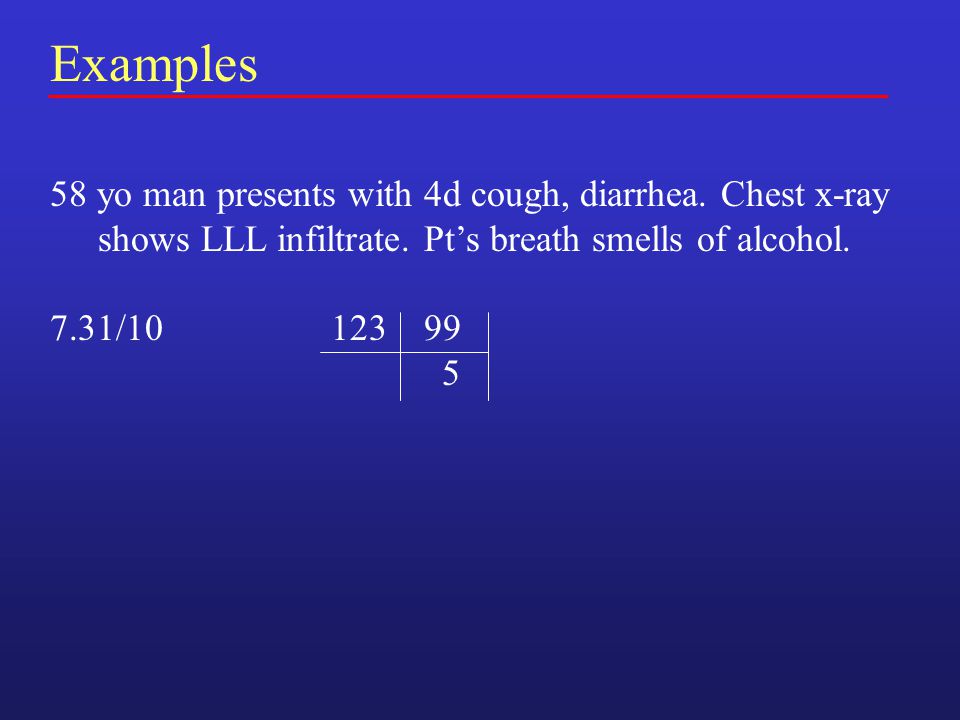

Examples 58 yo man presents with 4d cough, diarrhea. Chest x-ray shows LLL infiltrate. Pt’s breath smells of alcohol. 7.31/10 123 99 5

25
Examples 58 yo man presents with 4d cough, diarrhea. Chest x-ray shows LLL infiltrate. Pt’s breath smells of alcohol. 7.31/10 123 99 5 Primary disorder = metabolic acidosis Winter’s formula: expected pCO2 = 15, so concurrent respiratory alkalosis AG = 19; expected HCO3 = 7 + 5 = 12, so non-anion gap metabolic acidosis

26

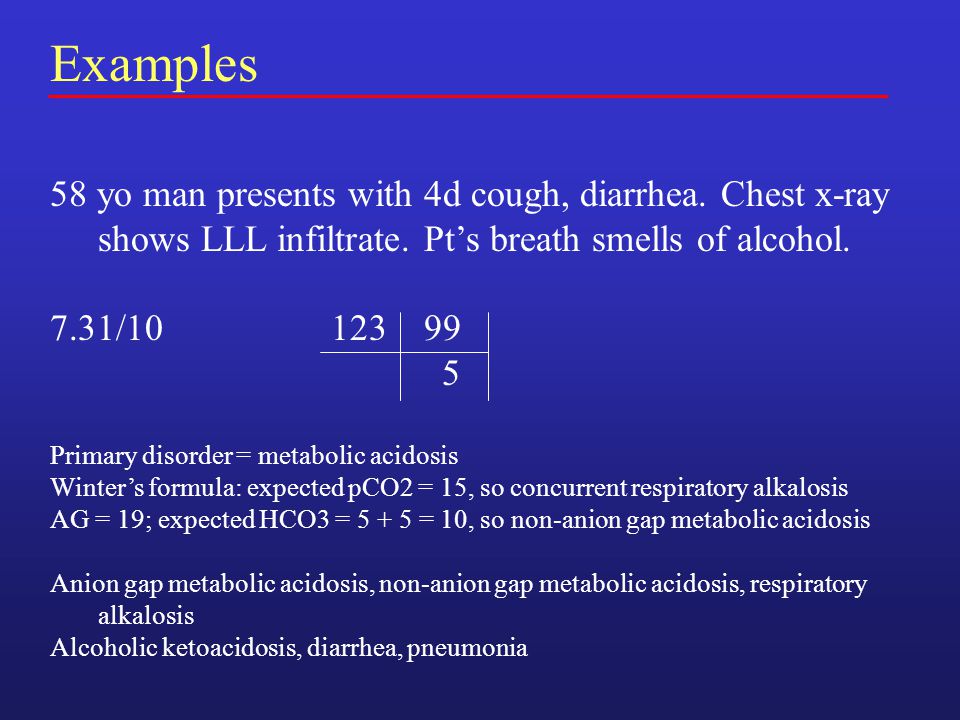

Examples 58 yo man presents with 4d cough, diarrhea. Chest x-ray shows LLL infiltrate. Pt’s breath smells of alcohol. 7.31/10 123 99 5 Primary disorder = metabolic acidosis Winter’s formula: expected pCO2 = 15, so concurrent respiratory alkalosis AG = 19; expected HCO3 = 5 + 5 = 10, so non-anion gap metabolic acidosis Anion gap metabolic acidosis, non-anion gap metabolic acidosis, respiratory alkalosis Alcoholic ketoacidosis, diarrhea, pneumonia

27

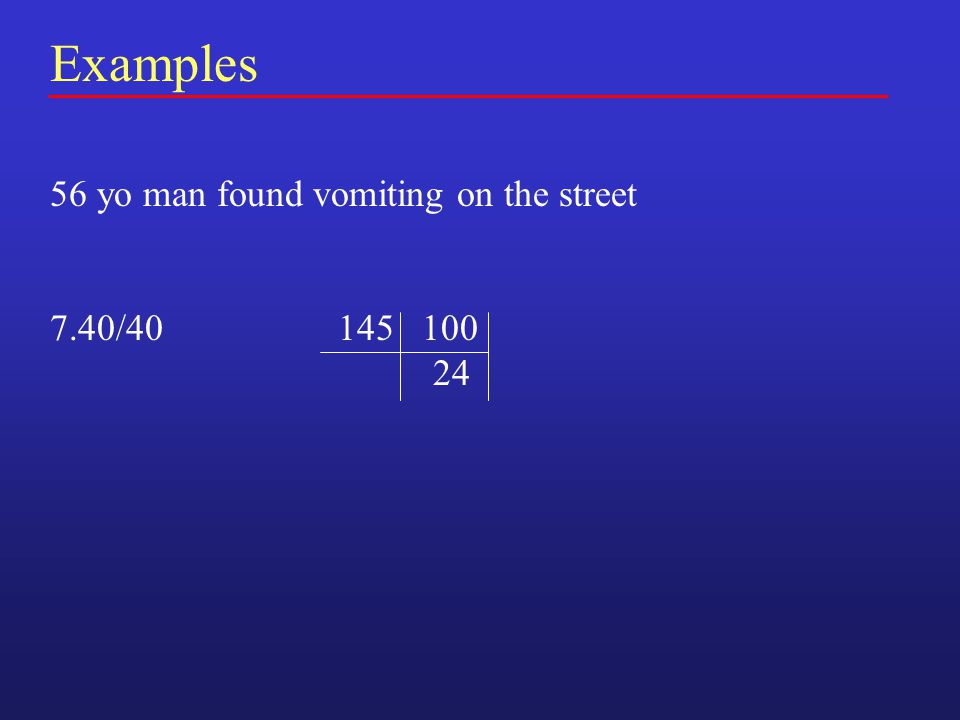

Examples 56 yo man found vomiting on the street 7.40/40145 100 24

28

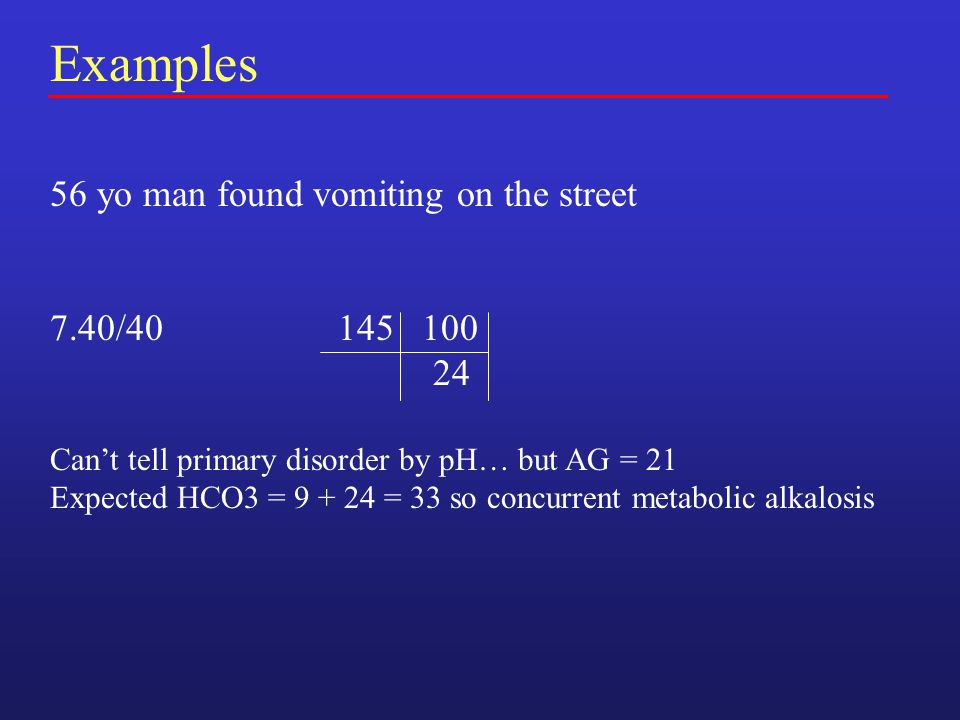

Examples 56 yo man found vomiting on the street 7.40/40145 100 24 Can’t tell primary disorder by pH… but AG = 21 Expected HCO3 = 9 + 24 = 33 so concurrent metabolic alkalosis

29

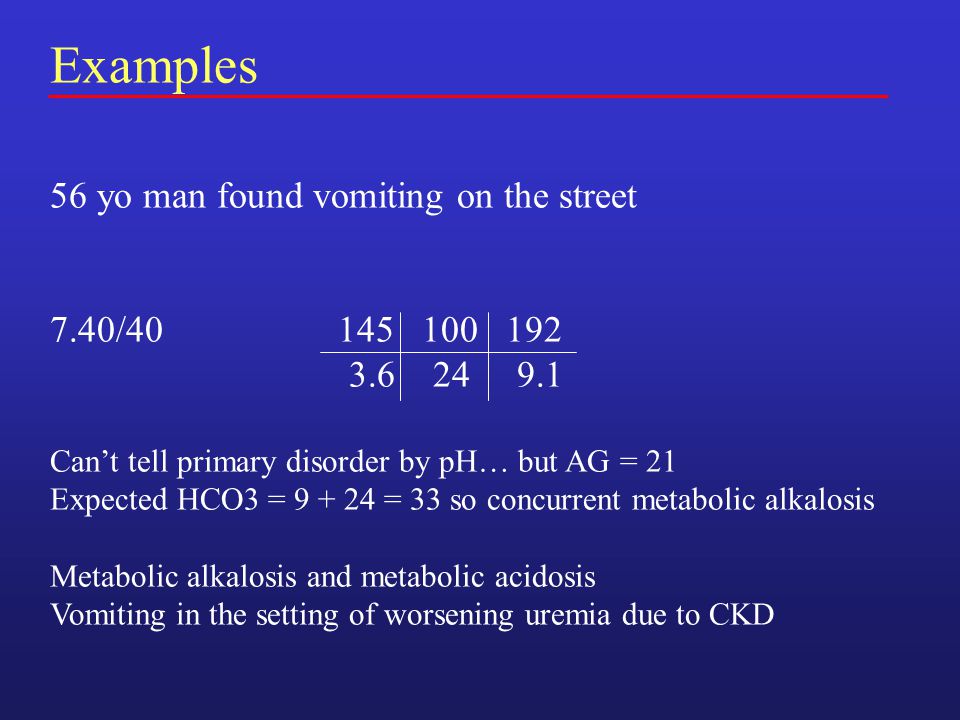

Examples 56 yo man found vomiting on the street 7.40/40145 100 192 3.6 24 9.1 Can’t tell primary disorder by pH… but AG = 21 Expected HCO3 = 9 + 24 = 33 so concurrent metabolic alkalosis Metabolic alkalosis and metabolic acidosis Vomiting in the setting of worsening uremia due to CKD

30
Examples 58 yo man with 4d cough, vomiting, altered mental status 7.50/20 145 100 15

31
Examples 58 yo man with 4d cough, vomiting, altered mental status 7.50/20 145 100 15 Respiratory alkalosis AG = 30, so concurrent anion gap metabolic acidosis Expected HCO3 = 18 + 15 = 33 so concurrent metabolic alkalosis

32

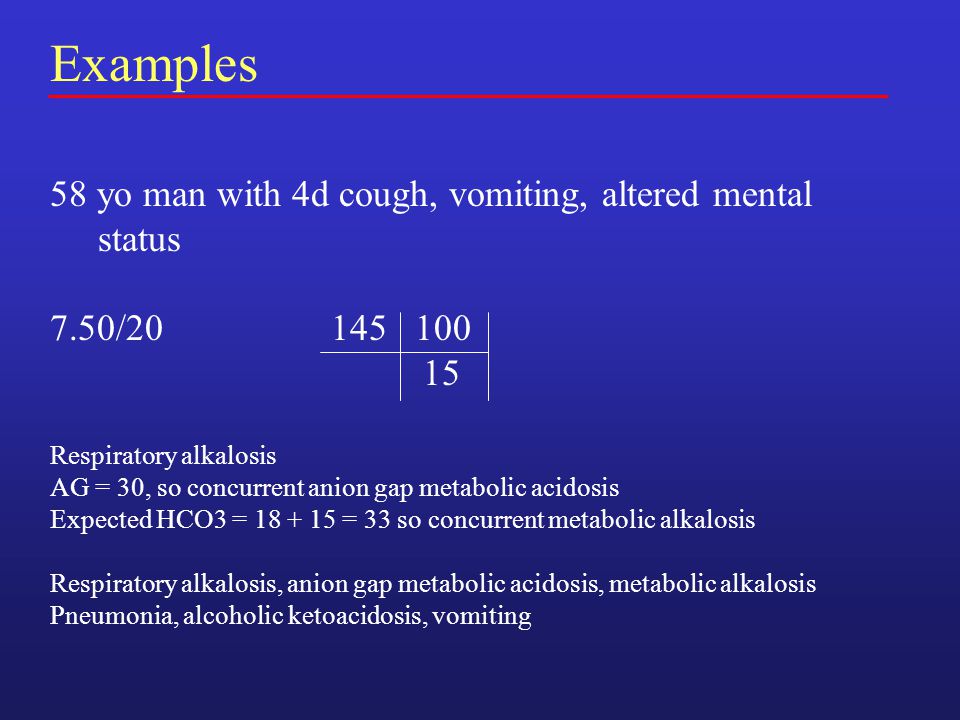

Examples 58 yo man with 4d cough, vomiting, altered mental status 7.50/20 145 100 15 Respiratory alkalosis AG = 30, so concurrent anion gap metabolic acidosis Expected HCO3 = 18 + 15 = 33 so concurrent metabolic alkalosis Respiratory alkalosis, anion gap metabolic acidosis, metabolic alkalosis Pneumonia, alcoholic ketoacidosis, vomiting

33
Examples 35 yo woman presents obtunded 7.10/50145 100 15

34

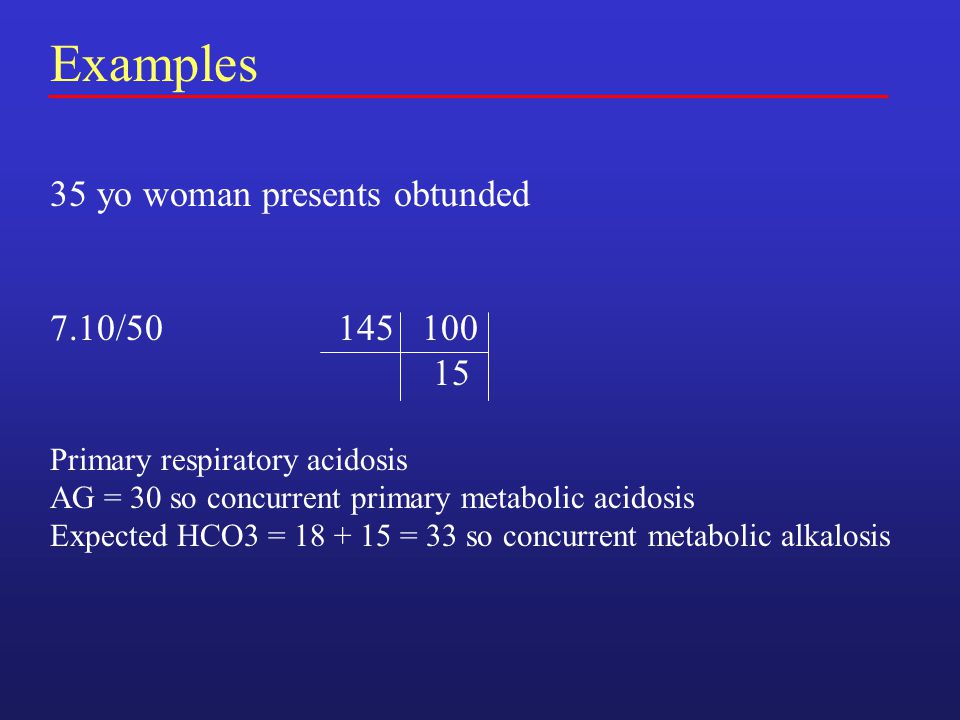

Examples 35 yo woman presents obtunded 7.10/50145 100 15 Primary respiratory acidosis AG = 30 so concurrent primary metabolic acidosis Expected HCO3 = 18 + 15 = 33 so concurrent metabolic alkalosis

35
Examples 35 yo woman presents obtunded 7.10/50145 100 15 Primary respiratory acidosis AG = 30 so concurrent primary metabolic acidosis Expected HCO3 = 18 + 15 = 33 so concurrent metabolic alkalosis Same as last patient but obtunded so hypoventilating! Hypoventilation due to altered mental status, DKA, vomiting

36
Landing safely Do the exercise on every ABG for practice

37
Landing safely Do the exercise on every ABG for practice

38
Landing safely Do the exercise on every ABG for practice Ask questions
