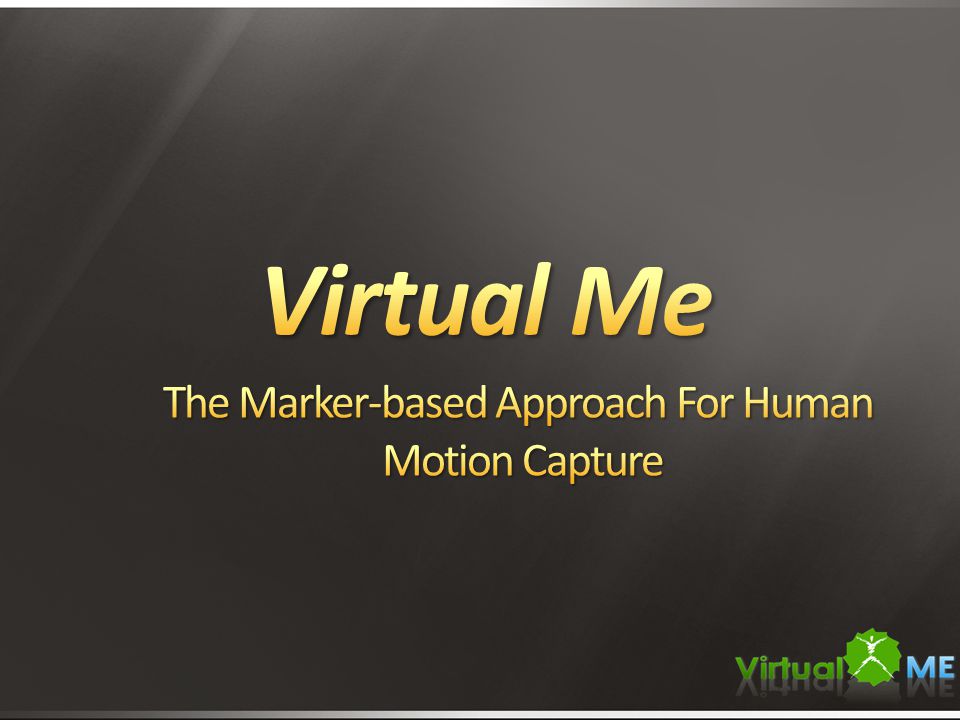

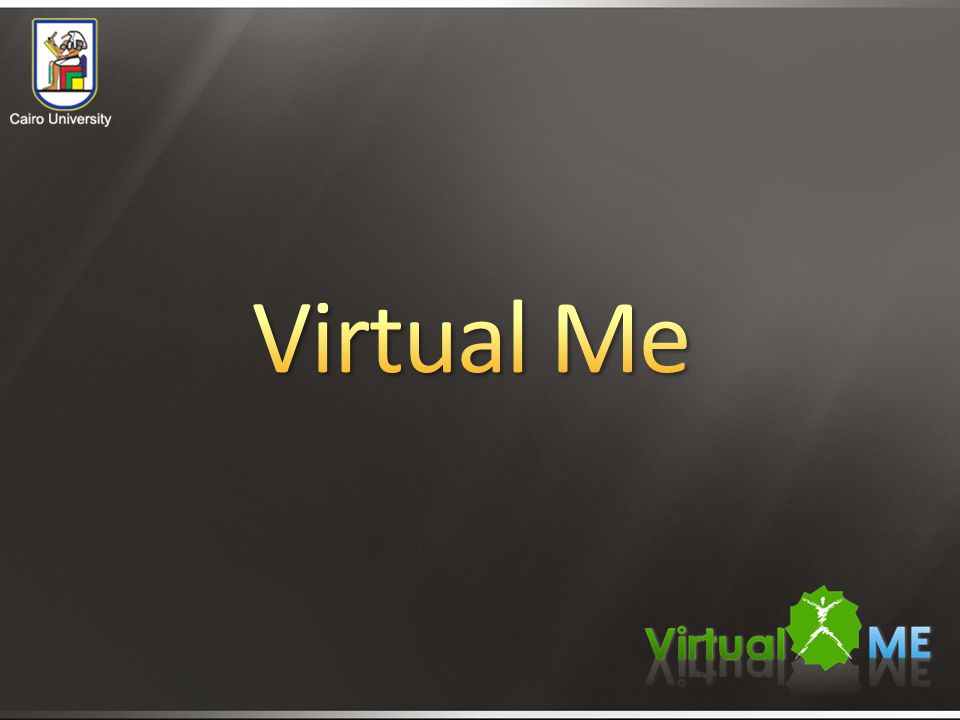

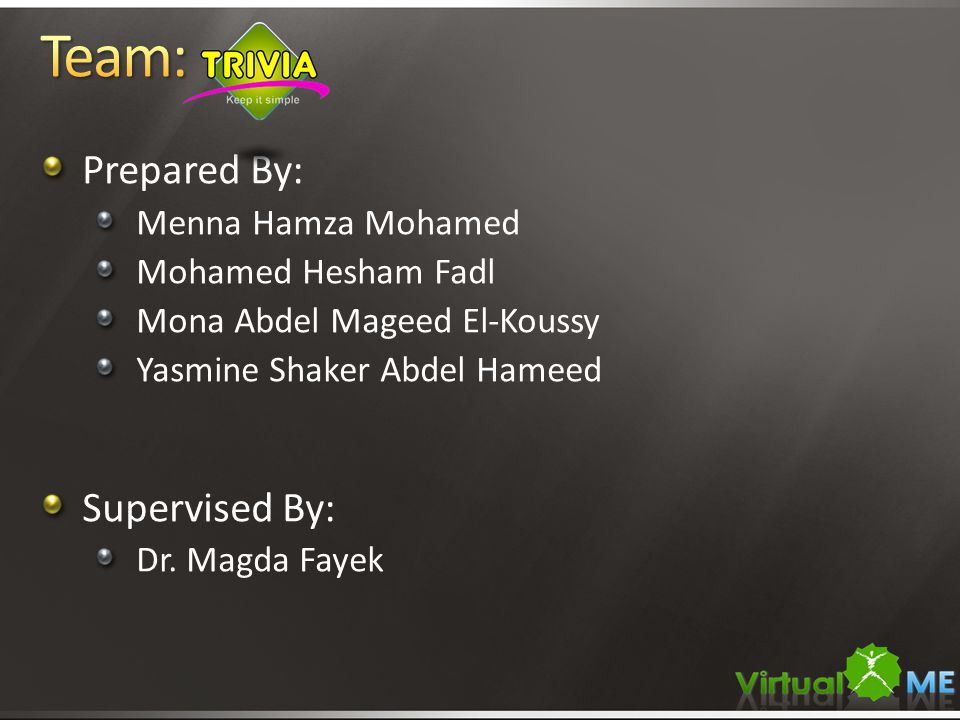

2 Prepared By: Menna Hamza Mohamed Mohamed Hesham Fadl Mona Abdel Mageed El-Koussy Yasmine Shaker Abdel Hameed Supervised By: Dr. Magda Fayek

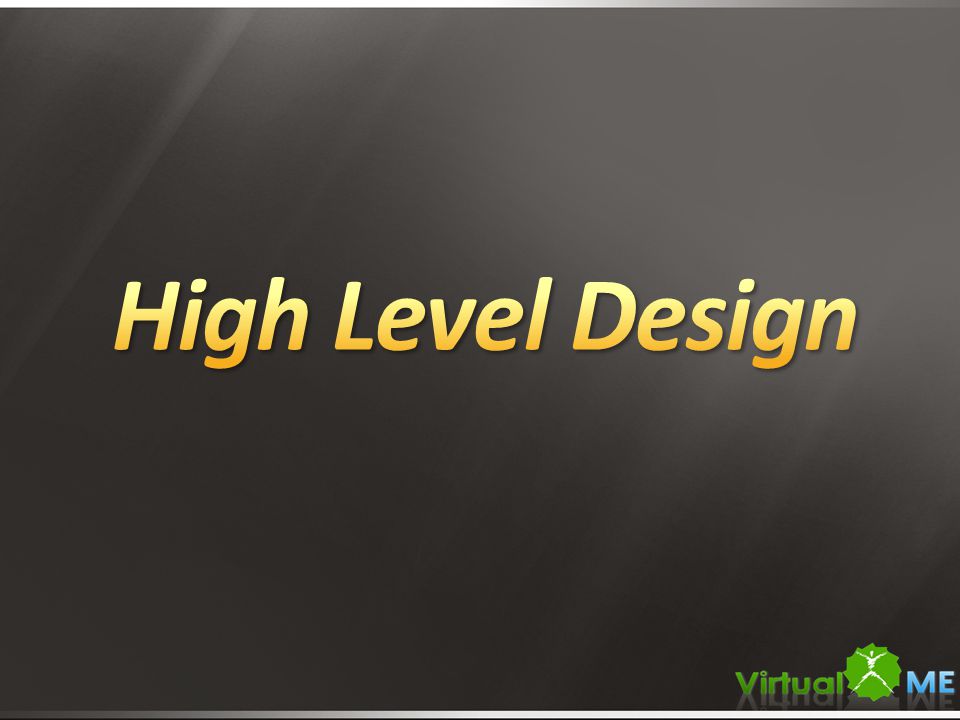

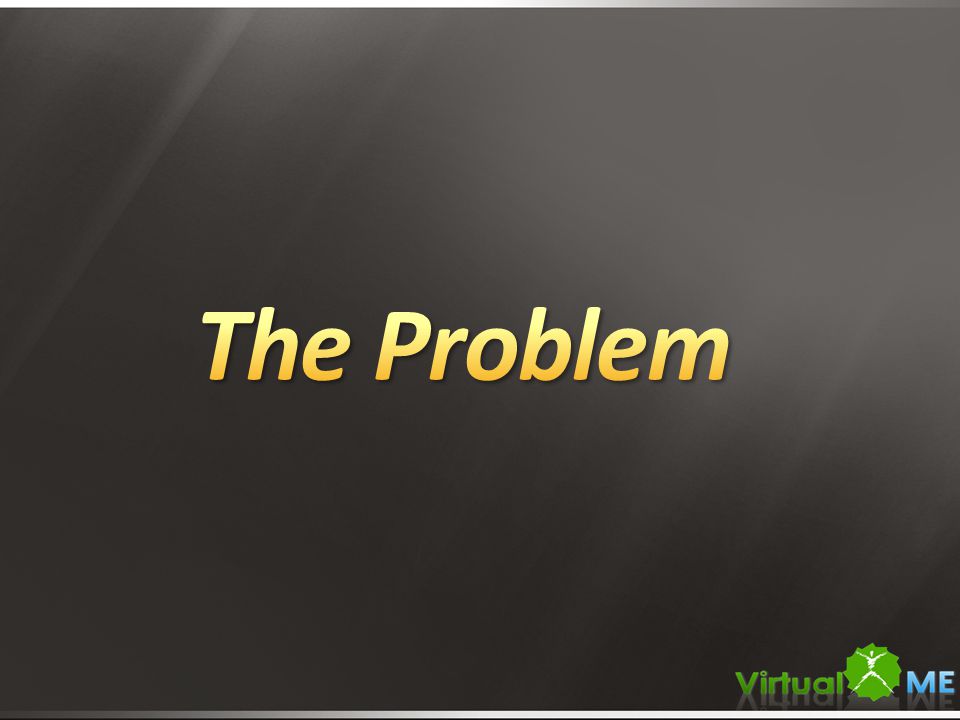

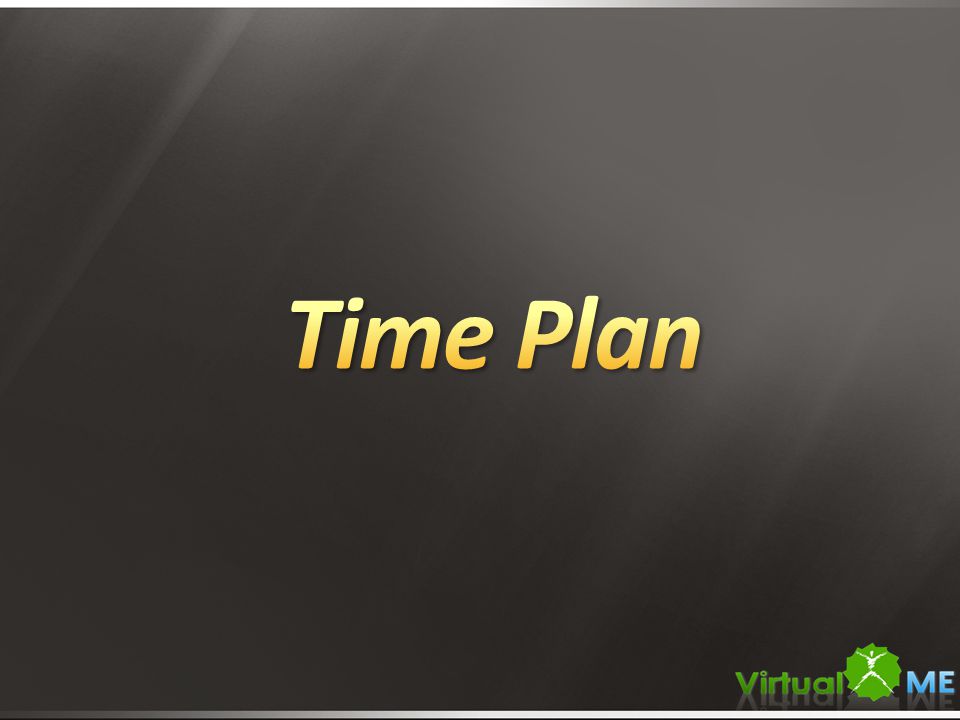

3 Problem Motion Capture Virtual Me High Level Design Market Survey Time Plan Tools

4

5 It is the process of translating human motion to a digital model How?

6

7

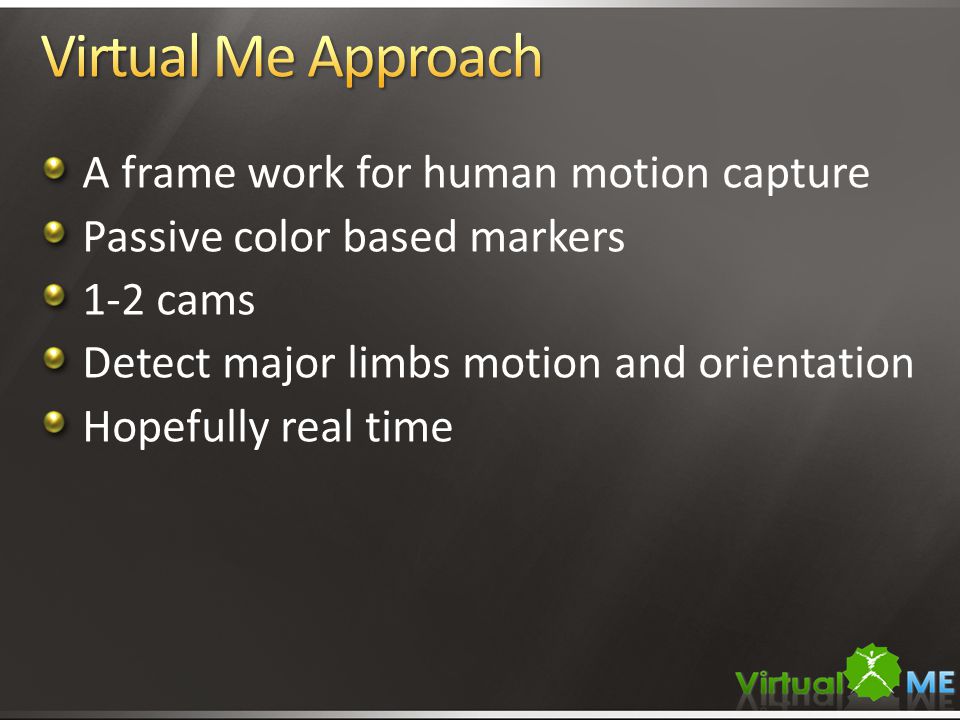

8 A frame work for human motion capture Passive color based markers 1-2 cams Detect major limbs motion and orientation Hopefully real time

9 Virtual Goal A simple game will be used as a demonstration The player will defend his goal from multiple balls Limited translation motion

10

11 Image Processing Component Marker Detector History Constraint Model Video Feed Video Feed Marker Tracking Component Camera Interface

12 Marker Tracking Component 1 Marker Tracking Component 2 Marker Tracking Component k Merging Component Pose Constructor Application

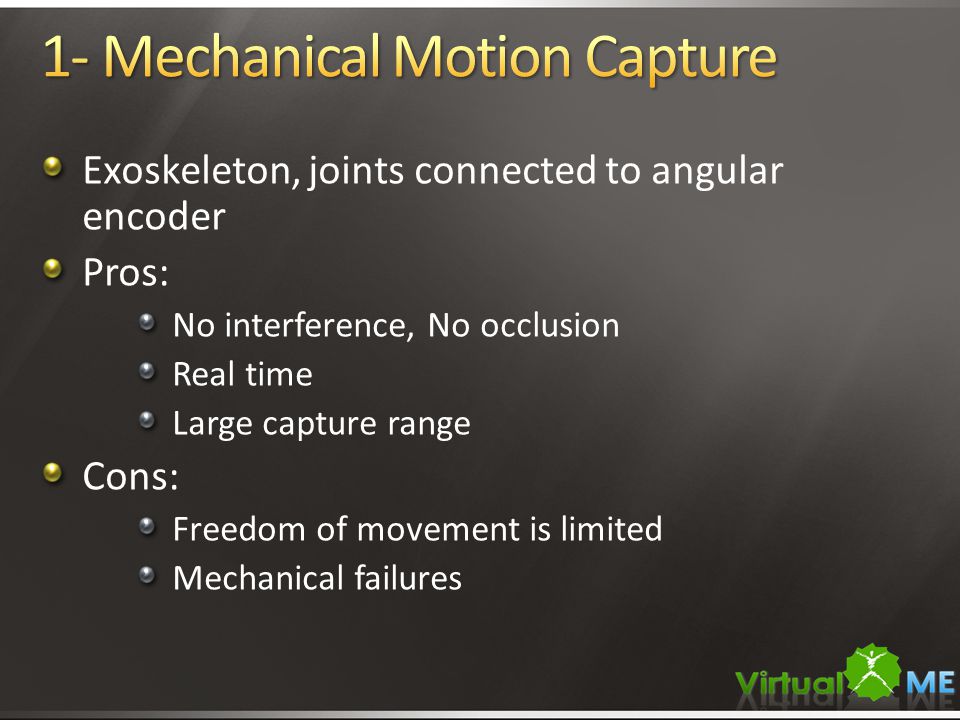

13 Exoskeleton, joints connected to angular encoder Pros: No interference, No occlusion Real time Large capture range Cons: Freedom of movement is limited Mechanical failures

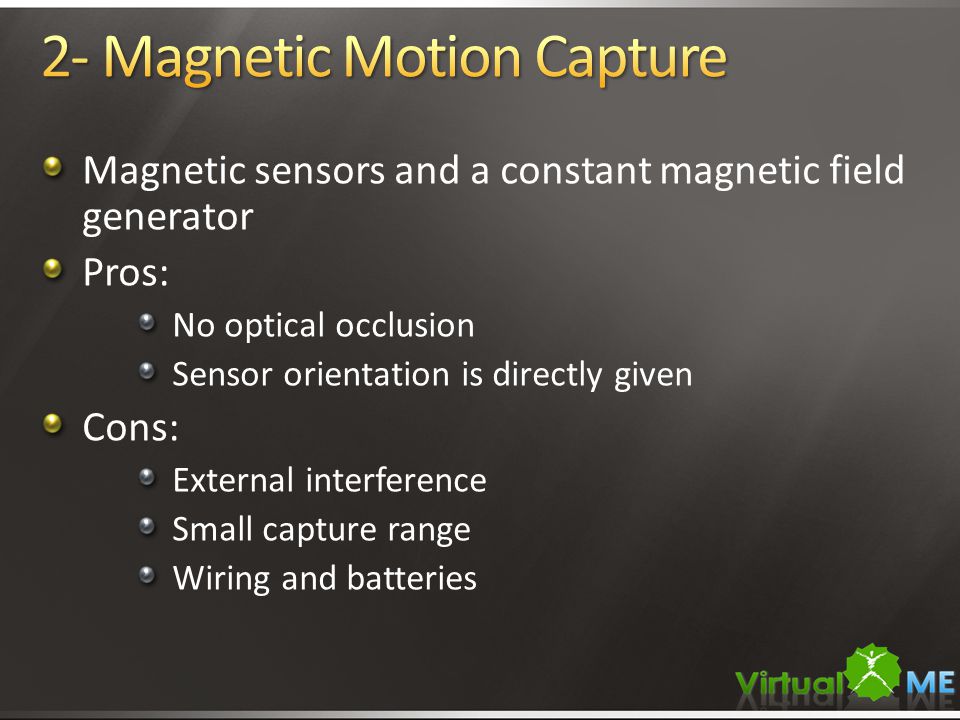

14 Magnetic sensors and a constant magnetic field generator Pros: No optical occlusion Sensor orientation is directly given Cons: External interference Small capture range Wiring and batteries

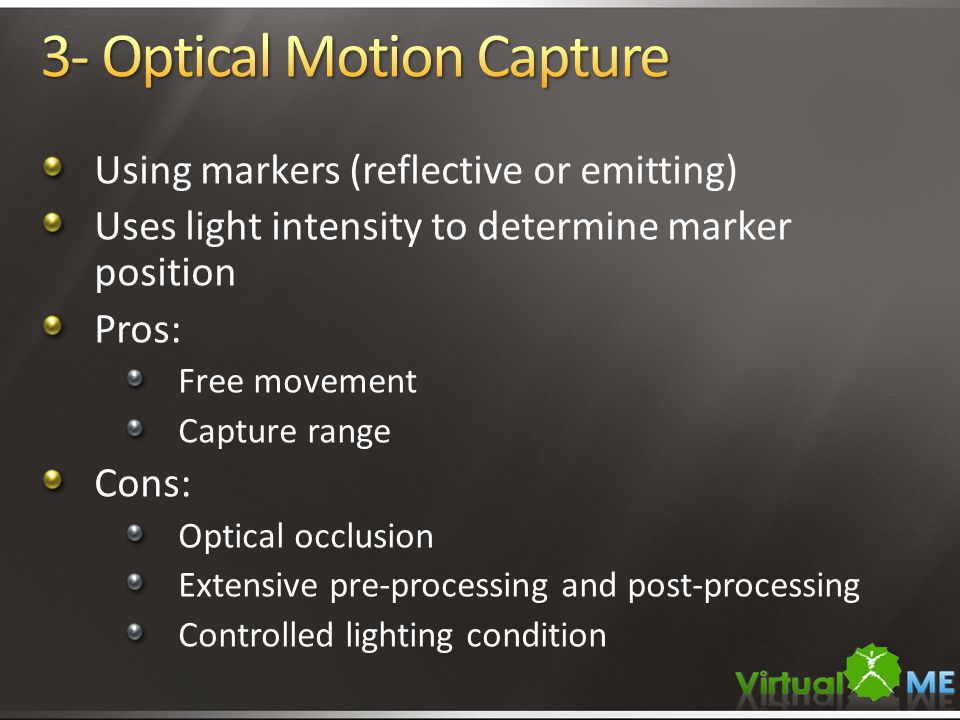

15 Using markers (reflective or emitting) Uses light intensity to determine marker position Pros: Free movement Capture range Cons: Optical occlusion Extensive pre-processing and post-processing Controlled lighting condition

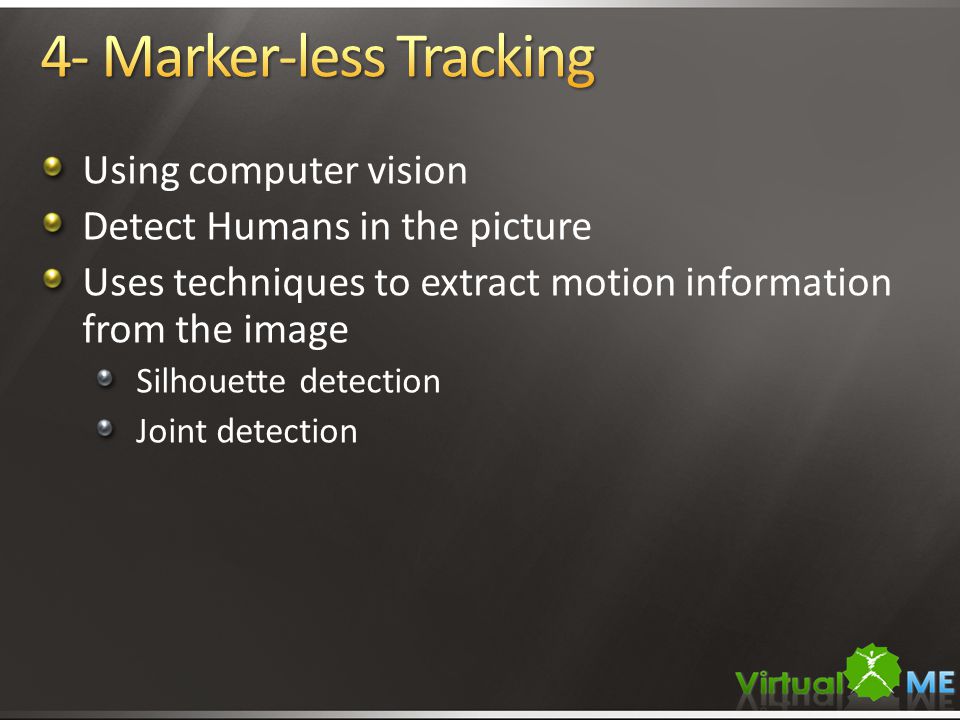

16 Using computer vision Detect Humans in the picture Uses techniques to extract motion information from the image Silhouette detection Joint detection

17

18 4:24 impulse cams 20:100 impulse active LEDs Price: $29, to $123, Features: Full body motion tracking (including fingers using gloves)

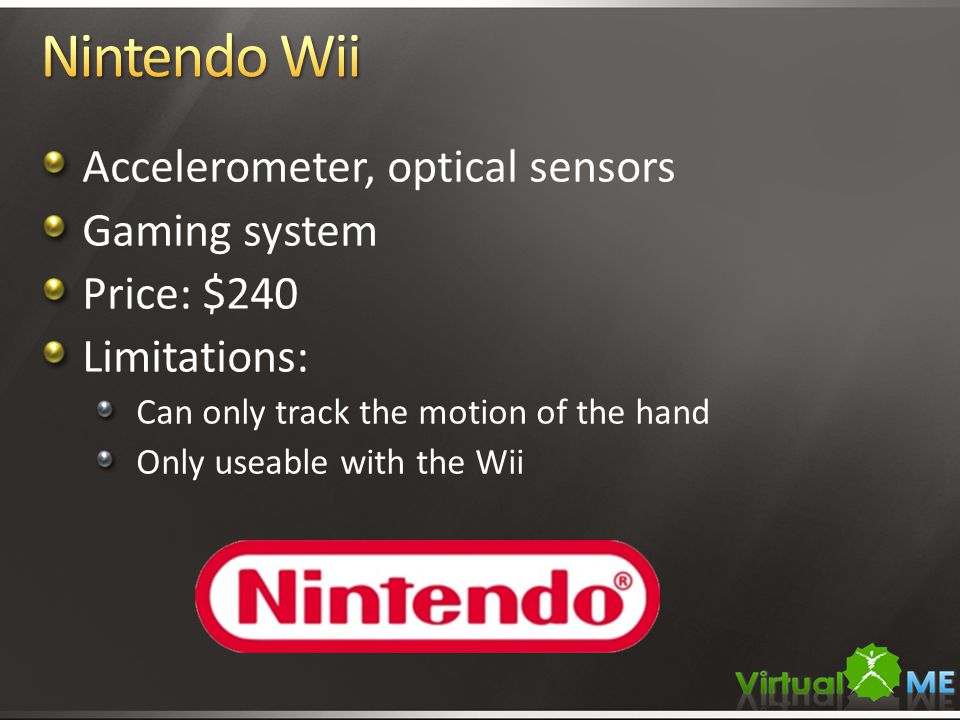

19 Accelerometer, optical sensors Gaming system Price: $240 Limitations: Can only track the motion of the hand Only useable with the Wii

20 Web Cam Price: Cam: $34.99 Play station 3: $ Features: Recognizes hand and body movements Limitations: Officially works only with Sony PS3 Low resolution 640x480

21

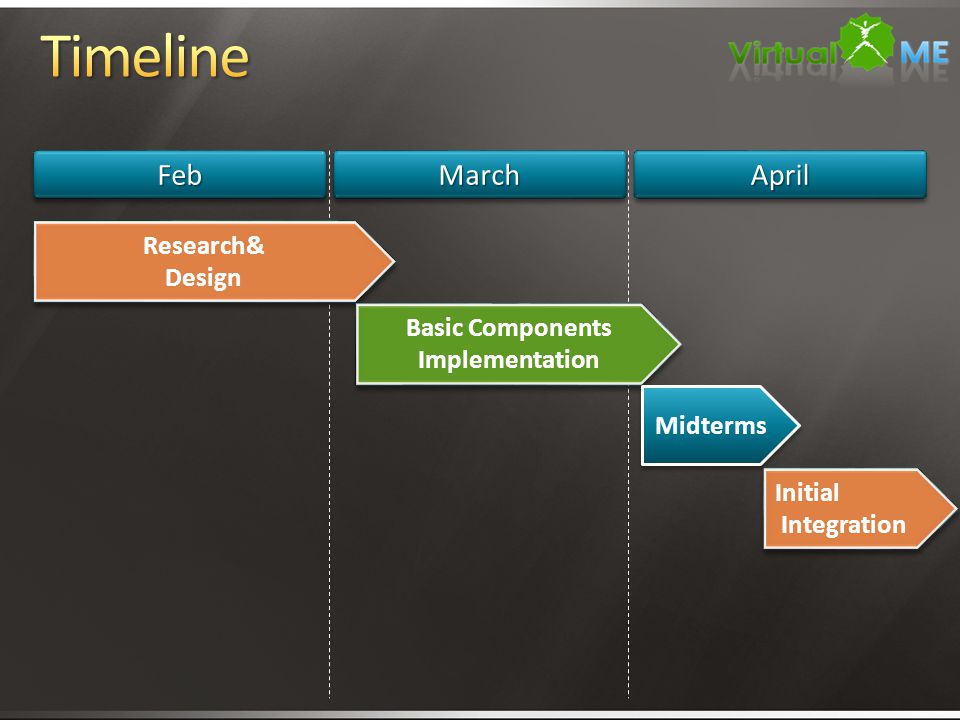

22 FebFeb Research& Design Research& Design Basic Components Implementation Midterms Initial Integration Initial Integration MarchMarchAprilApril

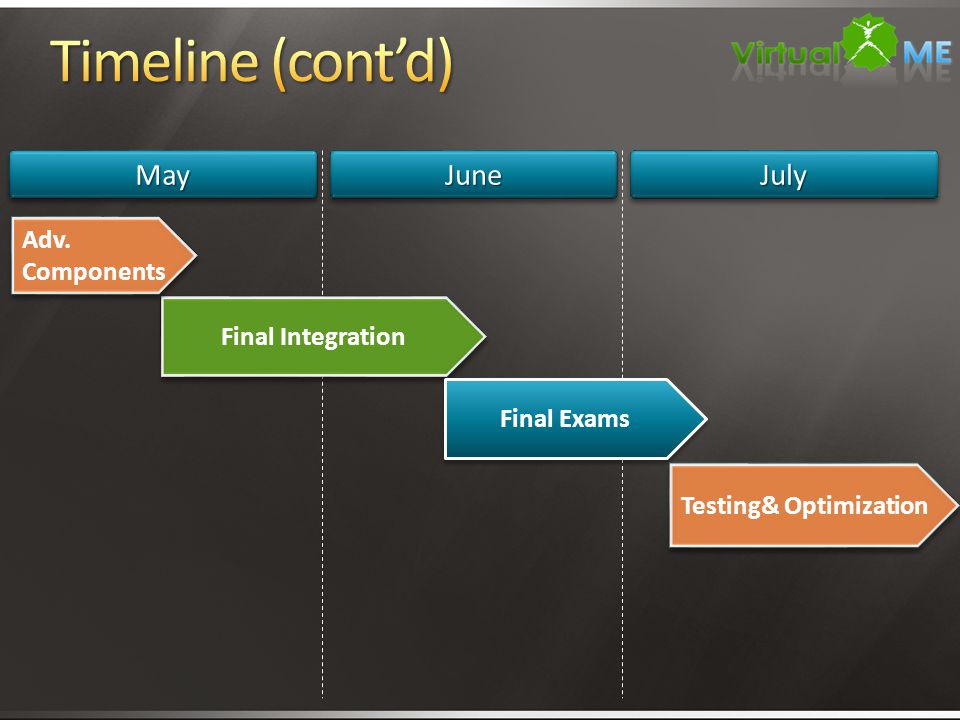

23 MayMay Final Integration Final Exams Testing& Optimization JuneJuneJulyJuly Adv. Components

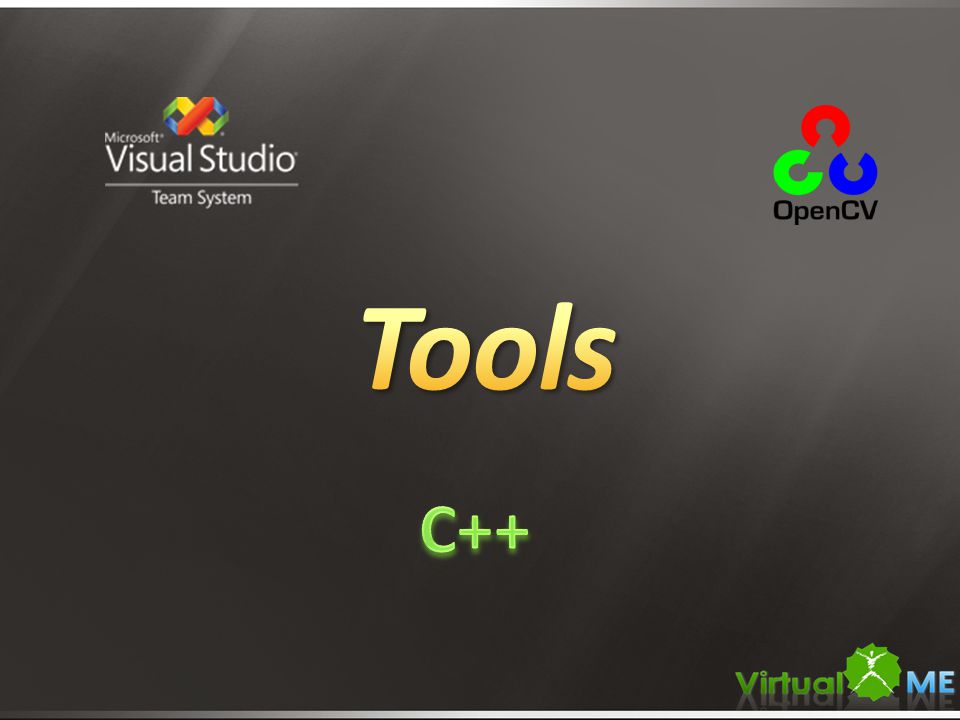

24

25
