ArcGIS Server Architecture at the DNR GIS/LIS Conference, October 2013.

Similar presentations


Presentation on theme: "ArcGIS Server Architecture at the DNR GIS/LIS Conference, October 2013."— Presentation transcript:

1 ArcGIS Server Architecture at the DNR GIS/LIS Conference, October 2013

2 DNR Background 500+ GIS Users Use Examples

3 ArcGIS Architecture Examples Single Machine Site

4 ArcGIS Architecture Examples Single GIS Server Site

5 ArcGIS Architecture Examples Multiple Machine Site

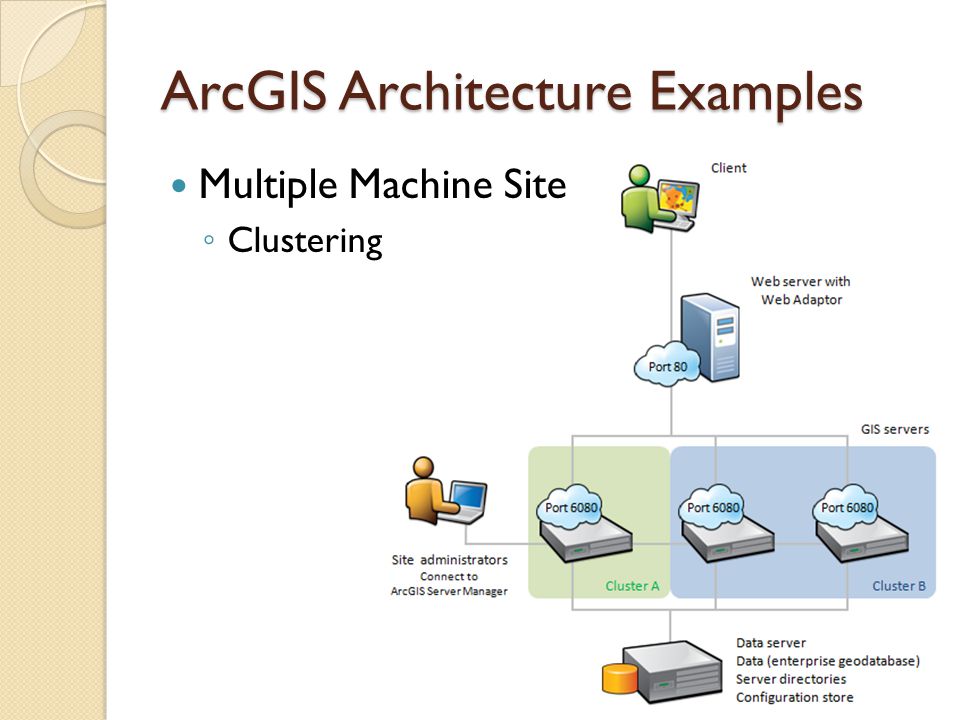

6 ArcGIS Architecture Examples Multiple Machine Site ◦ Clustering

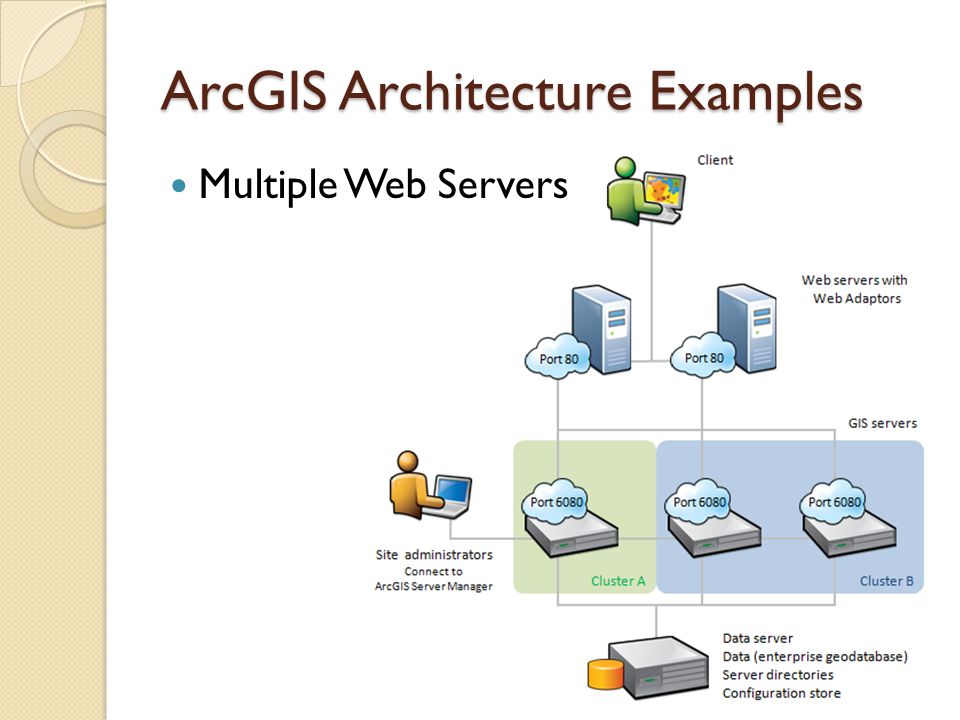

7 ArcGIS Architecture Examples Multiple Web Servers

8 Architecture Model

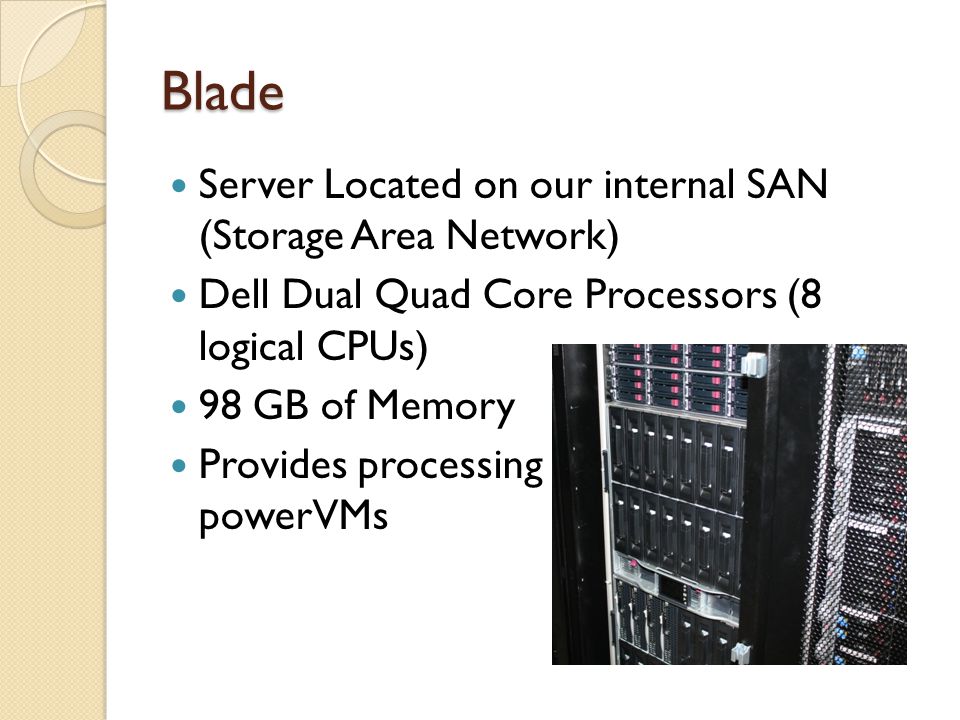

9 Blade Server Located on our internal SAN (Storage Area Network) Dell Dual Quad Core Processors (8 logical CPUs) 98 GB of Memory Provides processing powerVMs

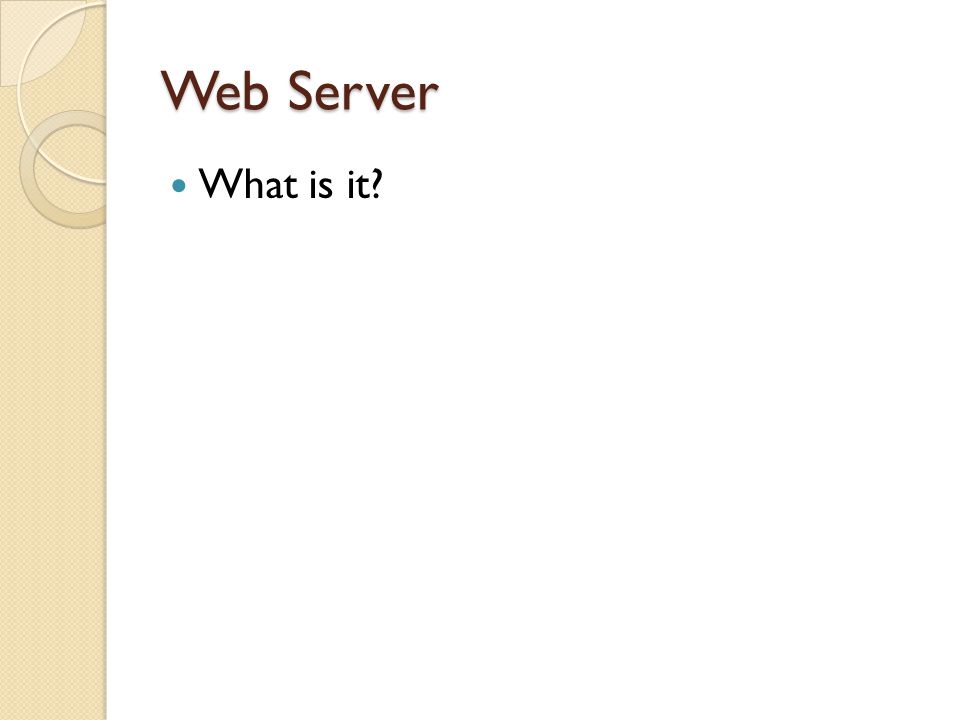

10 Web Server What is it?

11 Web Server - Specs Model – Vmware Virtual Platform OS - Server 2008 R2 Standard Type – x64 Processor - Dual Intel Xeon E5520 ◦ 2.27GHz, 2 Cores, 2 Logical Processors RAM – 4 GB HD – 120 GB

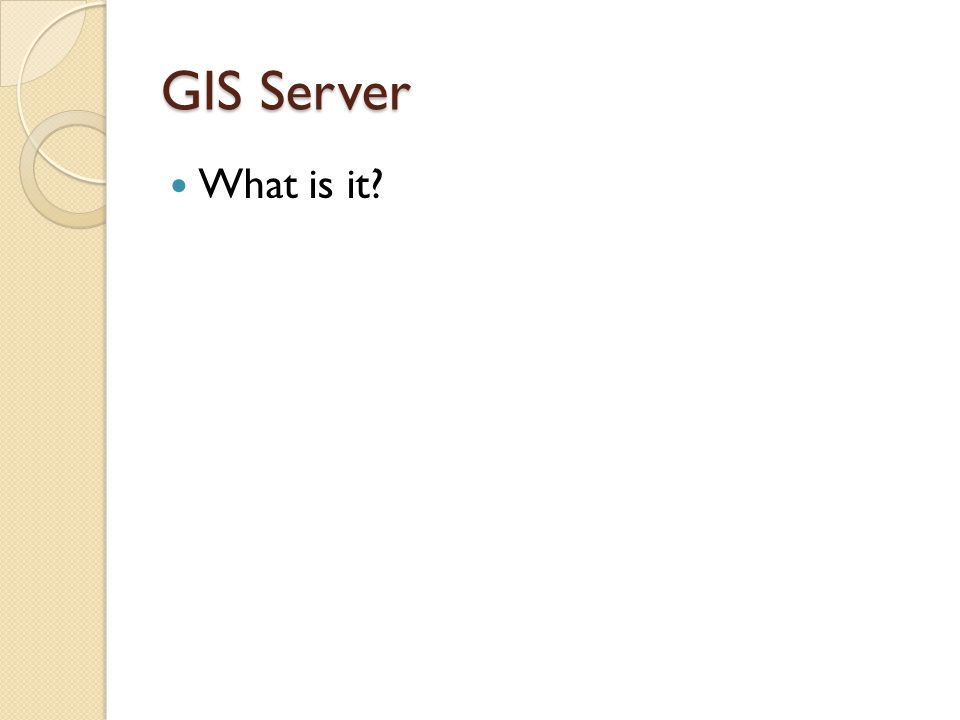

12 GIS Server What is it?

13 GIS Server - Specs Model – Vmware Virtual Platform OS - Server 2008 R2 Standard Type – x64 Processor - Dual Intel Xeon E5520 ◦ 2.27GHz, 2 Cores, 2 Logical Processors RAM – 8 GB HD – C:\ 120GB, D:\ 512GB Clustering

14 GIS Server - Clustering Combining processing power of multiple machines Isolating services

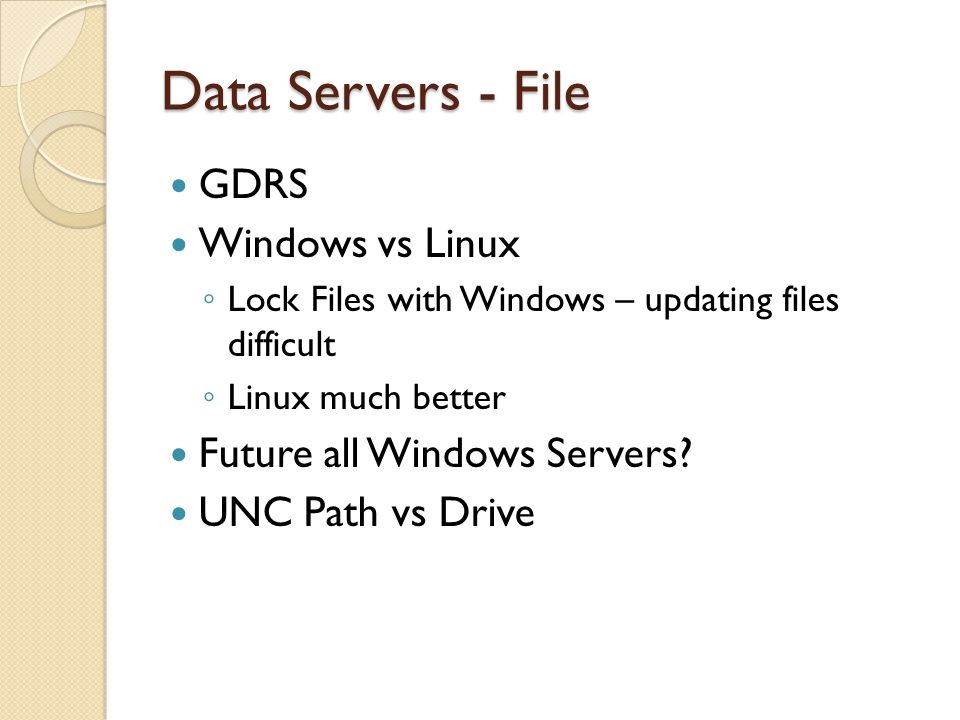

15 Data Servers - File GDRS Windows vs Linux ◦ Lock Files with Windows – updating files difficult ◦ Linux much better Future all Windows Servers? UNC Path vs Drive

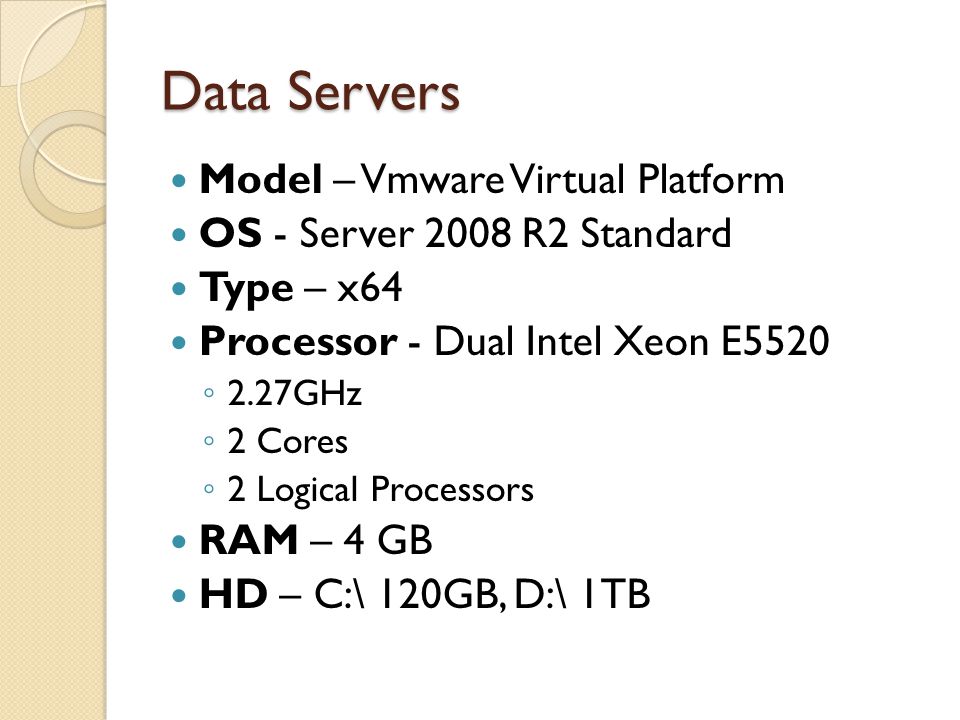

16 Data Servers Model – Vmware Virtual Platform OS - Server 2008 R2 Standard Type – x64 Processor - Dual Intel Xeon E5520 ◦ 2.27GHz ◦ 2 Cores ◦ 2 Logical Processors RAM – 4 GB HD – C:\ 120GB, D:\ 1TB

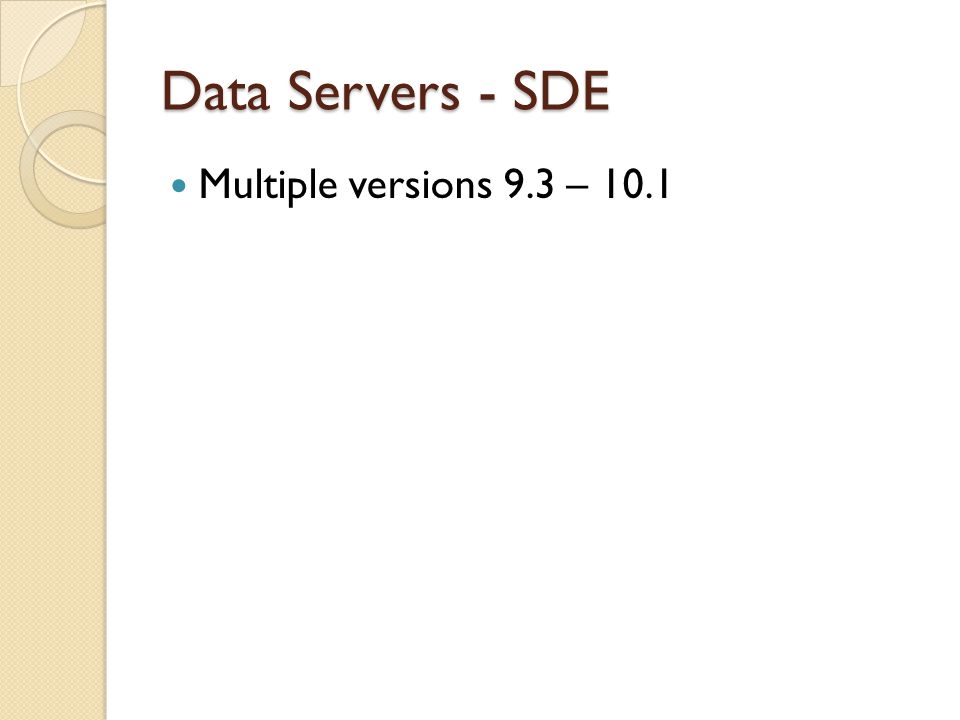

17 Data Servers - SDE Multiple versions 9.3 – 10.1

18 Cache Builder Windows 7 PC Copy Cache to Data Server Model – Vmware Virtual Platform OS – Windows 7 Type – x64 Processor – Intel Core i ◦ 3.10 GHz RAM – 8 GB HD – C:\ 250GB, D:\ 1TB

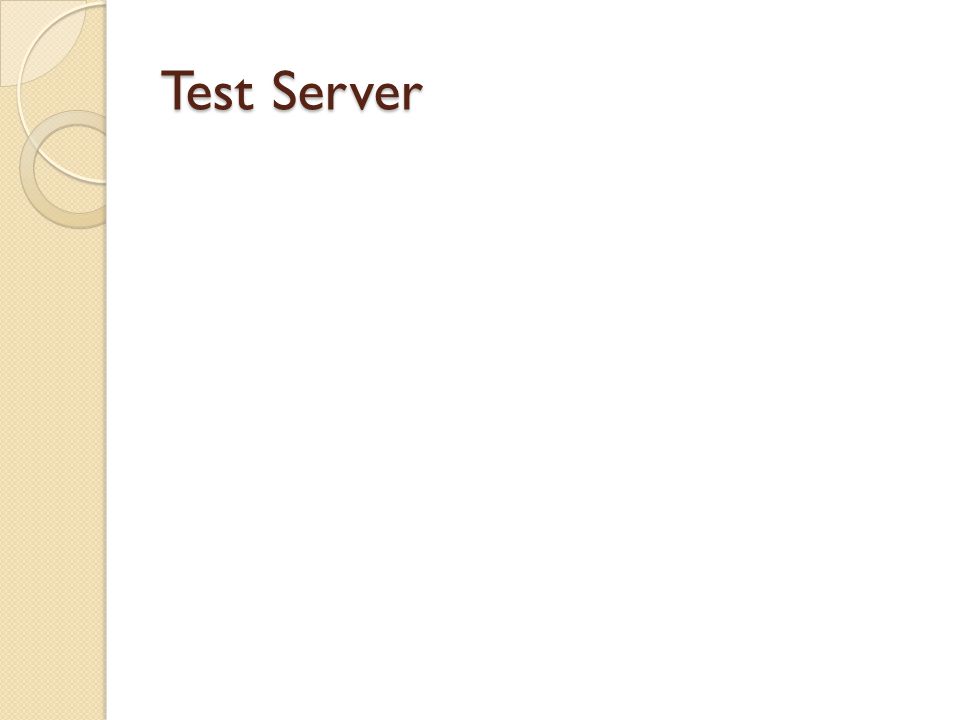

19 Test Server

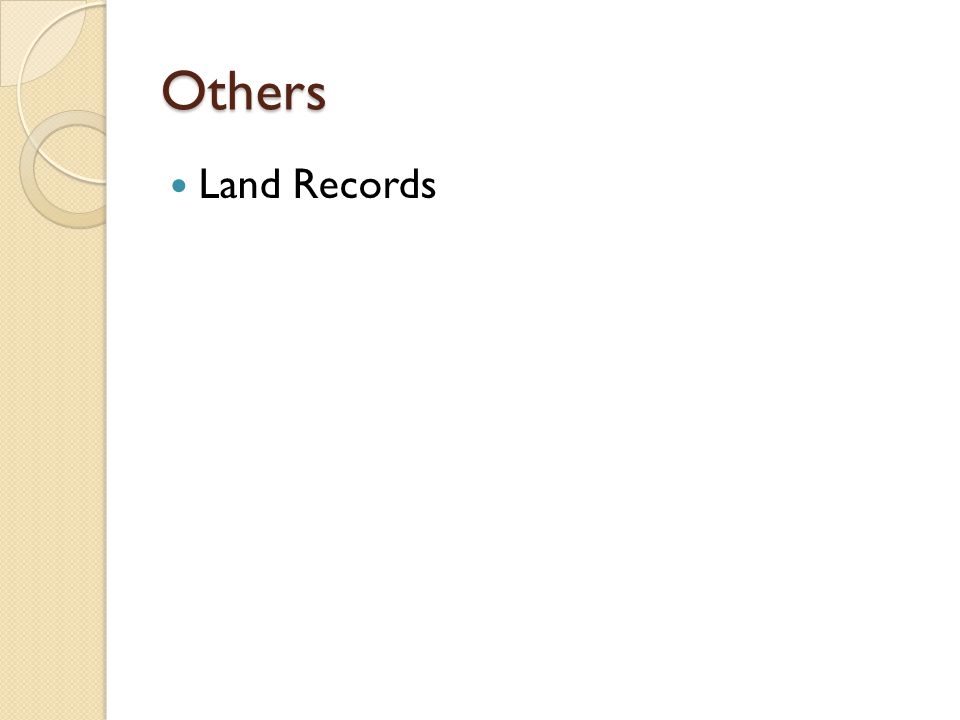

20 Others Land Records

21 Permissions User Group of 15 people ◦ Read/Write access to the Test servers Admin Group of 2 ◦ Publish Apps and Services to Production  Oversight on service data and performance  Turnaround time ….

22 Web Applications ArcGIS Server web apps ◦ Flex Viewer, Javascript ◦ Examples – WHAF, Jay Cooke app Other Web Apps ◦ Ruby on Rails ◦ Services  ArcGIS Server  UofM Map Server

23 ArcGIS Online

24 Houses Online Maps and Applications (intranet and internet) Supported by DNR ArcGIS Server infrastructure. Currently stores several light applications, both internal and external, and some web maps. Looking to build on successes Will serve as a good resource for staff looking to publish dynamic web maps and apps who don’t require more robust custom applications built Looking to train a group of publishers (representatives from each division). ◦ Currently not enough staff knowledgeable in the DNR ArcGIS Server design. Site is part of State and ESRI Enterprise License Agreement. Overseen by MNGEO who distributes credits for usage based on ELA contribution

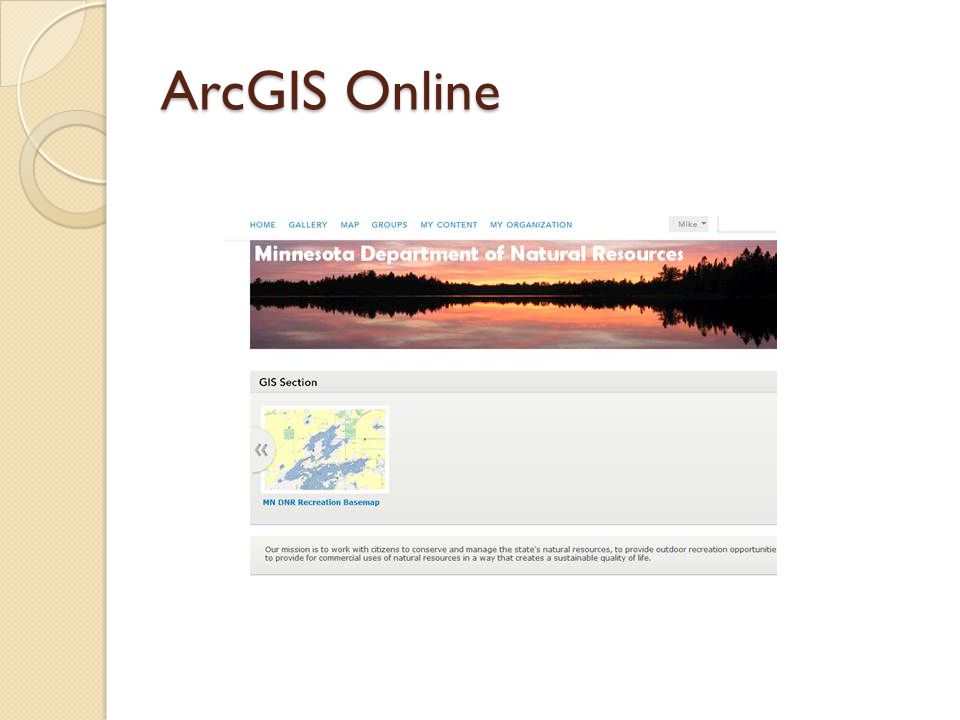

25 ArcGIS Online
