1 CHARACTERISTICS OF ACTIVE COMPONENTS BASIC COMPETENCE : Explain The Characteristics Of Active Components And Passive Electronics By. SETYO SMK MUH.3 YOGYA

2 Teknologi dan Rekayasa OBJECTIVE STUDENTS UNDERSTAND THE CHARACTERISTICS OF THE COMPONENTS ACTIVE STUDENTS UNDERSTAND THE WORKING VOLTAGE OF THE COMPONENTS ACTIVE By. SETYO SMK MUH.3 YOGYA

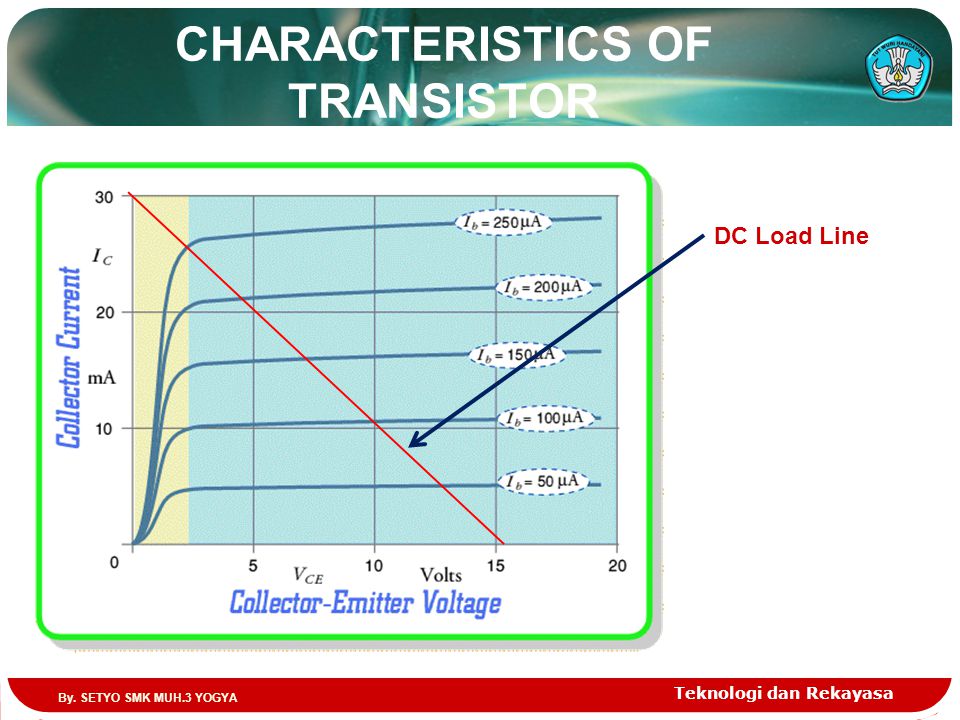

3 Teknologi dan Rekayasa CHARACTERISTICS OF TRANSISTOR DC Load Line By. SETYO SMK MUH.3 YOGYA

4 CHARACTERISTICS OF DIODA Teknologi dan Rekayasa Forward Circuit of Dioda Germanium stable after the start voltage reaches ≥ 0.3 Volt DC. Anoda > + from the cathode By. SETYO SMK MUH.3 YOGYA

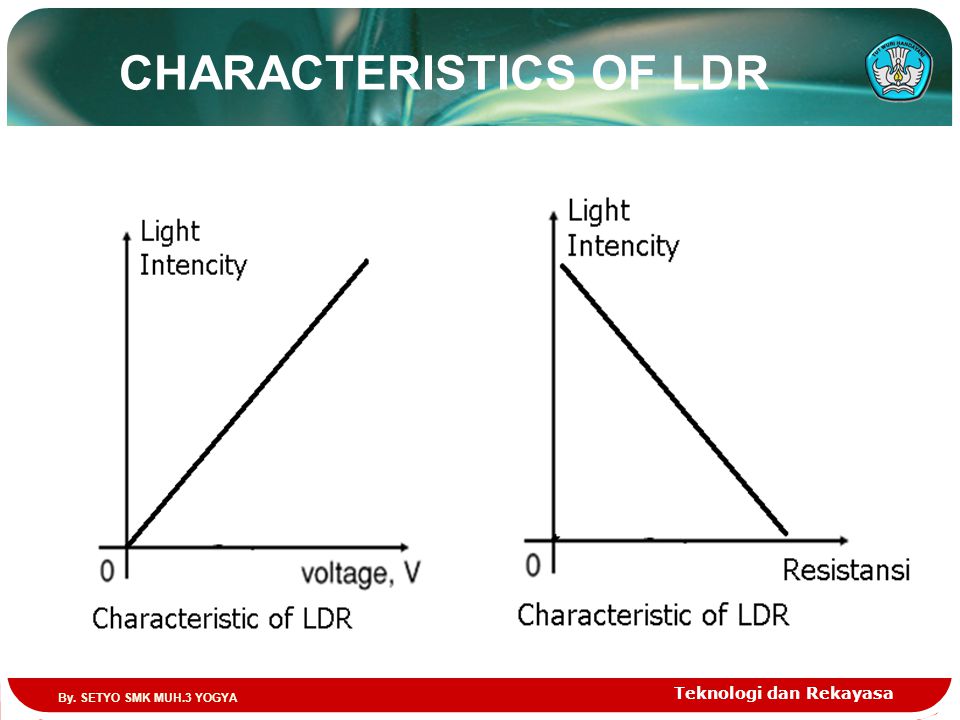

5 CHARACTERISTICS OF LDR Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

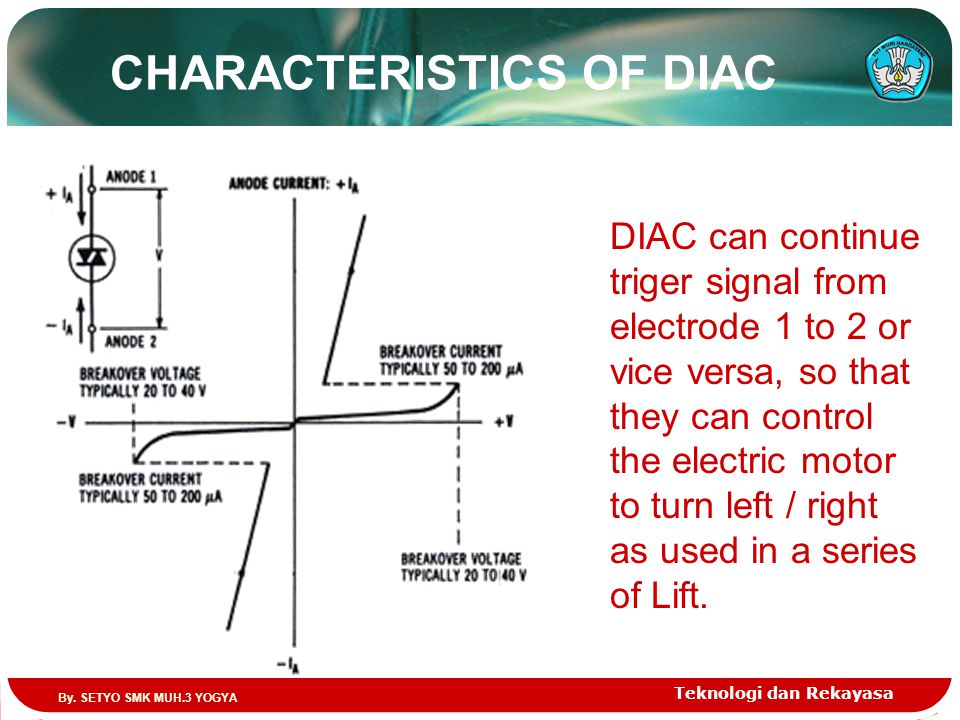

6 CHARACTERISTICS OF DIAC Teknologi dan Rekayasa DIAC can continue triger signal from electrode 1 to 2 or vice versa, so that they can control the electric motor to turn left / right as used in a series of Lift. By. SETYO SMK MUH.3 YOGYA

7 CHARACTERISTICS OF DIODA VARACTOR Teknologi dan Rekayasa CT V The value transition capasitancy the linear of change voltage in the reverse dioda, change the value capasitancy this value can change the frequency through By. SETYO SMK MUH.3 YOGYA

8 Teknologi dan Rekayasa NoSpecification Voltage changes Comparison Value of Capacitors 1 IN V s.d – 60 V 3 : 115 pF – 5 pF 2 ECG V s.d 30 V 3 : 26.8 pF- 2.7 pF 3 ECG V s.d 30 V 4 : 112 pF – 2.9 pF 4 ECG V s.d 30 V 7 : 122 pF – 2.9 pF Table of changes in the capacity of the Varactor Voltage By. SETYO SMK MUH.3 YOGYA

9 CHARACTERISTICS OF FET Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

10 Teknologi dan Rekayasa STRUCTURE JUNCTION MOSFET Canal PCanal N By. SETYO SMK MUH.3 YOGYA

11 THE END Teknologi dan Rekayasa THANKS By. SETYO SMK MUH.3 YOGYA
