2
Page 375, fig. 2

4

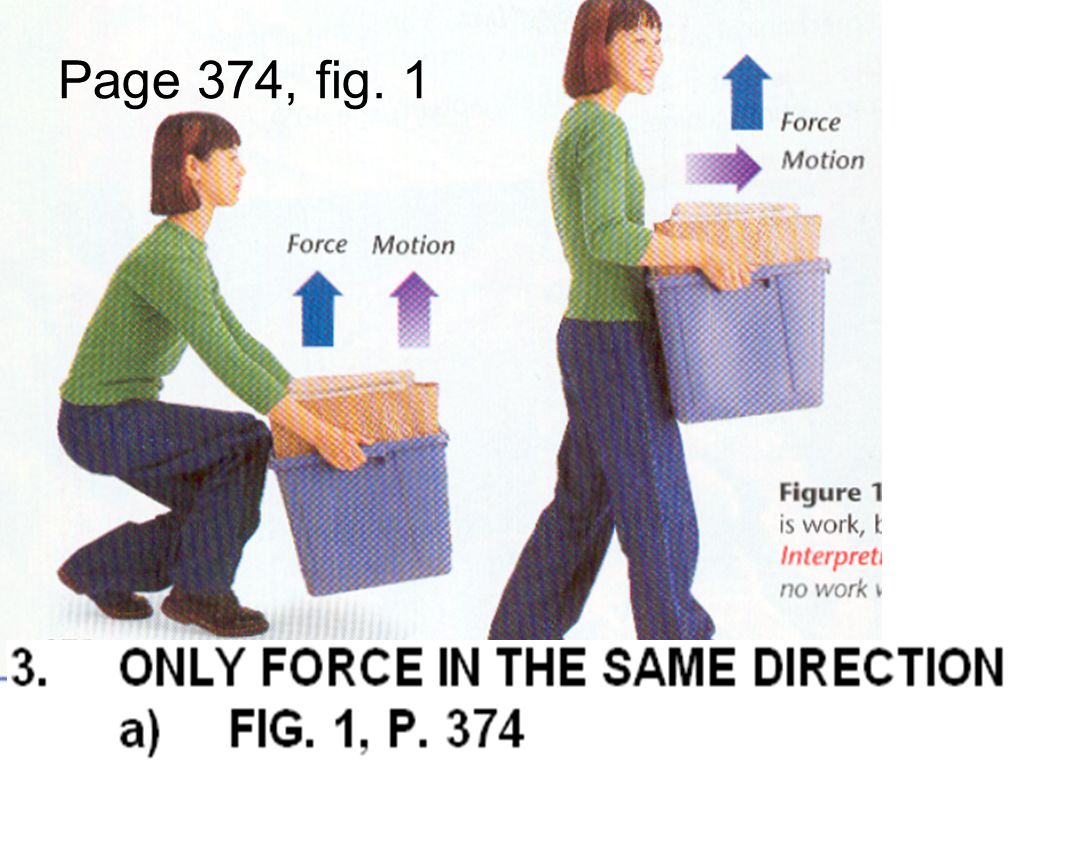

Page 374, fig. 1

6

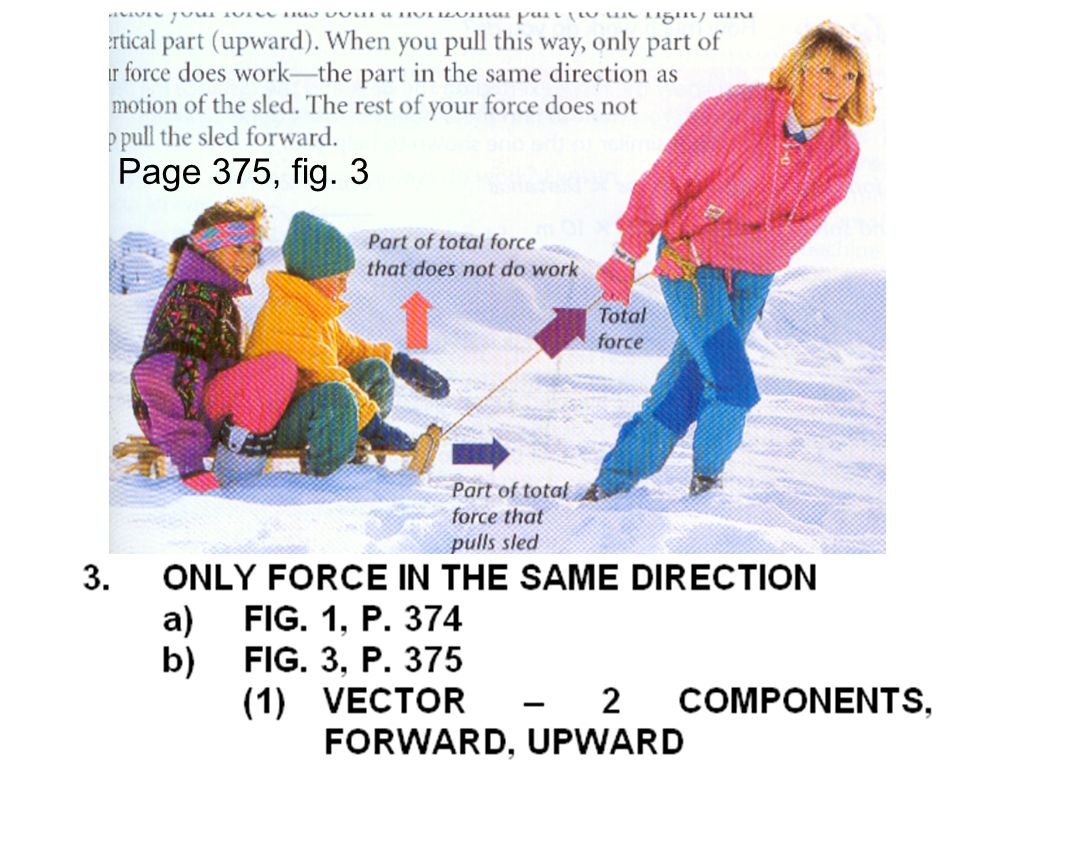

Page 375, fig. 3

7
Page 376

10
A hydraulic lift exerts a force of 12,000 N to lift a car 2 m. How much work is done on the car?

11
W = F X D

12

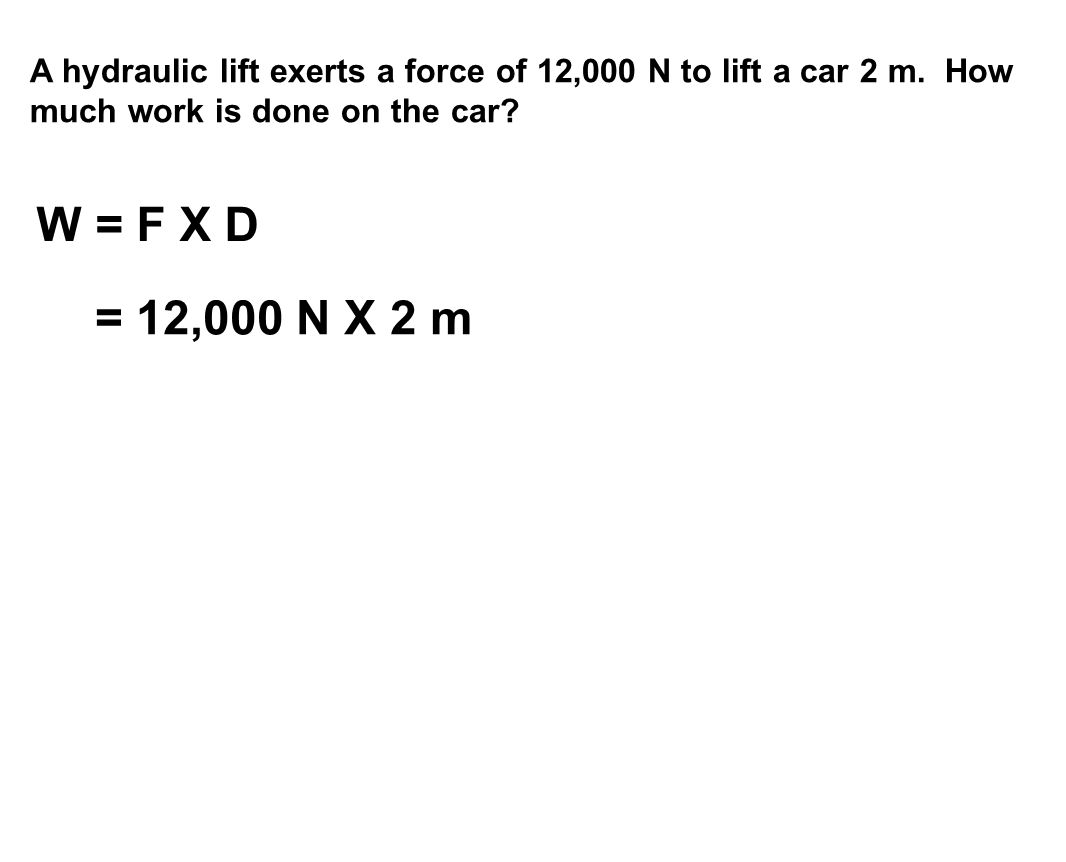

A hydraulic lift exerts a force of 12,000 N to lift a car 2 m. How much work is done on the car? W = F X D = 12,000 N X 2 m

13
A hydraulic lift exerts a force of 12,000 N to lift a car 2 m. How much work is done on the car? W = F X D = 12,000 N X 2 m = 24,000 Nm

14
A hydraulic lift exerts a force of 12,000 N to lift a car 2 m. How much work is done on the car? W = F X D = 12,000 N X 2 m = 24,000 Nm = 24,000 J

15

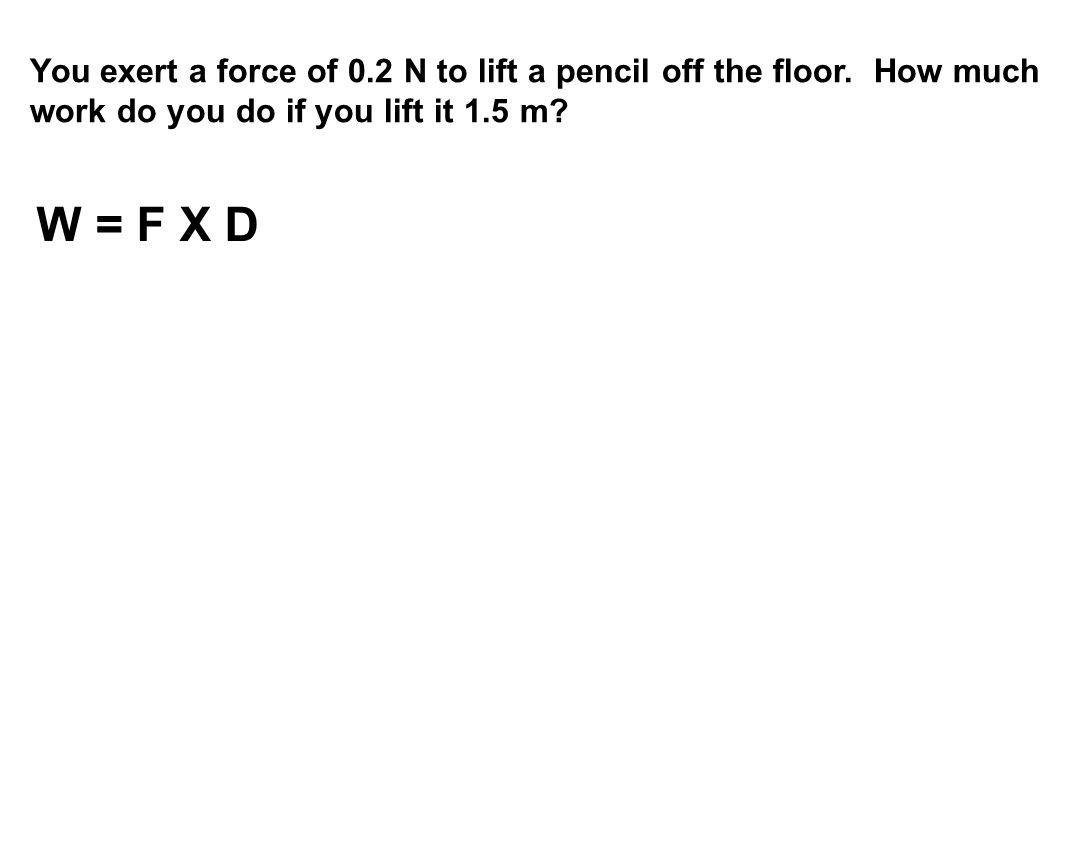

You exert a force of 0.2 N to lift a pencil off the floor. How much work do you do if you lift it 1.5 m?

16
W = F X D

17
You exert a force of 0.2 N to lift a pencil off the floor. How much work do you do if you lift it 1.5 m? W = F X D = 0.2 N X 1.5 m

18
You exert a force of 0.2 N to lift a pencil off the floor. How much work do you do if you lift it 1.5 m? W = F X D = 0.2 N X 1.5 m = 0.3 Nm

19
You exert a force of 0.2 N to lift a pencil off the floor. How much work do you do if you lift it 1.5 m? W = F X D = 0.2 N X 1.5 m = 0.3 Nm = 0.3 J

20
Page 377, fig. 4

21
Page 378

25
Page 379, fig. 5

27
Page 379, fig. 6

30
Page 380, fig. 7

31
Page 381, fig. 8

33
Page 380, fig. 7

34
Page 382

35
You cut the lawn with a hand mower. You do 250,000 J of work to move the mower. If the work done by the mower in cutting the lawn is 200,000 J, what is the efficiency of the mower? E = W o WiWi E = 200,000 J 250,000 J E = 0.8 X 100% = 80%

36
You do 1,500 J of work using a hammer. The hammer does 825 J of work on a nail. What is the efficiency of the hammer? E = W o WiWi

37

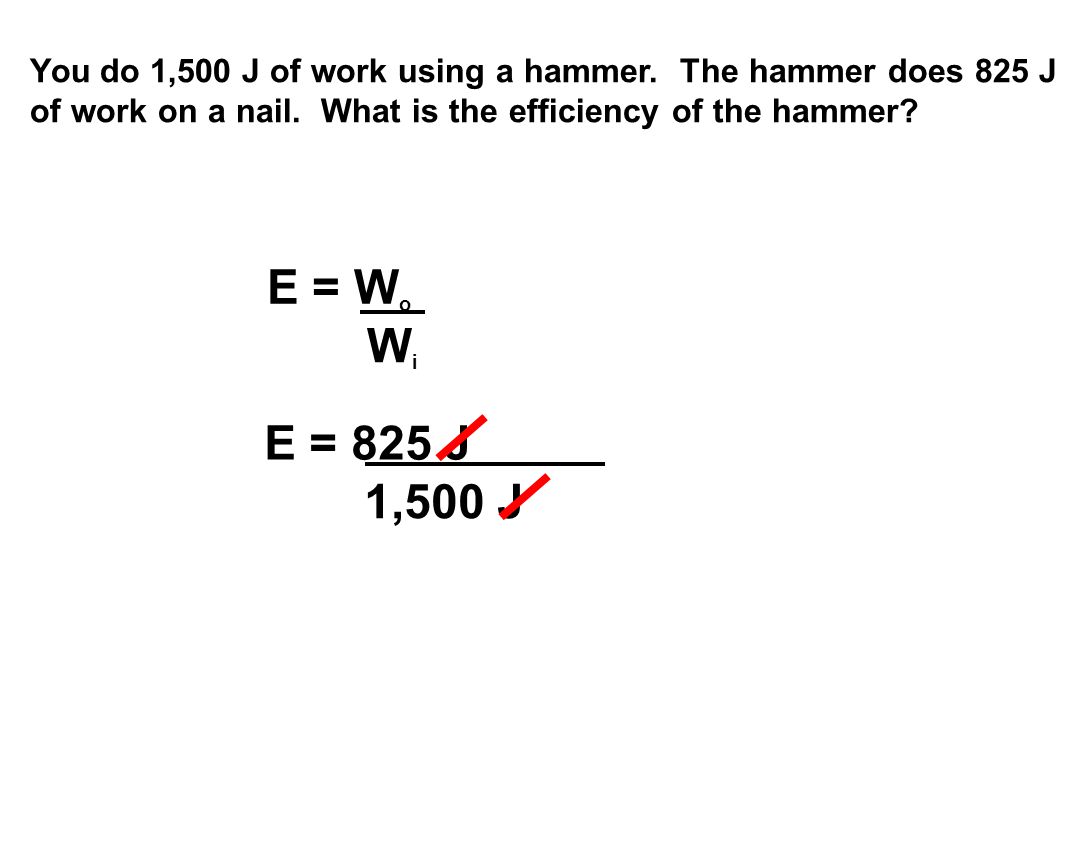

You do 1,500 J of work using a hammer. The hammer does 825 J of work on a nail. What is the efficiency of the hammer? E = W o WiWi E = 825 J 1,500 J

38
You do 1,500 J of work using a hammer. The hammer does 825 J of work on a nail. What is the efficiency of the hammer? E = W o WiWi E = 825 J 1,500 J E = 0.55 X 100% = 55%

39
Suppose you left your lawn mower outdoors all winter. It's now rusty. Of your 250,000 J of work, only 100,000 J go to cutting the lawn. What is the efficiency of the machine now? E = W o WiWi

40

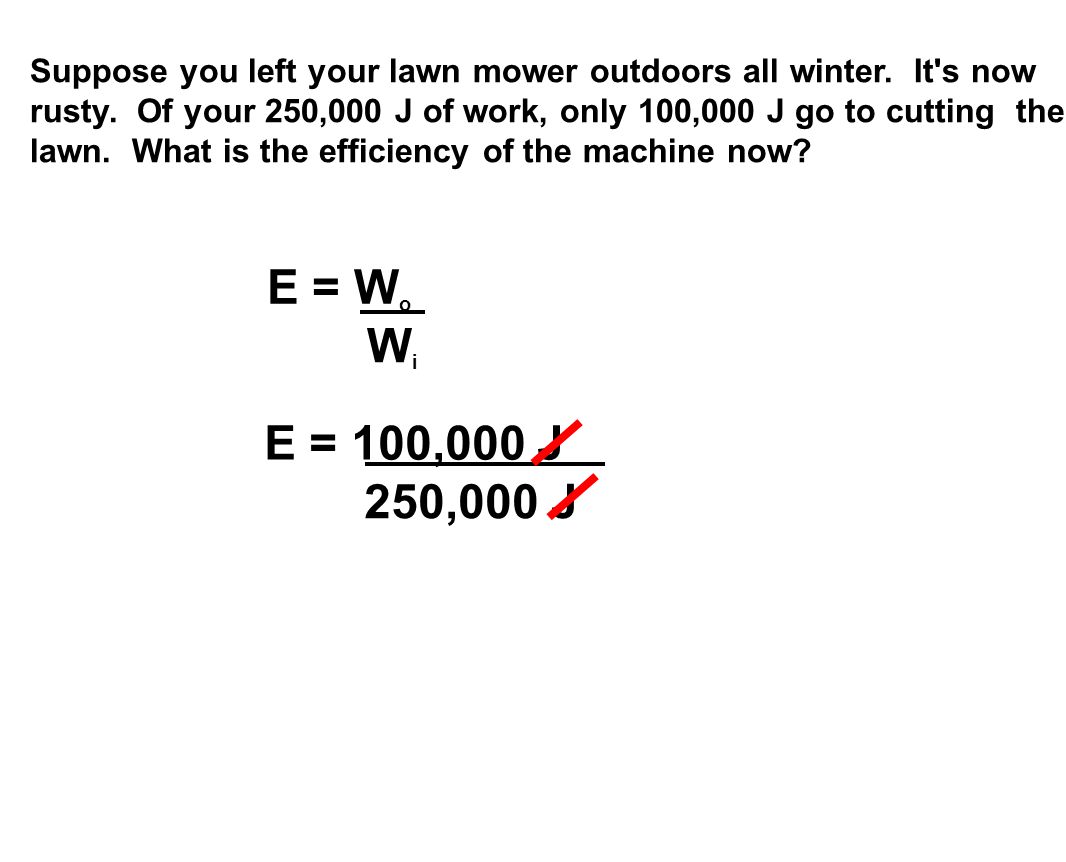

Suppose you left your lawn mower outdoors all winter. It's now rusty. Of your 250,000 J of work, only 100,000 J go to cutting the lawn. What is the efficiency of the machine now? E = W o WiWi E = 100,000 J 250,000 J

41
Suppose you left your lawn mower outdoors all winter. It's now rusty. Of your 250,000 J of work, only 100,000 J go to cutting the lawn. What is the efficiency of the machine now? E = W o WiWi E = 100,000 J 250,000 J E = 0.4 X 100% = 40%
