1 SOUND PRESSURE, POWER AND LOUDNESS MUSICAL ACOUSTICS Science of Sound Chapter 6

2 DECIBEL SCALES

3

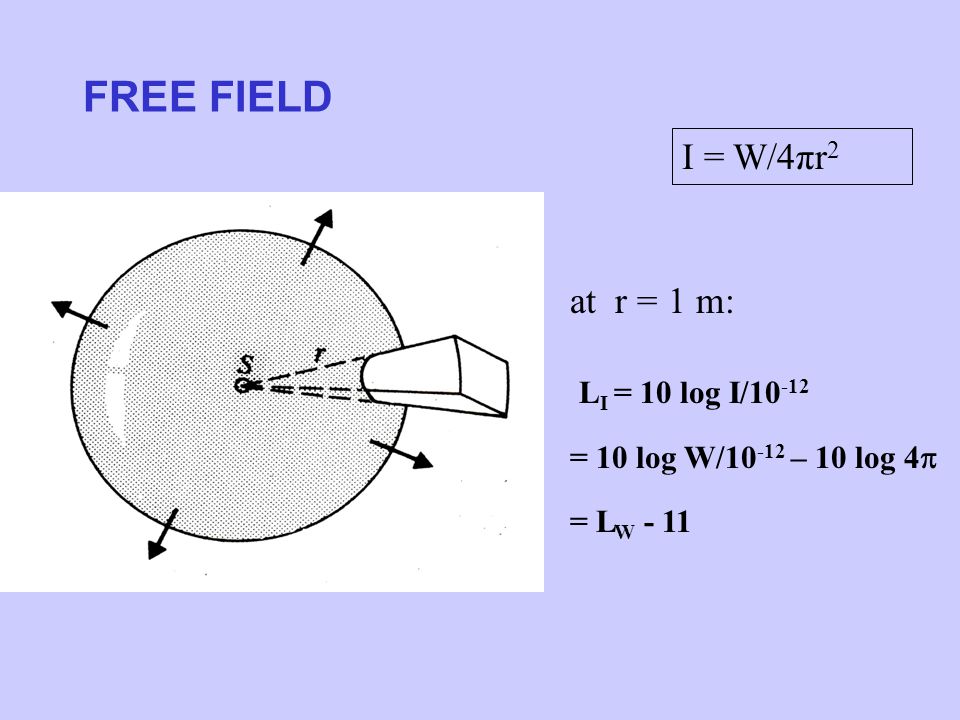

4 FREE FIELD I = W/4πr 2 at r = 1 m: L I = 10 log I/ = 10 log W/ – 10 log 4  = L W - 11

5 HEMISPHERICAL FIELD I = W/2  r 2 at r = l m L I = L W - 8 Note that the intensity I α 1/r 2 for both free and hemispherical fields; therefore, L I decreases 6 dB for each doubling of distance

6 SOUND PRESSURE LEVEL Our ears respond to extremely small pressure fluctuations p Intensity of a sound wave is proportional to the sound Pressure squared: ρc ≈ 400 I = p 2 /ρc ρ = density c = speed of sound We define sound pressure level: L p = 20 log p/p 0 p 0 = 2 x Pa (or N/m 2 ) (or SPL)

7 TYPICAL SOUND LEVELS

8 MULTIPLE SOURCES Example:Two uncorrelated sources of 80 dB each will produce a sound level of 83dB (Not 160 dB)

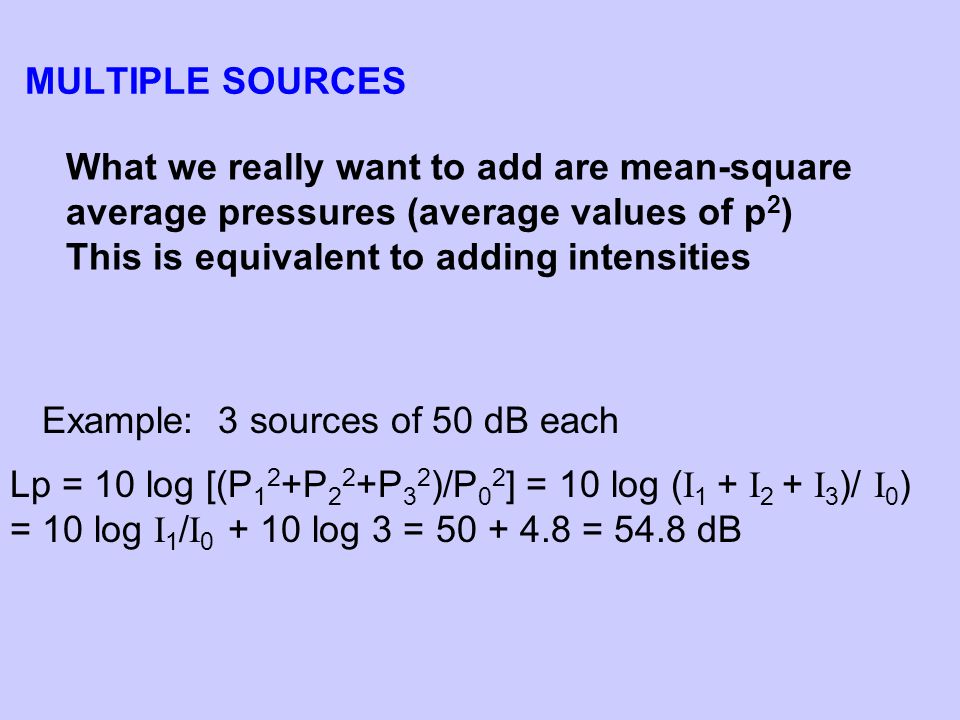

9 MULTIPLE SOURCES What we really want to add are mean-square average pressures (average values of p 2 ) This is equivalent to adding intensities Example: 3 sources of 50 dB each Lp = 10 log [(P 1 2 +P 2 2 +P 3 2 )/P 0 2 ] = 10 log ( I 1 + I 2 + I 3 )/ I 0 ) = 10 log I 1 / I log 3 = = 54.8 dB

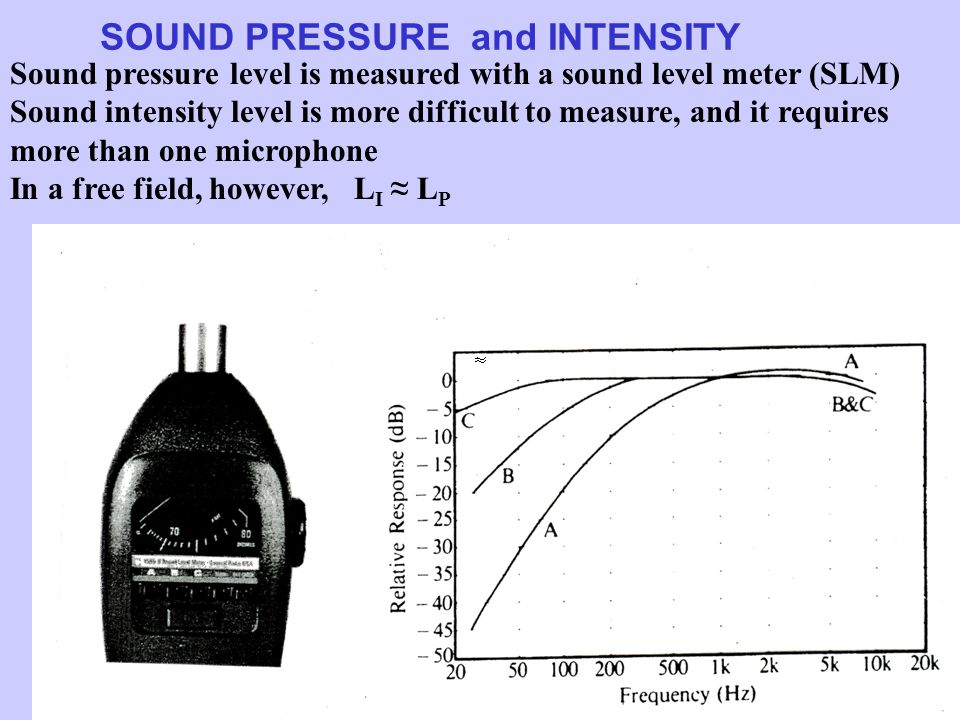

10 SOUND PRESSURE and INTENSITY Sound pressure level is measured with a sound level meter (SLM) Sound intensity level is more difficult to measure, and it requires more than one microphone In a free field, however, L I ≈ L P

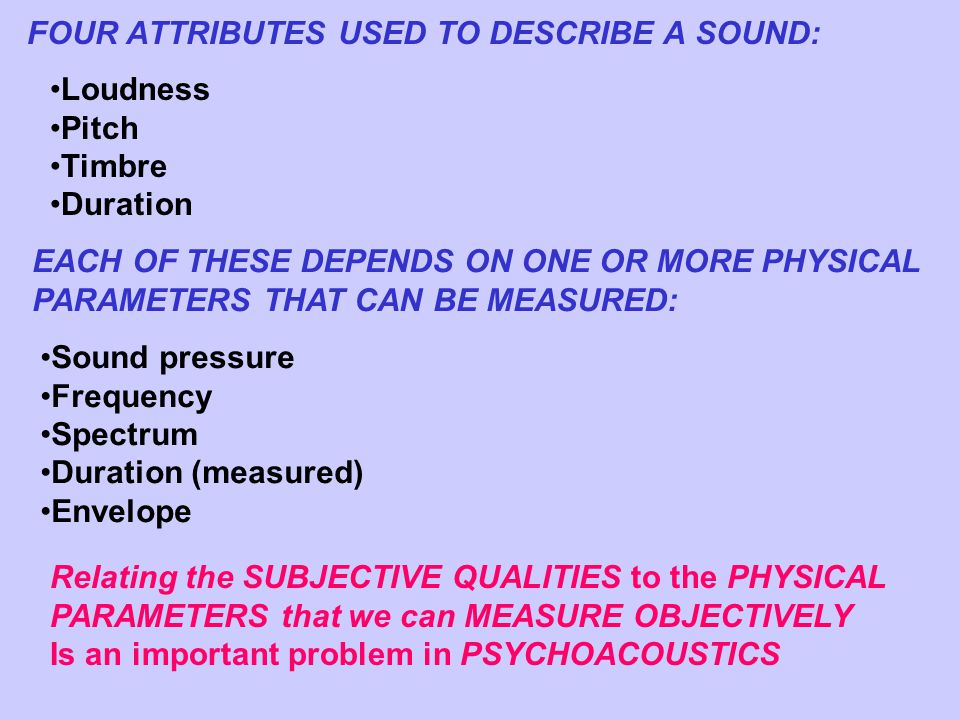

11 FOUR ATTRIBUTES USED TO DESCRIBE A SOUND: Loudness Pitch Timbre Duration EACH OF THESE DEPENDS ON ONE OR MORE PHYSICAL PARAMETERS THAT CAN BE MEASURED: Sound pressure Frequency Spectrum Duration (measured) Envelope Relating the SUBJECTIVE QUALITIES to the PHYSICAL PARAMETERS that we can MEASURE OBJECTIVELY Is an important problem in PSYCHOACOUSTICS

12 DEPENDENCE OF SUBJECTIVE QUALITIES OF SOUND ON PHYSICAL PARAMETERS

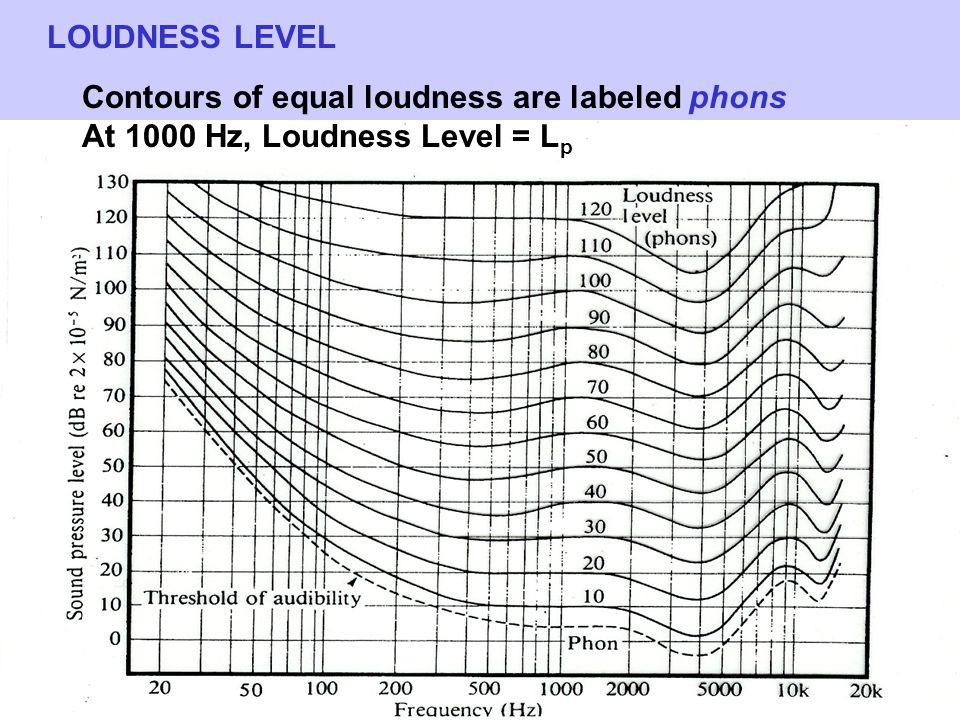

13 LOUDNESS LEVEL Contours of equal loudness are labeled phons At 1000 Hz, Loudness Level = L p

14 PLOT YOUR OWN FREQUENCY RESPONSE ASSIGNMENT: Plot your own frequency response curves by using

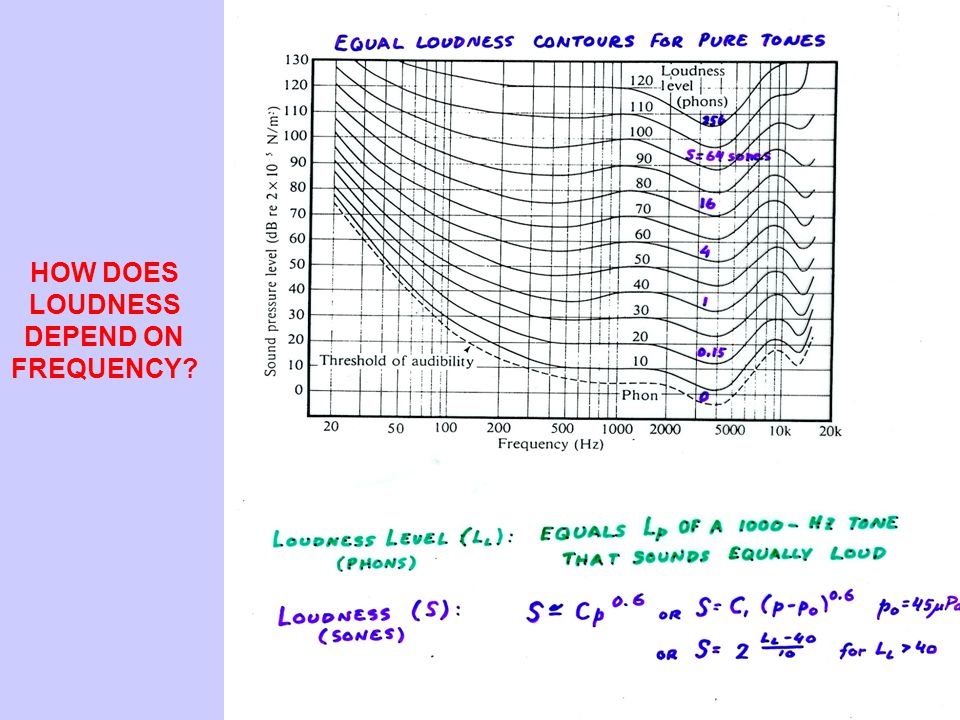

15 HOW DOES LOUDNESS DEPEND ON FREQUENCY?

16

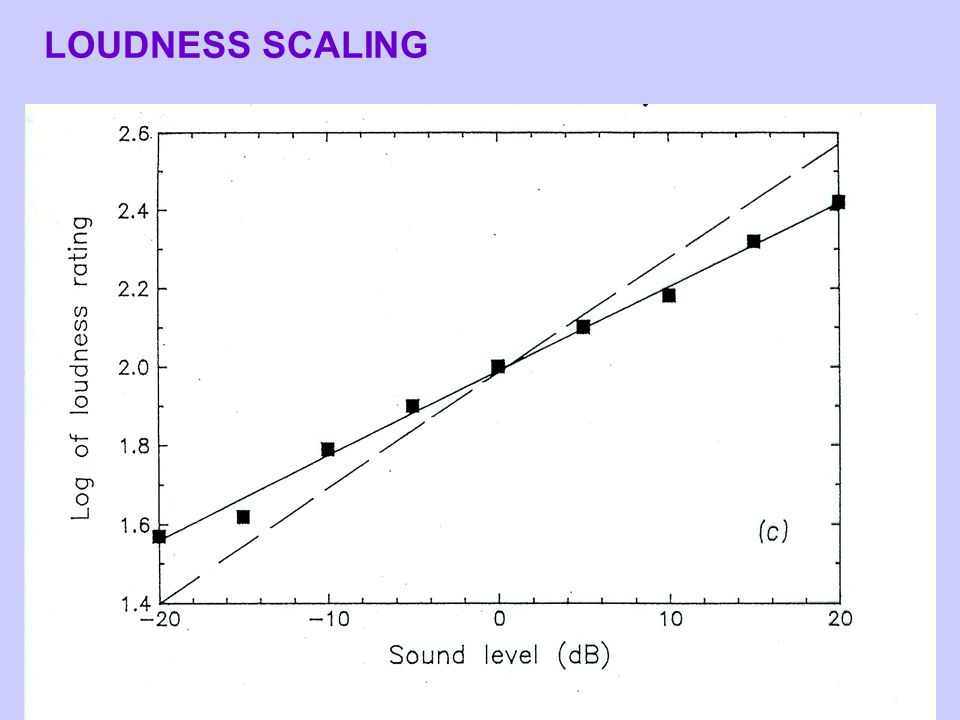

17 LOUDNESS SCALING

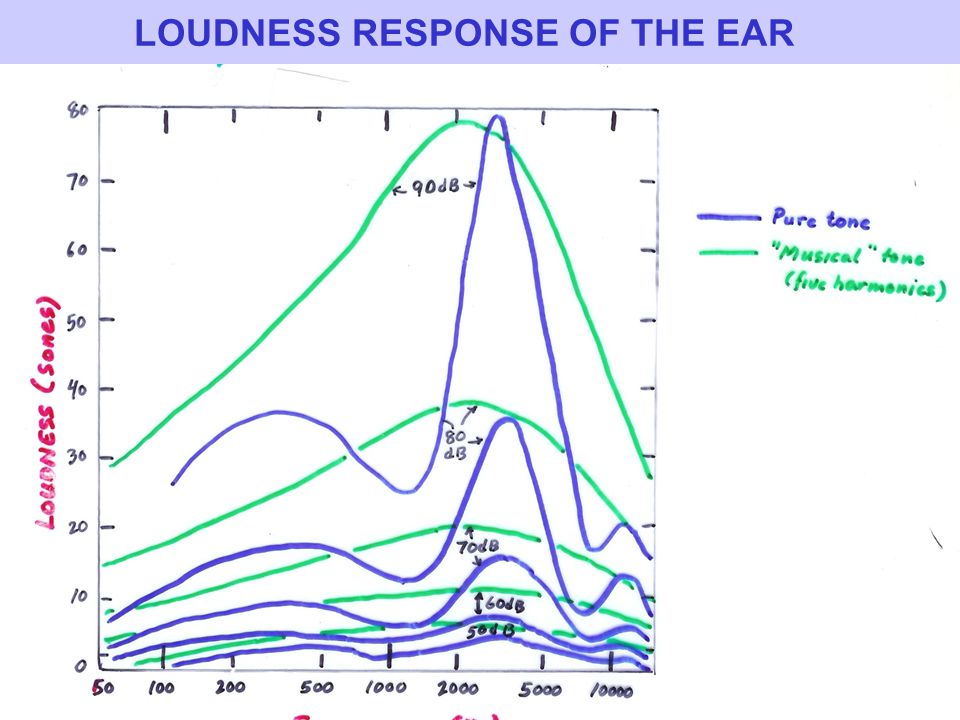

18 LOUDNESS RESPONSE OF THE EAR

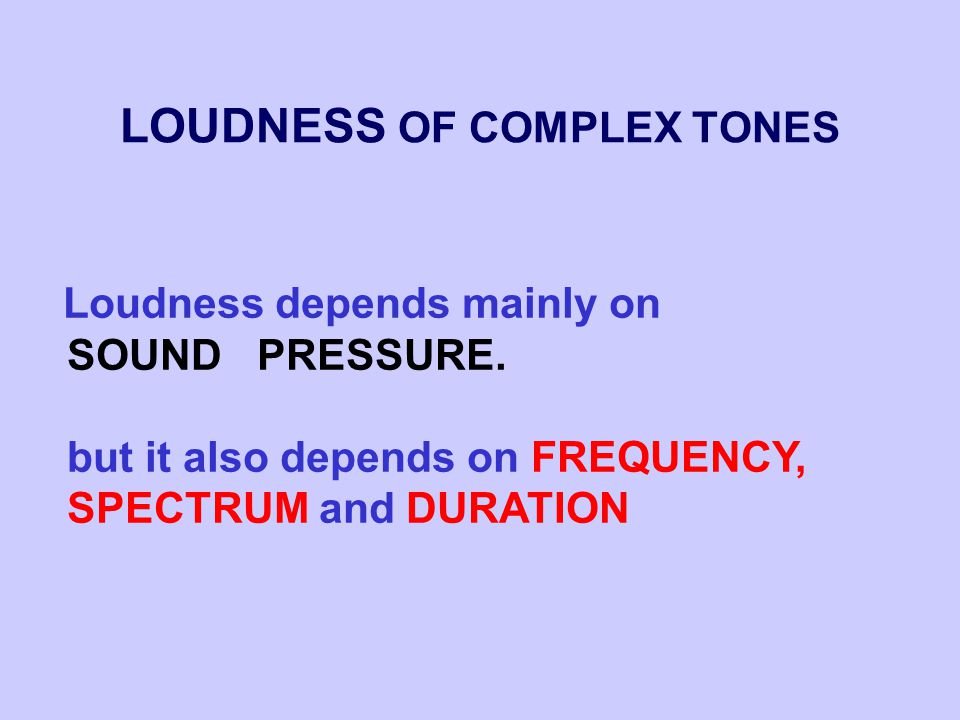

19 LOUDNESS OF COMPLEX TONES Loudness depends mainly on SOUND PRESSURE. but it also depends on FREQUENCY, SPECTRUM and DURATION

20 DEPENDENCE OF LOUDNESS ON BANDWIDTH CRITICAL BANDS

21 LOUDNESS OF COMBINED SOUNDS

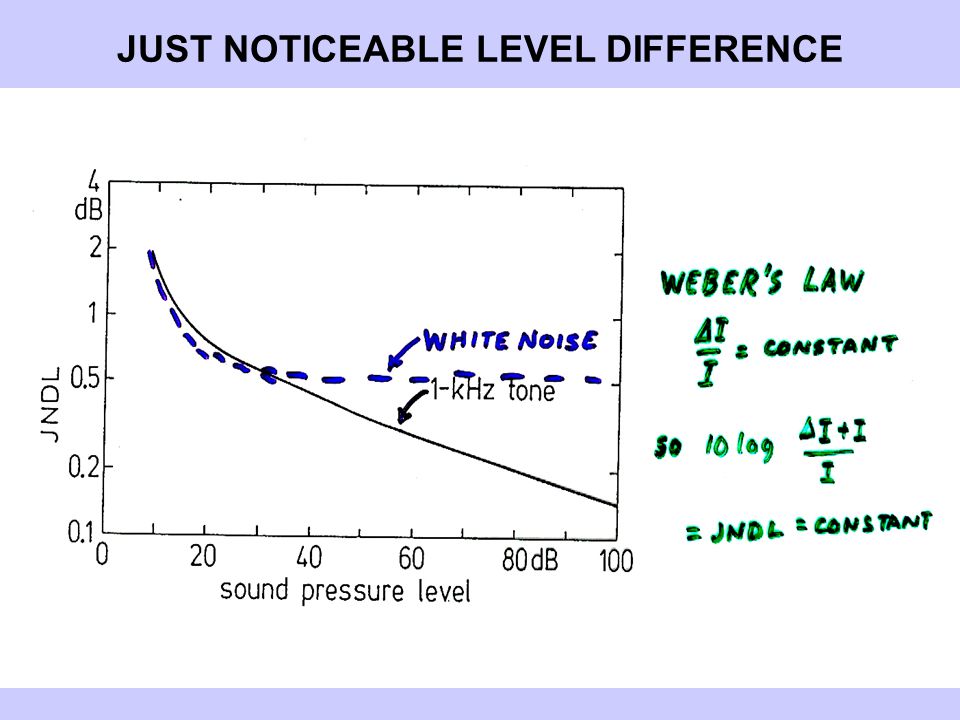

22 JUST NOTICEABLE LEVEL DIFFERENCE

23 LEVEL INCREMENT NEEDED TO DOUBLE LOUDNESS

24 RANGE OF FREQUENCY AND INTENSITY OF THE EAR

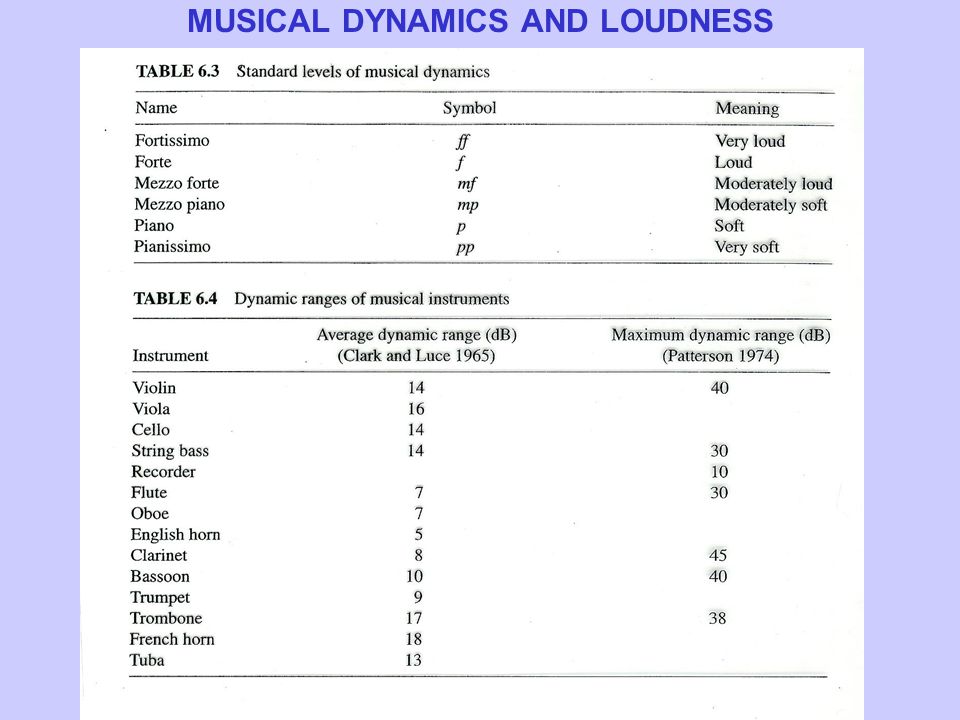

25 MUSICAL DYNAMICS AND LOUDNESS

26

27 HOW DOES LOUDNESS DEPEND ON PARTIAL MASKING?

28 HOW DOES LOUDNESS DEPEND ON DURATION?

29 LOUDNESS RECRUITMENT UNUSUALLY RAPID GROWTH OF LOUDNESS ABOVE A CERTAIN THRESHOLD GENERALLY ASSOCIATED WITH HEARING LOSS, BUT NORMAL LISTENERS EXPERIENCE IT FOR TONES OF VERY HIGH OR VERY LOW FREQUENCY

30 MONAURAL vs BINAURAL LOUDNESS FOR SOFT SOUNDS (~20dB) BINAURAL LOUDNESS EXCEEDS MONAURAL LOUDNESS BY A FACTOR OF 2 ( CORRESPONDS TO ΔL = 8dB) FOR LOUD SOUNDS (~80dB) BINAURAL LOUDNESS EXCEEDS MONAURAL LOUDNESS BY A FACTOR ~/.4 ( CORRESPONDS TO ΔL = 6dB) Zwicker & Fastl (1990)

31 INTENSITY DISCRIMINATION AND CODING AT LOW LEVELS, INTENSITY CHANGES CAN BE SIGNALLED BOTH BY CHANGES IN FIRING RATES OF NEURONS AT THE CENTER OF THE EXCITATION PATTERN AND BY THE SPREADING OF THE EXCITATION PATTERN (TO INCLUDE MORE NEURONS) AT HIGH LEVELS, MOST NEURONS AT THE CENTER OF THE EXCITATION PATTERN ARE SATURATED, BUT INTENSITY CHANGES ARE SIGNALLED BY CHANGES IN FIRING RATES AT THE EDGES. AN INCREASE IN LEVEL ALSO MAY BE SIGNALLED BY INCREASED PHASE LOCKING TO THE TONE WHICH RESULTS IN TEMPORAL REGULARITY OF NEURAL FIRINGS
