1 connect communicate collaborate International Networking using GÉANT & the NRENs for Data Moving Richard Hughes-Jones DANTE Delivery of Advanced Network Technology to Europe UK e-Infrastructure Academic User Community Forum, Oxford, 12 September 2012

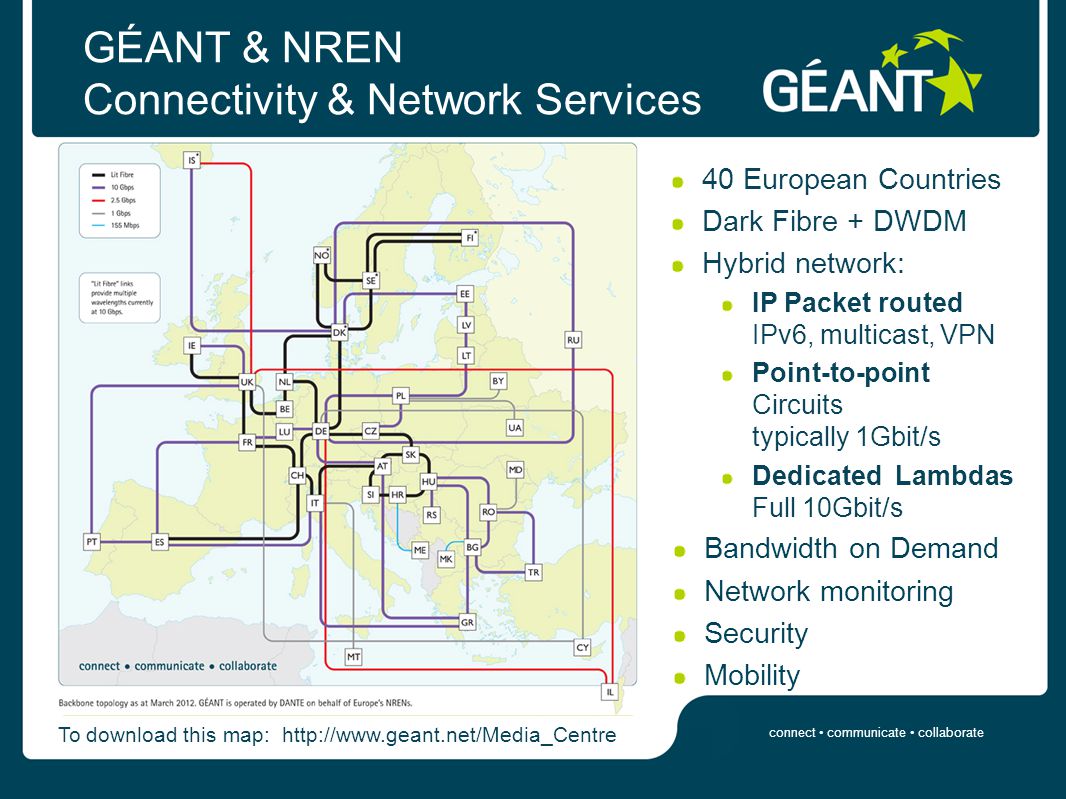

2 connect communicate collaborate 40 European Countries Dark Fibre + DWDM Hybrid network: IP Packet routed IPv6, multicast, VPN Point-to-point Circuits typically 1Gbit/s Dedicated Lambdas Full 10Gbit/s Bandwidth on Demand Network monitoring Security Mobility GÉANT & NREN Connectivity & Network Services To download this map:

3 connect communicate collaborate World Connectivity The Global Virtual Research Village The GÉANT network has high speed links to networks in other world regions, connecting researchers across the globe: Asia-Pacific South Caucasus Central Asia Latin America North America Southern and Eastern Africa Southern Mediterranean To download this map:

4 connect communicate collaborate THE GÉANT 100 GIGABIT ROLLOUT

5 connect communicate collaborate The GÉANT Procurement Started at the beginning of 2010 with an RFI exercise (6 months) Formal Competitive Dialogue procurement process at the end of 2010 in 3 lots Dialogue ran throughout 2011, resulted in ITT for: Technology agnostic approach to transmission “100G-optimised” transmission with flexible deployment of 10G services [lot 1] “Classical IP/MPLS” for “Packet transport” solutions for the switching layer [lot 2] (Alternatives (MPLS-TP, PBB-TE) did not look sufficiently convincing) We selected: DTN-X solution from Infinera Juniper MX IP/MPLS switch/routers In addition we have re-procured the dark fibres.

6 connect communicate collaborate Day-1 connectivity used by MXs and extant routers (high level view) KEY 100G lambda Nx10GE lambda Nx10GE lambda (detail TBD) Nx10G leased lambdas RO FR IE PT LTLVEE BG GR HU Fink ES LU BE NLUKCZSK HR AT SI PLDK RU DE CH IT Actually Infinera gives 500 Gbit

7 connect communicate collaborate Inside the GÉANT PoP The Hybrid GÉANT+ services GÉANT POP A To NREN A Primary IP Peering Backup IP Peering for NREN A GÉANT POP B IP Router Switch IP Backup Lambdas GÉANT+ To NREN B Switch Dark fibre/amplifier chain Primary IP Peering IP Backup GÉANT+ IP Router Lambdas

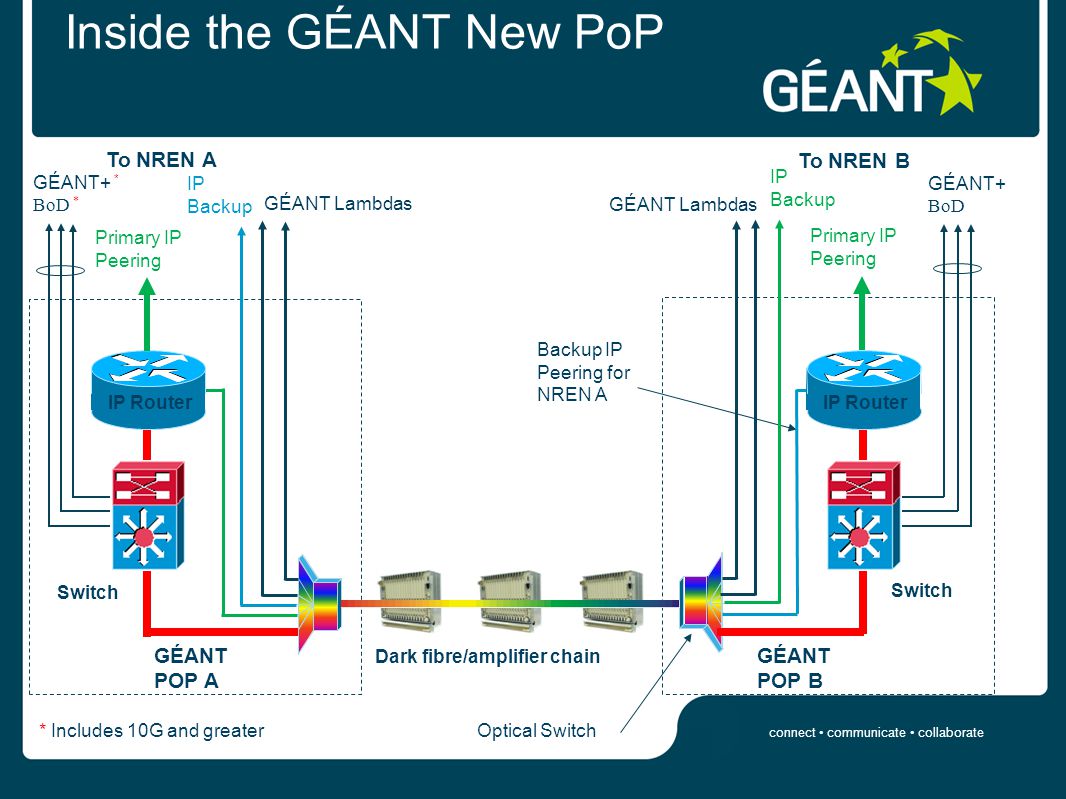

8 connect communicate collaborate Inside the GÉANT New PoP GÉANT POP A To NREN A Primary IP Peering Backup IP Peering for NREN A GÉANT POP B IP Router IP Backup GÉANT Lambdas GÉANT+ * BoD * Dark fibre/amplifier chain Primary IP Peering IP Router IP Backup GÉANT Lambdas GÉANT+ BoD To NREN B * Includes 10G and greaterOptical Switch Switch

9 connect communicate collaborate Roadmap Services made available during

10 connect communicate collaborate CONNECTING THE CAMPUS & DATA TRANSFER END SYSTEMS

11 connect communicate collaborate A Typical Site Ad Hoc Data Node Deployment Eli Dart ESnet Transfer node where user has space Traffic subject to firewall & general campus LANs perfSONAR at border The goal is to provide: a high bandwidth loss free path to the data moving nodes.

12 connect communicate collaborate Prototype Science DMZ 12 Eli Dart ESnet Simple extension Port on Border Router perfSONAR at border & close to data transfer node Campus firewall remains the same. Security policy exceptions only allow traffic from partners.

13 connect communicate collaborate Virtual Circuit Prototype Deployment paths.13 Adding a P2P circuit Direct or through Border Router perfSONAR at border & close to data transfer node Campus firewall remains the same. Security policy exceptions only allow traffic from partners. DMZ hosts may use routed or P2P paths. Allows multiple projects.

14 connect communicate collaborate NETWORK MONITORING PERFSONAR MDM

15 connect communicate collaborate Collaboration + brilliant performances: perfSONAR – effective monitoring Effective operations require proper network troubleshooting at an international scale perfSONAR gathers information from different network domains and builds a global picture Each measurement point runs perfSONAR software to measure the following metrics: Available Bandwidth One Way Delay Jitter (One Way Delay variation) Route Tracing Regular historical & ad hoc on demand measurements. Implementations interoperate, OGF standard: perfSONAR MDM within GÉANT: perfSONAR PS within I2/ESnet:

16 connect communicate collaborate A new perfSONAR MDM: Compatible, open, interoperable Developers actively working with the user community Using direct user feedback to keep meeting their expectations perfSONAR User Panel to gather requirements and steer development Simplified installation procedure RPMs and DEB packages available Pre-installed, ready to use, Virtual Machines available perfSONAR-take-away – live distribution on a USB stick Revised documentation (lightweight and modular) Interoperable with perfSONAR-PS Successful use-cases:

17 connect communicate collaborate Summary With European and world collaborations, the network is an integral part of the science and research. Many connectivity service options are available to match the project requirements: Routed IP, pt-2-pt circuits, Lambdas, BoD. The upgrade of the GÉANT infrastructure will to move it towards Terabits – plenty of Bandwidth available & more flexibility. Involving the campus and NREN network teams in the e-infrastructure projects is a big plus. Design the connectivity to the high performance nodes to avoid campus bottlenecks – e.g. the DMZ approach. Make debugging easy by provide on-campus perfSONAR MDM network monitoring. Provide a budget line item in the project for network connectivity. Don’t forget to get the remote end to contact their NREN too! 17
