1 IP Addressing & Subnetting!!!

2 Look at me!!!

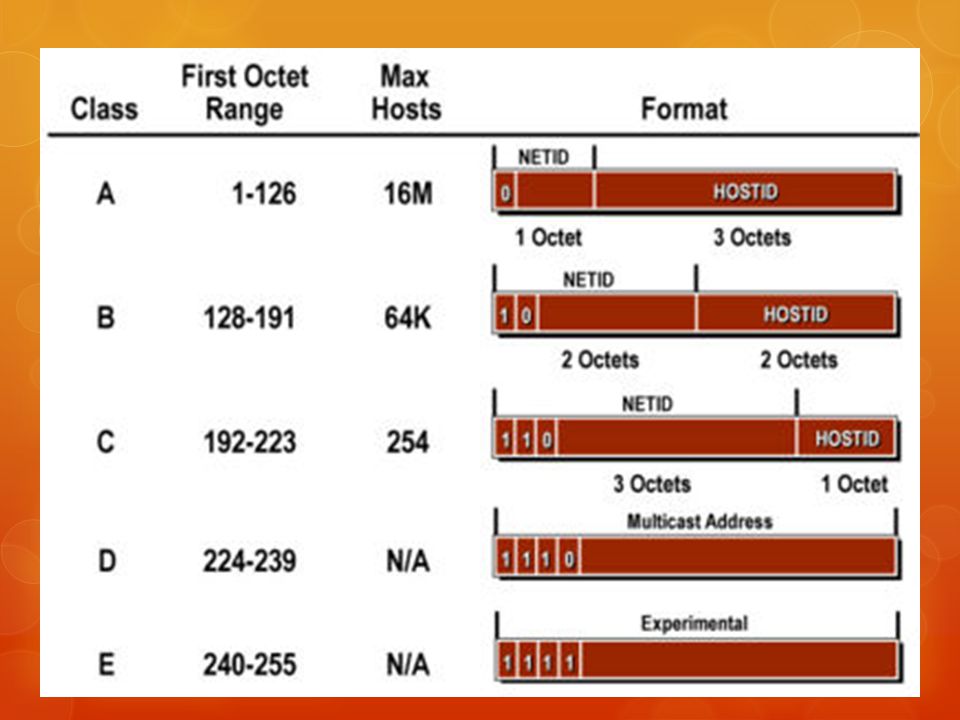

3

4 Know me!!!

5 Memorize me!!! 12616,3842,097,152 16,777, 214 65,534 254

6 Let’s Play!! IP Address:192.168.1.10 Class: Binary Equivalent: Subnet Mask:

7 Let’s Play!! IP Address:192.168.1.10 /24 Class:C Binary Equivalent:11000000.10101000.00000001.00001010 Subnet Mask:255.255.255.0

8 Practice-Binary:  Translate these addresses into binary:  213.45.37.123  192.167.24.64  17.32.193.250  What classes do they belong to?

9 Practice- Binary:  Translate these addresses into binary:  213.45.37.123:  11010101.00101101.00100101.01111011  192.167.24.64:  11000000.10100111.00011000.01000000  17.32.193.250:  00010001.00100000.11000001.11111010  What classes do they belong to?  C, C, A

10 Magic Number:  In binary, which bit of the subnet mask (left to right) switches from 1’s to 0’s?  Ex: /24: 255.255.255.0  11111111.11111111.11111111.00000000  Now you try:  /28

11 Magic Number:  Now you try:  /28  255.255.255.240  11111111.11111111.11111111.11110000

12 Magic Number:  Why is this important?  /28  255.255.255.240  11111111.11111111.11111111.11110000  Subtract the value of that octet from 256.  11110000=240  256-240= 16  Calculate the multiples of your magic number (16) from 0 up to 256 00  16  32  48  64…etc

13 Find the multiple of the magic number that is closest to but no greater than the IP address’s interesting octet value  0  16  32  48  64  80  96  112  128  144  160  176  192  208  224  240  *interesting octet is the octet in which the 1’s change to 0’s

14 Find the multiple of the magic number that is closest to but no greater than the IP address’s interesting octet value  0  16  32  48  64  80  96  112  128  144  160  176  192  208  224  240  *interesting octet is the octet in which the 1’s change to 0’s

15 Practice-Subnetting:  You have been given the IP address 213.45.37.0 /24 You require at least 15 subnets. List:  The required subnet mask  The number of total subnets  The number of available hosts per subnet  The first four subnet addresses  The valid range of host addresses for the first four subnets  The Broadcast address for each subnet

16 Practice-Subnetting:  You have been given the IP address 213.45.37.0 /24 You require at least 15 subnets. List:  The required subnet mask: 255.255.255.240 (/28)  The number of total subnets: 16  The number of available hosts per subnet: 14  The first four subnet addresses:  213.45.37.0  213.45.37.16  213.45.37.32  213.45.37.48  The valid range of host addresses for the first four subnets  213.45.37.1 - 14  213.45.37.17 - 30  213.45.37.33 - 46  213.45.37.49 - 62  The Broadcast address for each subnet  213.45.37.15  213.45.37.31  213.45.37.47  213.45.37.63

17  You have been given the IP address 200.100.50.0 /24 You require at least 3 subnets. List:  The required subnet mask  The number of total subnets  The number of available hosts per subnet  The first four subnet addresses  The valid range of host addresses for the first four subnets  The Broadcast address for each subnet

18  You have been given the IP address 200.100.50.0 /24 You require at least 3 subnets. List:  The required subnet mask: /26: 255.255.255.192  The number of total subnets: 4  The number of available hosts per subnet: 62  The first four subnet addresses:  200.100.50.0  200.100.50.64  200.100.50.128  200.100.50.192  The valid range of host addresses for the first four subnets  200.100.50.1-62  200.100.50.65-126  200.100.50.129-190  200.100.50.193-254  The Broadcast address for each subnet  200.100.50.63  200.100.50.127  200.100.50.191  200.100.50.255

19  You have been given the IP address 10.1.5.10 /29 You require at least 6 subnets. List:  The required subnet mask  The number of total subnets  The number of available hosts per subnet  The first four subnet addresses  The valid range of host addresses for the first four subnets  The Broadcast address for each subnet

20  You have been given the IP address 10.1.5.10 /21 You require at least 6 subnets.  What subnet mask should you use?  You have a host at the address of 10.1.5.120 that is experiencing issues. In order to troubleshoot, what is the address of that subnet?

21  You have been given the IP address 10.1.5.10 /21 You require at least 6 subnets.  What subnet mask should you use?  /21: 255.255.248.0  You have a host at the address of 10.1.5.120 that is experiencing issues. In order to troubleshoot, what is the address of that subnet?  10.1.5.0

22  10.5.10.200 /26  You need to have no more than 25 hosts in each subnet.  Go.

23  Subnets:  10.5.10.192  10.5.10.224  Ranges:  10.5.10.193 – 222  10.5.10.225 – 254  Broadcast:  10.5.10.223  10.5.10.255
