1
1 © 2012 Prof. Dr. Franz J. Brandenburg Graph Drawing main achievements and latest trends an update to 2002 Franz J. Brandenburg University of Passau

2
2 © 2012 Prof. Dr. Franz J. Brandenburg Graph Drawing Goals: Design algorithms for „nice“ visualizations of graphs Construct well-readable and understandable diagrams Mathematically A drawing is a mapping of a graph on the plane (or another surface) - one to one on the vertices placement phase, assign coordinates to the vertices, no overlaps - simple curves the edges routing phase Nice: specify costs or aesthetics to measure the quality of drawings or to compare two drawings d 1 (G) and d 2 (G) and say which is better

3
3 © 2012 Prof. Dr. Franz J. Brandenburg Graph Drawing 1 7 2 3 4 5 6 8 Synonyms: Graph network diagram schema map 12 34 56 78 3-D 12 34 56 78 planar

4
4 © 2012 Prof. Dr. Franz J. Brandenburg Formalization Graph drawing is an optimization problem for a class of graphs (directed / undirected, planar) G compute min {cost (d(G)) | G in G, the drawing d(G) satisfies certain restrictions cost is a cost measure} and such that d(G) is computed efficiently. D.E.Knuth (GD1996) "aesthetics cannot be formalized“ There is a gap between the user's view and the formalism.

5

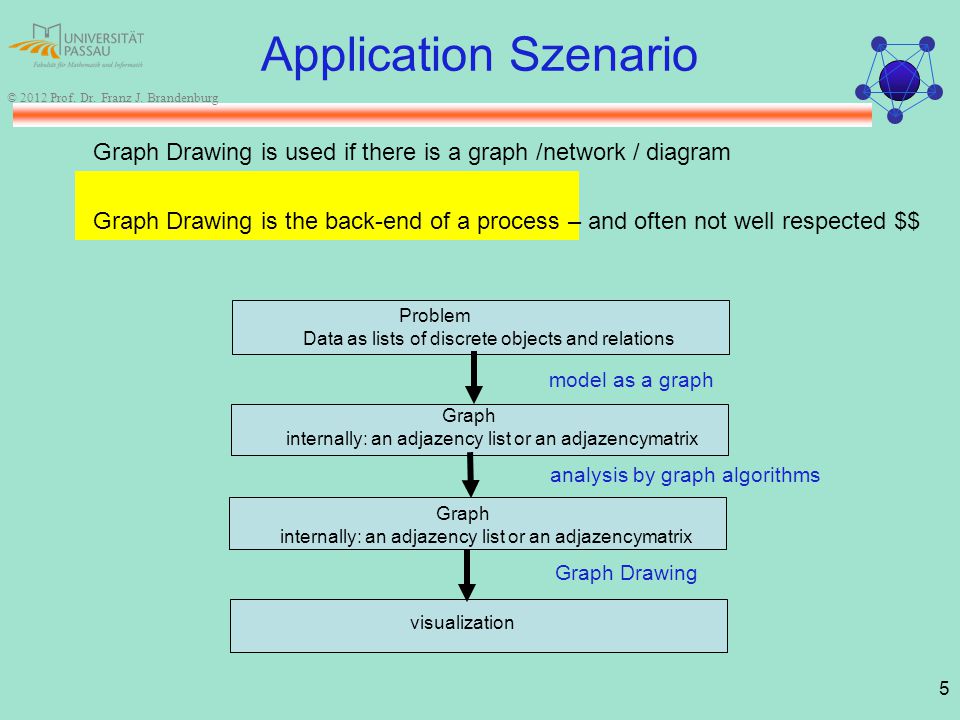

5 © 2012 Prof. Dr. Franz J. Brandenburg Application Szenario Graph Drawing is used if there is a graph /network / diagram Graph Drawing is the back-end of a process – and often not well respected $$ Problem Data as lists of discrete objects and relations Graph internally: an adjazency list or an adjazencymatrix visualization model as a graph analysis by graph algorithms Graph Drawing Graph internally: an adjazency list or an adjazencymatrix

6
6 © 2012 Prof. Dr. Franz J. Brandenburg Classes of Graphs general undirected graphs spring embedders (1982) stress minimization multi-dimensional directed graphs (mostly acyclic) four phase approach (Sugiyama algorithm (1981)) planar graphs (undirected and directed) O(n) tests (1972) shift technique (de Fraysseix, Pach, Pollack and Schnyder realizers (1990)) orthogonal drawings upward drawings for directed graphs trees Reingold-Tilford algorithm (1981)

7
7 © 2012 Prof. Dr. Franz J. Brandenburg Drawing Styles vertices = small points The real expansion and shape is neglected edges = smooth curves the standard polylines with straight straight segments and few bends optimal:straight lines specialorthogonal polyline drawings splinesonly in a postprocessing step labels often inside the vertices a separate topic

8
8 © 2012 Prof. Dr. Franz J. Brandenburg Aesthetics D.E.Knuth (GD1996) "aesthetics cannot be formalized“ There is a gap between the user's view and the formalism. R. Tamassia (IEEE SMC 1988, p.62) aesthetics are criteria for graphical aspects of readability M. Bense (1930, desingner at Bauhaus school) aesthetics = order / compexity order = regularity, symmetry,... complexity = information theoretic bound, #bits H. Purchase et al. (topic in HCI) experimental tests: what is easier/faster to recognize

9
9 © 2012 Prof. Dr. Franz J. Brandenburg Aesthetics:Formalized resolution or geometric criteria –area (2), volume (3D), height, width, aspect ratio –edge length (secondary) –integrality, on the grid discrete criteria –crossings (no crossings = planar) –bends (no bends = straight line) –and others (slopes e.g. orthogonal) structure –direction (upward) –planar –tree –clustering symmetry –center father above the children –geometric symmetry (rotation, reflection) –graph symmetry, graph isomorphy

10
10 © 2012 Prof. Dr. Franz J. Brandenburg General Graphs Input: a huge undirected graph (1000 and more vertices) and no information on its structure goal: uniform distribution of vertices (and edge length).... find clusters spring embedders and stress minimization approaches repulsive force between vertices (only in an area of a grid) attractive force along an edge (or a path) use quadratic or cubic formulae for the forces (stress) at each vertex: compute the vector of forces move the vertex along that vector iterate pro:intuitive, easy to adapt (add more forces) cons: slow (you need a bag of tricks)

11
11 © 2012 Prof. Dr. Franz J. Brandenburg Multidimensional Method in 2002: a promising new concept by D. Harel and Y. Koren, GD2002 choose dimension m, e.g. d = 50 (so to speak: its fpt in d) choose m nodes as pivot elements, randomly distributed here in O(d|E|) by BFS v 1 at random and v i+1 = max {distance{v 1,...,v i }} (2-approximation of d-center problem) for each node v compute its graph theoretic distance d(v, v i ), i=1,...,d to each of the pivot nodes and assign an d-dim vector X(v) = (d(v, v 1 ),..., d(v, v d )) This is a d-dimensional drawing of G.

12
12 © 2012 Prof. Dr. Franz J. Brandenburg Multi-Dimensional projection into R2 (or R3) by ”principal component analysis“ transform the coordinates in each dimension around their barycenter X i (v) = X i (v) – 1/n∑vXi(v) build the d n center matrix M[i,v] = X i (v) and the d d covariance matrix S = 1/n M M T compute the first 2 eigenvectors of S normalize the eigenvectors to ||u i || = 1 the 2-D projection by v --> (X i (v) u 1, X i (v) u 2 ) (maximal variance in 1st and 2nd dimension) Results: excellent pictures: as good as spring embedders and stress minimization extremely fast, 3 sec. for 100000 node graphs

13
13 © 2012 Prof. Dr. Franz J. Brandenburg Pictures (Koren)

14
14 © 2012 Prof. Dr. Franz J. Brandenburg 4-Phase Method (Sugiama) a directed graph G = (V, E) (with cycles) sorted level graph, a left to right ordering decycling, feedback arc set problem crossing reductions sort by levels or global crossing a levelled / layererd graph a directed acyclic graph, DAG leveling of vertices compute Y-coordinates final drawing with (X,Y) coordinates for all points routing, coordinate assignment heuristics, e.g. Eades et al topsort or Coffman-Graham level by level sweeps or global thinning technique

15
15 © 2012 Prof. Dr. Franz J. Brandenburg Sugiyama Algorithm Introduced Sugiyama, Tagawa, Todo, IEEE Trans SMC (1981) refinements and improvements Gansner, Koutsofios, North, Vo, IEEE Trans Soft. Eng (1993) The most frequently used GD algorithm The best studied GD algorithm PRO: decomposition by Software Engineering Principles CONS: mathematics no quality guarantees (area, crossings,...) no time bounds no standard: a framework of dozens of sub-algorithms

16
16 © 2012 Prof. Dr. Franz J. Brandenburg recent Advancements 1) feedback arc set NP-hard even for tournaments and 3-approximation by Quicksort sifting (1-OPT) techniques give best quality almost 50% of the edges are „wrong“ (110.000 from 250.000) 2)+3) integrated „leveling + crossing“ approaches with +10% and faster algorithms e.g. by edge bundeling 4) thinning technique by Brandes, Köpf (GD2001) with a guarantee of at most 2 bends per edge 5) solution of Sugiama et al‘s recurrent hierarchies

17
17 © 2012 Prof. Dr. Franz J. Brandenburg Recurrent Hierarchies proposed K. Sugiyama, T. Tagawa, T. Todo (1981) - a cyclic leveling modulo k - drawing on the rolling cylinder approach (Bachmaier, Brandenburg, Brunner, JGAA 2012) - no decycling - heuristic for leveling - crossing reduction by global technique - coordinate assignment with shearing and 2 bends per edge

18
18 © 2012 Prof. Dr. Franz J. Brandenburg Trees D.E. Knuth (1968) How shall we draw a tree if the tool is a mechanical type writer with / \ | -- Reingold, Tilford ( 1981): the contour technique recursive bottom-up in O(n) time by a tricky recursion: T(n) < 2 site(tree)-height(tree) T left T right

19
19 © 2012 Prof. Dr. Franz J. Brandenburg Tree Folding save space, minimize the area References: T. Chan, M. Goodrich, S.R. Kosaraju, R. Tamassia, Comput. Geom. 23 (2002) A. Garg, M. Goodrich, R. Tamassia, Int. J. Comput. Geom. Appl. 6 (1996) C. Shin, S.K. Kim K-Y. Chwa, Comput Geom. 15 (2000)

20
20 © 2012 Prof. Dr. Franz J. Brandenburg planar graphs shifting technique and realizers de Fraysseix, Pach, Pollack (Combinatorica 1990) Schnyder, ACM SODA 1990 Theorem Every planar graph has a straight-line grid drawing with O(n) area Size of O: 4/9 1 (8/9 is under work) but the pictures are bad with too many too small angles Recent improvements/Refinements segments = # straight lines (one long line for many successive edges counts 1) few slopes slightly weaker preconditions (2-connected +...)

21
21 © 2012 Prof. Dr. Franz J. Brandenburg recent Trends Sources: Proc. GD....,2011 LNCS.... 3843, 4372, 5166,5417,5849, 6502, 7034 Journal Graph Algorithms and Applications JGAA Computational Geometry: Theory and Applications.... all Algorithms and Combinatorics Journals Trends: almost planar weaken the restrictions of planarity generalize the class of planar graphs preserve properites like linear density,...

22
22 © 2012 Prof. Dr. Franz J. Brandenburg 2002-2012 What has been done in the past decade? Hundreds of improvements at all places faster algorithms more parameters (slope,...) experimental evaluations Some new trends Breakthrough? (NO)

23
23 © 2012 Prof. Dr. Franz J. Brandenburg Trends - confluent drawings (Eppstein, Kobourov et al, GD2003) - RAC (right angle crossing) - 1-planarity - point set embeddings - clustered planarity - new applications: metro maps, train tracks networks in the biosciences

24

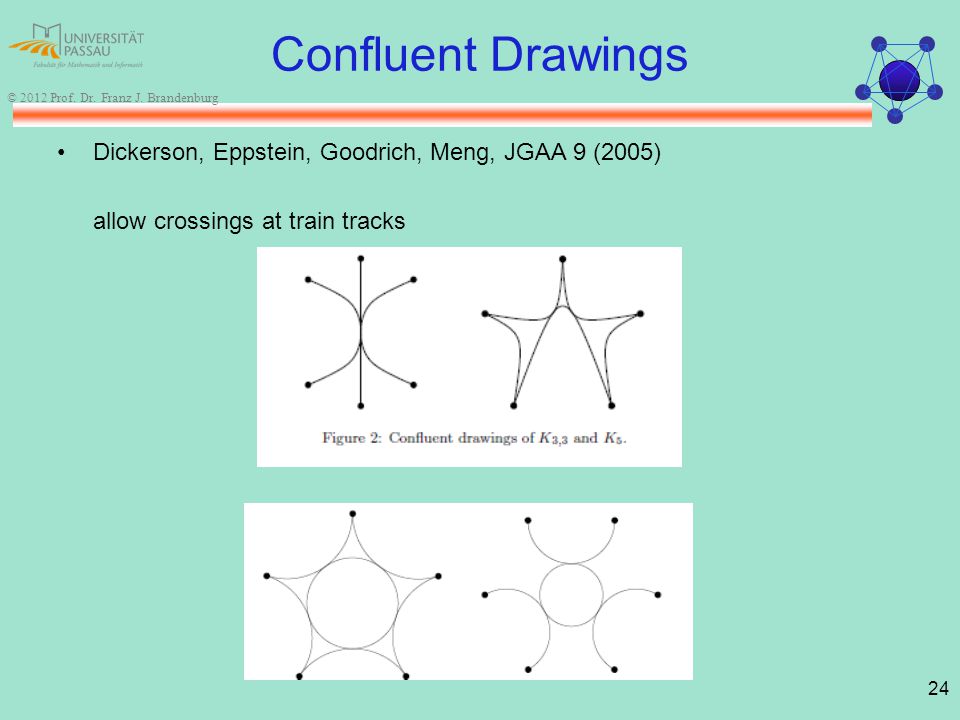

24 © 2012 Prof. Dr. Franz J. Brandenburg Confluent Drawings Dickerson, Eppstein, Goodrich, Meng, JGAA 9 (2005) allow crossings at train tracks

25
25 © 2012 Prof. Dr. Franz J. Brandenburg Confluent Graphs all planar (trivial) all co-graph (union and edge-complementation) all complements of trees all interval graphs Strong confluency (a curve for an edge does not pass a vertex) is NP-hard non-confluent Petersen graph 4-dim hypercube

26

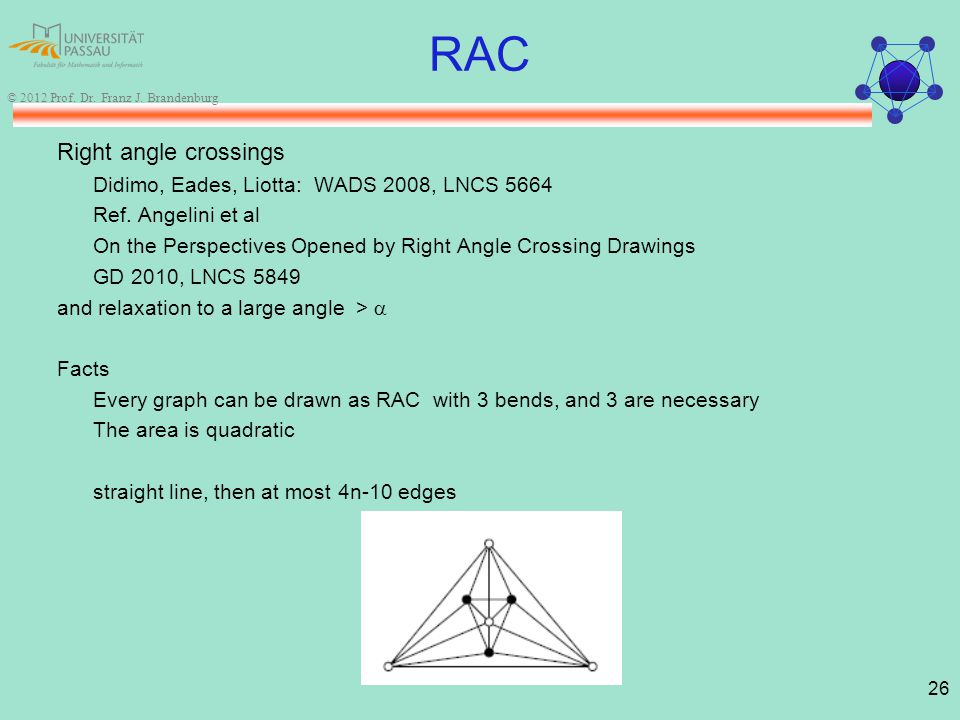

26 © 2012 Prof. Dr. Franz J. Brandenburg RAC Right angle crossings Didimo, Eades, Liotta: WADS 2008, LNCS 5664 Ref. Angelini et al On the Perspectives Opened by Right Angle Crossing Drawings GD 2010, LNCS 5849 and relaxation to a large angle > Facts Every graph can be drawn as RAC with 3 bends, and 3 are necessary The area is quadratic straight line, then at most 4n-10 edges

27
27 © 2012 Prof. Dr. Franz J. Brandenburg 1-planarity Definition (G. Ringel, 1965) A graph G is 1-planar if each edge is crossed at most once (by all other edges) Properites an edge coloring black with crossings red x blue a 6-vertex coloring (Borodin 1984) #edges < 4n-8 (Pach, Toth 1997, and others) not closed under edge contraction there are infinitely many minimal non-1-planar graphs (Korzhik, 2007) test is NP-hard (Korzhik, Mohar Graph Drawing 2008, LNCS 5166)

28
28 © 2012 Prof. Dr. Franz J. Brandenburg 1-planar + Rotation System Definition a rotation system (embedding) of a graph G = (V,E) is the cylic order of the edge (neighbors) of v for each vertex v The crossing pair system of a graph G = (V,E) is G together with all pairs (e,e‘) of crossing edges. Lemma Given a crossing pair system. Test for 1-planarity is in O(n), and there is a straight-line drawing of G on a polynomial size grid. Claim (under work) (Auer, Brandenburg, Gleißner, Reislhuber) Given a rotation system: Test for 1-planarity is NP-hard.... by a reduction from planar 3-SAT

29
29 © 2012 Prof. Dr. Franz J. Brandenburg Point sets Given: A set of N > n points in the plane free scenario Can a graph of size n be embedded into this point set such that e.g. the drawing is planar and straight line Yes, with at most 2 bends per edge NP-hard for outerplanar graphs and straight line embeddings fixed scenario, the vertices are already mapped to the points every planar graphs can be embedded into any point set with O(n) bends per edge

30
30 © 2012 Prof. Dr. Franz J. Brandenburg Simultaneous Embeddings Is there a set of pints such that two graphs be embedded into the same set one after the other such that planarity is preserved NO for a path and a tree (Kaufmann, Wiese, JGAA 6) NP-hard for two planar graphs The constructions behind points sets are driven by geometry and not by graphs. Triangles, excluding certain combinations are the key tools in the proofs.

31
31 © 2012 Prof. Dr. Franz J. Brandenburg C-planarity Given: a graph G and a clustering C of the vertices Question: Does G have a planar clustered drawing such that the clustered are drawn inside of rectangles. Complexity: NP?? still open improvements if connectivity (and other assumptions) are imposed

32
32 © 2012 Prof. Dr. Franz J. Brandenburg Applications Networks metro maps (Sydney) train tracks (European railway systems – and special analysis) in bio-sciences (GD 2009) Perspectives: What is the future of Graph Drawing ???
