1
Charging by Induction

2

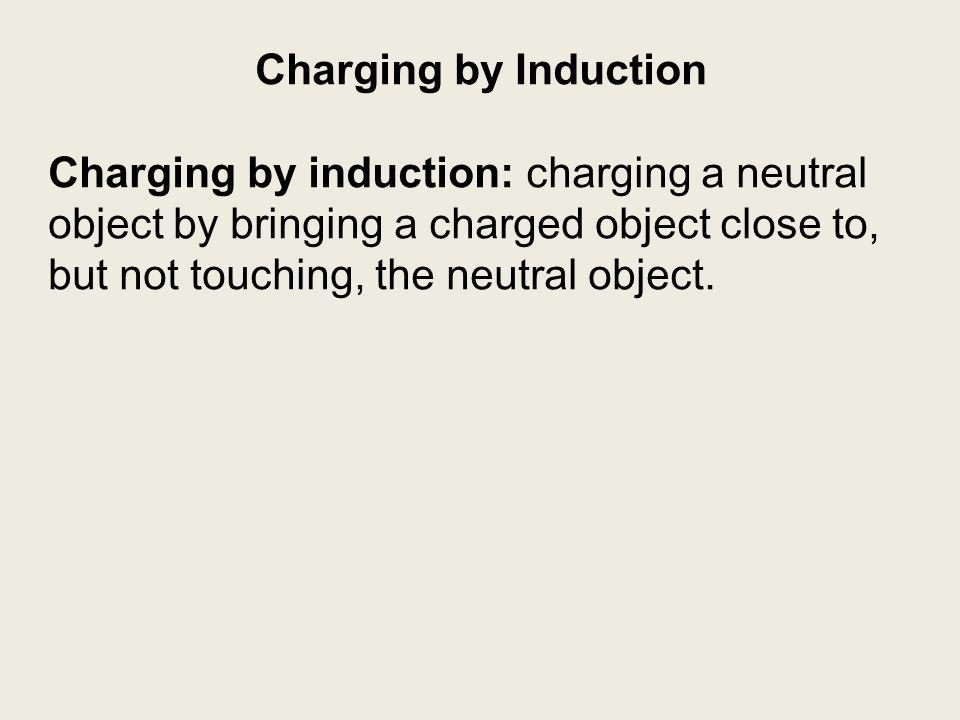

Charging by induction: charging a neutral object by bringing a charged object close to, but not touching, the neutral object.

3

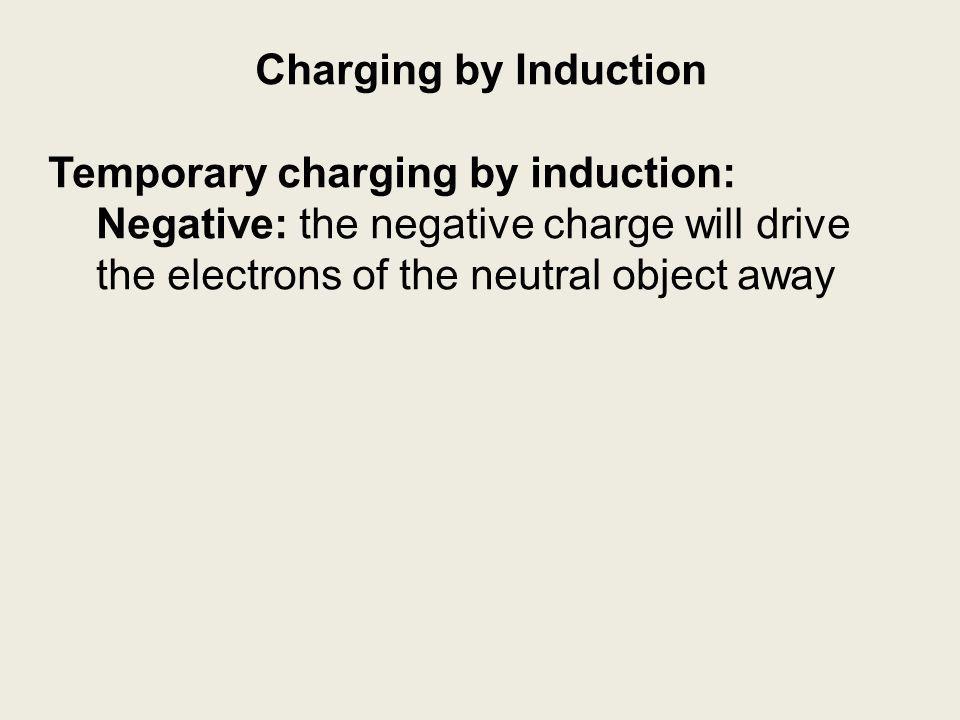

Charging by Induction Temporary charging by induction: Negative: the negative charge will drive the electrons of the neutral object away

4
Charging by Induction Temporary charging by induction: Negative: the negative charge will drive the electrons of the neutral object away *remember: protons don't move!

5
Charging by Induction Temporary charging by induction: Negative: the negative charge will drive the electrons of the neutral object away -creates a positive area close to the charged object

6
Charging by Induction Temporary charging by induction: Negative: the negative charge will drive the electrons of the neutral object away -creates a positive area close to the charged object -creates a negative area away from the charged objects where the electrons gather up.

7
Charging by Induction Temporary charging by induction: Negative:

8

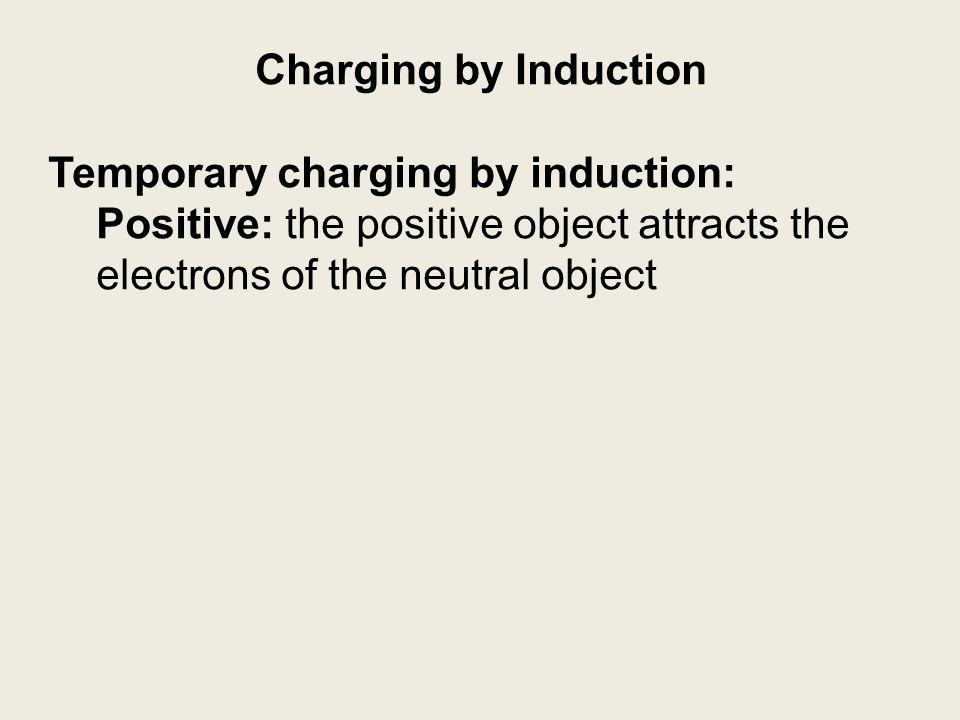

Charging by Induction Temporary charging by induction: Positive: the positive object attracts the electrons of the neutral object

9

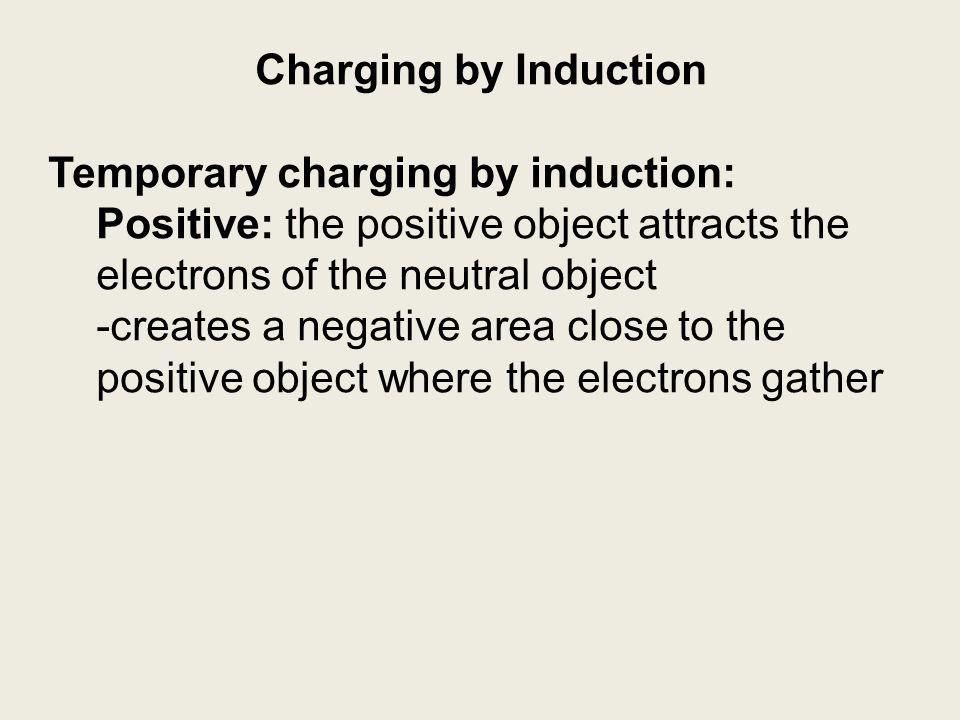

Charging by Induction Temporary charging by induction: Positive: the positive object attracts the electrons of the neutral object -creates a negative area close to the positive object where the electrons gather

10

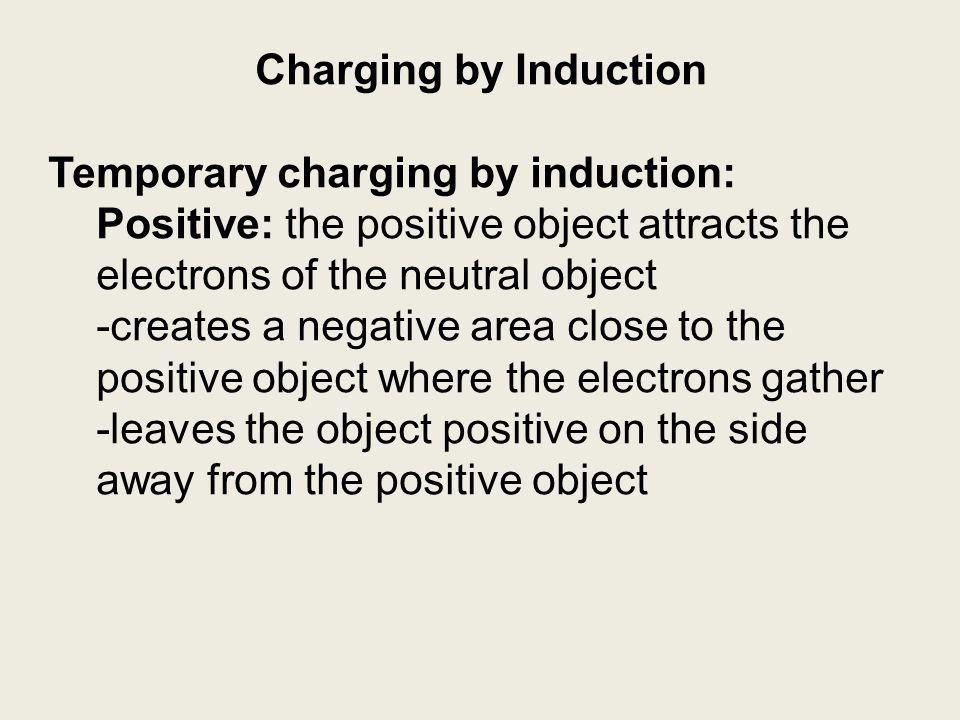

Charging by Induction Temporary charging by induction: Positive: the positive object attracts the electrons of the neutral object -creates a negative area close to the positive object where the electrons gather -leaves the object positive on the side away from the positive object

11
Charging by Induction Temporary charging by induction: Positive:

12

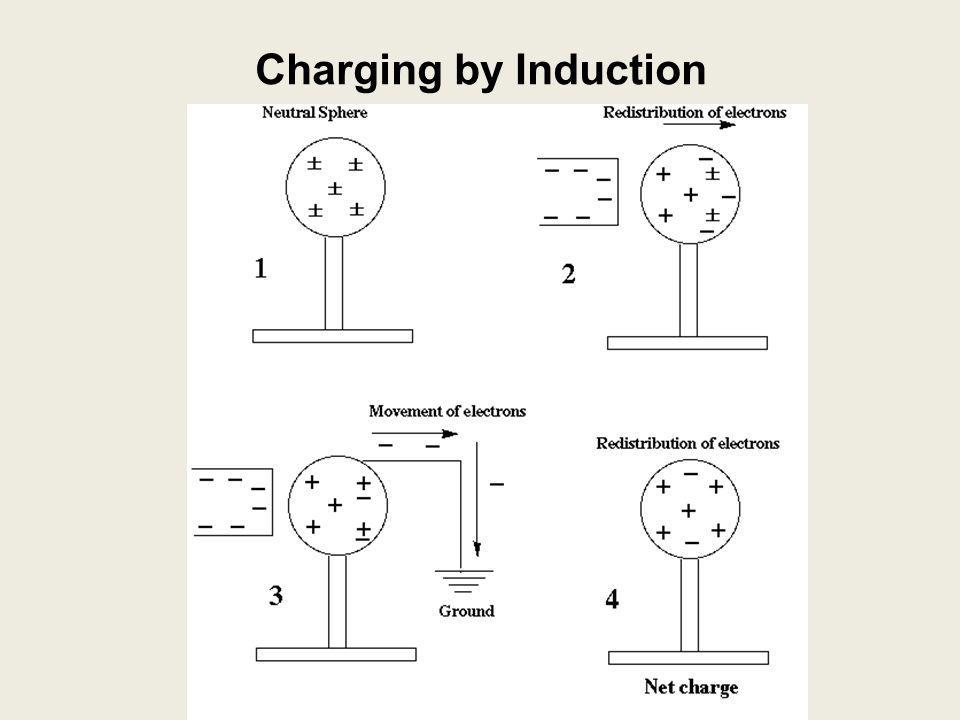

Charging by Induction Permanent charging by induction: Negative: 1. start with a neutral object

13
Charging by Induction Permanent charging by induction: Negative: 2. bring a negative charged object close so the electrons are driven to the far side

14
Charging by Induction Permanent charging by induction: Negative: 3. ground the neutral object so the electrons can leave

15
Charging by Induction Permanent charging by induction: Negative: 4. remove the ground and the object has a positive charge charging by induction tvo video
