Introduction to PIC Microcontrollers

Similar presentations

Presentation on theme: "Introduction to PIC Microcontrollers"— Presentation transcript:

1 Introduction to PIC Microcontrollers
The PIC 16F84A

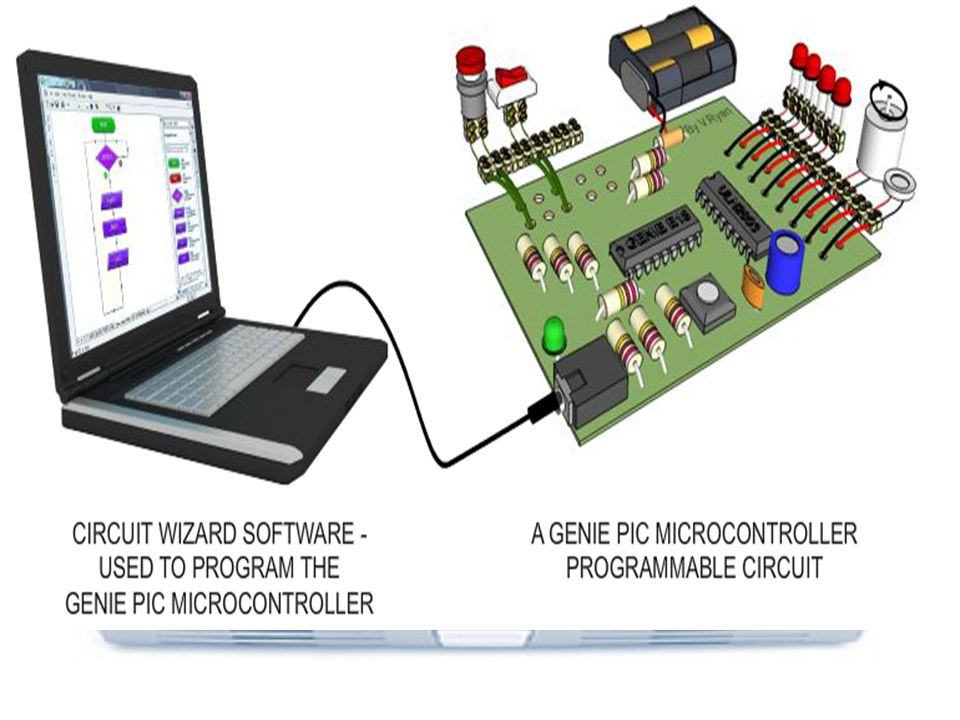

3 PIC Microcontrollers are quickly replacing computers when it comes to programming robotic devices. These microcontrollers are small and can be programmed to carry out a number of tasks and are ideal for school and industrial projects. A simple program is written using a computer, it is then downloaded to a microcontroller which in turn can control a robotic device.

4 Engr. Policarpio Tena II
The PICmicro Family Microchip is the company that develops and sells the PIC microcontroller PICMicro devices are grouped by the size of their Instruction Word The three current PICmicro families are: Base-Line: 12-bit Instruction Word lengths Mid-Range: 14-bit Instruction Word length High-End: 16-bit Instruction Word length This presentation focuses on the Mid-Range device: The PIC16F84A © 2006 Engr. Policarpio Tena II

5 Memory Type Designation
The memory type is designated in the part number by the first letter(s) after the family affiliation designators. C, as in PIC16CXXX. These devices have EPROM type memory. CR, as in PIC16CRXXX These devices have ROM type memory. F, as in PIC16FXXX These devices have Flash type memory. Memory technology has no effect on the logical operation of a device Due to the different processing steps required, some electrical characteristics may vary between devices with the same feature set/pinout but with different memory technologies When discussing the functionality of the device, the memory technology and the voltage range do not matter Microchip offers three program memory types All Mid-Range PICmicro™ MCUs operate over the standard voltage range Devices are also offered which operate over an extended voltage range (and reduced frequency range). © 2006 Engr. Policarpio Tena II

6 Device Memory Type and Voltage Range Designators
© 2006 Engr. Policarpio Tena II

7 Different Types of Memory
© 2006 Engr. Policarpio Tena II

8 The 8-pin Enhanced FLASH/EEPROM 8-Bit Microcontroller
The PIC16F84A The 8-pin Enhanced FLASH/EEPROM 8-Bit Microcontroller © 2006 Engr. Policarpio Tena II

9 High Performance RISC CPU Features
Only 35 single word instructions to learn All instructions single-cycle except for program branches which are two-cycle Operating speed: DC - 20 MHz clock input DC ns instruction cycle 1024 words of program memory 68 bytes of Data RAM 64 bytes of Data EEPROM 14-bit wide instruction words 8-bit wide data bytes 15 Special Function Hardware registers Eight-level deep hardware stack Direct, indirect and relative addressing modes Four interrupt sources: External RB0/INT pin TMR0 timer overflow PORTB<7:4> interrupt-on-change Data EEPROM write complete © 2006 Engr. Policarpio Tena II

10 Special Microcontroller Features
Peripheral Features: 13 I/O pins with individual direction control High current sink/source for direct LED drive 25 mA sink max. per pin 25 mA source max. per pin TMR0: 8-bit timer/counter with 8-bit programmable prescaler Special Microcontroller Features CMOS Enhanced FLASH/EEPROM Technology 10,000 erase/write cycles Enhanced FLASH Program memory typical 10,000,000 typical erase/write cycles EEPROM Data memory typical EEPROM Data Retention > 40 years In-Circuit Serial Programming™ (ICSP™) – via two pins Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST) Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation Code protection Power saving SLEEP mode Selectable oscillator options Low power, high speed technology Fully static design Wide operating voltage range: Commercial: 2.0V to 5.5V Industrial: 2.0V to 5.5V Low power consumption: < 2 mA 5V, 4 MHz 15 mA 2V, 32 kHz < 0.5 mA typical standby 2V © 2006 Engr. Policarpio Tena II

11 Engr. Policarpio Tena II
The PIC16F84A ARCHITECTURE © 2006 Engr. Policarpio Tena II

12 Engr. Policarpio Tena II
PIC16F84A Block Diagram © 2006 Engr. Policarpio Tena II

13 Engr. Policarpio Tena II
DEVICE OVERVIEW © 2006 Engr. Policarpio Tena II

14 Pin Diagrams and Designations
© 2006 Engr. Policarpio Tena II

15 Oscillator Configurations
The PIC16F84A can be operated in four different oscillator modes The user can program two configuration bits (FOSC1 and FOSC0) to select one of these four modes: LP Low Power Crystal XT Crystal/Resonator HS High Speed Crystal/Resonator RC Resistor/Capacitor © 2006 Engr. Policarpio Tena II

16 PIC 16F84A DC Characteristics
© 2006 Engr. Policarpio Tena II

17 Absolute Maximum Ratings
Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. © 2006 Engr. Policarpio Tena II
