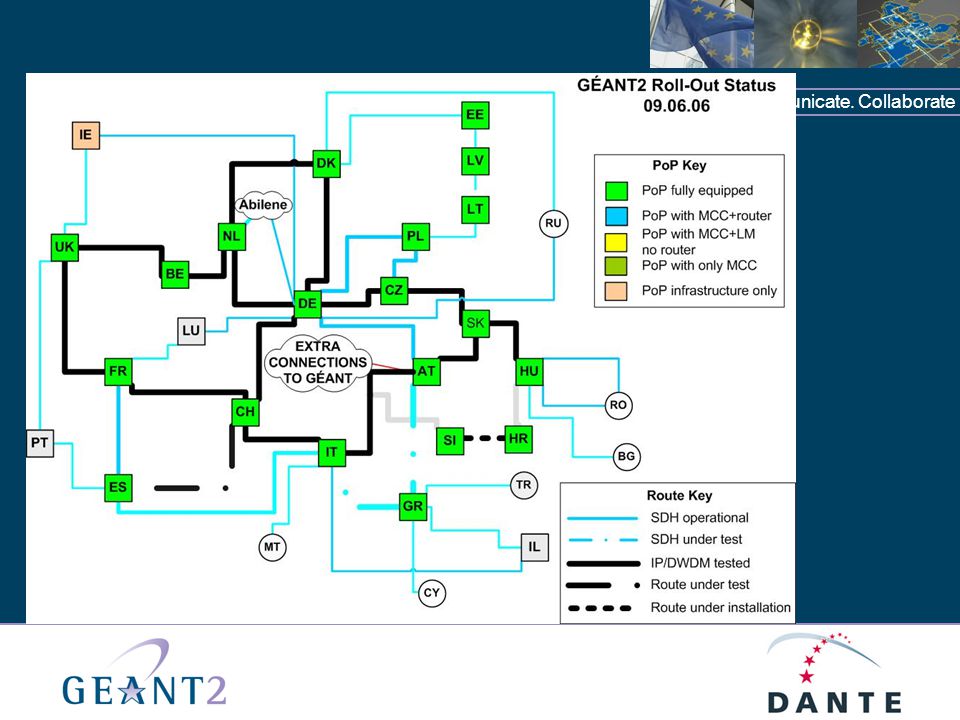

14 out of 18 Dark Fibre routes operational 40 underlying paths configured in the network crossing 178 Optical Nodes 23 out of 26 Leased Circuits operational GÉANT2 NOC capabilities extended and ready to provide full support for all WDM, SDH and IP services 44 contractors to manage GÉANT2 Roll Out

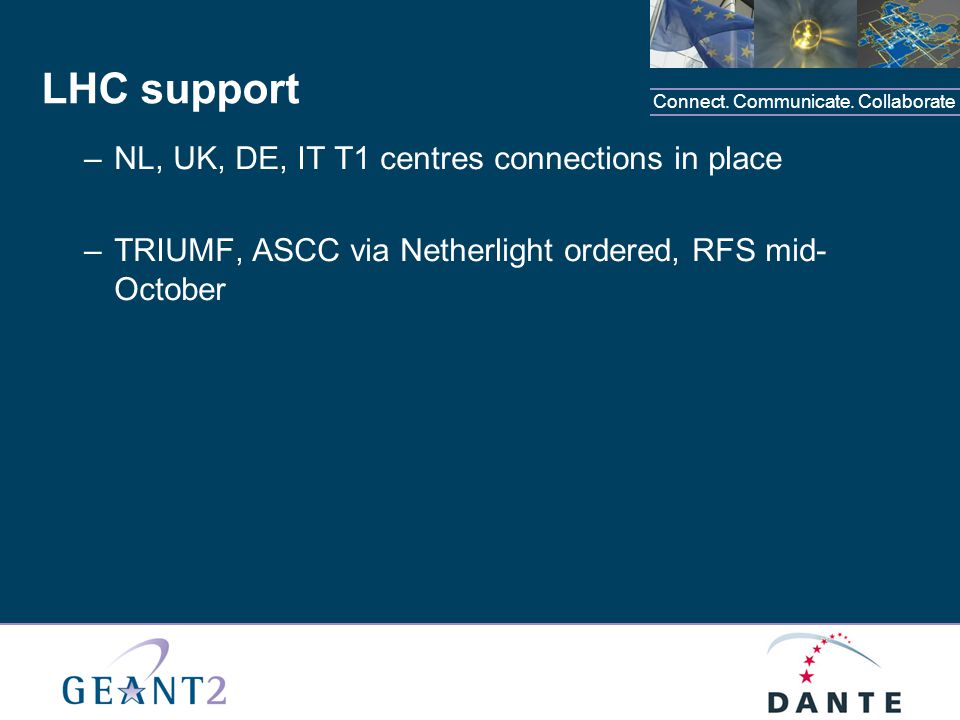

Connect. Communicate. Collaborate –NL, UK, DE, IT T1 centres connections in place –TRIUMF, ASCC via Netherlight ordered, RFS mid- October LHC support
Connect. Communicate. Collaborate 10GE support on OXCs 4x10GE LAN-PHY ports available 10GE EPL functionality available and managed 10GE EVPL functionality in place but not yet managed (need to configure “manually”) 10GE LAN-PHY available since day-1 on transmission equipment

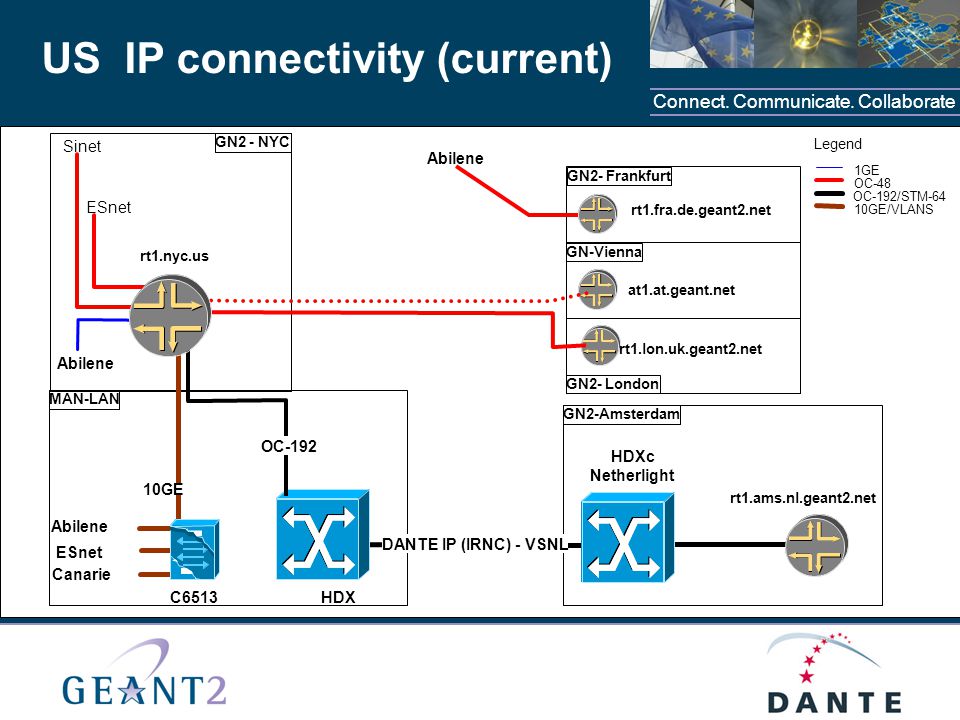

Connect. Communicate. Collaborate GN2 Transatlantic links Frankfurt-Washington (IP) –delivery 18 July –T-Systems Paris – NYC (e2e) –September –Flag
Connect. Communicate. Collaborate Esnet rt1.fra.de.geant2.net Abilene T-system WAS-FRA STM64 Abilene Ciena Core Director Alcatel MCC 1678 Washington Frankfurt Alcatel MCC to Ciena CD Testing needed Abilene Ciena CD to be installed Legend 10GE/VLANS vlan OC-192/STM-64
Connect. Communicate. Collaborate Washington Frankfurt Esnet rt1.fra.de.geant2.net Abilene T-system WAS-FRA STM64 Ekinops Gigamix Interim solution: Ekinops Ekinops boxes already in place Just waiting for the STM64 link Legend 10GE/VLANS vlan OC-192/STM-64
Connect. Communicate. Collaborate 10GE EPL interoperability Frankfurt-Washington: –10GE EPL –Need to plan testing and transition to direct Ciena- Alcatel interconnect Amsterdam-New York to copy Frankfurt-Washington setup (phase-2) 10GE EPL interoperability Nortel-Alcatel ?
Connect. Communicate. Collaborate Service trials Candidates from GEANT2 so far: RENATER and JANET RENATER: 2xGE to FMLAB. Can do in September. UKERNA: GEs to various I2 locations. UK ready October –Teragrid –Fmlab –Haystack –Georgia Tech –San Diego
Connect. Communicate. Collaborate Definition of the trial Setup process E2E Monitoring : see presentation from Nicolas Fault reporting and resolution (see GN2 E2ECU) –Should we and can we make this n24x7 ? –1 e2eCU or 1 per region ?
Connect. Communicate. Collaborate Co-operation areas and names for BoD 1)Pathfinder-Mauro Campanella (MC) 2)Abstract representation-Afrodite Sevasti (AS) 3)IDM communication and IDM-to-external BoD systems interfaces- Radek Krzywania (RK) 4)Technology stitching- Victor Reijs (VR) 5)Security- TBD 6)Inter-domain monitoring- TBD
