1
How to linearise y = ax b Demo for Swine Flu CW Using Logs to Linearise Curves

2

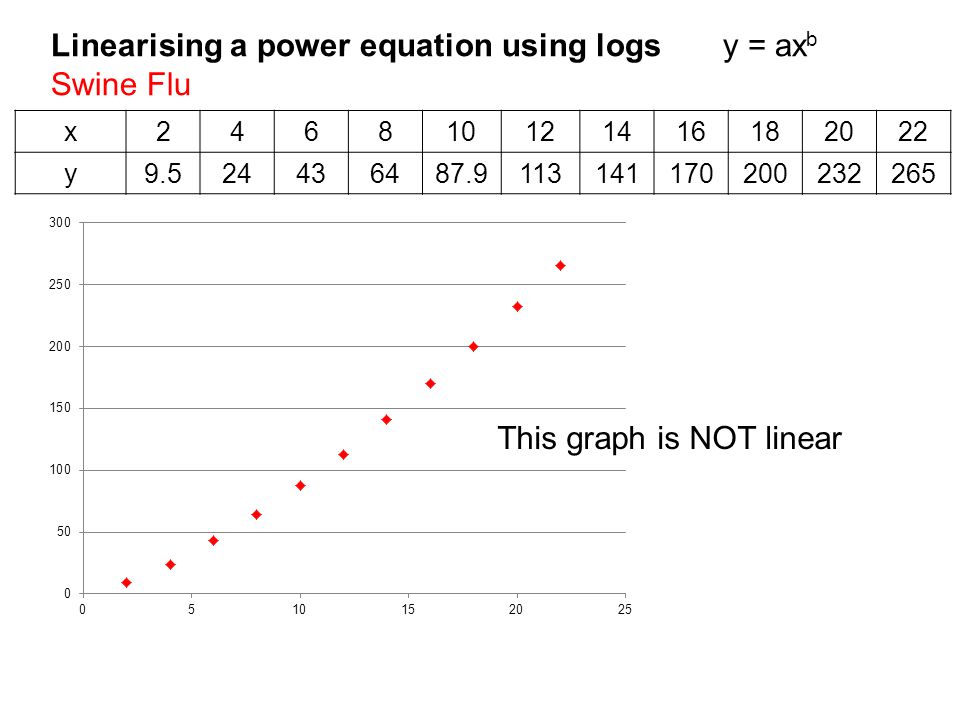

Linearising a power equation using logs y = ax b Swine Flu x246810121416182022 y9.524436487.9113141170200232265 This graph is NOT linear

3
Linearising a power equation using logs y = ax b y = ax b log y = log (ax b ) log y = log a + logx b log y = log a + blogx log y = blogx + log a So make a new table of values where Y = log y and X = log x This is of the form y = mx + c. Taking logs of both sides log(ab) = log(a) + log(b) log(a x ) = xlog(a) gradient = b y intercept = log a YmXc

4
x246810121416182022 y9.524436487.9113141170200232265 x=log x0.300.600.780.901.001.081.151.201.261.301.34 y=log y0.981.381.631.811.942.052.152.232.302.372.42 From the graph gradient y intercept m = 1.3962 c = 0.5485

5
gradient = m = 1.3962 = b y intercept = c = 0.5485 = log a y = ax b log y = blogx + log a Y = 1.3962X + 0.5485 a = 10 0.5485 = 3.54 0.5485 10 it = a Forwards and backwards a log it 0.5485 YmXc

6
Using the equation If x = 5.5 find y y = 3.54×5.5 1.3962 = 38.2 Check if the answer is consistent with the table x = 5.5 find y y = 38.2 which is consistent with the table y = 3.54x 1.3962 x246810121416182022 y9.524436487.9113141170200232265

7
Using the equation If y = 100 find x 100 = 3.54x 1.3962 log100 = log(3.54x 1.3962 ) = log(3.54)+log(x 1.3962 ) = log(3.54)+1.3962log(x) y = 3.54x 1.3962 log(ab) = log(a) + log(b) log(a x ) = xlog(a) log both sides

8
log 100= log(3.54)+1.3962log(x) Forwards and backwards x log it ×1.3962 +log3.54 = log 100 log100 –log 3.54 ÷1.3962 10 it = x x = 10.97 x = 10.97 which is consistent with the table Check if the answer is consistent with the table y = 100 find x x246810121416182022 y9.524436487.9113141170200232265
