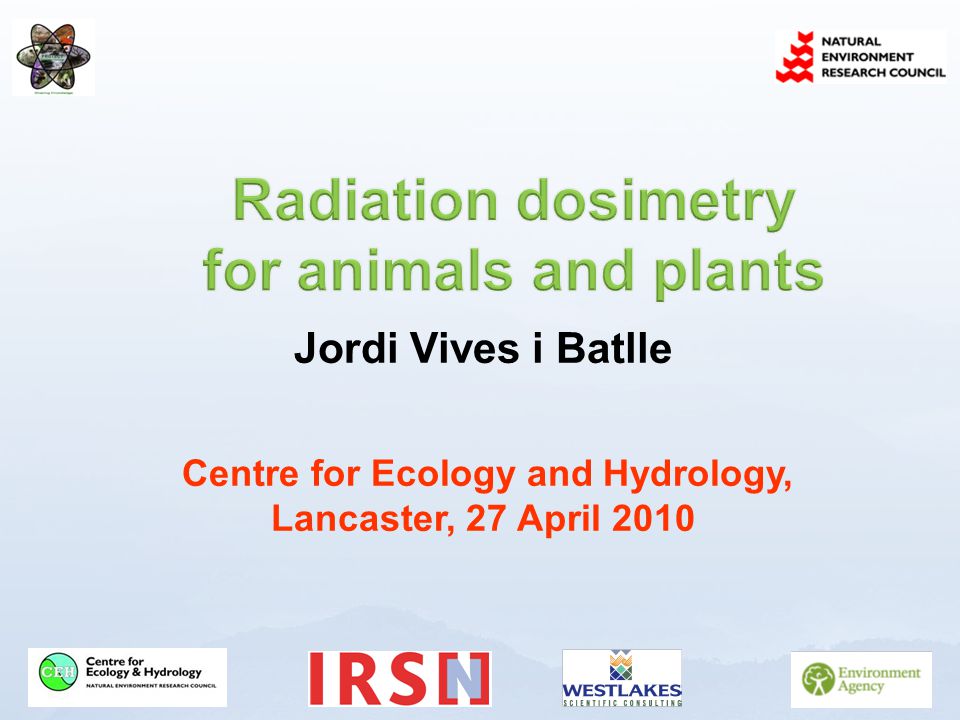

Jordi Vives i Batlle Centre for Ecology and Hydrology, Lancaster, 27 April 2010

2

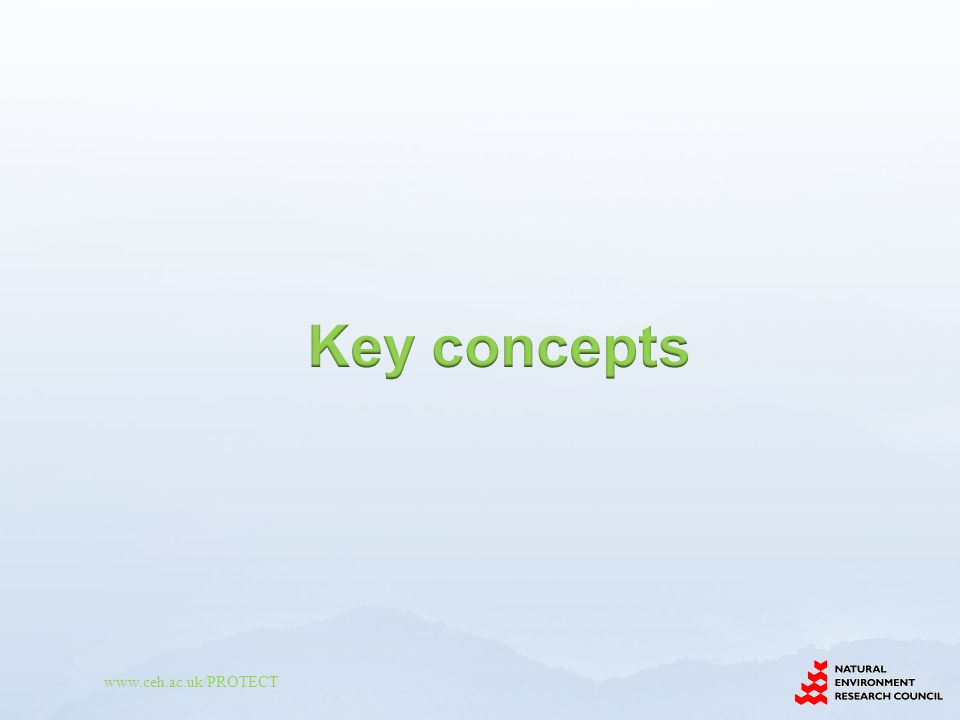

www.ceh.ac.uk/PROTECT Key concepts Kerma, absorbed dose, units, radiation weighting factor, absorbed fraction, dose conversion coefficient (DCC) ERICA approach to absorbed fraction calculation Reference habitats, organisms and shapes, Monte Carlo approach, sphericity, dependence with energy / size ERICA DCCs for internal and external exposure Internal and external DCC formulae, energy / size dependency, allometric scaling Comparing ERICA with other tools Special cases Gases, inhomogeneous sources, non-equilibrium

3
www.ceh.ac.uk/PROTECT

4
Kerma: sum of the initial kinetic energies of all the charged particles transferred to a target by non-charged ionising radiation, per unit mass Absorbed dose: total energy deposited in a target by ionising radiation, including secondary electrons, per unit mass Similar at low energy - Kerma am approximate upper limit to dose Different when calculating dose to a volume smaller than the range of secondary electrons generated

5
www.ceh.ac.uk/PROTECT Units of absorbed dose (Grays) = Energy deposited (J kg -1 ) Only small amounts of deposited energy from ionising radiation are required to produce biological harm - because of the means by which energy is deposited (ionisation and free radical formation) For example - drinking a cup of hot coffee transfers about 700 Joules of heat energy per kg to the body. To transfer the same amount of energy from ionising radiation would involve a dose of 700 Gy - but doses in the order of 1 Gy are fatal I Gy = 1 J kg -1 = 6.24 10 15 keV ~ 10 12 alphas

6
www.ceh.ac.uk/PROTECT Need to make allowance of such factors as LET or RBE in the description of absorbed dose Equivalent dose = absorbed dose radiation weighting factor (w r ) Units of equivalent dose are Sieverts (Sv) No firm consensus - suggested values for w r : 1 for and high energy (> 10keV) radiation 3 for low energy ( 10keV) radiation 10 for (non stochastic effects in the species) vs. 20 for humans (to cover stochastic effects of radiation i.e. cancer in an individual)

7

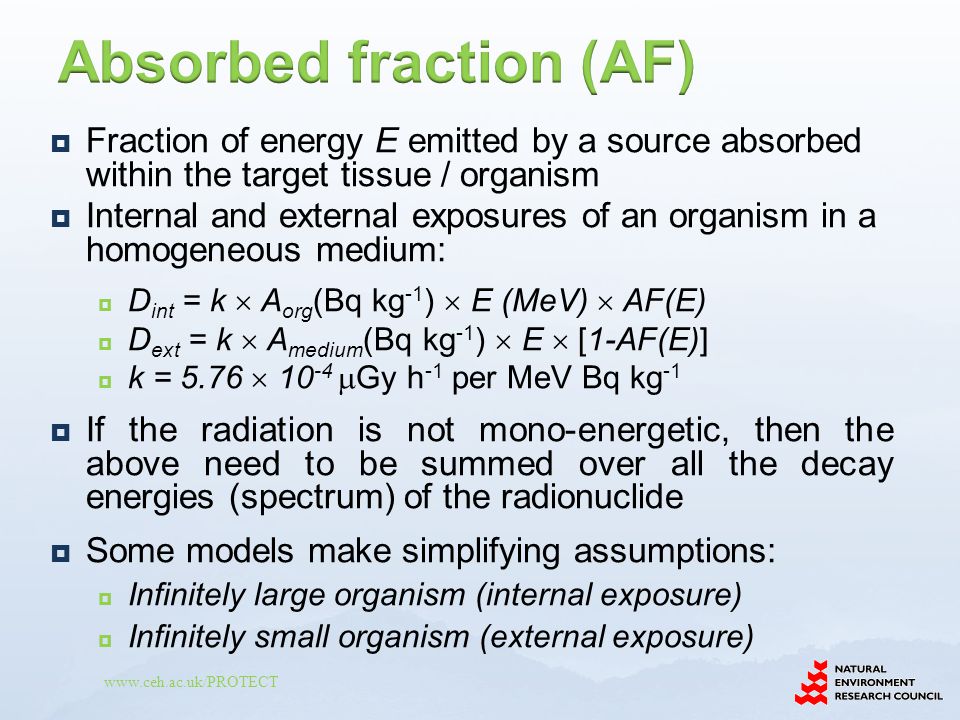

www.ceh.ac.uk/PROTECT Fraction of energy E emitted by a source absorbed within the target tissue / organism Internal and external exposures of an organism in a homogeneous medium: D int = k A org (Bq kg -1 ) E (MeV) AF(E) D ext = k A medium (Bq kg -1 ) E [1-AF(E)] k = 5.76 10 -4 Gy h -1 per MeV Bq kg -1 If the radiation is not mono-energetic, then the above need to be summed over all the decay energies (spectrum) of the radionuclide Some models make simplifying assumptions: Infinitely large organism (internal exposure) Infinitely small organism (external exposure)

8
www.ceh.ac.uk/PROTECT Defined as the ratio of dose rate per unit concentration in organism or the medium: D int = k A org E AF(E) = DCC int A org D ext = k A medium E[1-AF(E)] = DCC ext A medium Units of Gy h -1 per Bq kg -1 Concentration in organisms is concentration in the medium times a transfer function: A org =A medium (t) In equilibrium, the transfer function is known as the “transfer factor”, TF

9

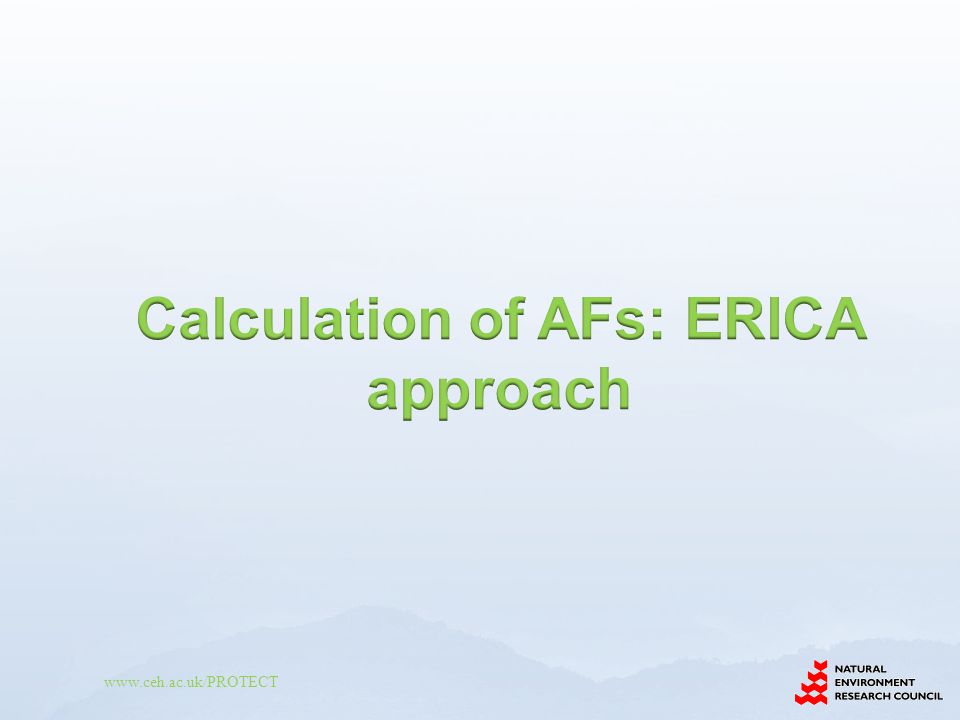

www.ceh.ac.uk/PROTECT The dose is the result of a complex interaction of energy, mass and the source - target geometry: Define organism mass and shape Consider exposure conditions (internal, external) Simulate radiation transport for mono-energetic photons and electrons: absorbed fractions Link calculations with nuclide-specific decay characteristics: Dose conversion coefficients Only a few organisms with simple geometry can be simulated explicitly In all other cases interpolation gives good accuracy

10
www.ceh.ac.uk/PROTECT

11

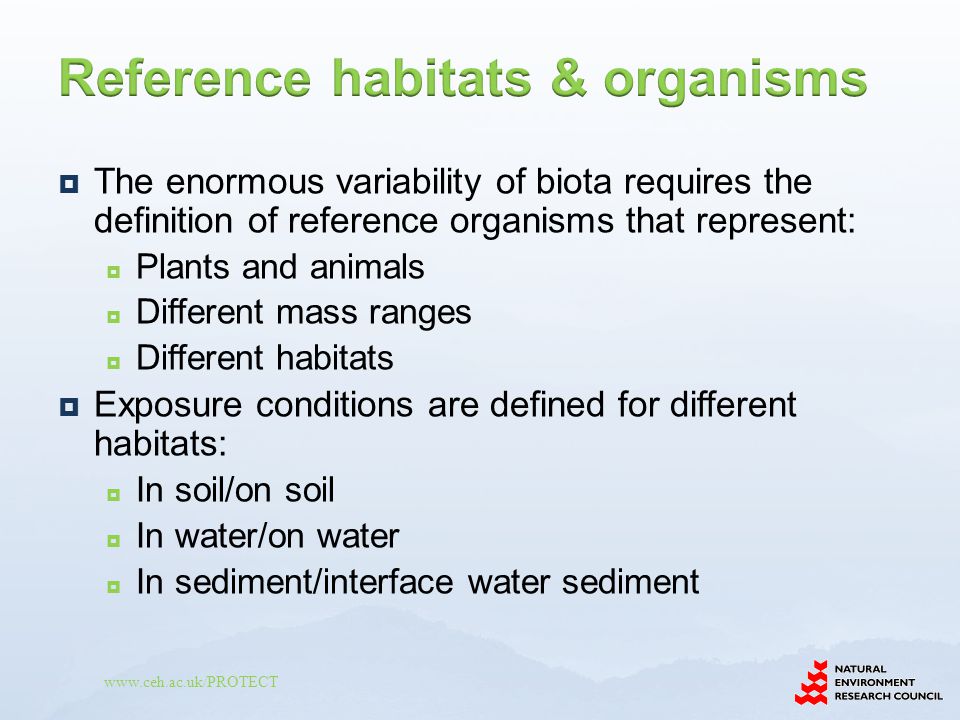

The enormous variability of biota requires the definition of reference organisms that represent: Plants and animals Different mass ranges Different habitats Exposure conditions are defined for different habitats: In soil/on soil In water/on water In sediment/interface water sediment

12
www.ceh.ac.uk/PROTECT Organism shapes approximated by ellipsoids, spheres or cylinders of stated dimensions Homogeneous distribution of radionuclides within the organism: organs are not considered Oganism immersed in uniformly contaminated medium Dose rate averaged over organism volume

13
www.ceh.ac.uk/PROTECT Monte Carlo simulations of photon and electron transport through matter (ERICA uses MCNP code) Includes all processes: photoelectric absorption, Compton scattering, pair creation, fluorescence

14
www.ceh.ac.uk/PROTECT Monte Carlo calculations are very time-consuming : Long range of high-energy photons in air, a large area around the organism has to be considered A large contaminated area has to be considered as source Small targets get only relatively few hits Probability ~ 1/source-target distance 2 Simulations require high number of photon tracks Therefore, a two-step method has been developed : KERMA calculated in air from different sources on or in soil Dose to organism / dose in air ratio calculated for the different organisms and energies

15
www.ceh.ac.uk/PROTECT ElectronsPhotons

16
www.ceh.ac.uk/PROTECT Represented by ellipsoidal shapes having the same mass as the spherical ones AFs always less than those for spheres of equal mass. Non-sphericity parameter: = surface area of sphere of equal mass (S0) / surface area (S) Derive re-scaling factors RF using the formula: RF( ) can be approximated by a single-parameter curve: RF( ) = 1 for large masses and low energies, and for very small masses and high energies. Ulanovsky and Pröhl (2006)

17

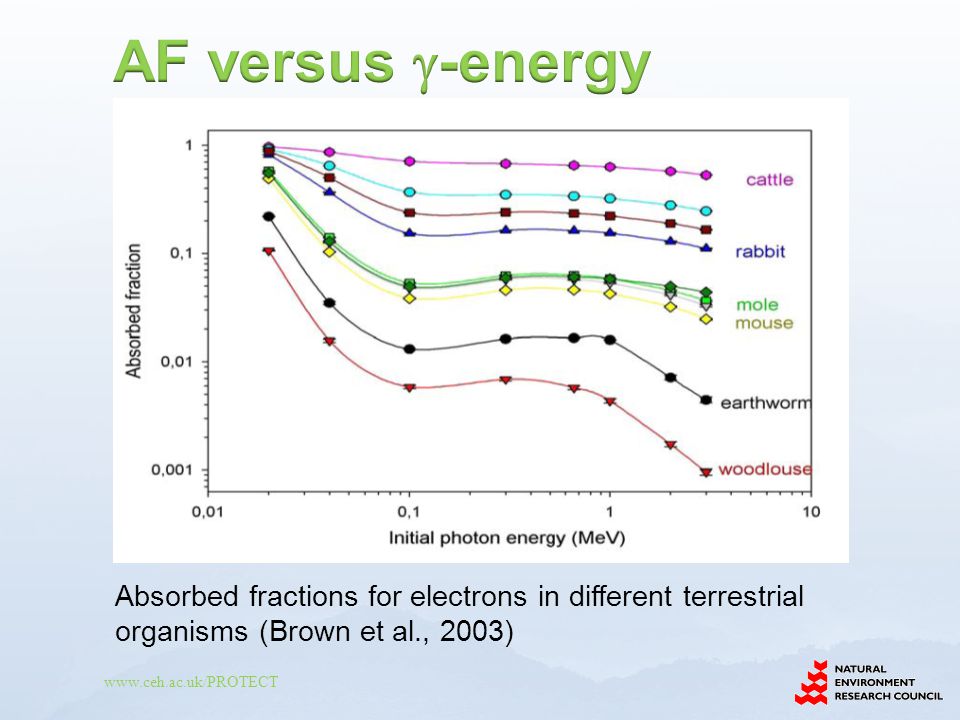

www.ceh.ac.uk/PROTECT Absorbed fractions for electrons in different terrestrial organisms (Brown et al., 2003)

18
www.ceh.ac.uk/PROTECT For each radionuclide and reference organism energies and yields of all , and emissions are extracted from ICRP(1983) and overall and AF's calculated as: where E i is energy (MeV) and p i denotes the fractional yield of individual emissions For each radionuclide and reference organism energies and yields of all , and emissions are extracted from ICRP(1983) and overall and AF's calculated as: where E i is energy (MeV) and p i denotes the fractional yield of individual emissions

19
www.ceh.ac.uk/PROTECT

22
Occupancy factor : External exposure : Internal exposure :

23
www.ceh.ac.uk/PROTECT DCCs for earthworm at various soil depths for monoenergetic photons. Assumes uniformly contaminated upper 50 cm of soil DCCs for various soil organisms at a depth of 25 cm in soil for monoenergetic photons. Assumes uniformly contaminated upper 50 cm of soil (density: 1600 kg/m³)

24
www.ceh.ac.uk/PROTECT DCCs for mono-energetic photons for soil organisms as a function of photon energy (Brown et al., 2003)

25
www.ceh.ac.uk/PROTECT External DCCs decrease with size due to the increasing self-shielding, especially for low energy g-emitters Small organism DCCs from high-energy photons higher for underground organisms, & vice versa for larger organisms External exposure to low-energy emitters is higher for organisms above ground, due to lack of shielding by soil DCCs for internal exposure to -emitters (esp. high- energy) increase with mass due to the higher absorbed fractions For and -emitters, the DCCs for internal exposure are virtually size-independent

26

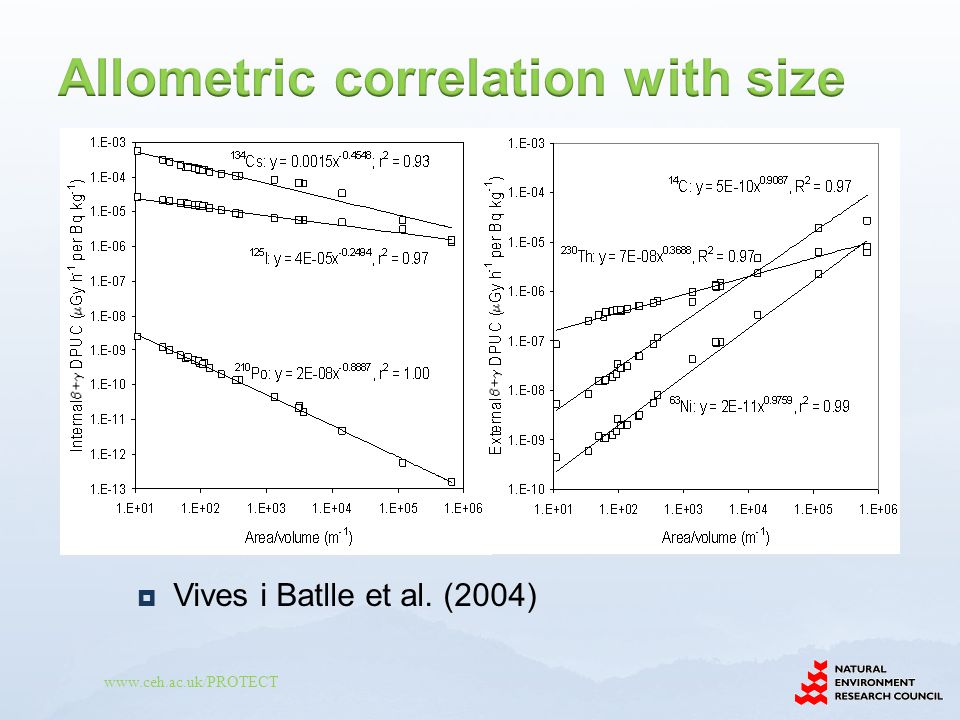

www.ceh.ac.uk/PROTECT Vives i Batlle et al. (2004)

27
www.ceh.ac.uk/PROTECT

28

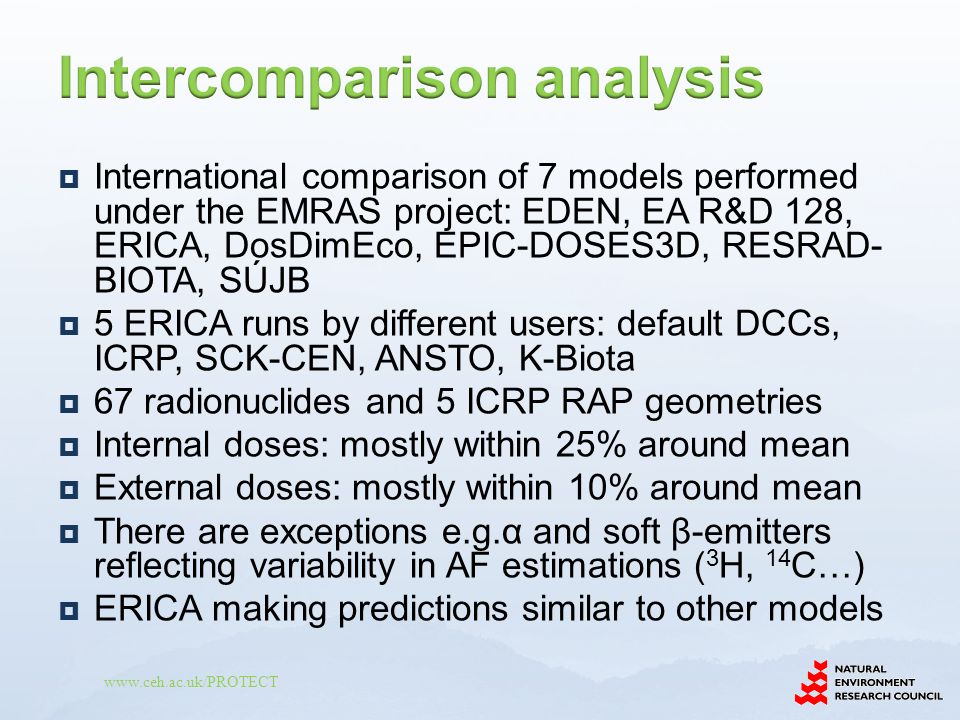

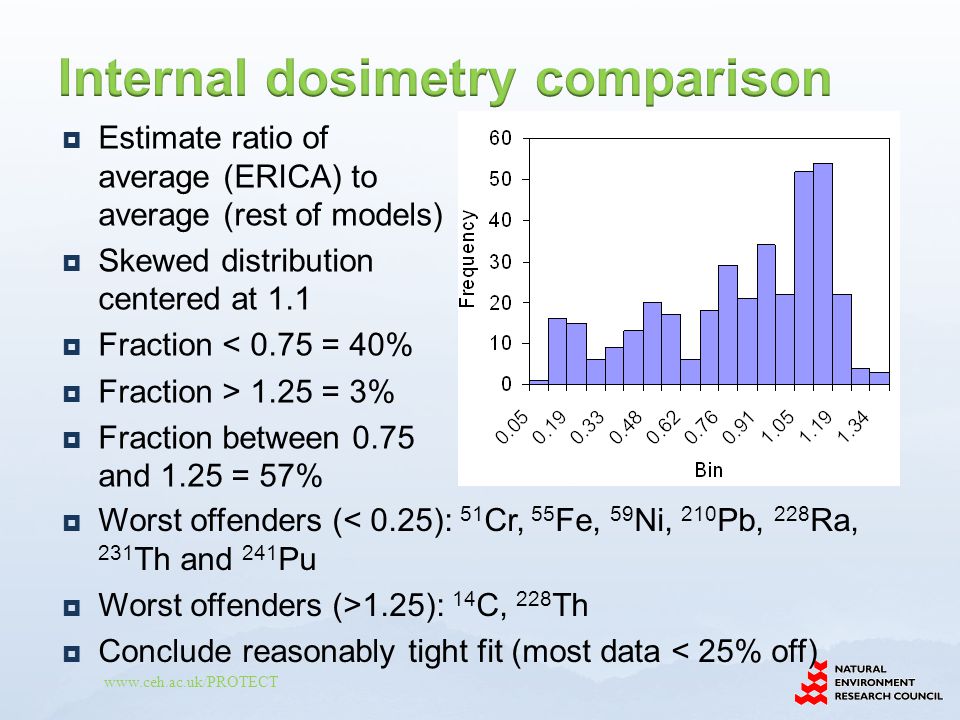

International comparison of 7 models performed under the EMRAS project: EDEN, EA R&D 128, ERICA, DosDimEco, EPIC-DOSES3D, RESRAD- BIOTA, SÚJB 5 ERICA runs by different users: default DCCs, ICRP, SCK-CEN, ANSTO, K-Biota 67 radionuclides and 5 ICRP RAP geometries Internal doses: mostly within 25% around mean External doses: mostly within 10% around mean There are exceptions e.g.α and soft β-emitters reflecting variability in AF estimations ( 3 H, 14 C…) ERICA making predictions similar to other models

29
www.ceh.ac.uk/PROTECT Estimate ratio of average (ERICA) to average (rest of models) Skewed distribution centered at 1.1 Fraction < 0.75 = 40% Fraction > 1.25 = 3% Fraction between 0.75 and 1.25 = 57% Worst offenders (< 0.25): 51 Cr, 55 Fe, 59 Ni, 210 Pb, 228 Ra, 231 Th and 241 Pu Worst offenders (>1.25): 14 C, 228 Th Conclude reasonably tight fit (most data < 25% off)

30
www.ceh.ac.uk/PROTECT Same ratio method for external dose in water Two data groups at < 0.02 and ~ 1.32 Fraction < 0.5 = 37% Fraction > 1.5 = 13% Fraction between 0.5 and 1.5 =50 % Worst offenders (< 0.02): 3 H, 33 P, 35 S, 36 Cl, 45 Ca, 55 Fe, 59,63 Ni, 79 Se, 135 Cs, 210 Po, 230 Th, 234,238 U, 238,239,241 Pu, 242 Cm Worst offenders (>1.25): 32 P, 54 Mn, 58 Co, 94,95 Nb, 99 Tc, 124 Sb, 134,136 Cs, 140 Ba, 140 La, 152,154 Eu, 226 Ra, 228 Th Still acceptable fit (main data < 50% “off”)

31
www.ceh.ac.uk/PROTECT

32

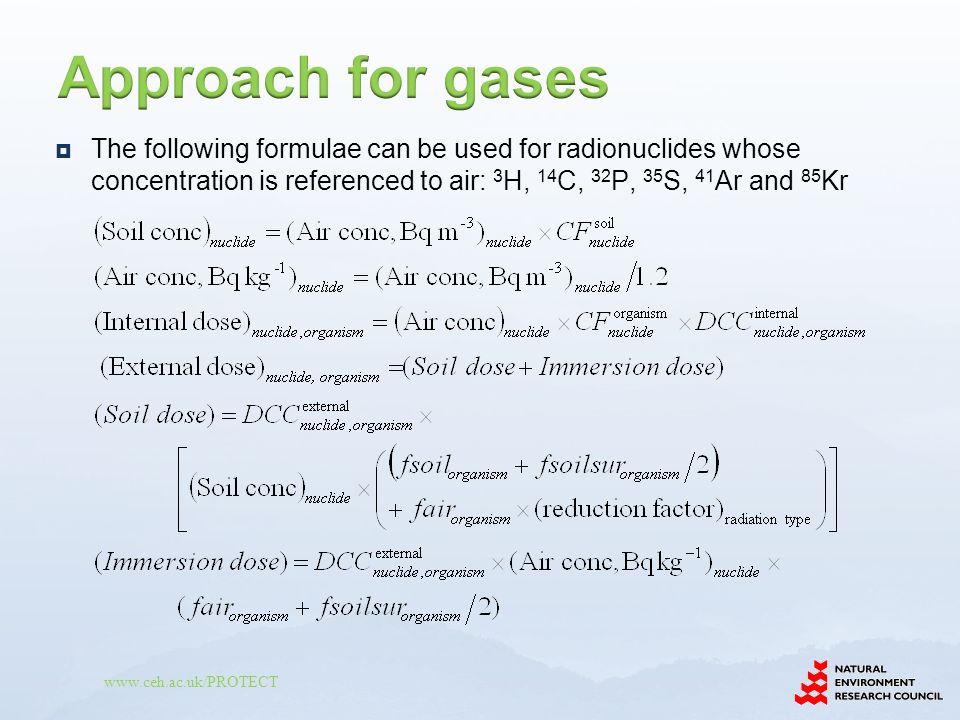

The following formulae can be used for radionuclides whose concentration is referenced to air: 3 H, 14 C, 32 P, 35 S, 41 Ar and 85 Kr

33
www.ceh.ac.uk/PROTECT TadpoleEarthwormFrog Rat CrabDuck TroutFlatfishDeer Distributed source Central point Eccentric point Data from Gómez-Ros et al. (2009)

34
www.ceh.ac.uk/PROTECT Central point TadpoleEarthwormFrog Rat CrabDuck TroutFlatfishDeer Distributed source Eccentric point Data from Gómez-Ros et al. (2009)

35
www.ceh.ac.uk/PROTECT Internal dose negligible: Ar and Kr CFs set to 0 No deposition but some migration into soil pores Assume pore air is at the same concentration as ground level air concentrations assume a free air space of 15%, density = 1500 kg m -3, so free air space = 10 -4 m 3 kg -1 & Bq m -3 (air) * 10 -4 = Bq kg -1 (wet) Hence, a TF of 10 -4 for air (Bq m -3 ) to soil (Bq kg -1 wet) For plants and fungi occupancy factors set to 1.0 soil, 0.5 air (instead of 0) Biota in the subsurface soil and are exposed only to 41 Ar and 85 Kr in the air pore spaces External DCCs for fungi are those calculated for bacteria (i.e. infinite medium DCCs)

36
www.ceh.ac.uk/PROTECT - i N L RR+h Conceptual representation of irradiated respiratory tissue Simple respiratory model for 222 Rn daughters At equilibrium:

37
www.ceh.ac.uk/PROTECT Use CO 2 as analogue entering plant, while water and O 2 exit through the stomata A full process dose model representing gas exchange through plant stomata is the next logical developmental step Assume whole plant exchanges gases

38
www.ceh.ac.uk/PROTECT TB: Full tracheobronchial epithelium; L: Full lung; WB: Whole body; S TB RM and S B RM : Area of tracheobronchial tree or bronchial epithelium; a: Axis of cylinder representing the plant; R wf :Weighting factor Animal dose factors ( Gy h -1 per Bq m -3 ): Plant dose factors:

39
www.ceh.ac.uk/PROTECT Each sub-model contains the decay chain of radon: 222 Rn 218 Po 214 Pb 214 Bi 214 Po

40
www.ceh.ac.uk/PROTECT Organisms can retain activity for a long time after it has been dispersed from an environment. Requires assessment tools based on a dynamic approach Time-dependent dose rates can be integrated over period following the intake of radioactivity (lifetime)

41
www.ceh.ac.uk/PROTECT Brown J., Gomez-Ros J.-M., Jones, S.R., Pröhl, G., Taranenko, V., Thørring, H., Vives i Batlle, J. and Woodhead, D, (2003) Dosimetric models and data for assessing radiation exposures to biota. FASSET (Framework for Assessment of Environmental Impact) Deliverable 3 Report under Contract No FIGE-CT-2000-00102, G. Pröhl (Ed.). Gómez-Ros, J.M., Pröhl, G., Ulanovsky, A. and Lis, M. (2008). Uncertainties of internal dose assessment for animals and plants due to non- homogeneously distributed radionuclides. Journal of Environmental Radioactivity 99(9): 1449-1455. Ulanovsky, A. and Pröhl, G. (2006) A practical method for assessment of dose conversion coefficients for aquatic biota. Radiation and Environmental Biophysics 45: 20 -214. Vives i Batlle, J., Jones, S.R. and Gómez-Ros, J.M. (2004) A method for calculation of dose per unit concentration values for aquatic biota. Journal of Radiological Protection 24(4A): A13-A34. Vives i Batlle, J., Jones, S.R. and Copplestone, D. (2008) Dosimetric Model for Biota Exposure to Inhaled Radon Daughters. Environment Agency Science Report – SC060080, 34 pp.
