1 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 1 Re-examination of the protection requirements for the Radio Astronomy Service in light of the Broadband Fixed Wireless Access Multimedia Wireless Systems proposed for the GHz frequency band John Pahl and Steve Munday Transfinite Systems Ltd

2 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 2 Presentation Structure Project objectives and approach System parameters used Approach to analysis Results of runs Conclusions

3 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 3 Project objectives To analyse the feasibility of BFWA operating in the GHz band, taking into account the need to protect the RAS Determine the conditions that would facilitate sharing, such as operating restrictions Evaluate existing work and approaches to sharing such as in ERC Report 36 Derive, where necessary, methodologies to model interference and assist in sharing

4 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 4 System Parameters Obtained from review of previous studies, current literature and discussion with operators Data sets developed for different types of BFWA systems: –3 types of Mesh system - low, medium and high density –6 types of Point-to-Multipoint system Urban Symmetric and Asymmetric models Sub-urban Symmetric and Asymmetric models Rural Symmetric and Asymmetric models –2 types of Feeder link Variations to analyse impact of modeling assumptions and mitigation

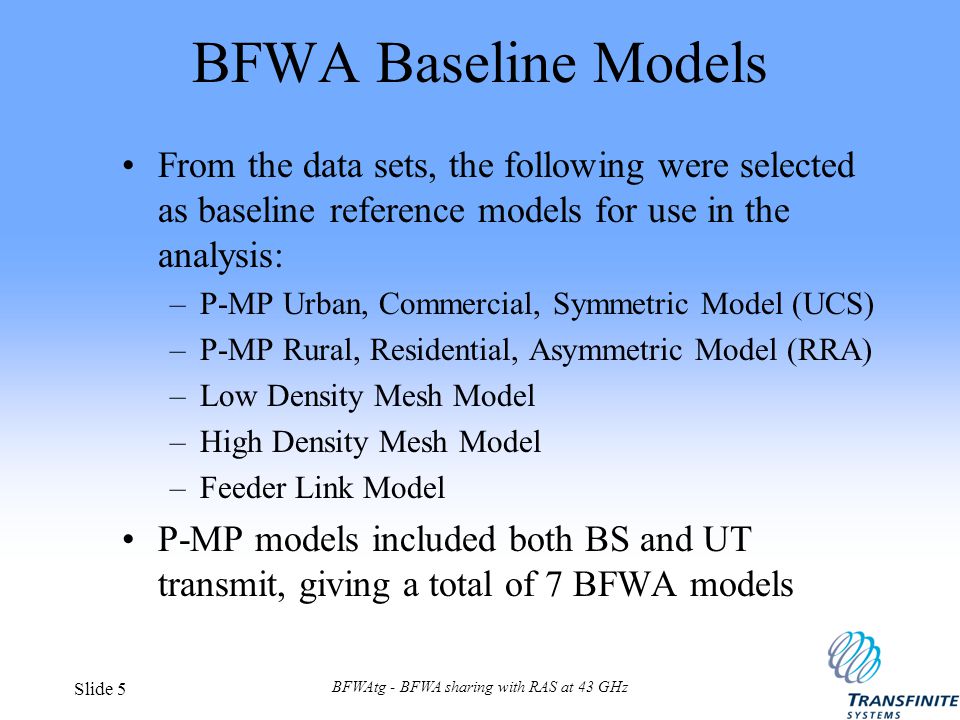

5 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 5 BFWA Baseline Models From the data sets, the following were selected as baseline reference models for use in the analysis: –P-MP Urban, Commercial, Symmetric Model (UCS) –P-MP Rural, Residential, Asymmetric Model (RRA) –Low Density Mesh Model –High Density Mesh Model –Feeder Link Model P-MP models included both BS and UT transmit, giving a total of 7 BFWA models

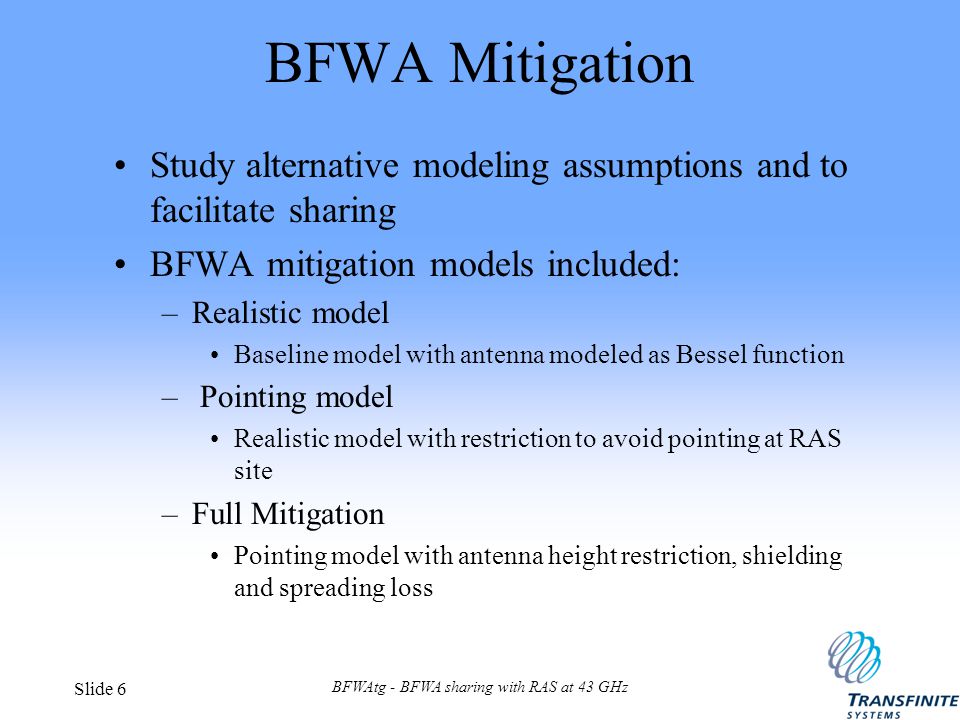

6 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 6 BFWA Mitigation Study alternative modeling assumptions and to facilitate sharing BFWA mitigation models included: –Realistic model Baseline model with antenna modeled as Bessel function – Pointing model Realistic model with restriction to avoid pointing at RAS site –Full Mitigation Pointing model with antenna height restriction, shielding and spreading loss

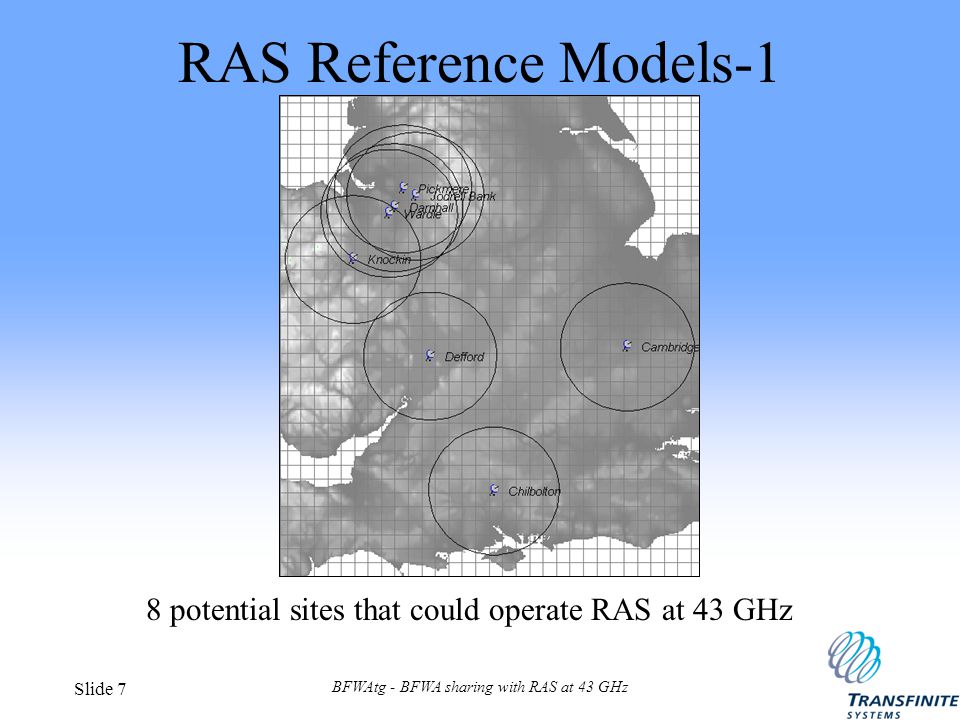

7 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 7 RAS Reference Models-1 8 potential sites that could operate RAS at 43 GHz

8 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 8 RAS Reference Models-2 Three RAS sites considered - Jodrell Bank, Defford and Cambridge Protection criteria obtained from ITU-R Rec. RA.769 for three types of observation: RAS protection criteria / 1 MHz

9 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 9 RAS Reference Models-3 Baseline model: –Gain pattern Rec. SA 509-2, ie 32-25log(  ) –Minimum elevation 5° Realistic model: –Baseline model with antenna modeled as Bessel function Pointing model: –Realistic model with minimum elevation of 19° In all cases observation time 2000 seconds

10 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 10 RAS gain patterns Up to 35 dB difference !

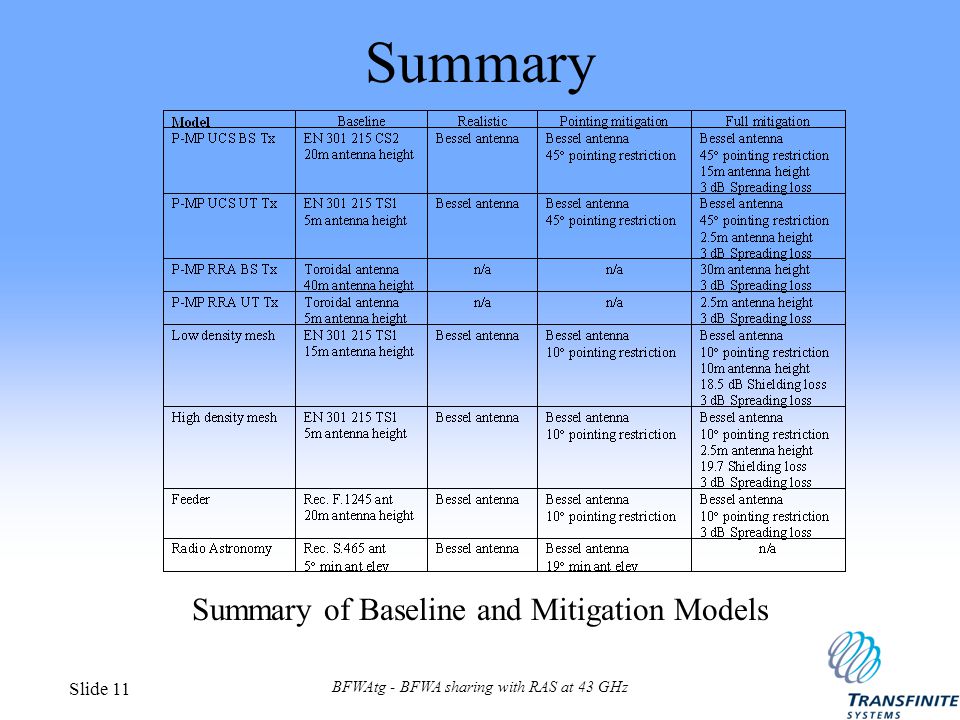

11 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 11 Summary Summary of Baseline and Mitigation Models

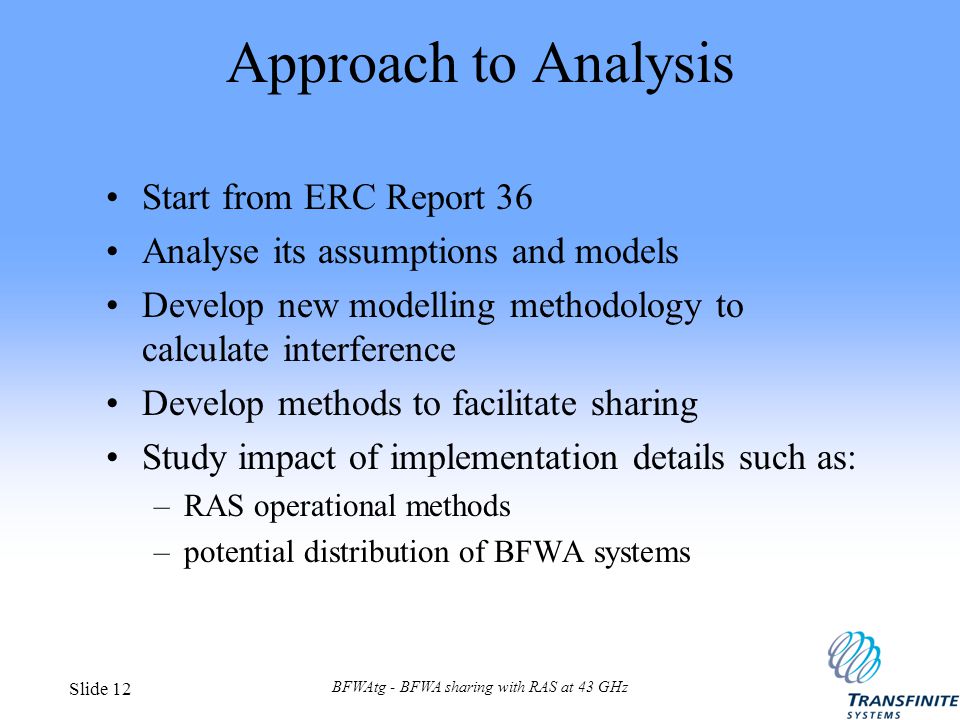

12 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 12 Approach to Analysis Start from ERC Report 36 Analyse its assumptions and models Develop new modelling methodology to calculate interference Develop methods to facilitate sharing Study impact of implementation details such as: –RAS operational methods –potential distribution of BFWA systems

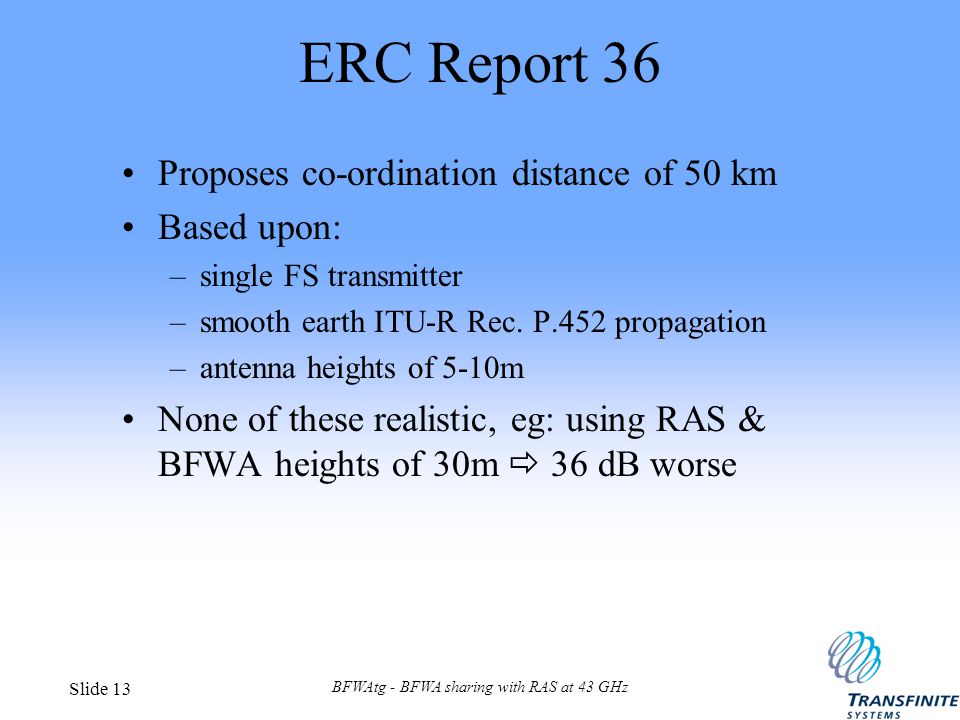

13 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 13 ERC Report 36 Proposes co-ordination distance of 50 km Based upon: –single FS transmitter –smooth earth ITU-R Rec. P.452 propagation –antenna heights of 5-10m None of these realistic, eg: using RAS & BFWA heights of 30m  36 dB worse

14 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 14 Single vs Aggregate Interference ERC Report based upon single transmitter Analysed impact of large numbers of transmitters Simulated impact of adding rings of transmitters every 4 km from km Interference increased: –~12 dB single station to all stations in 50 km ring –~17.5 dB single station to all rings km

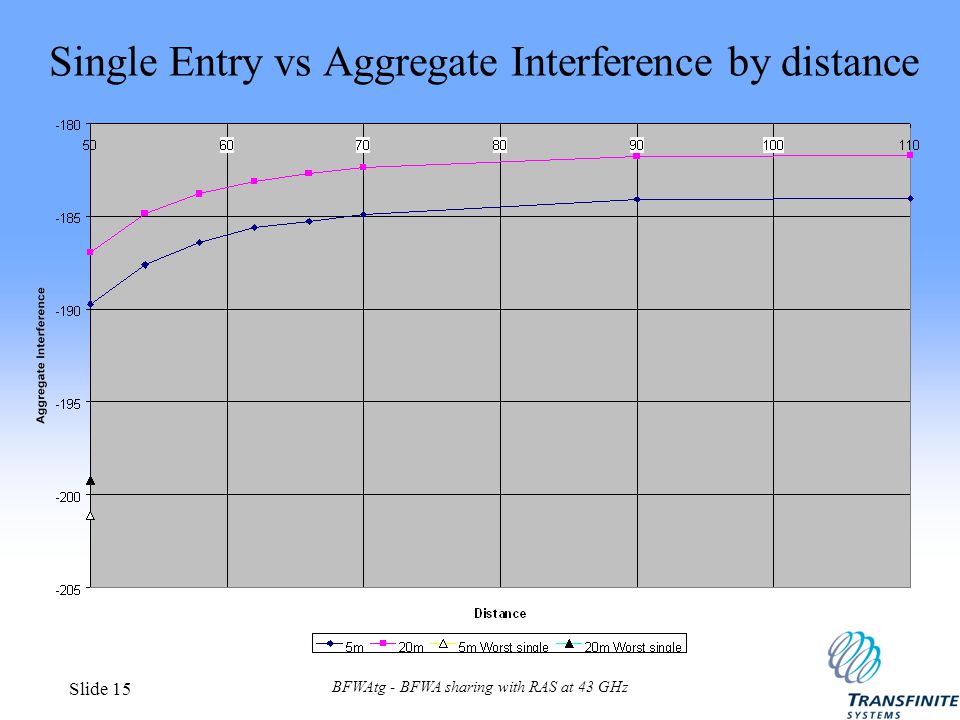

15 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 15 Single Entry vs Aggregate Interference by distance

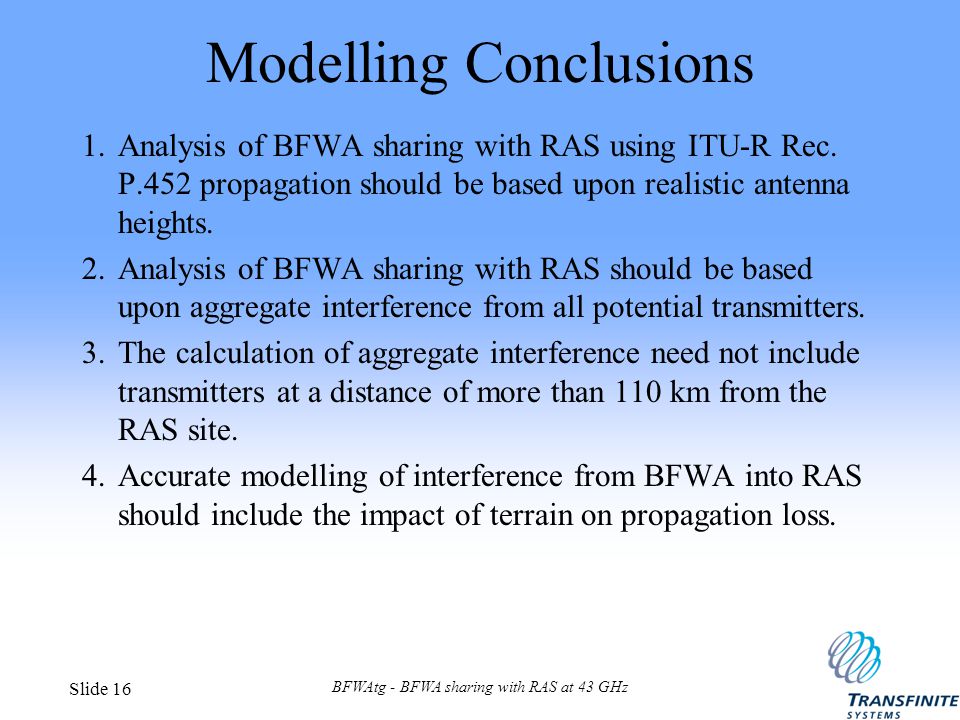

16 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 16 Modelling Conclusions 1.Analysis of BFWA sharing with RAS using ITU-R Rec. P.452 propagation should be based upon realistic antenna heights. 2.Analysis of BFWA sharing with RAS should be based upon aggregate interference from all potential transmitters. 3.The calculation of aggregate interference need not include transmitters at a distance of more than 110 km from the RAS site. 4.Accurate modelling of interference from BFWA into RAS should include the impact of terrain on propagation loss.

17 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 17 Methodology Needed to develop methodology to analyse interference from large numbers of BFWA transmitters Methodology included impact of: –terrain –mitigation –variation in BFWA cell configurations –type of RAS observation Approach based on cells as Building Blocks, using Monte Carlo techniques to aggregate interference

18 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 18 Example Building Block

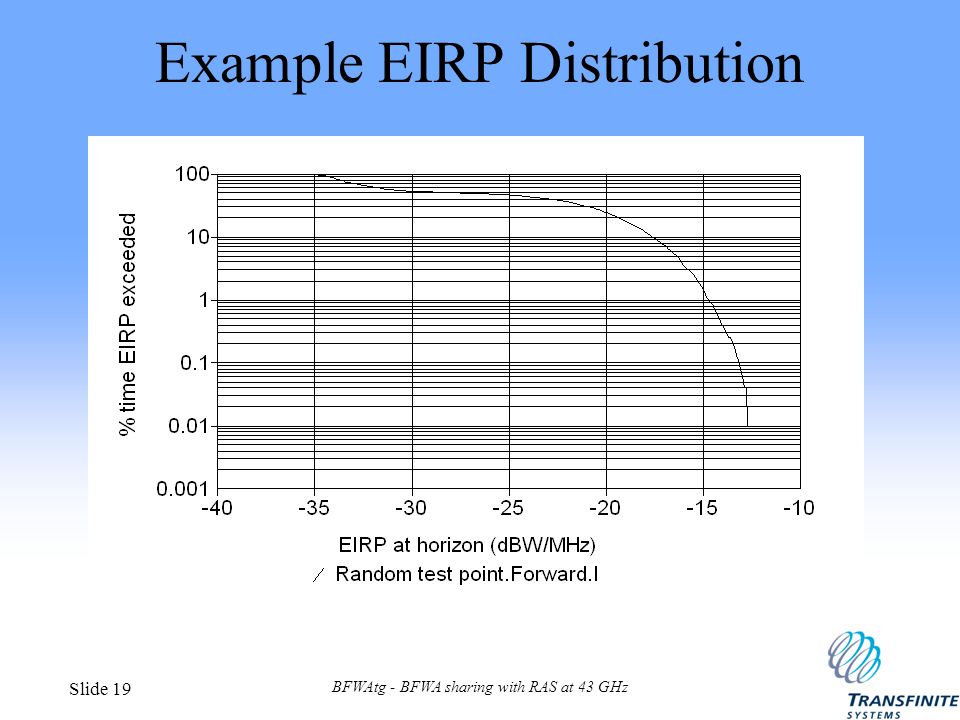

19 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 19 Example EIRP Distribution

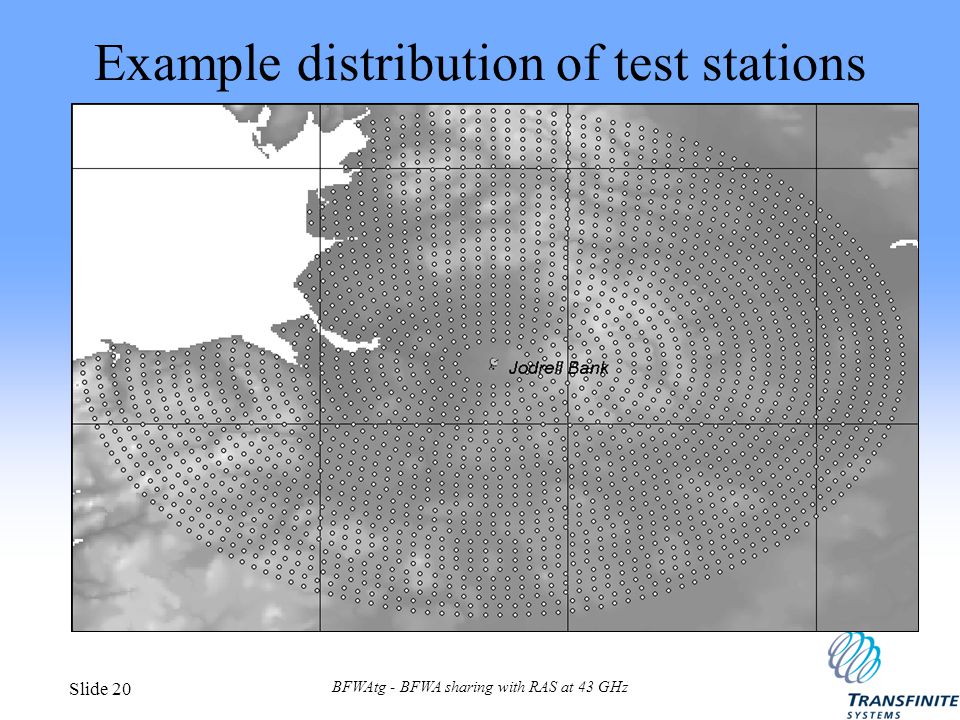

20 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 20 Example distribution of test stations

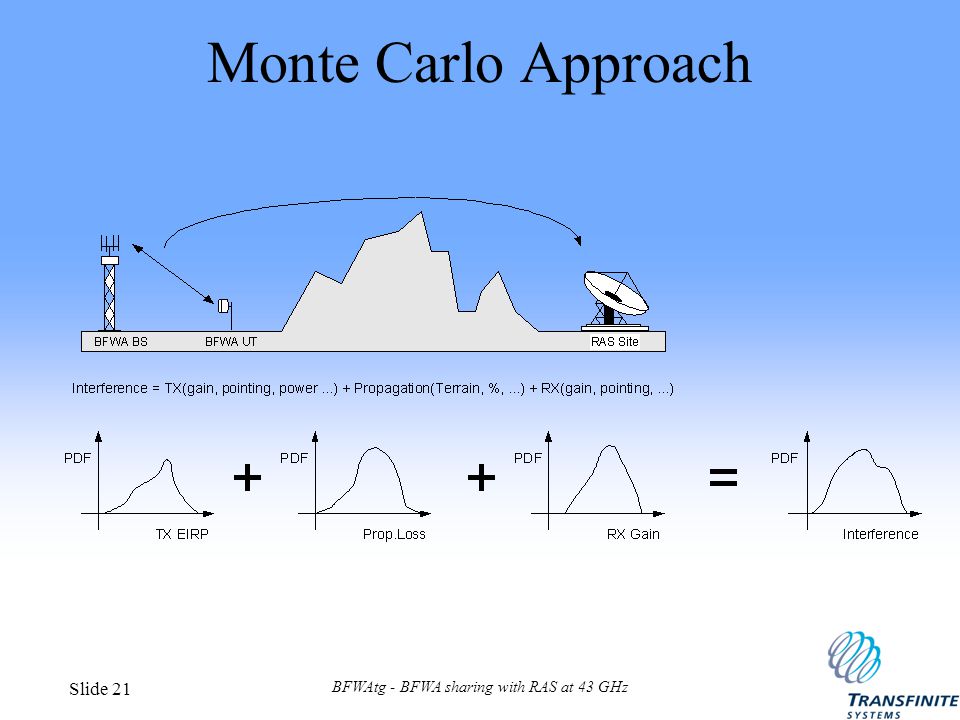

21 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 21 Monte Carlo Approach

22 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 22 Analysis and Results-1 Based upon ERC Report exclusion distance of 50 km Study impact of input parameters: –Compare modelling assumptions –Compare impact mitigation methods –Compare BFWA architectures –Compare RAS sites

23 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 23 Baseline results: EZ=50km no mitigation Runs exceeding limit: all

24 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 24 Baseline results: EZ=50km with mitigation Runs exceeding limit: Mesh LD, Mesh HD, RRA BS

25 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 25 Results of initial runs 50 km exclusion distance in ERC Report is not sufficient to protect RAS site Modeling gain patterns using Bessel functions significantly reduces interference ( dB) Imposing pointing restrictions on BFWA reduced interference by further dB Results between RAS sites similar - variation dB. Jodrell Bank and Defford most alike as similar terrain profile.

26 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 26 Implications No one BFWA architecture was worse under all situations, e.g.: –Mesh worst without mitigation, but has more ability to decrease interference –P-MT RRA best without mitigation, but limited ability to decrease interference Most important factors are: –use of pointing mitigation –gain pattern assumed - in particular for RAS

27 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 27 Methods to facilitate sharing BFWA operating restrictions –Combining mitigation with Exclusion Zones (EZs) BFWA cell distribution and architectures based upon UK census data RAS operational considerations –observation types

28 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 28 Exclusion Zone Methods Traditionally based upon distance, D Not appropriate when including terrain: –azimuth dependent –does not linearly increase along azimuth Propose use of new EZ method: –Exclude all locations where L 452 (10%) < X Compare these two EZ methods Change size of EZ (D or X) using iteration until just meet RAS criteria

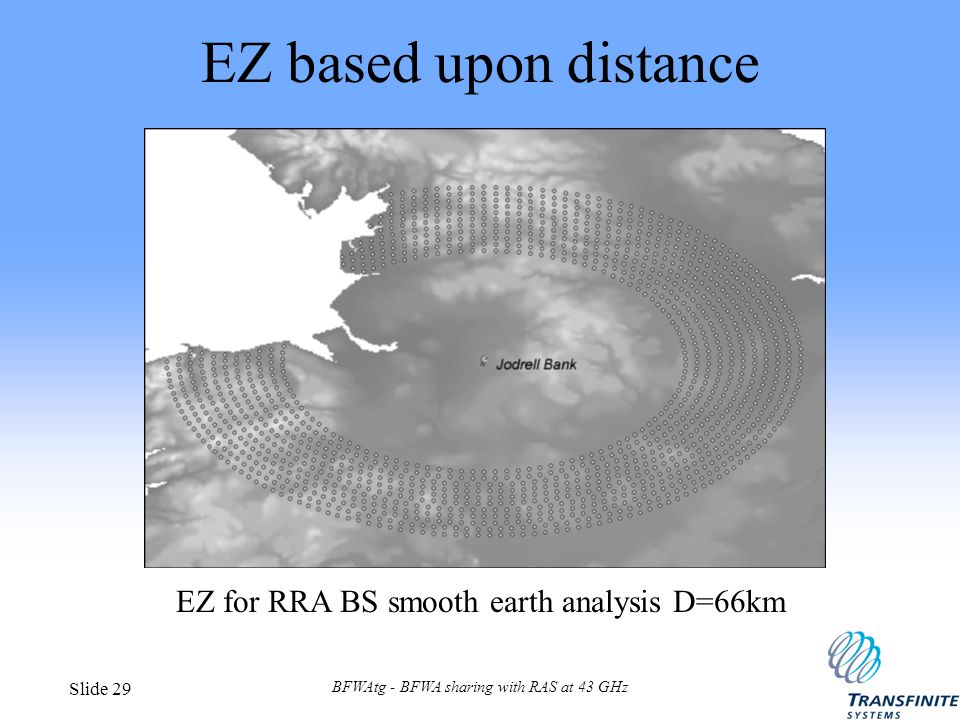

29 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 29 EZ for RRA BS smooth earth analysis D=66km EZ based upon distance

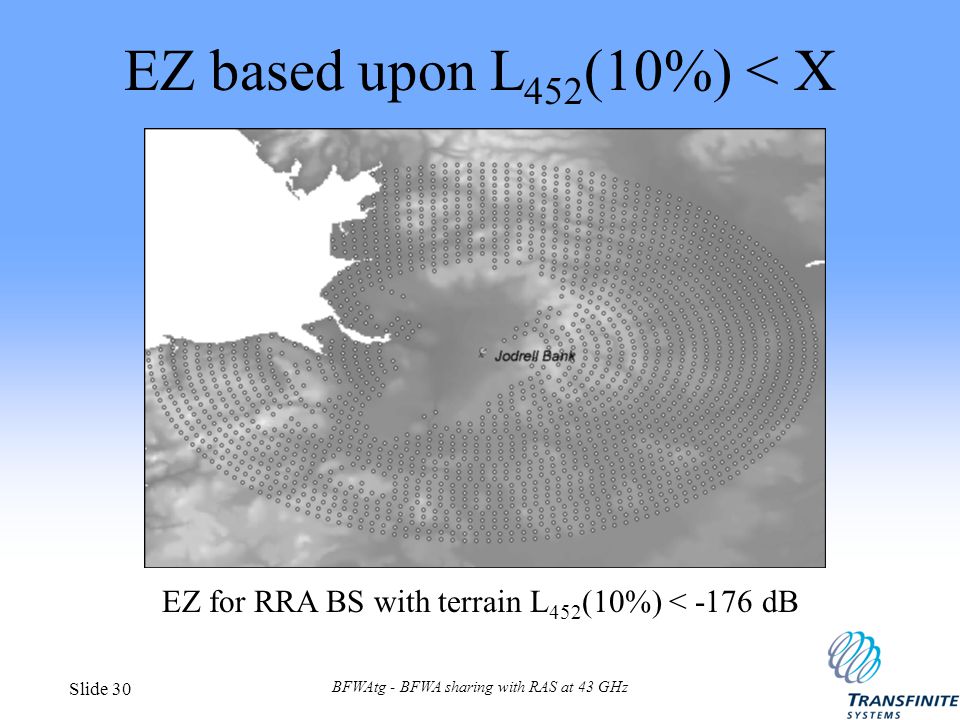

30 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 30 EZ for RRA BS with terrain L 452 (10%) < -176 dB EZ based upon L 452 (10%) < X

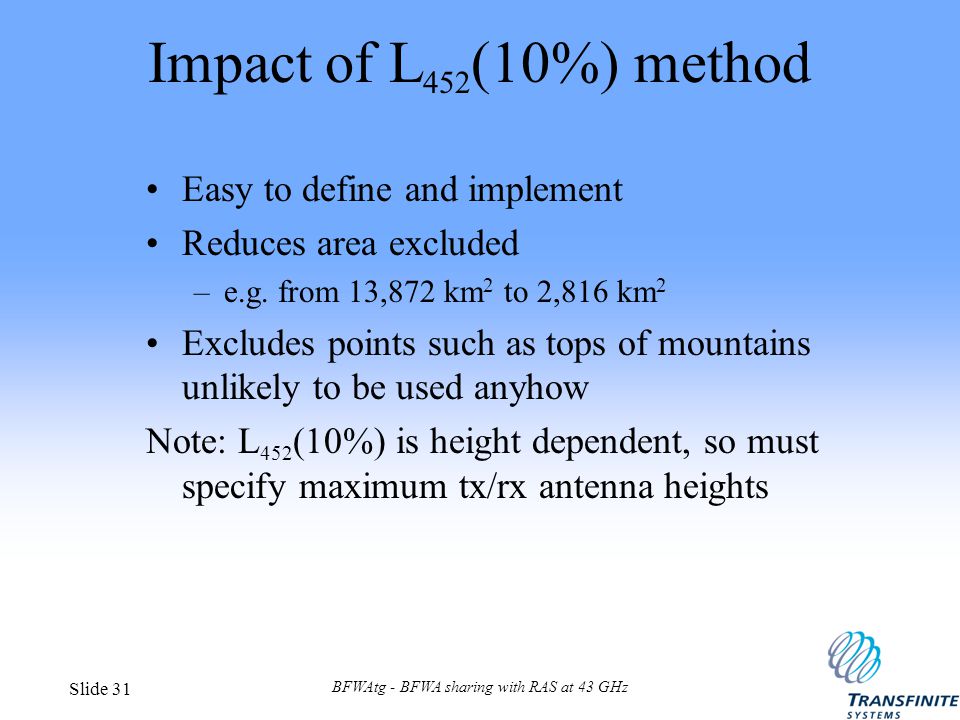

31 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 31 Impact of L 452 (10%) method Easy to define and implement Reduces area excluded –e.g. from 13,872 km 2 to 2,816 km 2 Excludes points such as tops of mountains unlikely to be used anyhow Note: L 452 (10%) is height dependent, so must specify maximum tx/rx antenna heights

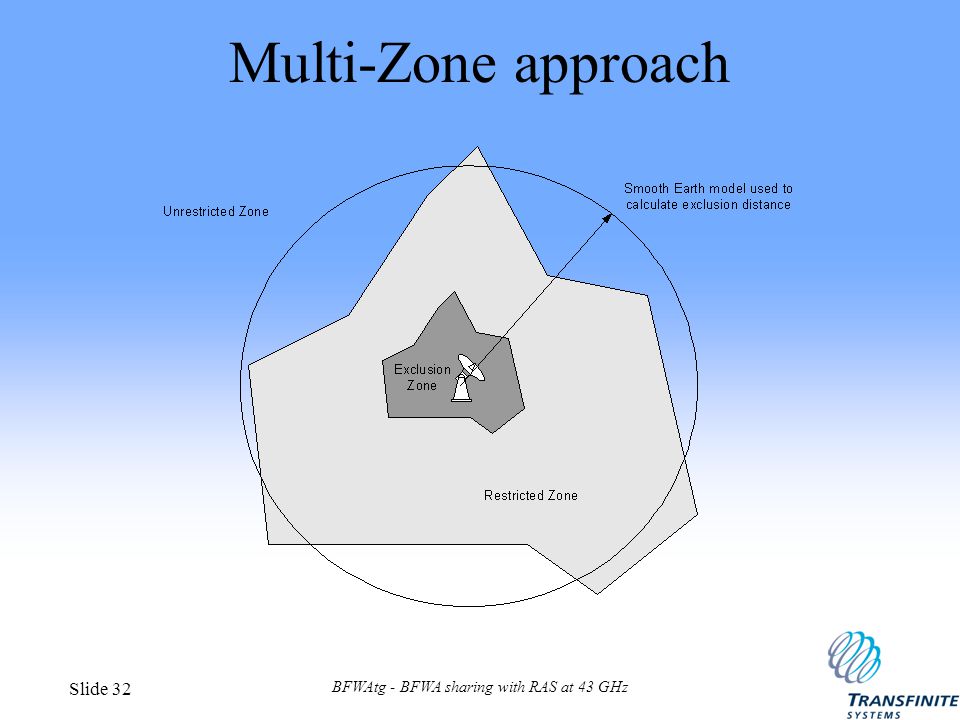

32 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 32 Multi-Zone approach

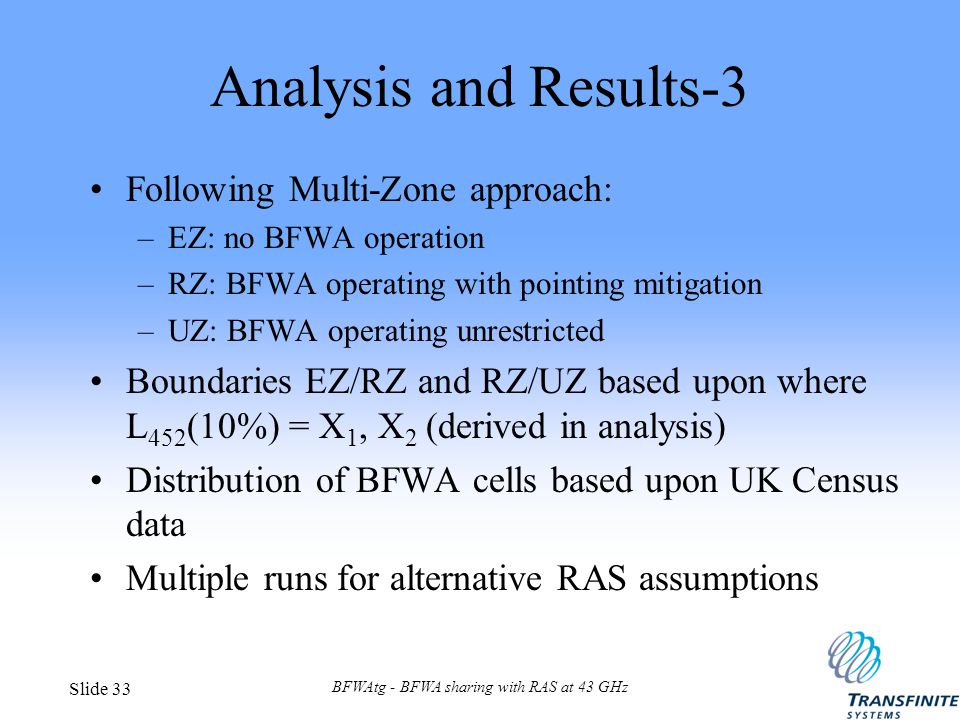

33 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 33 Analysis and Results-3 Following Multi-Zone approach: –EZ: no BFWA operation –RZ: BFWA operating with pointing mitigation –UZ: BFWA operating unrestricted Boundaries EZ/RZ and RZ/UZ based upon where L 452 (10%) = X 1, X 2 (derived in analysis) Distribution of BFWA cells based upon UK Census data Multiple runs for alternative RAS assumptions

34 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 34 Production of realistic BFWA distribution Mapped 1991 UK Census data to BFWA types based on populated weighted density (persons / km 2 ) : Mesh LD rather than P-MP RRA used for low population areas as needed ability to mitigate

35 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 35 Key: circles = P-MP in urban areas, crosses = mesh LD in rural areas Realistic BFWA distribution

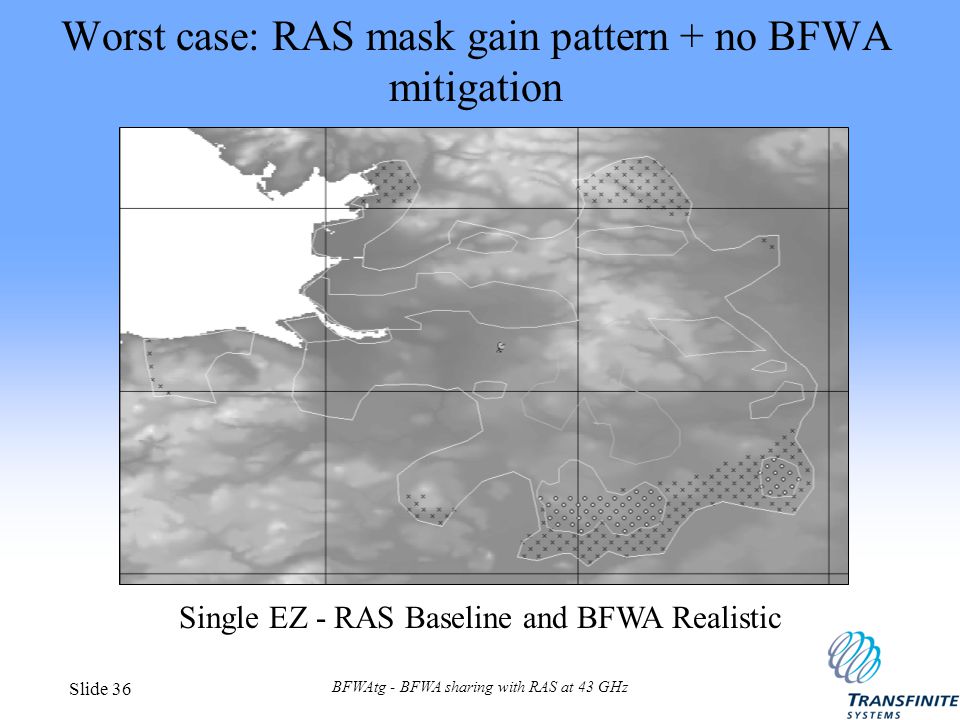

36 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 36 Worst case: RAS mask gain pattern + no BFWA mitigation Single EZ - RAS Baseline and BFWA Realistic

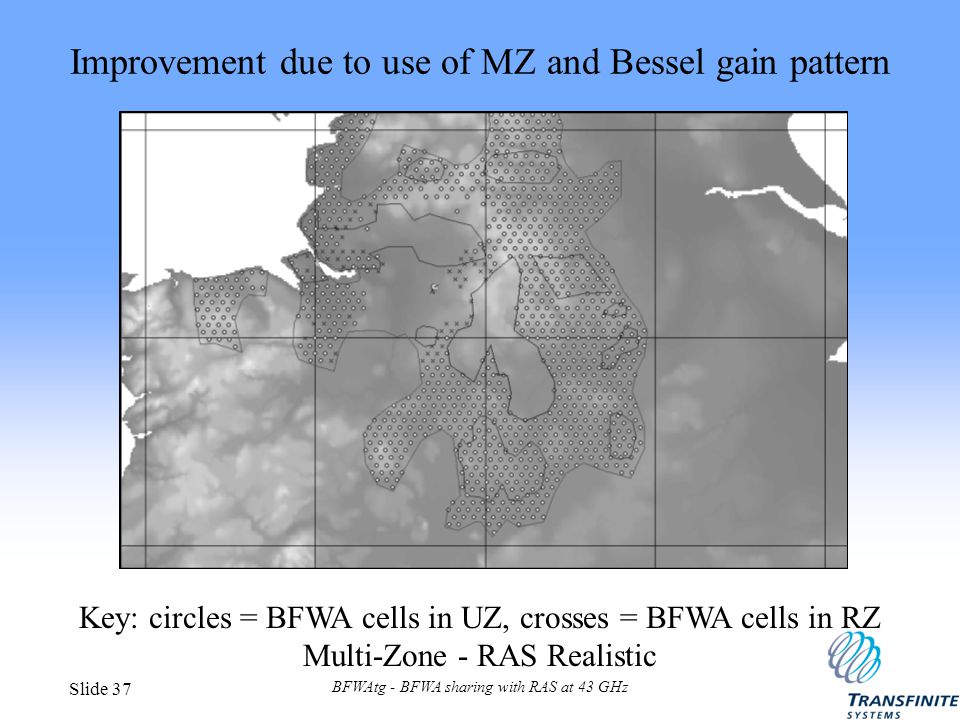

37 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 37 Improvement due to use of MZ and Bessel gain pattern Key: circles = BFWA cells in UZ, crosses = BFWA cells in RZ Multi-Zone - RAS Realistic

38 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 38 RAS observing method Analysis above based upon RAS most stringent criteria dBW/MHz This is to protect a single RAS site making Continuum observations Criteria to protect VLBI and Spectral line observations are higher Analysis was also done against these thresholds

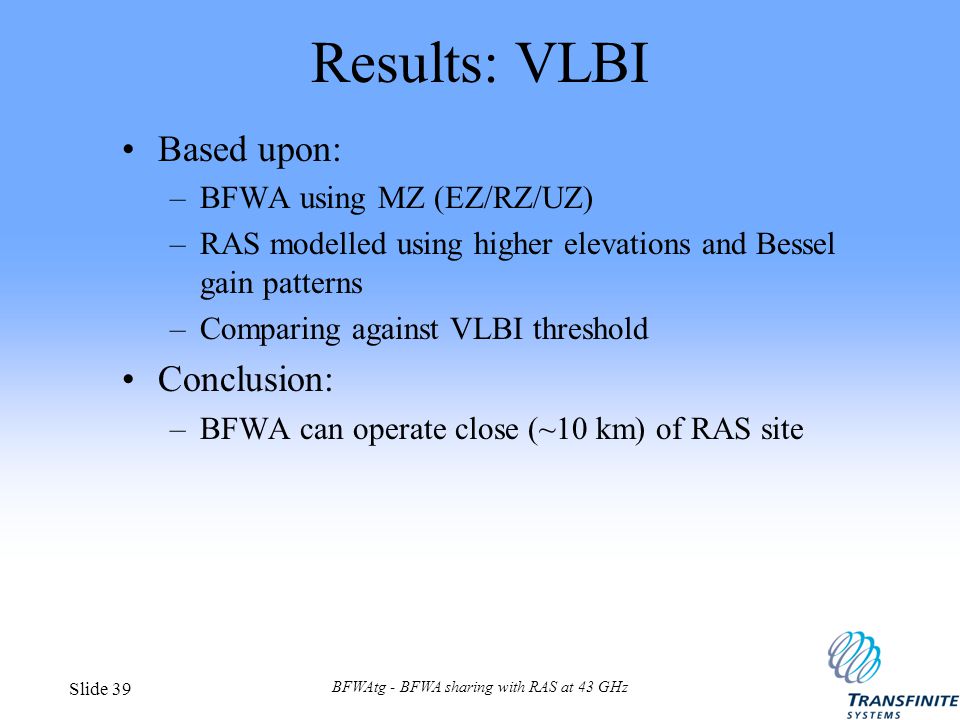

39 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 39 Results: VLBI Based upon: –BFWA using MZ (EZ/RZ/UZ) –RAS modelled using higher elevations and Bessel gain patterns –Comparing against VLBI threshold Conclusion: –BFWA can operate close (~10 km) of RAS site

40 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 40 Locations of EZ/RZ/UZ for VLBI Key: circles = BFWA cells in UZ, crosses = BFWA cells in RZ

41 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 41 Best case sharing scenario RAS: operates only as VLBI and SL (single site) antenna gain pattern similar to Bessel function generally operates at elevations  19° BFWA: uses multiple zones EZ/RZ/UZ zones based upon L 452 (10%) at least pointing mitigation used within RZ frequency plan takes account of SL frequencies

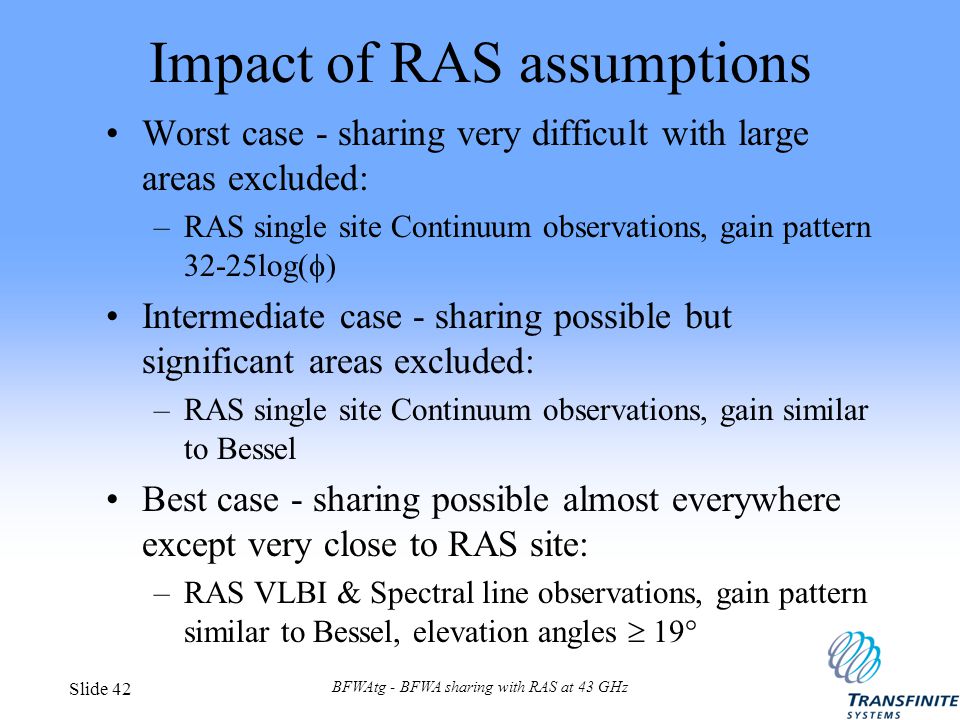

42 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 42 Impact of RAS assumptions Worst case - sharing very difficult with large areas excluded: –RAS single site Continuum observations, gain pattern 32-25log(  ) Intermediate case - sharing possible but significant areas excluded: –RAS single site Continuum observations, gain similar to Bessel Best case - sharing possible almost everywhere except very close to RAS site: –RAS VLBI & Spectral line observations, gain pattern similar to Bessel, elevation angles  19°

43 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 43 Conclusions On its own, an exclusion zone of 50 km as in ERC Report 36 is insufficient to protect the RAS The methodology and assumptions used to derive this figure are inappropriate for BFWA scenarios New methodology described here can be used to calculate aggregate interference BFWA  RAS Use of Exclusion Zones based upon L 452 (10%) are more efficient than using distance Multiple zones can be used to improve coverage without requiring mitigation everywhere The characteristics of RAS operating in this band will determine the extent for which BFWA can be deployed

44 BFWAtg - BFWA sharing with RAS at 43 GHz Slide 44 Areas for Further Study The following require further study: –whether the RAS will use the 43 GHz band to make Continuum observations from single sites –what is the average gain pattern of RAS antennas towards the horizon over typical observation time From above can determine EZs to protect RAS for specified BFWA systems Further work also needed to define how to model correlation of propagation effects using Rec More runs could analyse wider range of scenarios
