1 HORIZONT 1 XINFO ® The IT Information System HORIZONT Software for Datacenters Garmischer Str. 8 D München Tel ++49(0)89 / Control-M XINFO

2 HORIZONT 2 XINFO ® XINFO and Control-M General Job Definitions Scheduling and Execution Parameters Resources Conditions "ON PGMST", and Steps SHOUT, and PostProc IOALOG, the base for job history Statistics, Conditions and ctmrpln utility, used for the forecast XINFO's Control-M Interface analyzes following Control-M/Server data under z/OS, Unix, Windows etc.:

3 HORIZONT 3 XINFO ® Control-M – Selection Cross reference for Control-M data Netplans Job history and forecast XINFO is an add-on to Control-M GUI. XINFO collects data from all Control-M systems, independently from the platform. Therefore XINFO gives you an overview about all systems.

4 HORIZONT 4 XINFO ® WindowsUnix XINFO Architecture with z/OS and DB2 z/OS (MVS) Windows PC Client Control-M Schedule- Libraries Scanner MVSScanner DS Control-M Server Database Output Files Unload Script SQL Output Control-M Server Database SQL Output Unload Script Graphic + Forecast Output Files DB2 TCPI P

5 HORIZONT 5 XINFO ® Windows XINFO Architecture with Windows and Oracle Windows PC Client Control-M Server Database SQL Output Unload Script Output Files Oracle Unix Control-M Server Database Unload Script SQL Output ODBC Scanner Script/Programme Unix / Windows Control-M Server Database Unload Script SQL Output

6 HORIZONT 6 XINFO ® XINFO Control-M - Examples Job History Forecast Netplans Export: Excel, HTML, Word Line Commands News in Release 3.1, 3.2, 3.5 Cross references XINFO vs. Control-M/Desktop

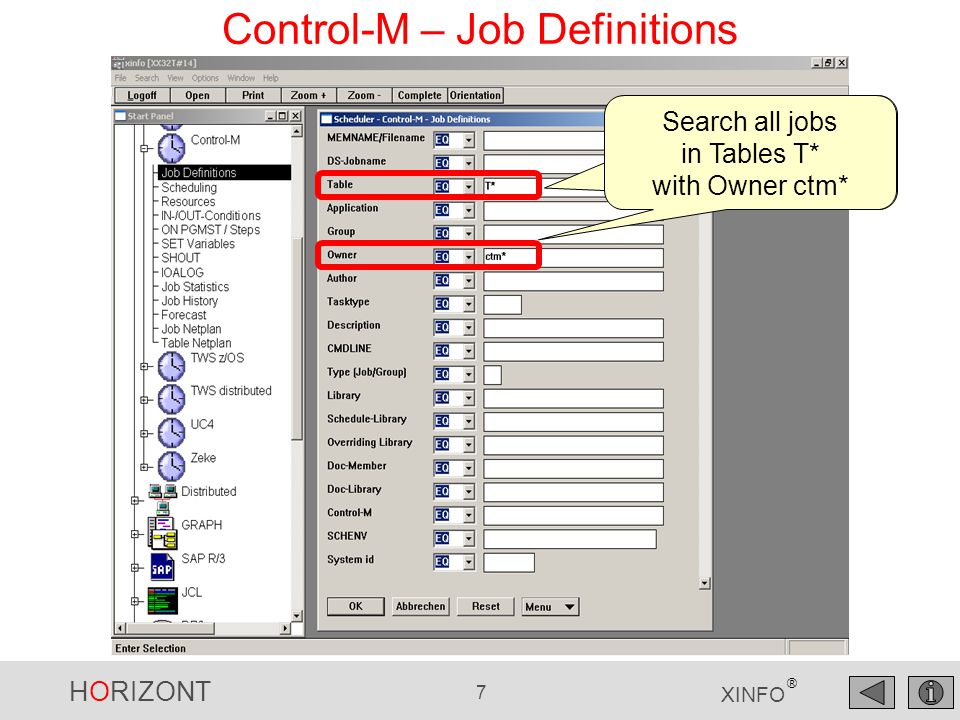

7 HORIZONT 7 XINFO ® Control-M – Job Definitions search all jobs in Tables T* with Owner ctm* Search all jobs in Tables T* with Owner ctm*

8 HORIZONT 8 XINFO ® Control-M – Job Definitions The jobs, Memname or Filename Distributed Jobname Tables T* Owner ctm*

9 HORIZONT 9 XINFO ® Control-M – Job Definitions From z/OS Control-M From distributed Control-M

10 HORIZONT 10 XINFO ® Control-M – Job Definitions, Nodeid search all jobs running on "PC26"

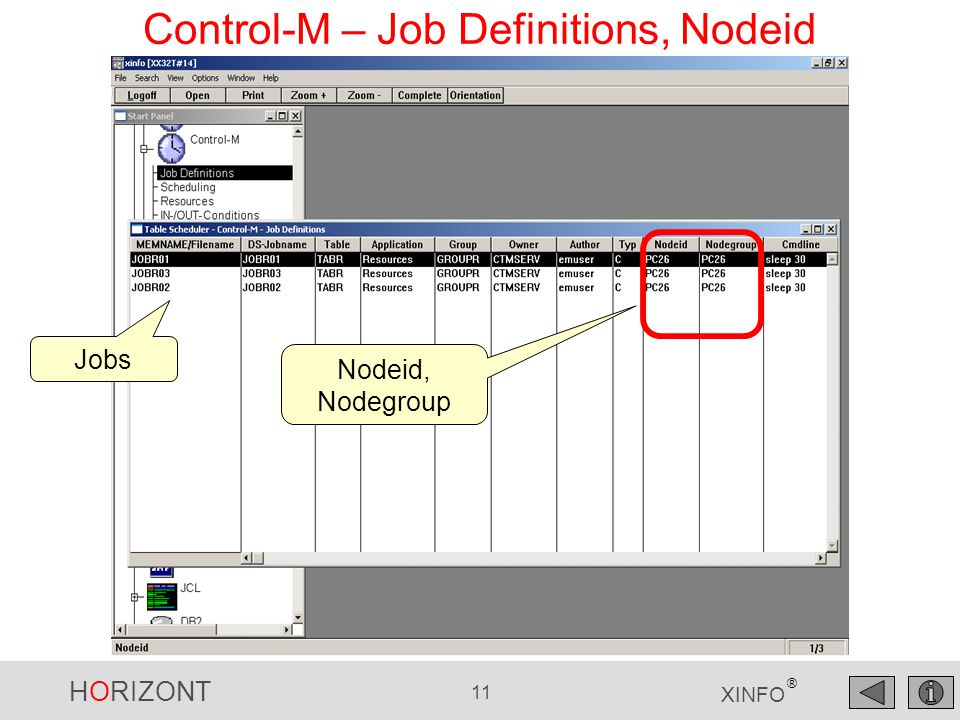

11 HORIZONT 11 XINFO ® Control-M – Job Definitions, Nodeid Nodeid, Nodegroup Jobs

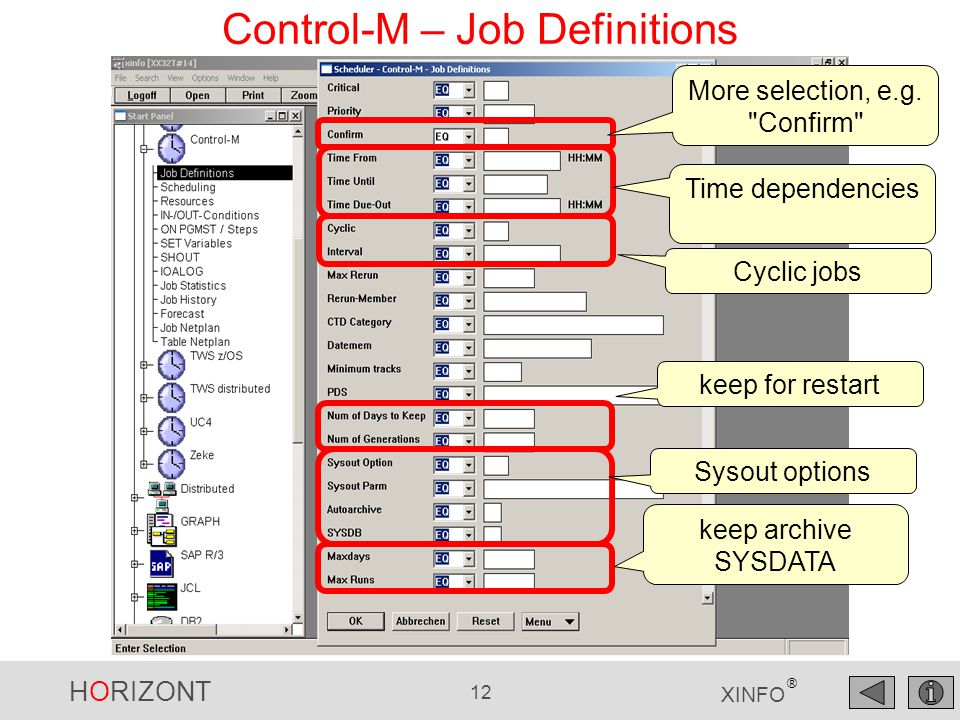

12 HORIZONT 12 XINFO ® Control-M – Job Definitions More selection, e.g. "Confirm" Time dependencies Cyclic jobs keep for restart Sysout options keep archive SYSDATA

13 HORIZONT 13 XINFO ® Control-M – Scheduling, calendar search all jobs using a calendar (NB = "not blank)

14 HORIZONT 14 XINFO ® Control-M – Scheduling, calendar Calendar Jobs DAILYNAM More scheduling parameters

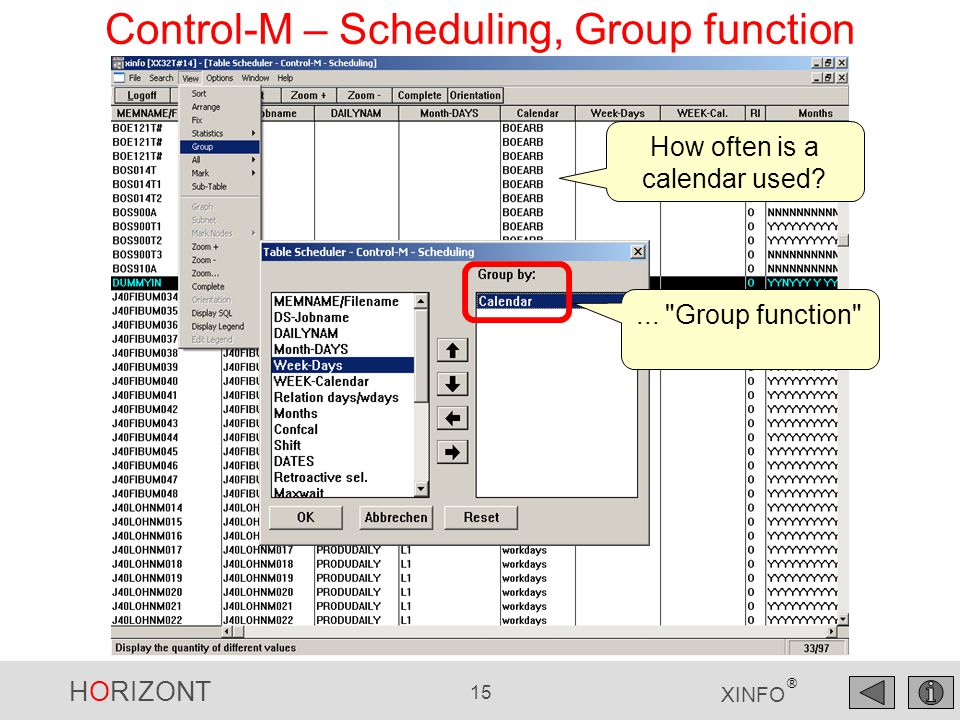

15 HORIZONT 15 XINFO ® Control-M – Scheduling, Group function How often is a calendar used?... "Group function"

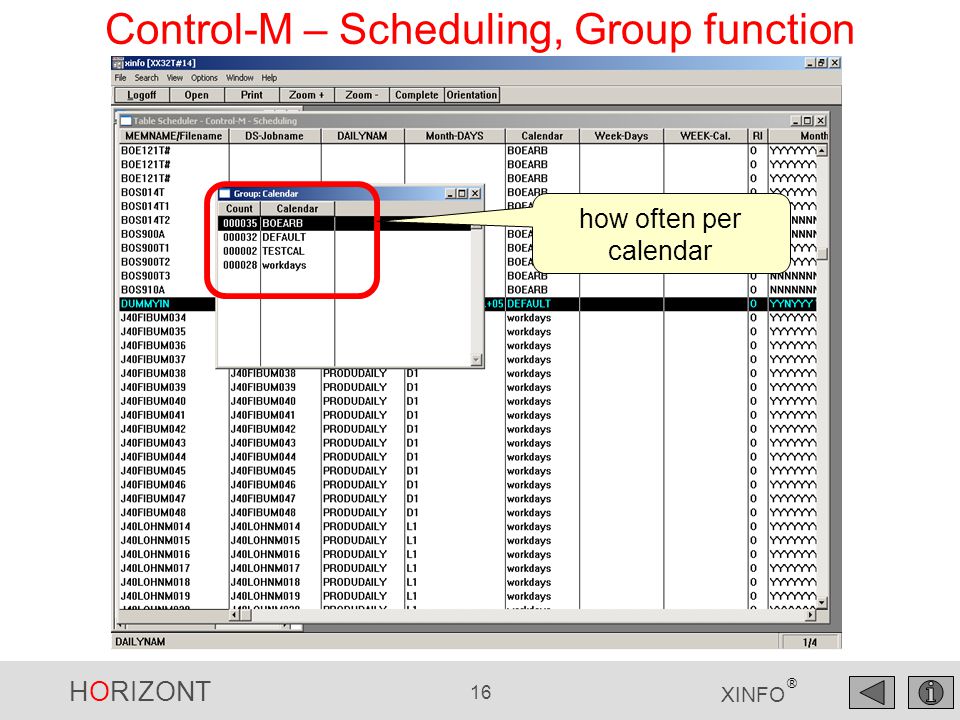

16 HORIZONT 16 XINFO ® Control-M – Scheduling, Group function how often per calendar

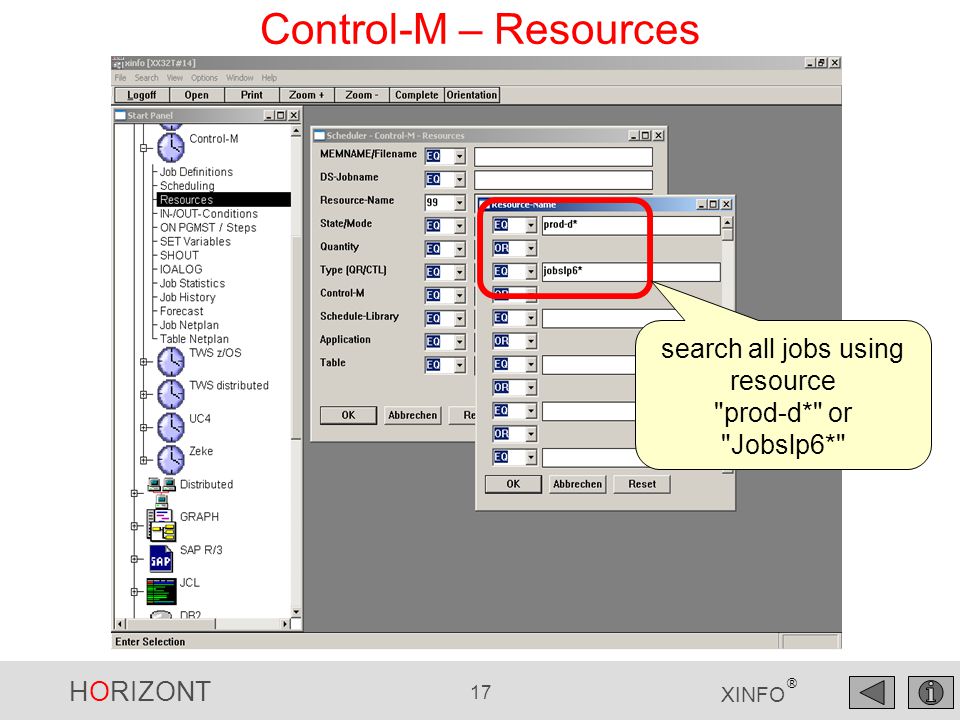

17 HORIZONT 17 XINFO ® Control-M – Resources search all jobs using resource "prod-d*" or "Jobslp6*"

18 HORIZONT 18 XINFO ® Control-M – Resources Jobs usage Resources

19 HORIZONT 19 XINFO ® Control-M – DO (Step) Action Which jobs are started with FORCEJOB?

20 HORIZONT 20 XINFO ® Control-M – DO (Step) Action The jobs The trigger The action

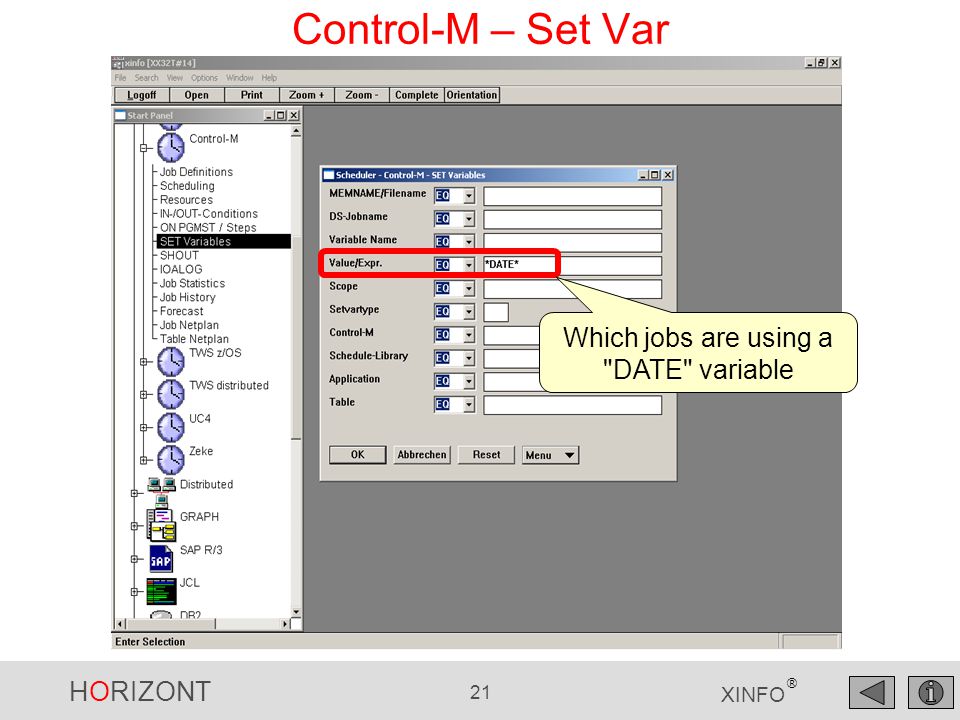

21 HORIZONT 21 XINFO ® Control-M – Set Var Which jobs are using a "DATE" variable

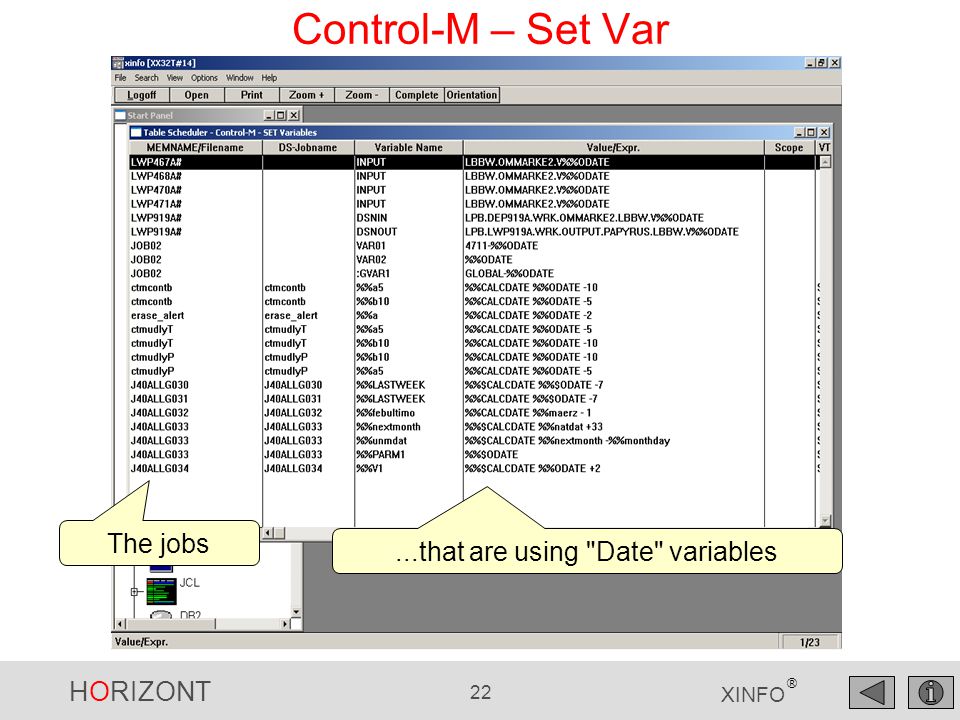

22 HORIZONT 22 XINFO ® Control-M – Set Var...that are using "Date" variables The jobs

23 HORIZONT 23 XINFO ® Control-M – Table netplan select tables Level Predecessor/Successor

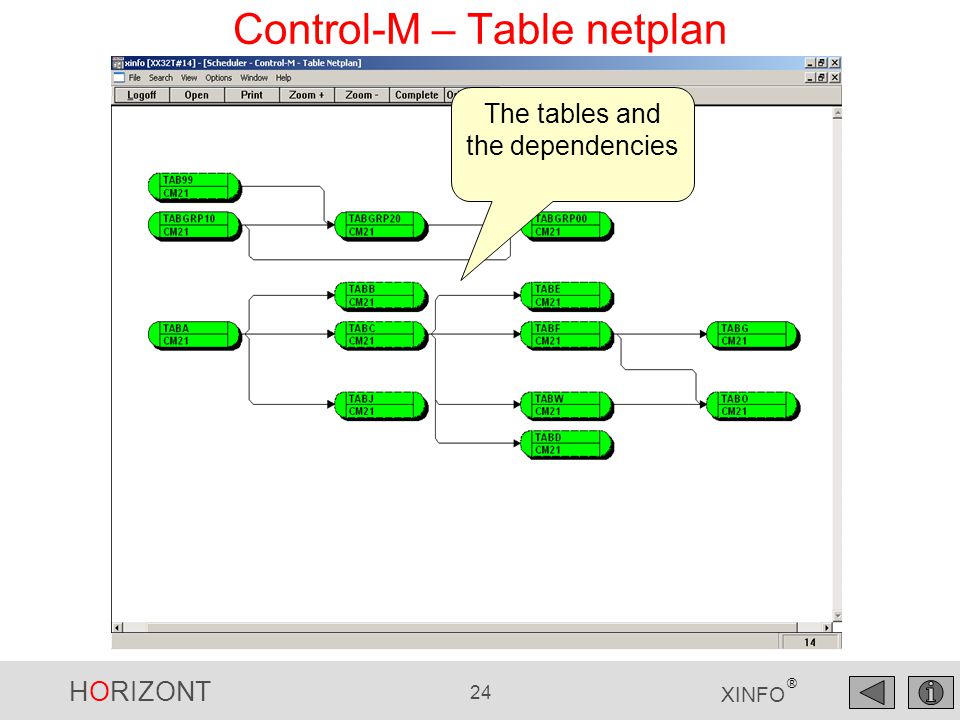

24 HORIZONT 24 XINFO ® Control-M – Table netplan The tables and the dependencies

25 HORIZONT 25 XINFO ® Control-M – Table netplan with "right mouseclick" to the table's job netplan

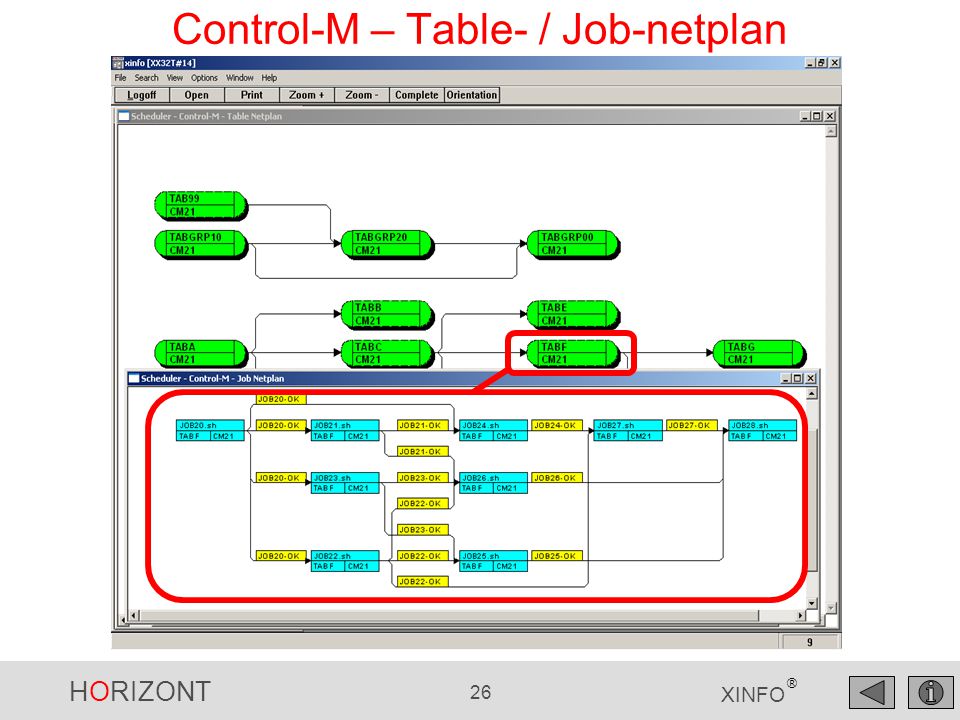

26 HORIZONT 26 XINFO ® Control-M – Table- / Job-netplan

27 HORIZONT 27 XINFO ® Control-M – Job-netplan, the Symbols Clustered by table In-Condition without Job Out-Condition without Job Job Condition Force Job

28 HORIZONT 28 XINFO ® Control-M – Job-netplan, the Symbols Detailed information via double-click. Please note that all data can be show within the symbol (e.g. Owner)

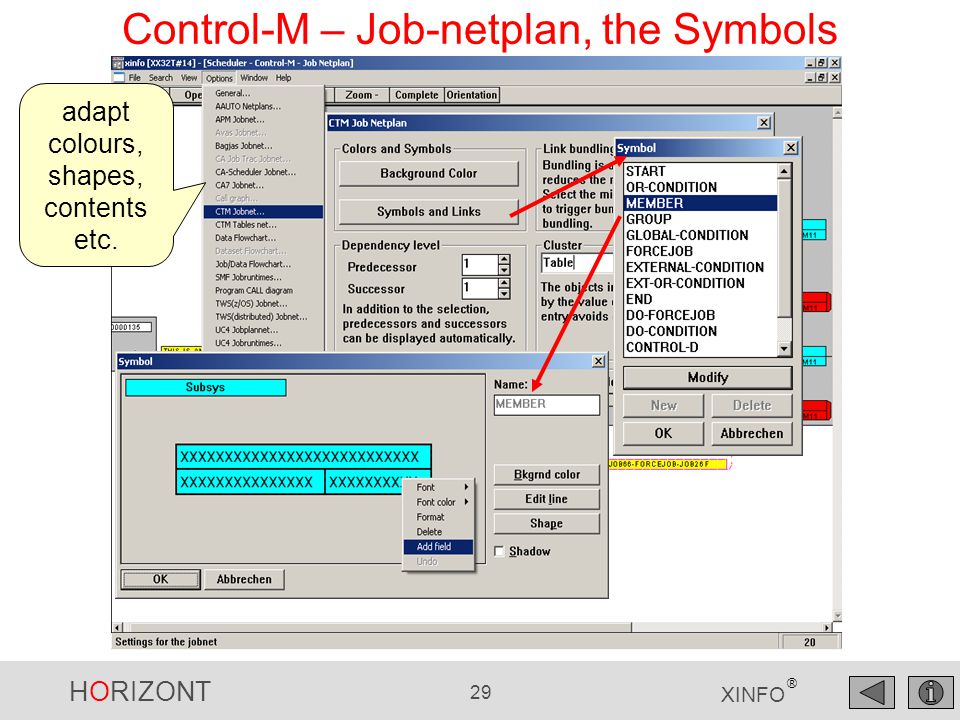

29 HORIZONT 29 XINFO ® Control-M – Job-netplan, the Symbols adapt colours, shapes, contents etc.

30 HORIZONT 30 XINFO ® Control-M – Job-netplan, the Symbols Group start Group End (special dummy symbol to show dependencies)

31 HORIZONT 31 XINFO ® Control-M – Job-netplan, the Symbols Control-D Reports with dependencies to Control-M jobs Control-D reports with dependencies to Control-M jobs

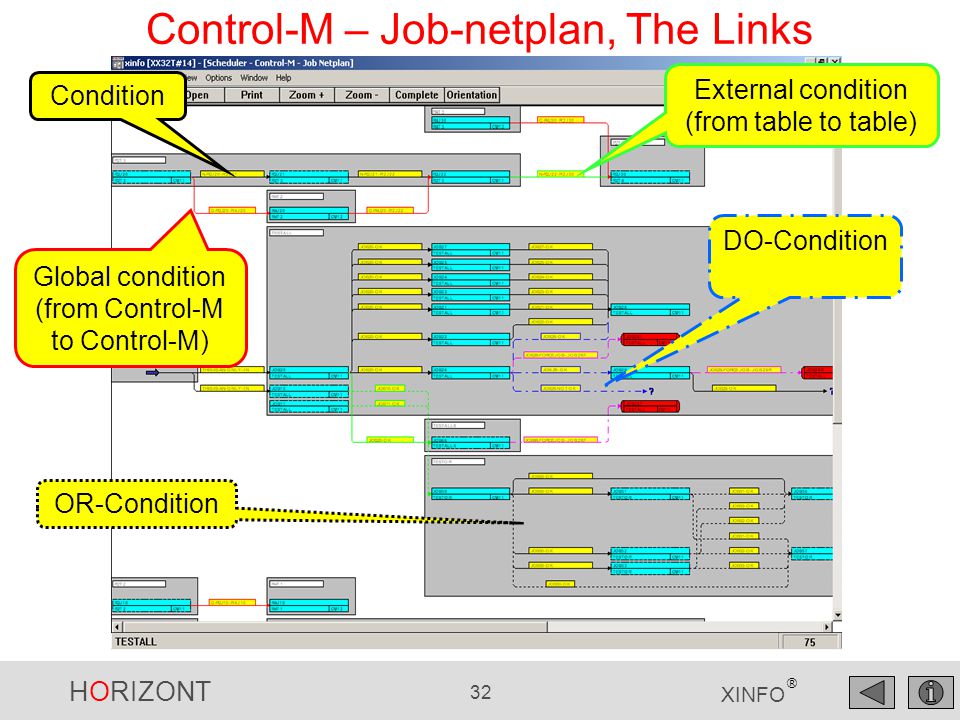

32 HORIZONT 32 XINFO ® Control-M – Job-netplan, The Links Condition Global condition (from Control-M to Control-M) External condition (from table to table) OR-Condition DO-Condition

33 HORIZONT 33 XINFO ® Control-M – Job-netplan, Pred/Succ Level with 1 additional predecessor/successor l evel Show jobnetplan for Table "TABW"

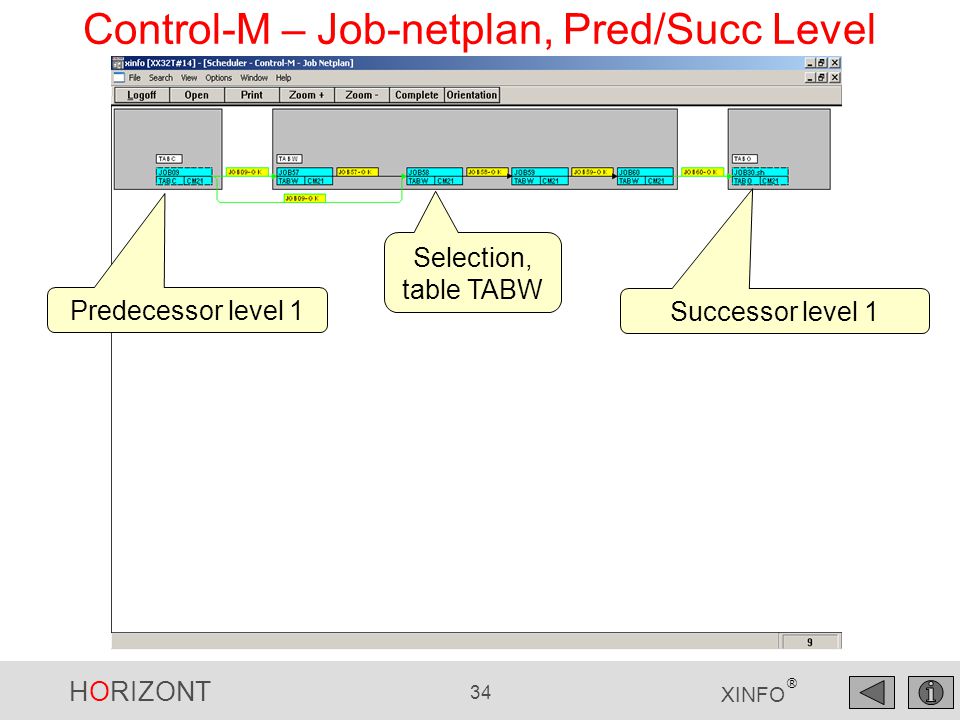

34 HORIZONT 34 XINFO ® Control-M – Job-netplan, Pred/Succ Level Predecessor level 1 Successor level 1 Selection, table TABW

35 HORIZONT 35 XINFO ® Control-M – Job-netplan, Pred/Succ Level "right mouseclick", Pred/Succ netplan

36 HORIZONT 36 XINFO ® Control-M – Job-netplan 2nd level predecessor and "all" successor of the starting job

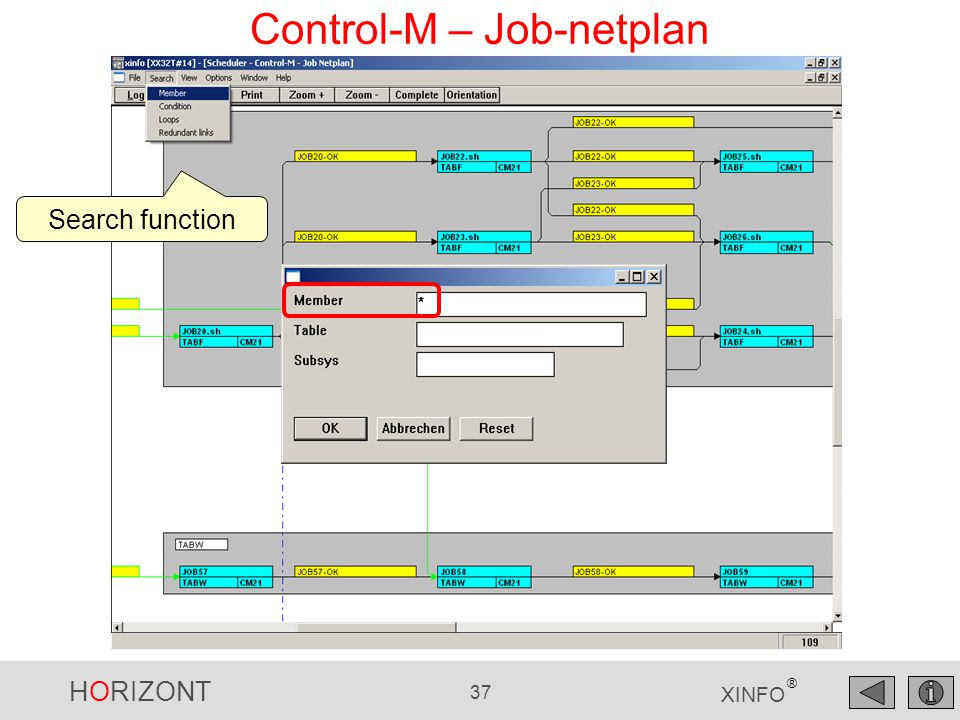

37 HORIZONT 37 XINFO ® Control-M – Job-netplan Search function

38 HORIZONT 38 XINFO ® Control-M – Job-netplan Found jobs, sorted by jobname A "click" on the list marks the matching job in the netplan

39 HORIZONT 39 XINFO ® XINFO – Print Netplans XINFO prints netplans on all devices (printers, plotters etc.) XINFO print preview

40 HORIZONT 40 XINFO ® XINFO - Batch Interface /*********************************************************************/ /* */ /* Logon-Parameter */ /* */ /*********************************************************************/ CLOSE=ALL LOGON= 'C:\PROGRAMME\XINFO\LOGON_USER_MAX.LGN ' /*********************************************************************/ /* */ /* Input and Output files */ /* */ /*********************************************************************/ LOAD_PRED=99 LOAD_SUCC=99 /*********************************************************************/ SELECTION_FILE='C:\PROGRAMME\XINFO\Selection_UC4.TXT' CREATE_JPG_FILE='C:\TEMP\GRAFIK_1.JPG' /*********************************************************************/ EXIT /* Exit XINFO */ XINFO.EXE /CMD=BATCH.BIF The batch interface alllows you to export data automatically, e.g. netplans as JPEGs, tables as HTML files and so on. LOGON data encrypted Selection Output

41 HORIZONT 41 XINFO ® Control-M – Job history When did all maintenance jobs run in February?

42 HORIZONT 42 XINFO ® Control-M – Job history The jobs Start / End Status, Return code, duration, etc. You may use the runtime data as a base for statistics

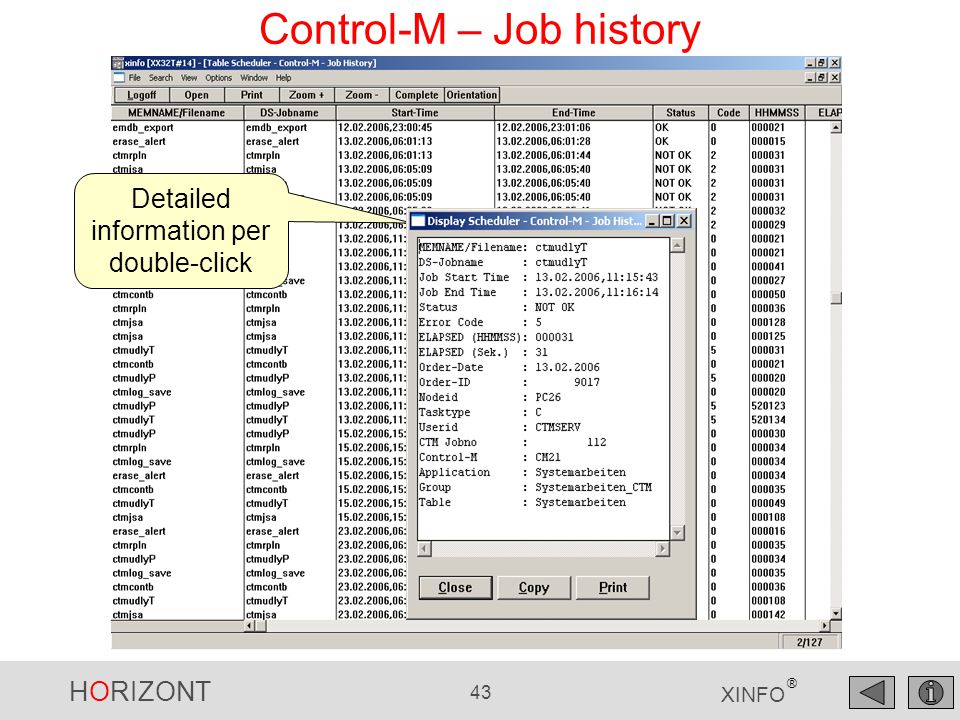

43 HORIZONT 43 XINFO ® Control-M – Job history Detailed information per double-click

44 HORIZONT 44 XINFO ® Control-M – Job history, IOALOG Basis is the log from all Control-M systems (distributed and z/OS)

45 HORIZONT 45 XINFO ® Control-M – IOALOG You can search easily and fast for strings, e.g. messages or a certain userid

46 HORIZONT 46 XINFO ® Control-M – IOALOG Timestamp Message jobs

47 HORIZONT 47 XINFO ® Control-M – Forecast.CONTROL-M BMC Software, Ltd. Page: 5 Period: , calendar:Yes. Daily Job Order Report For Table Systemarbeiten, Job * ========================================================== Job Name Application Group Cint From Untl Nodeid ctmlog_save Systemarbeiten Systemarbeite 0605 ctmcontb Systemarbeiten Systemarbeite 0605 ctmjsa Systemarbeiten Systemarbeite 0605 ctmrpln Systemarbeiten Systemarbeite ctmpsm_sysout Systemarbeiten Systemarbeite emdb_export Systemarbeiten Systemarbeite erase_alert Systemarbeiten Systemarbeite refresh_GAS Systemarbeiten Systemarbeite 2300 ctmudlyT Systemarbeiten Systemarbeite 0605 ctmudlyP Systemarbeiten Systemarbeite 0605 "ctmrpln" gives us the jobnames, XINFO knows the sequence and the start times, Based on average duration XINFO calculates the planned end times for a couple of days.

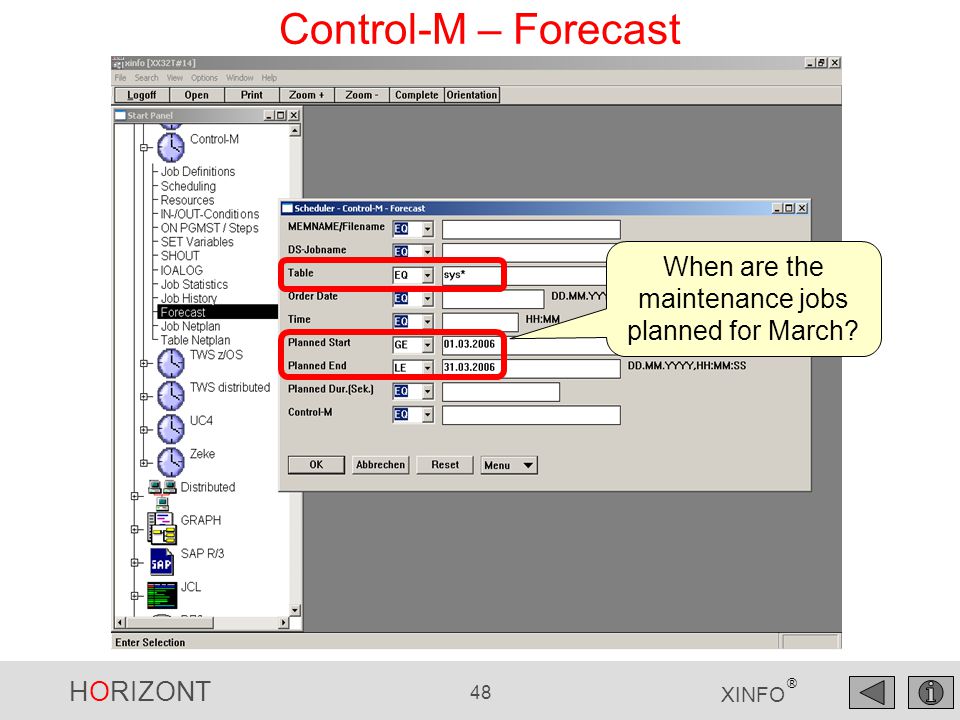

48 HORIZONT 48 XINFO ® Control-M – Forecast When are the maintenance jobs planned for March?

49 HORIZONT 49 XINFO ® Control-M – Forecast The jobs Planned Start/End Planned duration

50 HORIZONT 50 XINFO ® Control-M – Job-Statistic The average duration, taken from Control-M statistic tables and files

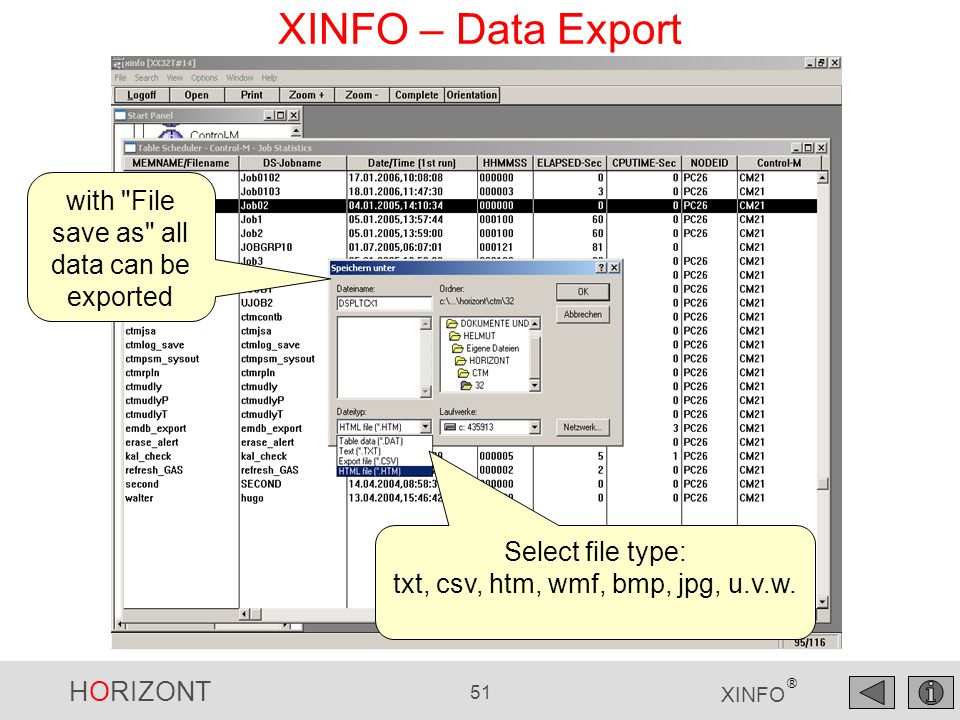

51 HORIZONT 51 XINFO ® XINFO – Data Export with "File save as" all data can be exported Select file type: txt, csv, htm, wmf, bmp, jpg, u.v.w.

52 HORIZONT 52 XINFO ® XINFO –Export Data to Excel

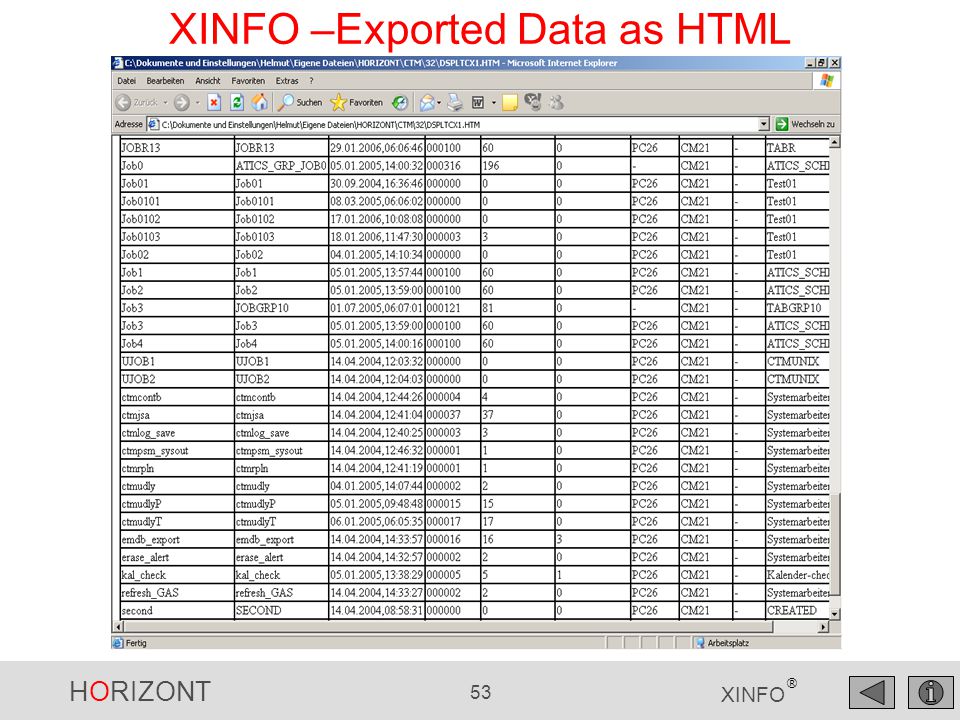

53 HORIZONT 53 XINFO ® XINFO –Exported Data as HTML

54 HORIZONT 54 XINFO ® XINFO – Graphic Export, e.g. as JPG to WinWord

55 HORIZONT 55 XINFO ® XINFO – Line Commands Line commands allow you to "jump" directly from any record to related data

56 HORIZONT 56 XINFO ® XINFO – Line Commands e.g. from job definitions to job history...

57 HORIZONT 57 XINFO ® XINFO – Line Commands e.g. Browse JCL (z/OS only)

58 HORIZONT 58 XINFO ® XINFO vs. Control-M Desktop Control-M Desktop: useful to define and maintain jobs, but can you use that to create a documentation? Confusing layout!

59 HORIZONT 59 XINFO ® XINFO vs. Control-M Desktop...bad print function

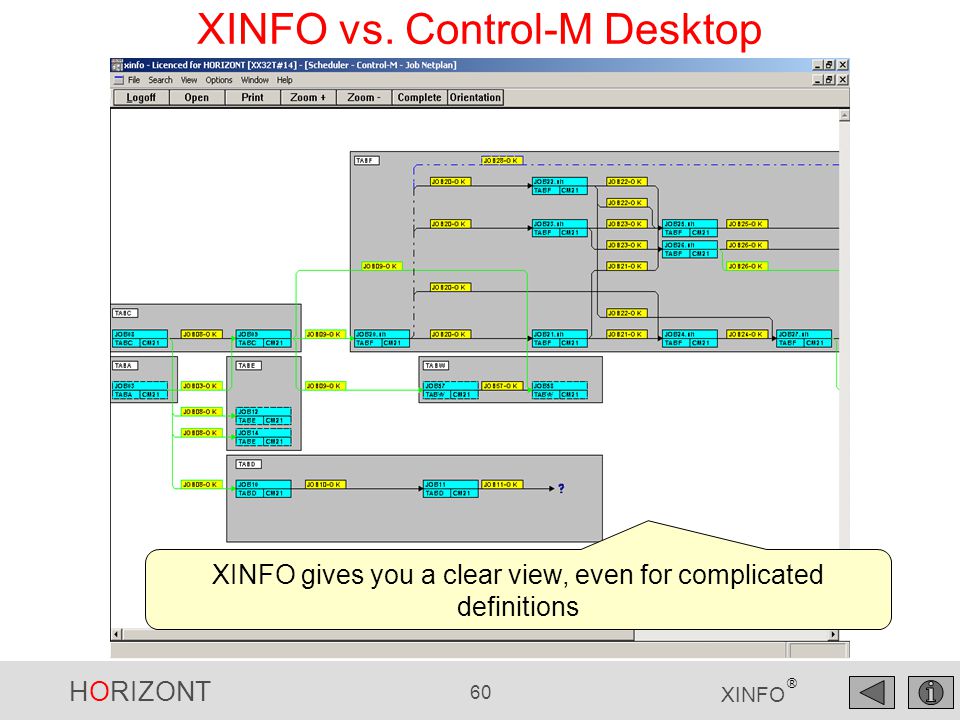

60 HORIZONT 60 XINFO ® XINFO vs. Control-M Desktop XINFO gives you a clear view, even for complicated definitions

61 HORIZONT 61 XINFO ® XINFO vs. Control-M Desktop Cross reference for Control-M data netplans Job history and Forecast XINFO is a useful extension to Control-M GUI. XINFO loads data from various Control-M systems to give you a general overview, independent from the target platform

62 HORIZONT 62 XINFO ® New in XINFO 3.1 (September 2005) " Distributed Jobname" in all tables (up to now only in job definitions). "User-Daily" in scheduling table. Group scheduling info in scheduling tables, in job flowcharts and for CTM distributed. Creator and last update userid and timestamp from ISPF or CTM JOBDEF table. New Scanner Programs: – Running under z/OS, Unix or Windows

63 HORIZONT 63 XINFO ® New in XINFO 3.2 (February 2006) Forecast Job statistic table Job history Log table (IOALOG)

64 HORIZONT 64 XINFO ® New in XINFO 3.4 (May 2009)CTM Barchart New Barchart Selection Criteria

65 HORIZONT 65 XINFO ® CTM Barchart - Result z/OS Jobs Non-z/OS Jobs

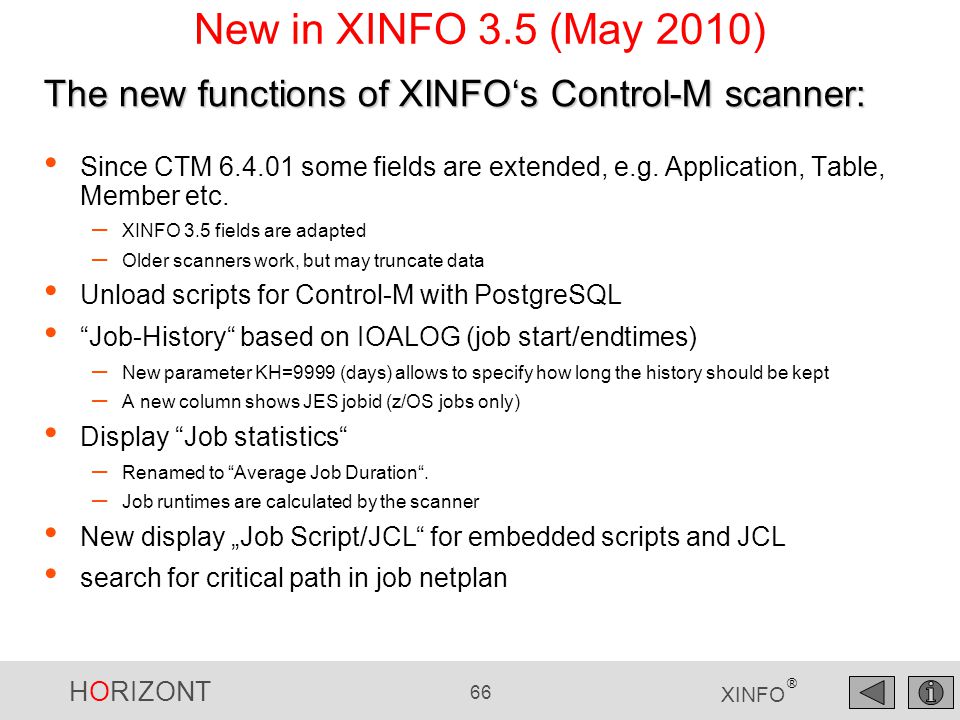

66 HORIZONT 66 XINFO ® New in XINFO 3.5 (May 2010) Since CTM some fields are extended, e.g. Application, Table, Member etc. – XINFO 3.5 fields are adapted – Older scanners work, but may truncate data Unload scripts for Control-M with PostgreSQL “Job-History“ based on IOALOG (job start/endtimes) – New parameter KH=9999 (days) allows to specify how long the history should be kept – A new column shows JES jobid (z/OS jobs only) Display “Job statistics“ – Renamed to “Average Job Duration“. – Job runtimes are calculated by the scanner New display „Job Script/JCL“ for embedded scripts and JCL search for critical path in job netplan The new functions of XINFO‘s Control-M scanner:

67 HORIZONT 67 XINFO ® Critical Path in CTM Job netplan CTM job netplan has a new search function : Critical Path

68 HORIZONT 68 XINFO ® Critical Path in CTM Job netplan Based on the “average duration“ XINFO calculates the longest path within the displayed netplan. The total duration is shown on top of the result list.

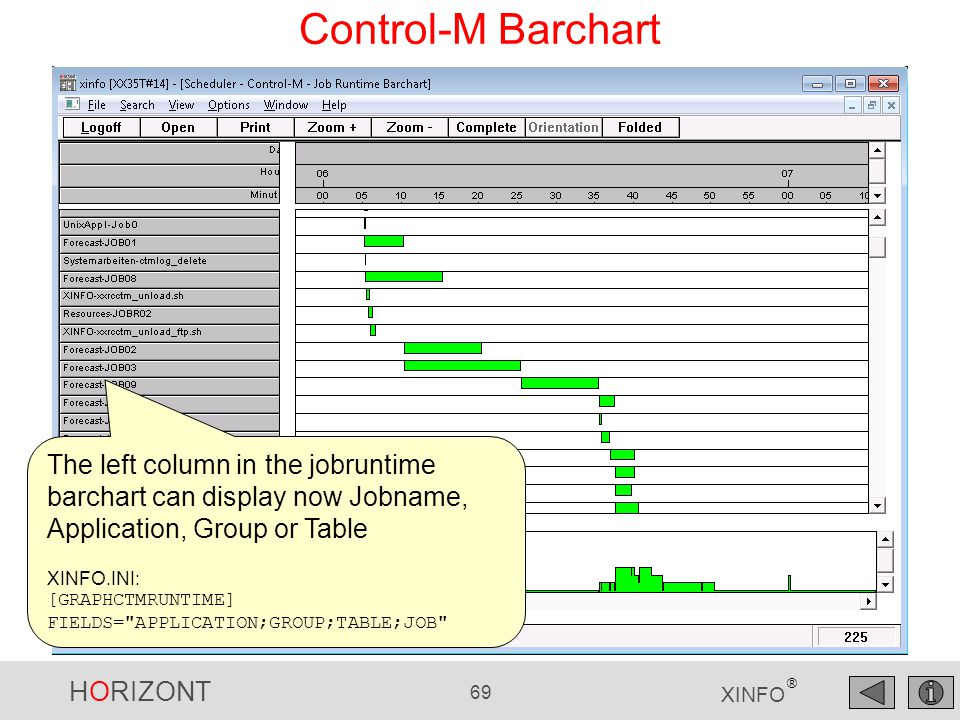

69 HORIZONT 69 XINFO ® Control-M Barchart The left column in the jobruntime barchart can display now Jobname, Application, Group or Table XINFO.INI: [GRAPHCTMRUNTIME] FIELDS="APPLICATION;GROUP;TABLE;JOB"

70 HORIZONT 70 XINFO ® Many thanks for your attention HORIZONT Software for Datacenters Garmischer Str. 8 D München Tel ++49(0)89 / XINFO The IT Information System
