Spanning Trees

2

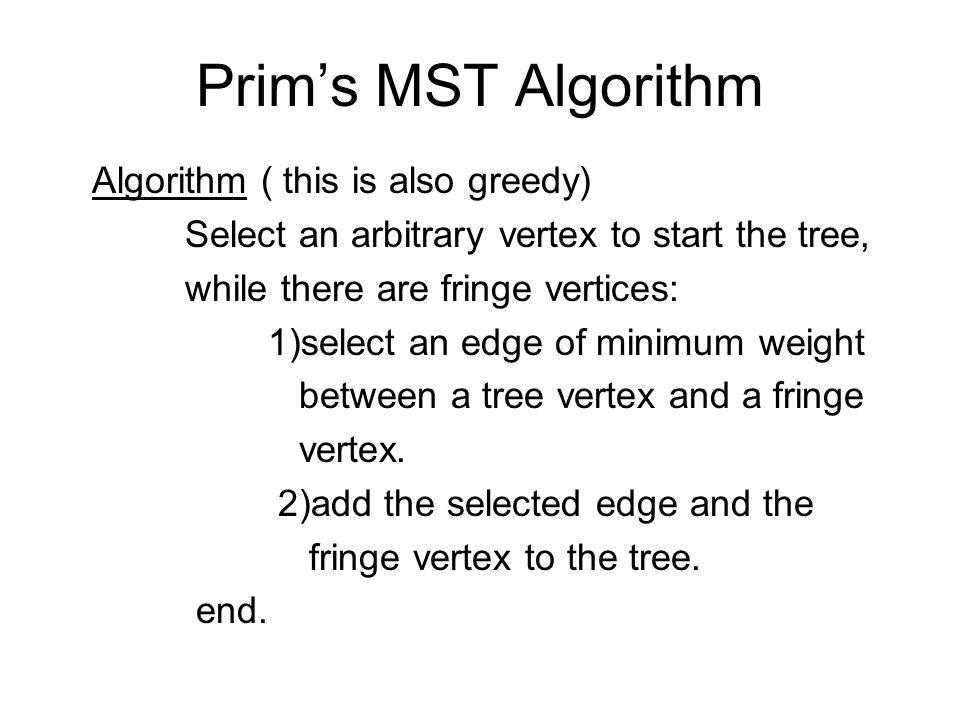

Prims MST Algorithm Algorithm ( this is also greedy) Select an arbitrary vertex to start the tree, while there are fringe vertices: 1)select an edge of minimum weight between a tree vertex and a fringe vertex. 2)add the selected edge and the fringe vertex to the tree. end.

3

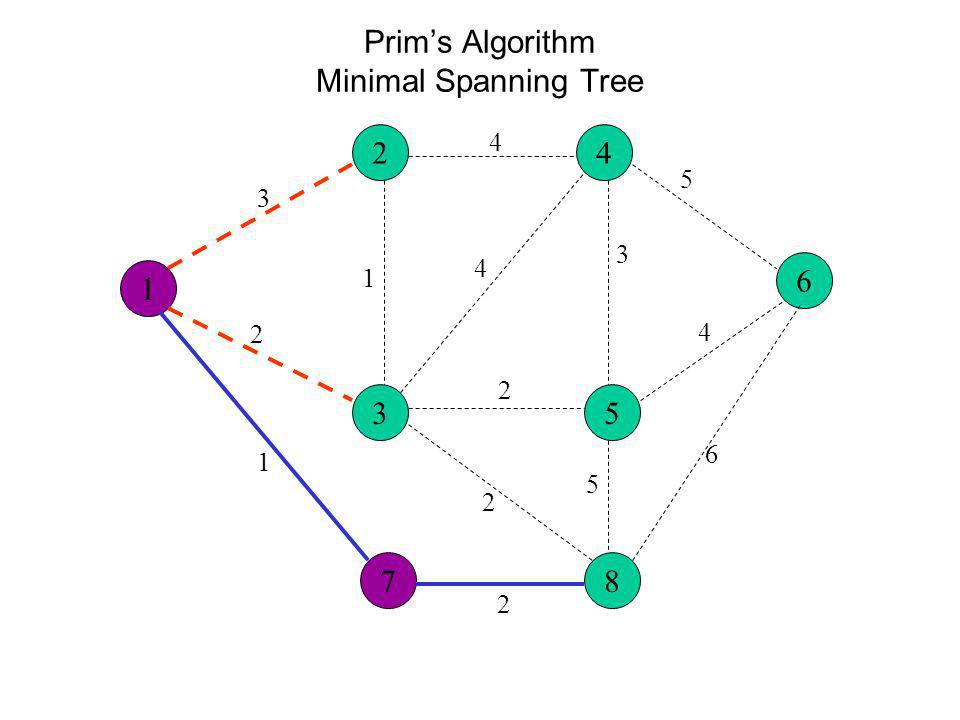

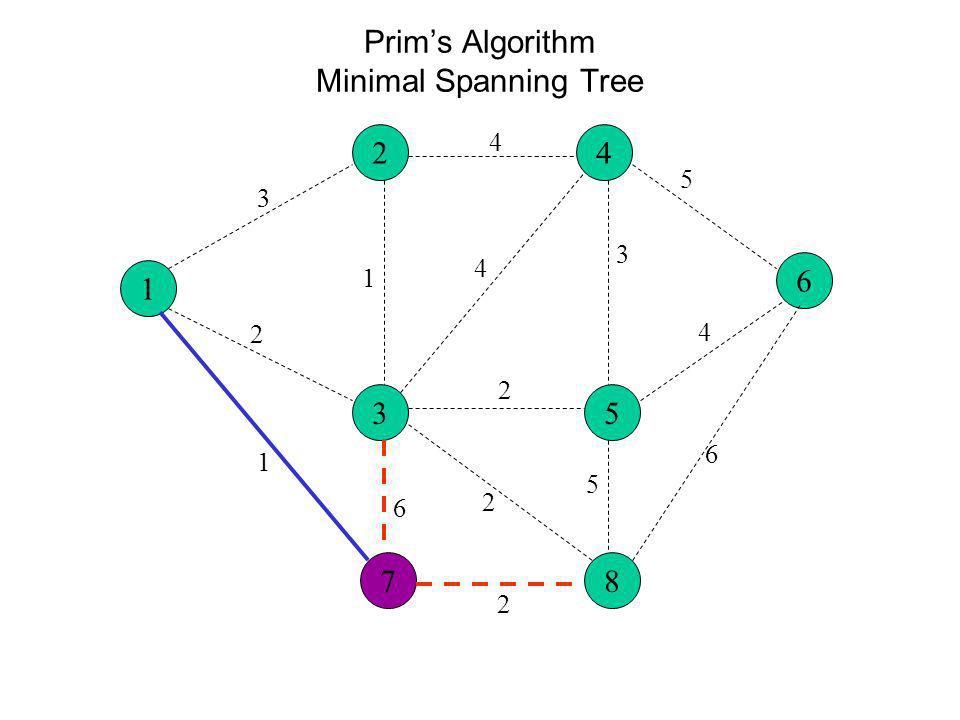

Prims Algorithm Minimal Spanning Tree 1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 6 2 5 2 6

4

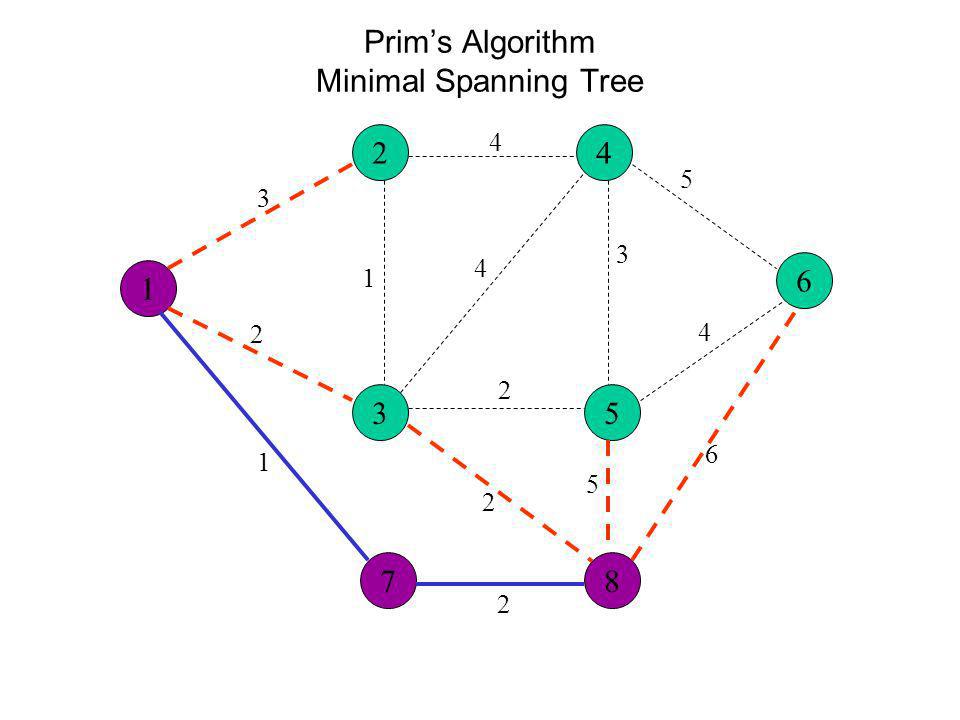

1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 6 2 5 2 6 Example: start with 7

5

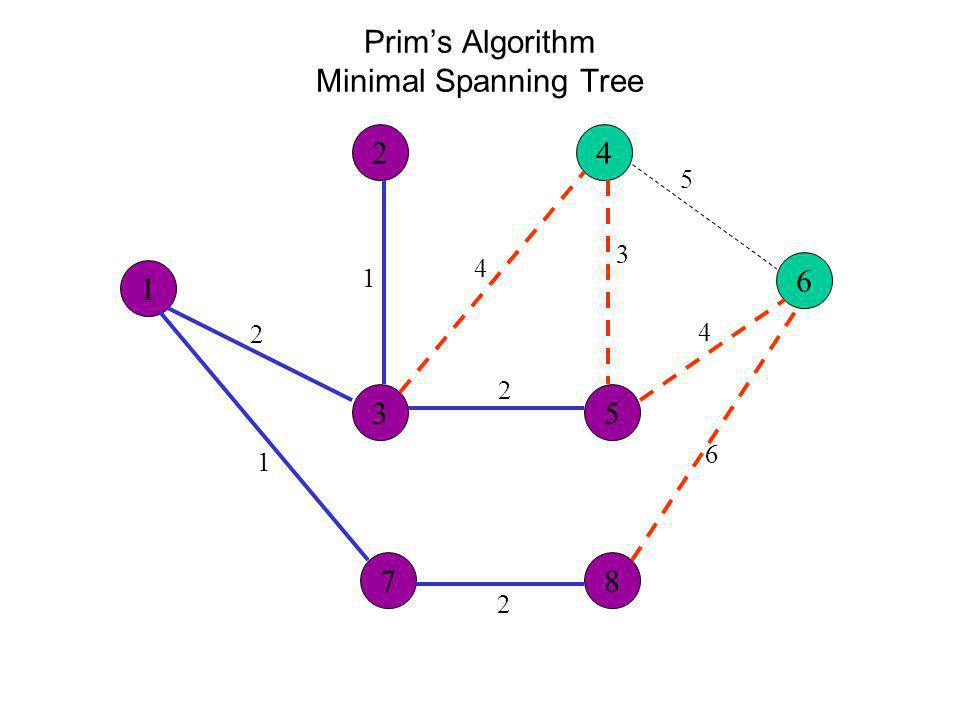

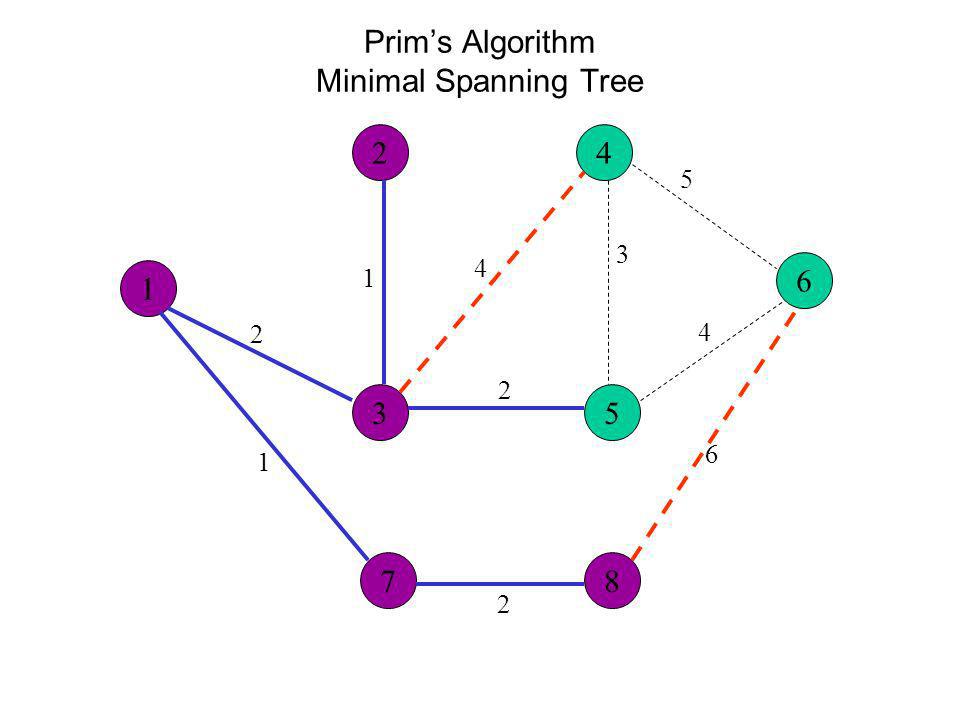

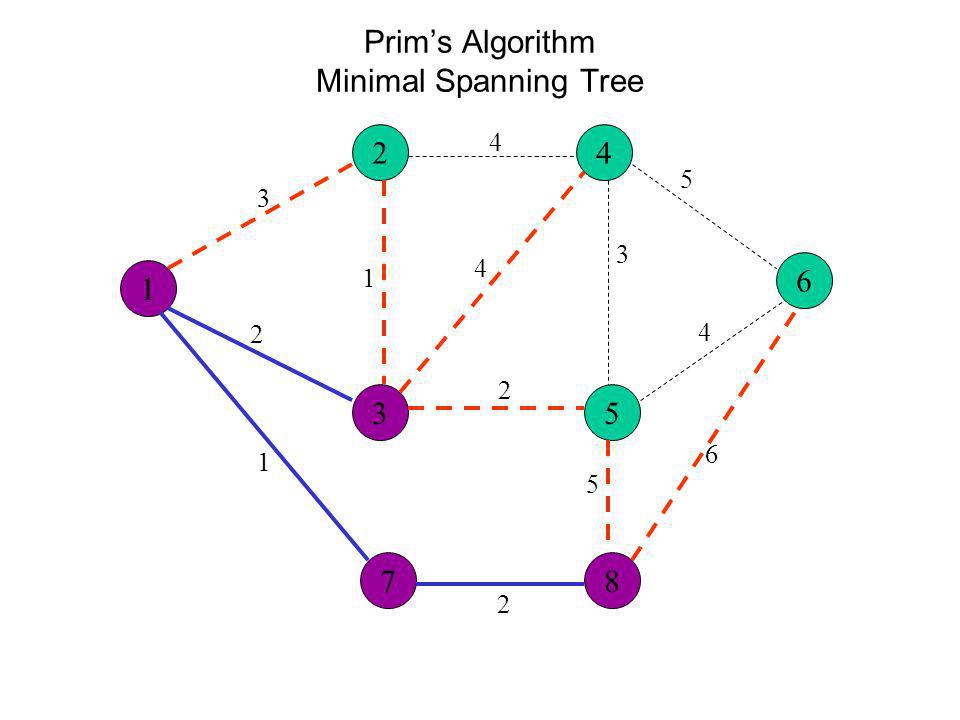

Prims Algorithm Minimal Spanning Tree 1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 6 2 5 2 6

6
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 6 2 5 2 6

7
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 6 2 5 2 6

8
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 2 5 2 6

9
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 2 5 2 6

10
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 2 5 6

11
1 6 24 35 3 2 1 4 4 2 5 3 4 78 1 2 5 6

12
1 6 24 35 2 1 4 4 2 5 3 4 78 1 2 6

13
1 6 24 35 2 1 4 4 2 5 3 4 78 1 2 6

14
1 6 24 35 2 1 4 2 5 3 4 78 1 2 6

15

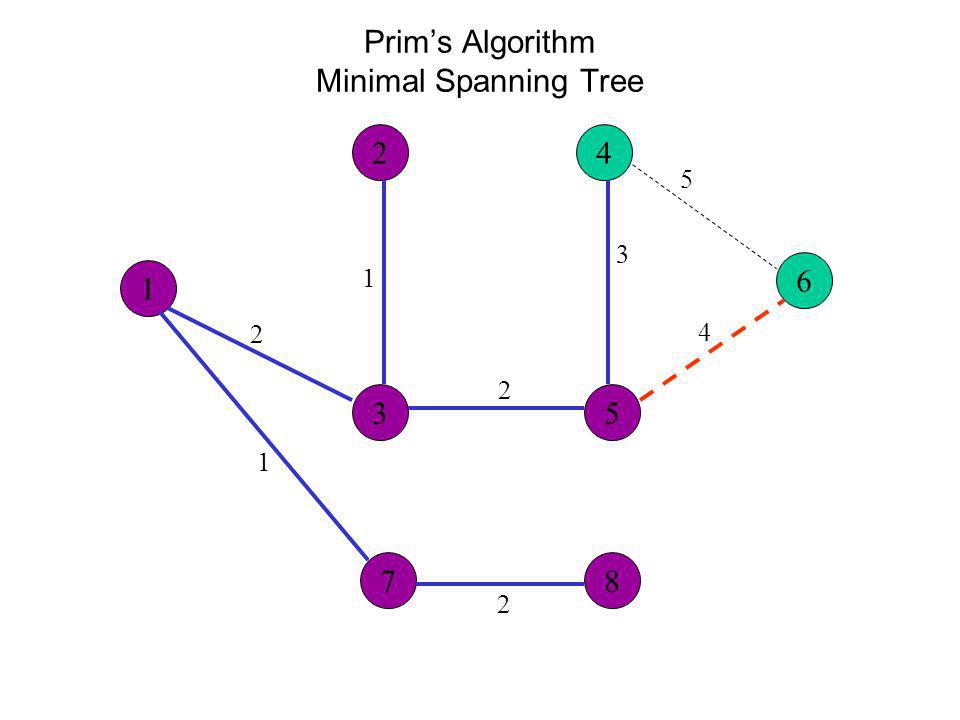

1 6 24 35 2 1 4 2 5 3 4 78 1 2 6

16
1 6 24 35 2 1 2 5 3 4 78 1 2

17
1 6 24 35 2 1 2 5 3 4 78 1 2

18
1 6 24 35 2 1 2 3 78 1 2 MST weight = 15 4

19
Topological Sorting Algorithm while (the graph has a node with no successor) do remove one of those nodes from the graph and add it to the end of a list if (the graph is empty) then the list contains the reverse of some topological order else the graph contains a cycle

20
A B C D E F G HI J L K M

21

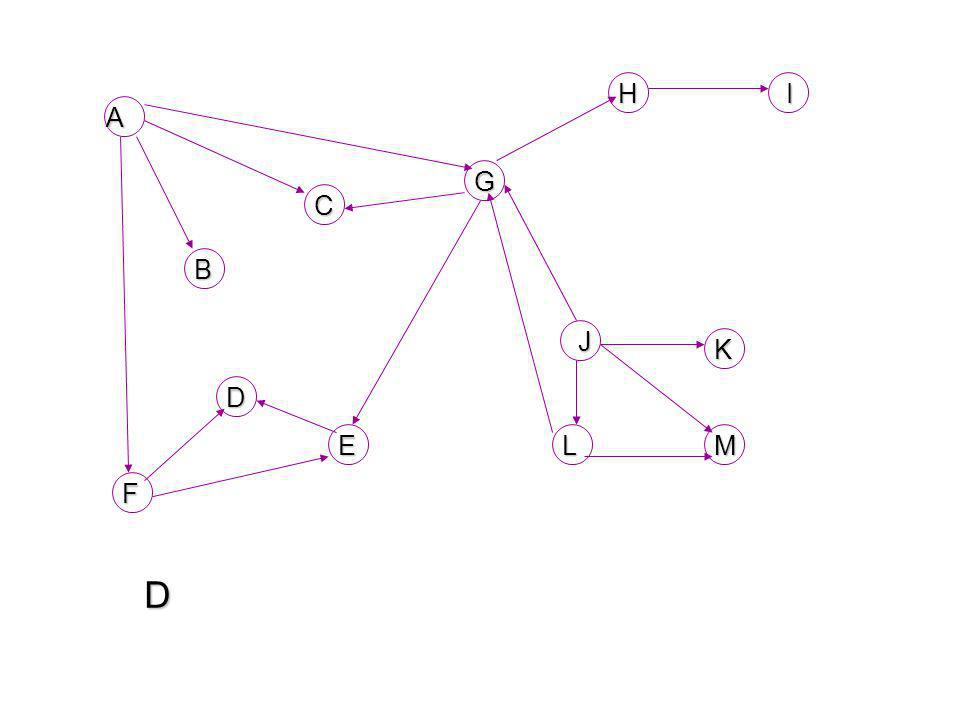

A B C D E F G HI J L K M D

22
A B C E F G HI J L K M D E

23

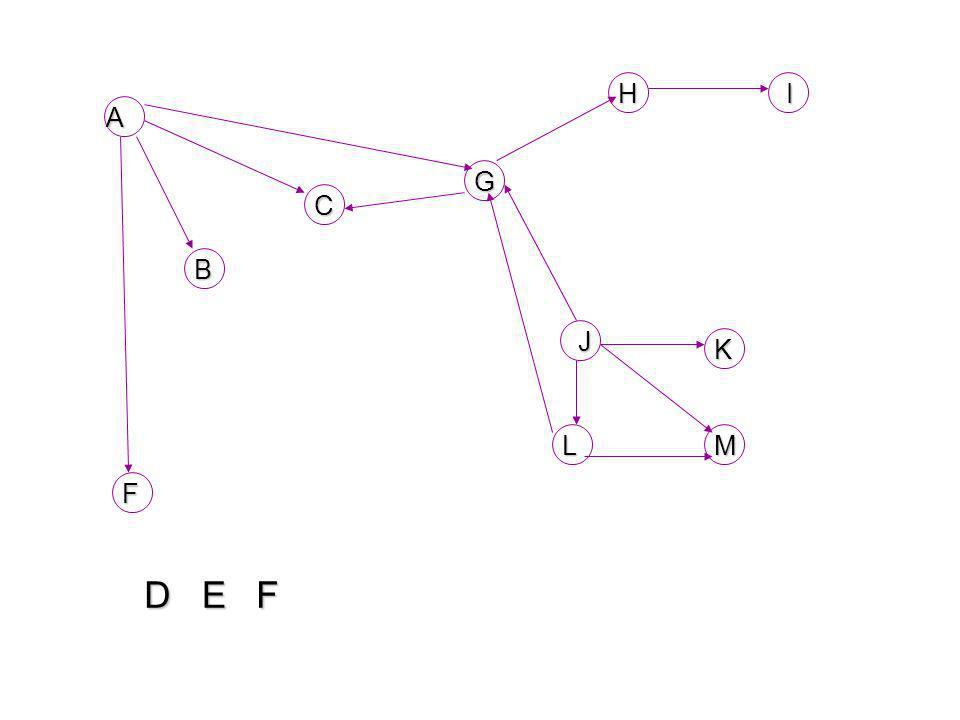

A B C F G HI J L K M DE F

24

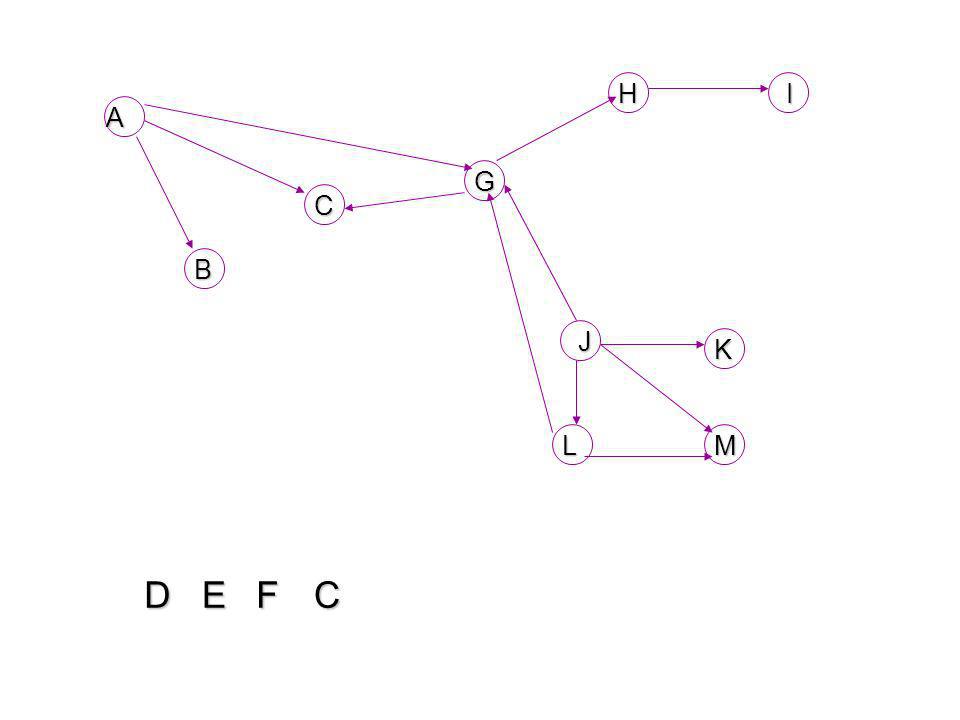

A B C G HI J L K M DEF C

25

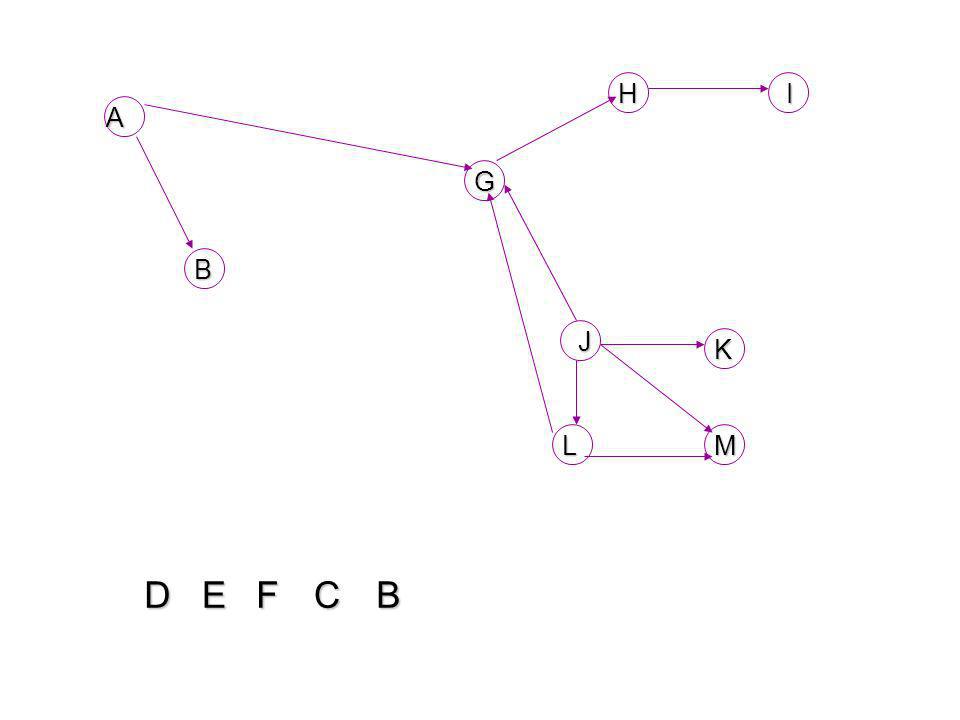

A B G HI J L K M DEFC B

26
A G H I J L K M DEFCB I

27
A G H J L K M DEFCBI H

28

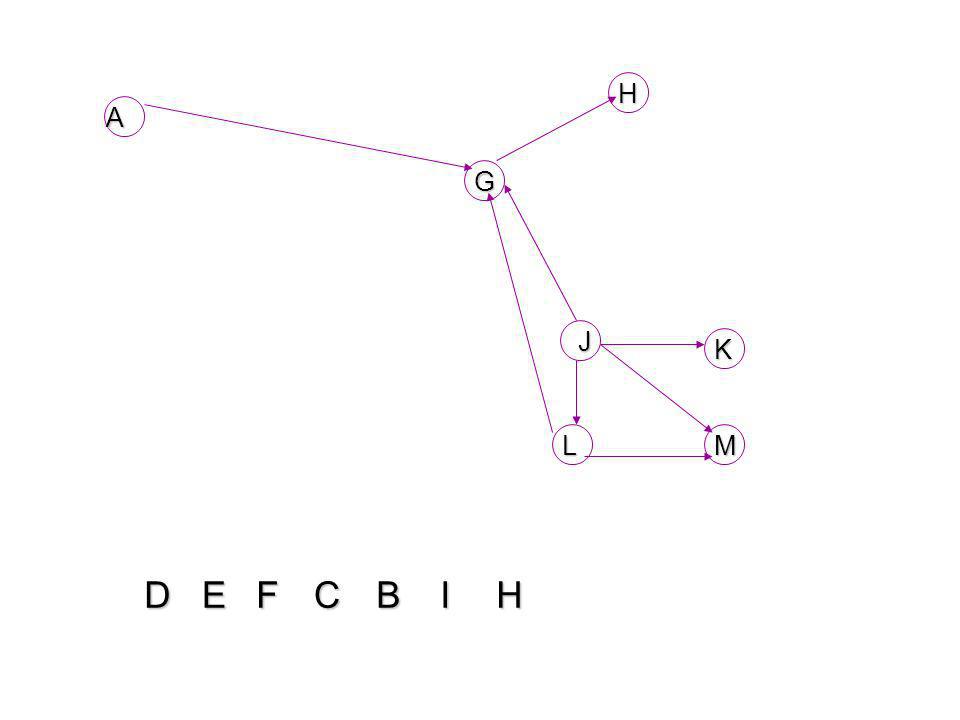

A G J L K M DEFCBIH G

29

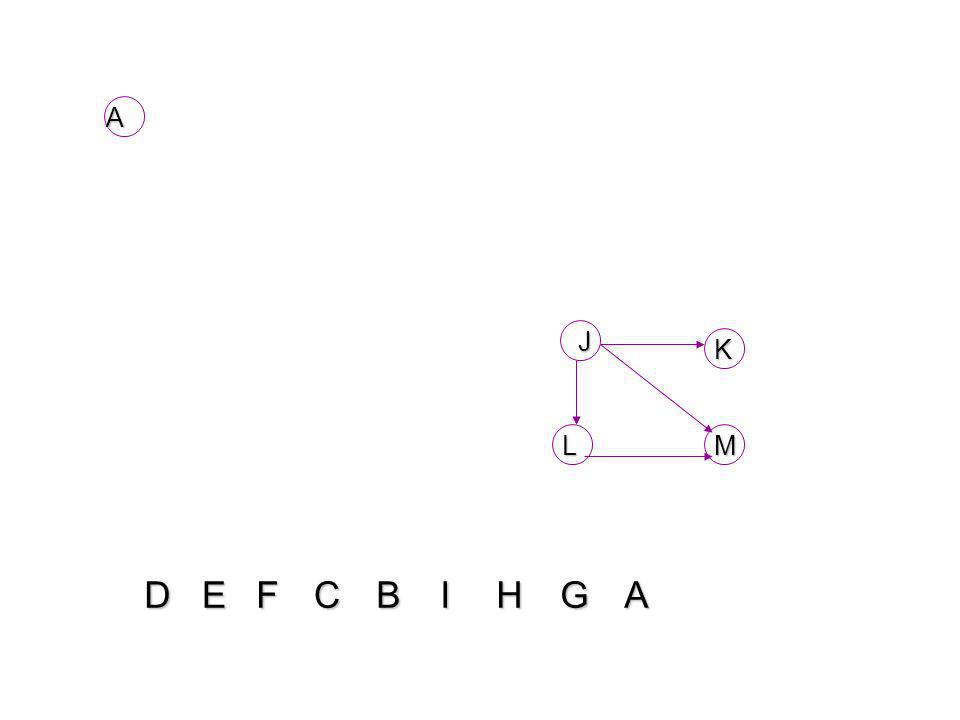

A J L K M DEFCBIHG A

30
J L K M DEFCBIHGA K

31

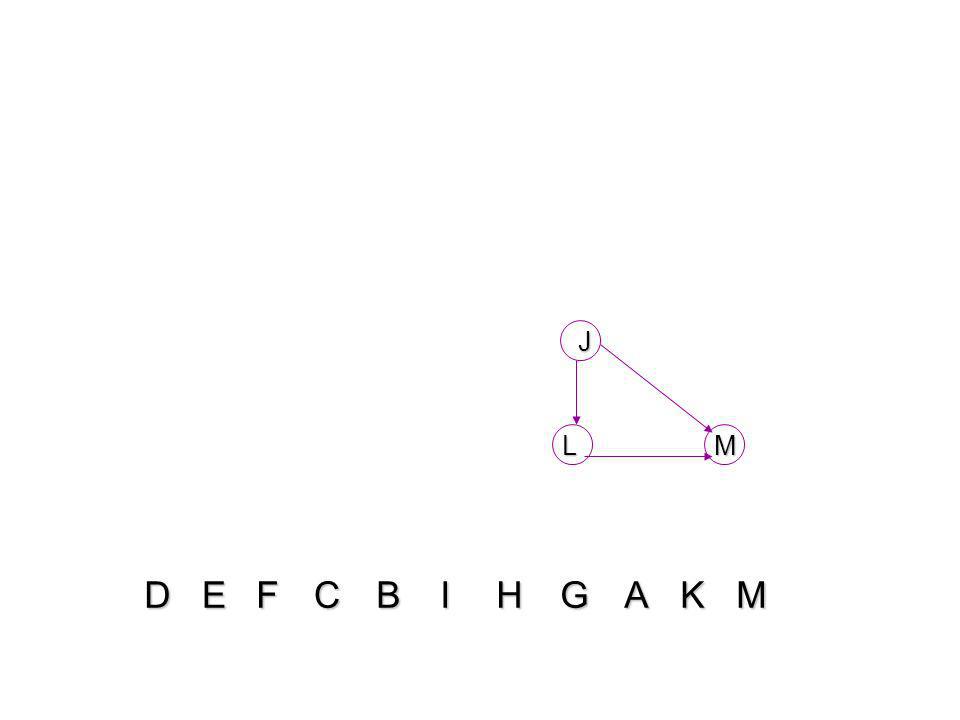

J L M DEFCBIHGAK M

32
J L DEFCBIHGAKM L

33

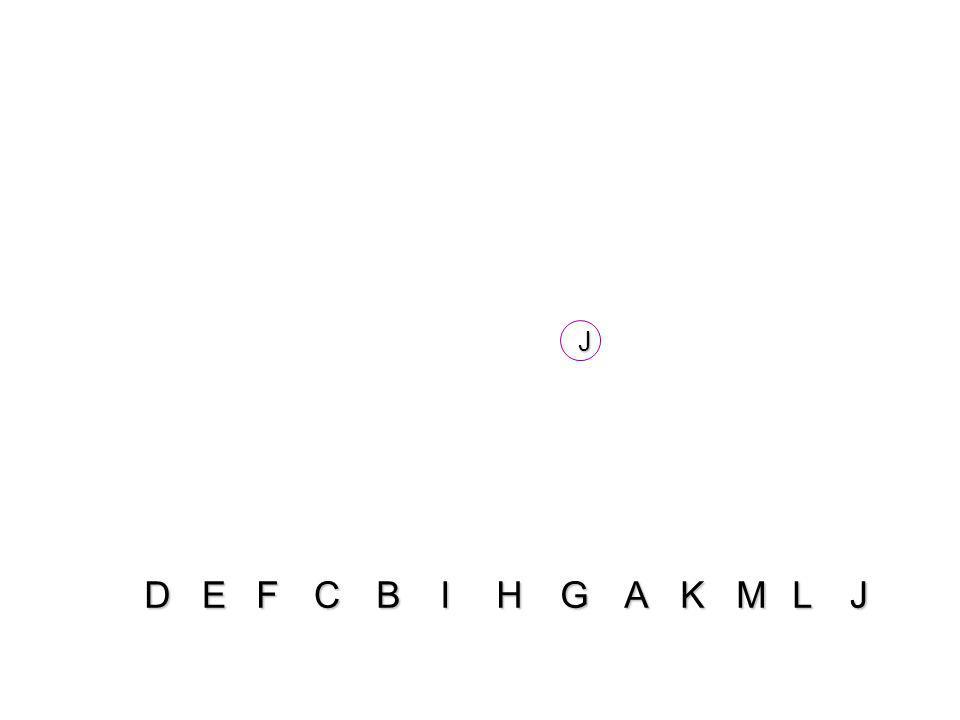

J DEFCBIHGAKML J

34
DEFCBIHGAKMLJ J L M K A G H I B C F E D
