An Introduction to the Material Handling Equipment Manufactured by Palamatic Handling USA, Inc. Presented by Jack Mener.

Similar presentations


Presentation on theme: "An Introduction to the Material Handling Equipment Manufactured by Palamatic Handling USA, Inc. Presented by Jack Mener."— Presentation transcript:

1 An Introduction to the Material Handling Equipment Manufactured by Palamatic Handling USA, Inc. Presented by Jack Mener

2 About Palamatic Handling : Palamatic Handling USA, Inc. was founded in August In only a little more than a decade we have developed representation for a broad product line for special lifting and bulk and powder process material handling.

3 Our innovative solutions: Improve safety and ergonomics Increase efficiency and process throughput Speed assembly Improve quality Save time and money

4 Our Equipment Range: Vacuum Lifting Equipment Manipulators PneuLifts Drum Tippers Powder Processing Equipment

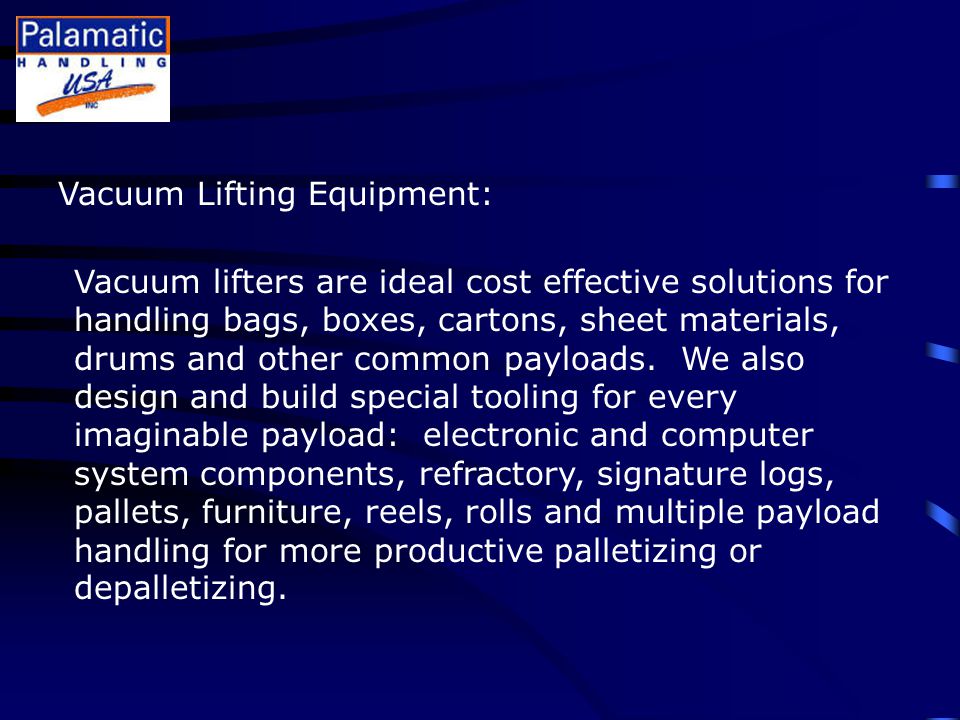

5 Vacuum Lifting Equipment: Vacuum lifters are ideal cost effective solutions for handling bags, boxes, cartons, sheet materials, drums and other common payloads. We also design and build special tooling for every imaginable payload: electronic and computer system components, refractory, signature logs, pallets, furniture, reels, rolls and multiple payload handling for more productive palletizing or depalletizing.

6 Vacuum Lifting Equipment: Palamatic lift tube systems use vacuum and flow to both lift and hold payloads. The use of a hoist is not required. Using vacuum lift tube technology to lift as well as hold requires design within an optimum range of flow, contact area, vacuum pressure and lift tube diameter.

7 Vacuum Bag Lifters

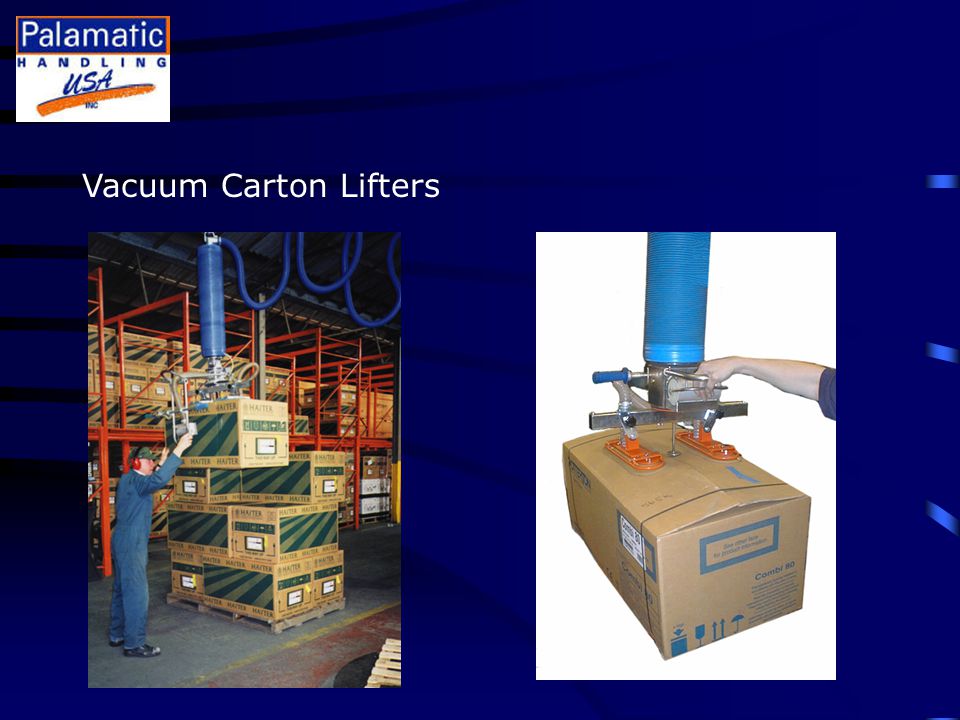

8 Vacuum Carton Lifters

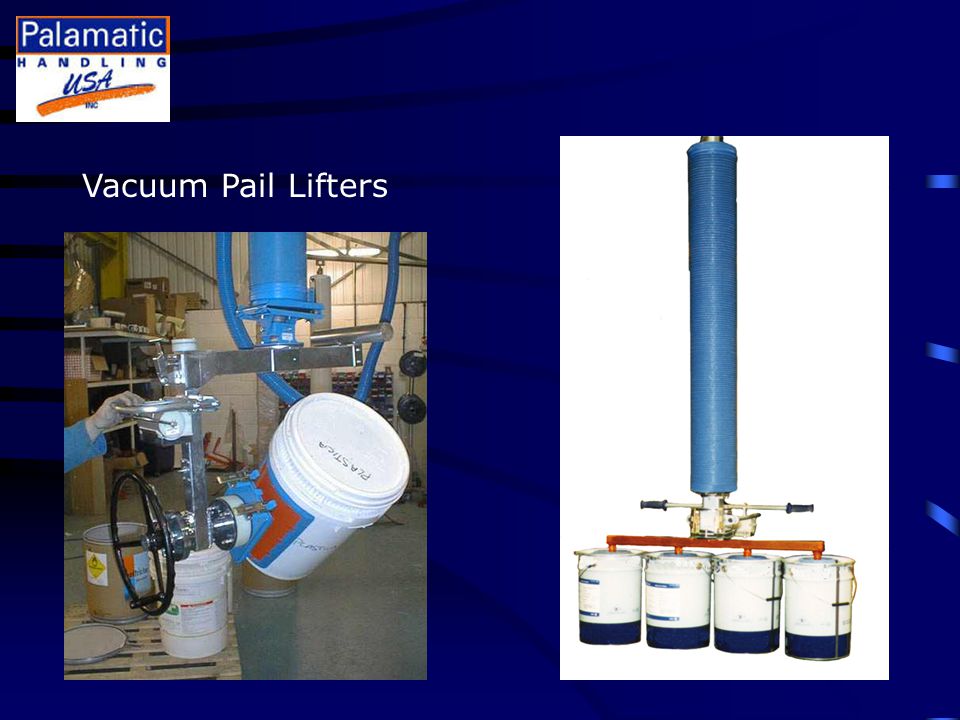

9 Vacuum Pail Lifters

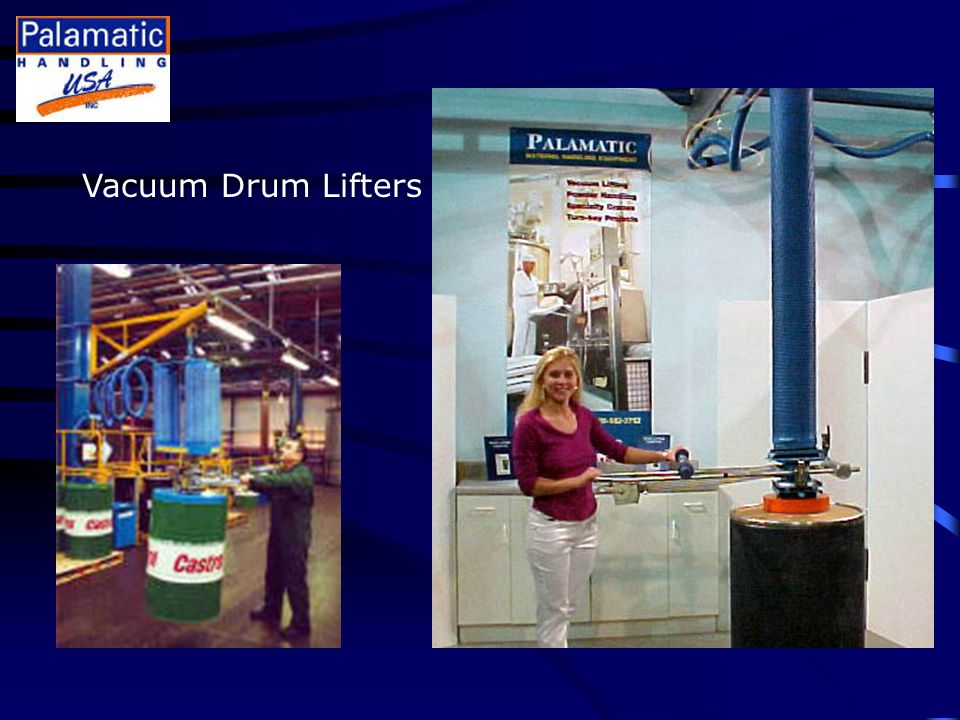

10 Vacuum Drum Lifters

11

12 Manipulators: Manipulators and special PneuLift or PneuHoist lifters are ideal cost effective solutions for handling for assembly, machine loading or unloading, handling for inspection, and handling for packaging in a broad range of industries.

13 Manipulators: Manipulators allow a single operator to safely and efficiently handle heavy and delicate payloads with the greatest of precision. Manipulators can provide reach in or under ability for loading machines that cannot be accessed by a hoist or vertically suspended lifting device.

14 Manipulators:

15

16

17 PneuLifts: Palamatic PneuLifts are a new idea in the industrial handling world. PneuLifts combine the tooling, control and manipulation features of our manipulators in a compact, light weight and easy to maneuver device that is tailored to your specific handling application.

18 PneuLifts: PneuLifts use a pneumatic cylinder with an external bearing rod to handle payloads from 10 to 800 pounds in both light and heavy industrial environments.

19 PneuLifts: PneuLifts can be floor mounted from a light weight enclosed track jib crane or articulating crane, overhead mounted from an enclosed track crane, or mounted on a Palamatic PalTrac stainless steel clean room crane.

20 PneuLifts:

21

22

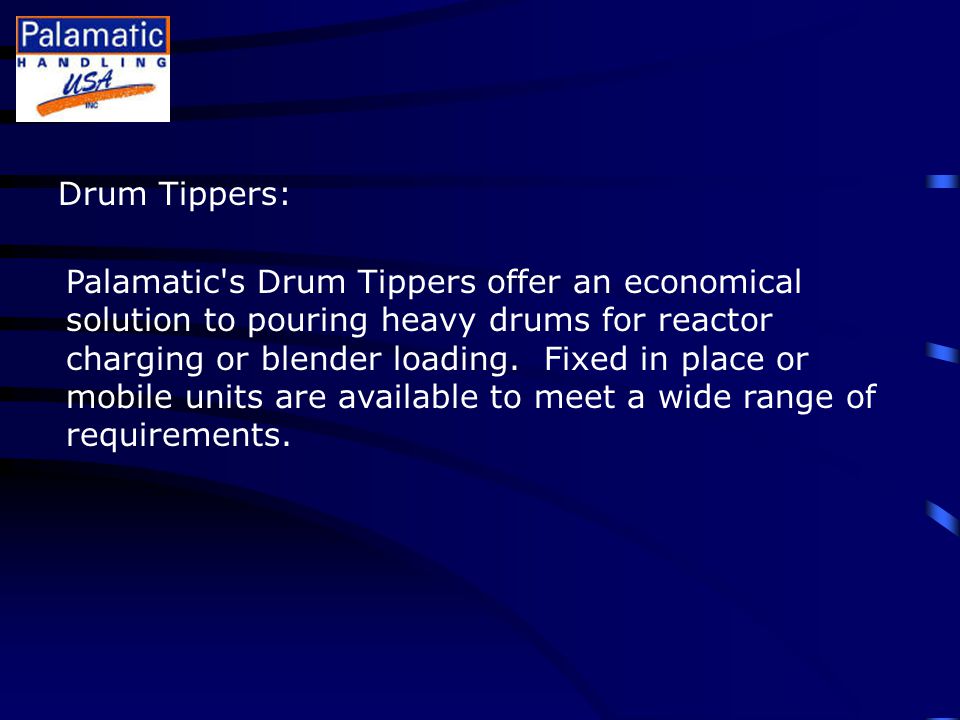

23 Drum Tippers: Palamatic's Drum Tippers offer an economical solution to pouring heavy drums for reactor charging or blender loading. Fixed in place or mobile units are available to meet a wide range of requirements.

24 Drum Tippers:

25

26

27 Powder Processing Equipment: Palamatic can meet your handling needs from general bulk and powder processes, food and sanitary processes, primary fine chemical environments through secondary processing, final product handling, packaging materials handling, packaged product handling, storage and shipping.

28 Powder Processing Equipment: Palamatic’s solutions for powder processing range from simple bag dump workstations to fully automated bag opening systems. We also manufacture bulk bag unloading stands.

29 Powder Processing Equipment:

30

31

32 Contact Information: Main OfficeChicago BranchTennessee Branch Tim CarneyJack MenerRon Castle PresidentRegional SalesNational Sales Manager (610) (630) (931) (610) (630) (931)

33 Please visit our Website at:
