Slide 1 of 48 Measurements and Their Uncertainty 3.1 3.1 Section 3.1-2 Significant Figures in Measurements.

Similar presentations


Presentation on theme: "Slide 1 of 48 Measurements and Their Uncertainty 3.1 3.1 Section 3.1-2 Significant Figures in Measurements."— Presentation transcript:

1

2 Slide 1 of 48 Measurements and Their Uncertainty Section Significant Figures in Measurements

3 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 2 of 48 Significant Figures in Measurements Why must measurements be reported to the correct number of significant figures? 3.1

4 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 3 of 48 Significant Figures in Measurements Suppose you estimate a weight that is between 2.4 lb and 2.5 lb to be 2.46 lb. The first two digits (2 and 4) are known. The last digit (6) is an estimate and involves some uncertainty. All three digits convey useful information, however, and are called significant figures. The significant figures in a measurement include all of the digits that are known, plus a last digit that is estimated. 3.1

5 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 4 of 48 Significant Figures in Measurements Measurements must always be reported to the correct number of significant figures because calculated answers often depend on the number of significant figures in the values used in the calculation. 3.1

6 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 5 of 48 Rules for Significant Figures Here are the rules to follow when determining how many significant figures one has: 1.Look for a decimal place. It will determine how you analyze the value. 2.If there is a decimal place, do the following “Atlantic/Pacific” method: Start counting from the left hand side (present or Pacific). Ignore zeros at the beginning (left). Start counting at the 1 st non-zero digit (1 – 9). Count all of the remaining digits (including zeros). These are the significant digits. 3.1

7 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 6 of 48 Rules for Significant Figures Start counting from the right hand side (absent or Atlantic). Ignore zeros at the beginning (right). Start counting at the 1 st non-zero digit (1 – 9). Count all of the remaining digits (including zeros). These are the significant digits. 3.1 If there is NO decimal place, due the following:

8 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 7 of 48 Significant Figures Practice Q: 1,809,000 has how many significant digits? A: Since there is NO decimal, begin counting from the right (RHS), skipping the zeros in the beginning. So, you skip the 1 st three (3) zeros and start counting from the “9”. At this point, you count all of the remaining digits. This means that you have four (4) significant figures. 3.1

9 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 8 of 48 Significant Figures Practice Q: has how many significant digits? A: Since there IS a decimal, begin counting from the left (LHS), skipping the zeros in the beginning. So, you skip the 1 st two (2) zeros and start counting from the “5”. At this point, you count all of the remaining digits. This means that you have five (5) significant figures including the “0” between the 7 and the 1 and the “0” at the end. 3.1

10 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 9 of 48 Significant Figures in Measurements 3.1

11 © Copyright Pearson Prentice Hall Slide 10 of 48

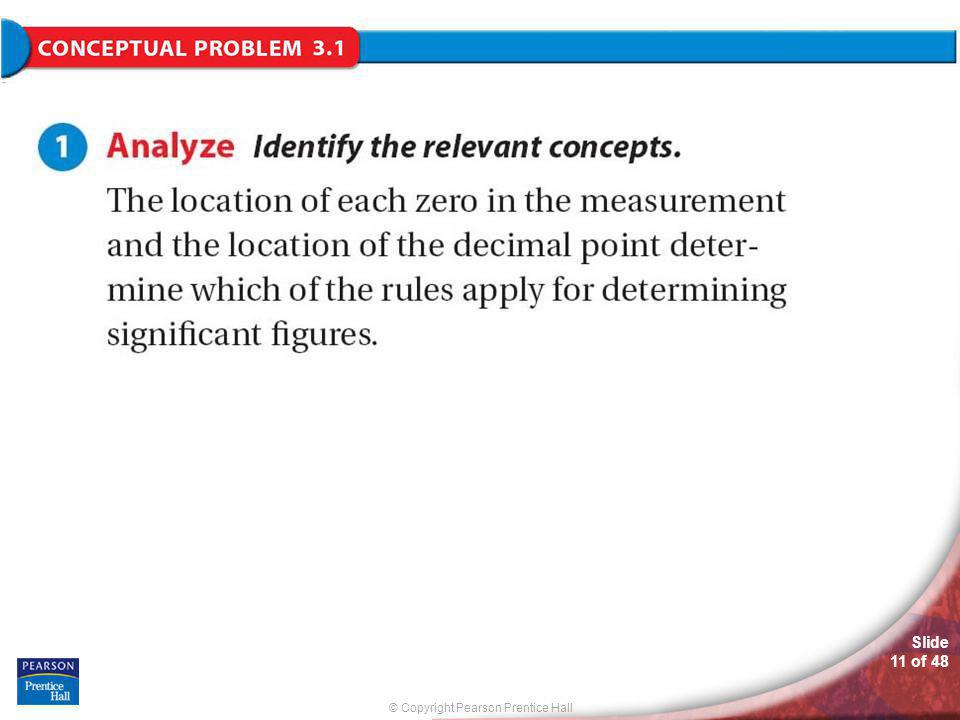

12 © Copyright Pearson Prentice Hall Slide 11 of 48

13 © Copyright Pearson Prentice Hall Slide 12 of 48

14 © Copyright Pearson Prentice Hall Slide 13 of 48 Practice Problems for Conceptual Problem

15 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 14 of 48 Significant Figures in Calculations How does the precision of a calculated answer compare to the precision of the measurements used to obtain it? 3.1

16 Slide 15 of 48 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Significant Figures in Calculations In general, a calculated answer cannot be more precise than the least precise measurement from which it was calculated. The calculated value must be rounded to make it consistent with the measurements from which it was calculated. 3.1

17 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 16 of Significant Figures in Calculations Rounding To round a number, you must first decide how many significant figures your answer should have. The answer depends on the given measurements and on the mathematical process used to arrive at the answer.

18 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 17 of

19 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 18 of

20 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 19 of

21 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 20 of

22 © Copyright Pearson Prentice Hall Slide 21 of 48 Practice Problems for Sample Problem meters (round up the “7”) 4.36 x 10 8 meters 1.55 x meters 9.01 meters (round up the “9”) 1.78 meters x (round up the “8”) 630 meters (round up the “.55”)

23 © Copyright Pearson Prentice Hall Measurements and Their Uncertainty > Slide 22 of Significant Figures in Calculations Addition and Subtraction The answer to an addition or subtraction calculation should be rounded to the same number of decimal places (not digits) as the measurement with the least number of decimal places.

24 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 23 of

25 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 24 of

26 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 25 of

27 © Copyright Pearson Prentice Hall SAMPLE PROBLEM Slide 26 of

28 © Copyright Pearson Prentice Hall Slide 27 of A student reports the volume of a liquid as L. How many significant figures are in this measurement? a.2 b.3 c.4 d Section Quiz

29 © Copyright Pearson Prentice Hall Slide 28 of 48 That’s All Folks ! ! !
