2 Trim Shop - Typical Way

3 A Better Way

4 123D Optimization 3D 2D 1D 2nd-Slits 1st-Cut 3rd-Shear FLOW 3D 2D 1 st -Cut 2nd-Slits 1st-Shears FLOW Flat Sheets FLOW Potential Scrap

5

6 3D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear FLOW COIL Blanks Needed to Make Parts Cut Potential Scrap

7 3D Optimization FLOW Blanks Needed to Make Parts Slits Potential Scrap Slitting Process

8 3D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear FLOW Blanks Needed to Make Parts Potential Scrap Remove Good Blanks

9 3D Optimization 3D FLOW Potential Scrap Blanks Needed to Make Parts Shear Shearing Process

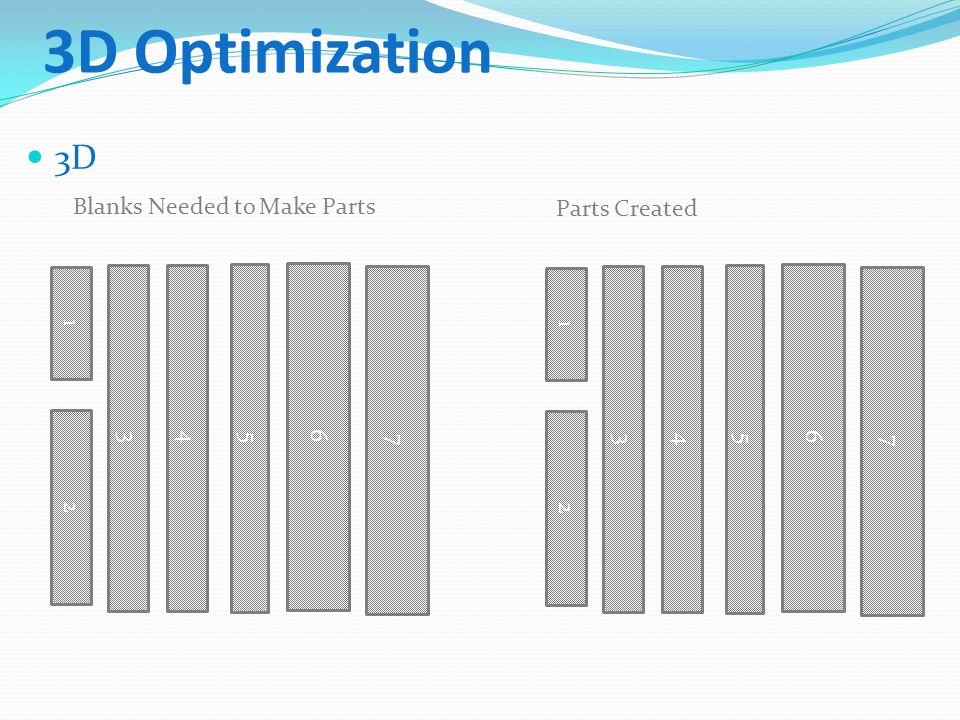

10 3D Optimization 3D Blanks Needed to Make Parts Parts Created

11 Cut Blank Slit Pattern Sorting Shearing and Sorting 3D Optimization- Slitting, Shearing & Sorting

12

13 2D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear FLOW COIL Blanks Needed to Make Parts Cut 6 Potential Scrap Cut

14 2D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear FLOW Blanks Needed to Make Parts 6 Potential Scrap Slits Slitting Process

15 2D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear Blanks Needed to Make Parts 6 Potential Scrap Remove Scrap

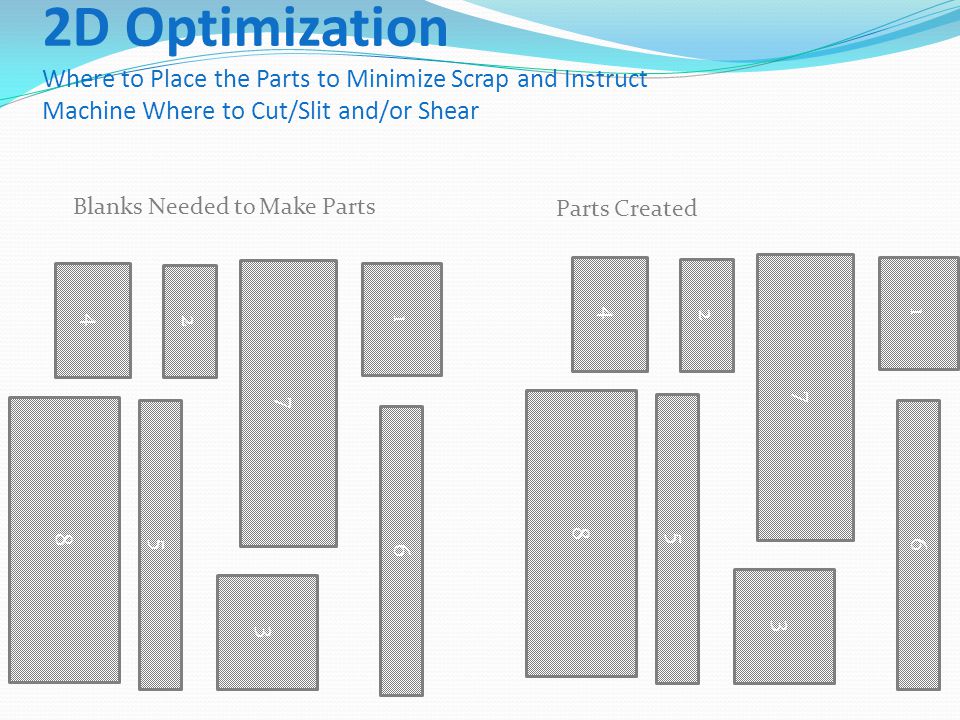

16 2D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear Blanks Needed to Make Parts Parts Created

17

18 1D Optimization Where to Place the Parts to Minimize Scrap and Instruct Machine Where to Cut/Slit and/or Shear FLOW Blanks Needed to Make Parts 6 Potential Scrap Flat Sheer Shear First Run of Shearing

19 1D Optimization FLOW Blanks Needed to Make Parts 6 Potential Scrap Shear Flat Sheet

20 1D Optimization Parts Needed Parts Created
