Presentation on theme: "Lets Play Jeopardy!! TheCategoriesAre Vocabulary."— Presentation transcript:

1

2

3 Lets Play Jeopardy!!

4

5 TheCategoriesAre

6 Vocabulary

7 Electro- Magnetism (EM)

8 Right-Hand Rule

9 Transformers

10 Vocab Electromagnetism (EM) Right-Hand Rule Transformers

11 Is created when current flows through a wire coil wrapped around a pieced of iron

12 What is: an electromagnet What is: an electromagnet

13 What are two main ideas of the cell theory? This type of solution is characterized by water molecules moving into and out of the cell at the same rate A long coil of wire with many loops used to create a large magnetic field

14 What is: a solenoid What is: a solenoid

15 A device that converts electric energy to rotational kinetic energy

16 What is: an electric motor What is: an electric motor

17 Maintaining conditions suitable for survival A device that is used to detect very small currents

18 What is: a galvanometer What is: a galvanometer

19 The process in which current is generated in a wire due to the relative motion between the wire and the magnetic field

20 What is: EM induction What is: EM induction

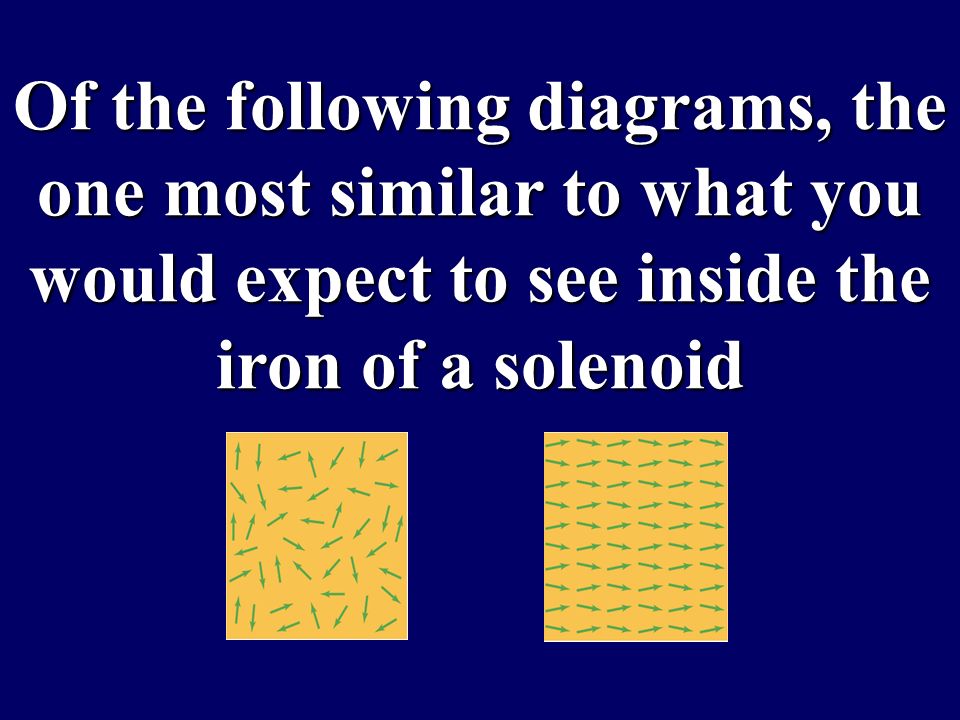

21 Of the following diagrams, the one most similar to what you would expect to see inside the iron of a solenoid

22 What is: What is:

23 How many electrons pass through a circuit in 1 second? Of the following, the electromagnet that would produce the magnetic field with the maximum strength: one with 10 loops, 20 loops, or 40 loops

24 What is: the one with 40 loops What is: the one with 40 loops

25 One of two ways to increase the magnitude of the magnetic field in an electromagnet

26 What is: increase the current or the number of loops What is: increase the current or the number of loops

27 Of the following materials, the one that should be used in addition to a spool of wire to create an electromagnet: glass rod, iron rod, or wood rod

28 What is: the iron rod What is: the iron rod

29 What happens to the electromagnet when you reverse the direction of current flow

30 What is: the poles are reversed What is: the poles are reversed

31 The part of your hand that indicates the direction of the current when using the right-hand rule

32 What is: your thumb What is: your thumb

33 The direction of the magnetic field above the following wire if the current is flowing to the right

34 What is: out of the page or toward you What is: out of the page or toward you

35 What is the attractive force between water molecules called? Strands of DNA; contain directions for making protein The direction of the magnetic field inside the following loop if the arrow indicates the direction of the current

36 What is: out of the page or toward you What is: out of the page or toward you

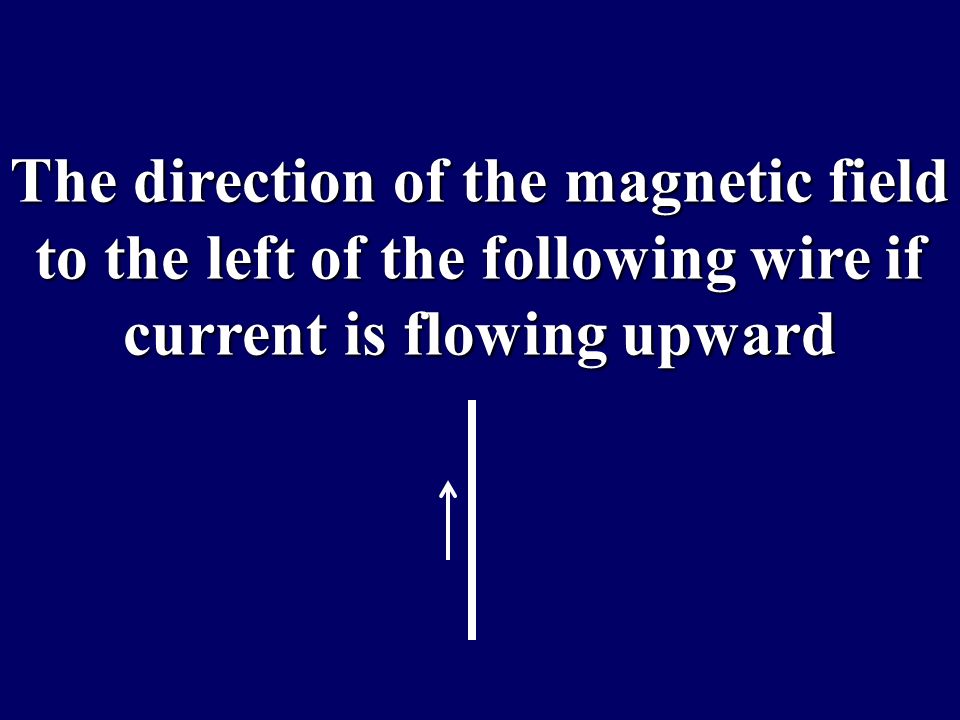

37 The direction of the magnetic field to the left of the following wire if current is flowing upward

38 What is: out of the page or toward you What is: out of the page or toward you

39 The direction of current if the direction of the magnetic field is clockwise

40 What is: into the page or away from you What is: into the page or away from you

41 The relationship between the number of turns on the primary coil compared to the number of turns on the secondary coil of a step- down transformer

42 What is: primary is greater than secondary What is: primary is greater than secondary

43 A transformer can step this up but in no way can step up this

44 What is: voltage then power or energy What is: voltage then power or energy

45 How power delivered to the secondary circuit relates to the power delivered to the primary circuit of a transformer

46 What is: they are equal to one another What is: they are equal to one another

47 A step-up transformer does this to voltage and this to current

48 What is: increase voltage and decrease current What is: increase voltage and decrease current

49 The voltage across the secondary circuit of a step- up transformer that has 250 turns on its primary coil, 7000 turns on its secondary coil, and a primary voltage of 18.0 V

50 What is: 504 V What is: 504 V

51 FinalJeopardy

52 Transformers

53 The current in the primary circuit of a step-up transformer if the primary coil has 40 turns, the secondary coil has 1200 turns, and the current in the secondary circuit is 1.50 A

54 What is: 45.0 A What is: 45.0 A

55 DailyDouble!
