This is where it all started
Hand + eye coordination

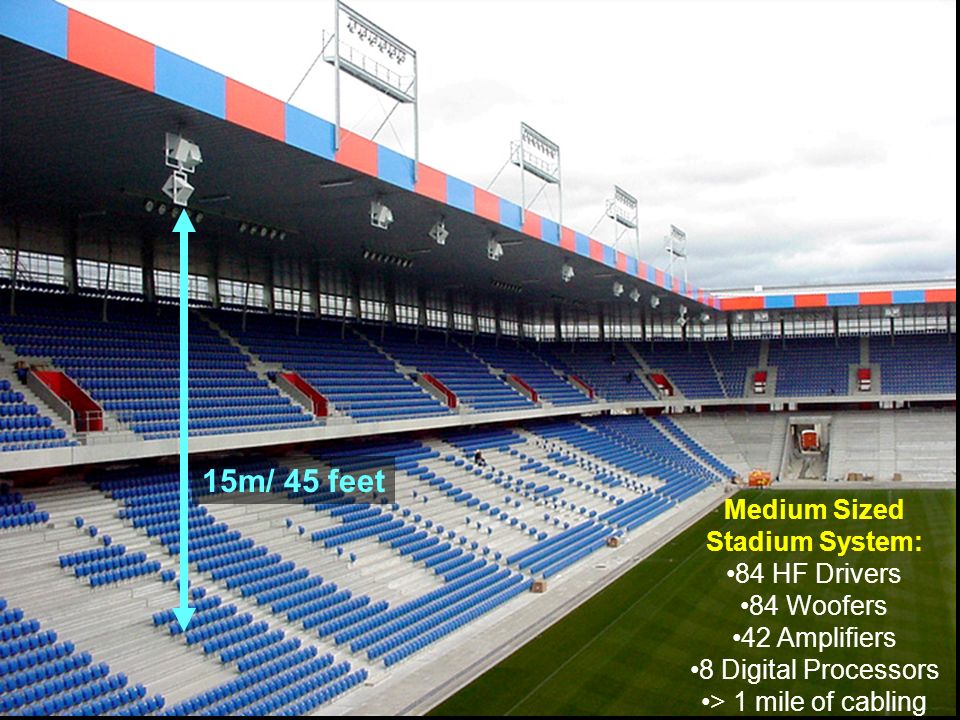

15m/ 45 feet Medium Sized Stadium System: 84 HF Drivers 84 Woofers 42 Amplifiers 8 Digital Processors > 1 mile of cabling
A Big Concert Sound System: 108 HF Drivers 108 MB Drivers 96 LF Woofers 84 Sub Woofers 6 Digital Processors 116 Amplifiers > 1 mile of cabling
Is all of it working? if
The desire to easily configure a sound system and to supervise its integrity is becoming a requirement across a wider range of markets
for permanent installations and portable concert sound applications...
Supervision, Configuration and Control of the entire system DSP CONTROLLED PRECISION SERIES Up to 250 amplifiers Over 1km/0.6 miles with 115dB Dynamics

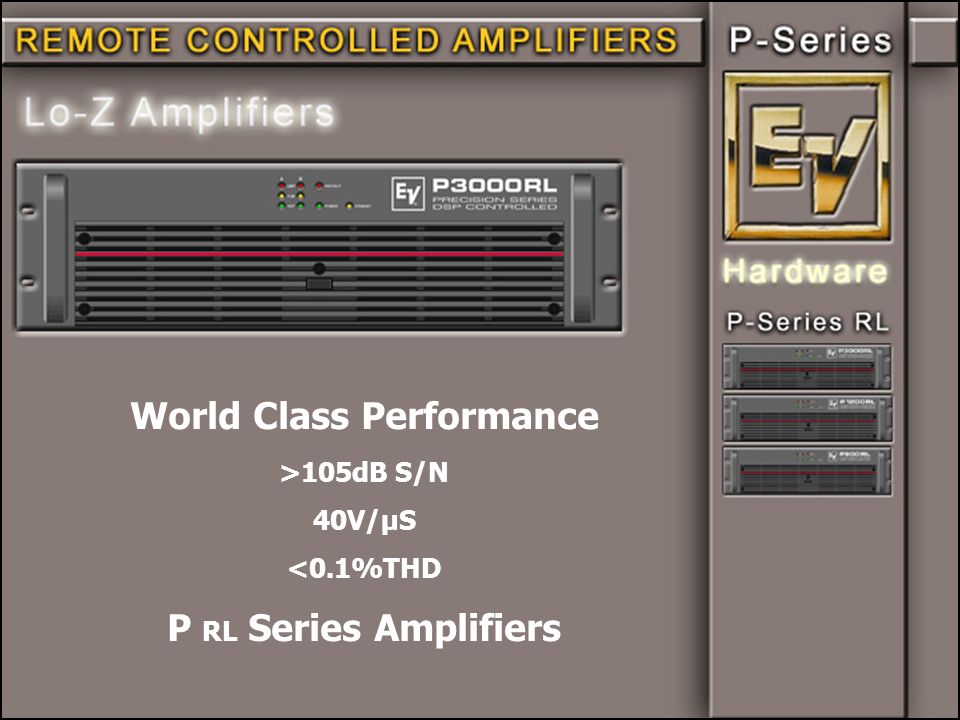

World Class Performance >105dB S/N 40V/µS <0.1%THD P RL Series Amplifiers
2 x 1300 watt / 4 2 x 600 watt / 4 2 x 450 watt / 4

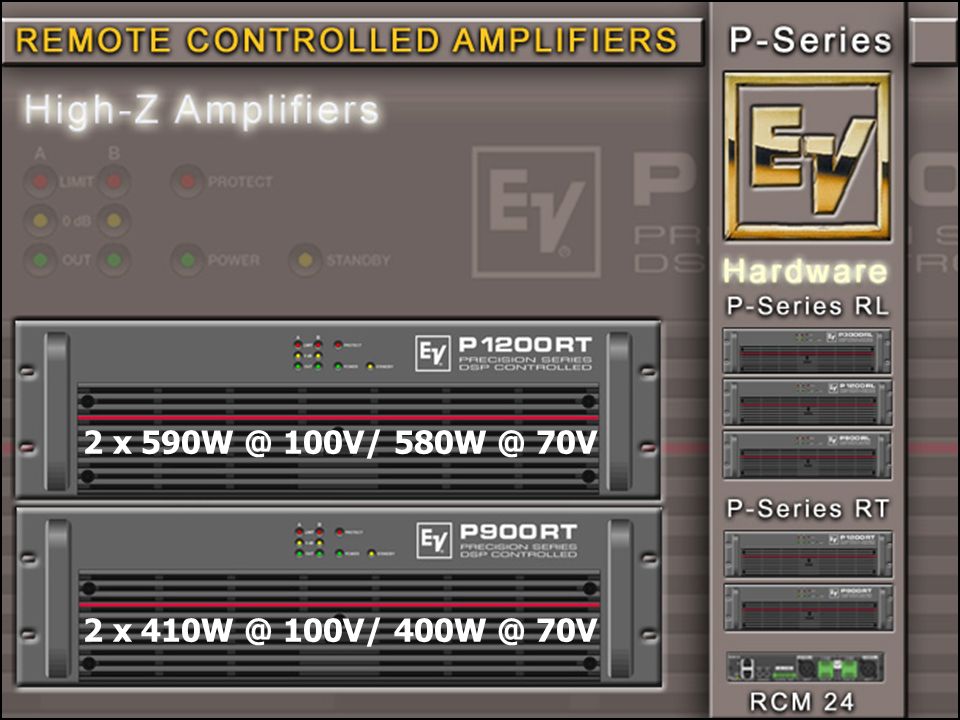

Identical to RL-Types Designed for 100 V/ 70 V systems Isolated toroidal transformer outputs
2 x 100V/ 70V 2 x 100V/ 70V

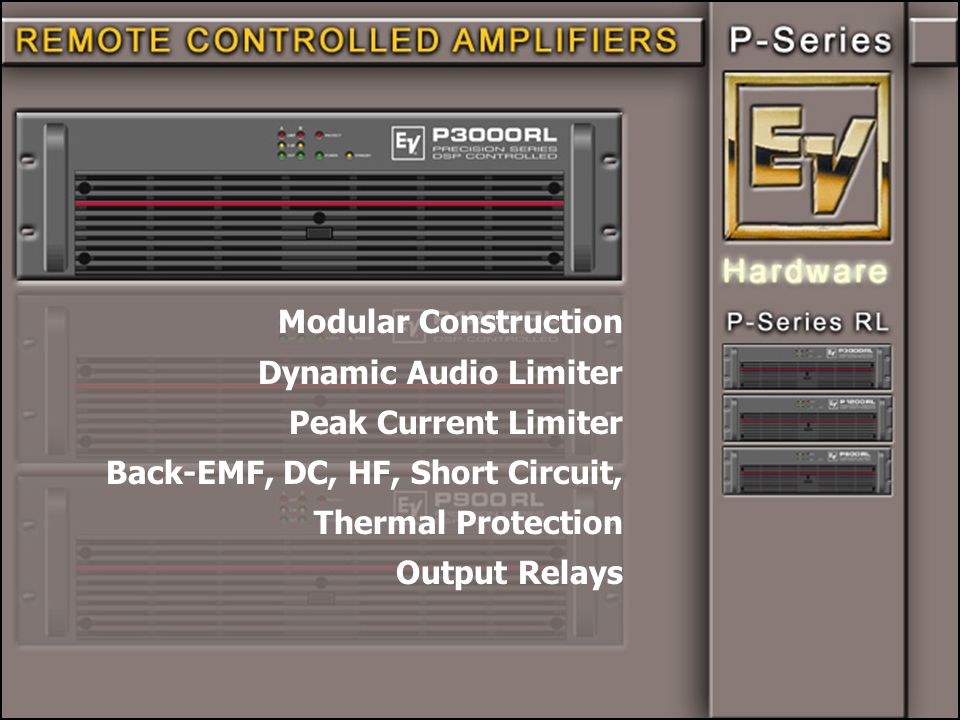

Modular Construction Dynamic Audio Limiter Peak Current Limiter Back-EMF, DC, HF, Short Circuit, Thermal Protection Output Relays
A/D & D/A = 24 Bit 128-times Oversampling, linear phase Internal Processing 48 Bit Dynamic Range 115 dB
Via CAN Bus Non Proprietary Developed by Bosch In use by over 450 companies including Intel, Mercedes Benz and Allen Bradley 2-wire system e.g. Cat 5 10k – 500k Baud Rate

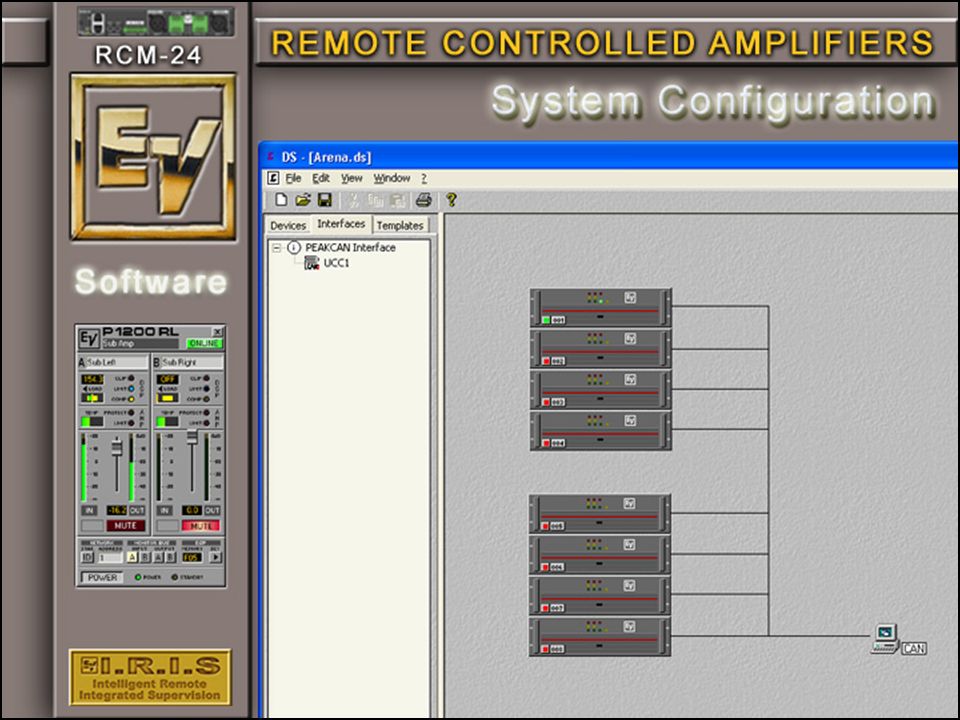

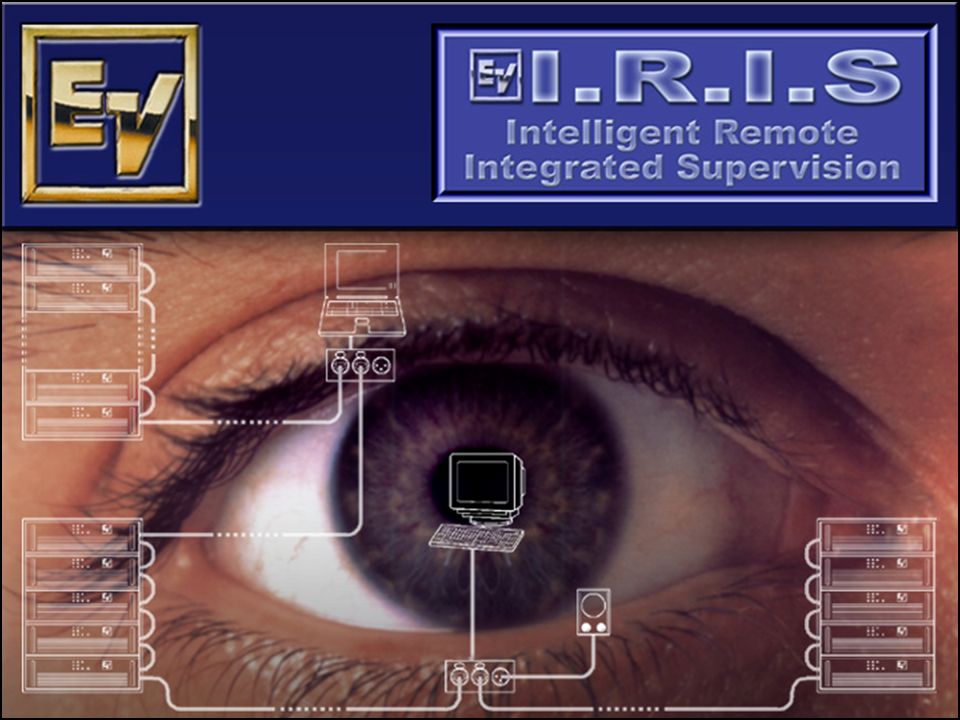

Via: USB-CAN Bus Converter (UCC-1) 100 amps per UCC-1 Up to 250 amps per system Up to 1000m cable length Control Groups [Cluster-, Array-Control] General Purpose In/Outs RS 232 Crestron/AMX
... with graphical Windows 98/2000/NT/XP user interface.

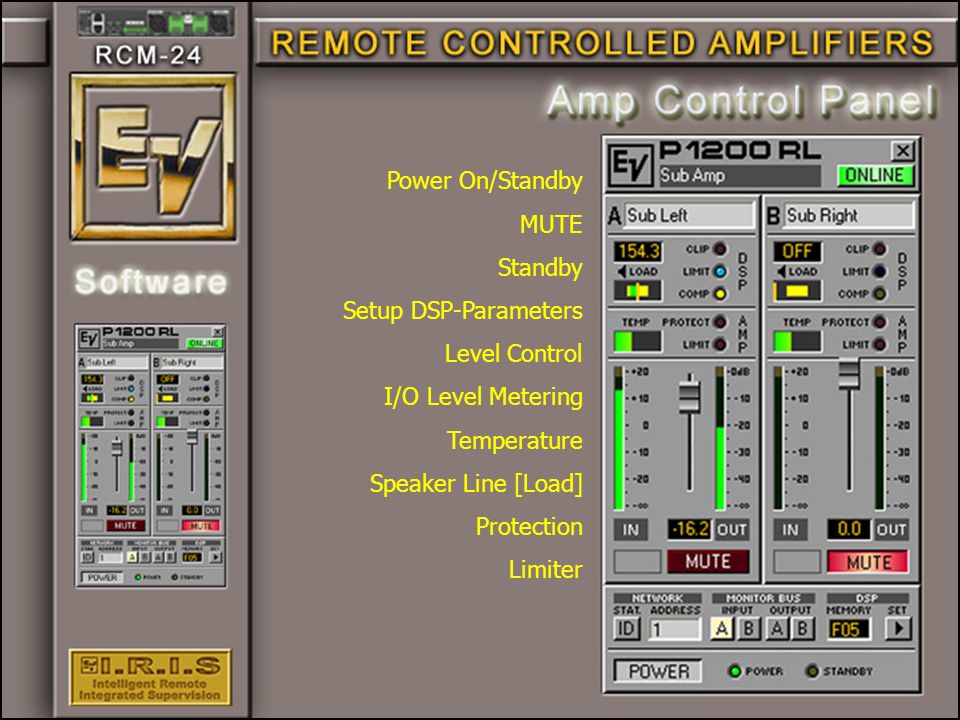

Power On/Standby MUTE Standby Setup DSP-Parameters Level Control I/O Level Metering Temperature Speaker Line [Load] Protection Limiter
System check may be manually or automatically activated
Reference Load Measurement
Set Tolerance Window
Oh Oh! Defective HF - Driver
Oh No Defective Woofer
Note snapshot of filters and xover settings

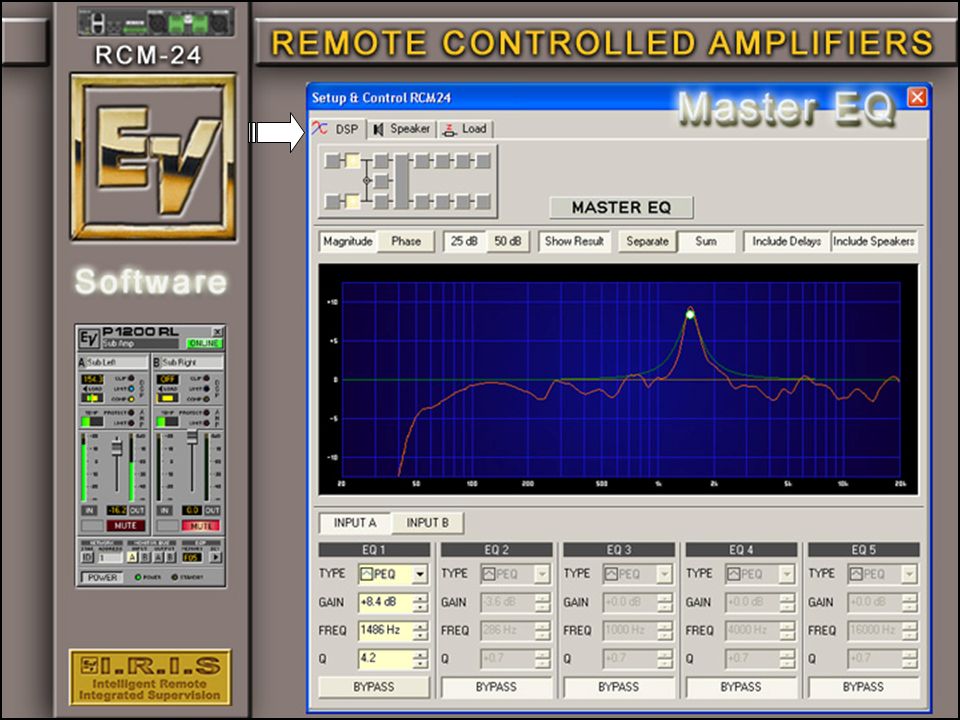

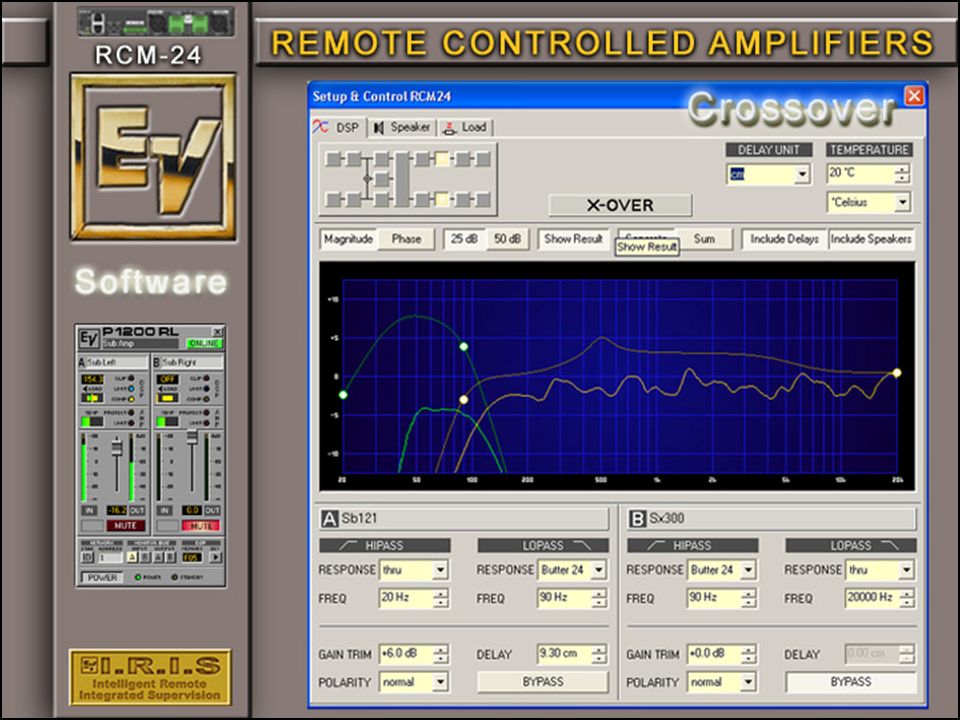

Shows acoustical and electrical summation
Programmable operator panel Live / Setup modes Programmable scenarios / presets Multilevel password protection Upload / download functions Device list with icons / Drag&Drop Block diagrams Multiple copy functions Copy&Paste Gang/Link functions for individual parameters Programmable operator panel Live / Setup modes Programmable scenarios / presets Multilevel password protection Upload / download functions Device list with icons / Drag&Drop Block diagrams Multiple copy functions Copy&Paste Gang/Link functions for individual parameters
System may be controlled by more than one PC at a time

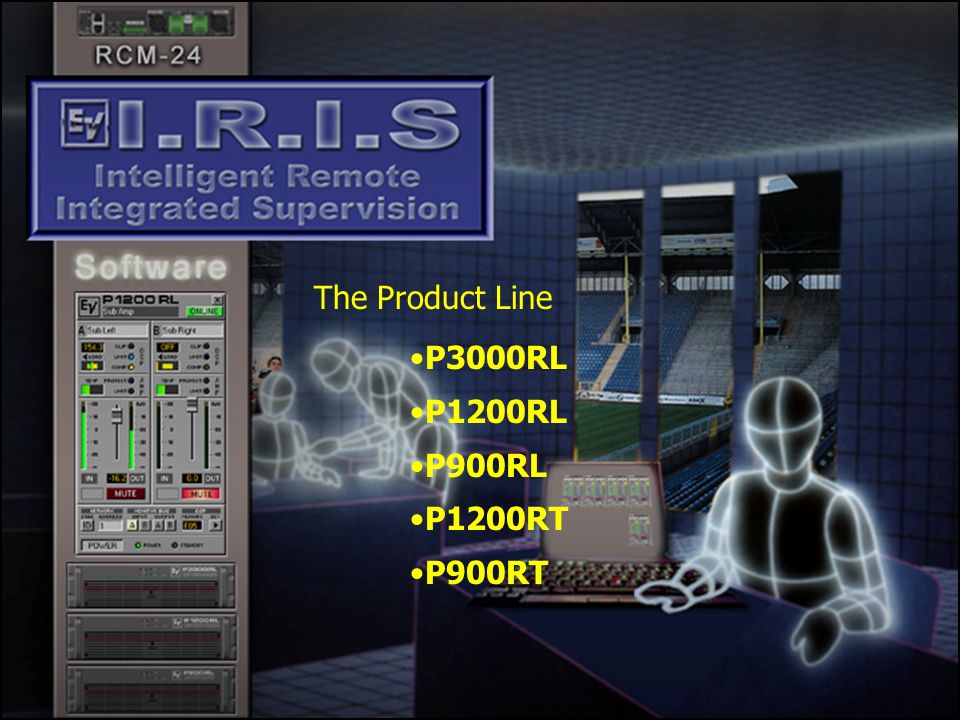

P3000RL P1200RL P900RL P1200RT P900RT The Product Line
