Traditional ZENworks Enterprise Desktop Management Major advantages: Extremely available – scalability, resilience, up time –Tens of thousands of workstations hitting a single 3 node NetWare cluster –Resilient (clustering, failover, application and site lists) –Bandwidth efficient within firewall (site lists, Tiered Electronic Distribution) –Well understood –Many ZENworks, NetWare and eDirectory administrators worldwide In live deployment traditional ZENworks scales up to 125,000 devices and users with a small team of administrators. –Unlike ANYONE else –Extremely cost effective

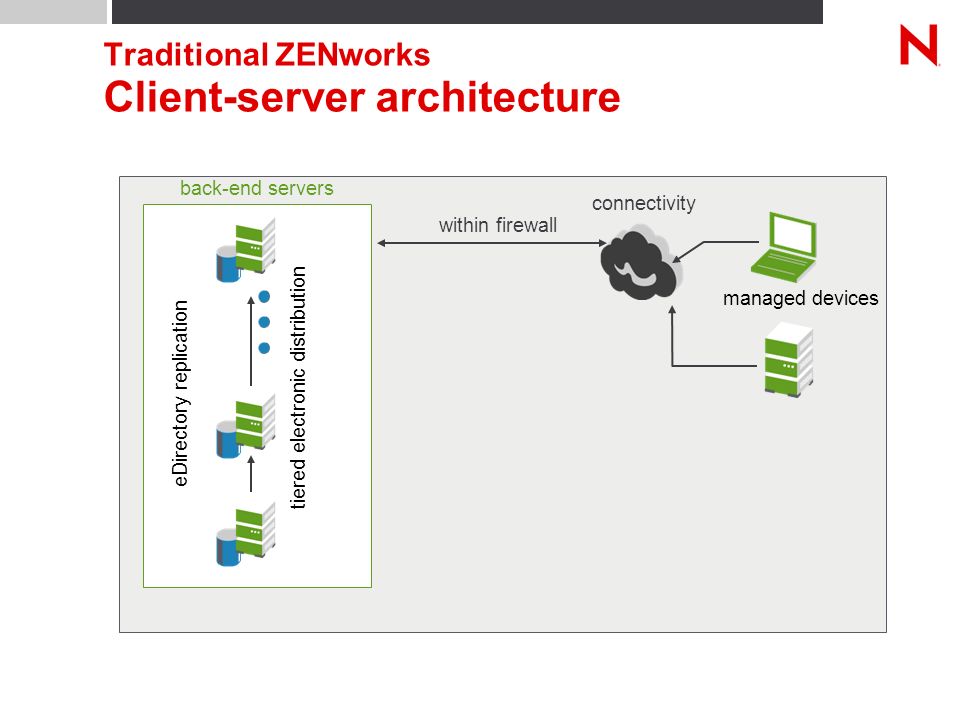

Traditional ZENworks Client-server architecture back-end servers managed devices connectivity within firewall eDirectory replication tiered electronic distribution

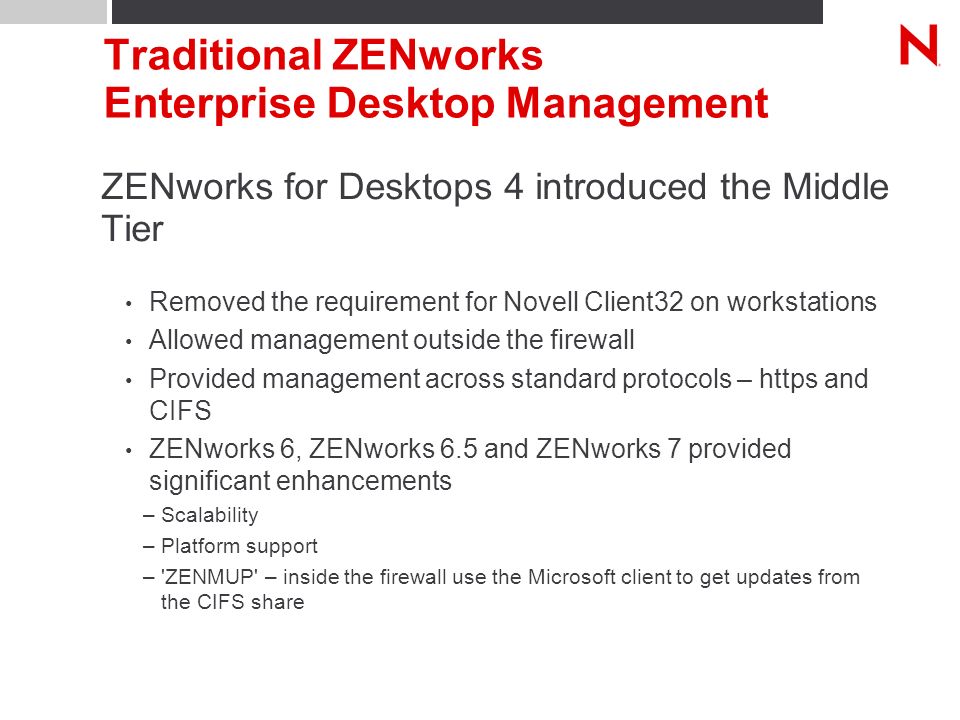

Traditional ZENworks Enterprise Desktop Management ZENworks for Desktops 4 introduced the Middle Tier Removed the requirement for Novell Client32 on workstations Allowed management outside the firewall Provided management across standard protocols – https and CIFS ZENworks 6, ZENworks 6.5 and ZENworks 7 provided significant enhancements –Scalability –Platform support –'ZENMUP' – inside the firewall use the Microsoft client to get updates from the CIFS share
back-end servers managed devices connectivity within firewall eDirectory replication tiered electronic distribution Traditional ZENworks Middle Tier architecture middle tier servers outside firewall
Traditional ZENworks Enterprise Desktop Management These architectures have served us well – but it is time for a change: Customers demand standard protocols on the wire –No more NCP, drive to LDAP, CIFS, HTTPS Middle Tier was always a stepping stone to cleaner protocols Move to a role-based, task-oriented browser-centric management console Remove the boundaries between products – move to a common interface, common repository, common metaphor between product and across platforms Become truly environment agnostic –support eDirectory, Active Directory, LDAP –support multiple platforms
Traditional ZENworks desired changes Changes: easier to install and deploy remove dependency on corporate eDirectory remove chatty communication to back-end more flexibility unify the product all web-based administration support server consolidation

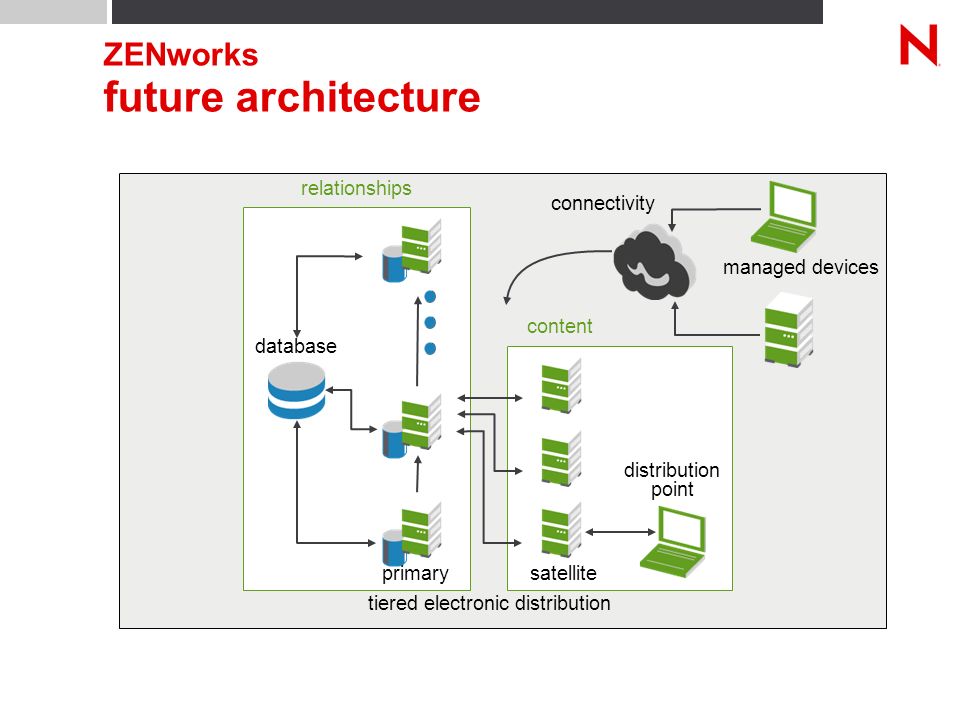

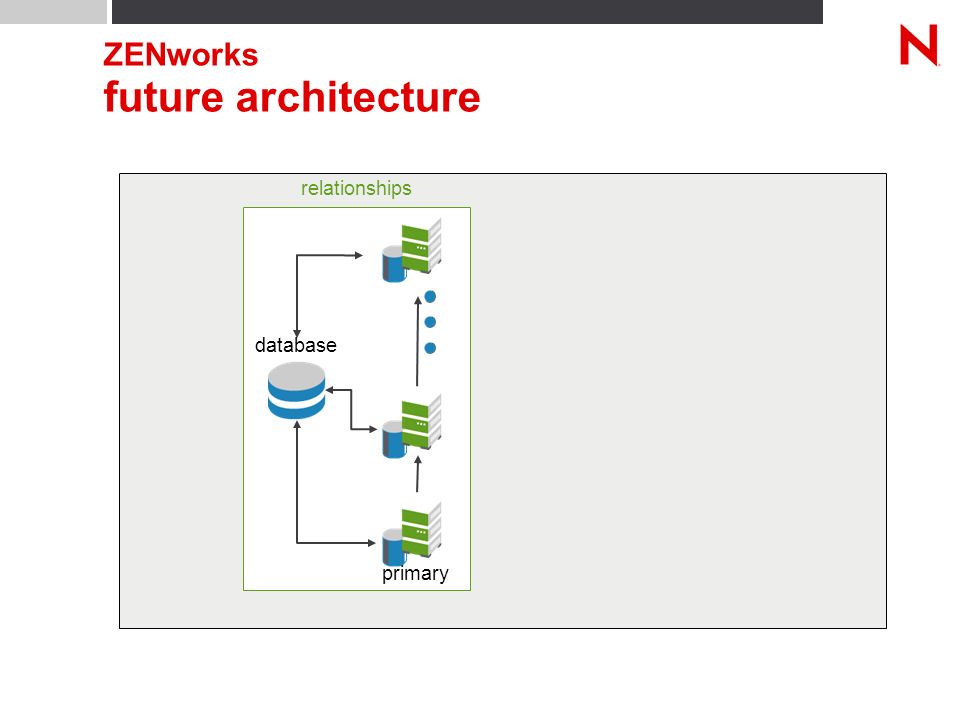

Future ZENworks new architectural elements New Architecture: introduction of an embedded object store enhanced and expanded database, simplified schema web-services/SOAP interfaces browser-based administration console new daemon with pluggable agents redundant services (multi-server service) configurable client redirection to back-end web services

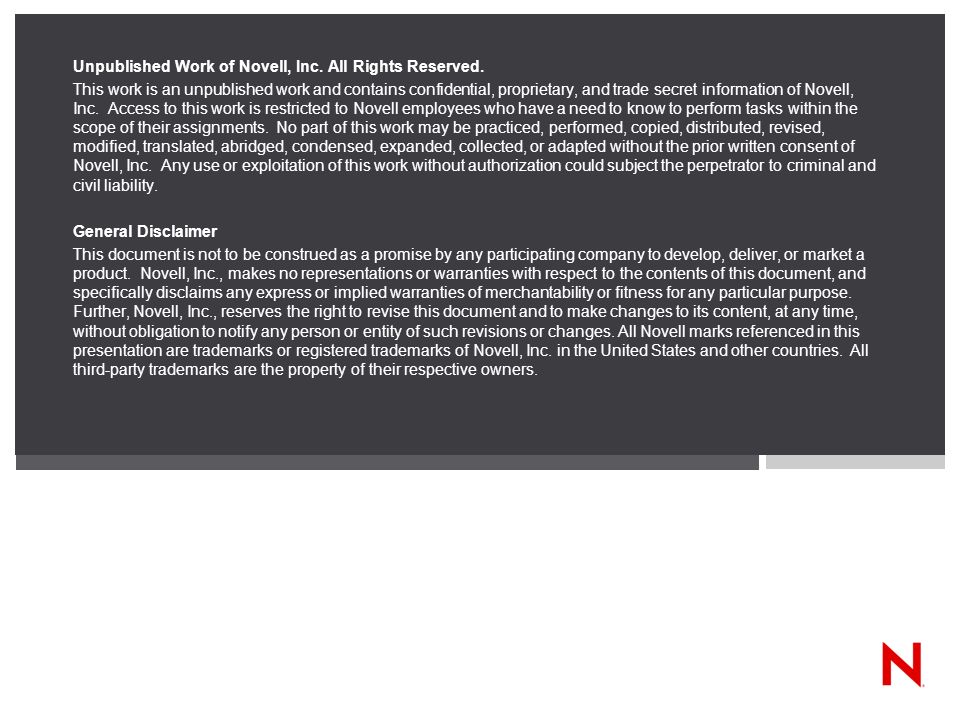

Unpublished Work of Novell, Inc. All Rights Reserved. This work is an unpublished work and contains confidential, proprietary, and trade secret information of Novell, Inc. Access to this work is restricted to Novell employees who have a need to know to perform tasks within the scope of their assignments. No part of this work may be practiced, performed, copied, distributed, revised, modified, translated, abridged, condensed, expanded, collected, or adapted without the prior written consent of Novell, Inc. Any use or exploitation of this work without authorization could subject the perpetrator to criminal and civil liability. General Disclaimer This document is not to be construed as a promise by any participating company to develop, deliver, or market a product. Novell, Inc., makes no representations or warranties with respect to the contents of this document, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, Novell, Inc., reserves the right to revise this document and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes. All Novell marks referenced in this presentation are trademarks or registered trademarks of Novell, Inc. in the United States and other countries. All third-party trademarks are the property of their respective owners.
22 Color Palette RGB 224 0 0 RED RGB 230 120 20 ORANGE RGB 98 158 31 GREEN RGB 28 130 185 BLUE RGB 60 60 65 RGB 90 90 95 RGB 204 204 205 GRAY

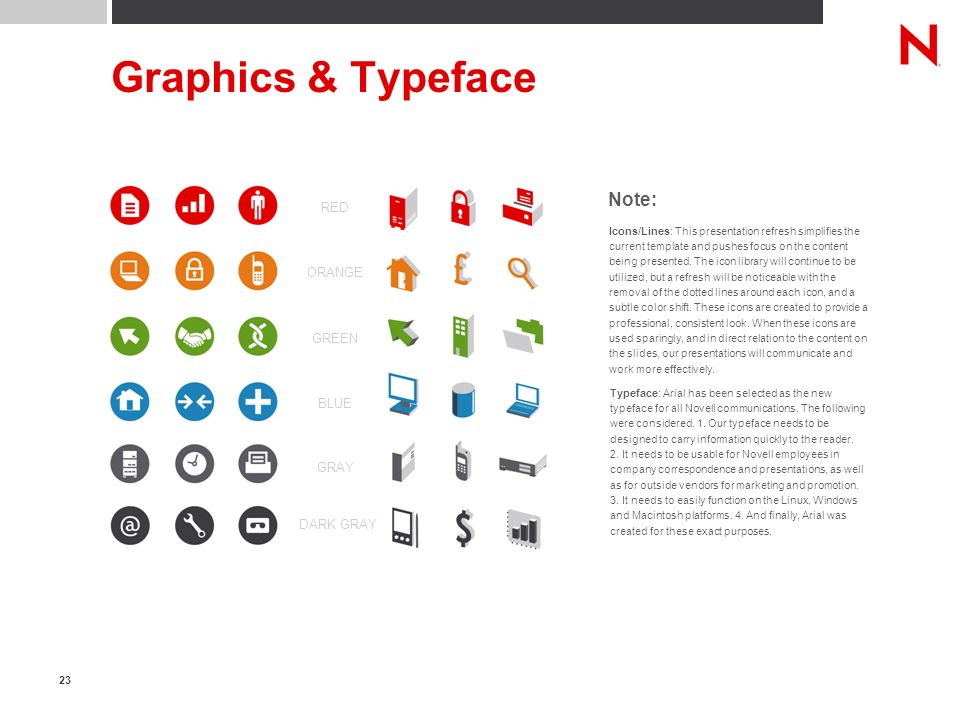

23 Graphics & Typeface RED ORANGE GREEN BLUE GRAY DARK GRAY Icons/Lines: This presentation refresh simplifies the current template and pushes focus on the content being presented. The icon library will continue to be utilized, but a refresh will be noticeable with the removal of the dotted lines around each icon, and a subtle color shift. These icons are created to provide a professional, consistent look. When these icons are used sparingly, and in direct relation to the content on the slides, our presentations will communicate and work more effectively. Note: Typeface: Arial has been selected as the new typeface for all Novell communications. The following were considered. 1. Our typeface needs to be designed to carry information quickly to the reader. 2. It needs to be usable for Novell employees in company correspondence and presentations, as well as for outside vendors for marketing and promotion. 3. It needs to easily function on the Linux, Windows and Macintosh platforms. 4. And finally, Arial was created for these exact purposes.
