- Verilog Tutorial Part - 1 Digital System Design-II (CSEB312)

Similar presentations


Presentation on theme: "- Verilog Tutorial Part - 1 Digital System Design-II (CSEB312)"— Presentation transcript:

1 - Verilog Tutorial Part - 1 Digital System Design-II (CSEB312)

2 - Topics Introduction Combinational Logic Structural Modeling Behavioral Modeling

3 - Introduction Hardware description language (HDL): allows designer to specify logic function only. Then a computer-aided design (CAD) tool produces the optimized gates. Most commercial designs built using HDLs Two leading HDLs: –Verilog developed in 1984 by Gateway Design Automation became an IEEE standard (1364) in 1995 –VHDL Developed in 1981 by the Department of Defense Became an IEEE standard (1076) in 1987

4 - HDL to Gates Simulation –Input values are applied to the circuit –Outputs checked for correctness –Millions of dollars saved by debugging in simulation instead of hardware Synthesis –Transforms HDL code into a netlist describing the hardware (i.e., a list of gates and the wires connecting them) IMPORTANT: When describing circuits using an HDL, its critical to think of the hardware the code should produce.

5 - Verilog Modules Module is a block of circuit that performs a special function. Simple functions are and, or, etc. Somewhat larger functions/operations are multiplexers, adders, multipliers, etc. Modules have inputs and outputs

6 - Verilog Modules Two types of Modules: –Behavioral: describe what a module does –Structural: describe how a module is built from simpler modules

7 - A Verilog Module

8 - Behavioral Verilog Example module example(input a, b, c, output y); assign y = ~a & ~b & ~c | a & ~b & ~c | a & ~b & c; endmodule Verilog:

9 - Behavioral Verilog Simulation module example(a, b, c, y); input a, b, c; output y; assign y = ~a & ~b & ~c | a & ~b & ~c | a & ~b & c; endmodule Verilog:

10 In class practice -

11 In class practice Write code for this circuit: -

12 Verilog Stimuli module TB(); reg outA, outB, clk; // DUT input //wire Gout; // DUT output // once only initial begin #0 outA = 1'b0; outB = 1'b0; #20 outA = 1'b0; outB = 1'b1; #20 outA = 1'b1; outB = 1'b0; #20 outA = 1'b1; outB = 1'b1; #20 outA = 1'b0; outB = 1'b0; end // clock generator initial begin clk = 1'b0; forever begin #15 clk = 1'b0; #15 clk = 1'b1; end endmodule

13 Practice question -

14 Behavioral Verilog Implementation module comb_circ(a, b, c, y); input a, b, c; output y; assign y = ~a & ~b & ~c | a & ~b & ~c | a & ~b & c; endmodule Circuit: Verilog:

15 - Port Declaration All ports must be declared as: input, output, or inout (A top-level module may not have a list of ports) All input/output ports are implicitly declared as wires. If an output port needs to hold a value, declare as reg. input inout output net (net) (reg OR net) reg OR net Port connection rules

16 - Behavioral & Structural Code Examples // BEHAVORAL code: A demultiplexer module demux ( D, select, y0, y1); input D, select; output y0,y1; assign y0 = (~select) & D; assign y1 = select & D; endmodule // STRUCTURAL code: A demultiplexer module demux ( D, select, y0, y1); input D, select; output y0,y1; wire a; // What is a wire? Internal nodes! More later. not g0 (a, select); and g1 (y0, D, a); and g2 (y1, D, select); endmodule D y0y0 Select y1y1 a

17 module exerc1 ( input x, y, z, u, output q ); wire w1, w2; and g0(w1, x, y, z); not g1(w2, u); or g2(a, w1, w2); endmodule -

18

19 Verilog Syntax – General Notes Verilog is case sensitive. So, reset and Reset are not the same signal. Verilog does not allow you to start signal or module names with numbers. So, for example, 2mux is an invalid name. Verilog ignores whitespaces. Comments come in single-line and multi-line varieties: –// single line comment –/* multiline comment */ Avoid syntax pitfalls: –Use pairs of module and endmodule. –Use pairs of begin and end. –Type module(), not Module(). –Add ; symbol for the end of every statement. –Ensure a match between the number of port or the number of pins of some buses.

20 - Bitwise Operators module gates(a, b, clk, sel, u, v, w, x, y); input [3:0] a, b; // each bus is 4 wires input clk; // one-bit input input [1:0] sel; // sel is 2-bit input output [3:0] u, v, w, x, y; /* Five different two-input logic gates acting on 4 bit buses */ assign u = a & b; // AND assign v = a | b; // OR assign w = a ^ b; // XOR assign x = ~(a & b); // NAND assign y = ~(a | b); // NOR endmodule

21 -

22 Reduction Operators module and8(a,y); input [7:0]a; output y; assign y = &a; // &a is much easier to write than the following: // assign y = a[7] & a[6] & a[5] & a[4] & // a[3] & a[2] & a[1] & a[0]; endmodule

23 - Conditional Assignment ? : is also called a ternary operator because it operates on 3 inputs: s, d1, and d0. module mux2(d0, d1, s, y); input [3:0] d0, d1; input s; output [3:0] y); assign y = s ? d1 : d0; // y = s ? True : False // if s is true, y = d1 // else y = d0 endmodule

24 - Internal Variables (wires) module fulladder(a, b, cin, s, cout); input a, b, cin; output s, cout; wire p, g; // internal nodes assign p = a ^ b; assign g = a & b; assign s = p ^ cin; assign cout = g | (p & cin); endmodule

25 - Operator Precedence ~ NOT *, /, %mult, div, mod +, -add, sub >Logical shift >>arithmetic shift, >=comparison ==, !=equal, not equal &, ~&AND, NAND ^, ~^XOR, XNOR |, ~|OR, XOR ?: ternary operator Defines the order of operations Highest Lowest y = enb ? Tru : Fls

26 - Numbers Number# BitsBaseDecimal Equivalent Stored 3b1013binary5101 b11unsizedbinary300…0011 8b118binary b1010_10118binary d63decimal6110 6o426octal hAB8hexadecimal Unsizeddecimal4200… Format: N'Bvalue N = number of bits, B = base N'B is optional but recommended (default is decimal) Caution: Ensure proper number of bits while assigning values. For example, the result is not right, if 2d12 is assigned to 3-bit bus; need 4 bits in this case.

27 - Modeling Hierarchy module and3(a, b, c, y); input a, b, c; output y; assign y = a & b & c; endmodule module inv(a, y); input a; output y; assign y = ~a; endmodule module nand3(a, b, c, y); input a, b, c; output y; wire out; // internal signal and3 andgate(a, b, c, out); // instance of and3 inv inverter(out, y); // instance of inverter endmodule

28 - Modeling Hierarchy – Example Using the same module many times Example: Constructing 4-bit adder using four one-bit adders AAAA a1a0a2a3b1b0b2b3 s1s0s2s3s4 c3c2c1c0 Adder a [3:0] b [3:0] S [4:0] c0

29 - Modeling Hierarchy – Example (contd.) // One bit adder (behavioral) module Adder(a, b, carryin, result, carryout); input a, b, carryin; output result, carryout; wire a, b, result, carryout; assign result = a ^ b ^ carryin; assign carryout = (a & b) | (a & carryin) | (b & carryin); endmodule A xy sum coutcin

30 - Modeling Hierarchy – Example (contd.) // 4-bit adder using 4 one-bit adders module Adder4(x, y, cin, sum); input [3:0] x, y; input cin; output [4:0] sum; wire c[3:1]; // Instantiate FOUR one-bit adders Adder A1(x[0], y[0], cin, sum[0], c[1]); Adder A2(x[1], y[1], c[1], sum[1], c[2]); Adder A3(x[2], y[2], c[2], sum[2], c[3]); Adder A4(x[3], y[3], c[3], sum[3], sum[4]); endmodule AAAA a1a0a2a3b1b0b2b3 s1s0s2s3 s4 c3c2c1 cin Adder(a, b, carryin, result, carryout);

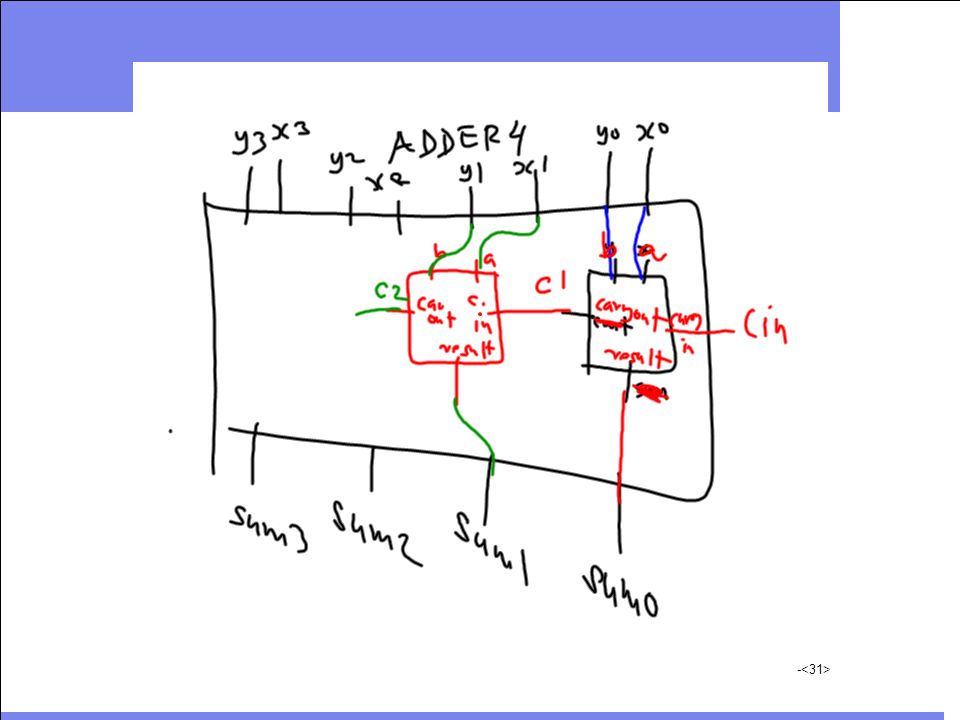

31 -

32 Bit Manipulations: Example 1 assign y = { a[2:1], { 3{b[0]} }, a[0], 6b100_010 }; // if y is a 12-bit signal, the above statement produces: y = a[2] a[1] b[0] b[0] b[0] a[0] // underscores (_) are used for formatting only to make it easier to read. Verilog ignores them.

33 - Bit Manipulations: Example 2 module mux2_8(input [7:0] d0, d1, input s, output [7:0] y); mux2 lsbmux(d0[3:0], d1[3:0], s, y[3:0]); mux2 msbmux(d0[7:4], d1[7:4], s, y[7:4]); endmodule Circuit: Verilog:

34 - Z: Floating Output module tristate(input [3:0] a, input en, output [3:0] y); assign y = en ? a : 4'bz; endmodule Circuit: Verilog:

35 - Delays module example(input a, b, c, output y); wire ab, bb, cb, n1, n2, n3; assign #1 {ab, bb, cb} = ~{a, b, c}; assign #2 n1 = ab & bb & cb; assign #2 n2 = a & bb & cb; assign #2 n3 = a & bb & c; assign #4 y = n1 | n2 | n3; endmodule

36 - Delays module example(input a, b, c, output y); wire ab, bb, cb, n1, n2, n3; assign #1 {ab, bb, cb} = ~{a, b, c } ; assign #2 n1 = ab & bb & cb; assign #2 n2 = a & bb & cb; assign #2 n3 = a & bb & c; assign #4 y = n1 | n2 | n3; endmodule HW1 due next week! Quiz-1 next week.
