1. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Ashish Mishra Automation Lifecycle of Mobile Applications

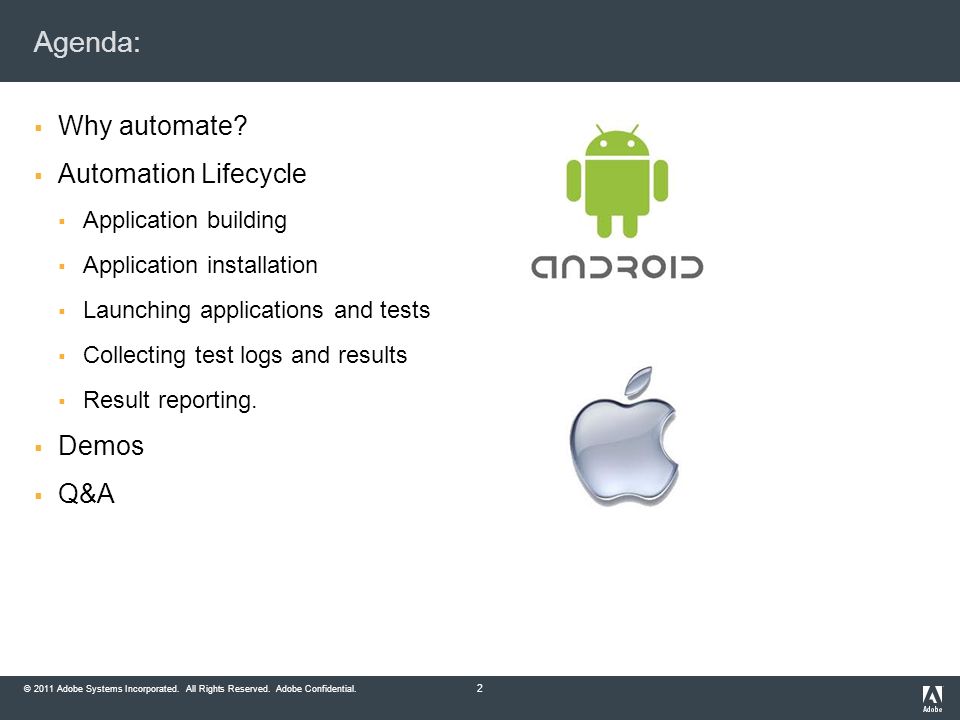

2. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Agenda: Why automate? Automation Lifecycle Application building Application installation Launching applications and tests Collecting test logs and results Result reporting. Demos Q&A 2

3. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Why Automate: Multiple Phone models Multiple Operating systems Multiple Application versions Multiple Carriers Device specific features Complex API testing Large number of test cases 3

4. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: 4

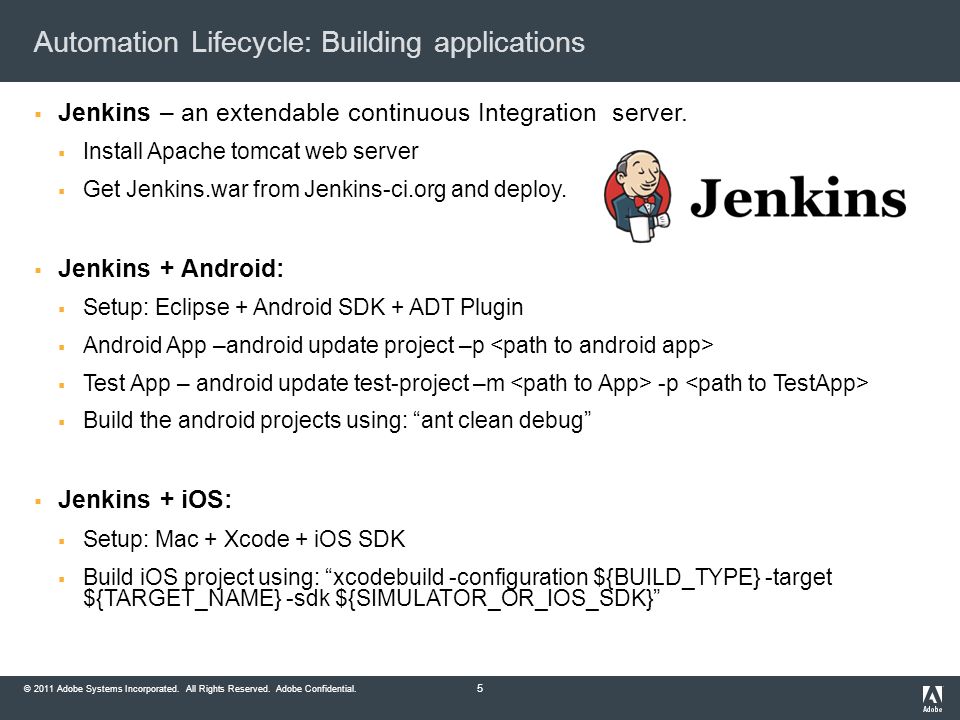

5. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: Building applications 5 Jenkins – an extendable continuous Integration server. Install Apache tomcat web server Get Jenkins.war from Jenkins-ci.org and deploy. Jenkins + Android: Setup: Eclipse + Android SDK + ADT Plugin Android App –android update project –p Test App – android update test-project –m -p Build the android projects using: ant clean debug Jenkins + iOS: Setup: Mac + Xcode + iOS SDK Build iOS project using: xcodebuild -configuration ${BUILD_TYPE} -target ${TARGET_NAME} -sdk ${SIMULATOR_OR_IOS_SDK}

6. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: Installing Applications Android: Android SDK provides adb which can be used to install/uninstall applications from simulator/devices. adb [-e | –d ] install adb [-e | –d ] uninstall Non-Jailbroken iOS devices: Get sources from libimobiledevice.org and compile to create ideviceinstaller This can be used to install/uninstall IPAs to any iOS device from command line. Jailbroken iOS devices: Install SSH server from Cydia App store. Unzip IPA, modify Info.plist file to register for URL handler and copy inside device. 6

7. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: Running Applications and launching tests Android: Applications can be launched from command line in emulators/devices using: adb shell am start –n com.google.android.contacts/.ContactsActivity –e Jailbroken iOS device: Application need to register as an URI handler. Install Erica utilties from Cydia app store. Ssh into the device and use following command : uiopen testapp:// Non-Jailbroken iOS device: The only option of launching apps from command line is using: $ instruments -t /Developer/Platforms/iPhoneOS.platform/Developer/Library/Instruments/PlugIn s/AutomationInstrument.bundle/Contents/Resources/Automation.tracetemplate /.app -e UIASCRIPT 7

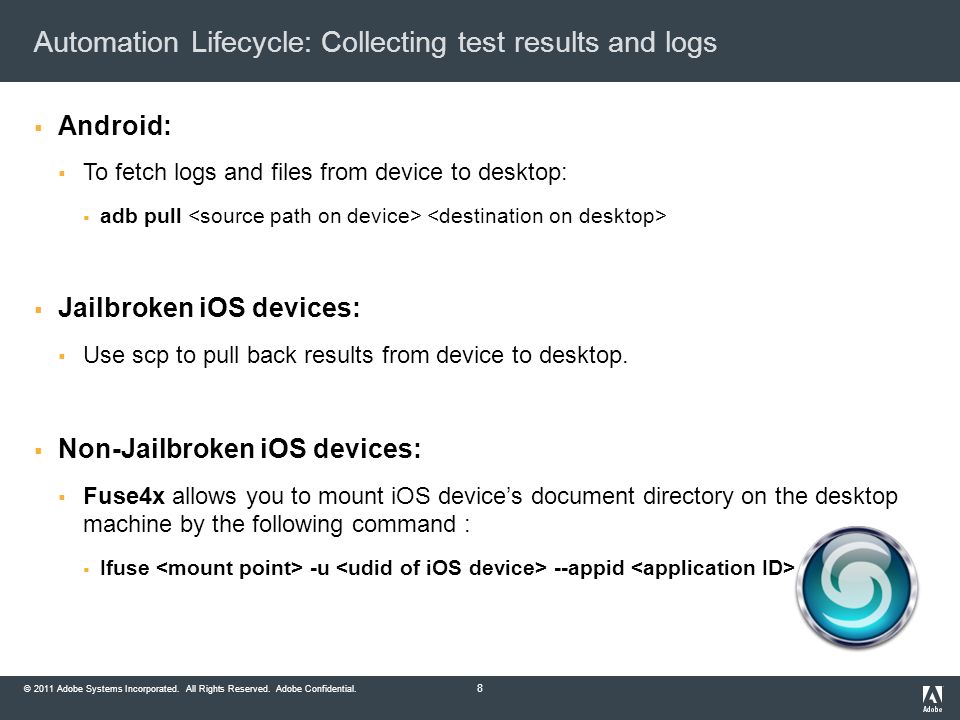

8. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: Collecting test results and logs Android: To fetch logs and files from device to desktop: adb pull Jailbroken iOS devices: Use scp to pull back results from device to desktop. Non-Jailbroken iOS devices: Fuse4x allows you to mount iOS devices document directory on the desktop machine by the following command : Ifuse -u --appid 8

9. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Automation Lifecycle: Test result reporting Jenkins provides in-built support for Junit test result xml reports. Supply the path of test result in junit format in the jenkins job : Graphs, trends and drill down options are also available. Jenkins can be configured to preserve selective set or a predefined number of test results. 9

10. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Demos: Automation lifecycle of Android and iOS Applications 10

11. © 2011 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential. Thank You 11
