1 Government Data Integration หลักสูตรเบื้องต้นREST

2 วัตถุประสงค์ เข้าใจสถาปัตยกรรม SOA เข้าใจ Web Services การอ่านข้อมูลจากหน้าเว็บ พัฒนา Web Services แบบ REST 2

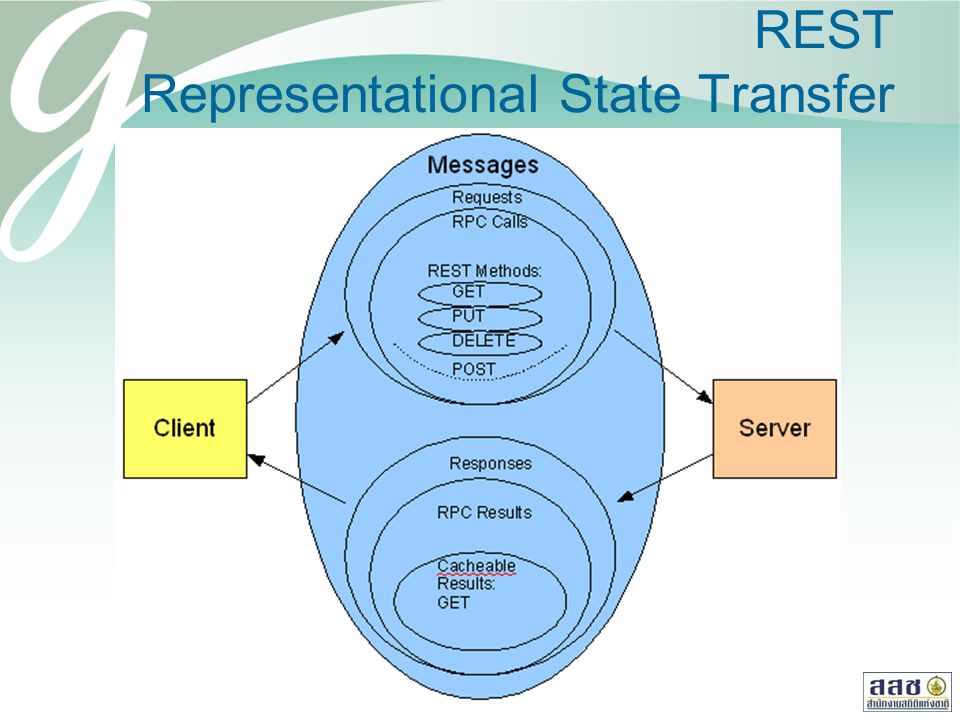

3 REST Representational State Transfer 3

4 API Directory ectory 4

5 Basic HTML 5

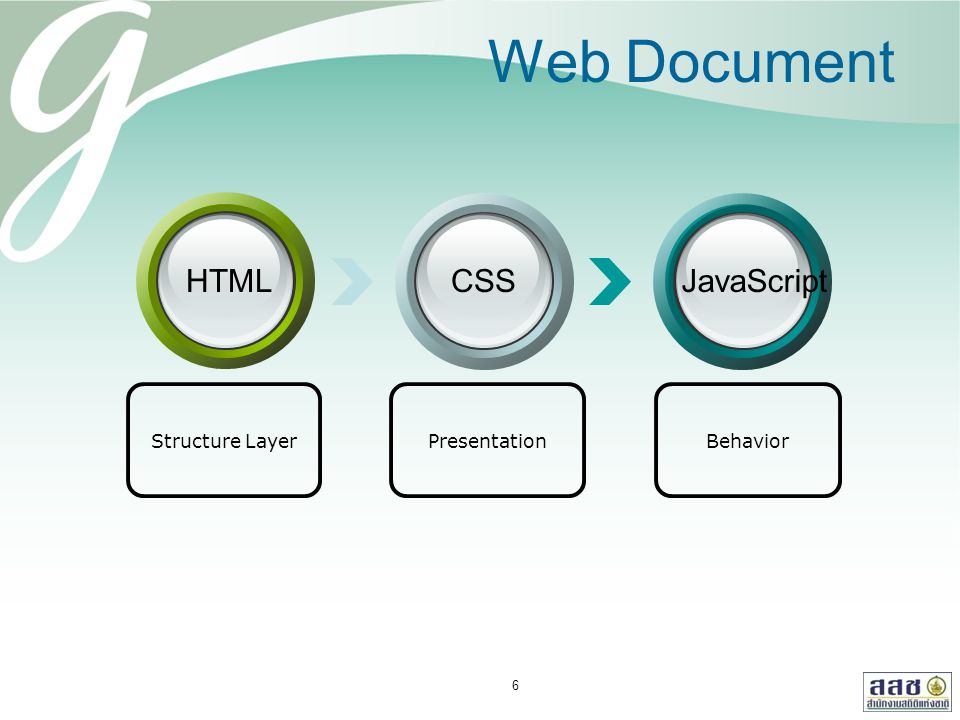

6 Web Document PresentationStructure LayerBehavior HTMLCSSJavaScript 6

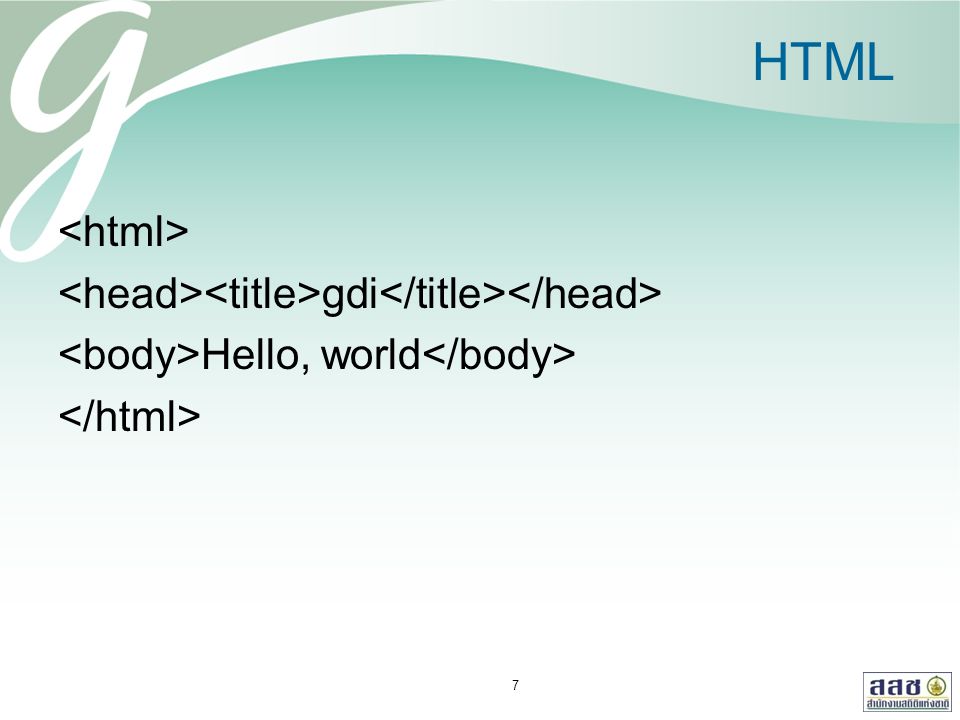

7 HTML gdi Hello, world 7

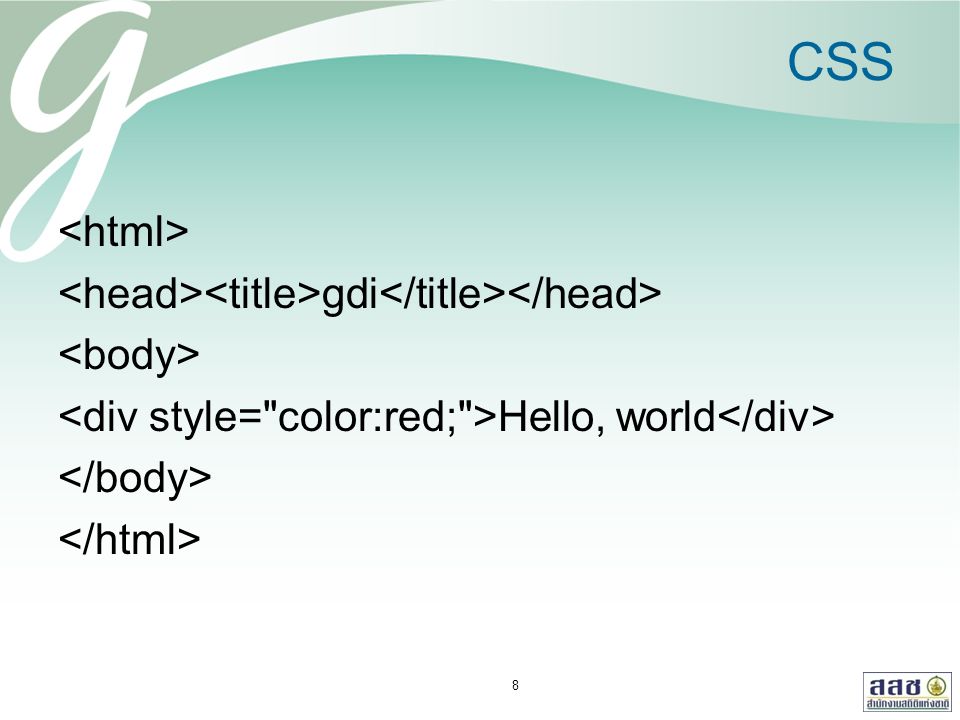

8 CSS gdi Hello, world 8

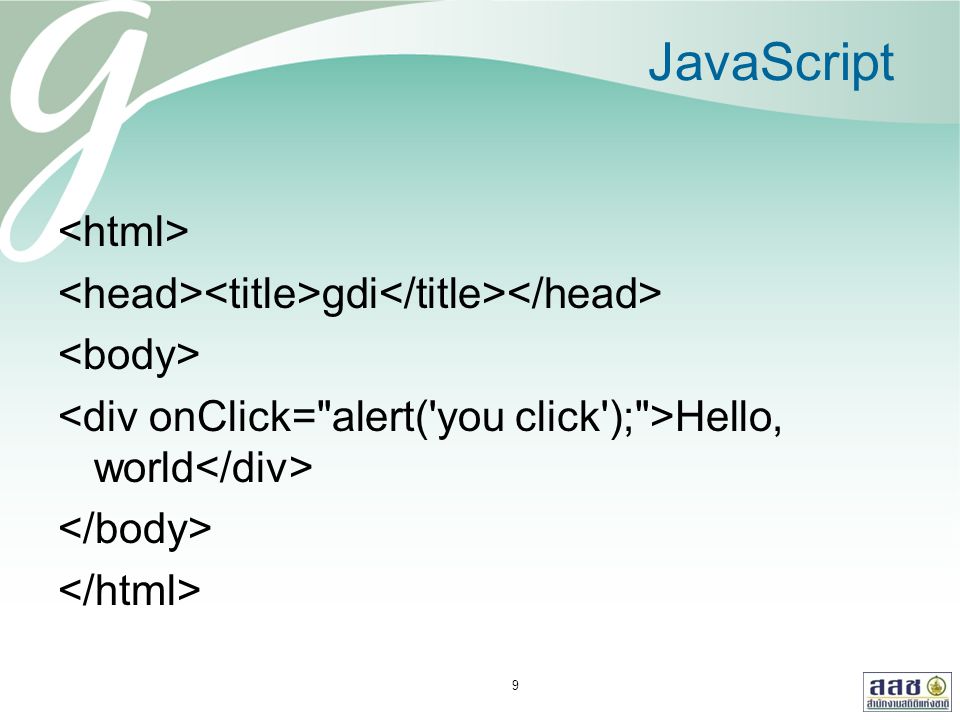

9 JavaScript gdi Hello, world 9

10 Scrapper 10

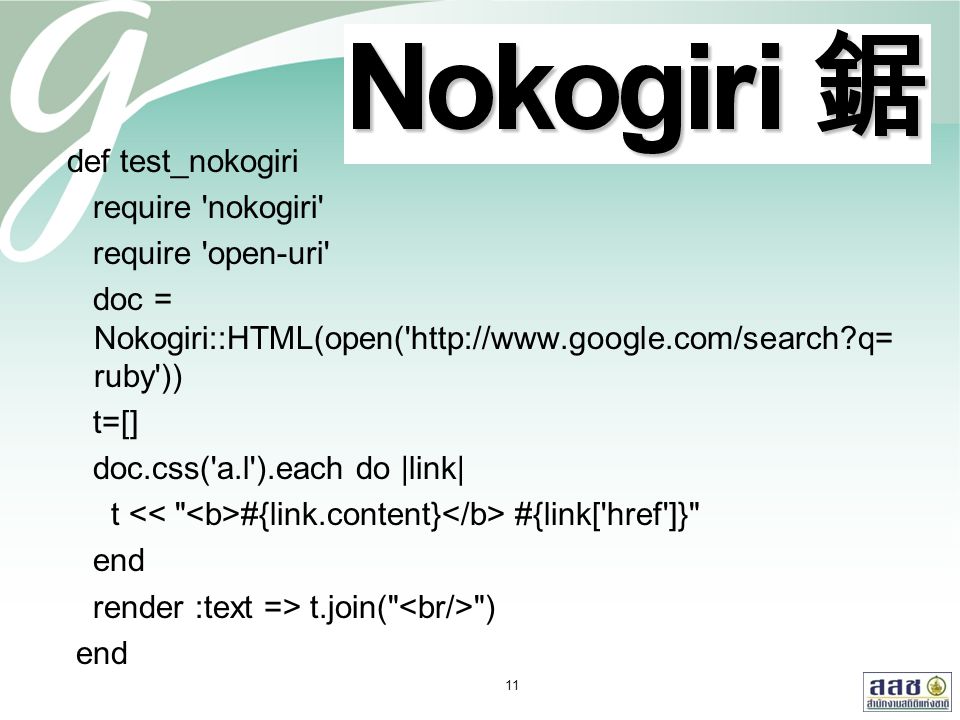

11 def test_nokogiri require 'nokogiri' require 'open-uri' doc = Nokogiri::HTML(open('http://www.google.com/search?q= ruby')) t=[] doc.css('a.l').each do |link| t #{link.content} #{link['href']}" end render :text => t.join(" ") end 11

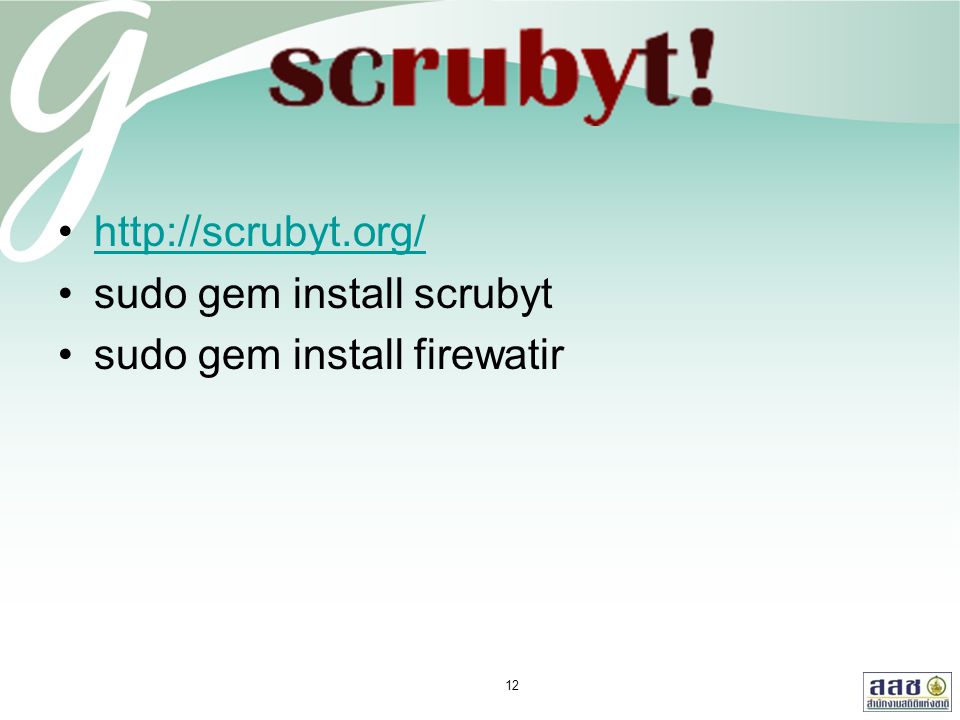

12 sudo gem install scrubyt sudo gem install firewatir 12

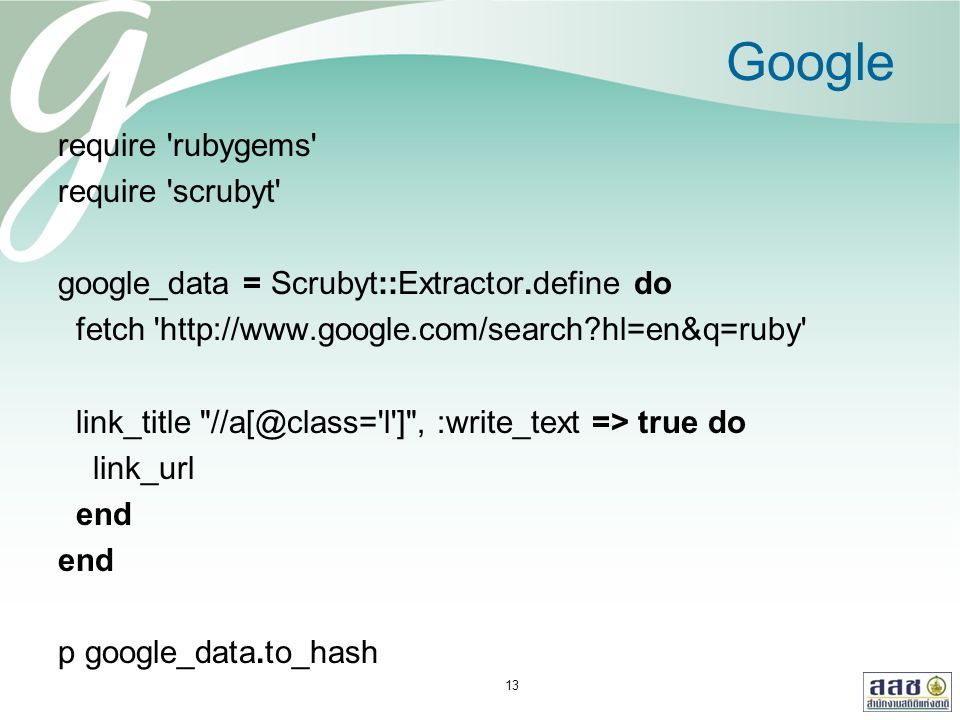

13 Google require 'rubygems' require 'scrubyt' google_data = Scrubyt::Extractor.define do fetch 'http://www.google.com/search?hl=en&q=ruby' link_title :write_text => true do link_url end p google_data.to_hash 13

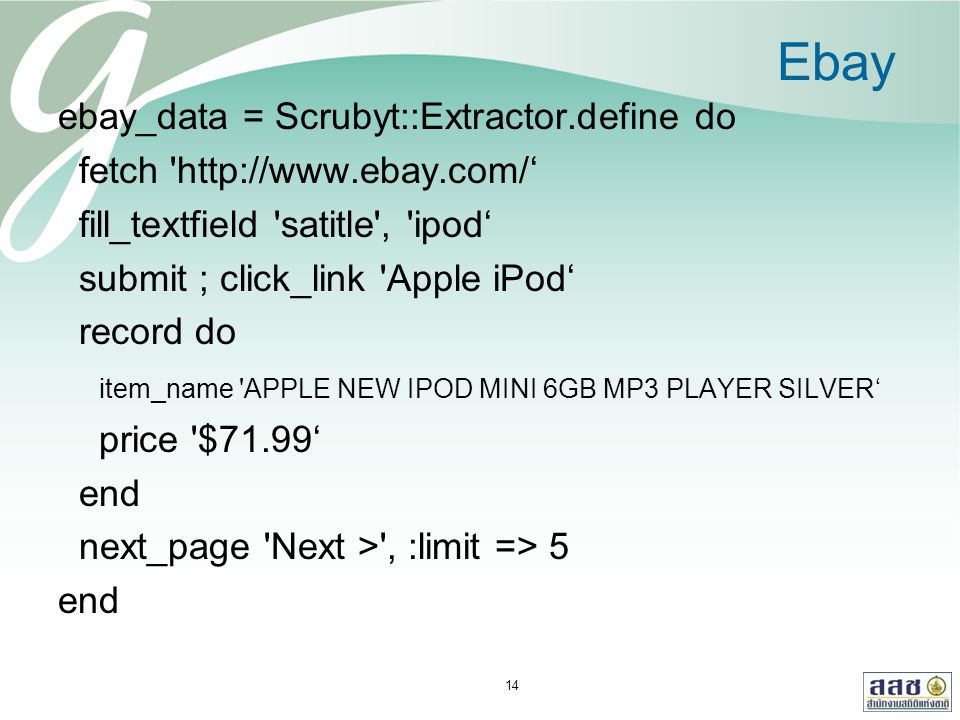

14 Ebay ebay_data = Scrubyt::Extractor.define do fetch 'http://www.ebay.com/‘ fill_textfield 'satitle', 'ipod‘ submit ; click_link 'Apple iPod‘ record do item_name 'APPLE NEW IPOD MINI 6GB MP3 PLAYER SILVER‘ price '$71.99‘ end next_page 'Next >', :limit => 5 end 14

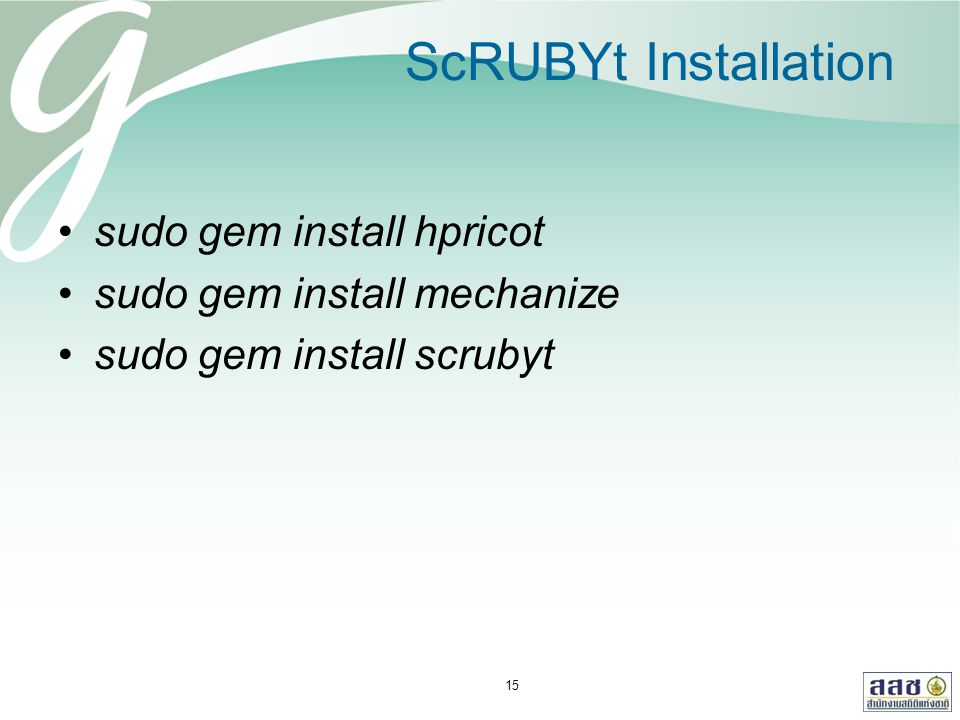

15 ScRUBYt Installation sudo gem install hpricot sudo gem install mechanize sudo gem install scrubyt 15

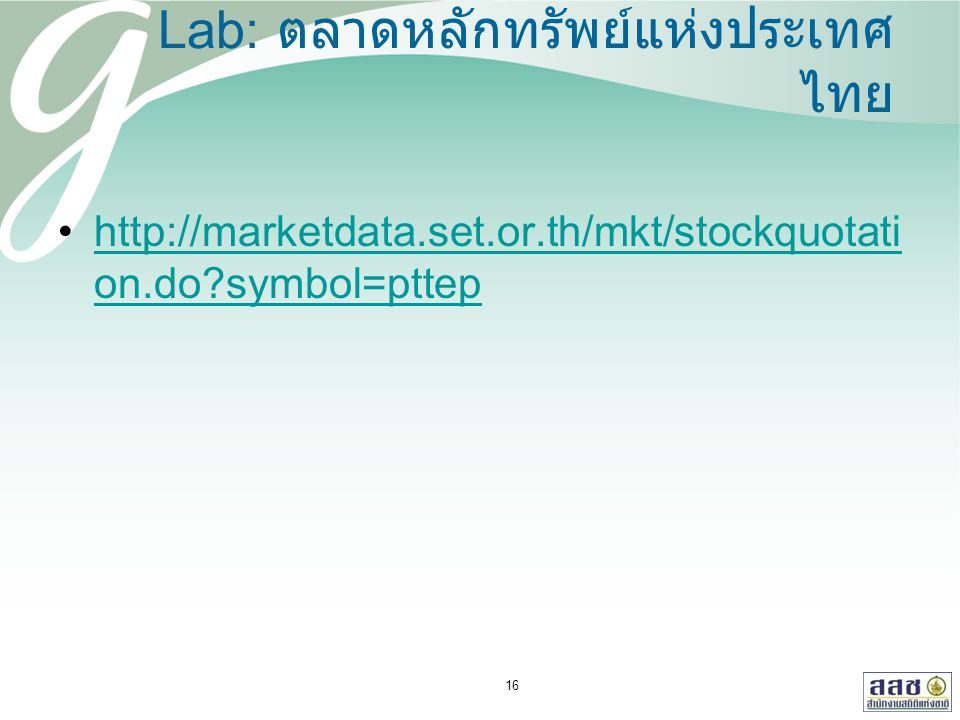

16 Lab: ตลาดหลักทรัพย์แห่งประเทศ ไทย on.do?symbol=pttephttp://marketdata.set.or.th/mkt/stockquotati on.do?symbol=pttep 16

17 Lab: Twitter สร้างเว็บเซอร์วิสที่รับชื่อผู้ใช้ Twitter แล้วส่ง ข้อมูลออกในรูปแบบ XML ชื่อ ที่อยู่ เว็บไซท์ ประวัติ ทดสอบกับชื่อเหล่านี้ songrit, iamnadia, algore, BarackObama 17

18 REST using RoR ความรู้เบื้องต้นเกี่ยวกับ Web Services 18

19 ActiveRecord#to_xml print Book.first.to_xml :only=>[...] :skip_instruct=>true :root=>'books' :indent=>4 :dasherize=>false :skip_types=>true :include=>chapters 19

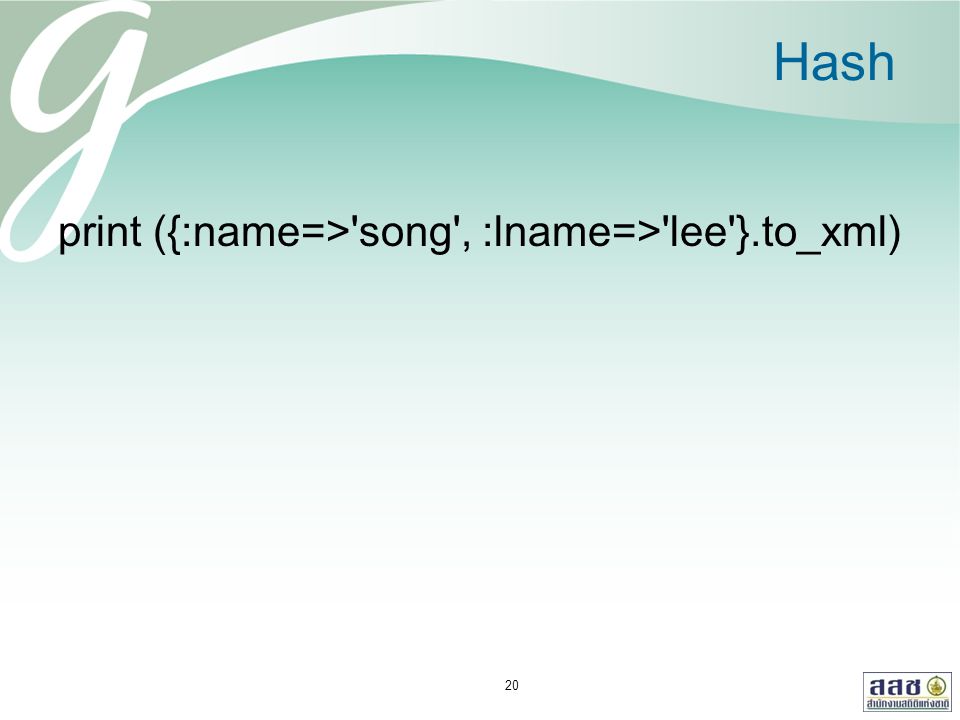

20 Hash print ({:name=>'song', :lname=>'lee'}.to_xml) 20

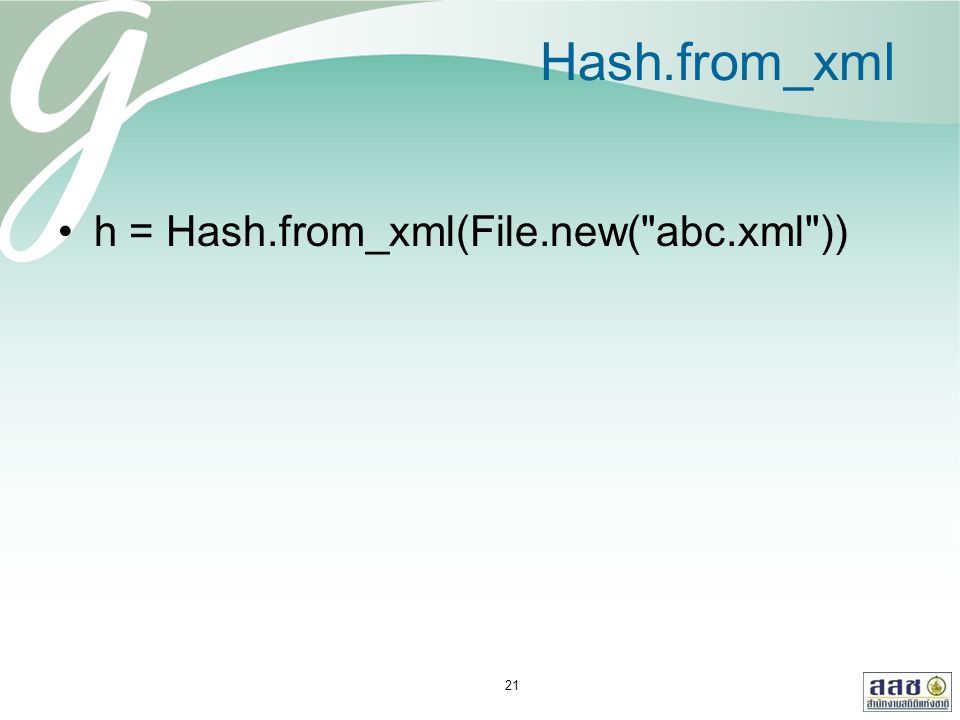

21 Hash.from_xml h = Hash.from_xml(File.new("abc.xml")) 21

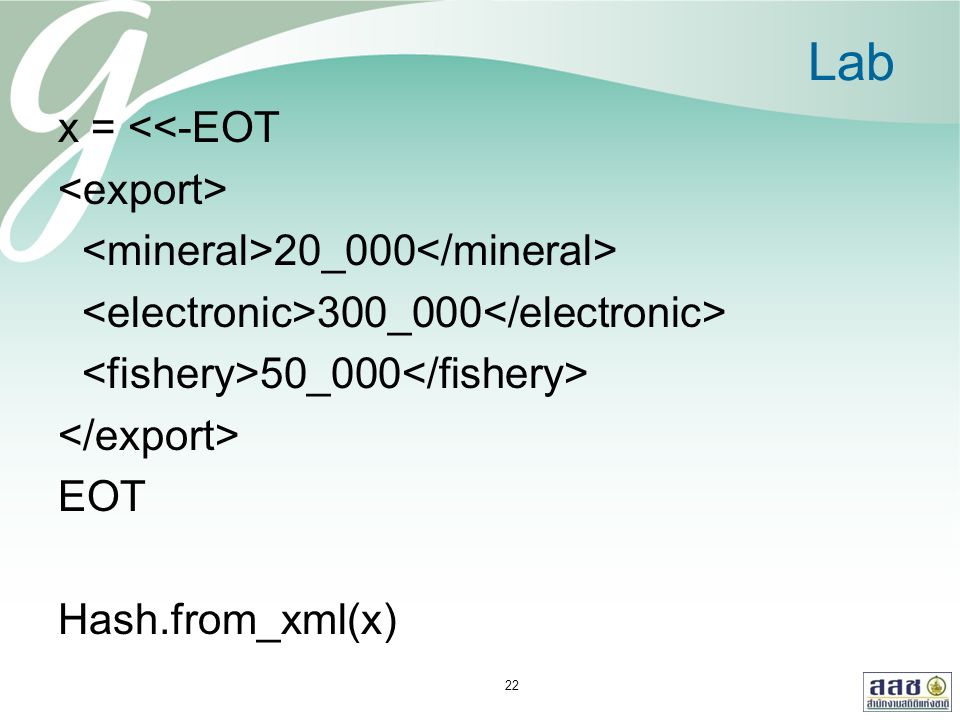

22 Lab x = <<-EOT 20_ _000 50_000 EOT Hash.from_xml(x) 22

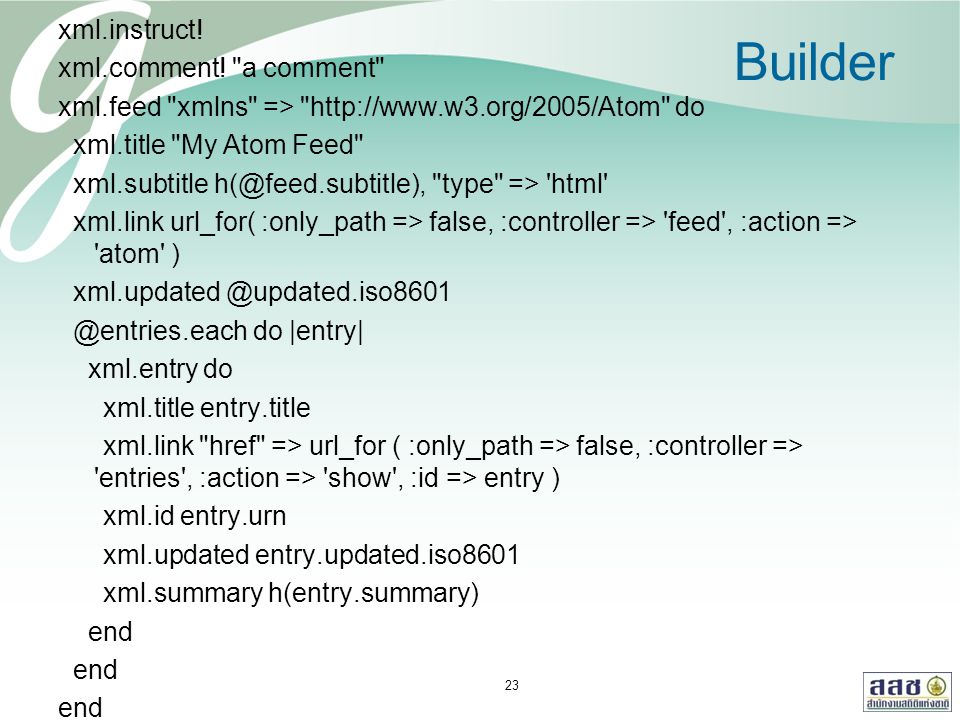

23 Builder xml.instruct! xml.comment! "a comment" xml.feed "xmlns" => "http://www.w3.org/2005/Atom" do xml.title "My Atom Feed" xml.subtitle "type" => 'html' xml.link url_for( :only_path => false, :controller => 'feed', :action => 'atom' do |entry| xml.entry do xml.title entry.title xml.link "href" => url_for ( :only_path => false, :controller => 'entries', :action => 'show', :id => entry ) xml.id entry.urn xml.updated entry.updated.iso8601 xml.summary h(entry.summary) end 23

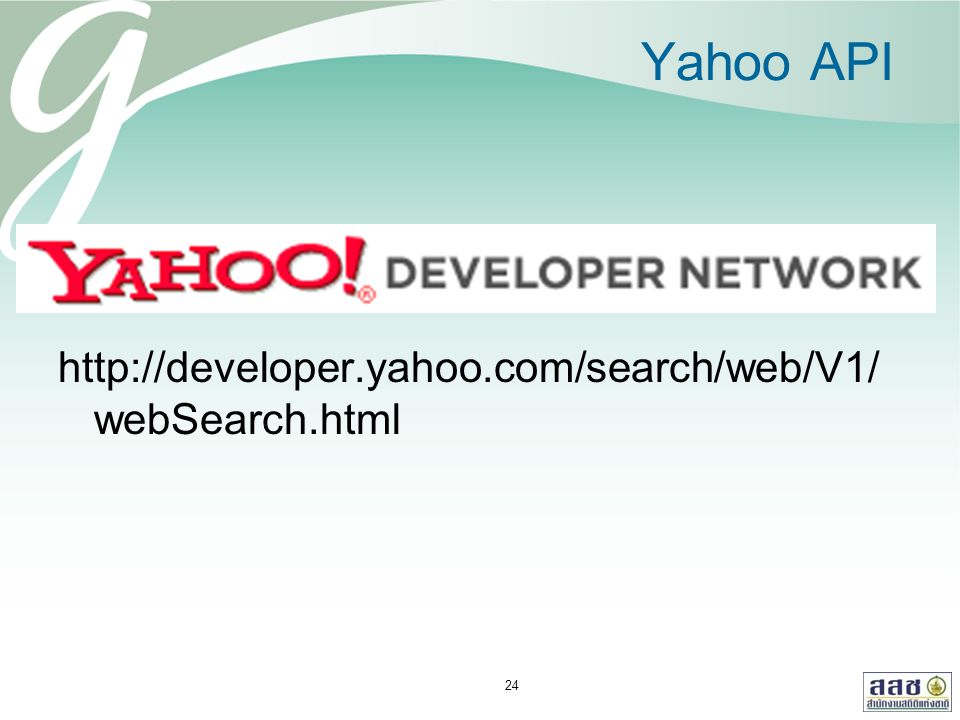

24 Yahoo API webSearch.html 24

25 25

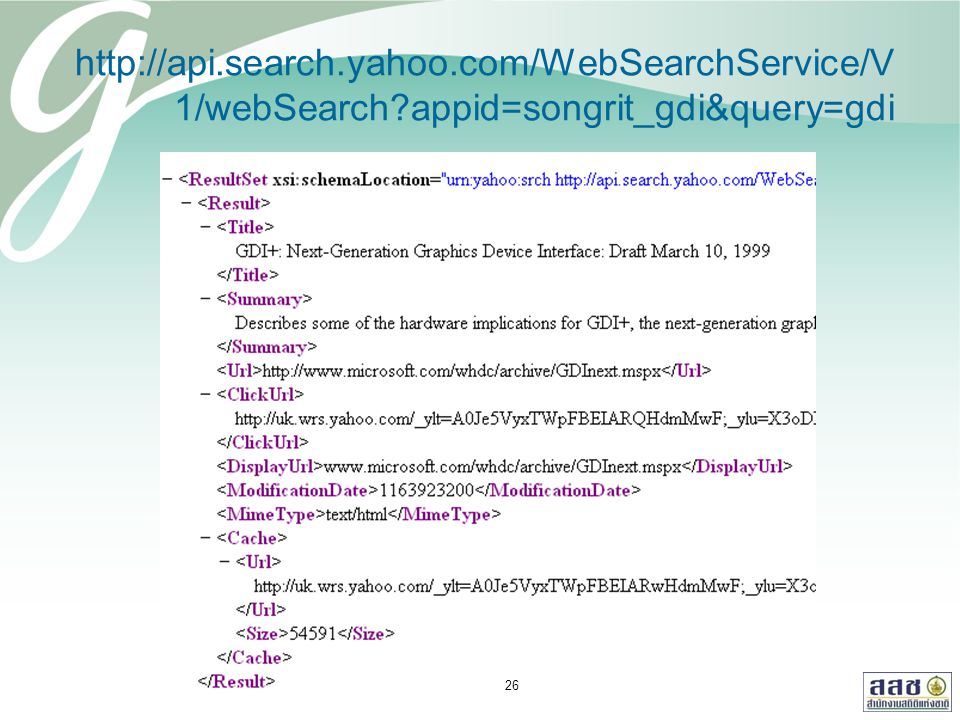

26 1/webSearch?appid=songrit_gdi&query=gdi 26

27 Controller class CodeController < ApplicationController def yahootest query = CGI.escape("SEARCH TEXT") yahookey = "songrit_gdi" url = "http://api.search.yahoo.com/" + "WebSearchService/V1/webSearch?" + "appid=#{yahookey}&query=#{query}" + "&results=3&start=1" result = = REXML::Document.new result end 27

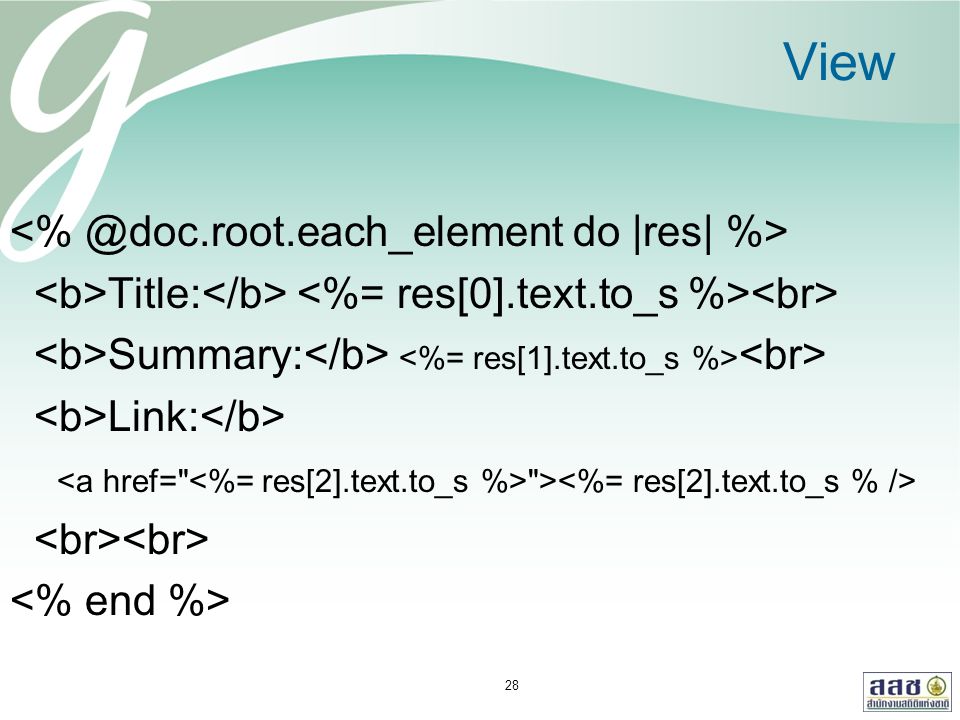

28 View Title: Summary: Link: "> 28

29 Lab my-files/rexml_lab.xmlhttp://sites.google.com/site/songrit/Home/ my-files/rexml_lab.xml 29

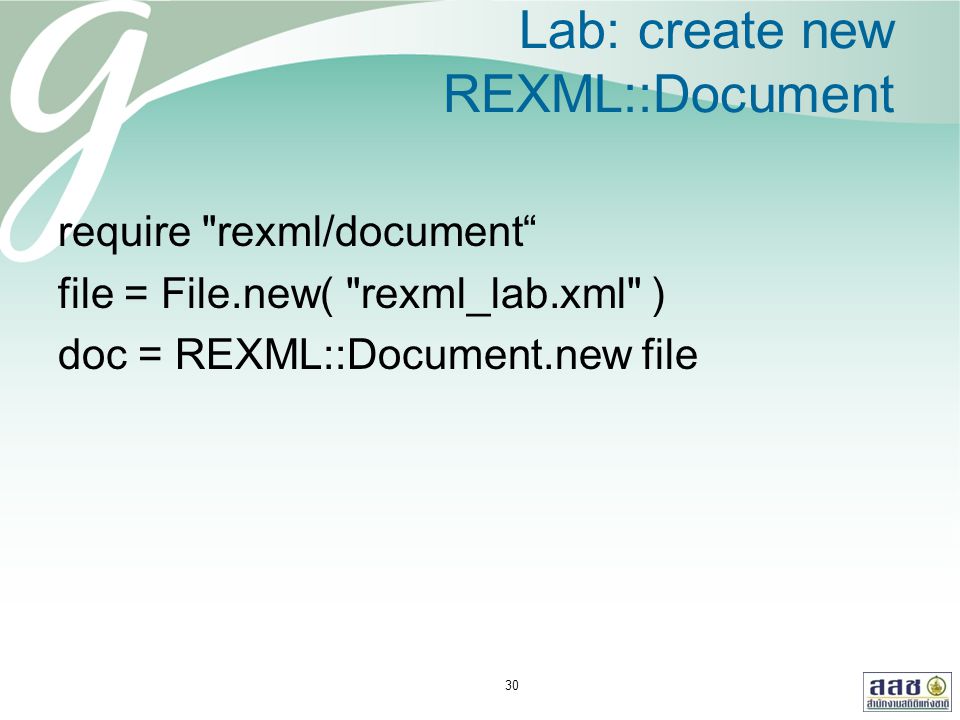

30 Lab: create new REXML::Document require "rexml/document“ file = File.new( "rexml_lab.xml" ) doc = REXML::Document.new file 30

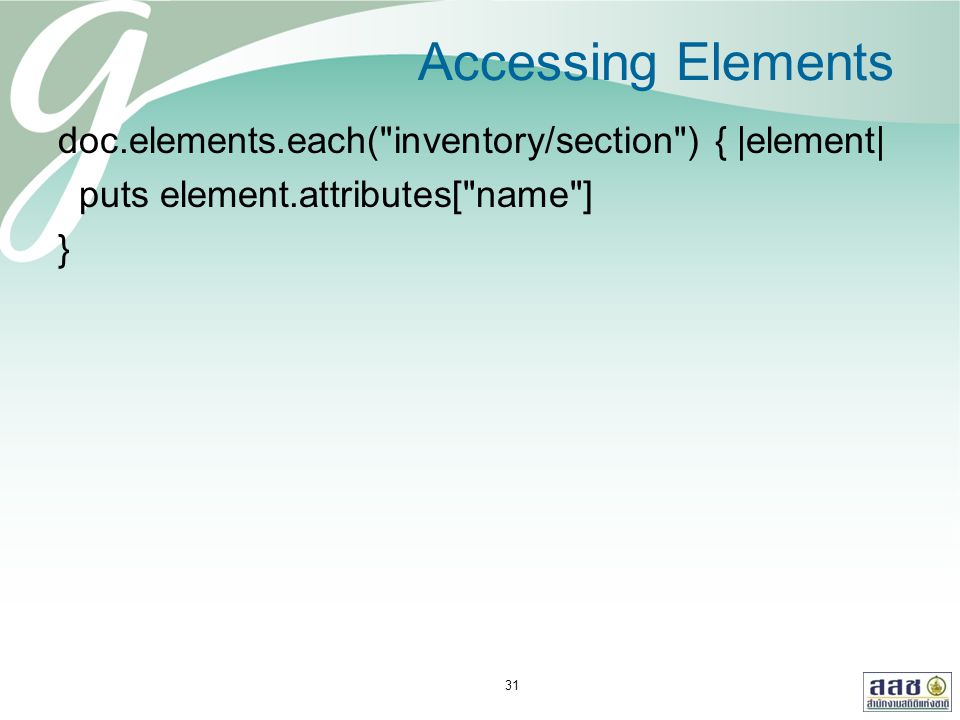

31 Accessing Elements doc.elements.each("inventory/section") { |element| puts element.attributes["name"] } 31

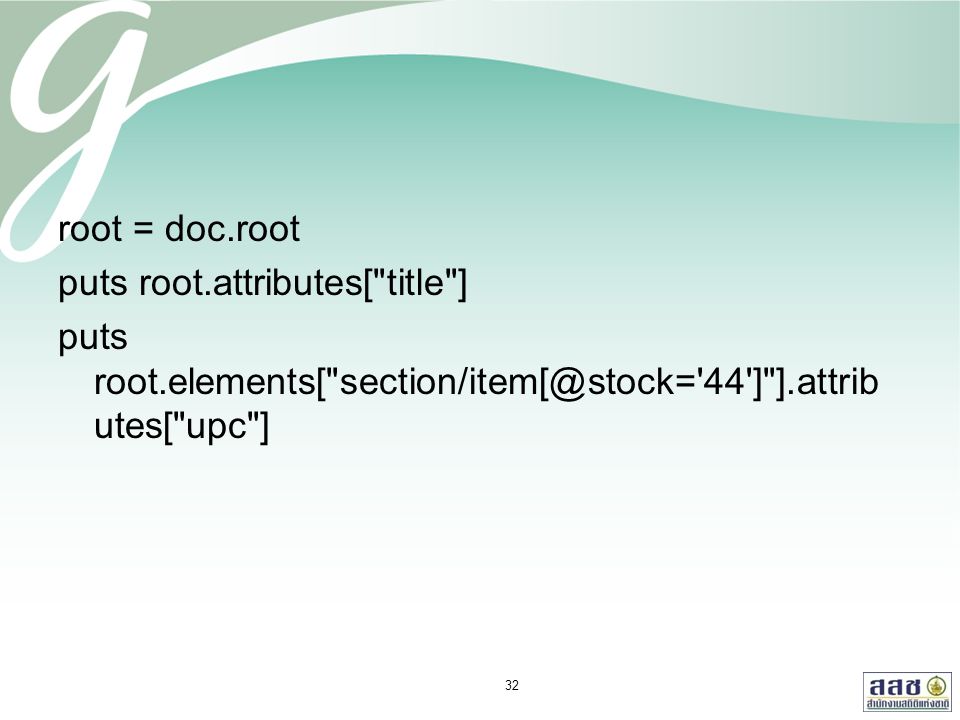

32 root = doc.root puts root.attributes["title"] puts utes["upc"] 32

33 Google Maps ruby script/plugin install git://github.com/joergbattermann/gmaps_o n_rails.git signup at html 33

34 environment.rb localhost:3000 GOOGLE_APPLICATION_ID = "ABQIAAAA3HdfrnxFAPWyY- aiJUxmqRTJQa0g3IQ9GZqIMmInSLzwtG DKaBQ0KYLwBEKSM7F9gCevcsIf6WPuI Q" 34

35 View <% map = GoogleMap.new map.markers << GoogleMapMarker.new( :map => map, :lat => , :lng => , :html => 'My House') %> 35

36 36

37 Google Map V3 37

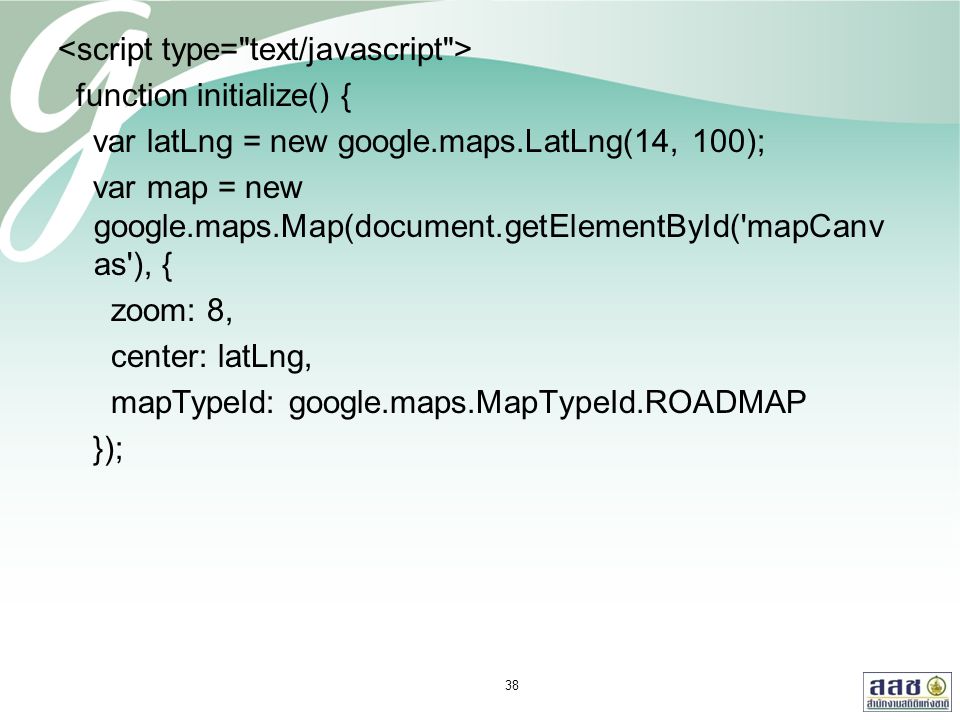

38 function initialize() { var latLng = new google.maps.LatLng(14, 100); var map = new google.maps.Map(document.getElementById('mapCanv as'), { zoom: 8, center: latLng, mapTypeId: google.maps.MapTypeId.ROADMAP }); 38

39 var marker = new google.maps.Marker({ position: latLng, title: 'Point A', map: map, draggable: true }); } google.maps.event.addDomListener(wind ow, 'load', initialize); 39

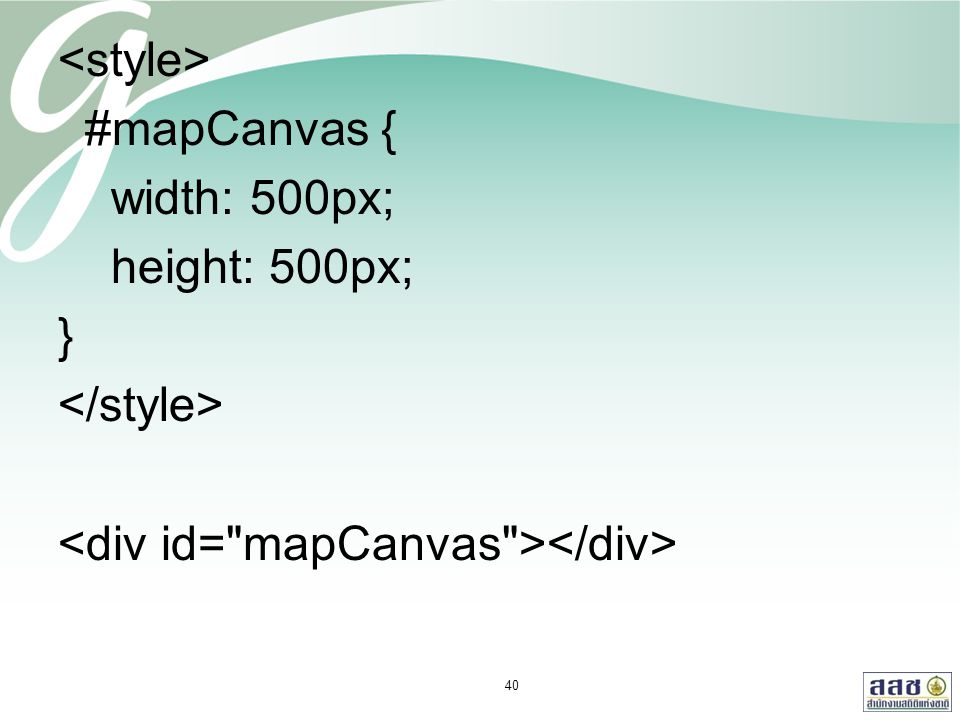

40 #mapCanvas { width: 500px; height: 500px; } 40

41 Lab All districts in Nontaburi 41

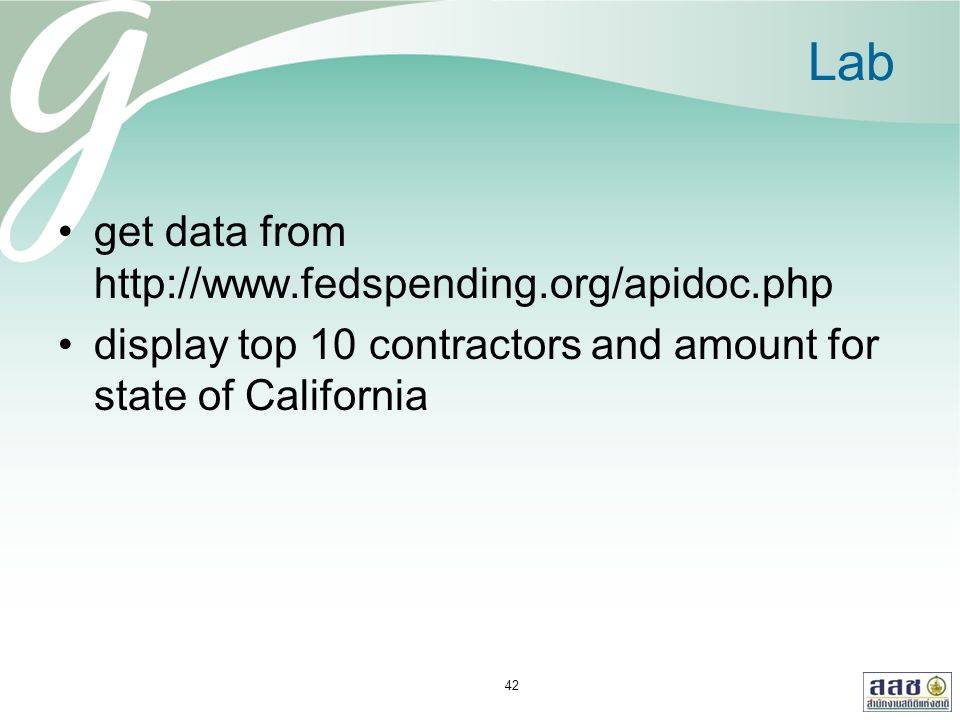

42 Lab get data from display top 10 contractors and amount for state of California 42

43 StatXML 43
