Chapter 6 มุมมองใน 2 มิติ (2-D Viewing). 6-1 The Two-Dimensional Viewing Pipeline 6-2 The Clipping Window 6-3 Normalization and Viewport Transformations.

Similar presentations


Presentation on theme: "Chapter 6 มุมมองใน 2 มิติ (2-D Viewing). 6-1 The Two-Dimensional Viewing Pipeline 6-2 The Clipping Window 6-3 Normalization and Viewport Transformations."— Presentation transcript:

1 Chapter 6 มุมมองใน 2 มิติ (2-D Viewing)

2 6-1 The Two-Dimensional Viewing Pipeline 6-2 The Clipping Window 6-3 Normalization and Viewport Transformations 6-4 OpenGL Two-Dimensional Viewing Functions 6-5 Clipping Algorithms 6-6 Two-Dimensional Point Clipping 6-7 Two-Dimensional Line Clipping 6-8 Polygon Fill-Area Clipping 6-9 Curve Clipping 6-10 Text Clipping 6-11 Summary เนื้อหาในบทนี้

3 6-1 The Two-Dimensional Viewing Pipeline World coordinate

4 Clipping window xw max xw min yw min yw max World coordinate

5 A procedure that identifies those portions of a picture that lie inside a specified region A procedure that identifies those portions of a picture that lie inside a specified region The specified region is called Clip Window (usually a rectangle) The specified region is called Clip Window (usually a rectangle) Types of clipping: Point Clipping, Line Clipping, Area Clipping, Curve Clipping, Text Clipping Types of clipping: Point Clipping, Line Clipping, Area Clipping, Curve Clipping, Text Clipping Clipping

6 A section of a two-dimensional scene that is selected for display is called a clipping window, because all part of the scene outside the selected section are clipped out. The only part of the scene that show up on the screen is what is inside the clipping window.

7 Objects inside the clipping window are mapped to the viewport, and it is the viewport that is then positioned within the display window. The clipping window selects what we want to see; the viewport indicates where it is to be viewed on the output device.

8 Clipping window xw max xw min yw min yw max World coordinate Viewport xv max xv min yv min yv max Viewport coordinate

9 By changing the position of a viewport, we can view objects at different positions on the display area of an output device. By varying the size of viewport, we can change the size and proportions of displayed objects.

10 We achieve zooming effects by successively mapping different-sized clipping windows onto a fixed-size viewport.

11 xw max xw min yw min yw max xv max xv min yv min yv max different-sized Clipping window xw max xw min yw min yw max fixed-size Viewport xv max xv min yv min yv max Zoom different-sized Clipping window fixed-size Viewport

12 xw max xw min yw min yw max xv max xv min yv min yv max different-sized Clipping window xw max xw min yw min yw max fixed-size Viewport xv max xv min yv min yv max Zoom different-sized Clipping window fixed-size Viewport

13 Panning effects are achieved by moving a fixed-size clipping window across the various objects in a scene.

14 xw max xw min yw min yw max xv max xv min yv min yv max different-position Clipping window xw max xw min yw min yw max fixed-size Viewport xv max xv min yv min yv max Pan different-position Clipping window fixed-size Viewport

15 xw max xw min yw min yw max xv max xv min yv min yv max different-position Clipping window xw max xw min yw min yw max fixed-size Viewport xv max xv min yv min yv max Pan different-position Clipping window fixed-size Viewport

16 The mapping of a two-dimensional, world- coordinate scene description to device coordinates is called a two-dimensional viewing transformation. Clipping is usually performed in normalized coordinate systems. This allows us to reduce computations by concatenating the various transformation matrices.

17 Construct world- coordinate scene using modeling- coordinate transformations Convert world- coordinate to viewing coordinates Transform viewing coordinates to normalized coordinates Map normalized coordinates to device coordinates MCWCVCNCDC MC = Modeling Coordinate WC = World Coordinate VC = Viewing Coordinate NC = Normalized Coordinate DC = Device Coordinate 2-D viewing-transformation pipeline 1) ขึ้นรูป 2) ทำ clipping 3) viewport 4) แสดงบน จอภาพ

18 6-2 The Clipping Window To achieve a particular viewing effect in an application program, we could design our own clipping window with any shape, size, and orientation we choose. But clipping a scene using a concave polygon or a clipping window with nonlinear boundaries requires more processing than clipping against a rectangular.

19 If we want some other shape for a clipping window, then we must implement our own clipping and coordinate-transformation algorithms. Rectangular clipping windows in standard position are easily defined by giving the coordinates of two opposite corners of each rectangle.

20 Viewing-coordinate Clipping Window A general approach to the two- dimensional viewing transformation is to set up a viewing-coordinate system within the world-coordinate frame. This viewing frame provides a reference for specifying a rectangular clipping window with any selected orientation and position.

21 To obtain a view of the world –coordinate scene as determined by the clipping window, we just need to transfer the scene description to viewing coordinates.  1) We choose an origin for a two-dimensional viewing-coordinate frame at some world position P 0 = (x 0,y 0 ), and we can establish the orientation using a world vector V that defines the y view direction.

22  2) Translate the viewing origin to the world origin.  3) Rotate the viewing system to align it with the world frame.  4) calculate the components of unit vectors,  These unit vectors are used to form the 1 st and 2 nd rows of the rotation matrix R that aligns the viewing x view y view axes with the world x w y w axes.

23 x world y world x view y view Clipping window x0x0 y0y0 x world y world x view y view Clipping window x0x0 y0y0 x world y world x view y view x0x0 y0y0

24 6-3 Normalization and Viewport Transformations แบบที่ 1) The normalization and window-to-viewport transformations are combined into one operation. In this case the viewport coordinates are often given in the range from 0 to 1 so that the viewport is positioned within a unit square. After clipping the unit square containing the viewport is mapped to the output display device.

25 แบบที่ 2) The normalization and clipping routines are applied before the viewport transformation. For these systems the viewport boundaries are specified in scene coordinates relative to the display-window position.

26 Mapping the Clipping Window into a Normalized Viewport Object descriptions are transformed to the normalized space using a transformation that maintains the same relative placement of a point in the viewport as it had in the clipping window.

27 Clipping window xw max xw min yw min yw max World coordinate Normalization Viewport xv max xv min yv min yv max Viewport coordinate (xw,yw) (xv,yv) ….(1) ….(2)

28 Solving expression (1) for the viewport position xv,

29

30 โดย และ

31 In the same way, we have where the y scaling factor is and the y translation factor is

32 An object inside the clipping window is mapped to a corresponding position inside the viewport. Similarly, an object outside the clipping window is outside the viewport. Relative proportions of object are maintained only if the aspect ratio of the viewport is the same as the aspect ratio of the clipping window. Scale the clipping window to the size of the viewport using a fixed-point position of (xw min,yw min ).

33 After clipping, the normalized coordinates are transformed into device coordinate. Translate (xw min,yw min ) to (xv min,yv min ). The unit square can be mapped onto the output device using the same procedures as in the window-to-viewport transformation with the area inside the unit square transformed to the total display area of the output device.

34

35 Mapping the Clipping Window into a Normalized Square Another approach to two-dimensional viewing is to transform the clipping window into a normalized square,  clip in normalized coordinates, and  then transfer the scene description to a viewport specified in sceen coordinates.

36 Clipping window xw max xw min yw min yw max Normalization Square (xw,yw) (xnorm,ynorm) Screen Viewport xv max xv min yv min yv max (xv,yv) 1 1 1) 2) 3) xv min xv max yv min yv max

37

38 x screen y screen Viewport xsxs ysys

39 6-4 OpenGL Two-Dimensional Viewing Functions Actually, the basic OpenGL library has no functions specifically for two-dimensional viewing, since it is designed primarily for three-dimensional applications. But we can adapt the three-dimensional viewing routines to a two-dimensional scene, and the core library contains a viewport function. In addition, the OpenGL Utility (GLU) does provide a two-dimensional function for specifying the clipping window, and we have GLUT functions for handling display windows.

40 Two Dimensional Images Images are two dimensional shapes. We label the two axes as  X (horizontal)  Y (vertical) X Axis Y Axis (0,0) +X +Y

41 OpenGL Projection Mode  Before we select a clipping window and a viewport in OpenGL, we need to establish the appropriate mode for constructing the matrix to transform from world coordinates to screen coordinates.  glMatrixMode(GL_PROJECTION);  glLoadIdentity();

42 OpenGL Clipping-Window Function  glOrtho2D(xwmin,xwmax,ywmin,ywmax); OpenGL Viewport Function  glViewPort(xvmin,xvmax,vpWidth,vpHeight);  glGetIntegerv(GL_VIEWPORT, vpArray);

43 Creating a GLUT Display Window  glutInit(&argc,argv);  glutInitWindowPosition(xTopLeft,yTopleft);  glutInitWindowSize(dwWidth,dwHeight);  glutCreateWindow(“Title of Display Window”);

44 Setting the GLUT Display-Window Mode and Color  glutInitDisplayMode(mode);  glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);  glClearColor(red,green,blue,alpha);  glClearIndex(index);

45 GLUT Display-Window Identifier  windowID = glutCreateWindow(“A Display Window”); Deleting a GLUT Display Window  glutDestroyWindow(windowID); Current GLUT Display Window  glutSetWindow(windowID);  currentWindowID = glutGetWindow();

46 Relocating and Resizing a GLUT Display Window  glutPositionWindow(xnewTopleft,yNewTopLe ft);  glutReshapeWindow(dwNewWidth,dwNewHe ight);  glutFullScreen();  glutReshapeFunc(winReshapeFcn);

47 2D Viewing X Axis Y Axis (0,0) +X +Y -Y (0,0) +X +Y -X (0,0) +X +Y (0,0) +X +Y (0,0) +X +Y Vital Information for determining viewport: X and Y resolution X and Y offset World Coordinates

48 Managing Multiple GLUT Display Windows  glutIconifyWindow();  glutSetIconTitle(“Icon Name”);  glutSetWindowTitle(“new Window Name”);  glutSetWindow(windowID);  glutPopWindow();  glutSetWindow(windowID);  glutPushWindow();  glutHideWindow();  glutShowWindow();

49 GLUT Subwindows  glutCreateSubWindow(windowID,xBottomLeft,yBotto mLeft,width,height); Viewing Graphics Objects in a GLUT Display Window  glutDisplayFunc(pictureDescript);  The argument is a routine that describes what is to be displayed in the current window – callback function.

50 6-5 Clipping Algorithms Generally, any procedure that eliminates those portions of a picture that are either inside or outside of a specified region of space is refered to as a clipping algorithm or simply clipping. Clipping algorithms are applied in 2-D viewing procedures to identify those parts of a picture that are within the clipping window. Everything outside the clipping window is then eliminated from the scene description that is transferred to the output device for display. 2-D clipping algorithms  Point Clipping  Line Clipping (Straigth-line Segments)  Fill-Area Clipping (Polygons)  Curve Clipping  Text Clipping

51 6-6 Two-Dimensional Point Clipping For a clipping rectangle in standard position, we save a 2-D point P(x,y) for display if the following inequalities are satisfied: If any one of these four inequalities is not satisfied, the point is clipped (not saved for display)

52 P(x,y) yw max yw min xw min xw max If P(x,y) is inside the window?

53 6-7 Two-Dimensional Line Clipping A line-clipping algorithm processes each line in a scene through a series of tests and intersection calculations to determine whether the entire line or any part of it is to be saved. The expensive part of a line-clipping procedure is in calculating the intersection positions of a line with the window edges. Therefore, a major goal for any line-clipping algorithm is to minimize the intersection calculations.

54 (0,0) +X +Y -X What is clipping? -Y

55

56 1) We can perform tests to determine whether a line segment is completely inside the clipping window or completely outside. intersection calculations 2) If we are unable to identify a line as completely inside or completely outside a clipping rectangle, we must then perform intersection calculations to determine whether any part of the line crosses the window interior ) ทั่วไป

57 2.1) We use parametric representation with (x 0,y 0 ) and (x end,y end ) to determine where a line segment crosses each clipping- window edge by assigning the coordinate values for that edge to either x or y and solving for parameter u.

58 If this value of u is outside the range from 0 to 1, the line segment does not intersect that window border line. If the value of u is within the range from 0 to 1, part of the line is inside that border.

59 6-7-2 Cohen-Sutherland Line Clipping Processing time is reduced in the Cohen-Sutherland method by performing more tests before processing to the intersection calculations.

60 y < ymaxy > ymin x > xminx < xmax =  interior xminxmax ymin ymax

61 y min y max x min x max ) Assign a four-bit pattern (Region Code) to each endpoint of the given segment. bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left

62 y min y max x min x max

63 2) if both endpoint codes are 0000  the line segment is visible (inside). 3) the logical AND of the two endpoint codes  3.1) not completely 0000  the line segment is not visible (outside)  3.2) completely 0000  the line segment maybe inside (and outside) 4) Lines that cannot be identified as being completely inside or completely outside a clipping window are then checked for intersection with the window border lines.

64 4.1) Consider code of an end point  if bit 4 is 1, intersect with line y = Ymax หา x  if bit 3 is 1, intersect with line y = Ymin หา x  if bit 2 is 1, intersect with line x = Xmax หา y  if bit 1 is 1, intersect with line x = Xmin หา y 4.2) หา y จากสูตร y = y0 + m(x-x0) โดยแทนค่า x ด้วย Xmax หรือ Xmin แล้วแต่กรณี 4.3) หา x จากสูตร x = x0 + 1/m(y-y0) โดยแทนค่า y ด้วย Ymax หรือ Ymin แล้วแต่กรณี โดย

65 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 Example 01

66 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-ymax) : sign(ymin-y) : sign(x-xmax) : sign(xmin-x) หา endpoint codes ของจุด ปลาย sign(2-6) : sign(1-2) : sign(-4-2) : sign(-3+4) 0 0 : 0 : 0 : 1 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 A(-4,2)

67 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(7-6) : sign(1-7) : sign(-1-2) : sign(-3+1) >0 : <0 : <0 : <0 1 : 0 : 0 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 B(-1,7)

68 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(5-6) : sign(1-5) : sign(-1-2) : sign(-3+1) <0 : <0 : <0 : <0 0 : 0 : 0 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 C(-1,5)

69 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(8-6) : sign(1-8) : sign(3-2) : sign(-3-3) >=0 : =0 : <0 1 : 0 : 1 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 D(3,8)

70 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(3-6) : sign(1-3) : sign(-2-2) : sign(-3+2) <0 : <0 : <0 : <0 0 : 0 : 0 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 E(-2,3)

71 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(2-6) : sign(1-2) : sign(1-2) : sign(-3-1) <0 : <0 : <0 : <0 0 : 0 : 0 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 F(1,2)

72 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(-2-6) : sign(1+2) : sign(1-2) : sign(-3-1) =0 : <0 : <0 0 : 1 : 0 : 0 Bit = true if sign(…) >= 0 (+ or 0) Bit = false if sign(…) < 0 (-) G(1,-2)

73 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(3-6) : sign(1-3) : sign(3-2) : sign(-3-3) =0 : <0 0 : 0 : 1 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 H(3,3)

74 G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(7-6) : sign(1-7) : sign(-4-2) : sign(-3+4) >=0 : =0 1 : 0 : 0 : 1 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 I(-4,7)

75 H(3,3) G(1,-2) F(1,2) E(-2,3) A(-4,2) C(-1,5) D(3,8) B(-1,7) I(-4,7) J(-2,10) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 bit 4 : bit 3 : bit 2 : bit 1 Top : Bottom : Right : Left sign(y-6) : sign(1-y) : sign(x-2) : sign(-3-x) หา endpoint codes ของจุด ปลาย sign(10-6) : sign(1-10) : sign(-2-2) : sign(-3+2) >=0 : <0 : <0 : <0 1 : 0 : 0 : 0 Bit = true if sign(…) >= 0 Bit = false if sign(…) < 0 J(-2,10)

76 H:0010 G:0100 F:0000 E:0000 A:0001 C:0000 D:1010 B1000 I:1001 J:1000 สรุป endpoint codes ของจุด ปลาย

77 H:0010 G:0100 F:0000 E:0000 A:0001 C:0000 D:1010 B1000 I:1001 J:1000 A AND B = (0001) & (1000) = 0000  Maybe C AND D = (0000) & (1010) = 0000  Maybe E or F = (0000) | (0000) = 0000  Inside

78 H:0010 G:0100 F:0000 E:0000 A:0001 C:0000 D:1010 B1000 I:1001 J:1000 G AND H = (0100) & (0010) = 0000  Maybe I AND J = (1001) & (1000) = 1000  Outside

79 A(-4,2):0001 B(-1,7):1000 A(-4,2):0001 A(-4,2):0001 บิตที่ 1 เป็น true แสดงว่าเส้นตรงนี้ ตัดขอบด้านซ้ายที่ x = x min =-3 หาค่า y จากสมการ y = y 0 +m(x-x 0 ) โดย x 0 = -4, y 0 = 2 จะได้ y = 2+5*(-3-(- 4))/3=2+5/3=11/3 (y min <= 11/3 <= y max ) จุดตัดขอบซ้าย คือ (- 3,11/3)

80 A(-4,2):0001 B(-1,7):1000 B(-1,7):1000 B(-1,7):1000 บิตที่ 4 เป็น true แสดงว่าเส้นตรง นี้ตัดขอบด้านบนที่ y = y max =6 หาค่า x จาก สมการ x = x 0 +1/m(y-y 0 ) โดย x 0 = -1, y 0 = 7 จะ ได้ x = -1+3/5(6-7)=-1- 3/5=-8/5 (x min <= -8/5 <= x max ) จุดตัดขอบบน คือ (- 8/5,6)

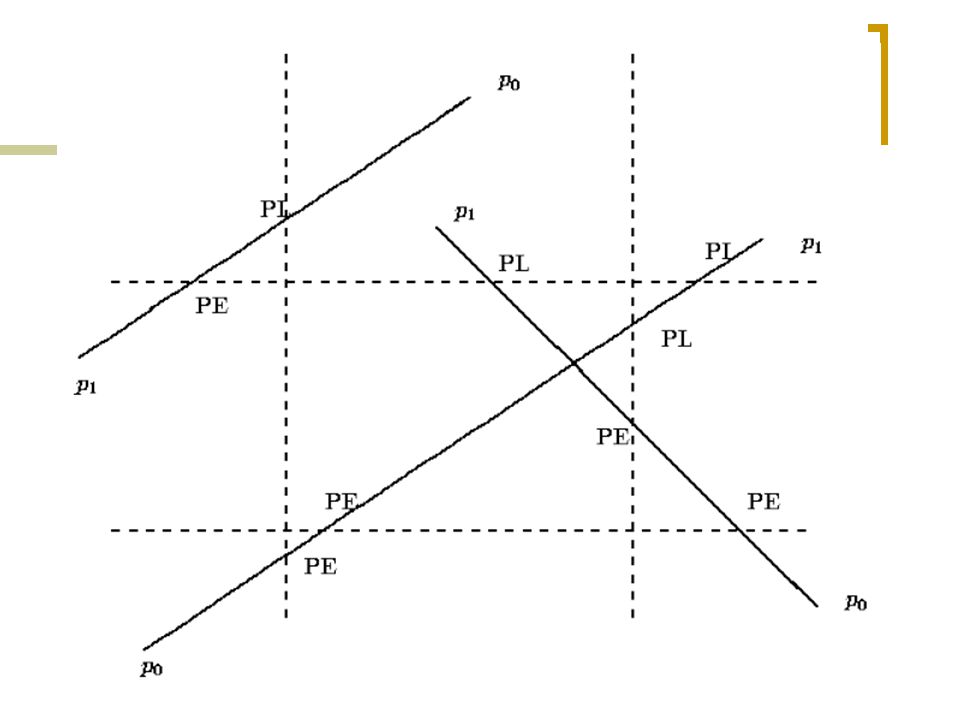

81 C(-1,5):0000 D(3,8):1010 C(-1,5):0000 C(-1,5):0000 เป็นจุดอยู่ ภายใน D(3,8):1010 D(3,8):1010 บิตที่ 4 เป็น true แสดงว่าเส้นตรงนี้ตัดขอบ ด้านบนที่ y = y max =6 หาค่า x จากสมการ x = x 0 +1/m(y- y 0 ) โดย x 0 = 3, y 0 = 8 จะได้ x = 3+4/3(6-8)=3-8/3=1/3 (x min <= 1/3 <= x max ) จุดตัดขอบบน คือ (1/3,6) บิตที่ 2 เป็น true แสดงว่า เส้นตรงนี้ตัดขอบด้านขวาที่ x = x max =2 หาค่า y จากสมการ y = y 0 +m(x-x 0 ) โดย x 0 = 3, y 0 = 8 จะได้ y = 8+3/4(2-3)=8- 3/4=27/4 (27/4 > y max ) พ้นขอบขวาของรูป

82 G(1,-2):0100 G(1,-2):0100 บิตที่ 3 เป็น true แสดงว่าเส้นตรงนี้ตัดขอบ ด้านล่างที่ y = y mim =1 หาค่า x จากสมการ x = x 0 +1/m(y- y 0 ) โดย x 0 = 1, y 0 = -2 จะ ได้ x = 1+2/5(1+2)=1+6/5=11/5 (11/5 > x max ) พ้นขอบขวา ของรูป H(3,3):0010 H(3,3):0010 บิตที่ 2 เป็น true แสดงว่าเส้นตรงนี้ตัดขอบ ด้านขวาที่ x = x max =2 หาค่า y จากสมการ y = y 0 +m(x-x 0 ) โดย x 0 = 3, y 0 = 3 จะได้ y = 3+5/2(2-3) = 3-5/2 = 1/2 (1/2 < y min ) พ้นขอบล่างของรูป G(1,-2):0100 H(3,3):0010

83 F(1,2) E(-2,3) (-3,11/3) C(-1,5) (-8/5,6) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 (1/3,6)

84 HomeWork

85 6-7-3 Liang-Barsky Line Clipping Faster line-clipping algorithms have been developed that do more line testing before processing to the intersection calculations. x = x 1 + u(x 2 - x 1 ) y = y 1 + u(y 2 - y 1 )

86 L-B Overview Using parametric equations, compute line segment intersections (actually, just values of u) with clipping region edges Determine if the four values of u actually correspond to real intersections Then calculate x and y values of the intersections Faster than Cohen-Sutherland, does not need to iterate L-B examines values of u for earlier reject

87 Parametric Intersection t bottom t left t top t right

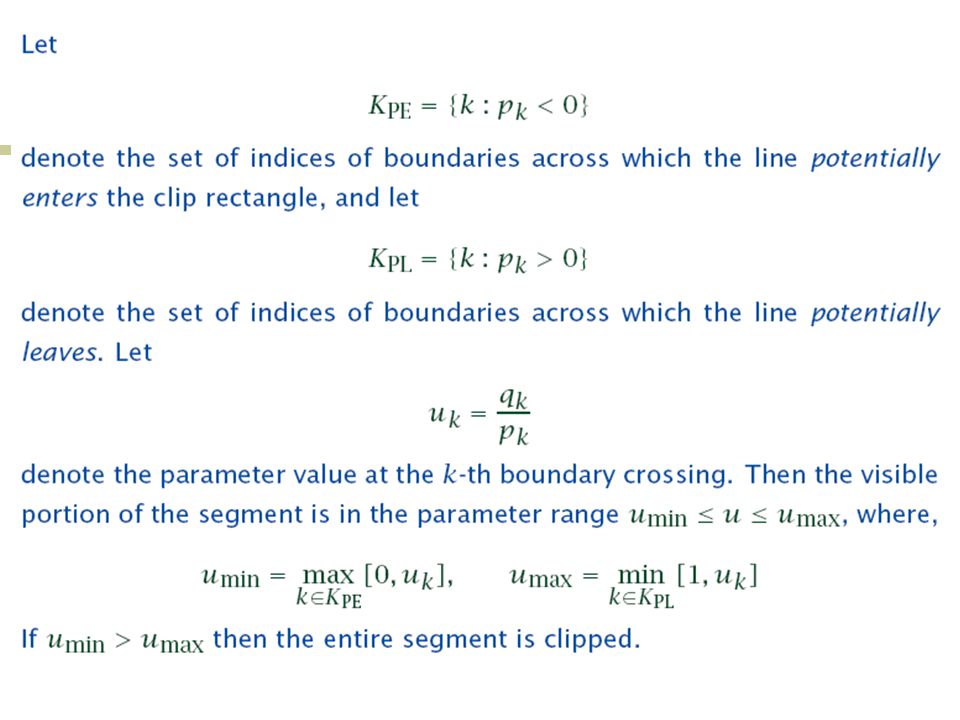

88 P 1 (x 1,y 1 ) P 2 (x 2,y 2 ) Left Right Buttom Top

89

90

91

92

93 Liang-Barsky - Algorithm Compute entering u values, which are q k /p k for each p k <0  There will always be two for 2D rectangular clip region, three in 3D Compute leaving u values, which are q k /p k for each p k >0 Parameter value for small u end of line is: u small = max(0, entering t’s) Parameter value for large u end of line is: u large =min(1, leaving t’s) If u small

94 Example Let P1 (-1, -2), P2 (2, 4) X min = 0, X max = 1, Y min = 0, Y max = 1 dx = 2 - (-1) = 3; dy = 4 - (-2) = 6 P1 = -dx = -3; q1 = x1 - X min = = -1; u 1 = q1 / P1 = 1/3 Left P2 = dx = 3; q2 = X max - x1 = 1 - (-1) = 2; u 2 = q2 / P2 = 2/3 Right P3 = -dy = -6; q3 = y1 - Y min = -2-0 = -2; u 3 = q3 / P3 = 1/3 Buttom P4 = dy = 6; q4 = Y max - y1 = 1-(-2) = 3; u 4 = q4 / P4 = ½ Top for (Pk < 0) u’1 = MAX(1/3, 1/3, 0) = 1/3 for (Pk> 0) u’2 = MIN(2/3, 1/2, 1) = 1/2 Since u’1 < u’2 there is a visible section compute new endpoints U’1 = 1/3; x1' = x1 + dx.u’1 = -1 + (3. 1 / 3) = 0 y1' = y1 + dy.u’1 = -2 + (6. 1 / 3) = 0 U’2 = ½; x2' = x1 + dx.u’2 = -1 + (3. 1 / 2) = 1 / 2 y2' = y1 + dy.u’2 = -2 + (6. 1 / 2) = 1 XminXmax Ymin Ymax

95 Ex (Liang-Barsky) (10,10) (10,20) (25,10) (25,20) (15,17) (5,12) (15,23) (5,18) R1 R2

96 Let P1 (5, 12), P2 (15, 17) X min = 10, X max = 25, Y min = 10, Y max = 20 p1 = -dx = -(15 - 5) = -10; q1 = x1 - x min = = -5; u1 = q1 / p1 = 1/2 Left p2 = dx = = 10; q2 = x max - x1 = = 20; u2 = q2 / p2 = 2 Right p3 = -dy = -( ) = -5; q3 = y1 - y min = = 2; u3 = q3 / p3 = -2/5Buttom p4 = dy = = 5; q4 = y max - y1 = = 8; u4 = q4 / p4 = 8/5 Top for (Pk < 0) u’1 = MAX(1/2, -2/5, 0) = 1/2 for (Pk > 0) u’2 = MIN(2, 8/5, 1) = 1 Since u1 < u2 there is a visible section compute new endpoints U’1 = 1/2; x1' = x1 + dx.u’1 = 5 + (10. 1 / 2) = 10 y1' = y1 + dy.u’1 = 12 + (5. 1 / 2) = 14.5 U’2 = 1 x2' = x1 + dx.u’2 = 5 + (10. 1) = 15 y2' = y1 + dy.u’2 = 12 + (5. 1) = 17 R1

97 Let P1 (5, 18), P2 (15, 23) X min = 10, X max = 25, Y min = 10, Y max = 20 p1 = -dx = -(15 - 5) = -10; q1 = x1 - x min = = -5; u1 = q1 / p1 = 1/2 p2 = dx = = 10; q2 = x max - x1 = = 20; u2 = q2 / p2 = 2 p3 = -dy = -( ) = -5; q3 = y1 - y min = = 8; u3 = q3 / p3 = -8/5 p4 = dy = = 5; q4 = y max - y1 = = 2; u4 = q4 / p4 = 2/5 for (Pk < 0) u’1 = MAX(1/2, -8/5, 0) = 1/2 for (Pk > 0) u’2 = MIN(2, 2/5, 1) = 2/5 Since u1 > u2, entire segment is clipped out. R2

98 Result (10,10) (10,20) (25,10) (25,20) (15,17) (10,14.5)

99 Liang-Barsky Pros/Cons PROS Faster If you clip a lot, you don’t do too many extra calculations calculating intersection points is done at end CONS Harder to implement Not many easy reject cases More costly if there are more trivial reject or accept

100 Home Work (L-B Method)

101 Nicholl-Lee-Nicholl Line Clipping By creating more regions around the clipping window, the NLN algorithm avoids multiple line-intersection calculation. These extra intersection calculations are eliminated in the NLN algorithm by carrying out more region testing before intersection positions are calculated.

102 Initial testing to determine whether a line segment is completely inside or outside the clipping window can be accomplished with region-code test. These extra intersection calculations are eliminated in the NLN algorithm by carrying out more region testing before intersection positions are calculated.

103

104 We compute the line-intersection position with the corresponding window boundary.

105

106

107 P2P2

108 To determine the region in which P2 is located, we compare the slope of the line segment to the slopes of the boundaries of the NLN regions.

109 A(-4,2) B(-1,7) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 Example

110 A(-4,2) B(-1,7) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 Example TL(-3,6) TR(2,6) BR(2,1) BL(-3,1)

111 A(-4,2) 0001 B(-1,7) Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 (-3,11/3)

112 A(-4,2) B(-1,7) 1000 Xmin=-3Xmax=2 Ymin = 1 Ymax = 6 (-3,11/3) (-8/5,6)

113 Home Work (NLN)

114 6-8 Polygon Fill-Area Clipping To clip a polygon fill area, we cannot directly apply a line-clipping methods to the individual polygon edges because this approach would not produce a closed polyline.

115

116 6.8.1Sutherland-Hodgman Clip Clip the polygon against each edge of the clip region in turn  Clip polygon each time to line containing edge  Only works for convex clip regions (Why?)

117 Edge from s to p takes one of four cases: (Purple line can be a line or a plane) insideoutside s p p output insideoutside s p no output insideoutside s p i output insideoutside s p i output p output

118 Point-to-Plane test A very general test to determine if a point p is “inside” a plane P, defined by q and n: (p - q) n < 0: p inside P (p - q) n = 0: p on P (p - q) n > 0: p outside P P n p q P n p q P n p q

119 A(10,10)B(30,10) C(30,40) E(10,40) D(20,50)

120 A(10,10)B(30,10) C(30,40) E(10,40) D(20,50) พิจารณาด้าน AB ด้าน AB เป็นลักษณะ ไปจาก ข้างนอกเข้าข้างใน clipping window ดังนั้น เก็บค่า coordinate ของจุดตัด (I 1 ) และจุดปลาย B หาจุดตัด จากภาพจะได้ x = 18 และ y = 10 ดังนั้น I 1 (18,10) Clipped vertices = {I 1 (18,10), B(30,10)} I1I1

121 A(10,10)B(30,10) C(30,40) E(10,40) D(20,50) พิจารณาด้าน BC ด้าน BC เป็นลักษณะ ไปจาก ข้างในและยังอยู่ข้างใน clipping window ดังนั้นเก็บ ค่า coordinate ของจุดปลาย C เท่านั้น Clipped vertices = {I 1 (18,10), B(30,10),C(30,40)}

122 A(10,10)B(30,10) C(30,40) E(10,40) D(20,50) พิจารณาด้าน CD ด้าน CD เป็นลักษณะ ไปจาก ข้างในออกสู่ข้างนอก clipping window ดังนั้นเก็บ ค่า coordinate ของจุดตัด (I 2 ) เท่านั้น หาจุดตัด จากภาพจะได้ y = 42 หาค่า x จากสมการ x = x 0 +1/m(y-y 0 ) โดย x 0 = 30, y 0 = 40 จะได้ x = 30-1(42-40) = 30- 2=28 Clipped vertices = {I 1 (18,10), B(30,10),C(30,40),I 2 (28,42)}

123 A(10,10)B(30,10) C(30,40) E(10,40) D(20,50) พิจารณาด้าน DE และ EA ด้าน DE และ EA เป็นลักษณะ ไปจากข้างนอกสู่ข้างนอก clipping window ดังนั้นไม่ เก็บค่า coordinate ของจุด ทั้งสอง Clipped vertices = {I 1 (18,10), B(30,10),C(30,40),I 2 (28,42)}

124

125 6.8.2 Weiler-Atherton Polygon Clipping Clipping Window Subject

126 Atherton-Weiler Clipping Works for nonconvex polygons as well  clipping polygons (clipper)  polygons to be clipped (clippee)

127 Clipping Window Subject

128 Ex. 2 Given Clipper polygon Clippee polygon

129 Start From vertex of clippee outside clipper

130 Move counterclockwise along clippee until first intersection

131 Label this point as the first vertex of the result

132 Follow clippee counterclockwise until next intersection Label each vertex along the way as a vertex of the result

133 Turn left onto clipper

134 Follow clipper counterclockwise until next intersection Label each vertex along the way as a vertex of the result

135 Turn left onto clippee

136 Follow clippee counterclockwise until next intersection Label each vertex along the way as a vertex of the result

137 Turn left onto clipper

138 Follow clipper counterclockwise until next intersection Label each vertex along the way as a vertex of the result

139 Turn left onto clippee

140 Follow clippee counterclockwise until next intersection Label each vertex along the way as a vertex of the result

141 Turn left onto clipper

142 Follow clipper counterclockwise until next intersection Label each vertex along the way as a vertex of the result

143 Turn left onto clippee

144 Follow clippee counterclockwise until next intersection Label each vertex along the way as a vertex of the result

145 Turn left onto clipper

146 Follow clipper counterclockwise until next intersection Label each vertex along the way as a vertex of the result

147 Until reach first vertex of result

148 6-9 Curve Clipping

149 6-10 Text Clipping
