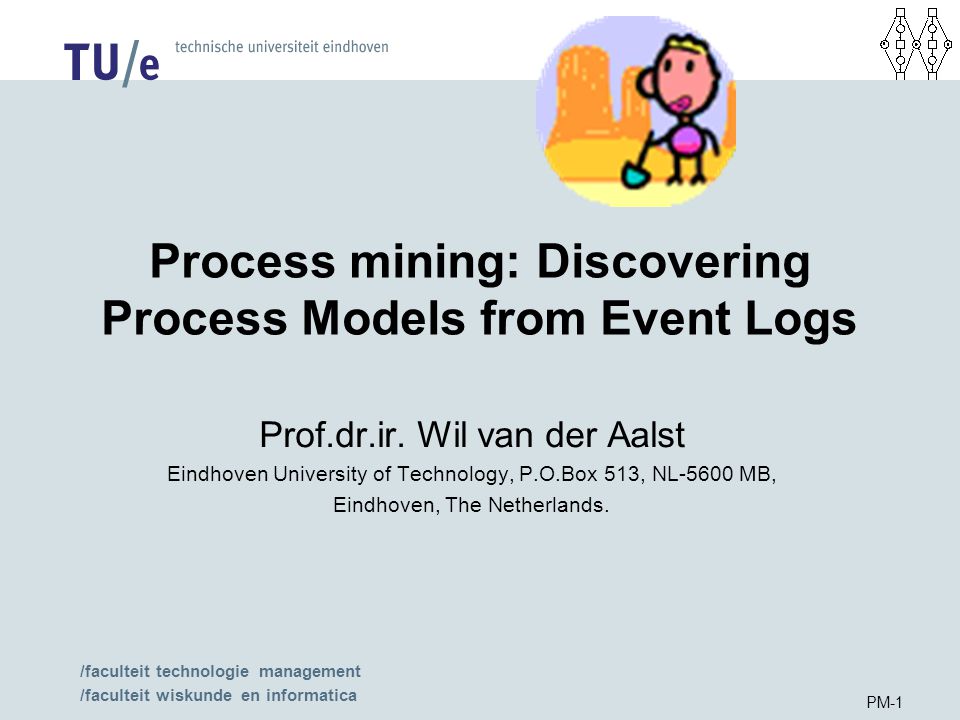

1 /faculteit technologie management /faculteit wiskunde en informatica PM-1 Process mining: Discovering Process Models from Event Logs Prof.dr.ir. Wil van der Aalst Eindhoven University of Technology, P.O.Box 513, NL-5600 MB, Eindhoven, The Netherlands.

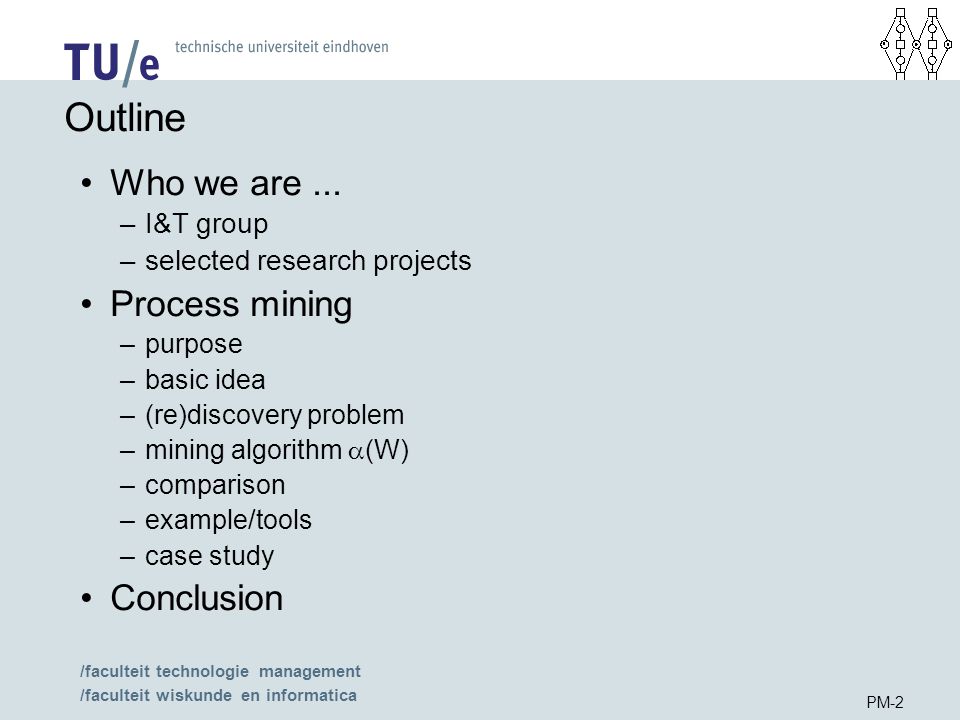

2 /faculteit technologie management /faculteit wiskunde en informatica PM-2 Outline Who we are... –I&T group –selected research projects Process mining –purpose –basic idea –(re)discovery problem –mining algorithm  (W) –comparison –example/tools –case study Conclusion

3 /faculteit technologie management /faculteit wiskunde en informatica PM-3 Who we are...

4 /faculteit technologie management /faculteit wiskunde en informatica PM-4 Information & Technology (I&T) group at EUT I&T group (35 persons), Department of Technology Management, Eindhoven University of Technology. Three subgroups: –Business Process Management (workflow management, Petri nets, mining,...) –ICT Architectures (agents, transactions,...) –Software Engineering (software quality,...)

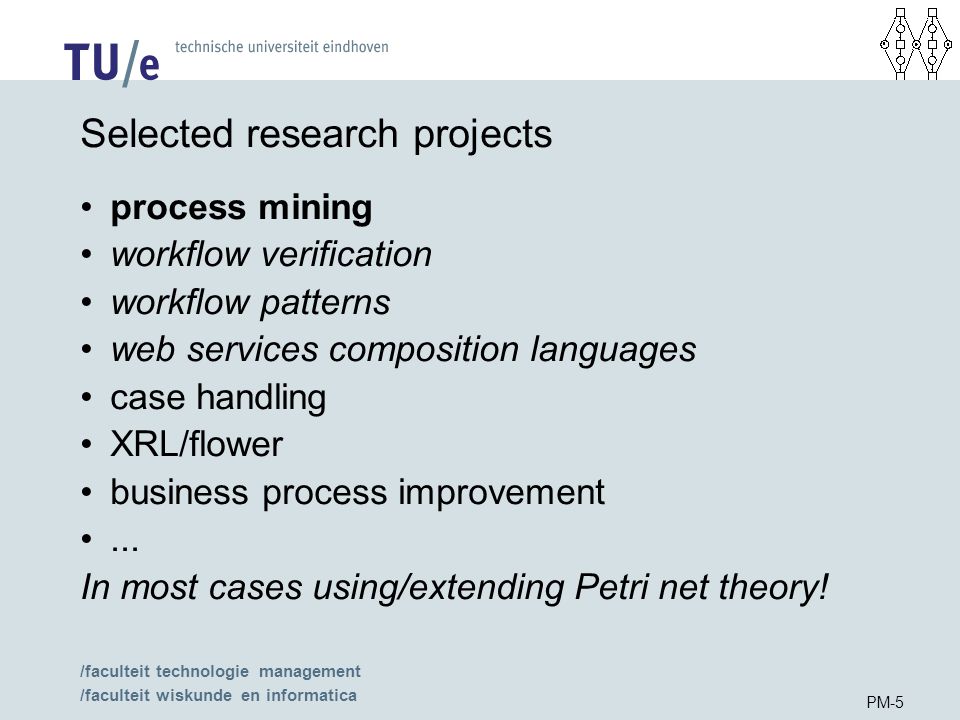

5 /faculteit technologie management /faculteit wiskunde en informatica PM-5 Selected research projects process mining workflow verification workflow patterns web services composition languages case handling XRL/flower business process improvement... In most cases using/extending Petri net theory!

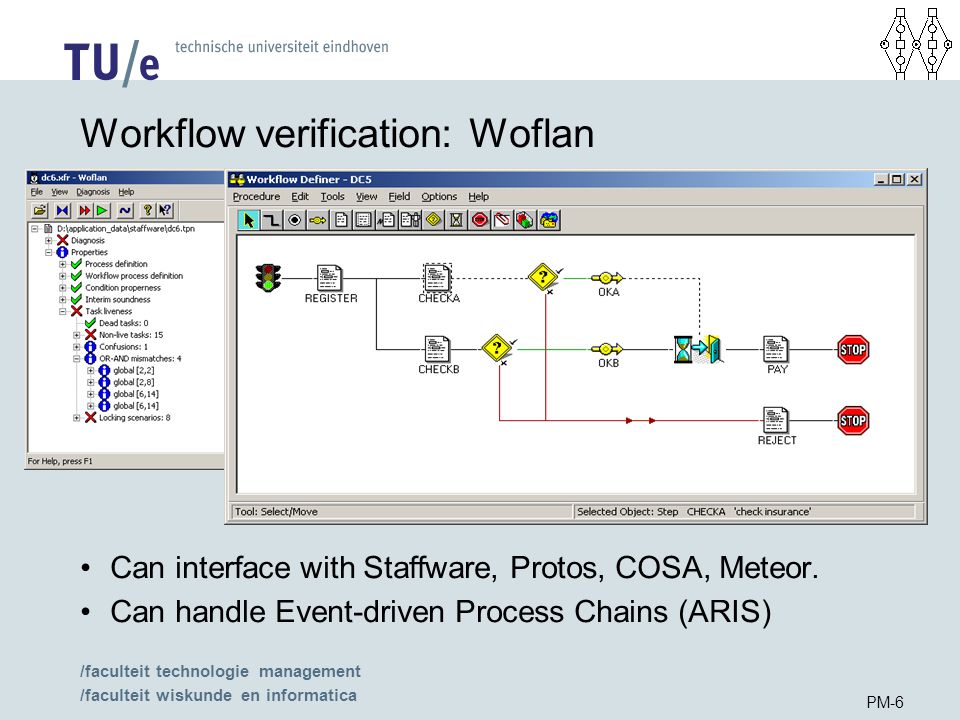

6 /faculteit technologie management /faculteit wiskunde en informatica PM-6 Workflow verification: Woflan Can interface with Staffware, Protos, COSA, Meteor. Can handle Event-driven Process Chains (ARIS)

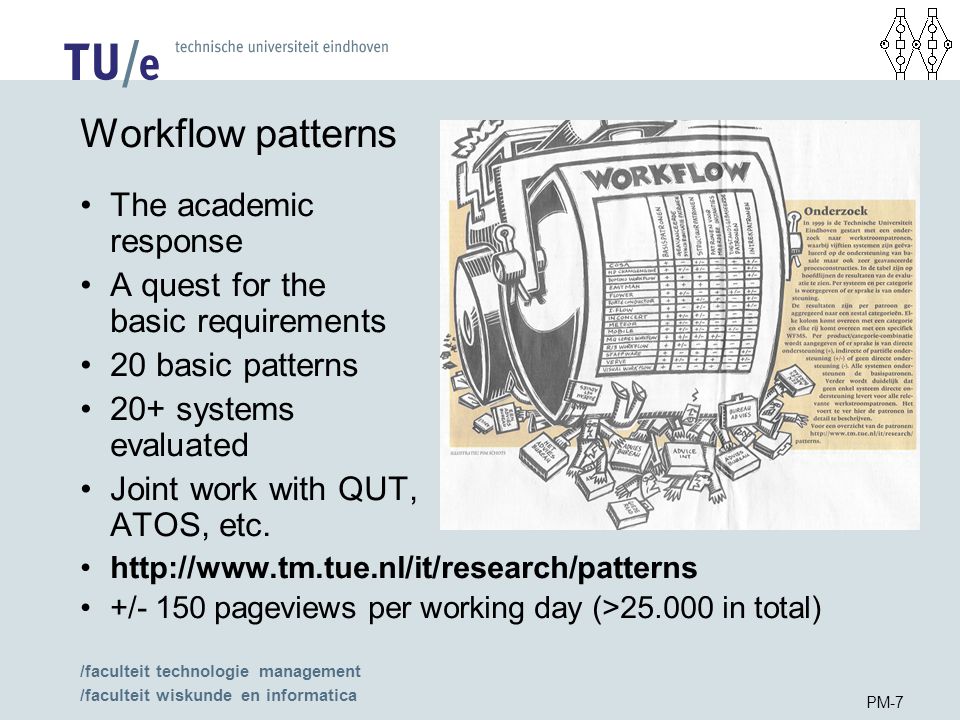

7 /faculteit technologie management /faculteit wiskunde en informatica PM-7 Workflow patterns The academic response A quest for the basic requirements 20 basic patterns 20+ systems evaluated Joint work with QUT, ATOS, etc. +/- 150 pageviews per working day (> in total)

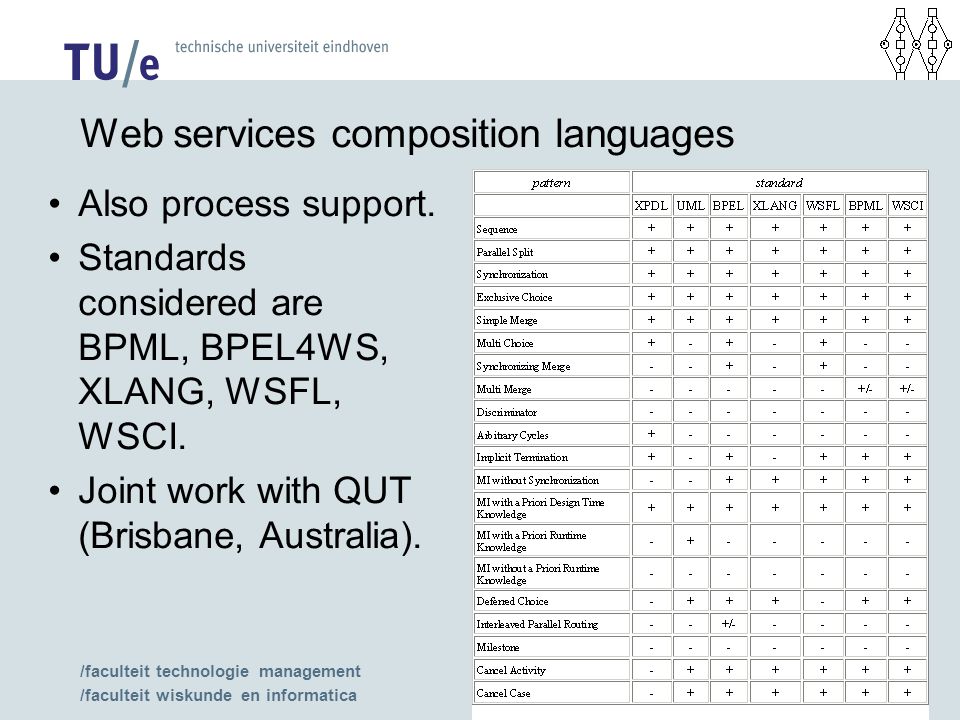

8 /faculteit technologie management /faculteit wiskunde en informatica PM-8 Web services composition languages Also process support. Standards considered are BPML, BPEL4WS, XLANG, WSFL, WSCI. Joint work with QUT (Brisbane, Australia).

9 /faculteit technologie management /faculteit wiskunde en informatica PM-9 Process mining Team members: Wil van der Aalst Ton Weijters Laura Maruster Ana-Karla Medeiros Boudewijn van Dongen Eric Verbeek

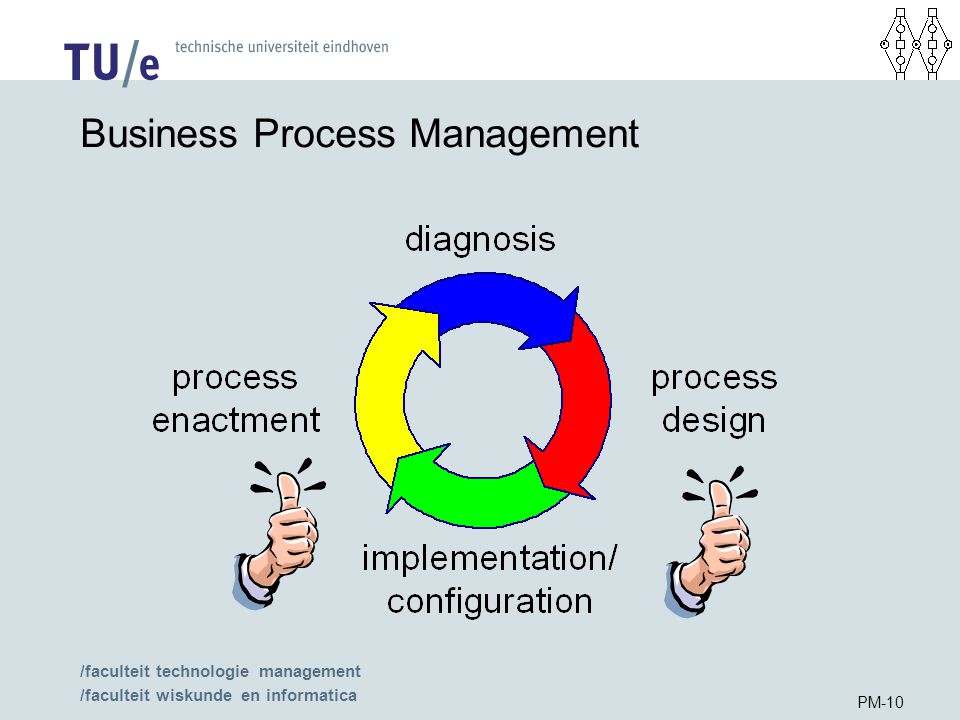

10 /faculteit technologie management /faculteit wiskunde en informatica PM-10 Business Process Management

11 /faculteit technologie management /faculteit wiskunde en informatica PM-11 No feedback loop

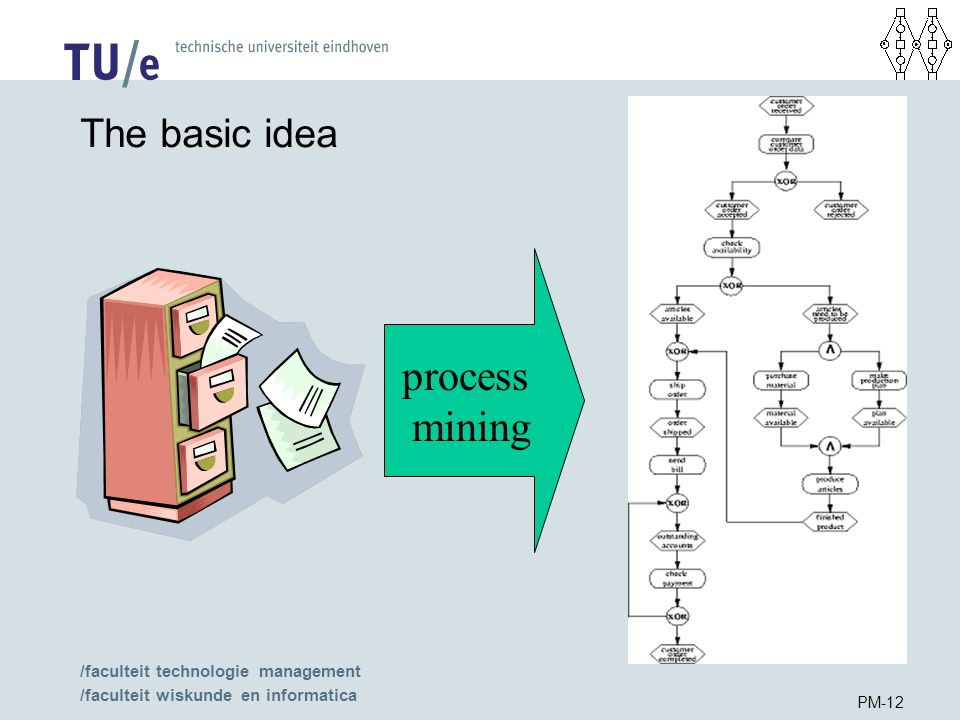

12 /faculteit technologie management /faculteit wiskunde en informatica PM-12 The basic idea process mining

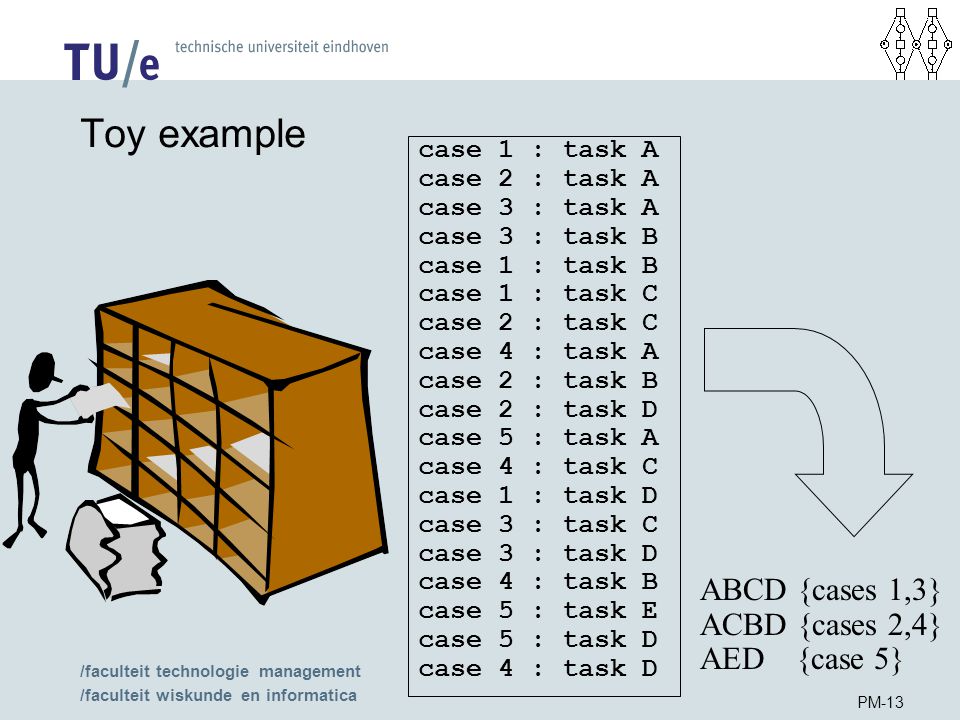

13 /faculteit technologie management /faculteit wiskunde en informatica PM-13 Toy example case 1 : task A case 2 : task A case 3 : task A case 3 : task B case 1 : task B case 1 : task C case 2 : task C case 4 : task A case 2 : task B case 2 : task D case 5 : task A case 4 : task C case 1 : task D case 3 : task C case 3 : task D case 4 : task B case 5 : task E case 5 : task D case 4 : task D ABCD {cases 1,3} ACBD {cases 2,4} AED {case 5}

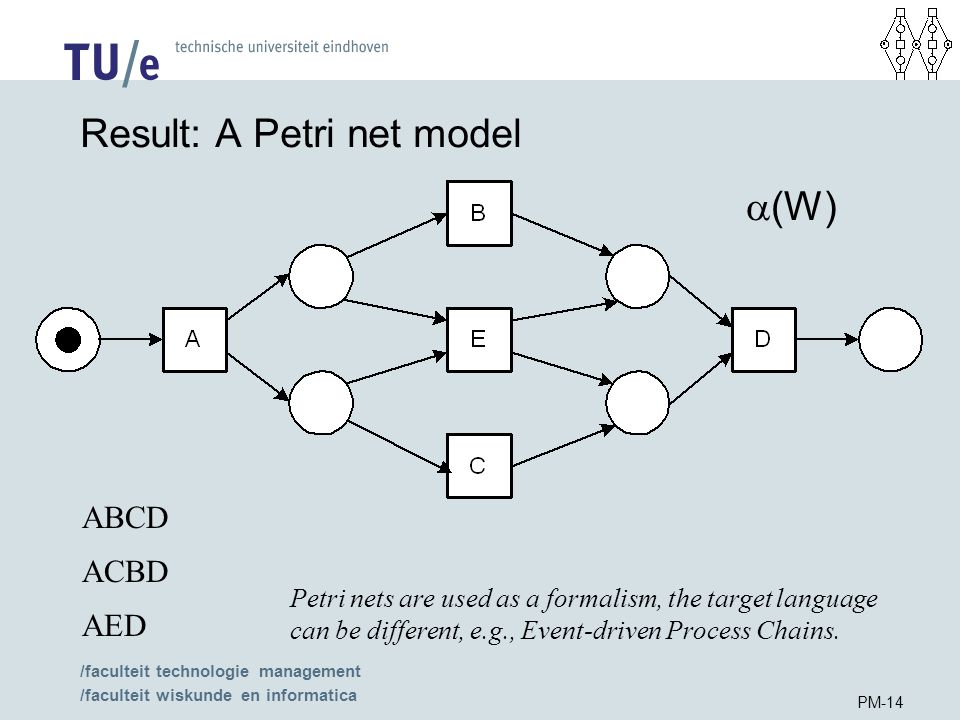

14 /faculteit technologie management /faculteit wiskunde en informatica PM-14 Result: A Petri net model ABCD ACBD AED  (W) Petri nets are used as a formalism, the target language can be different, e.g., Event-driven Process Chains.

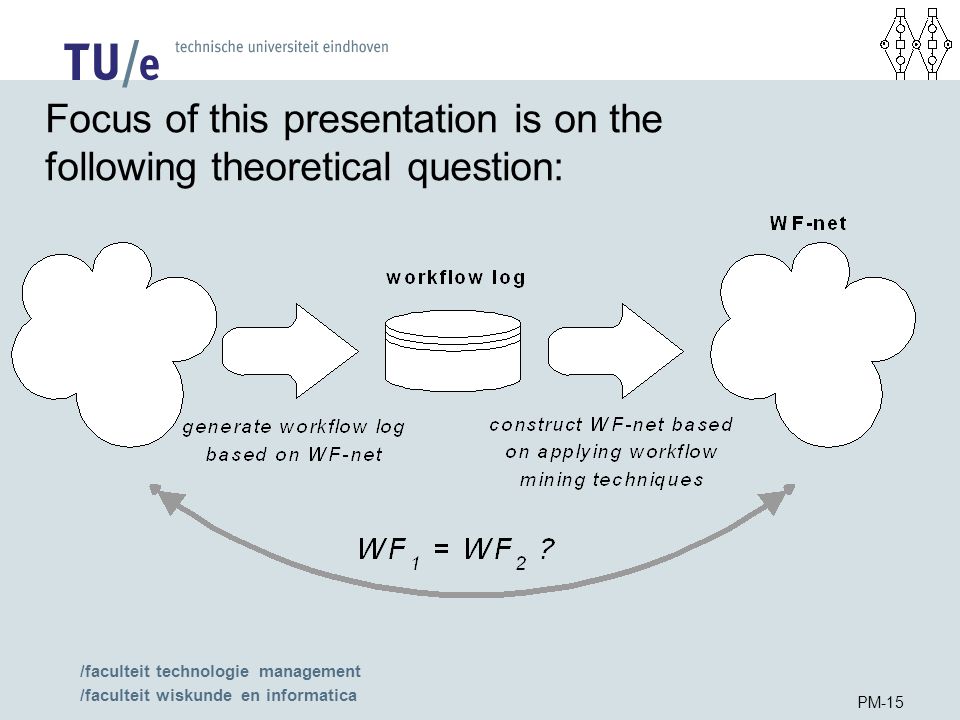

15 /faculteit technologie management /faculteit wiskunde en informatica PM-15 Focus of this presentation is on the following theoretical question:

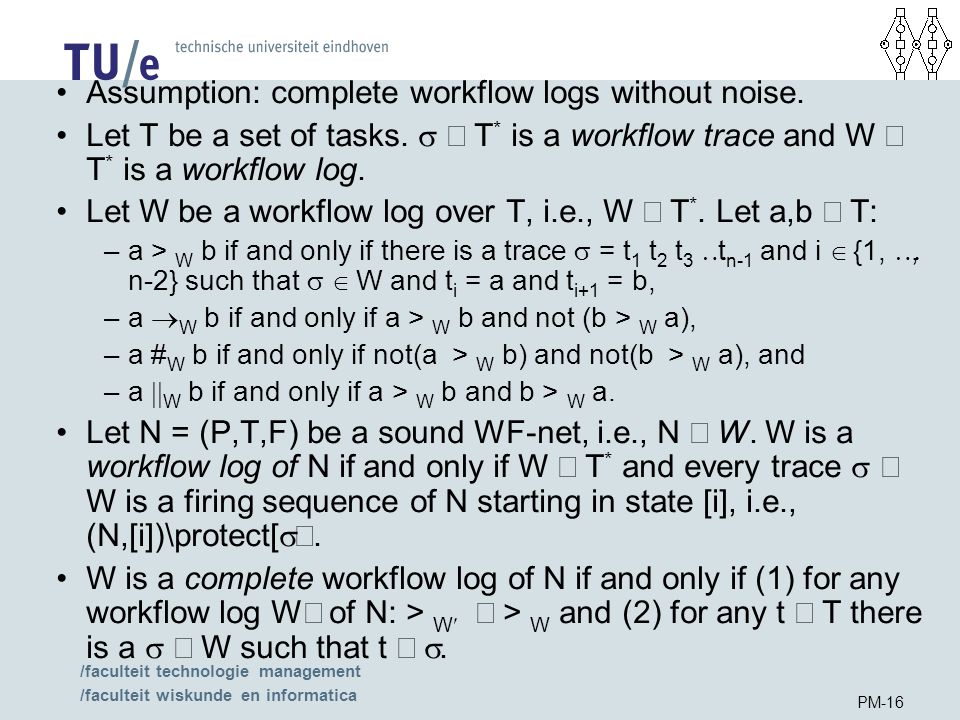

16 /faculteit technologie management /faculteit wiskunde en informatica PM-16 Assumption: complete workflow logs without noise. Let T be a set of tasks.   T * is a workflow trace and W  T * is a workflow log. Let W be a workflow log over T, i.e., W  T *. Let a,b  T: –a > W b if and only if there is a trace  = t 1 t 2 t 3  t n-1 and i  {1, , n-2} such that   W and t i = a and t i+1 = b, –a  W b if and only if a > W b and not (b > W a), –a # W b if and only if not(a > W b) and not(b > W a), and –a  W b if and only if a > W b and b > W a. Let N = (P,T,F) be a sound WF-net, i.e., N  W. W is a workflow log of N if and only if W  T * and every trace   W is a firing sequence of N starting in state [i], i.e., (N,[i])\protect[ . W is a complete workflow log of N if and only if (1) for any workflow log W of N: > W  > W and (2) for any t  T there is a   W such that t  .

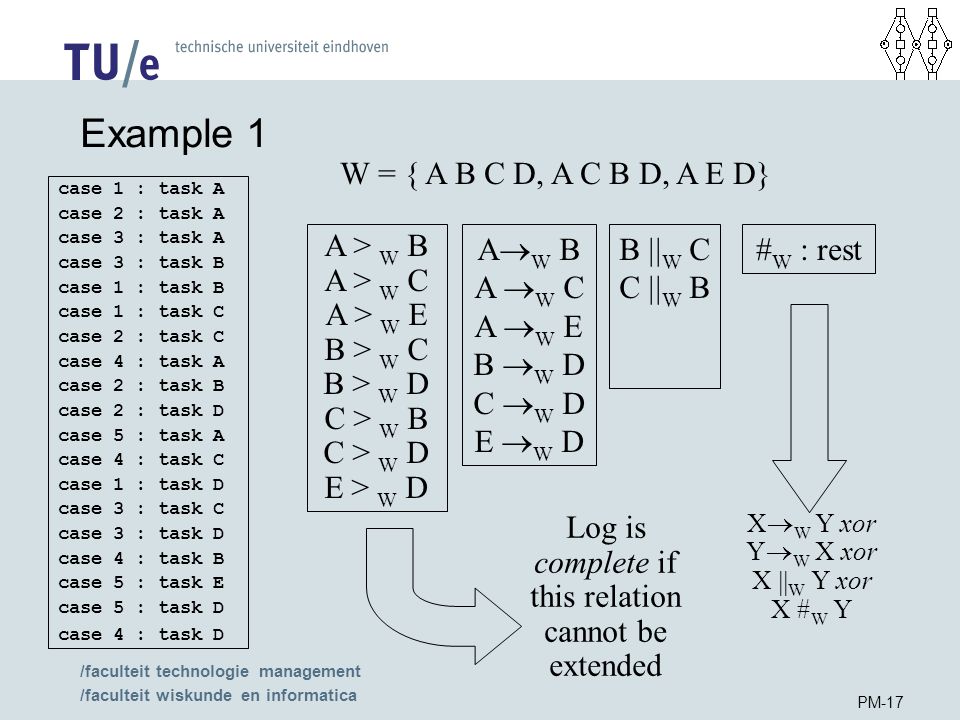

17 /faculteit technologie management /faculteit wiskunde en informatica PM-17 Example 1 case 1 : task A case 2 : task A case 3 : task A case 3 : task B case 1 : task B case 1 : task C case 2 : task C case 4 : task A case 2 : task B case 2 : task D case 5 : task A case 4 : task C case 1 : task D case 3 : task C case 3 : task D case 4 : task B case 5 : task E case 5 : task D case 4 : task D W = { A B C D, A C B D, A E D} A > W B A > W C A > W E B > W C B > W D C > W B C > W D E > W D A  W B A  W C A  W E B  W D C  W D E  W D B  W C C  W B # W : rest Log is complete if this relation cannot be extended X  W Y xor Y  W X xor X  W Y xor X # W Y

18 /faculteit technologie management /faculteit wiskunde en informatica PM-18 Example 2 W = { A B C D, A C B D} is complete A > W B A > W C B > W C B > W D C > W B C > W D A  W B A  W C B  W D C  W D B  W C C  W B # W : rest

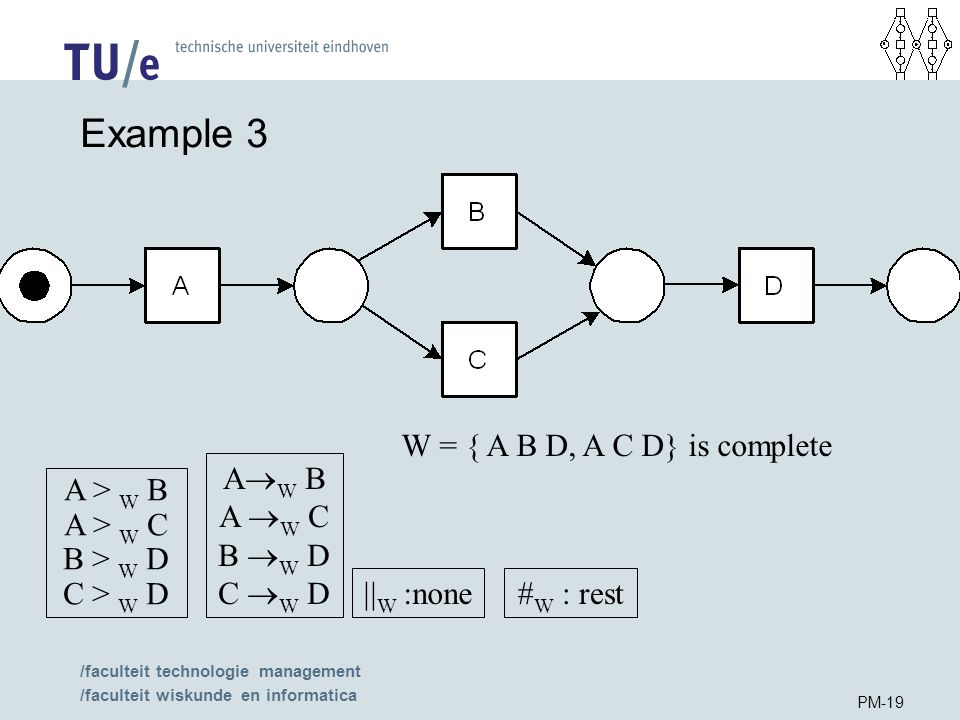

19 /faculteit technologie management /faculteit wiskunde en informatica PM-19 Example 3 W = { A B D, A C D} is complete A > W B A > W C B > W D C > W D A  W B A  W C B  W D C  W D  W :none # W : rest

20 /faculteit technologie management /faculteit wiskunde en informatica PM-20 Causal relations imply connecting places Let N = (P,T,F) be a sound WF-net and let W be a complete workflow log of N. For any a,b  T: a  W b implies a    b  . I.e., if there is a causal relation between two transitions according to the workflow log, then there has to be a place connecting these two transitions. Surprisingly this holds for any sound WF-net! A  W B A  W C B  W D C  W D

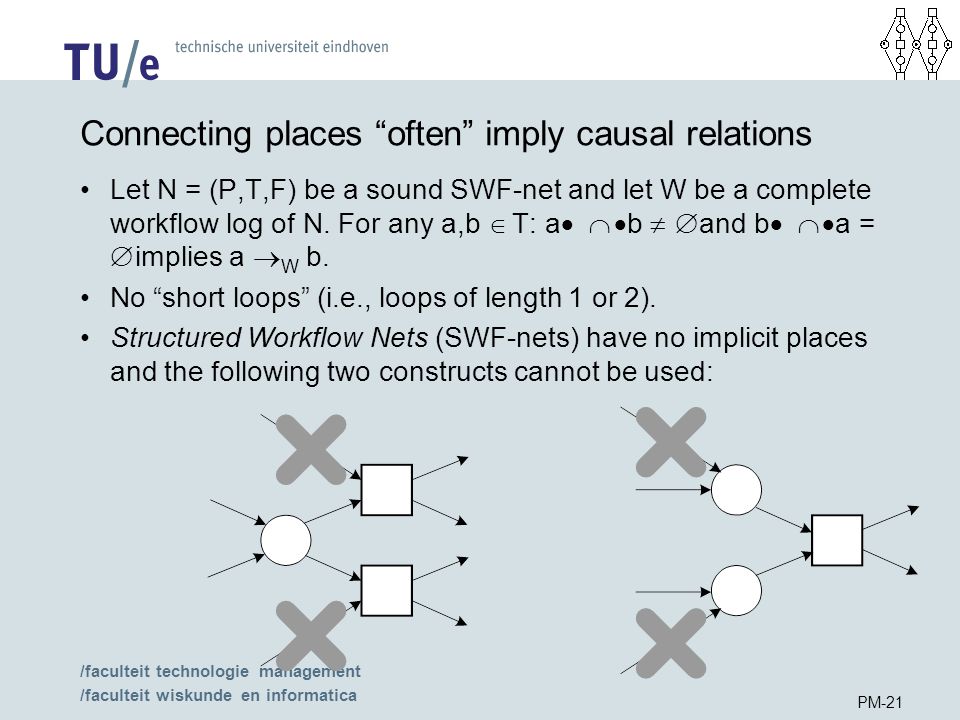

21 /faculteit technologie management /faculteit wiskunde en informatica PM-21 Connecting places “often” imply causal relations Let N = (P,T,F) be a sound SWF-net and let W be a complete workflow log of N. For any a,b  T: a    b   and b    a =  implies a  W b. No “short loops” (i.e., loops of length 1 or 2). Structured Workflow Nets (SWF-nets) have no implicit places and the following two constructs cannot be used:

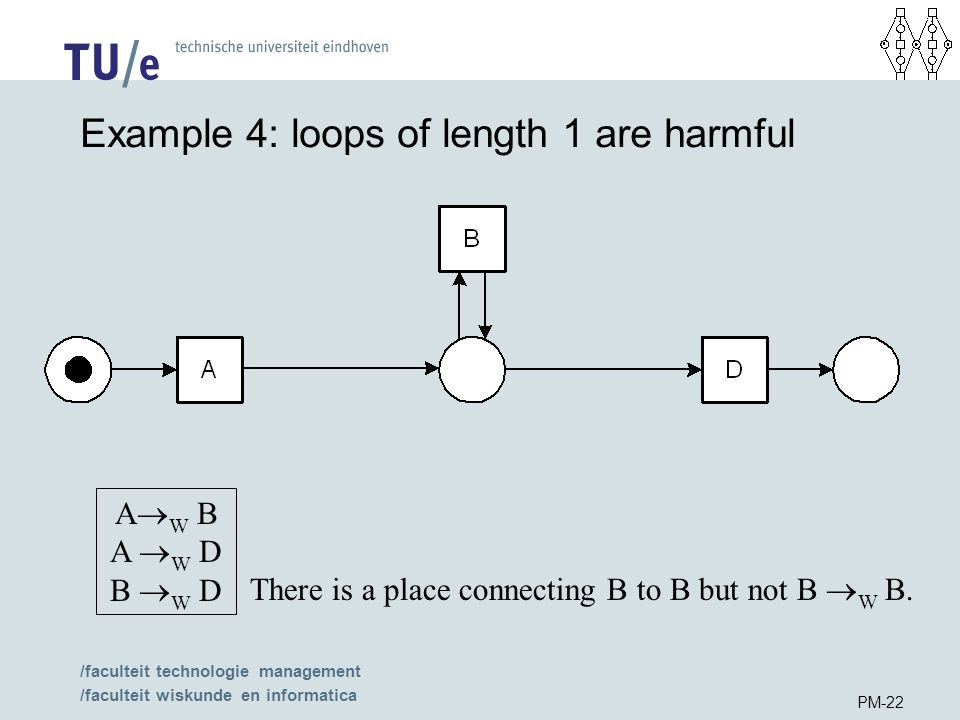

22 /faculteit technologie management /faculteit wiskunde en informatica PM-22 Example 4: loops of length 1 are harmful A  W B A  W D B  W D There is a place connecting B to B but not B  W B.

23 /faculteit technologie management /faculteit wiskunde en informatica PM-23 Example 5: loops of length 2 are harmful A  W B B  W D There is a place connecting B to C but not B  W C (because C can be followed directly by B). There is a place connecting C to B but not C  W B (because B can be followed directly by C).

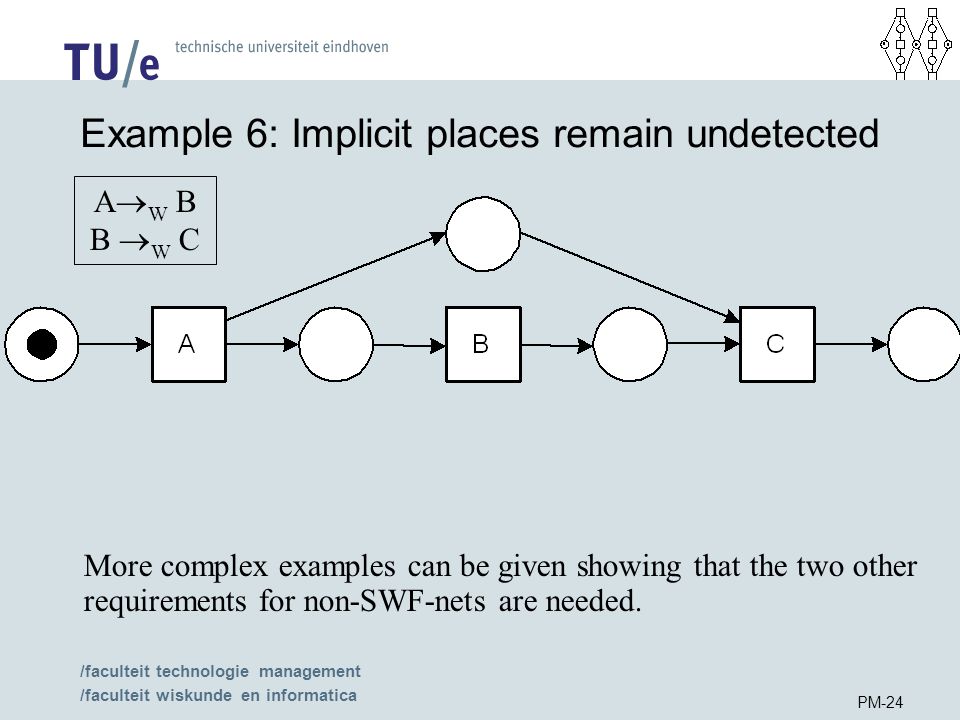

24 /faculteit technologie management /faculteit wiskunde en informatica PM-24 Example 6: Implicit places remain undetected A  W B B  W C More complex examples can be given showing that the two other requirements for non-SWF-nets are needed.

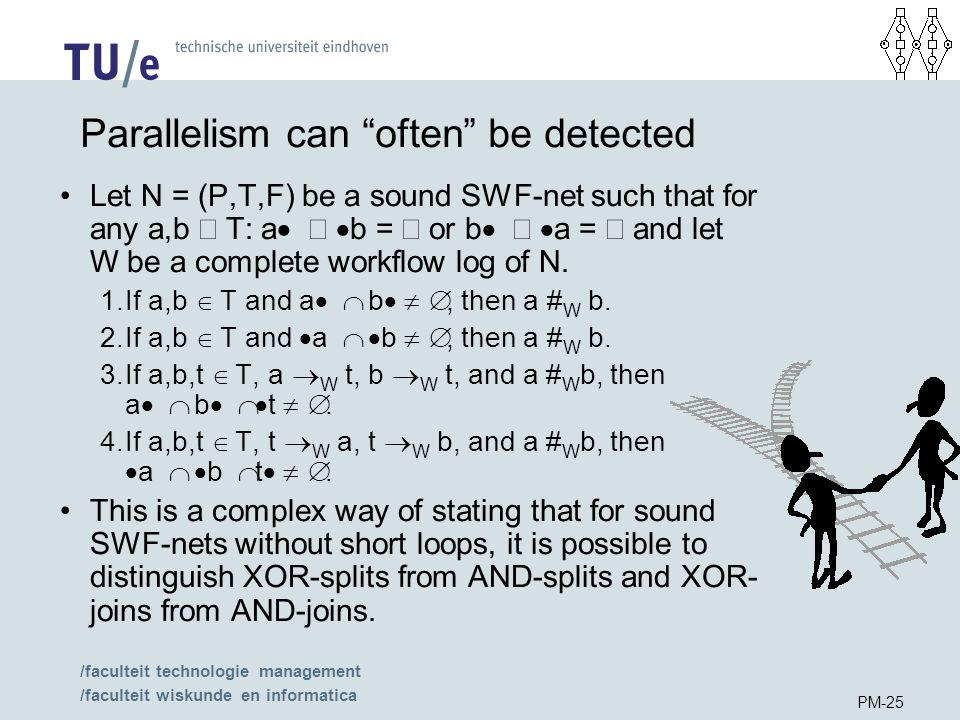

25 /faculteit technologie management /faculteit wiskunde en informatica PM-25 Parallelism can “often” be detected Let N = (P,T,F) be a sound SWF-net such that for any a,b  T: a    b =  or b    a =  and let W be a complete workflow log of N. 1.If a,b  T and a   b   , then a # W b. 2.If a,b  T and  a   b  , then a # W b. 3.If a,b,t  T, a  W t, b  W t, and a # W b, then a   b   t  . 4.If a,b,t  T, t  W a, t  W b, and a # W b, then  a   b  t   . This is a complex way of stating that for sound SWF-nets without short loops, it is possible to distinguish XOR-splits from AND-splits and XOR- joins from AND-joins.

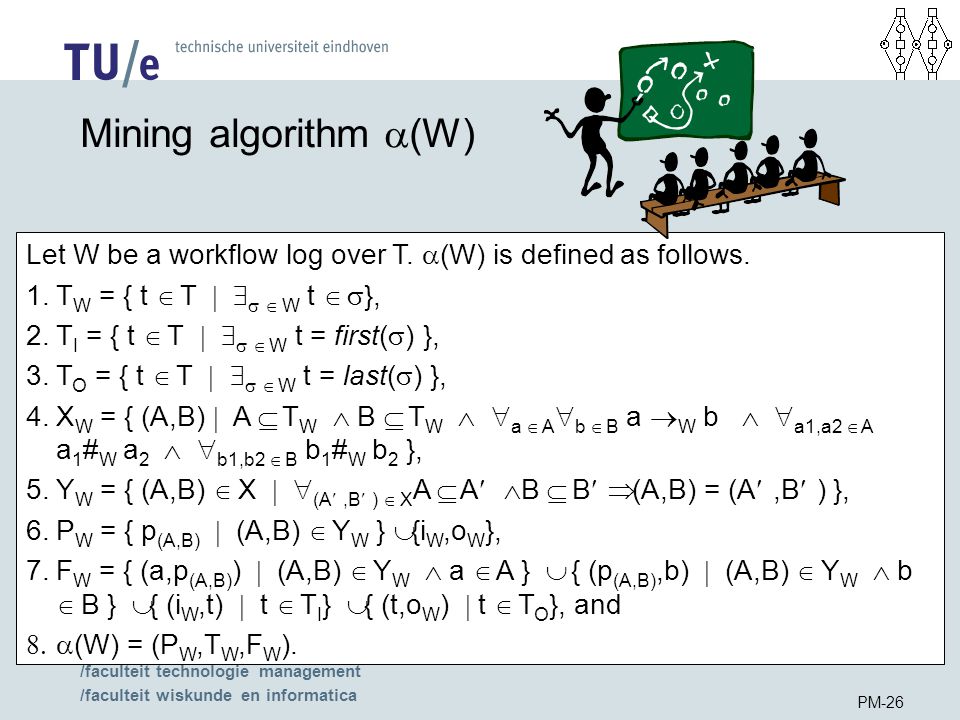

26 /faculteit technologie management /faculteit wiskunde en informatica PM-26 Mining algorithm  (W) Let W be a workflow log over T.  (W) is defined as follows. 1.T W = { t  T     W t   }, 2.T I = { t  T     W t = first(  ) }, 3.T O = { t  T     W t = last(  ) }, 4.X W = { (A,B)  A  T W  B  T W   a  A  b  B a  W b   a1,a2  A a 1 # W a 2   b1,b2  B b 1 # W b 2 }, 5.Y W = { (A,B)  X   (A,B)  X A  A  B  B  (A,B) = (A,B) }, 6.P W = { p (A,B)  (A,B)  Y W }  {i W,o W }, 7.F W = { (a,p (A,B) )  (A,B)  Y W  a  A }  { (p (A,B),b)  (A,B)  Y W  b  B }  { (i W,t)  t  T I }  { (t,o W )  t  T O }, and  (W) = (P W,T W,F W ).

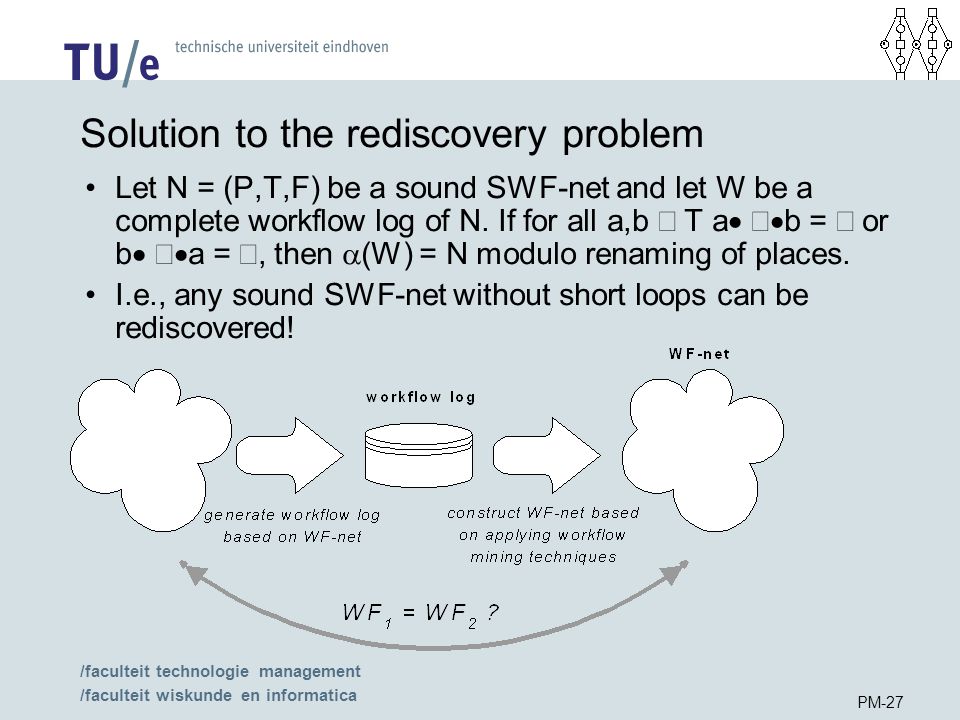

27 /faculteit technologie management /faculteit wiskunde en informatica PM-27 Solution to the rediscovery problem Let N = (P,T,F) be a sound SWF-net and let W be a complete workflow log of N. If for all a,b  T a   b =  or b   a = , then  (W) = N modulo renaming of places. I.e., any sound SWF-net without short loops can be rediscovered!

28 /faculteit technologie management /faculteit wiskunde en informatica PM-28 Example 7: Sound SWF-net without short loops

29 /faculteit technologie management /faculteit wiskunde en informatica PM-29 Example 8: A WF-net with an implicit place  (W)

30 /faculteit technologie management /faculteit wiskunde en informatica PM-30 Example 9: Loop of length 1  (W)

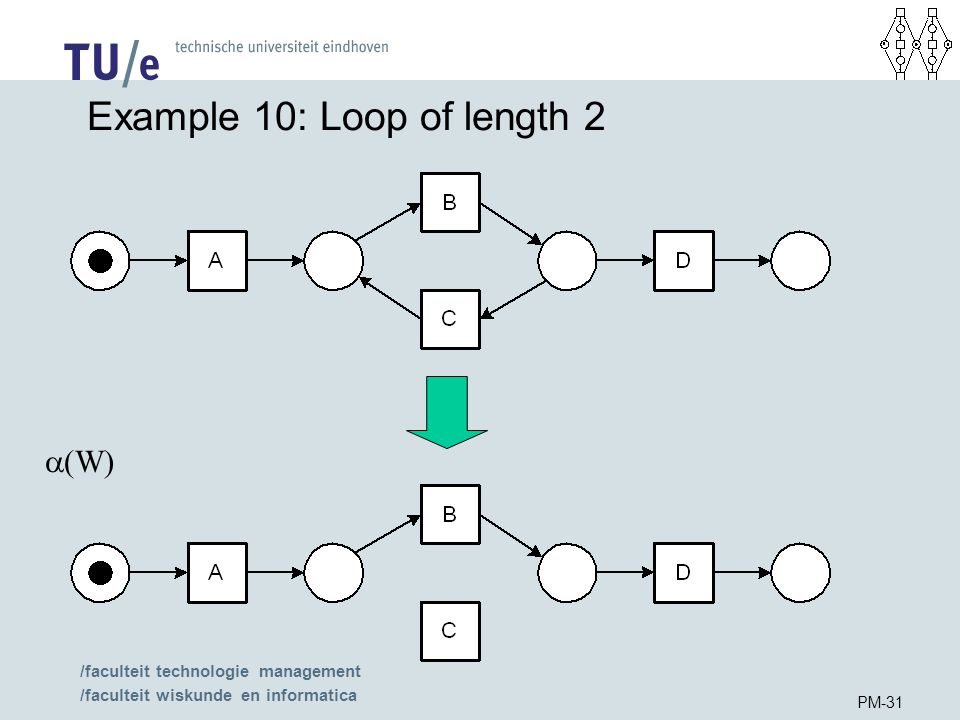

31 /faculteit technologie management /faculteit wiskunde en informatica PM-31 Example 10: Loop of length 2  (W)

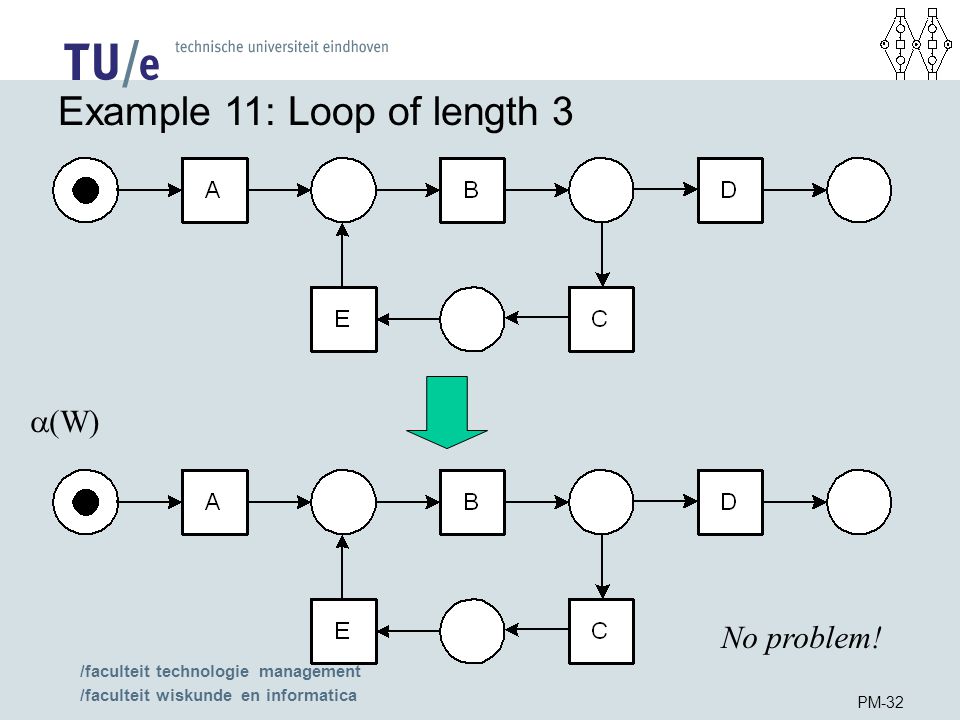

32 /faculteit technologie management /faculteit wiskunde en informatica PM-32 Example 11: Loop of length 3 No problem!  (W)

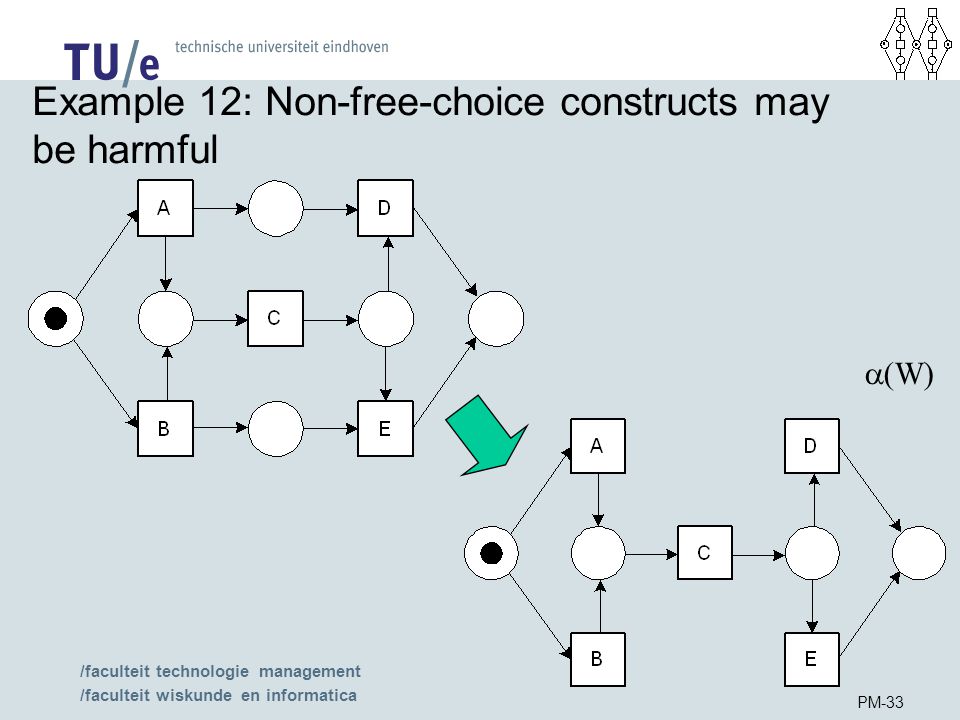

33 /faculteit technologie management /faculteit wiskunde en informatica PM-33 Example 12: Non-free-choice constructs may be harmful  (W)

34 /faculteit technologie management /faculteit wiskunde en informatica PM-34 Example 13: Free-choice is not enough Behaviorally equivalent!  (W)

35 /faculteit technologie management /faculteit wiskunde en informatica PM-35 Example 14: Example with “hidden” tasks ? Any suggestions?

36 /faculteit technologie management /faculteit wiskunde en informatica PM-36 Simplification! Behaviorally equivalent!  (W)

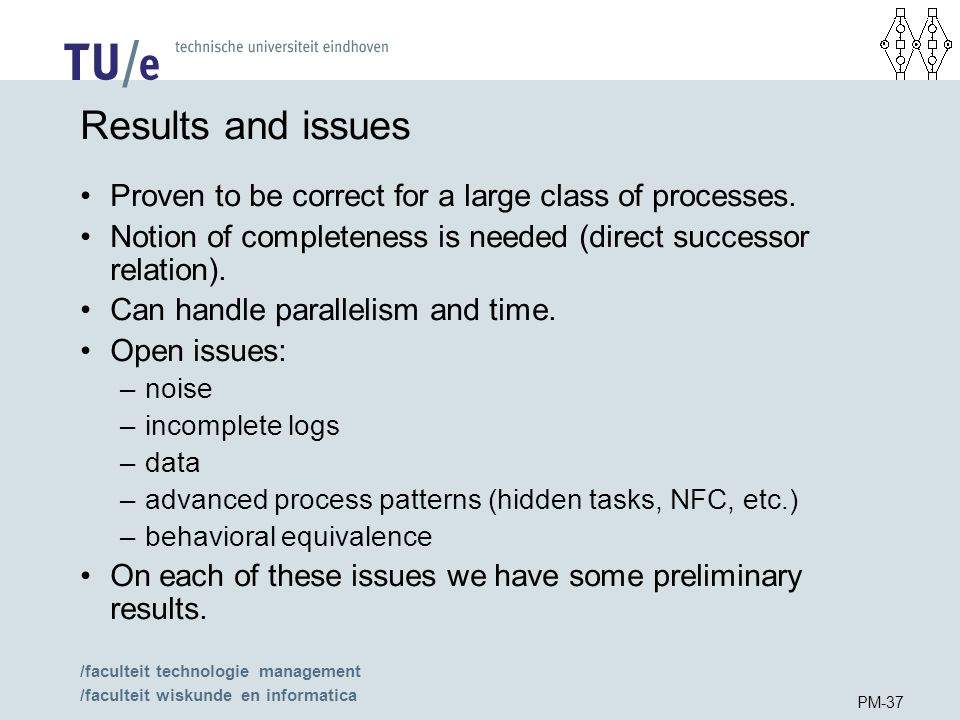

37 /faculteit technologie management /faculteit wiskunde en informatica PM-37 Results and issues Proven to be correct for a large class of processes. Notion of completeness is needed (direct successor relation). Can handle parallelism and time. Open issues: –noise –incomplete logs –data –advanced process patterns (hidden tasks, NFC, etc.) –behavioral equivalence On each of these issues we have some preliminary results.

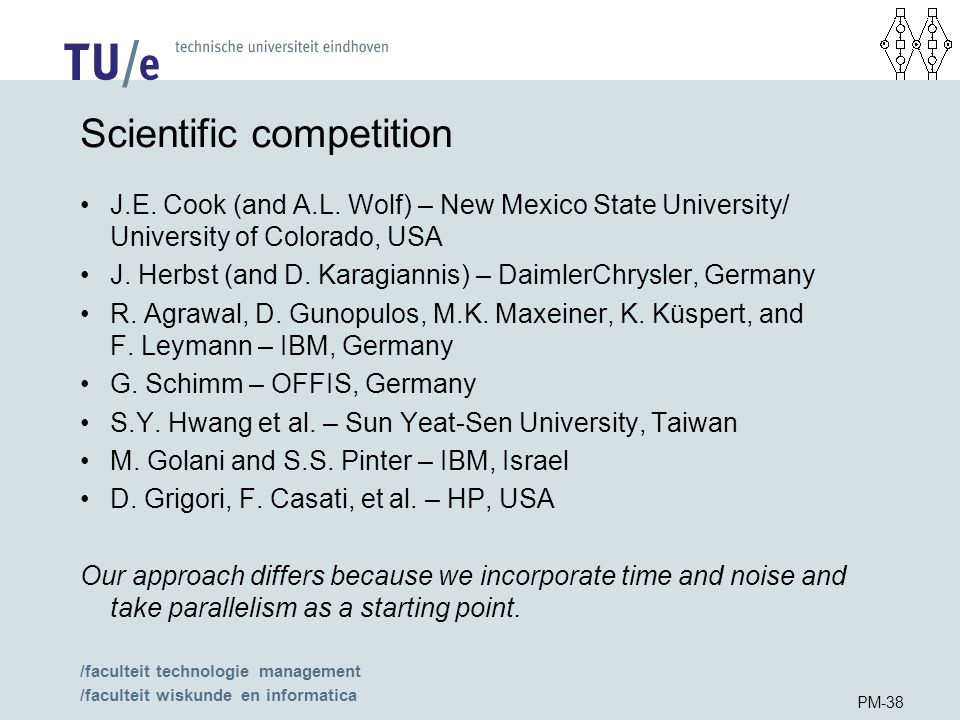

38 /faculteit technologie management /faculteit wiskunde en informatica PM-38 Scientific competition J.E. Cook (and A.L. Wolf) – New Mexico State University/ University of Colorado, USA J. Herbst (and D. Karagiannis) – DaimlerChrysler, Germany R. Agrawal, D. Gunopulos, M.K. Maxeiner, K. Küspert, and F. Leymann – IBM, Germany G. Schimm – OFFIS, Germany S.Y. Hwang et al. – Sun Yeat-Sen University, Taiwan M. Golani and S.S. Pinter – IBM, Israel D. Grigori, F. Casati, et al. – HP, USA Our approach differs because we incorporate time and noise and take parallelism as a starting point.

39 /faculteit technologie management /faculteit wiskunde en informatica PM-39 Practical competition (ARIS PPM) IDS Scheer's ARIS Process Performance Manager. No process mining but interesting links with systems like SAP.

40 /faculteit technologie management /faculteit wiskunde en informatica PM-40 Tools/standards for process mining

41 /faculteit technologie management /faculteit wiskunde en informatica PM-41 Example: processing customer orders Example in Staffware: 7 tasks and all basic routing constructs

42 /faculteit technologie management /faculteit wiskunde en informatica PM-42 Fragment of Staffware log Case 21 Diractive Description Event User yyyy/mm/dd hh:mm Start 2003/02/05 15:00 Register order Processed To 2003/02/05 15:00 Register order Released By 2003/02/05 15:00 Prepare shipment Processed To 2003/02/05 15:00 (Re)send bill Processed To 2003/02/05 15:00 (Re)send bill Released By 2003/02/05 15:01 Receive payment Processed To 2003/02/05 15:01 Prepare shipment Released By 2003/02/05 15:01 Ship goods Processed To 2003/02/05 15:01 Ship goods Released By 2003/02/05 15:02 Receive payment Released By 2003/02/05 15:02 Archive order Processed To 2003/02/05 15:02 Archive order Released By 2003/02/05 15:02 Terminated 2003/02/05 15:02 Case 22 Diractive Description Event User yyyy/mm/dd hh:mm Start 2003/02/05 15:02 Register order Processed To 2003/02/05 15:02 Register order Released By 2003/02/05 15:02 Prepare shipment Processed To 2003/02/05 15:02

43 /faculteit technologie management /faculteit wiskunde en informatica PM-43 Fragment of XML file Case start :04 Register order :04

44 /faculteit technologie management /faculteit wiskunde en informatica PM-44 EMiT Focus on time and causality.

45 /faculteit technologie management /faculteit wiskunde en informatica PM-45 Thumb Focus on noise.

46 /faculteit technologie management /faculteit wiskunde en informatica PM-46 Thumb is able to deal with noise (D/F-graphs) causalit y no noise 10% noise

47 /faculteit technologie management /faculteit wiskunde en informatica PM-47 Real case: CJIB Processing of fines cases 99 different activities

48 /faculteit technologie management /faculteit wiskunde en informatica PM-48 Process in EMiT

49 /faculteit technologie management /faculteit wiskunde en informatica PM-49 Complete process model Validated by CJIB

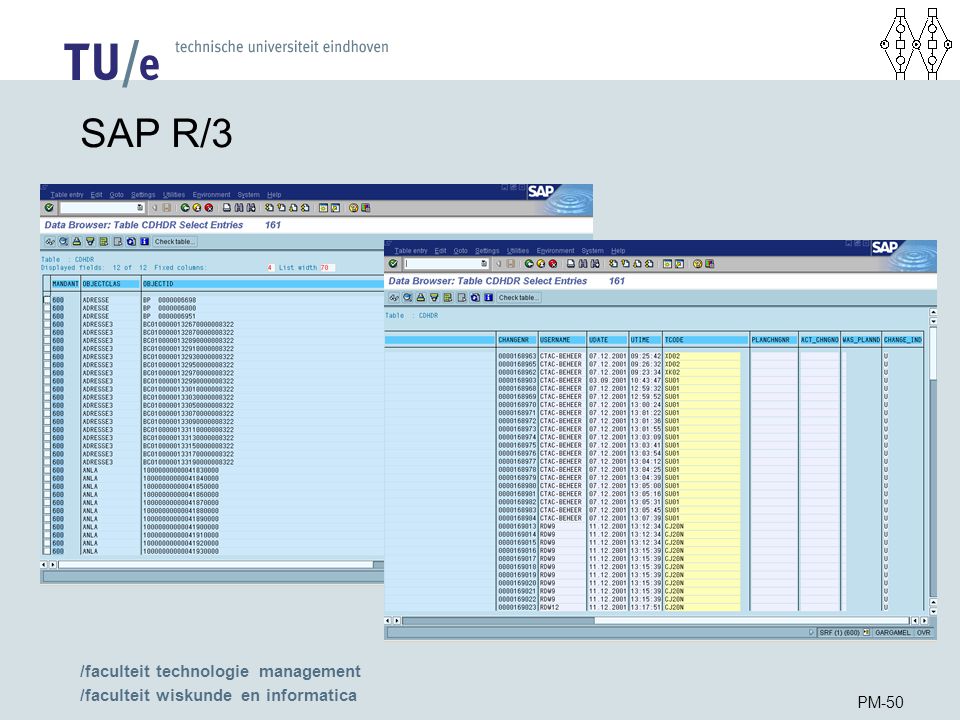

50 /faculteit technologie management /faculteit wiskunde en informatica PM-50 SAP R/3

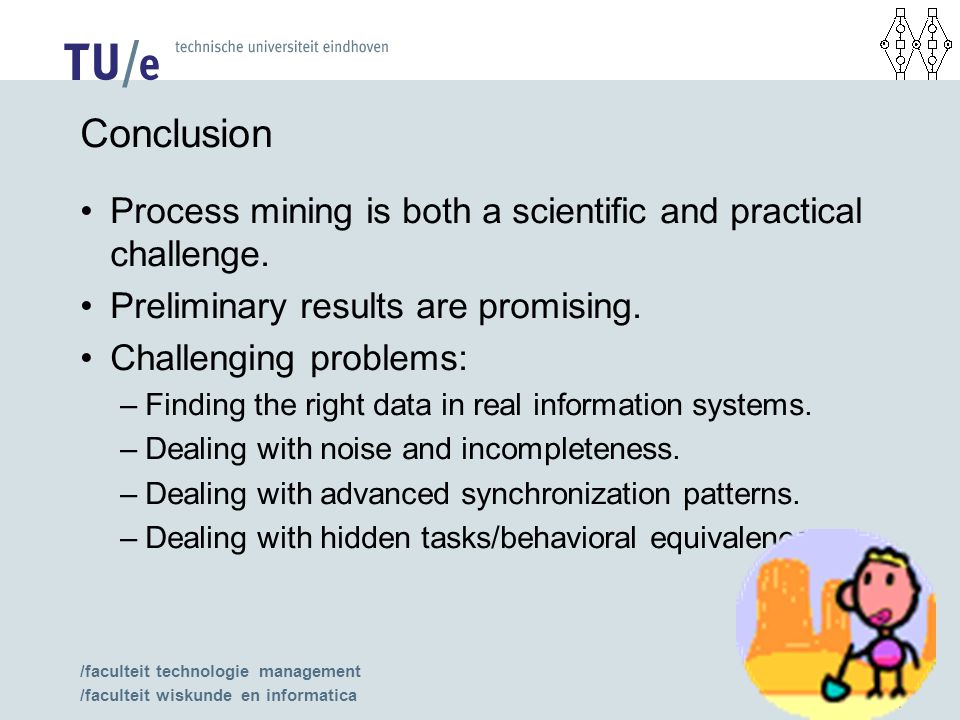

51 /faculteit technologie management /faculteit wiskunde en informatica PM-51 Conclusion Process mining is both a scientific and practical challenge. Preliminary results are promising. Challenging problems: –Finding the right data in real information systems. –Dealing with noise and incompleteness. –Dealing with advanced synchronization patterns. –Dealing with hidden tasks/behavioral equivalence.
