1 Hamilton Graph Theory โดย 1. นายธนพัฒน์ อัตถกิจมงคล ม.6/7 เลขที่ นายเศรษฐพงศ์ อัศวรัตน์ ม.6/7 เลขที่ นายสุภาเทพ ตัณศิริชัยยา ม.6/7 เลขที่ 22

2 กราฟแฮมิลตัน กราฟแฮมิลตัน เซอร์วิลเลียม โร แวน แฮมิลตัน (Sir William Rowan Hamilton) นัก คณิตศาสตร์ชาวไอริช ได้ประดิษฐ์ก้อนไม้ที่มี 20 มุม และประกอบด้วย รูปห้าเหลี่ยมด้านเท่า จำนวน 12 หน้า

3 กราฟแฮมิลตัน กราฟแฮมิลตัน ปัญหาก็คือการหาเส้นทาง โดยเริ่มจากเมืองหนึ่ง ๆ แล้วไล่ตาม ขอบของก้อนไม้ไปเรื่อย ๆ เพื่อที่จะ แวะผ่านทุก เมือง เมืองละ 1 ครั้ง แล้ววนกลับสู่เมืองที่ตั้งต้น

4 วิถีและ วงจรแฮมิล ตัน ให้ G = (V,E) เป็นกราฟ วิถีแฮมิล ตัน (Hamiltonian Path) คือวิถีในกราฟ ซึ่งใช้จุดทุกจุดเพียง จุดละ 1 ครั้ง โดยไม่ จำเป็นต้องใช้เส้น เชื่อมครบทุกเส้น และ ถ้าจุดยอดเริ่มต้นกับ จุดยอดสุดท้ายของวิถี เป็นจุดเดียวกัน จะ เรียกว่า วงจรแฮมิล ตัน (Hamiltonian Circuit)

5 ตัวอย่าง การหาวัฏจักรแฮ มิลโทเนียนของกราฟ a b c h g e f d. G กราฟมี วัฏจักรแฮมิลตัน โดยมีเส้นทางเดิน คือ a, b, c, h, g, e, f, d, a

6 16-Cell The 16-cell is the finite regular four- dimensional. It is also known as the hyperoctahedron or hexadecachoron, and its composed of 16 tetrahedra, with 4 to an edge. It has 8 vertices, 24 edges, and 32 faces. The 16-cell. It has distinct nets.tetrahedranets

7 24-Cell The 24-cell is a finite regular four- dimensional. It is also known as the hyperdiamond or icositetrachoron, and is composed of 24 octahedra, with 3 to an edge. The 24-cell has 24 vertices and 96 edges. It is one of the six regular polychora. The 24-cell hasoctahedra regular polychora distinct nets.

8 120-Cell The 120-cell is a finite regular four- dimensional, also known as the hyperdodecahedron or hecatonicosachoron, and composed of 120 dodecahedra, with 3 to an edge, and 720 pentagons.The 120-cell has 600 vertices and 1200 edges.dodecahedrapentagons

9

10 600-Cell The 600-cell is the finite regular four- dimensional. It is also known as the hypericosahedron or hexacosichoron. It is composed of 600 tetrahedra, with 5 to an edge. The 600-cell has 120 vertices and 720 edges.tetrahedra

11 Balaban 10-Cage It is a Hamiltonian graph and has Hamiltonian cycles. The Balaban 10- cage is one of the three -cage graphs.Hamiltonian graphcage graphs

12 Bidiakis Cube The 12-vertex graph consisting of a cube in which two opposite faces (say, top and bottom) have edges drawn across them which connect the centers of opposite sides of the faces in such a way that the orientation of the edges added on top and bottom are perpendicular to each other.vertex cube perpendicular

13 Biggs-Smith graph The Biggs-Smith graph is cubic symmetric graph on 102 vertices and 153 edges that is also distance-regular.cubic symmetric graphdistance-regular

14 Bislit Cube The bislit cube is the 8-vertex simple graph consisting of a cube in which two opposite faces have polyhedron diagonals oriented perpendicular to each other.vertexcubepolyhedron diagonalsperpendicular

15 Brinkmann Graph The Brinkmann graph is a weakly regular quartic graph on 21 vertices and 42 edges.weakly regularquartic graph

16 Clebsch Graph The Clebsch graph, also known as the Greenwood-Gleason graph, is a strongly regular quintic graph on 16 vertices and 40 edges strongly regularquintic graph

17 Cubical Graph The cubical graph is the Platonic graph corresponding to the connectivity of the cube. It is equivalent to the generalized Petersen graph. The cubical graph has 8 nodes, 12 edges.Platonic graphcube generalized Petersen graph

18 Cuboctahedral Graph An Archimedean symmetric quartic graph on 12 nodes and 24 edges that is the skeleton of the cuboctahedron. The cuboctahedral graph is the line graph of the cubical graph.Archimedeansymmetric quartic graphskeletoncuboctahedronline graphcubical graph

19 Desargues Graph The Desargues graph is a cubic symmetric graph distance-regular graph on 20 vertices and 30 edges.cubic symmetric graphdistance-regular graph

20 Diamond Graph The diamond graph is the simple graph on 4 nodes and 5 edges illustrated above.simple graph

21 Disdyakis Dodecahedral Graph The disdyakis dodecahedral graph is Archimedean dual graph which is the skeleton of the disdyakis dodecahedron. Archimedean dual graph skeletondisdyakis dodecahedron

22 Disdyakis Dodecahedron

23 Dodecahedral Graph The dodecahedral graph is the Platonic graph corresponding to the connectivity of the vertices of a dodecahedron. The dodecahedral graph has 20 nodes, 30 edges.Platonic graph dodecahedron

24 Dyck Graph The unique cubic symmetric graph on 32 nodes 48 edges. It is nonplanar.cubic symmetric graph

25 Errera Graph The Errera graph is the 17-node planar graph. It is an example of how Kempe's supposed proof of the four-color theorem fails.planar graphfour-color theorem

26 Folkman Graph The Folkman graph is a semisymmetric graph that has the minimum possible number of nodes (20)semisymmetric graph

27 Foster Graph The" Foster graph is the cubic symmetric graph on 90 vertices that has 135 edgescubic symmetric graph

28 Wong Graph The Wong graph is one of the four (5,5) -cage graphs. Like the other (5,5) -cages, the Wong graph has 30 nodes. It has 75 edges, girth 5, diameter 3, chromatic number 4, and is a quintic graph.cage graphschromatic numberquintic graph

29 Wells Graph The Wells graph is a quintic graph on 32 nodes and 80 edges that is the unique distance-regular graph with intersection array (5, 4, 1, 1; 1, 1, 4, 5). It is a double cover of the complement of the Clebsch graph (Brouwer et al. 1989, p. 266).quintic graphdistance-regular graphintersection arrayClebsch graph

30 Utility Graph The utility problem posits three houses and three utility companies-- say, gas, electric, and water--and asks if each utility can be connected to each house without having any of the gas/water/electric lines/pipes pass over any other. This is equivalent to the equation "Can a planar graph be constructed from each of three nodes ('houses') to each of three other nodes ('utilities')?" This problem was first posed in this form by H. E. Dudeney in 1917 (Gardner 1984, p. 92).planar graph

31 Unitransitive Graph A graph G is n -unitransitive if it is connected, cubic, n-transitive, and if for any two n-routes W1 and W2graphconnectedcubictransitiveroutes

32 Truncated Tetrahedral Graph The truncated tetrahedral graph is the cubic Archimedean graph on 12 nodes and 18 edges that is the skeleton of the truncated tetrahedron.cubicArchimedean graphskeletontruncated tetrahedron

33 Truncated Octahedral Graph The truncated octahedron graph is the cubic Archimedean graph on 24 nodes and 36 edges that is the skeleton of the truncated octahedron.cubicArchimedean graphskeletontruncated octahedron

34 Truncated Icosahedral Graph The truncated icosahedral graph is the cubic Archimedean graph on 60 nodes and 90 edges that is the skeleton of the truncated icosahedron. A number of embeddings are shown above.cubicArchimedean graphskeletontruncated icosahedron

35

36 Truncated Dodecahedral Graph The cubic Archimedean graph on 60 nodes and 90 edges that is the skeleton of the truncated dodecahedron.cubicArchimedean graphskeletontruncated dodecahedron

37 Truncated Cubical Graph The cubic Archimedean graph on 24 nodes and 36 edges that is the skeleton of the truncated cube.cubicArchimedean graphskeletontruncated cube

38 Triangle Graph The triangle graph is the cycle graph C 3, which is also the complete graph K 3.cycle graph complete graph

39 Triakis Tetrahedral Graph The triakis tetrahedral graph is Archimedean dual graph which is the skeleton of the triakis tetrahedron.Archimedean dual graphskeletontriakis tetrahedron

40 Tetrahedral Graph The Platonic graph that is the unique polyhedral graph on four nodes which is also the complete graph K 4 and therefore also the wheel graph W 4.Platonic graphpolyhedral graphcomplete graphwheel graph

41 Tesseract The tesseract is composed of 8 cubes with 3 to an edge, and therefore has 16 vertices, 32 edges, 24 squares, and 8 cubes. It is one of the six regular polychora.squarescubesregular polychora

42 Sylvester Graph "The" Sylvester graph is a quintic graph on 36 nodes and 90 edges that is the unique distance-regular graph with intersection array {5, 4, 2; 1, 1, 4}.quintic graphdistance-regular graphintersection array

43 Square Graph The cycle graph C 4.cycle graph

44 Snub Dodecahedral Graph The snub dodecahedral graph is a quintic graph on 60 nodes and 150 edges that corresponds to the skeleton of the snub dodecahedron. The snub dodecahedral graph is planar and Hamiltonian, and has chromatic number 4. It is vertex-transitive, although not edge-transitive because some edges are part of three-circuits while others are not.quintic graphskeletonsnub dodecahedronplanarHamiltonianchromatic numbervertex-transitiveedge-transitive

45 Snub Cubical Graph The snub cubical graph is the Archimedean graph on 24 nodes and 60 edges obtained by taking the skeleton of the snub cube. It is a quintic graph, is planar, Hamiltonian, and has chromatic number 3.Archimedean graphskeletonsnub cube quintic graphplanarHamiltonianchromatic number

46 Small Rhombicuboctahedral Graph The small rhombicuboctahedral graph is a quartic graph on 24 nodes and 48 edges that corresponds to the skeleton of the small rhombicuboctahedron. It has graph diameter 5, graph radius 5, and chromatic number 3. It is also Hamiltonian. It is vertex-transitive, although not edge-transitive because some edges are part of three-circuits while others are not.quartic graphskeletonsmall rhombicuboctahedrongraph diametergraph radius chromatic numberHamiltonianvertex-transitiveedge-transitive

47 Small Rhombicosidodecahedral Graph The small rhombicosidodecahedral graph is a quartic graph on 60 nodes and 120 edges that corresponds to the skeleton of the small rhombicosidodecahedron. It has graph diameter 8, graph radius 8, and chromatic number 3. It is also Hamiltonian. It is vertex-transitive, although not edge-transitive because some edges are part of three-circuits while others are not.quartic graphskeletonsmall rhombicosidodecahedrongraph diametergraph radius chromatic numberHamiltonianvertex-transitiveedge-transitive

48 Robertson-Wegner Graph The Robertson-Wegner graph has 30 nodes. It has 75 edges, girth 5, diameter 3, and chromatic number 4.chromatic number

49 Robertson Graph The Robertson graph has 19 vertices and 38 edges.

50 Pentatope The pentatope is self-dual, has five three-dimensional facets (each the shape of a tetrahedron), 10 ridges (faces), 10 edges, and five vertices.tetrahedron

51 Pentakis Dodecahedral Graph The pentakis dodecahedral graph is Archimedean dual graph which is the skeleton of the disdyakis triacontahedron.Archimedean dual graphskeletondisdyakis triacontahedron

52 Pentagonal Icositetrahedral Graph The pentagonal icositetrahedral graph is the Archimedean dual graph which is the skeleton of the pentagonal icositetrahedron.Archimedean dual graphskeletonpentagonal icositetrahedron

53 Pentagonal Hexecontahedral Graph The pentagonal hexecontahedral graph is the Archimedean dual graph which is the skeleton of the pentagonal hexecontahedron.Archimedean dual graphskeletonpentagonal hexecontahedron

54 Pappus Graph A cubic symmetric distance-regular graph on 18 vertices, illustrated above in three embeddings.cubic symmetricdistance-regular graph

55 Octahedral Graph The 6-node 12-edge Platonic graph having the connectivity of the octahedronPlatonic graphoctahedron

56 Möbius-Kantor Graph The unique cubic symmetric graph on 16 nodes, illustrated above in two embeddings.cubic symmetric graph

57 Meringer Graph The Meringer graph has 30 nodes. It has 75 edges, girth 5, diameter 3, chromatic number 3, and is a quintic graph. The order of its automorphism group is 96.chromatic numberquintic graphautomorphism group

58 McGee Graph The McGee graph was discovered by McGee (1960) and proven unique by Tutte (1966; Wong 1982). It has 24 nodes, 36 edges, girth 7, diameter 4, and is a cubic graph.cubic graph

59 Levi Graph "The" Levi graph (right figure) is a graph based on Desargues' configuration which consists of the union of the two leftmost subgraphs illustrated above. It has 30 nodes and 45 edges. It has girth 8, diameter 4, chromatic number 2, and automorphism group order 1440.Desargues' configuration chromatic numberautomorphism group

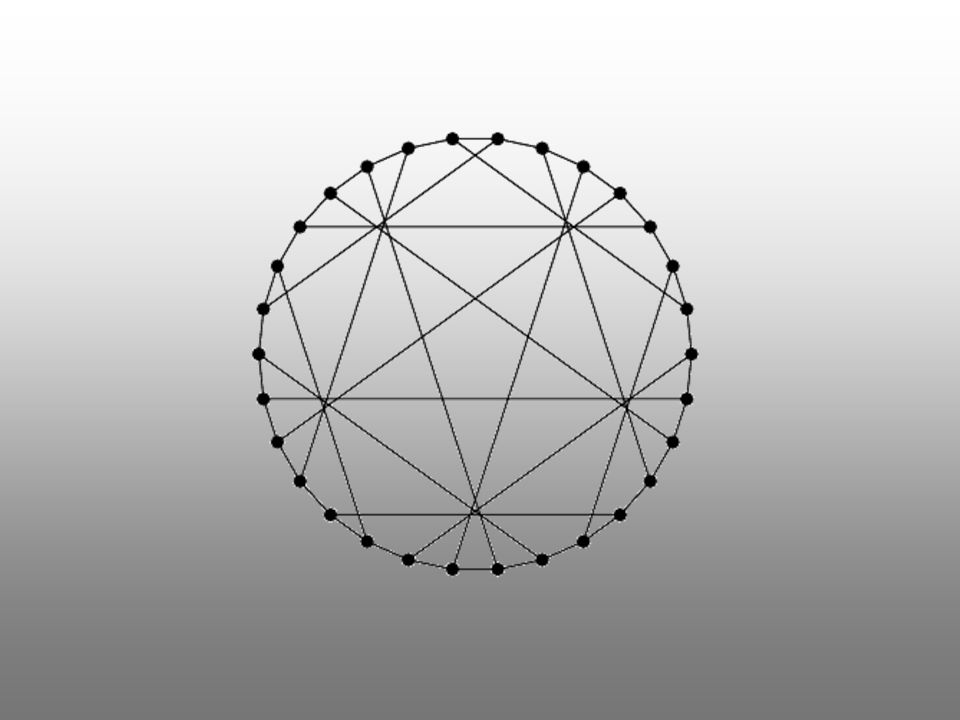

60

61 Kittell Graph The Kittell graph is a planar graph on 23 nodes and 63 edges that tangles the Kempe chains in Kempe's algorithm and thus provides an example of how Kempe's supposed proof of the four- color theorem fails.planar graphfour- color theorem

62 Icosidodecahedral Graph A symmetric quartic graph on 30 nodes and 60 edges corresponding to the skeleton of the icosidodecahedron. It has graph diameter 5, graph radius 5, and chromatic number 3. It is also Hamiltonian.symmetric quartic graphskeletonicosidodecahedrongraph diametergraph radiuschromatic number Hamiltonian

63 Icosahedral Graph The icosahedral graph is the Platonic graph whose nodes have the connectivity of the icosahedron, illustrated above in a number of embeddings. The icosahedral graph has 12 vertices and 30 edges.Platonic graphicosahedron

64

65 House Graph The house graph is a simple graph on 5 nodes and 6 edges whose name derives from its resemblance to a schematic illustration of a house with a roof.simple graph

66 Hoffman-Singleton Graph The Hoffman-Singleton graph is the graph on 50 nodes and 175 edges that is the only regular graph of vertex degree 7, diameter 2, and girth 5.regular graphvertex degreediametergirth

67

68 Hoffman Graph The Hoffman graph is the bipartite graph on 16 nodes and 32 edges.bipartite graph

69 Heawood Graph The Heawood graph is the cage graph illustrated above in a number of embeddings. It is 4-transitive, but not 5-transitive (Harary 1994, p. 173).cage graph

70

71 Harries-Wong Graph The Harries-Wong graph is one of the three (10,3) -cage graphs, the other two being the (10,3) -cage Balaban graph and the Harries graph.cage graphsBalaban graph Harries graph

72 Harries Graph The Harries graph is one of the three (10,3) -cage graphs, the other two being the (10,3) -cage Balaban graph and the Harries-Wong graph.cage graphsBalaban graphHarries-Wong graph

73 Harborth Graph The Harborth graph is the smallest known 4-regular matchstick graph. It is therefore both planar and unit-distance. It has 104 edges and 52 vertices. This graph was named after its discoverer H. Harborth, who first presented it to a general public in 1986 (Harborth 1986, Petersen 1996, Gerbracht 2006).regularmatchstick graphplanarunit-distance

74 Grünbaum Graph The Grünbaum graph can be constructed from the dodecahedral graph by adding an additional ring of five vertices around the perimeter and cyclically connecting each new vertex to three others as shown above (left figure). A more symmetrical embedding is shown in the right figure above. The Grünbaum graph has 25 vertices and 50 edges. dodecahedral graph

75 Grötzsch Graph The Grötzsch graph is smallest triangle-free graph with chromatic number four. It is identical to the Mycielski Graph of order four. It has 11 vertices and 20 edges. It is Hamiltonian, but nonplanar.triangle-free graph chromatic numberMycielski Graph

76 Great Rhombicuboctahedral Graph The cubic Archimedean graph on 48 nodes and 72 edges that is the skeleton of the great rhombicuboctahedron.cubicArchimedean graphskeletongreat rhombicuboctahedron

77

78 Great Rhombicosidodecahedral Graph The great rhombicosidodecahedral graph is the Archimedean graph on 120 vertices and 180 edges that is the skeleton of the great rhombicosidodecahedron. It is cubic, has chromatic number 2, and is planar and Hamiltonian.Archimedean graphskeletongreat rhombicosidodecahedroncubicchromatic number planarHamiltonian

79 Gray Graph The Gray graph is a semisymmetric cubic graph on 54 vertices. It was discovered by Marion C. Gray in 1932, and was first published by Bouwer (1968). Malnic et al. (2004) showed that the Gray graph is indeed the smallest possible semisymmetric cubic graph.semisymmetriccubic graphsemisymmetriccubic graph

80 Gewirtz Graph The Gewirtz graph, sometimes also called the Sims- Gewirtz graph (Brouwer), is an integral graph on 56 nodes and 280 edges that is also a regular graph of order 10.integral graphregular graph

81 Frucht Graph The Frucht graph is smallest cubic identity graph (Skiena 1990, p. 185). It has 12 vertices and 18 edges. It is also both planar and Hamiltonian.cubicidentity graph

82 ทฤษฎีบทของดิแรก (Dirac’s theoem) กราฟเชิงเดียวที่มีจุดยอด n จุด เมื่อ n >= 3 และจุดยอดทุกจุด มีดีกรีอย่างน้อย n/2 แล้วกราฟ ดังกล่าวเป็นกราฟแฮมิลตัน
