1 PRESENTS How to setup cned school server on dell poweredge t610 +2tbx3 green,red,black dell poweredge t6101prachoom rangkasikorn prachoom school server

2 Phitsanulok Primary Educational Service area office dell poweredge t6102prachoom rangkasikorn prachoom school server

3 THAYANG PHETCHABURI dell poweredge t6103prachoom rangkasikorn prachoom school server

4 How to hardcopy With Oker dell poweredge t6104prachoom rangkasikorn prachoom school server

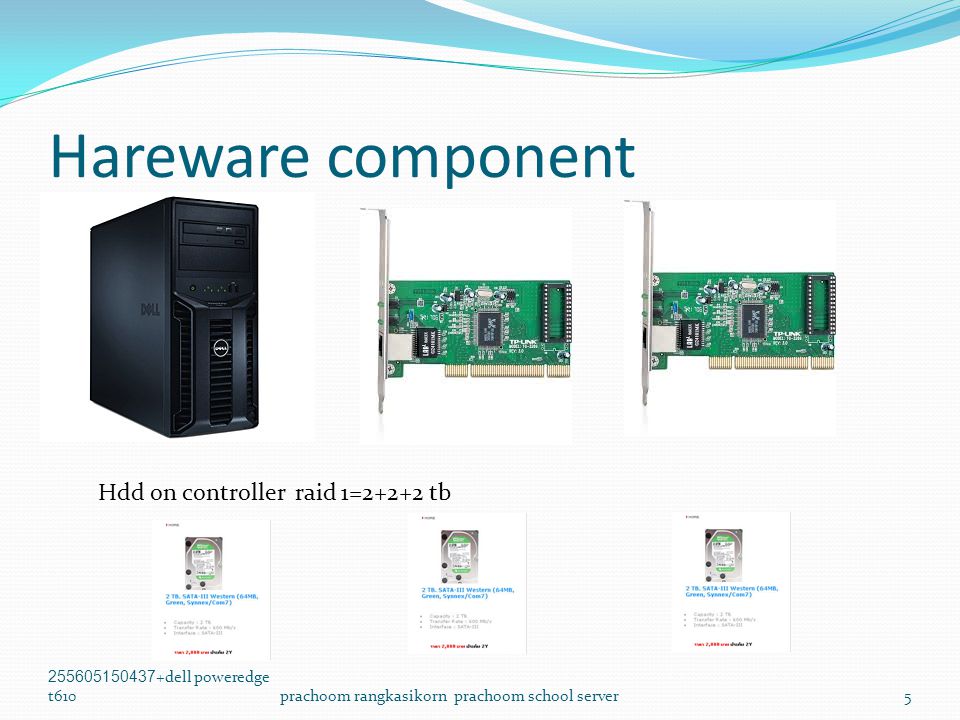

5 Hareware component dell poweredge t610prachoom rangkasikorn prachoom school server5 Hdd on controller raid 1=2+2+2 tb

6 Hareware component dell poweredge t610prachoom rangkasikorn prachoom school server6 Hdd on controller raid1=2+2+2 tb

7 Hareware component dell poweredge t610prachoom rangkasikorn prachoom school server7 Hdd on controller raid1=2+2+2 tb

8 What content on each group or dell poweredge t6108prachoom rangkasikorn prachoom school server Preschool 41 gb Primary 988 gb Gerneral 600gb =1629 gb Dltv gb Edltv_sec 591 gb Edltv_voc 188 gb =1610 gb Dltv53p,m =1537 gb

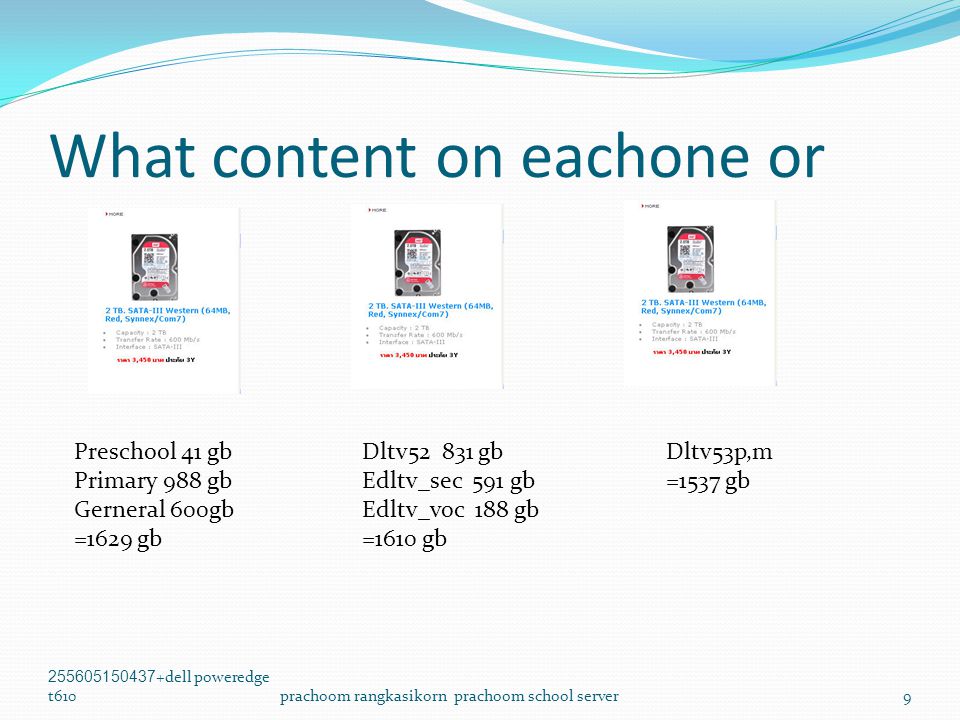

9 What content on eachone or dell poweredge t6109prachoom rangkasikorn prachoom school server Preschool 41 gb Primary 988 gb Gerneral 600gb =1629 gb Dltv gb Edltv_sec 591 gb Edltv_voc 188 gb =1610 gb Dltv53p,m =1537 gb

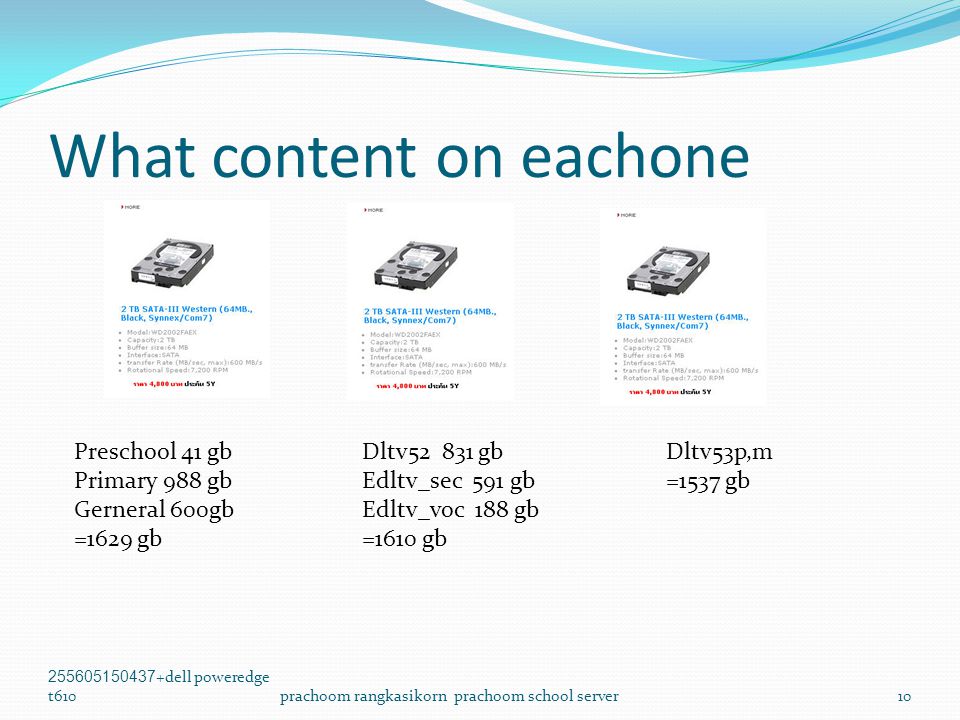

10 What content on eachone dell poweredge t61010prachoom rangkasikorn prachoom school server Preschool 41 gb Primary 988 gb Gerneral 600gb =1629 gb Dltv gb Edltv_sec 591 gb Edltv_voc 188 gb =1610 gb Dltv53p,m =1537 gb

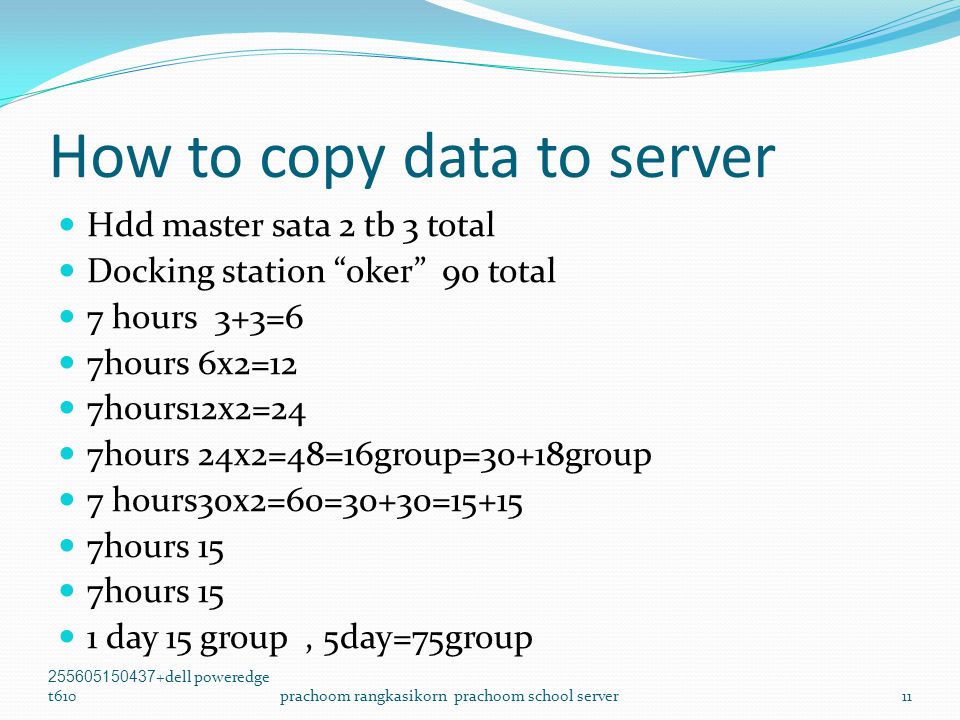

11 How to copy data to server  Hdd master sata 2 tb 3 total  Docking station “oker” 90 total  7 hours 3+3=6  7hours 6x2=12  7hours12x2=24  7hours 24x2=48=16group=30+18group  7 hours30x2=60=30+30=15+15  7hours 15  1 day 15 group, 5day=75group dell poweredge t610prachoom rangkasikorn prachoom school server11

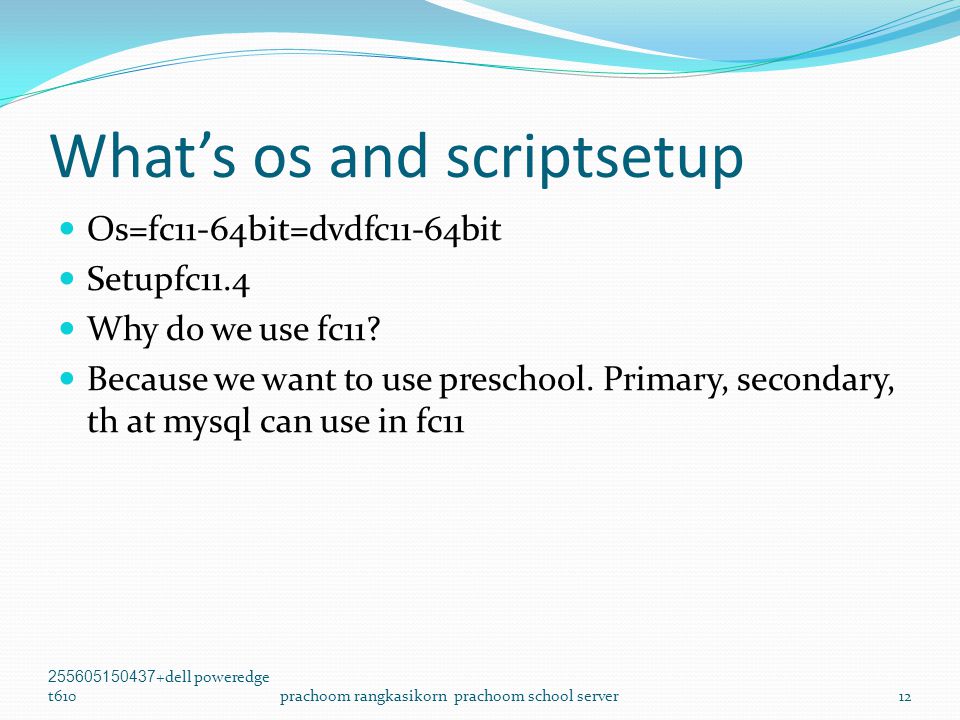

12 What’s os and scriptsetup  Os=fc11-64bit=dvdfc11-64bit  Setupfc11.4  Why do we use fc11?  Because we want to use preschool. Primary, secondary, th at mysql can use in fc dell poweredge t610prachoom rangkasikorn prachoom school server12

13 How to mkfs.ext4 /dev/sda..  Mkfs.ext4 /dev/sda4  Mkfs.ext4 /dev/sda5  E2fsck –f /dev/sda4  E2fsck –f /dev/sda dell poweredge t610prachoom rangkasikorn prachoom school server13

14 How to setup fc11-64bit  Put dvdfc11-64bit in cdrom drive  Open computer  Boot form cdrom into first page  Choose menu follow dell poweredge t610prachoom rangkasikorn prachoom school server14

15 Choose menu the second dell poweredge t610prachoom rangkasikorn prachoom school server15

16 Press skip dell poweredge t610prachoom rangkasikorn prachoom school server16

17 Click next dell poweredge t610prachoom rangkasikorn prachoom school server17

18 dell poweredge t610prachoom rangkasikorn prachoom school server18

19 dell poweredge t610prachoom rangkasikorn prachoom school server19

20 Hostname skip click next dell poweredge t610prachoom rangkasikorn prachoom school server20

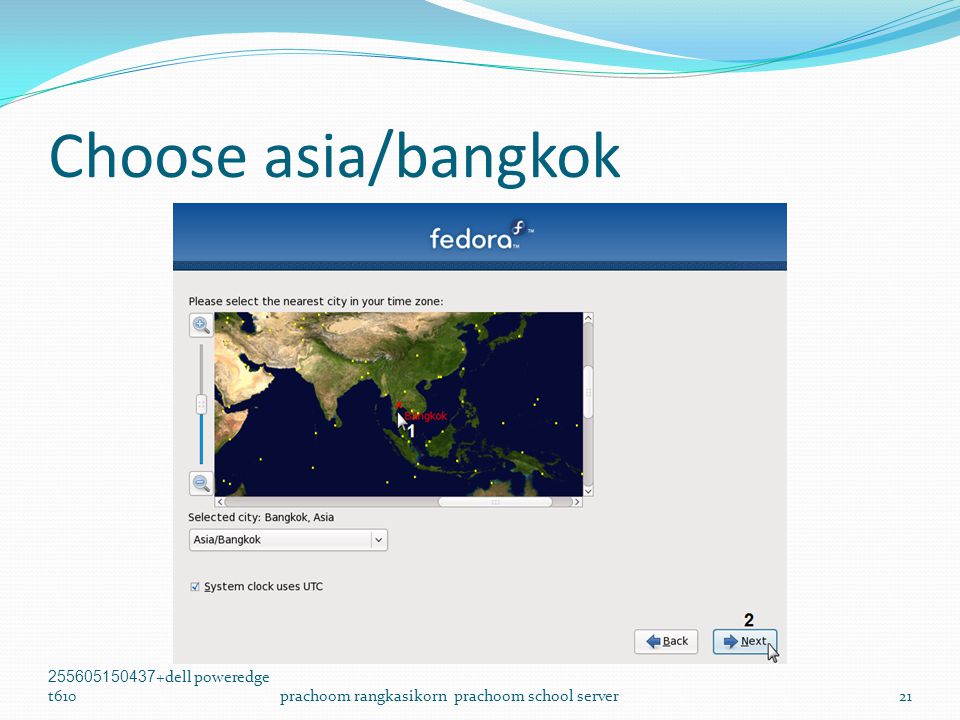

21 Choose asia/bangkok dell poweredge t610prachoom rangkasikorn prachoom school server21

22 dell poweredge t610prachoom rangkasikorn prachoom school server22

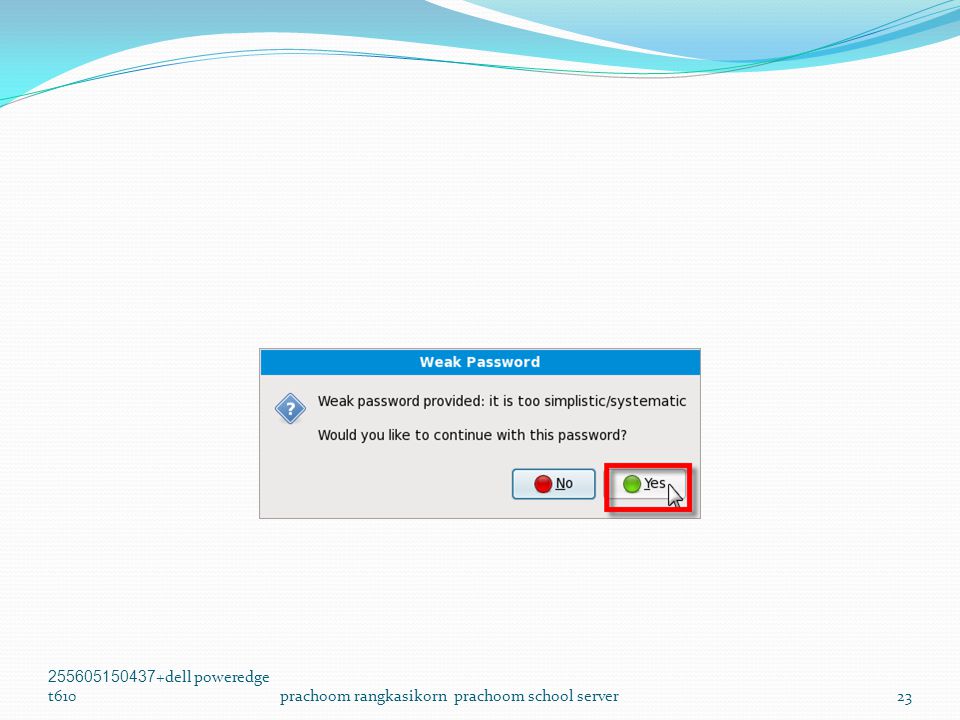

23 dell poweredge t610prachoom rangkasikorn prachoom school server23

24 dell poweredge t610prachoom rangkasikorn prachoom school server24

25 dell poweredge t610prachoom rangkasikorn prachoom school server25

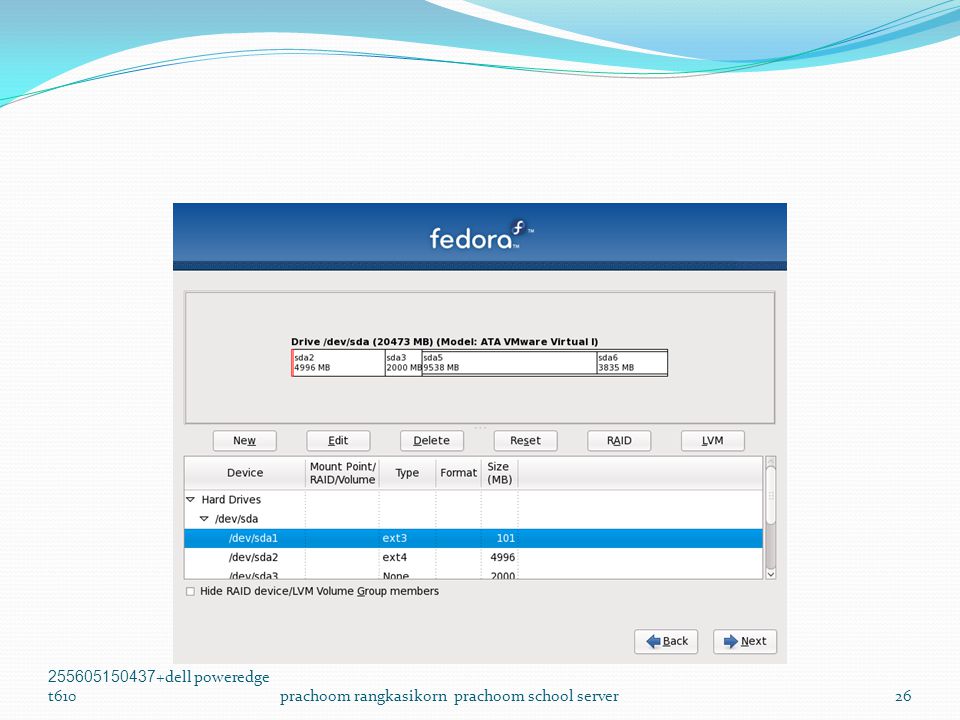

26 dell poweredge t610prachoom rangkasikorn prachoom school server26

27 dell poweredge t610prachoom rangkasikorn prachoom school server27

28 dell poweredge t610prachoom rangkasikorn prachoom school server28

29 dell poweredge t610prachoom rangkasikorn prachoom school server29

30 dell poweredge t610prachoom rangkasikorn prachoom school server30

31 dell poweredge t610prachoom rangkasikorn prachoom school server31

32 dell poweredge t610prachoom rangkasikorn prachoom school server32

33 dell poweredge t610prachoom rangkasikorn prachoom school server33

34 dell poweredge t610prachoom rangkasikorn prachoom school server34

35 dell poweredge t610prachoom rangkasikorn prachoom school server35

36 dell poweredge t610prachoom rangkasikorn prachoom school server36

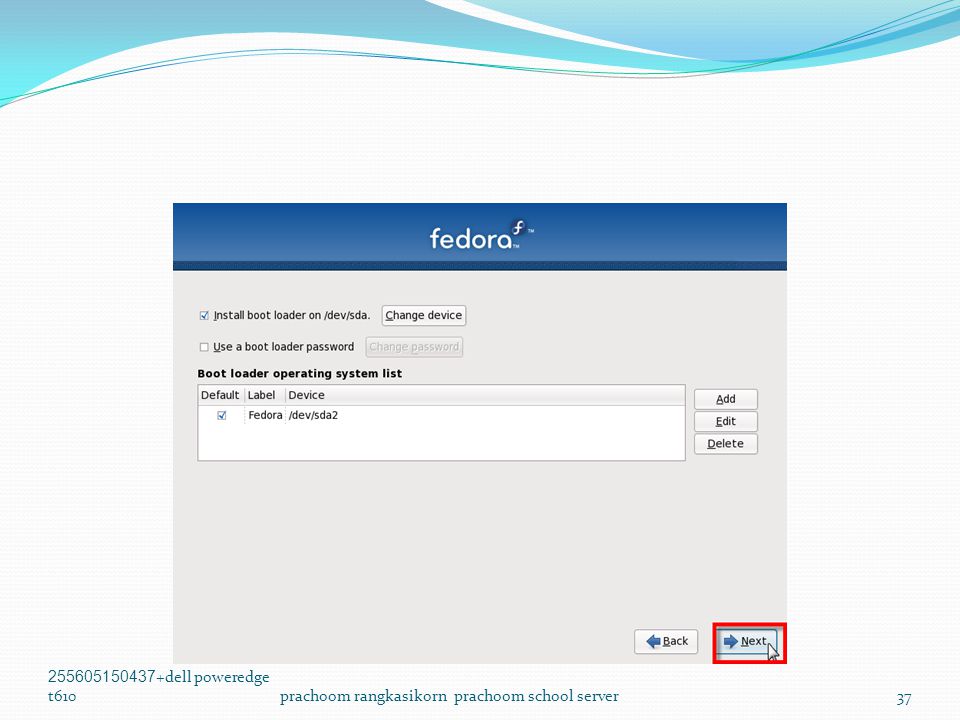

37 dell poweredge t610prachoom rangkasikorn prachoom school server37

38 dell poweredge t610prachoom rangkasikorn prachoom school server38

39 dell poweredge t610prachoom rangkasikorn prachoom school server39

40 dell poweredge t610prachoom rangkasikorn prachoom school server40

41 Choose DNS Names Server dell poweredge t610prachoom rangkasikorn prachoom school server41

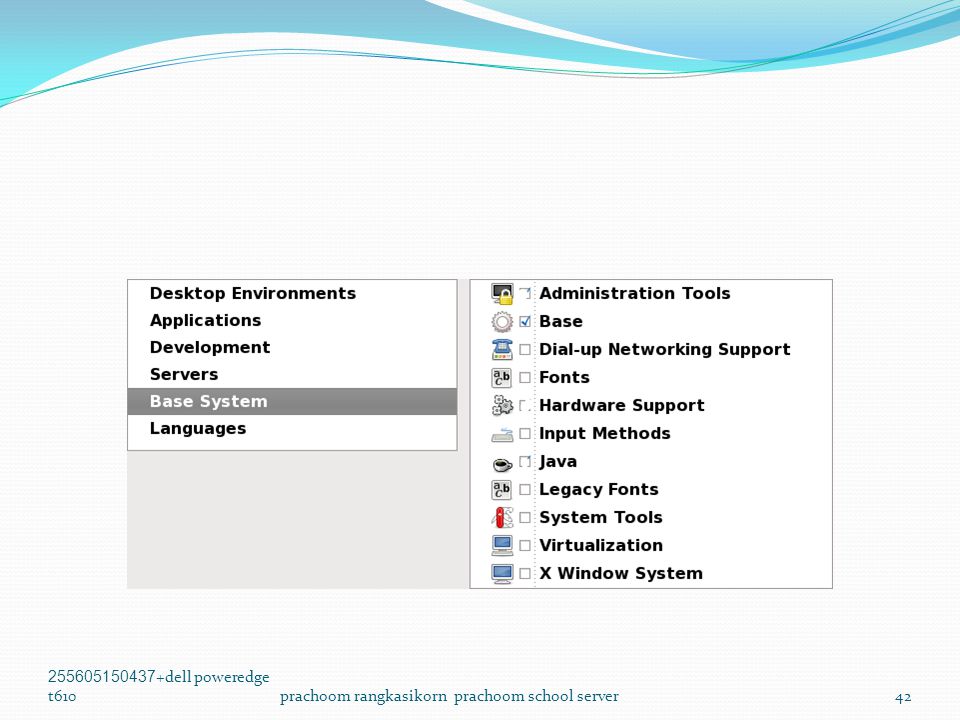

42 dell poweredge t610prachoom rangkasikorn prachoom school server42

43 dell poweredge t610prachoom rangkasikorn prachoom school server43

44 dell poweredge t610prachoom rangkasikorn prachoom school server44

45 dell poweredge t610prachoom rangkasikorn prachoom school server45

46 dell poweredge t610prachoom rangkasikorn prachoom school server46

47 dell poweredge t610prachoom rangkasikorn prachoom school server47

48 How to Close selinux  Root/  Vi /etc/selinux/config  Edit line to below  SELINUX=disabled  :wq  Reboot dell poweredge t610prachoom rangkasikorn prachoom school server48

49 How to create folder to receive scripts  Mkdir /a  Mkdir /aa  Mkdir /bb  Mkdir /b  Mkdir /school  Mkdir /school/log  Mkdir /school/webmaster dell poweredge t610prachoom rangkasikorn prachoom school server49

50 How to e2label, fstab  E2label /dev/sda4 log  E2label /dev/sda5 webmaster  Vi /etc/fstab  Plus line below  LABEL=log /school/log ext4 defaults 0 0  LABEL=webmaster /school/webmaster ext4 defaults 0 0  Reboot  Root/ dell poweredge t610prachoom rangkasikorn prachoom school server50

51 How to setup setupfc11.4  cp –R setupfc114 /root  cd setupfc11.4 ./setup ./net-reset  reboot  root/  cd setupfc11.4 ./net-setup dell poweredge t610prachoom rangkasikorn prachoom school server51

52 How to setup setupfc11.4  reboot  root/  df  Now we have server “prachoom medel”, on hdd  what service do they have? ftp, web, samba,  ifconfig dell poweredge t610prachoom rangkasikorn prachoom school server52

53 how to copy content to position  we have hdd master three total  cp –afvu preschool /school/webmaster/web/  cp –afvu primary /school/webmaster/web  cp –afvu secondary /school/webmaster/web  cp –afvu vocation /school/webmaster/web  cp –afvu mysql_olf /school/webmaster dell poweredge t610prachoom rangkasikorn prachoom school server53

54 how to create passwd webmaster  root/  passwd webmaster  teacher789  smbpasswd –a webmaster  teacher789  test username,password  ftp school dell poweredge t610prachoom rangkasikorn prachoom school server54

55 how to create passwd webmaster  webmaster  teacher789  ftp>ls  see folder web share ftp medis ok good dell poweredge t610prachoom rangkasikorn prachoom school server55

56 how to create grant user to use mysql  root/  service mysqld stop  /usr/libexec/mysqld --skip-grant-tables &  mysql  use mysql  flush privileges;  select user, host, grant_priv from user;  delete from user where user=‘’;  delete from user where user=‘root’; dell poweredge t610prachoom rangkasikorn prachoom school server56

57 how to create grant user to use mysql  grant all privileges on *.* to identified by ‘phpadmin123’ with grant option;  select user, host, grant_priv from user;   exit  killall mysqld  service mysqld start  Reboot  Root/ dell poweredge t610prachoom rangkasikorn prachoom school server57

58 How to restore mysql dell poweredge t610prachoom rangkasikorn prachoom school server58

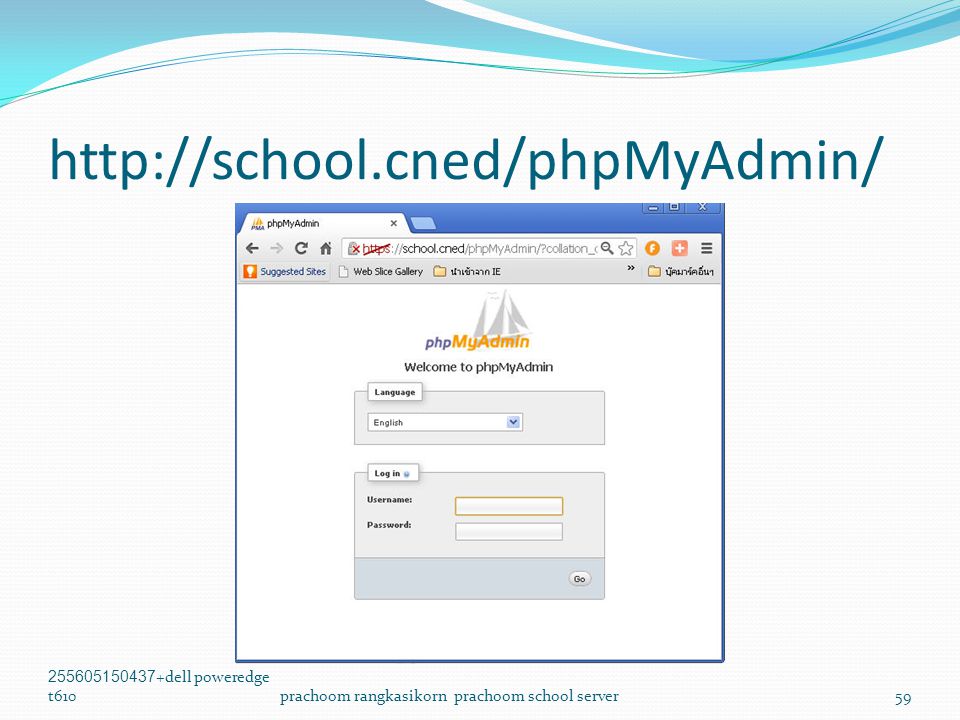

59 dell poweredge t610prachoom rangkasikorn prachoom school server59

60 Phpadmin/phpadmin dell poweredge t610prachoom rangkasikorn prachoom school server60

61 dell poweredge t610prachoom rangkasikorn prachoom school server61

62 Add new user dell poweredge t610prachoom rangkasikorn prachoom school server62

63 User Moodle154/moodle dell poweredge t610prachoom rangkasikorn prachoom school server63

64 dell poweredge t610prachoom rangkasikorn prachoom school server64

65 dell poweredge t610prachoom rangkasikorn prachoom school server65

66 Edit privileges dell poweredge t610prachoom rangkasikorn prachoom school server66

67 Check all go dell poweredge t610prachoom rangkasikorn prachoom school server67

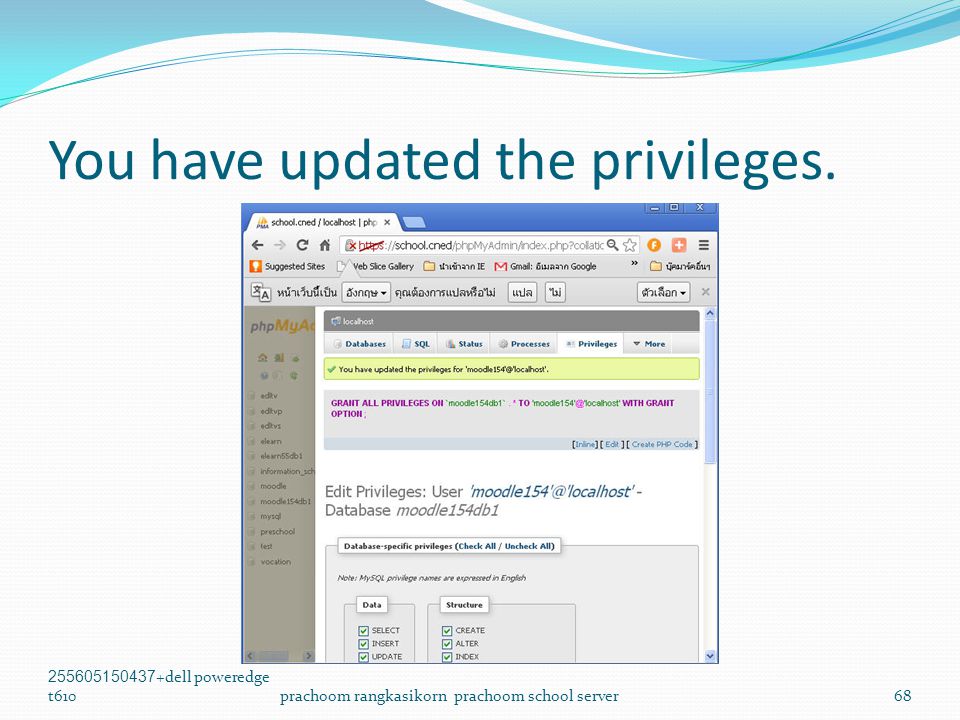

68 You have updated the privileges dell poweredge t610prachoom rangkasikorn prachoom school server68

69 Add new user dell poweredge t610prachoom rangkasikorn prachoom school server69

70 Elearn/elearn dell poweredge t610prachoom rangkasikorn prachoom school server70

71 You have added a new uer dell poweredge t610prachoom rangkasikorn prachoom school server71

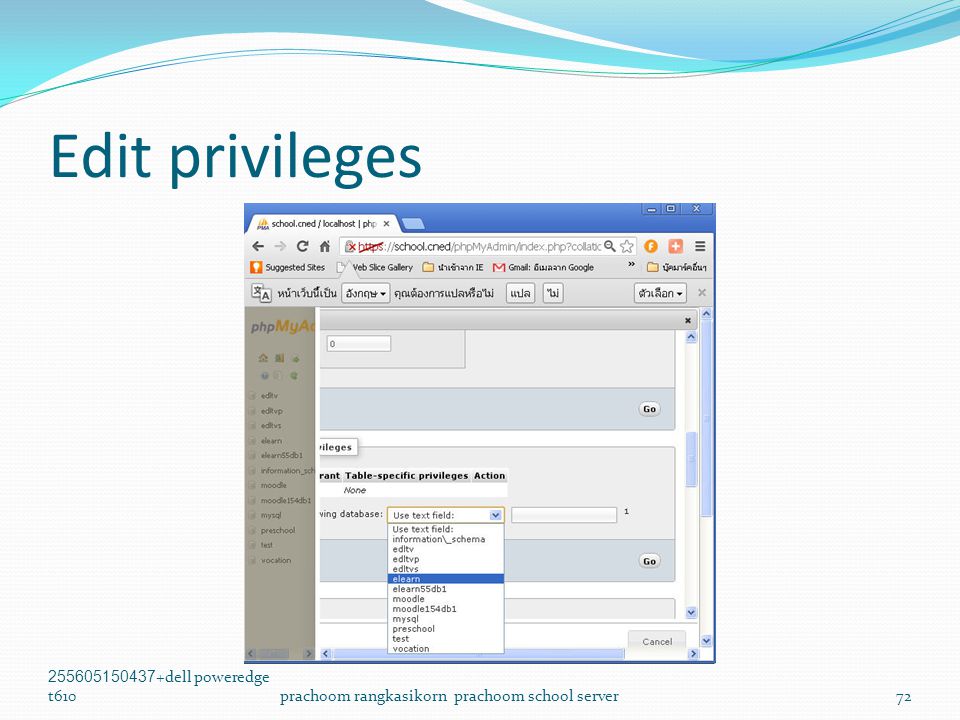

72 Edit privileges dell poweredge t610prachoom rangkasikorn prachoom school server72

73 Check all dell poweredge t610prachoom rangkasikorn prachoom school server73

74 You have updated for privileges dell poweredge t610prachoom rangkasikorn prachoom school server74

75 Add new user dell poweredge t610prachoom rangkasikorn prachoom school server75

76 Elearn55/elearn dell poweredge t610prachoom rangkasikorn prachoom school server76

77 You have added a new user dell poweredge t610prachoom rangkasikorn prachoom school server77

78 Edit privileges dell poweredge t610prachoom rangkasikorn prachoom school server78

79 Check all and press go dell poweredge t610prachoom rangkasikorn prachoom school server79

80 You have updated for privileges dell poweredge t610prachoom rangkasikorn prachoom school server80

81 Add new user, preschool/preschool dell poweredge t610prachoom rangkasikorn prachoom school server81

82 You have added a new user dell poweredge t610prachoom rangkasikorn prachoom school server82

83 Edit privileges dell poweredge t610prachoom rangkasikorn prachoom school server83

84 Check all and press go dell poweredge t610prachoom rangkasikorn prachoom school server84

85 You have updated for privileges dell poweredge t610prachoom rangkasikorn prachoom school server85

86 Add new user, edltvp/edltvp dell poweredge t610prachoom rangkasikorn prachoom school server86

87 Edit privileges,check all and press go dell poweredge t610prachoom rangkasikorn prachoom school server87

88 Add new user,edltvs/edltvs dell poweredge t610prachoom rangkasikorn prachoom school server88

89 Add new user, voction/vocation dell poweredge t610prachoom rangkasikorn prachoom school server89

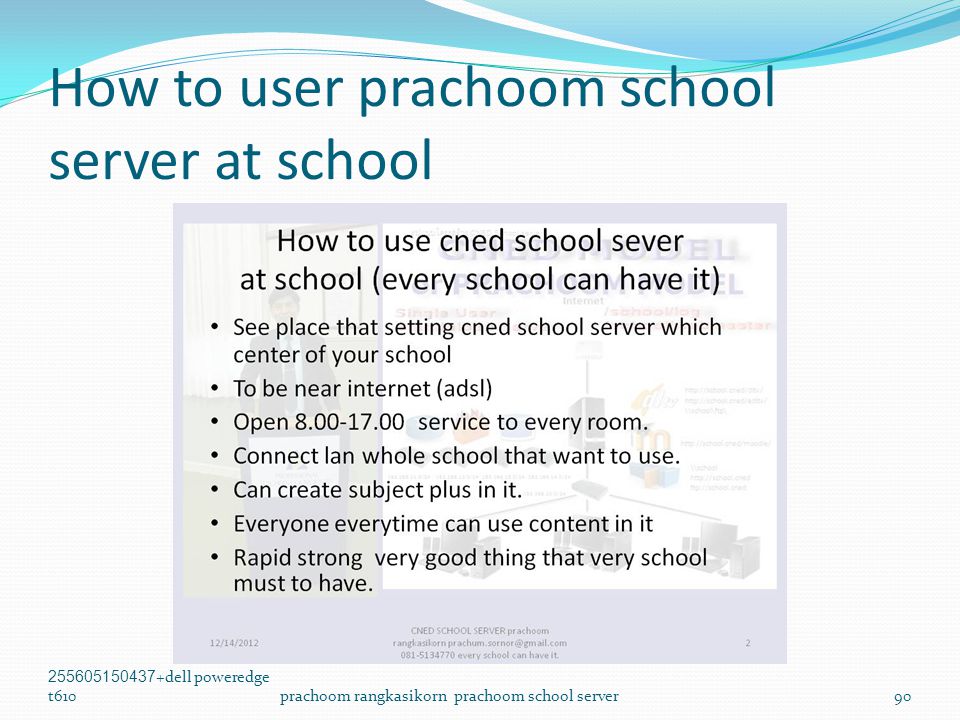

90 How to user prachoom school server at school dell poweredge t610prachoom rangkasikorn prachoom school server90

91 dell poweredge t610prachoom rangkasikorn prachoom school server91

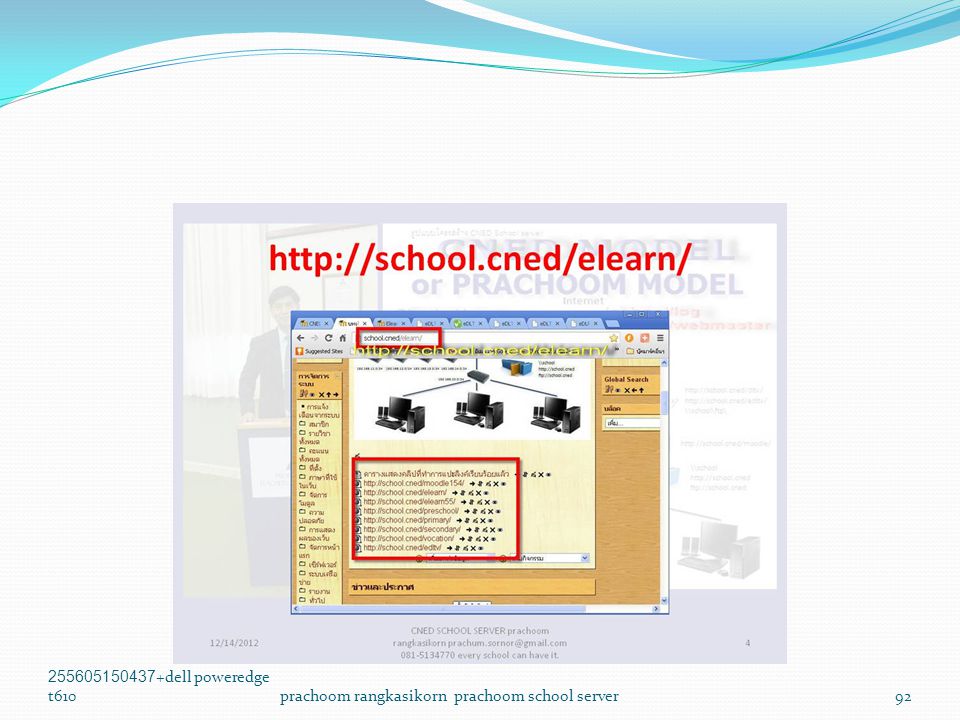

92 dell poweredge t610prachoom rangkasikorn prachoom school server92

93 dell poweredge t610prachoom rangkasikorn prachoom school server93

94 dell poweredge t610prachoom rangkasikorn prachoom school server94

95 dell poweredge t610prachoom rangkasikorn prachoom school server95

96 dell poweredge t610prachoom rangkasikorn prachoom school server96

97 dell poweredge t610prachoom rangkasikorn prachoom school server97

98 dell poweredge t610prachoom rangkasikorn prachoom school server98

99 dell poweredge t610prachoom rangkasikorn prachoom school server99

100 dell poweredge t610prachoom rangkasikorn prachoom school server100

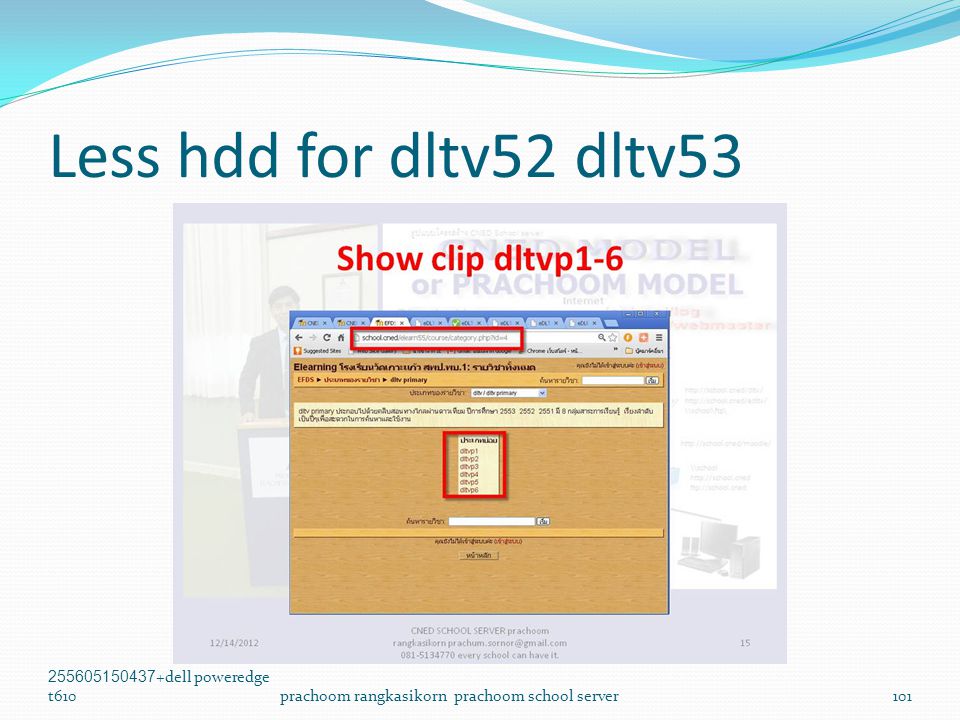

101 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server101

102 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server102

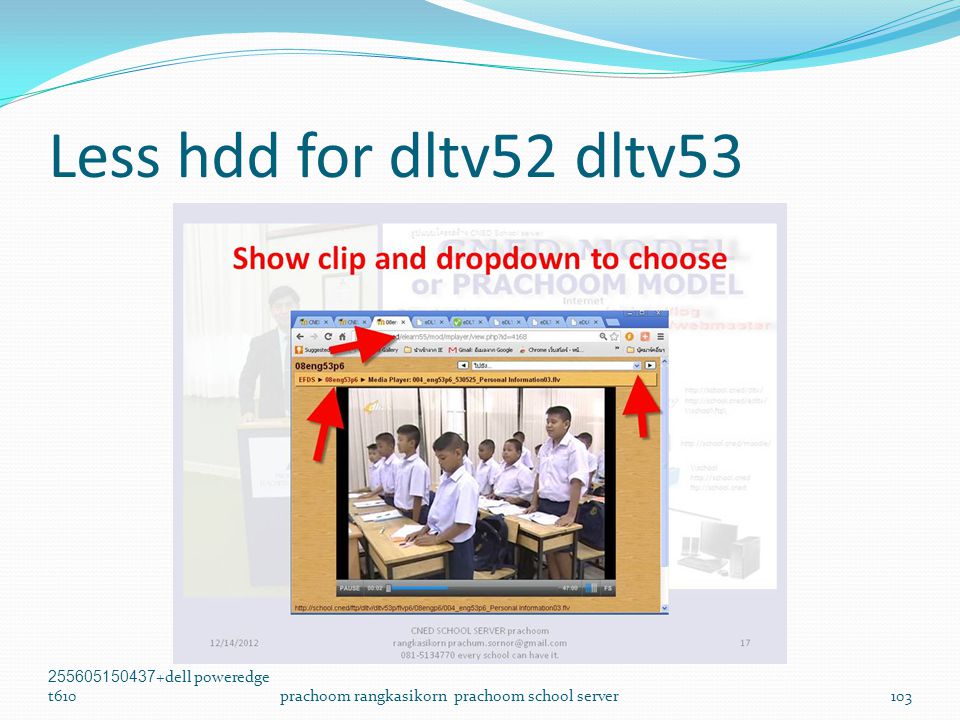

103 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server103

104 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server104

105 dell poweredge t610prachoom rangkasikorn prachoom school server105

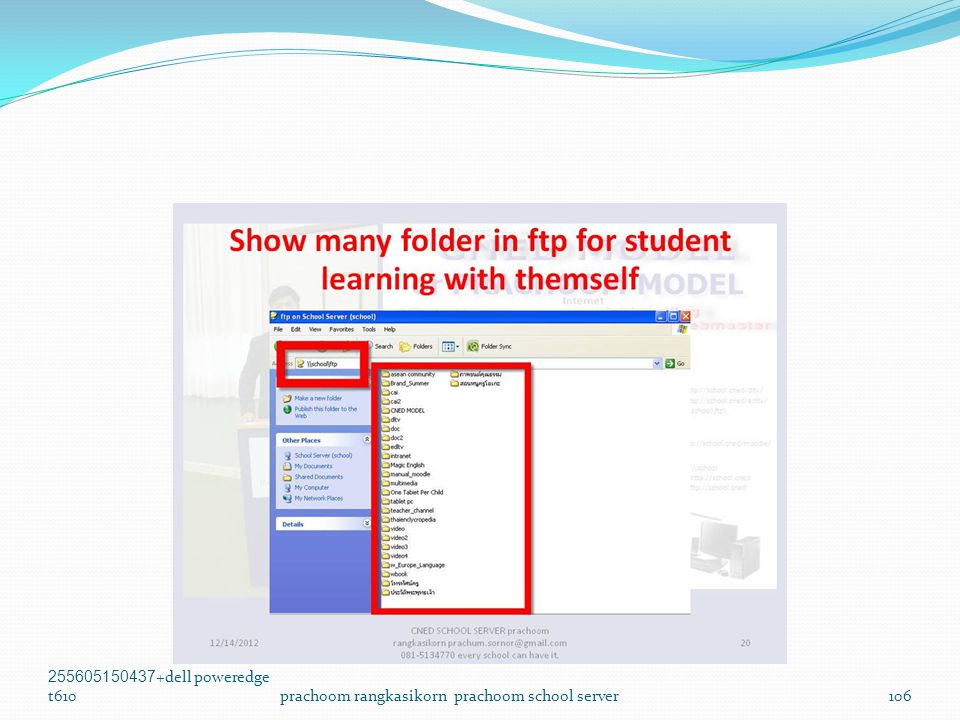

106 dell poweredge t610prachoom rangkasikorn prachoom school server106

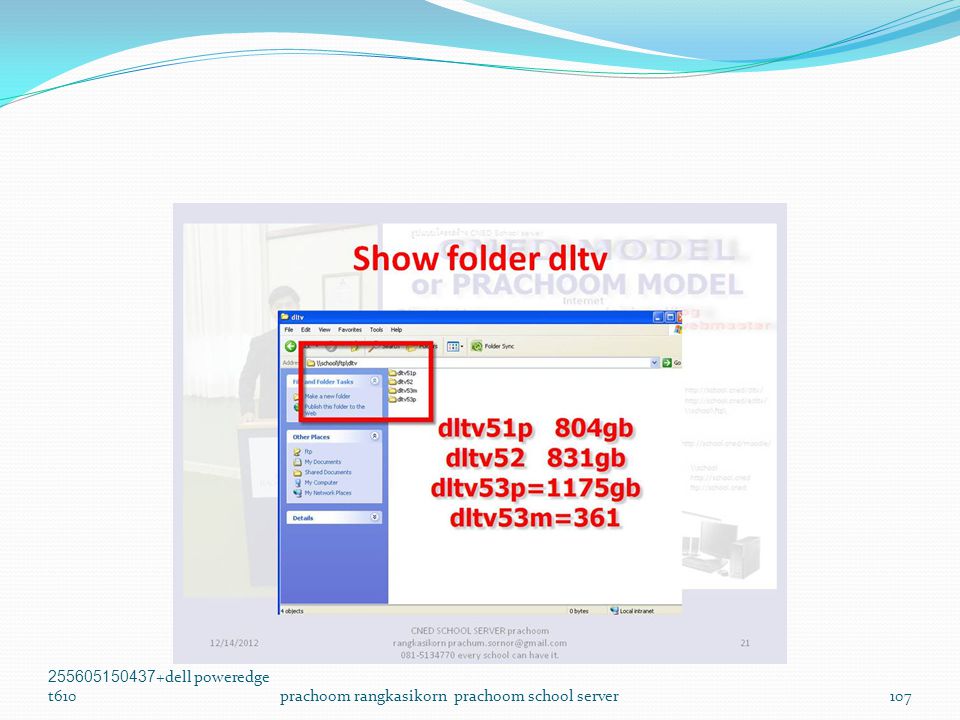

107 dell poweredge t610prachoom rangkasikorn prachoom school server107

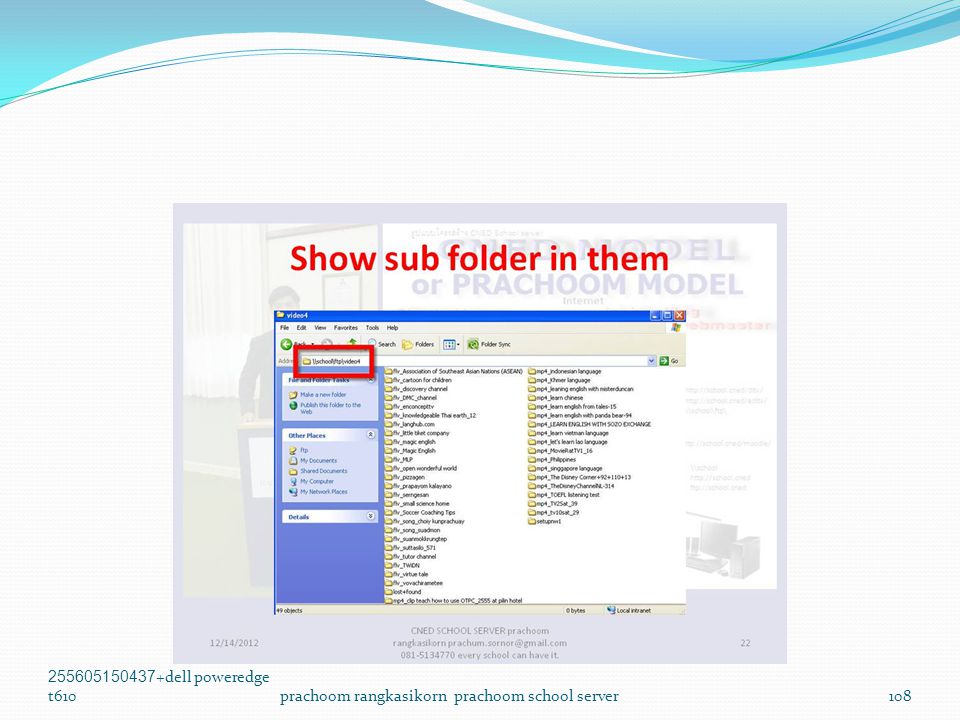

108 dell poweredge t610prachoom rangkasikorn prachoom school server108

109 dell poweredge t610prachoom rangkasikorn prachoom school server109

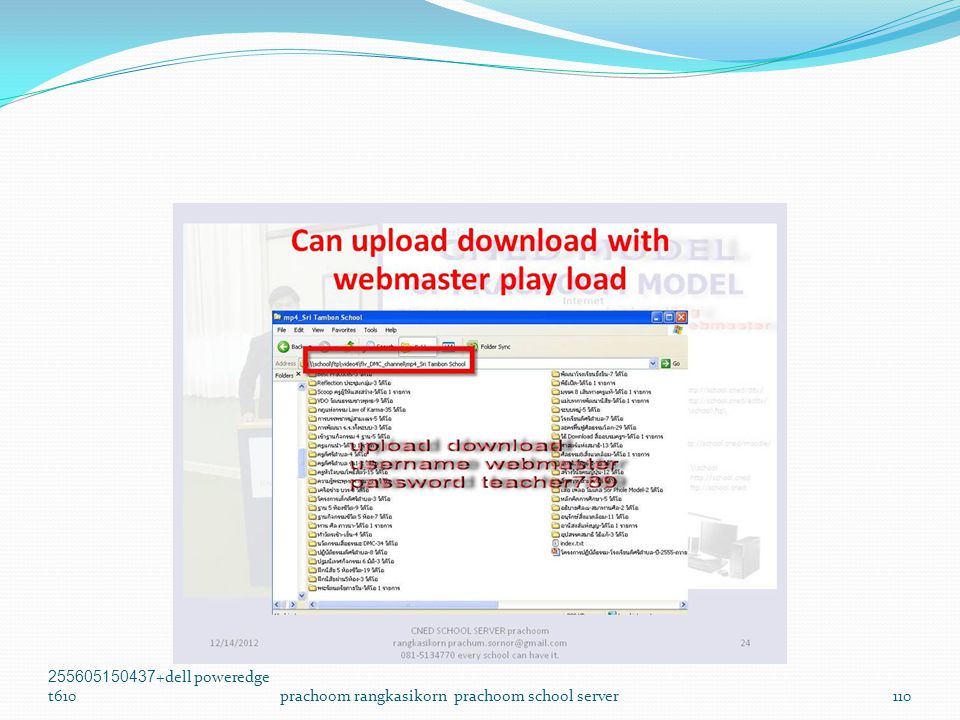

110 dell poweredge t610prachoom rangkasikorn prachoom school server110

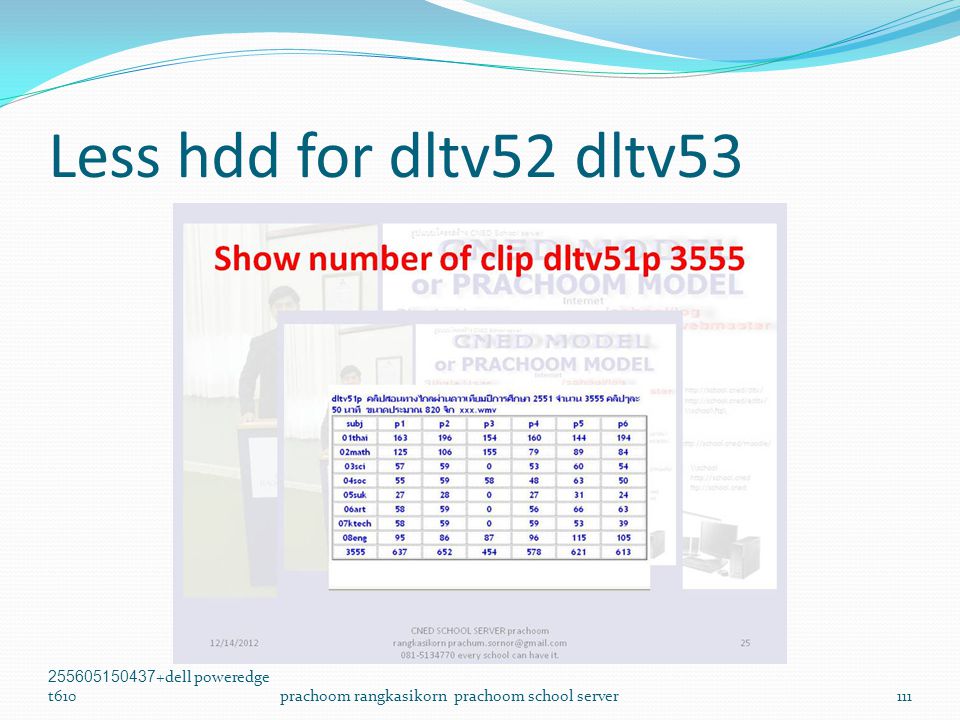

111 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server111

112 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server112

113 Less hdd for dltv52 dltv dell poweredge t610prachoom rangkasikorn prachoom school server113

114 Not enough size for dltv52, dell poweredge t610prachoom rangkasikorn prachoom school server114

115  เราจะทำอะไรกันต่อไป ใช้ได้ ใช้เป็นหรือไม่ คงต้องพัฒนา กันไปครับ  จะหาฮาร์ดแวร์ที่ตรงต้องการ คือใช้ได้เลย คงต้องเซ็ทเป็น ชุดให้ท่าน ท่านไปให้ร้านค้าประกอบให้ท่านครับตามใบสั่ง  จะสอนการใช้ได้อย่างไร อาศัยสไลด์แชร์ youtube facebook  จะรวมกันอย่างไร ก่อนอื่นต้องมองให้เห็นประโยชน์มันก่อน แล้วนำไปใช้ได้อย่างไร  ทดลองใช้ ที่เว็บ ก่อนครับ หัดลิงค์ ให้ทั่วถึงครับ dell poweredge t610prachoom rangkasikorn prachoom school server115

116 What active web do they have?          dltv=dltv dell poweredge t610prachoom rangkasikorn prachoom school server116

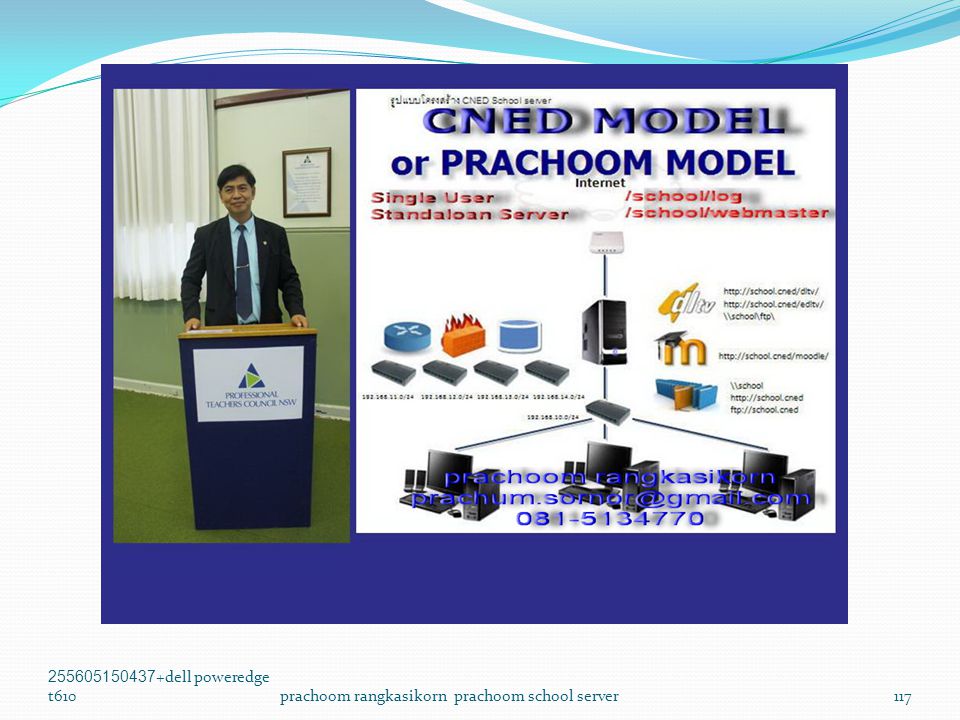

117 dell poweredge t610prachoom rangkasikorn prachoom school server117
