OPC Classic is the worlds leading technology for integrating different automation products. Formerly known as OLE for Process Control, (where OLE stood for Object Linking and Embedding) Includes all OPC standards that are based on Microsoft's DCOM Technology (i.e. all but OPC-UA) Unfortunately OPC is famous for its poor security… OPC Classic

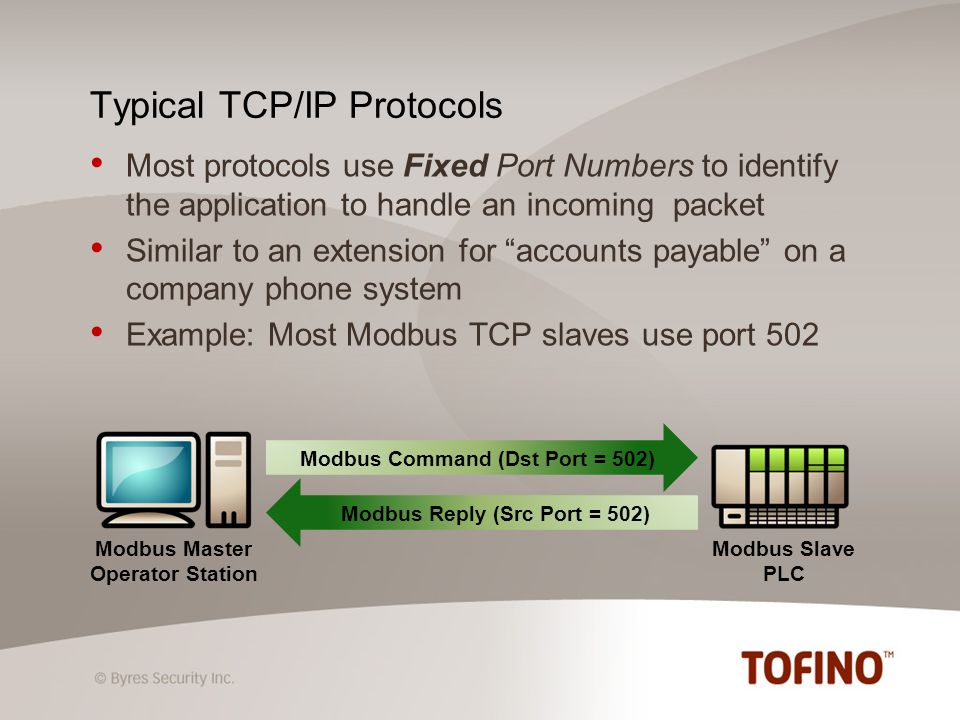

Most protocols use Fixed Port Numbers to identify the application to handle an incoming packet Similar to an extension for accounts payable on a company phone system Example: Most Modbus TCP slaves use port 502 Typical TCP/IP Protocols Modbus Slave PLC Modbus Master Operator Station Modbus Command (Dst Port = 502) Modbus Reply (Src Port = 502)

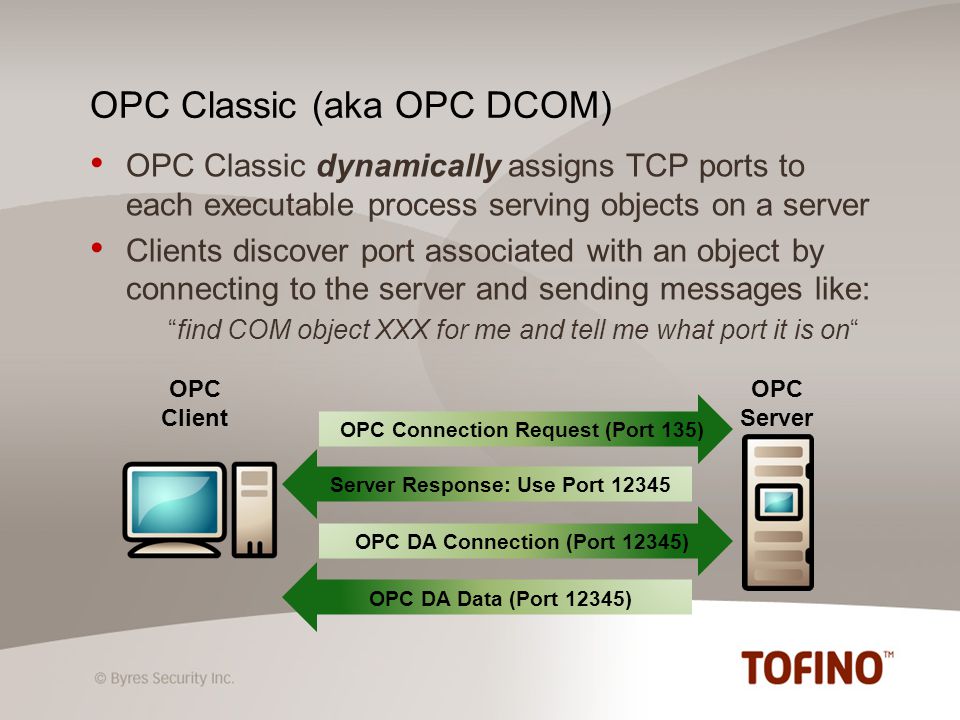

OPC Classic dynamically assigns TCP ports to each executable process serving objects on a server Clients discover port associated with an object by connecting to the server and sending messages like: find COM object XXX for me and tell me what port it is on OPC Classic (aka OPC DCOM) OPC Server OPC Connection Request (Port 135) OPC DA Connection (Port 12345) Server Response: Use Port 12345 OPC DA Data (Port 12345) OPC Client

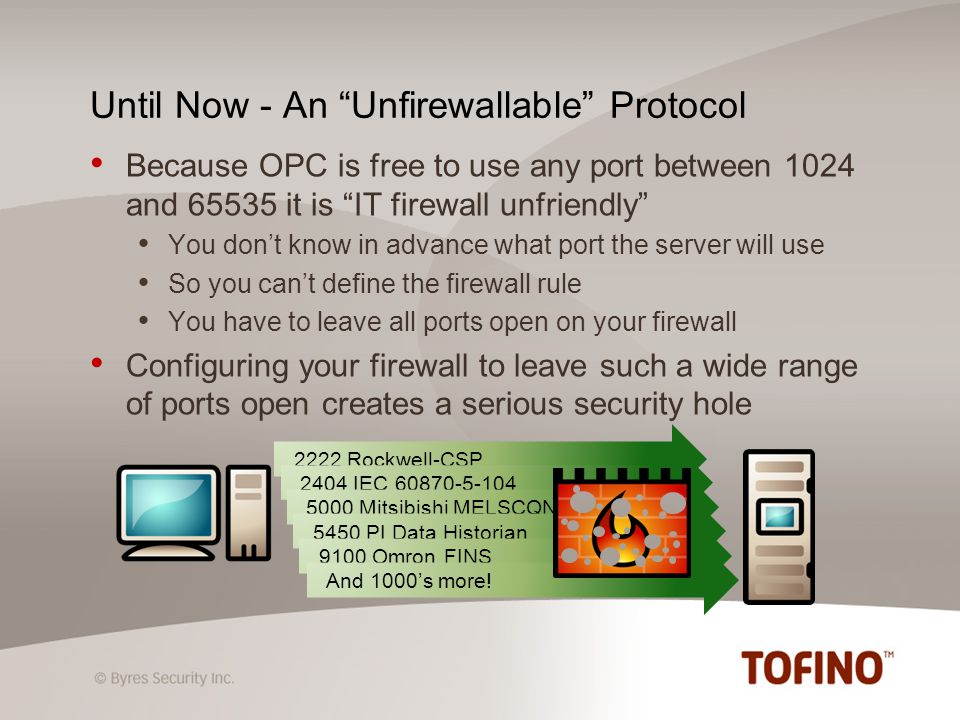

2222 Rockwell-CSP Because OPC is free to use any port between 1024 and 65535 it is IT firewall unfriendly You dont know in advance what port the server will use So you cant define the firewall rule You have to leave all ports open on your firewall Configuring your firewall to leave such a wide range of ports open creates a serious security hole Until Now - An Unfirewallable Protocol 2404 IEC 60870-5-104 5000 Mitsibishi MELSCQNA 5450 PI Data Historian 9100 Omron FINS And 1000s more!
DCOM callbacks in OPC are not handled on the same connection that is used for client/server calls Some OPC servers reject the first few connection attempts after they tell the client to use a specific port, completely breaking most firewall state engines! All this has made the industry consider OPC Firewalls virtually impossible It Gets Worse! OPC/DCOM in the Real World

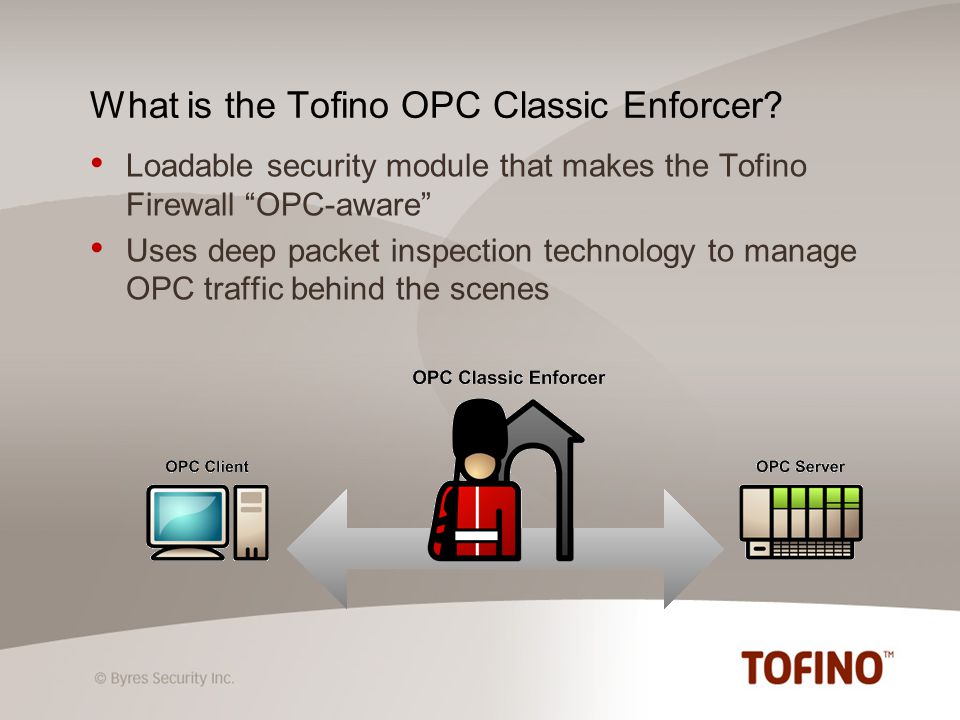

Loadable security module that makes the Tofino Firewall OPC-aware Uses deep packet inspection technology to manage OPC traffic behind the scenes What is the Tofino OPC Classic Enforcer?
Enforcer intercepts connection requests from the OPC client and checks: Is it to an approved server? Is it from client approved to talk to that server? Is it a properly formed OPC connection request message? How OPC Enforcer Works OPC Server OPC Client OPC Conn Req Invalid Request OPC Conn Req
Next Enforcer intercepts connection reply from the OPC server and checks: Is it a properly formed OPC connection reply message? Is it to the client that made the request? What TCP port is the server telling the client to use? How OPC Enforcer Works OPC Server OPC Client OPC Conn Reply Its a good reply and Server wants Client to use TCP port 5555

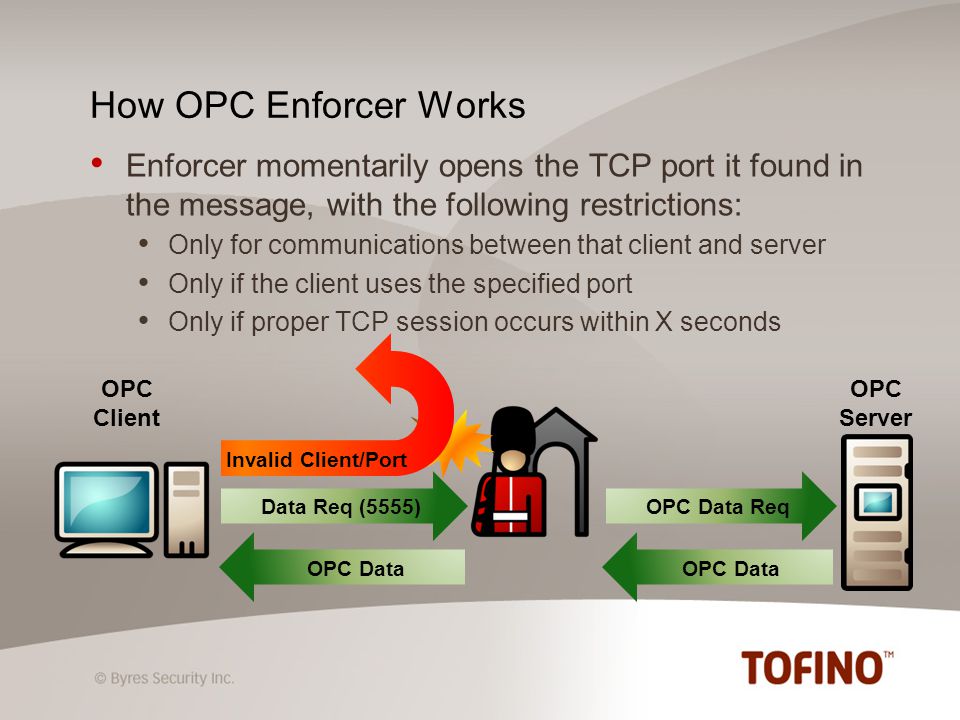

Enforcer momentarily opens the TCP port it found in the message, with the following restrictions: Only for communications between that client and server Only if the client uses the specified port Only if proper TCP session occurs within X seconds How OPC Enforcer Works OPC Server OPC Client OPC Data Req Invalid Client/Port Data Req (5555) OPC Data
Is not from approved clients and servers Tries to use other TCP port numbers Tries to borrow port numbers from other clients or servers Is not well formed RPC connection requests OPC Enforcer Blocks Dangerous Traffic OPC Server OPC Client Invalid Port # OPC Data Invalid Client Invalid Server Malformed Msg
First-ever application of connection tracking technology to industrial protocols Automatically tracks TCP ports assigned by OPC servers for data connections Dynamically opens tracked ports in firewall only when they are needed Tofino Sanity Check blocks any OPC requests not conforming to the DCE/RPC standard Supports multiple OPC clients and servers Why Tofino OPC Enforcer is Unique
Manage all traffic on systems that use OPC DA, HDA or A&E Secure data transfers to and from data historians and supervisory applications Protect safety instrumentation systems Combine with Tofino VPN LSM for ultra secure remote OPC connections Typical Applications
Simple to use – no changes needed to any OPC servers or clients Just install on the network and configure which servers and clients you want to communicate Works with OPC DA, HDA and A&E standards Secures against both accidental and malicious traffic Endorsed by the OPC Foundation Benefits of Tofino OPC Enforcer
Tofino OPC Enforcer LSM Available Now Requirements: Tofino Security Appliance Tofino Central Management Platform version 1.6 or better Tofino Firewall LSM Additional Resources: www.tofinosecurity.com/opc OPC Foundation Endorsed White Paper, Securing Your OPC Classic Control System Ordering the Tofino OPC Enforcer
