S J Pens Woodcraft & Penturning How I make my pens

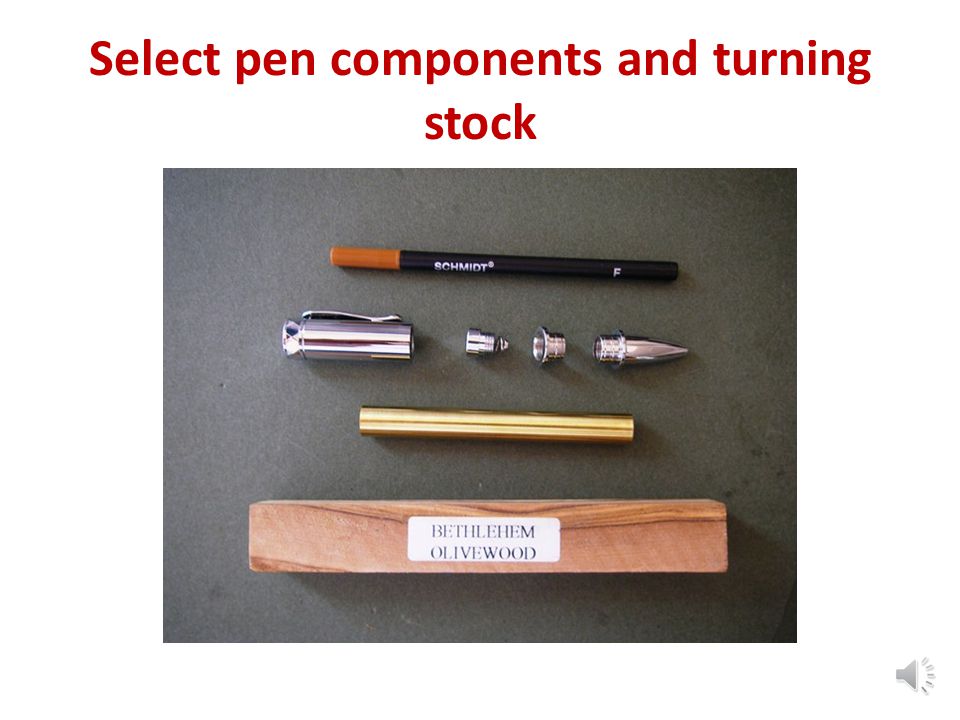

Select pen components and turning stock
Mark the stock to pen tube size slightly oversized for trimming later.
Cutting pen stock on a band saw.
Drilling the blank (pen stock) on a drill press.
Close up view.
Two Parts Epoxy for gluing the tube to pen blank.
Applying epoxy to tube.
Inserting tube with a twisting motion to spread the glue evenly.

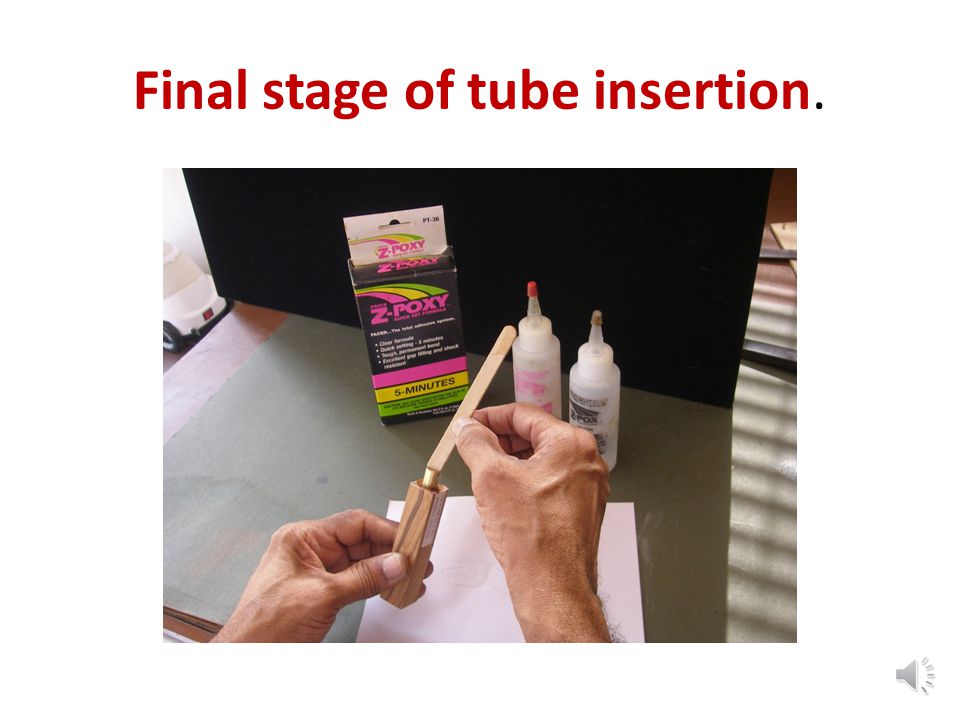

Final stage of tube insertion.

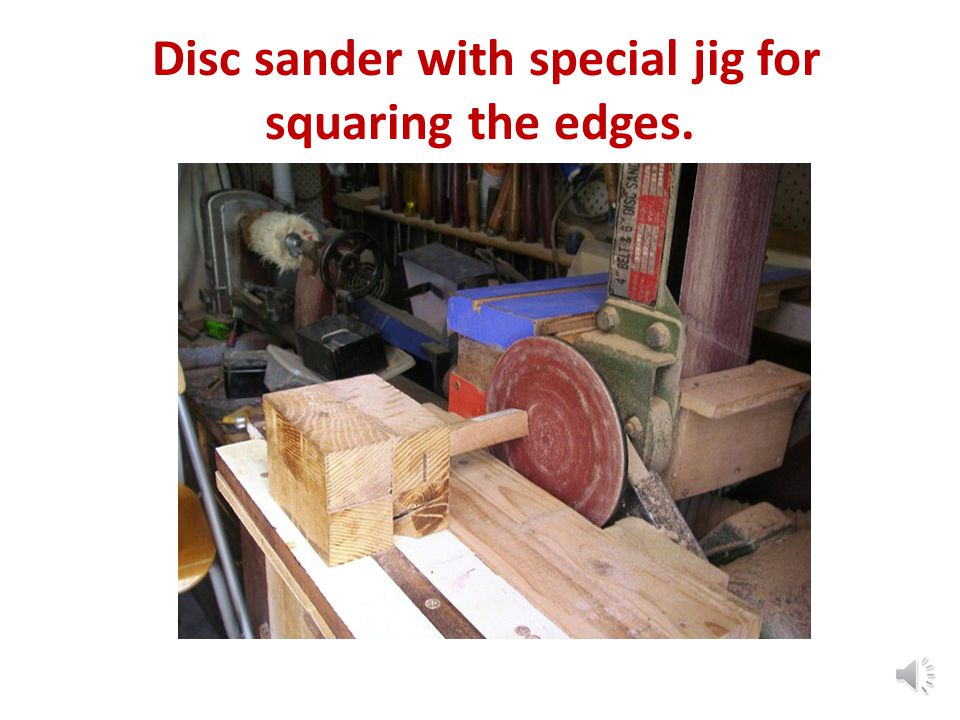

Disc sander with special jig for squaring the edges.
Squaring the edges of the blank.
After squaring blank to tube.
Blank with pen bushes for mounting on lathe for turning.
Blank mounted on wood lathe ready for turning.
Ready to turn square blank round using chisel with carbide inserts
Turning away and making sawdust.
More sawdust and taking shape.
Turned to near finished size.
Turning with a high speed steel skew chisel for a final smooth finish.
Measuring the barrel.

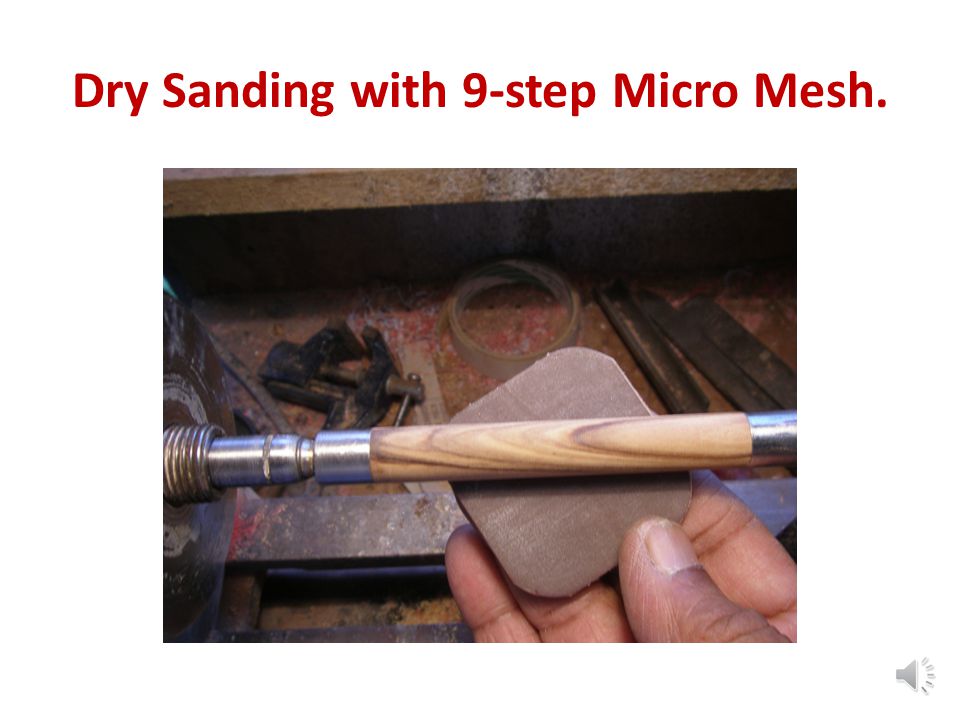

Dry Sanding with 9-step Micro Mesh.

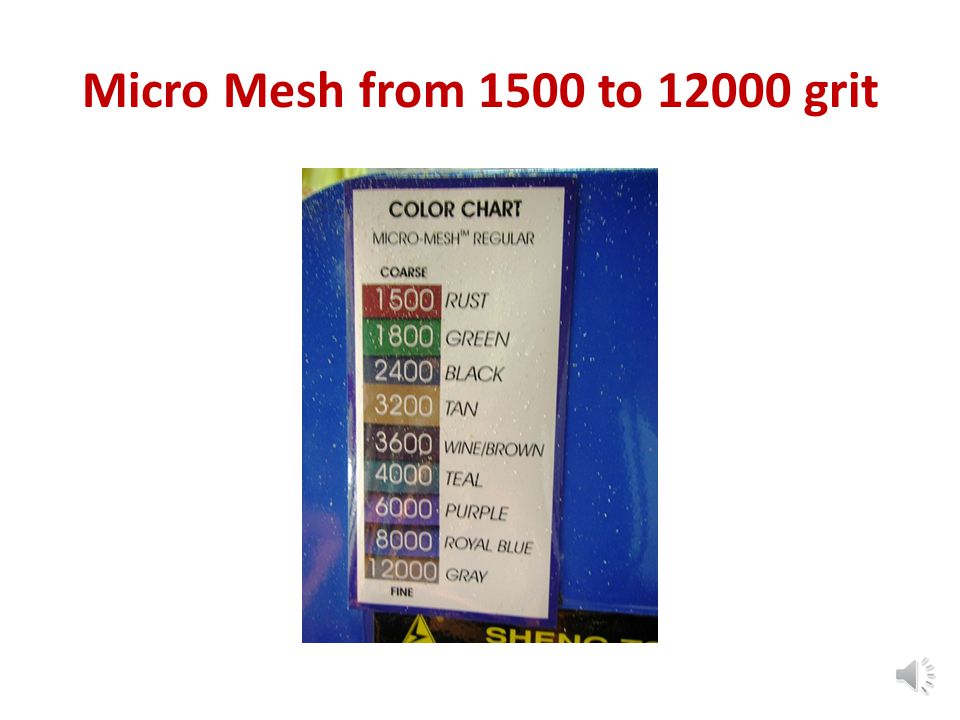

Micro Mesh from 1500 to grit
Cleaning with DNA (Denatured Alcohol)

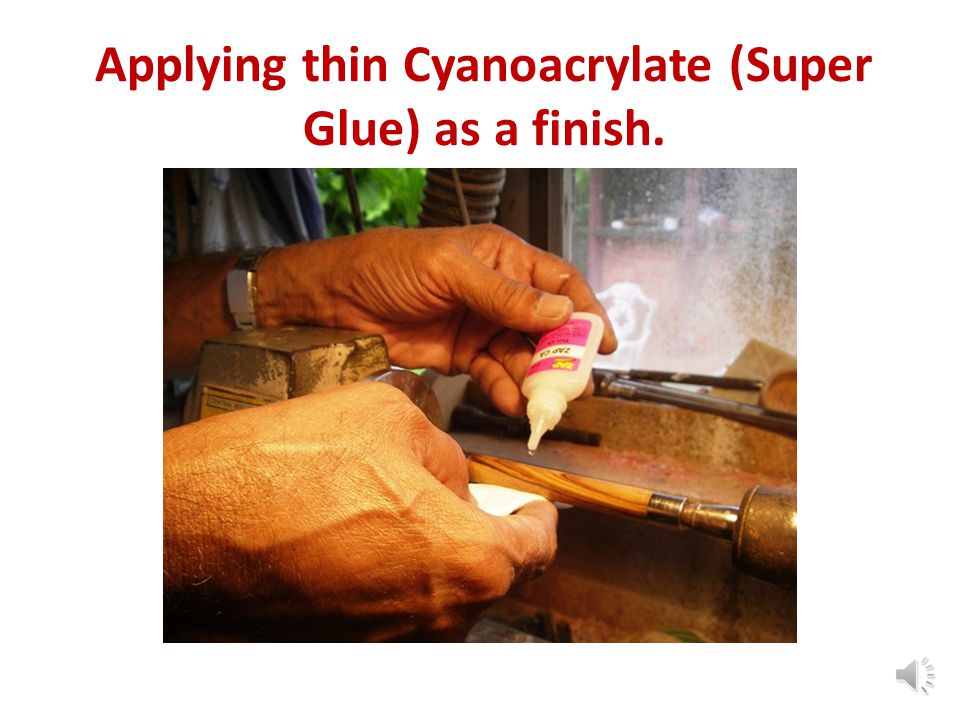

Applying thin Cyanoacrylate (Super Glue) as a finish.
Building up with 8 coats of Cyanoacrylate.
Wet sanding with Micro Mesh for a glass like durable finish.
The finished pen barrel with a beautiful finish
Pen Press for assembling the Pen
Pressing pen components to barrel
