1 AFCEAs International Student Conference 2009 Brussels, October SDR GNSS Receiver Acquisition Module LabVIEW Implementation Lt. Pasquale Digregorio

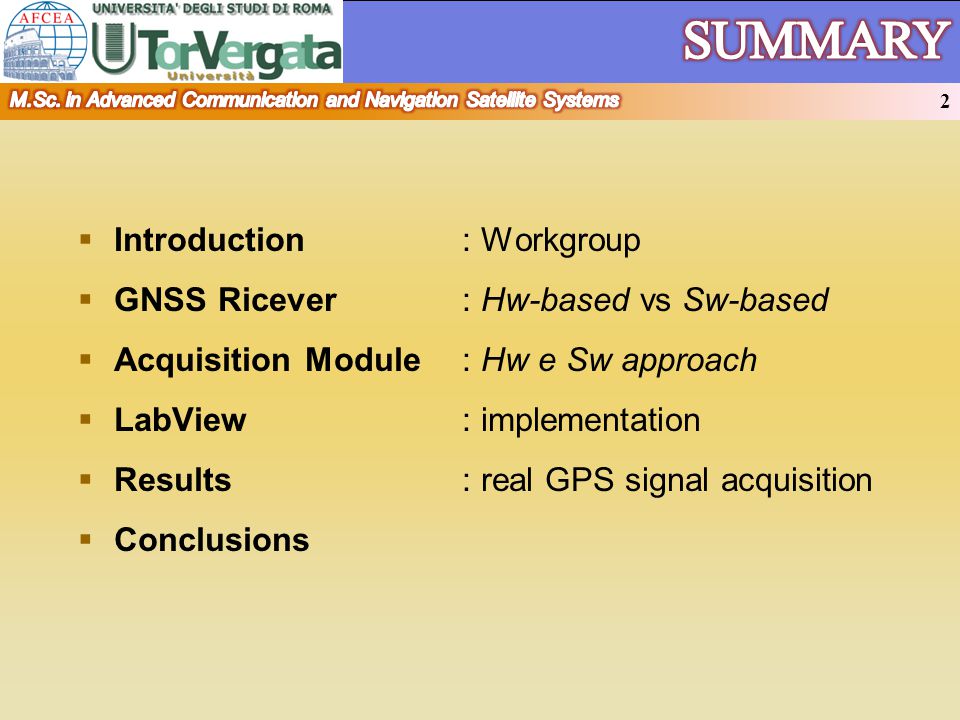

2 Introduction : Workgroup GNSS Ricever: Hw-based vs Sw-based Acquisition Module: Hw e Sw approach LabView: implementation Results: real GPS signal acquisition Conclusions SUMMARY 2 2

3 Cpt. Francesco Bartolozzi Cpt. Alberto De Sanctis Gabriele Mariani Lt. Efer Miotti 3

4 RF to IF converter Antenna GNSS Acquisition Tracking Navigation Code-phase Delta Doppler Observables Navigation Data PVT A/D converter RF to IF converter Antenna GNSS Acquisition Tracking Navigation Code-phase Delta Doppler Observables Navigation Data PVT SOFTWARE HARDWARE SUMMARY 4 4 A/D converter Acquisition SOFTWARE HARDWARE

5 GPS signal Local Code Satellite in view (PRN code) Delta Doppler Code-phase Search in 3 dimention space: t GPS SiS GPS Signal at the receiver Reciver Local Code Shifted local code GPS SiS reachs the reciver after dt delay SUMMARY 5 5 Code-phase

6 Search Space 1023 Chip ±10 KHz f = 500 Hz τ = 1/fc 1μs Fase Codice PRN Freq. Doppler SUMMARY 6 6

7 MODULO ACQUISIZIONE Hw-Based 1023 Chip ±10 KHz f = 500 Hz τ = 1/fc 1μs PRN code phase Freq. Doppler SUMMARY 7 7

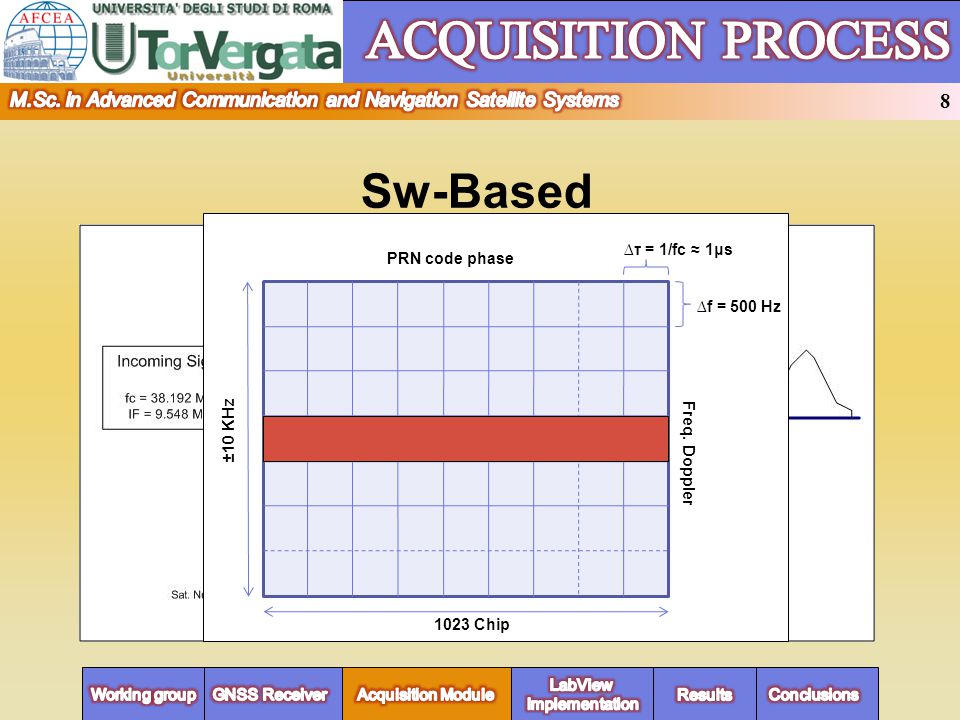

8 Sw-Based 1023 Chip ±10 KHz f = 500 Hz τ = 1/fc 1μs PRN code phase Freq. Doppler MODULO ACQUISIZIONESUMMARY 8 8

9 Computational issues Fast Fourier Transform Parallel Code Phase Search Acquisition Algorithm with high computing efficiency Parametric Acquisition Configurable time and frequency bin size Trade-off : accuracy and sensitivity versus computational weight MODULO ACQUISIZIONESUMMARY 9 9

10 Acquisition Module MODULO ACQUISIZIONESUMMARY 10

11 Parametric GUI MODULO ACQUISIZIONESUMMARY 11

12 MODULO ACQUISIZIONESUMMARY 12 SV N°22SV N°2

13 Acquired SV MODULO ACQUISIZIONESUMMARY 13

14 SV dynamic MODULO ACQUISIZIONESUMMARY 14

15 MODULO ACQUISIZIONESUMMARY 15

16 Goals achieved: Implemented PRN Code generator (test gold sequence properties) Acquisition module (Parametric function, FFT) (testing with a Real digital GPS signal) Future development: Tracking module Navigation solution module MODULO ACQUISIZIONESUMMARY 16
