Genomes on Line Database The GOLD genomic standards Submitting genomic and metagenomic projects in img/GOLD Ioanna Pagani Genomic Standards Group

Similar presentations


Presentation on theme: "Genomes on Line Database The GOLD genomic standards Submitting genomic and metagenomic projects in img/GOLD Ioanna Pagani Genomic Standards Group"— Presentation transcript:

1 Genomes on Line Database The GOLD genomic standards Submitting genomic and metagenomic projects in img/GOLD Ioanna Pagani Genomic Standards Group

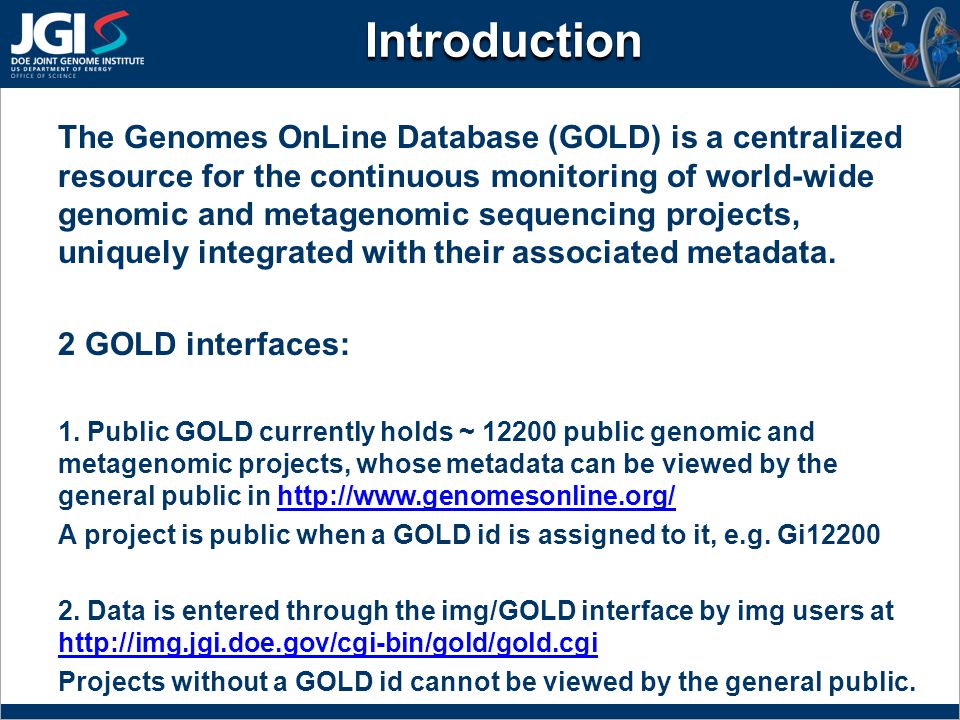

2 Introduction The Genomes OnLine Database (GOLD) is a centralized resource for the continuous monitoring of world-wide genomic and metagenomic sequencing projects, uniquely integrated with their associated metadata. 2 GOLD interfaces: 1. Public GOLD currently holds ~ public genomic and metagenomic projects, whose metadata can be viewed by the general public in A project is public when a GOLD id is assigned to it, e.g. Gi Data is entered through the img/GOLD interface by img users at Projects without a GOLD id cannot be viewed by the general public.

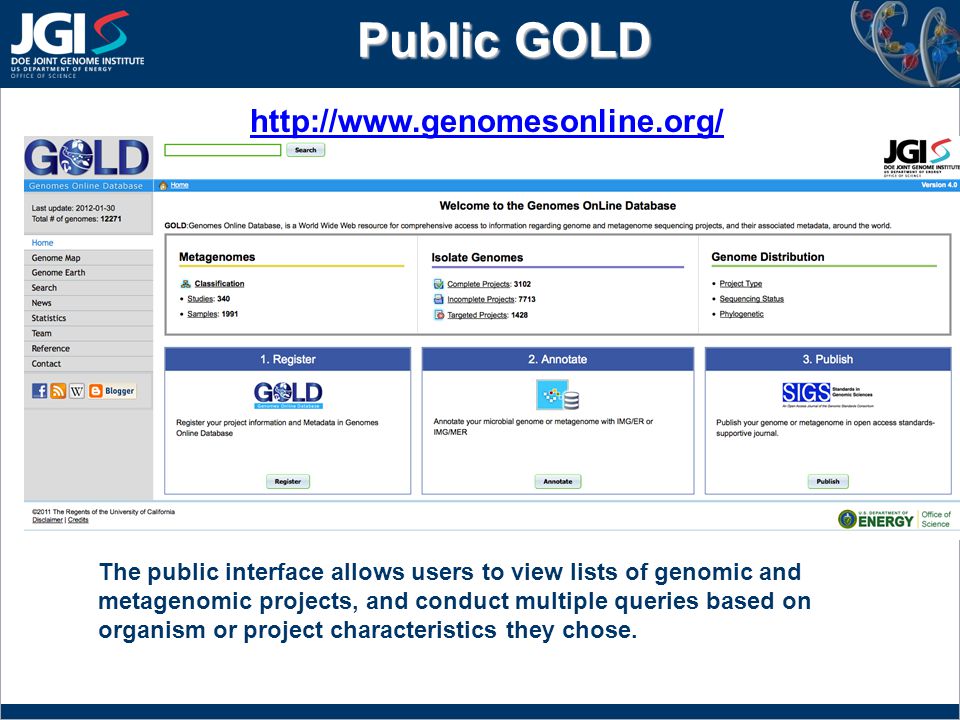

3 Public GOLD The public interface allows users to view lists of genomic and metagenomic projects, and conduct multiple queries based on organism or project characteristics they chose.

4 Public interface: multiple queries

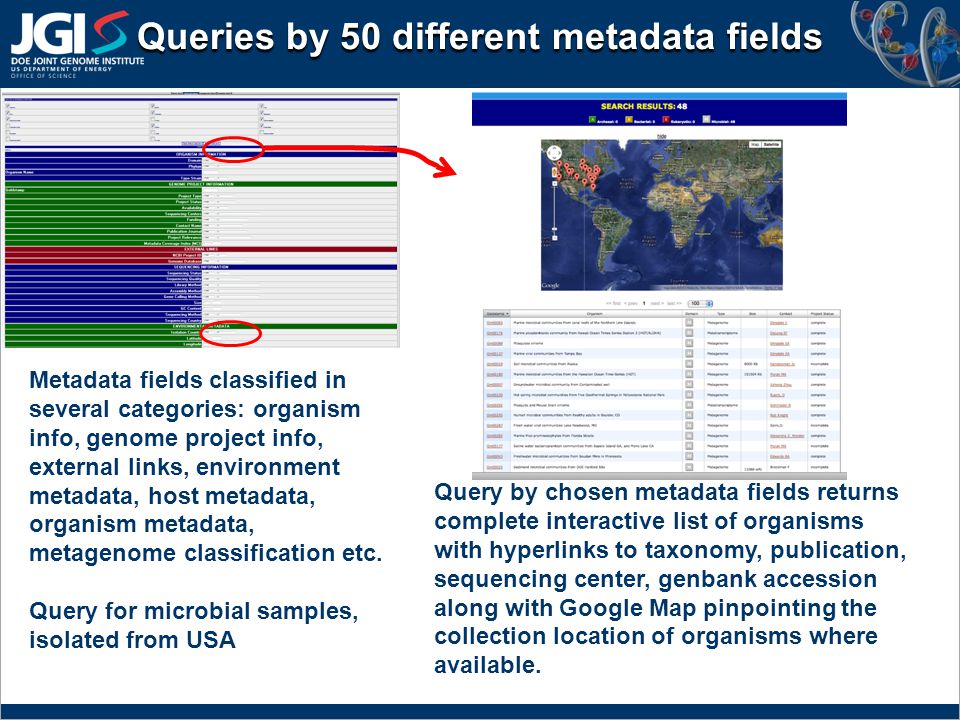

5 Queries by 50 different metadata fields Metadata fields classified in several categories: organism info, genome project info, external links, environment metadata, host metadata, organism metadata, metagenome classification etc. Query for microbial samples, isolated from USA Query by chosen metadata fields returns complete interactive list of organisms with hyperlinks to taxonomy, publication, sequencing center, genbank accession along with Google Map pinpointing the collection location of organisms where available.

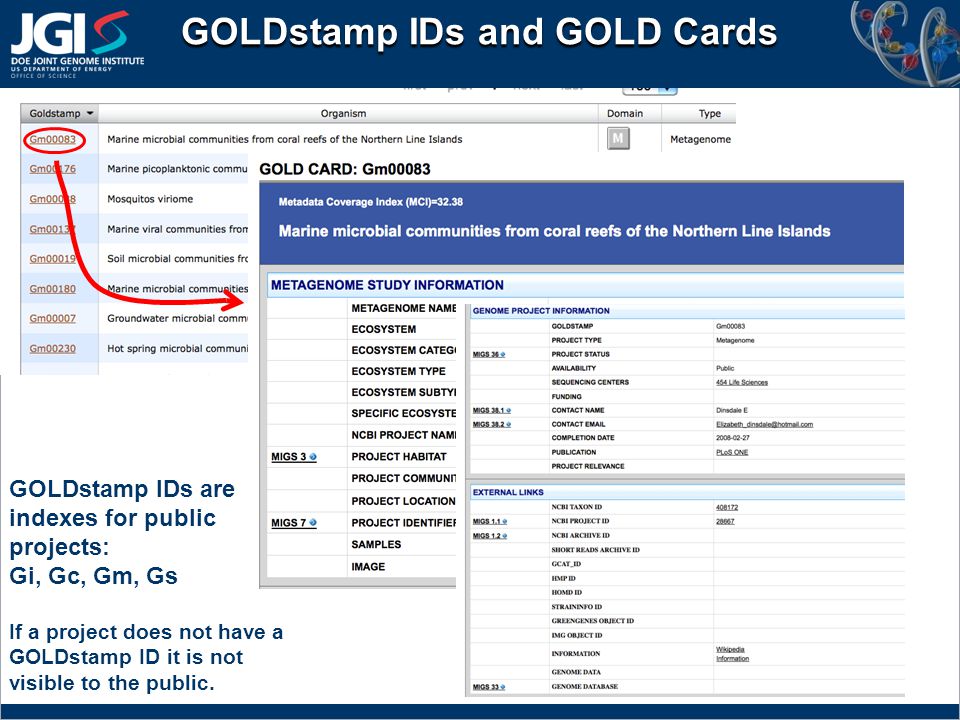

6 GOLDstamp IDs and GOLD Cards GOLDstamp IDs are indexes for public projects: Gi, Gc, Gm, Gs If a project does not have a GOLDstamp ID it is not visible to the public.

7 img/GOLD The img/GOLD interface is viewed by img users only and allows them to enter metadata for their own projects as well as view publicly available projects. You will not be able to submit a file in img, without an img/GOLD submission of metadata for your project.

8 Order in Chaos: Genomic standards imperative for genomics databases GOLD is a database with thousands of users that enables the scientific community to learn about existing projects, seek their sequences through public repositories such as NCBI, or compare genomic features through systems like img. Due to the sheer volume of genomic and metagenomic data, order has to be established in the cataloguing of genomic and metagenomic projects. The Genomics Standards Consortium (GSC) has set mandates about the Minimum Information for a Genomic Sequence (MIGS), metagenomic sample (MIMS) or any genomic sequence out there (MIxS). GOLD is one of the few databases that fully complies with these rules and expects its users to do so, if they want to use the img system capabilities. If you want to have a sample submitted and processed with img, you will have to follow the rules too!

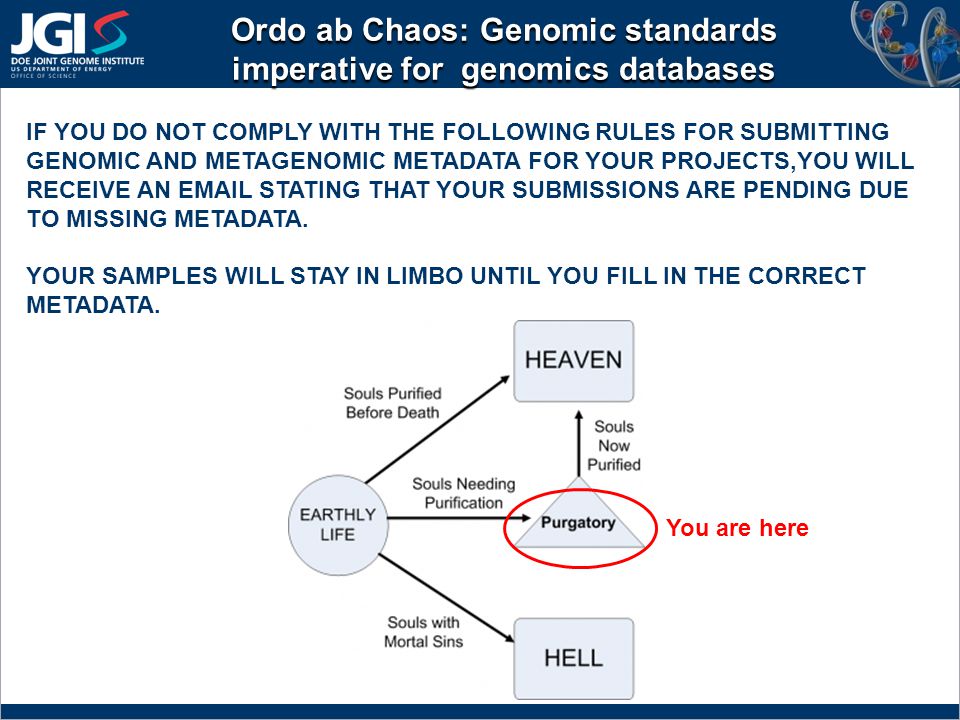

9 Ordo ab Chaos: Genomic standards imperative for genomics databases IF YOU DO NOT COMPLY WITH THE FOLLOWING RULES FOR SUBMITTING GENOMIC AND METAGENOMIC METADATA FOR YOUR PROJECTS,YOU WILL RECEIVE AN STATING THAT YOUR SUBMISSIONS ARE PENDING DUE TO MISSING METADATA. YOUR SAMPLES WILL STAY IN LIMBO UNTIL YOU FILL IN THE CORRECT METADATA. You are here

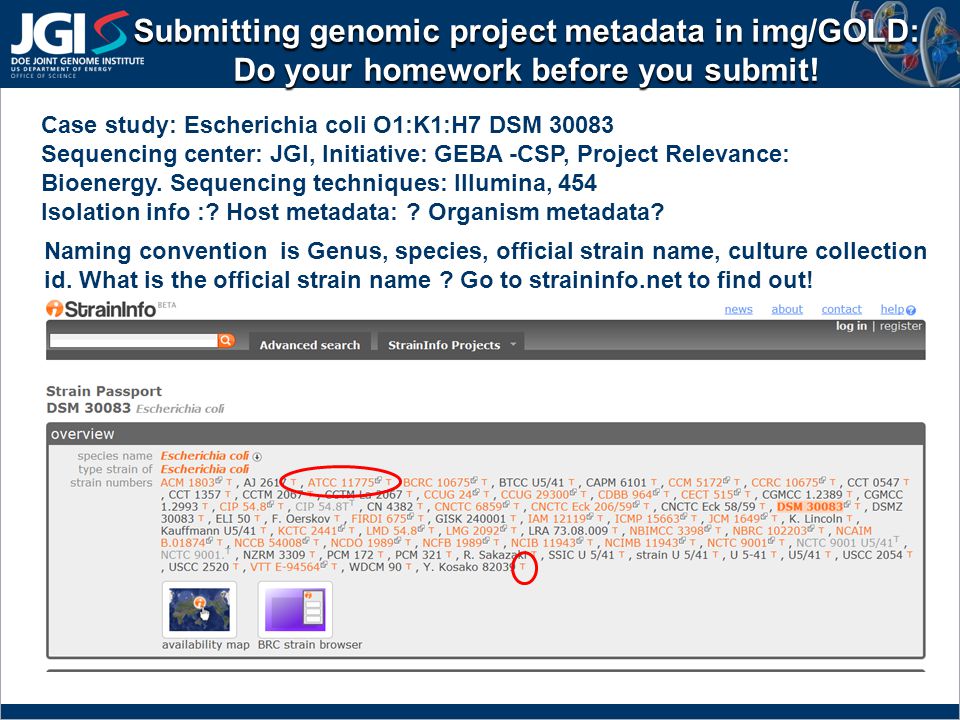

10 Submitting genomic project metadata in img/GOLD: Do your homework before you submit! Case study: Escherichia coli O1:K1:H7 DSM Sequencing center: JGI, Initiative: GEBA -CSP, Project Relevance: Bioenergy. Sequencing techniques: Illumina, 454 Isolation info :? Host metadata: ? Organism metadata? Naming convention is Genus, species, official strain name, culture collection id. What is the official strain name ? Go to straininfo.net to find out!

11 Submitting genomic project metadata in img/GOLD: Do your homework before you submit!

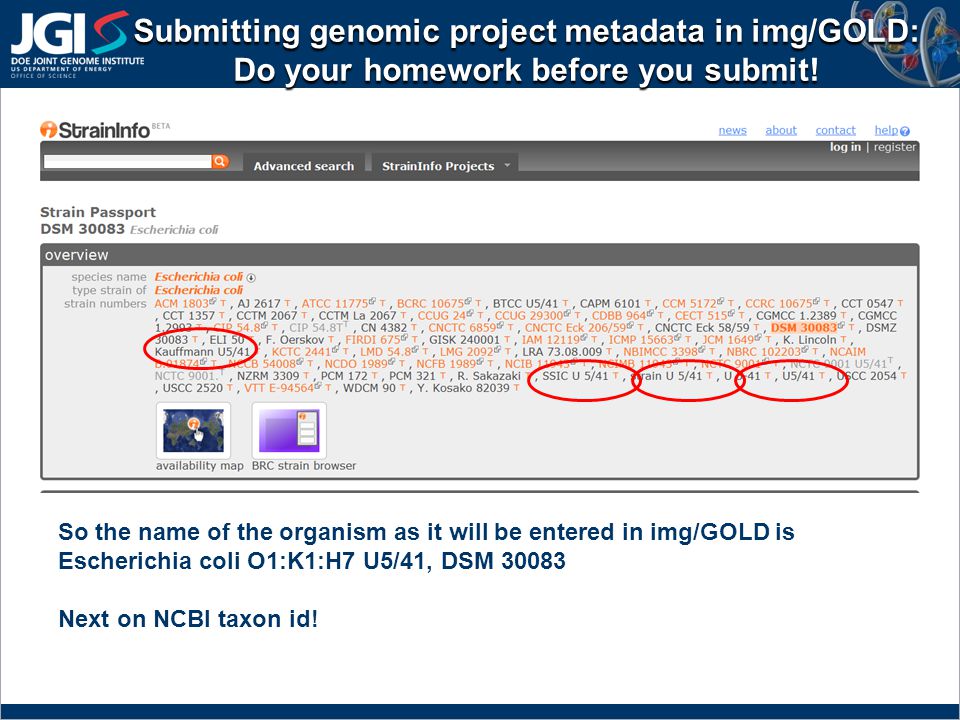

12 So the name of the organism as it will be entered in img/GOLD is Escherichia coli O1:K1:H7 U5/41, DSM Next on NCBI taxon id! Submitting genomic project metadata in img/GOLD: Do your homework before you submit!

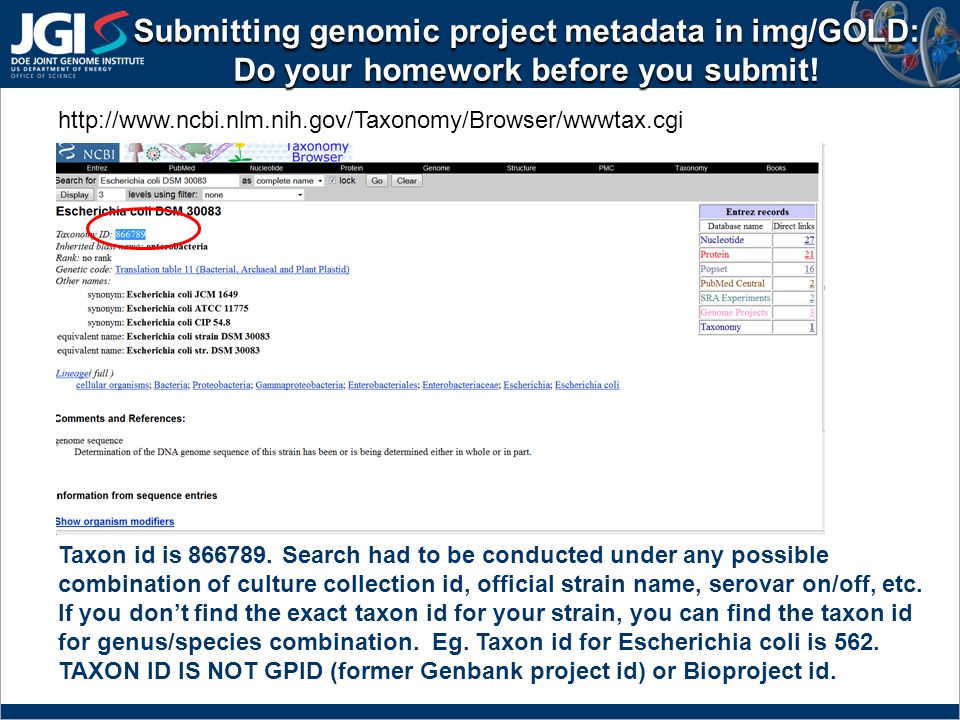

13 Taxon id is Search had to be conducted under any possible combination of culture collection id, official strain name, serovar on/off, etc. If you dont find the exact taxon id for your strain, you can find the taxon id for genus/species combination. Eg. Taxon id for Escherichia coli is 562. TAXON ID IS NOT GPID (former Genbank project id) or Bioproject id. Submitting genomic project metadata in img/GOLD: Do your homework before you submit!

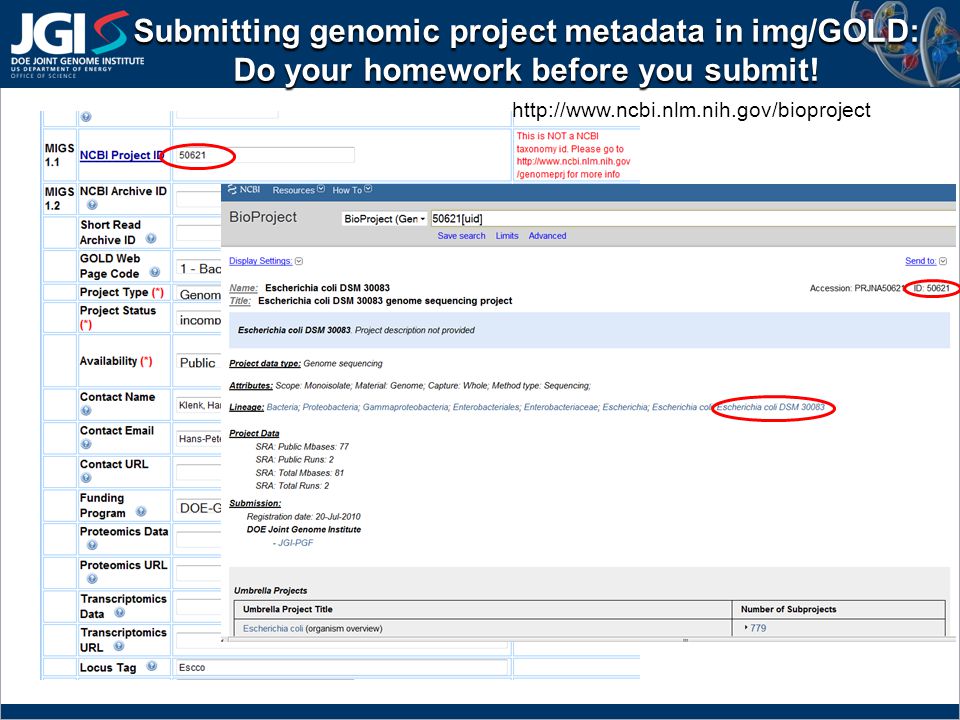

14 Submitting genomic project metadata in img/GOLD: Do your homework before you submit!

15 Submitting genomic project metadata in img/GOLD

16

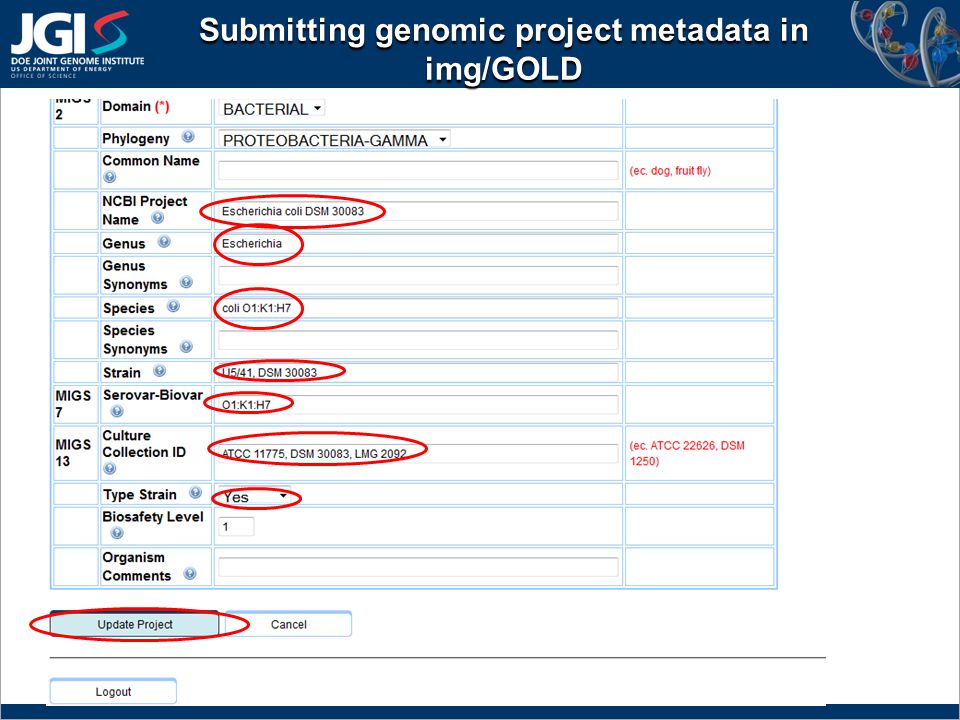

17

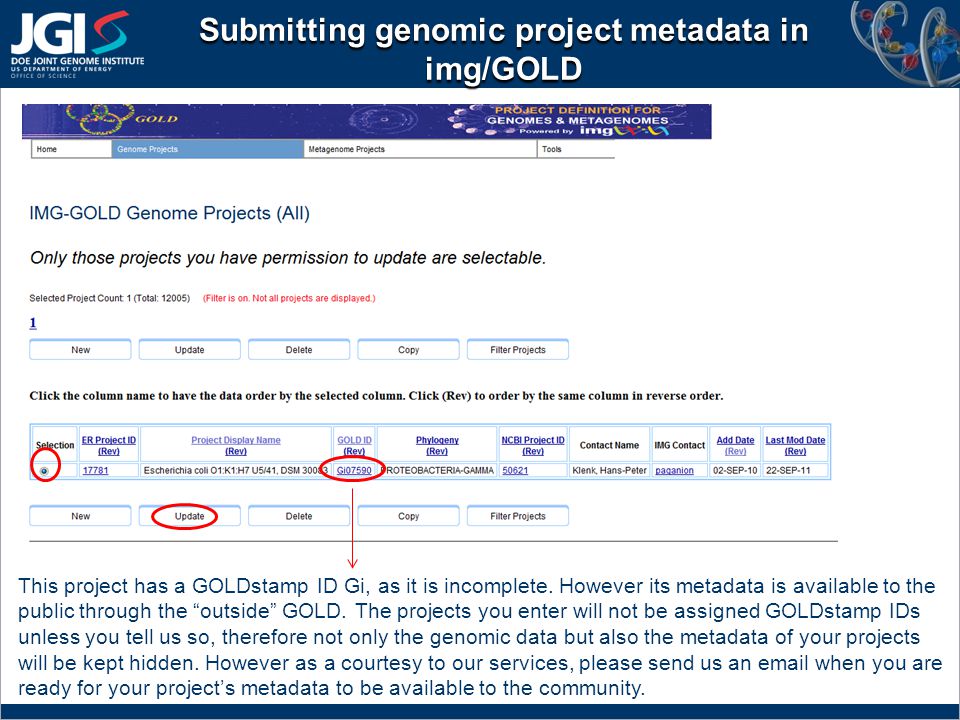

18 This project has a GOLDstamp ID Gi, as it is incomplete. However its metadata is available to the public through the outside GOLD. The projects you enter will not be assigned GOLDstamp IDs unless you tell us so, therefore not only the genomic data but also the metadata of your projects will be kept hidden. However as a courtesy to our services, please send us an when you are ready for your projects metadata to be available to the community.

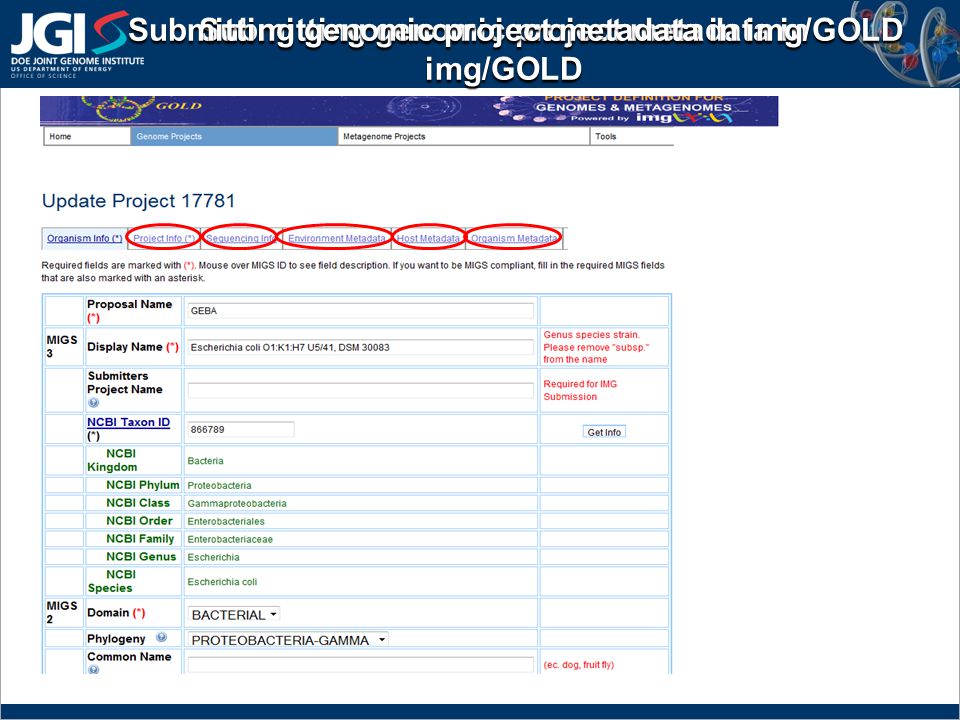

19 Submitting genomic project metadata in img/GOLD

20 Scroll down for more fields!

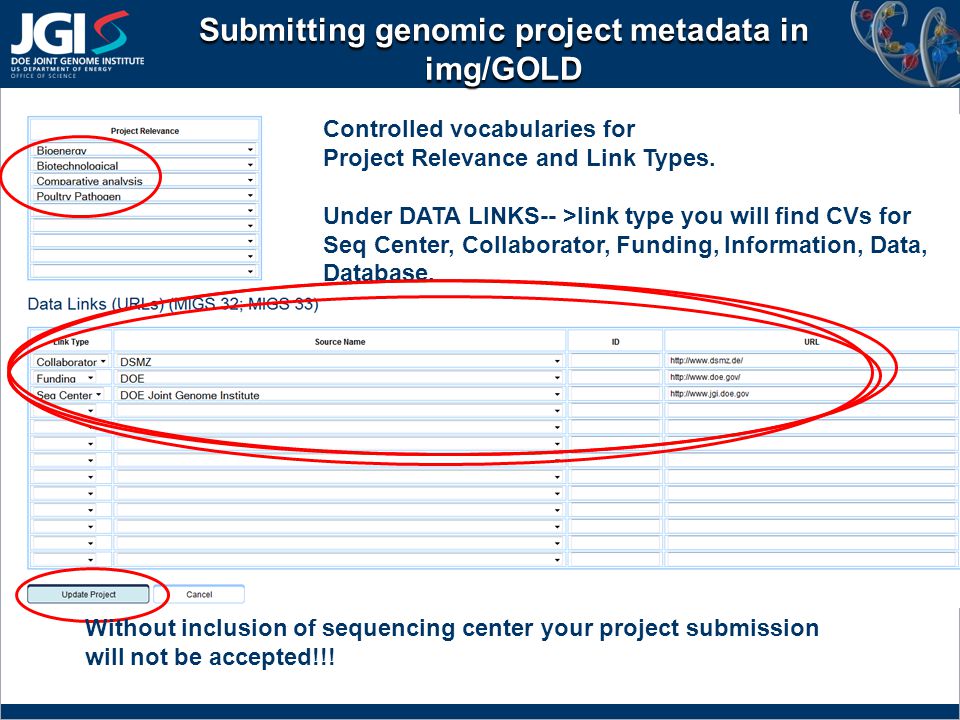

21 Submitting genomic project metadata in img/GOLD Without inclusion of sequencing center your project submission will not be accepted!!! Controlled vocabularies for Project Relevance and Link Types. Under DATA LINKS-- >link type you will find CVs for Seq Center, Collaborator, Funding, Information, Data, Database.

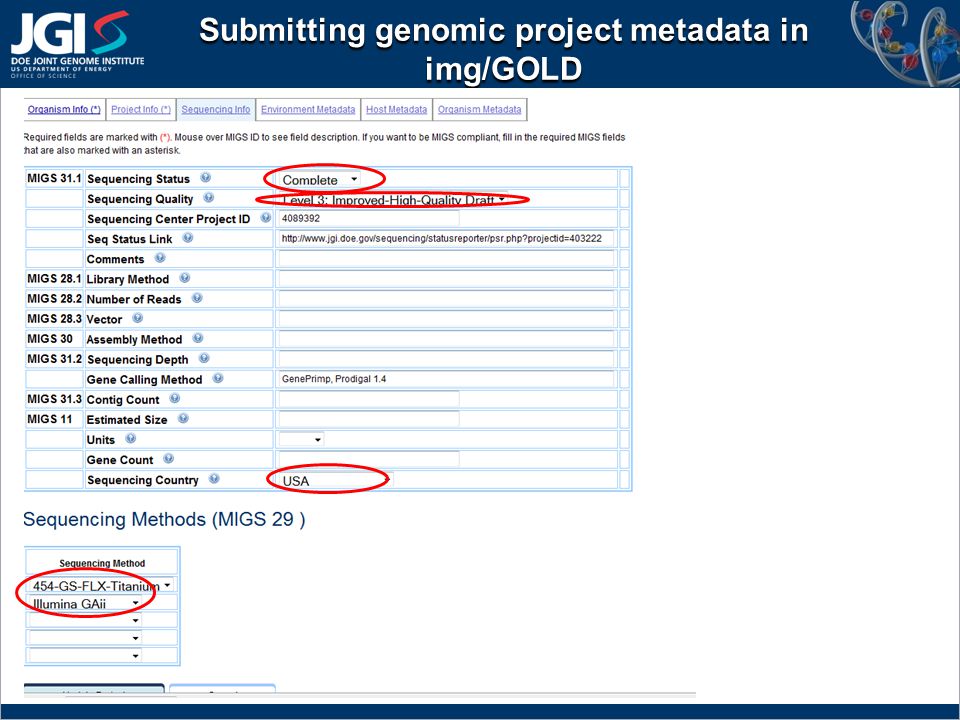

22 Submitting genomic project metadata in img/GOLD

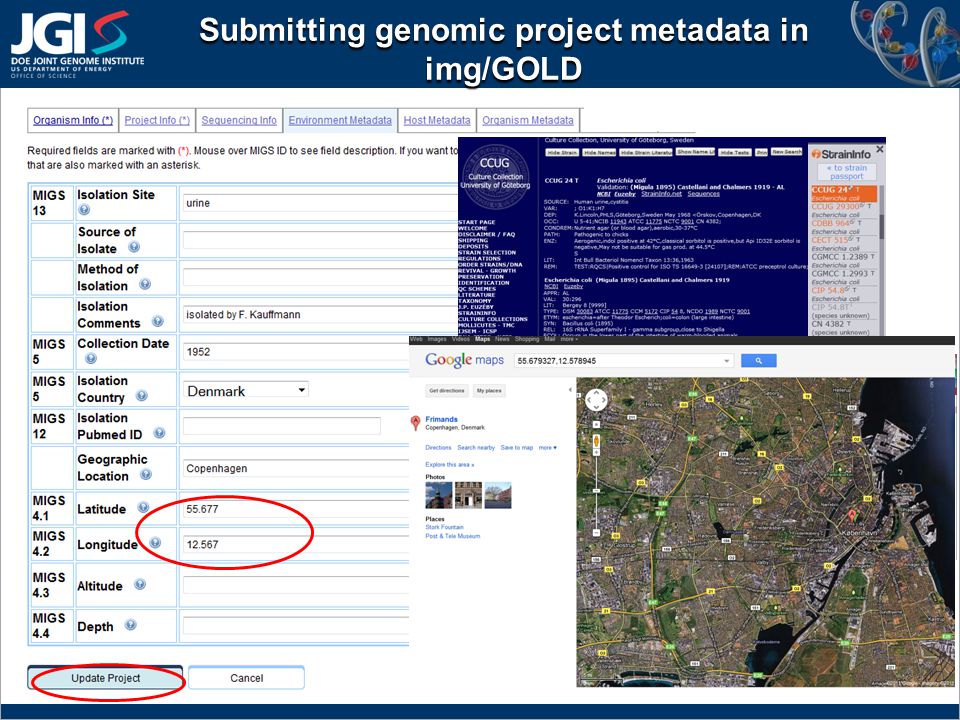

23

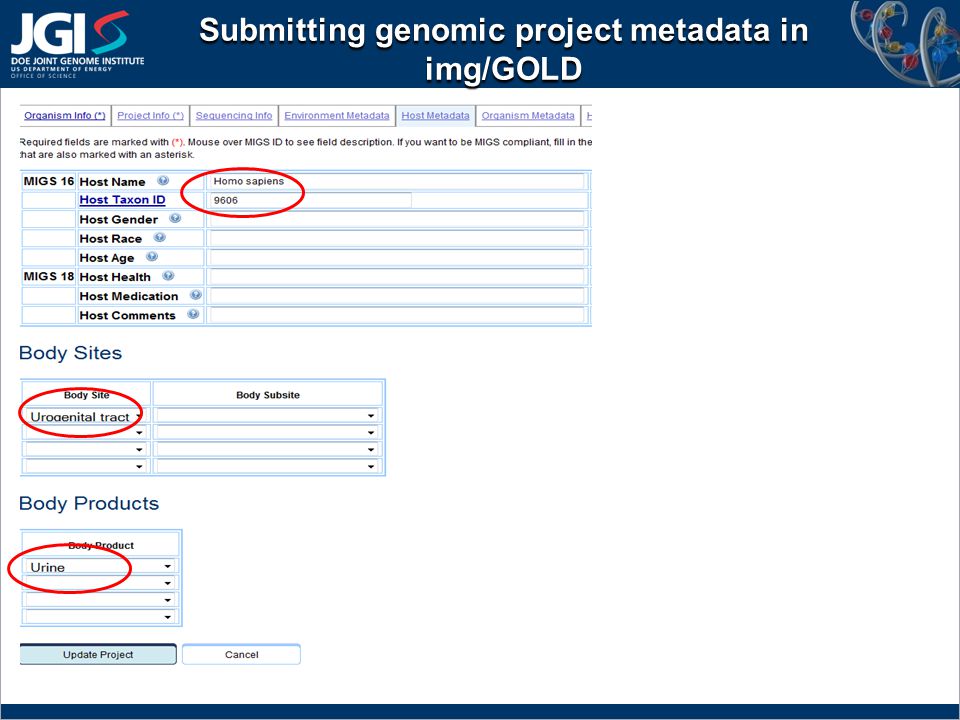

24

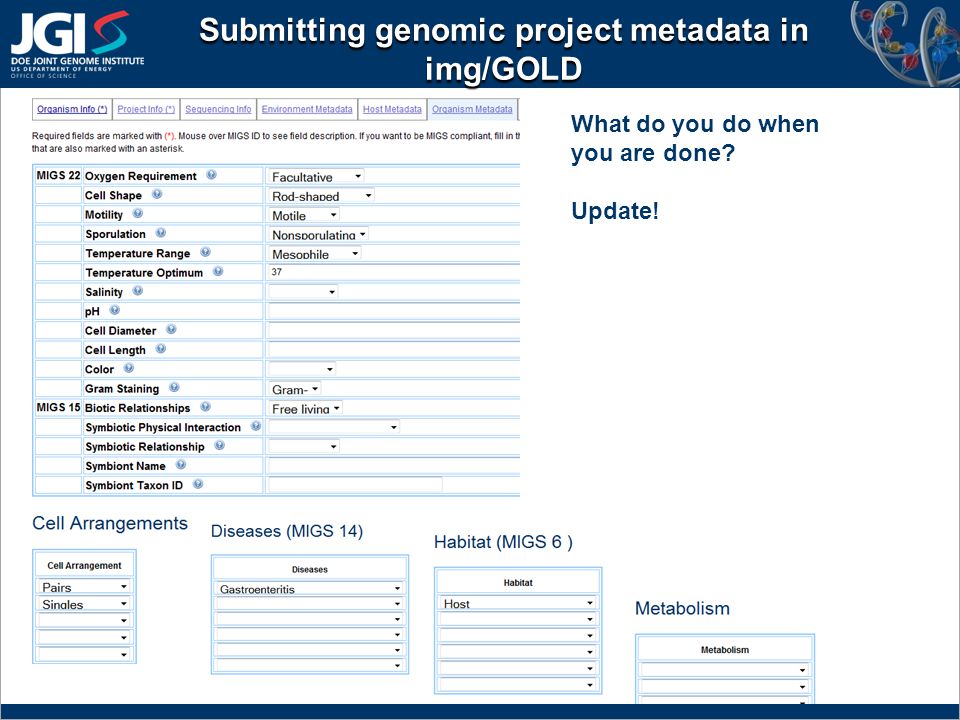

25 What do you do when you are done? Update!

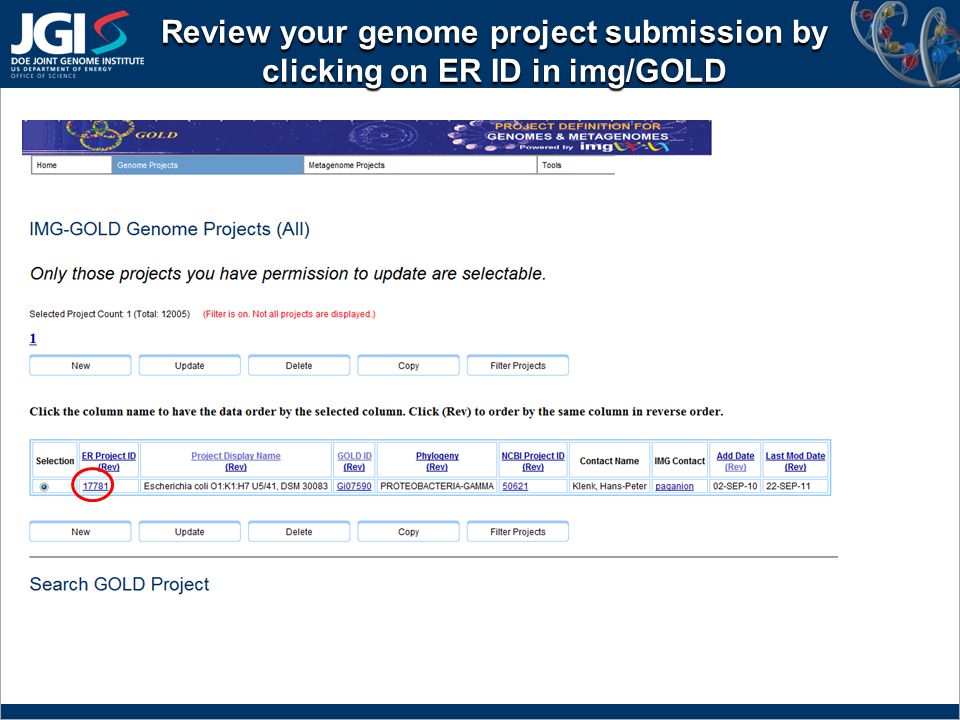

26 Review your genome project submission by clicking on ER ID in img/GOLD

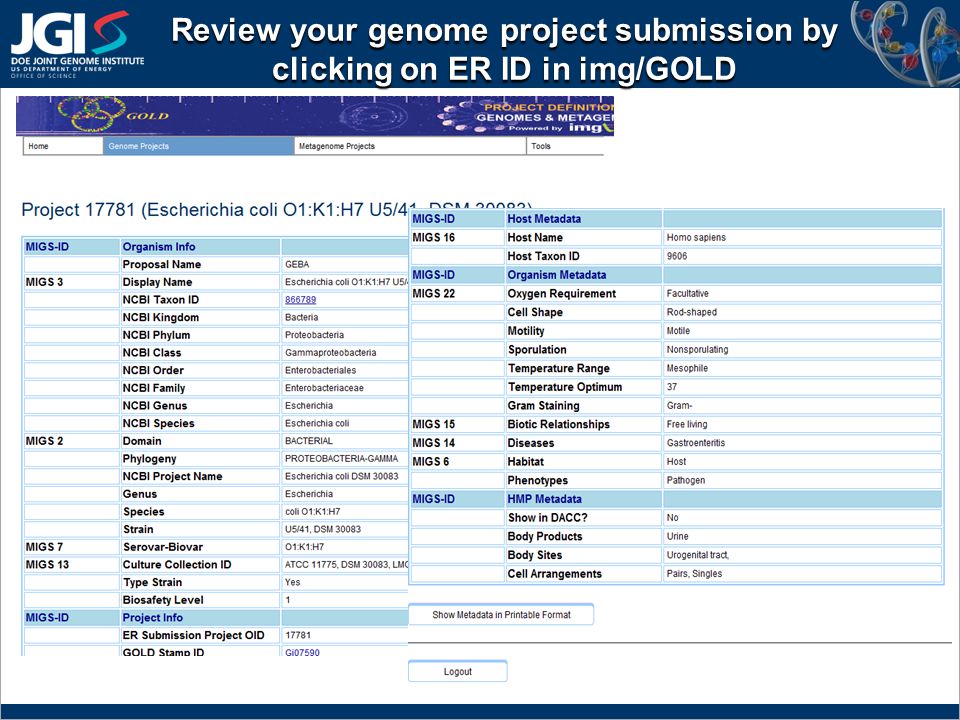

27

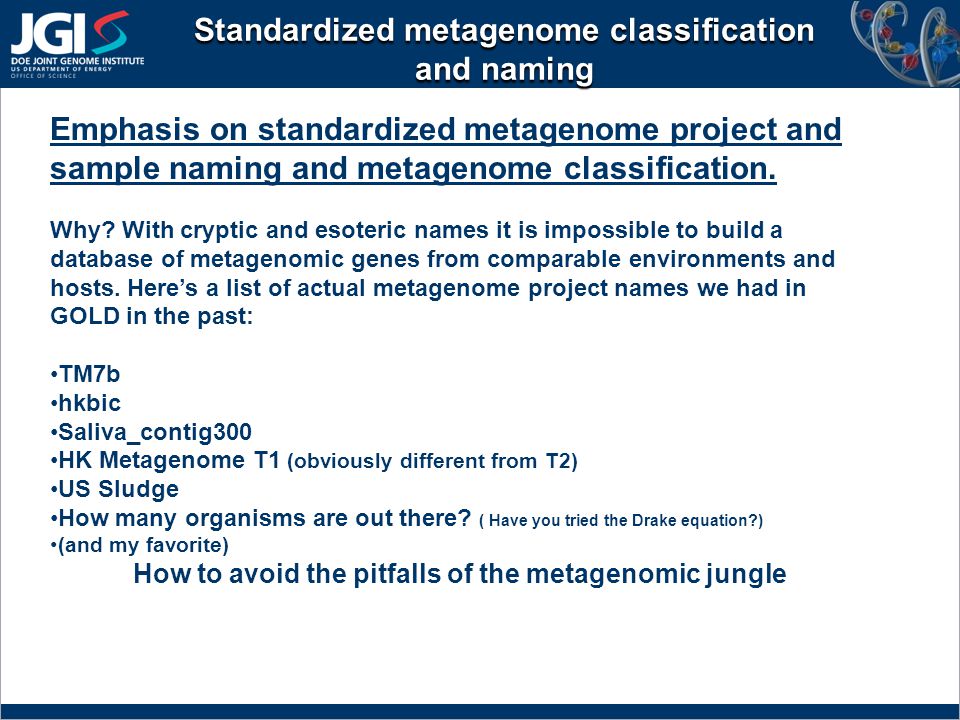

28 Standardized metagenome classification and naming Emphasis on standardized metagenome project and sample naming and metagenome classification. Why? With cryptic and esoteric names it is impossible to build a database of metagenomic genes from comparable environments and hosts. Heres a list of actual metagenome project names we had in GOLD in the past: TM7b hkbic Saliva_contig300 HK Metagenome T1 (obviously different from T2) US Sludge How many organisms are out there? ( Have you tried the Drake equation?) (and my favorite) How to avoid the pitfalls of the metagenomic jungle

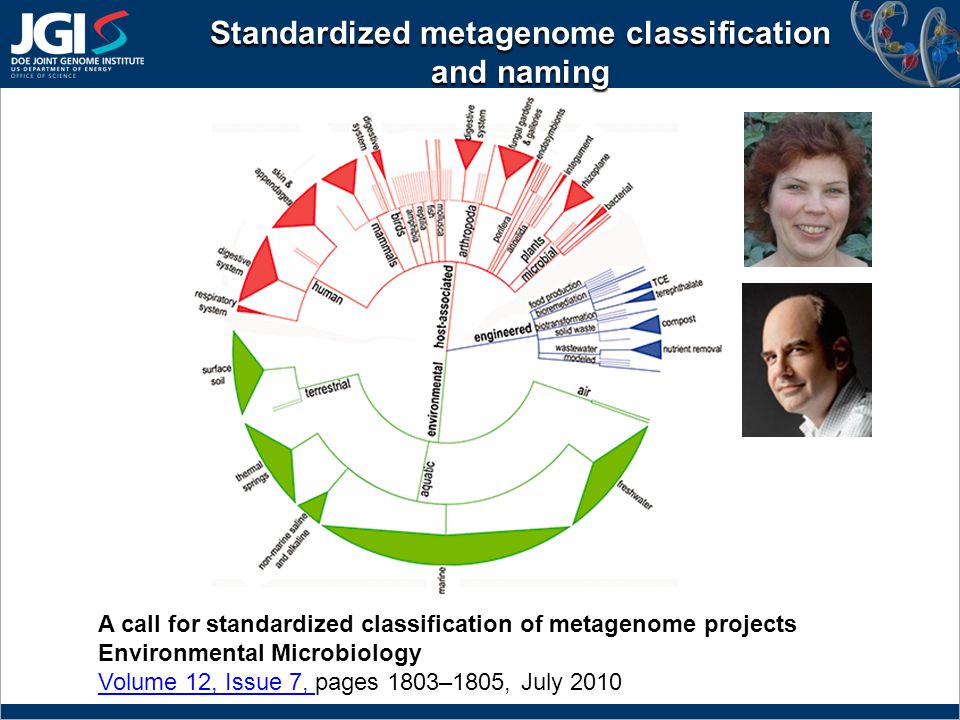

29 A call for standardized classification of metagenome projects Environmental Microbiology Volume 12, Issue 7, Volume 12, Issue 7, pages 1803–1805, July 2010 Standardized metagenome classification and naming

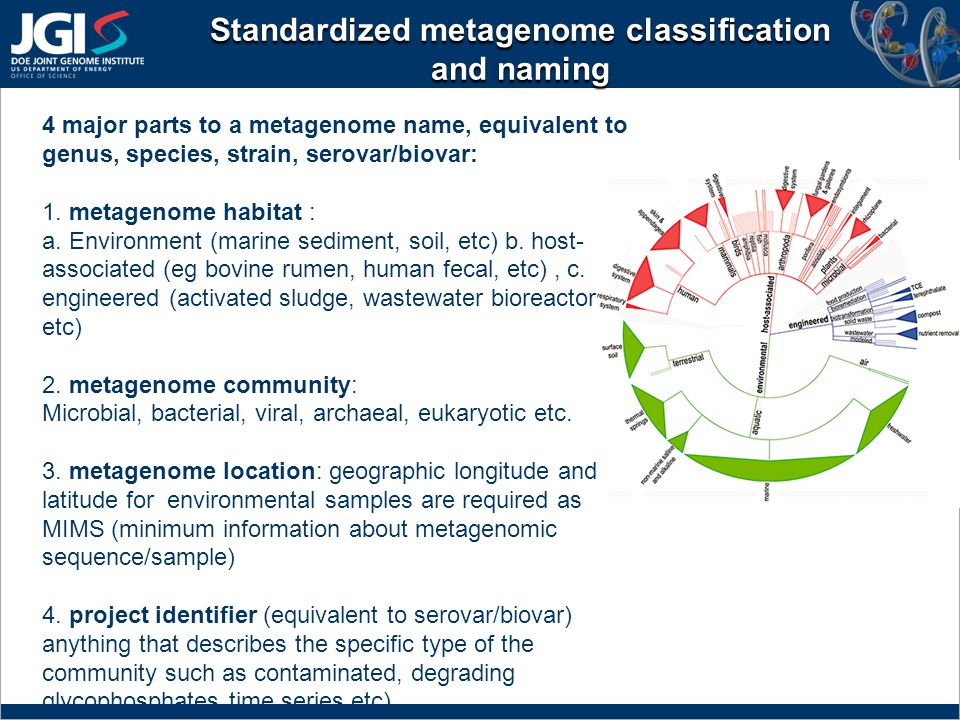

30 4 major parts to a metagenome name, equivalent to genus, species, strain, serovar/biovar: 1. metagenome habitat : a. Environment (marine sediment, soil, etc) b. host- associated (eg bovine rumen, human fecal, etc), c. engineered (activated sludge, wastewater bioreactor etc) 2. metagenome community: Microbial, bacterial, viral, archaeal, eukaryotic etc. 3. metagenome location: geographic longitude and latitude for environmental samples are required as MIMS (minimum information about metagenomic sequence/sample) 4. project identifier (equivalent to serovar/biovar) anything that describes the specific type of the community such as contaminated, degrading glycophosphates time series etc) Standardized metagenome classification and naming

31 1.How would you name a project that examines viruses from the waters of the Black Sea that are acidified? Marine viral communities from the Black Sea, under conditions of ocean acidification Instead of Metagenome from viruses in acidified waters Where: Habitat = Marine (therefore classification is environmental aquatic marine oceanic etc) Community= viral communities Location= from the Black Sea Project identifier= under conditions of ocean acidification 2. How would you name a project examining microbial communities from sludge in bioreactors at UC Davis? Wastewater microbial communities from EBPR bioreactor at UC Davis instead of US sludge Where: Habitat = Wastewater (therefore classification is engineered wastewater industrial wastewater etc) Community= microbial communities Location= from EBPR bioreactor at UC Davis Classification is now embedded in controlled vocabularies in img/GOLD Case studies for standardized metagenome naming

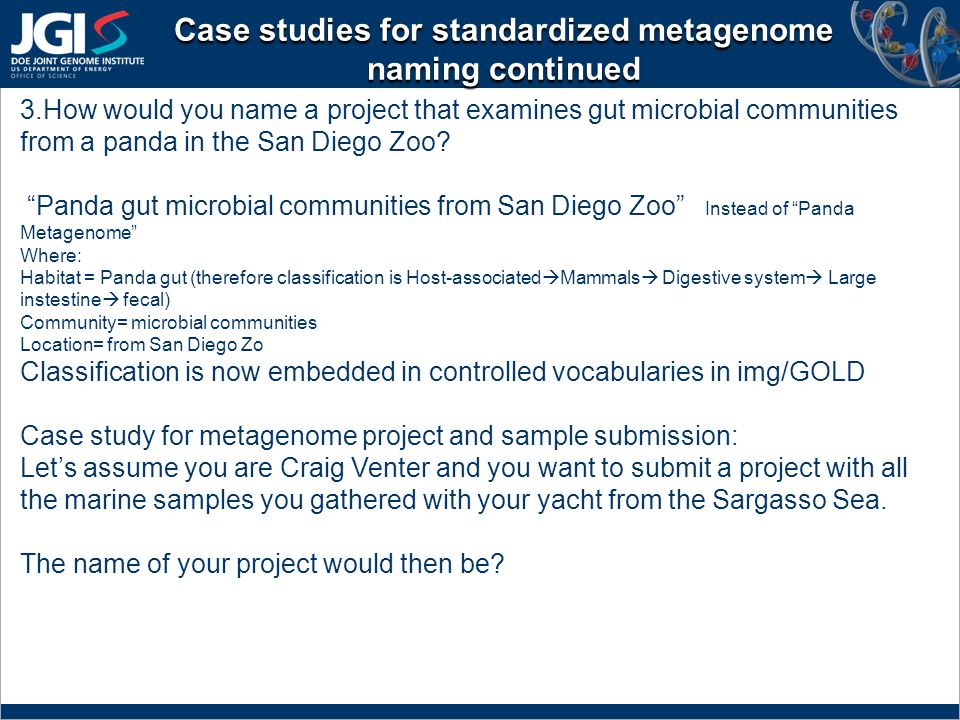

32 3.How would you name a project that examines gut microbial communities from a panda in the San Diego Zoo? Panda gut microbial communities from San Diego Zoo Instead of Panda Metagenome Where: Habitat = Panda gut (therefore classification is Host-associated Mammals Digestive system Large instestine fecal) Community= microbial communities Location= from San Diego Zo Classification is now embedded in controlled vocabularies in img/GOLD Case study for metagenome project and sample submission: Lets assume you are Craig Venter and you want to submit a project with all the marine samples you gathered with your yacht from the Sargasso Sea. The name of your project would then be? Case studies for standardized metagenome naming continued

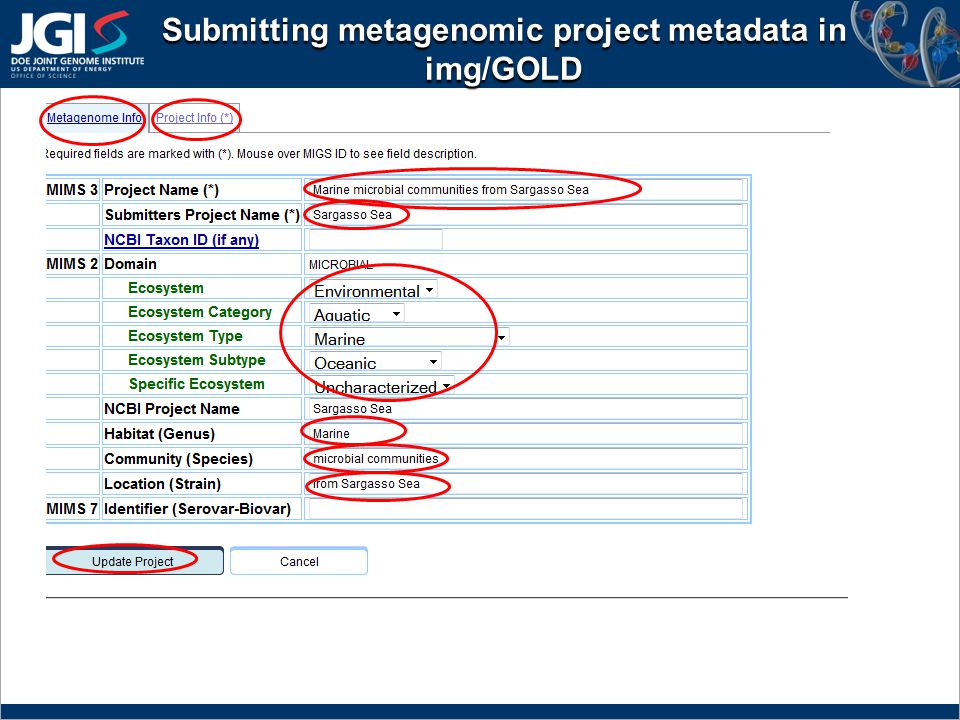

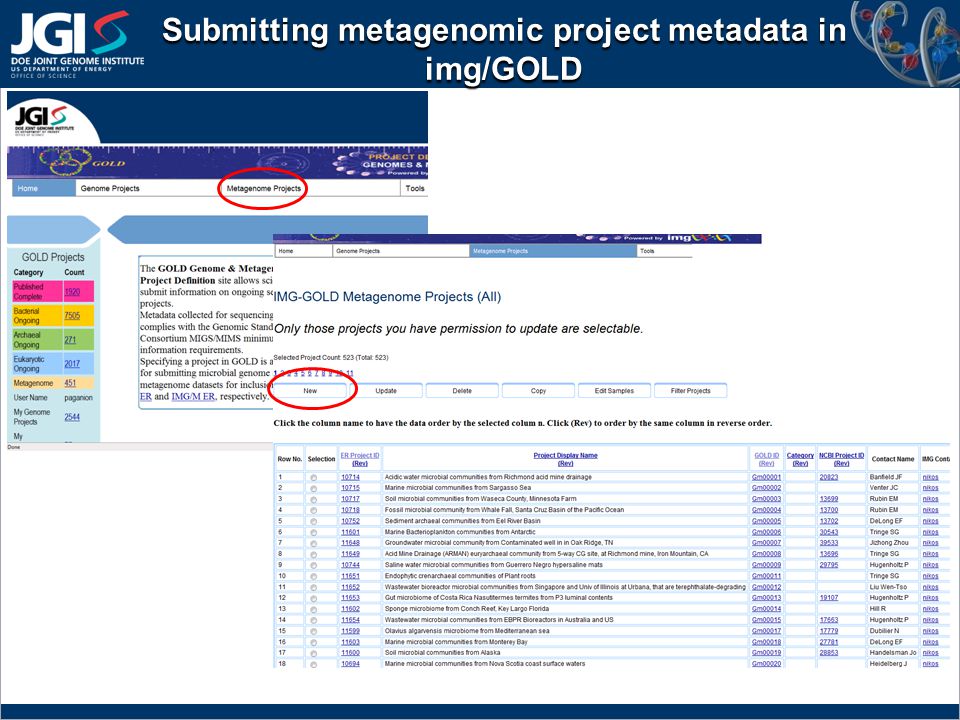

33 Submitting metagenomic project metadata in img/GOLD

34

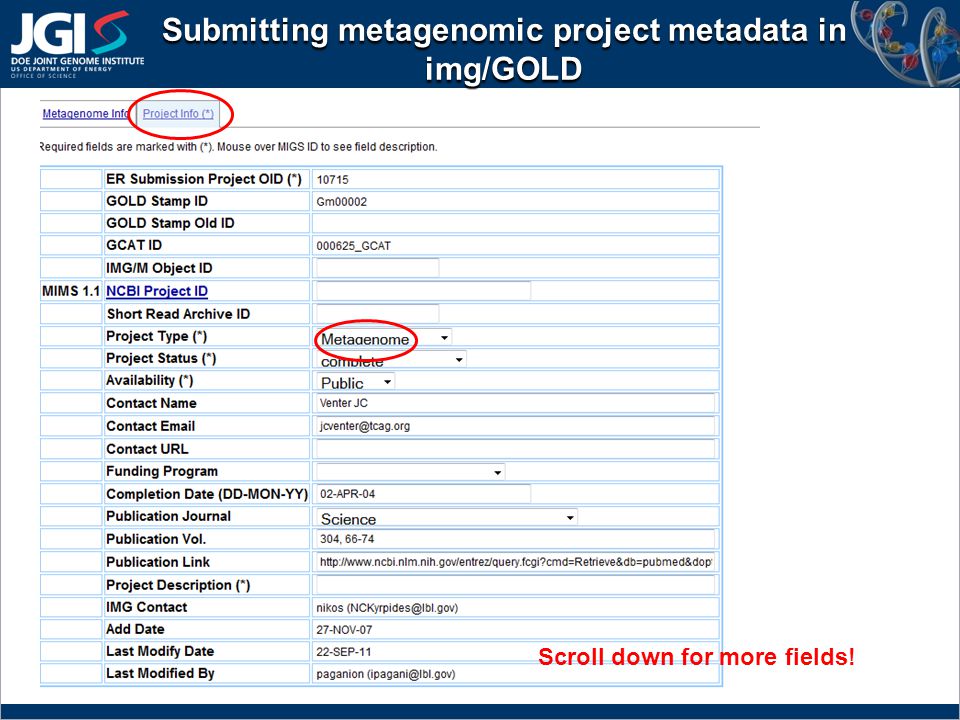

35 Scroll down for more fields!

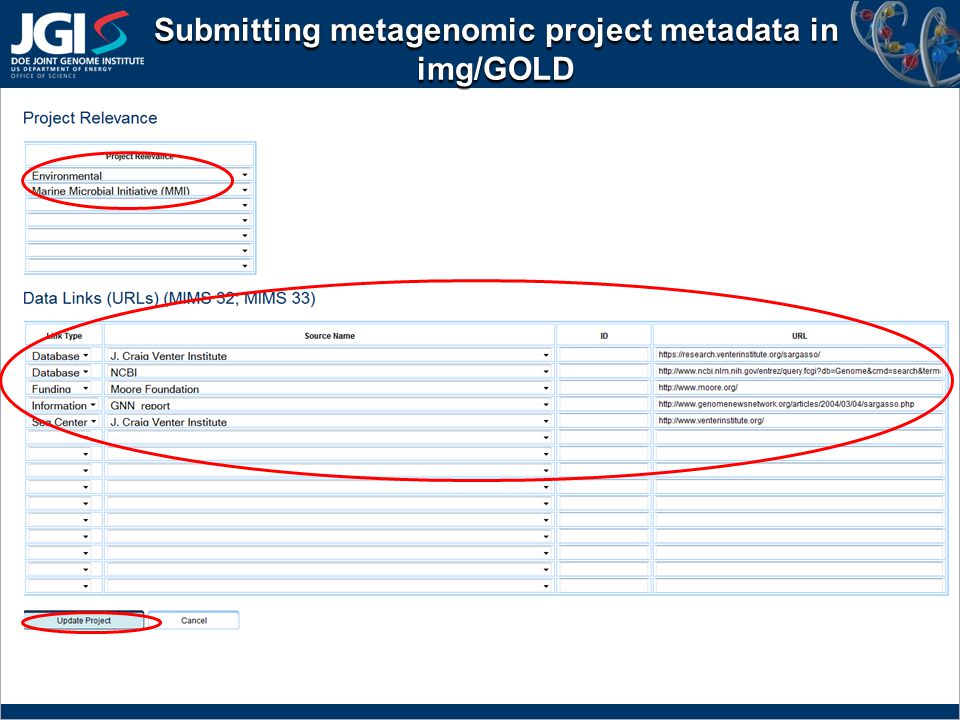

36 Submitting metagenomic project metadata in img/GOLD

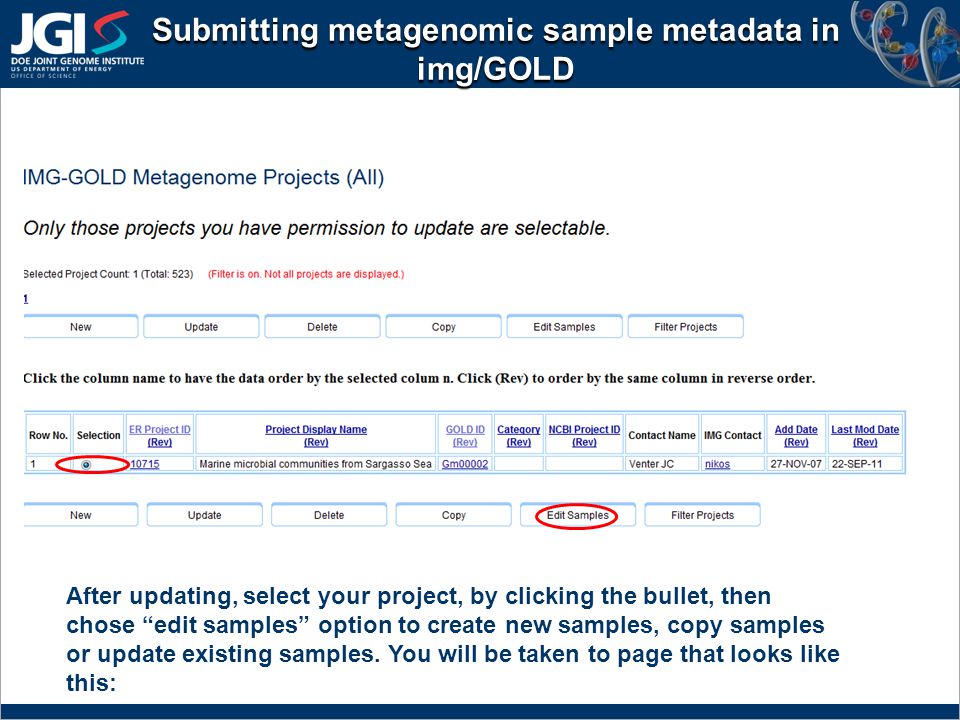

37 Submitting metagenomic sample metadata in img/GOLD After updating, select your project, by clicking the bullet, then chose edit samples option to create new samples, copy samples or update existing samples. You will be taken to page that looks like this:

38 Submitting metagenomic sample metadata in img/GOLD Scroll down for more fields!

39 Submitting metagenomic sample metadata in img/GOLD

40 Review your metagenome sample submission by clicking the ER ID Questions?

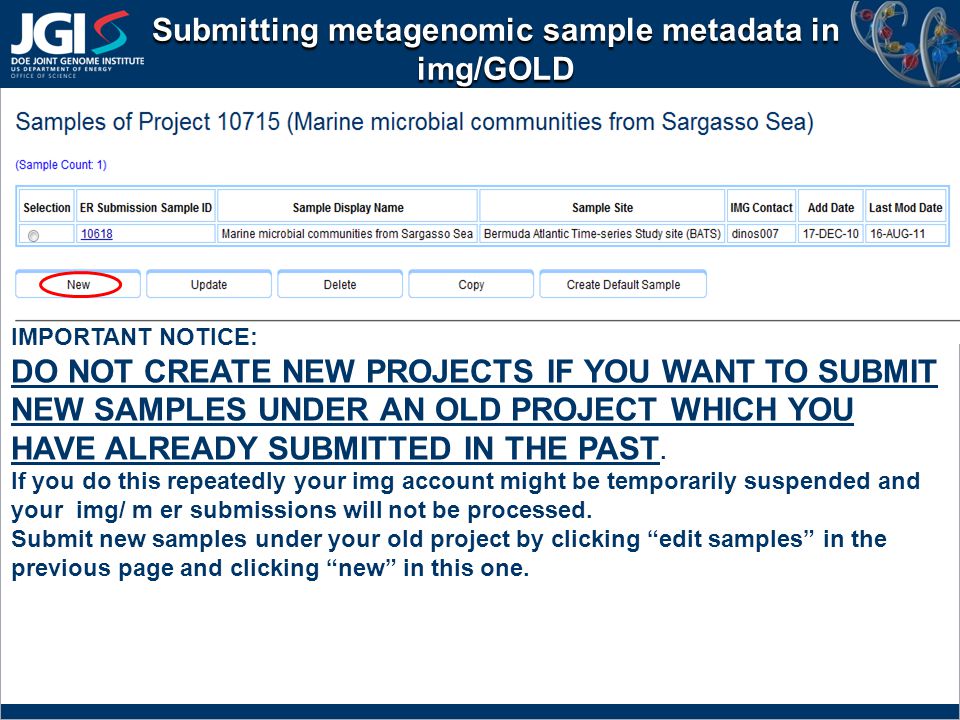

41 Submitting metagenomic sample metadata in img/GOLD IMPORTANT NOTICE: DO NOT CREATE NEW PROJECTS IF YOU WANT TO SUBMIT NEW SAMPLES UNDER AN OLD PROJECT WHICH YOU HAVE ALREADY SUBMITTED IN THE PAST. If you do this repeatedly your img account might be temporarily suspended and your img/ m er submissions will not be processed. Submit new samples under your old project by clicking edit samples in the previous page and clicking new in this one.

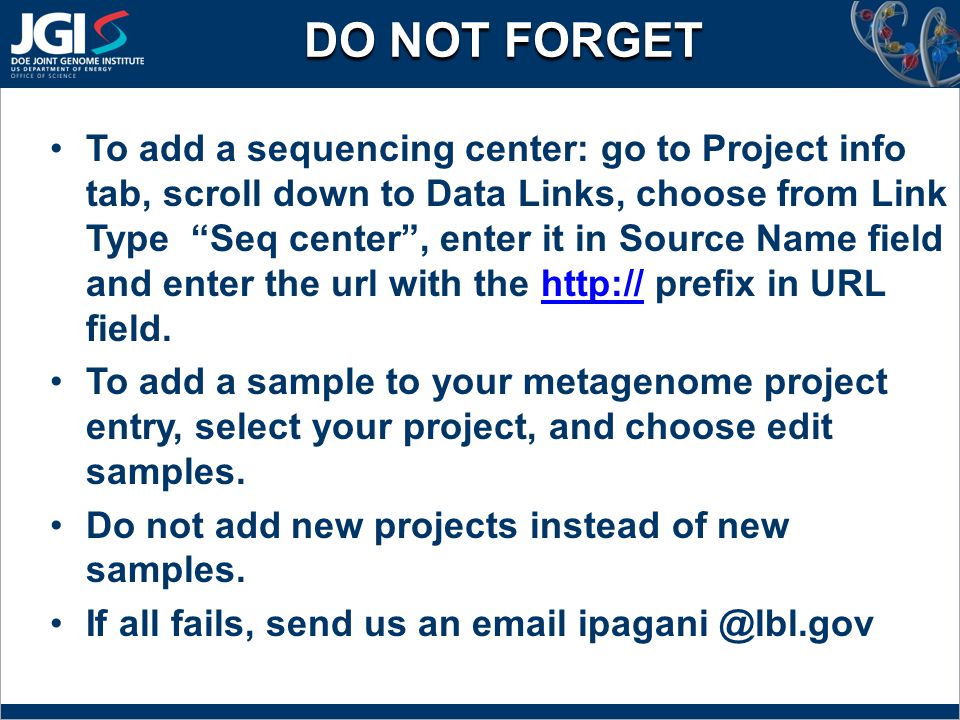

42 DO NOT FORGET To add a sequencing center: go to Project info tab, scroll down to Data Links, choose from Link Type Seq center, enter it in Source Name field and enter the url with the prefix in URL field.http:// To add a sample to your metagenome project entry, select your project, and choose edit samples. Do not add new projects instead of new samples. If all fails, send us an

43 Acknowledgements GOLD Team: Dinos Liolios Amy Chen TB Reddy Bahador Nosrat Joe Walp Tatiana Smirnova IMG group leads: Natalia Ivanova Kostas Mavromatis Victor Markowitz Nikos Kyrpides
