1 Arrangement of teeth Prof.Dr. Ahlam El-Sharkawy
Head of prosthodontic Departement. Pharos University.

2 Introduction: Artificial teeth should be arranged to be in harmony with the surrounding structures both in physiological and esthetic considerations in centric and excentric movements.

3 Balanced Occlusion: ---The simultaneous contact of upper and lower teeth as they glide over each other when the mandible is moved from centric relation to eccentric relations. ---This type of occlusion rarely found in natural dentition . However bilateral balance is generally considered necessary for denture stability.

4 Occlusal Curvatures: Antero-posterior curve(Curve of Spee)
This is a curved occlusal surface that makes simultaneous contact with the major portion of the incisal and occlusal prominence of the existing teeth. Antero-posterior curve(Curve of Spee) Lateral curve (Curve of Monson)

5 Curve of Spee: --It is the anatomical curvature of the occlusal alignment of the teeth beginning at the tip of the lower cuspid extended through the buccal cusps of the posterior teeth and continuing to the anterior border of the ramus ,ending with the anterior portion of the condyle. --This formed an arc of a circle of 7 cm. radius with a center at crista lacrimalis posterior.

6 Monson Curve: ---It is the Curve of occlusion touching the cusp tips of posterior teeth in frontal plane. ---It forms a segment of the surface of a sphere 20 cm. in diameter with its center at the Glabella.

7 Compensating Curves: ---Compensating Curves are artificial curves introduced into dentures in order to facilitate the production of balanced occlusion. ----They are artificial counter parts of the curve of Spee and curve of Monson found in natural dentition.

8 Factors of occlusion. 4-Compansating curve
1-Condylar Guidance. 2-Incisal Guidance 3-Cusp height 4-Compansating curve 5-orination of occlusal plane

9 Anterior teeth Posterior teeth.
General Consideration for the arrangement of teeth. Anterior teeth Esthetics Phonetics Posterior teeth. The Crest of lower ridge Compensating Curves Common horizontal plane Spacing of posterior teeth

10 Reference Marks for Selecting Anterior Teeth
Technician sets the teeth without seeing patient Wax rim contours aid selection and setting: Occlusal vertical dimension Angulation of facial rims affects lip support Overjet

11 Midline Position Critical reference #7 wax spatula
Score a line parallel the facial midline Mark both rims

12 Guidelines for Setting Anterior Teeth
High Lip Line Corner of Mouth Angulation is as important as midline

13 Mandibular Reference Lines

14 Mandibular Reference Lines

15 1-The relation of the teeth to the alveolar ridge:
Maxillary central grooves should be centered over the crest of lower ridge. Ensures denture stability Reduces fulcruming forces during function

16 1.Maxillary anterior teeth

17 a. Maxillary central incisors
1.The long axis of the tooth shows slight distal inclination to the perpendicular. 2.The contact point should coincide with the midline of the face. 3.The incisal edge should touch the occlusal plane. 4.The neck of the tooth should be slightly depressed.


19 b. Maxillary lateral incisors
1.The long axis of Maxillary lateral incisor shows slightly more distal inclination than the central incisor when view from the front. 2.The long axis inclined labially when view from the side . 3.The incisal edge of the lateral should be mm above and parallel to occlusal plane. 4.The neck is depresed more than central incisor


21 c. Maxillary canines 1.The long axis should be parallel or distally inclined when view from the front, and vertical when viewed from the side. 2-The cusp tip is in contact with the occlusal plane 3.The canine has two planes on the labial surface. The mesial plane follow The contour of anterior teeth , the distal plane in line with the posteriors. 4.The neck of canine is prominent.



24 2. Mandibular anterior teeth

25 a. Mandibular central incisors

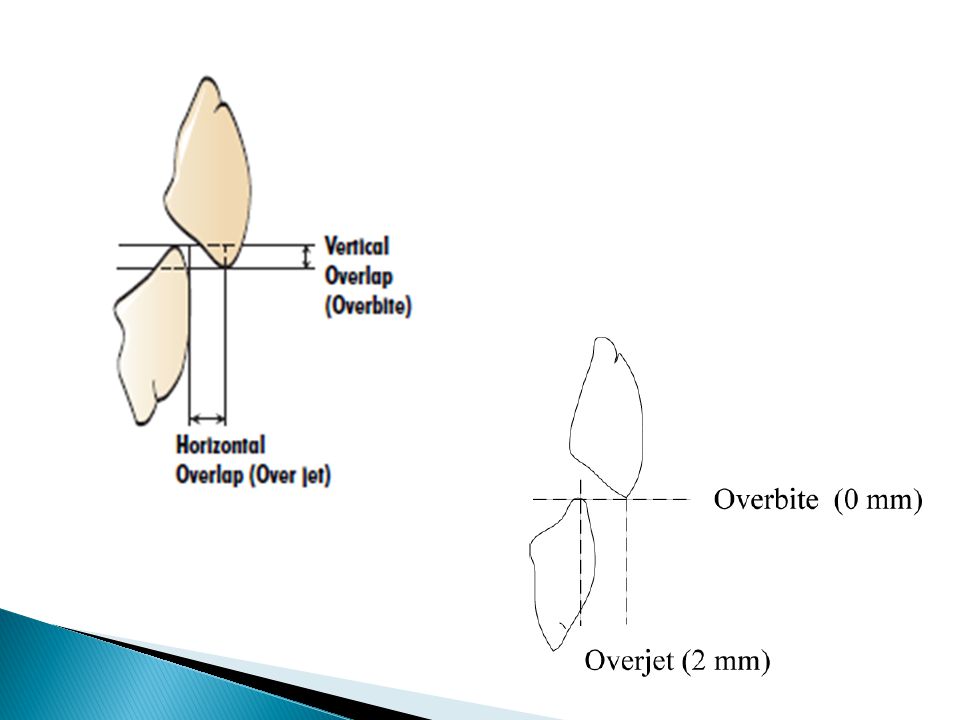

1.The long axis of the mandibular central incisor should be set perpendicular to the occlusal plane. 2. Set the mandibular central incisors so that the maxillary incisors cover them (1mm horizontally and vertically. 3.The contact point of mandibular incisors should coincide with the midline of the maxillary teeth.

26 b. Mandibular lateral incisors
1.The long axis of the mandibular incisor should be slightly inclined distally at the cervical portion of the tooth. 2.The occlusal height should be the same at the central incisors

27 c. Mandibular canines 1- The long axis of the mandibular canine is nearly perpendicular to the occlusal plane with a slight distal inclination. 2-The tip of the canine should be at the same occlusal height as the mandibular central and lateral incisors.



30 Arrangement of posterior teeth

31 Arrangement of Maxillary Posterior Teeth
The buccal cusp is touching the occlusal plane First Premolar Both the buccal and palatal cusps are touching the occlusal plane Second Premolar The mesiopalatal cusp is touching the occlusal plane First Molar The mesiopalatal cusp is the nearest to the occlusal plane Second MOLAR

32 Occlusal View of Maxillary Posterior Teeth

33 Final Arrangement of Maxillary and Mandibular Posterior Teeth
(Maximum Intercuspation) Buccal View Proximal View
