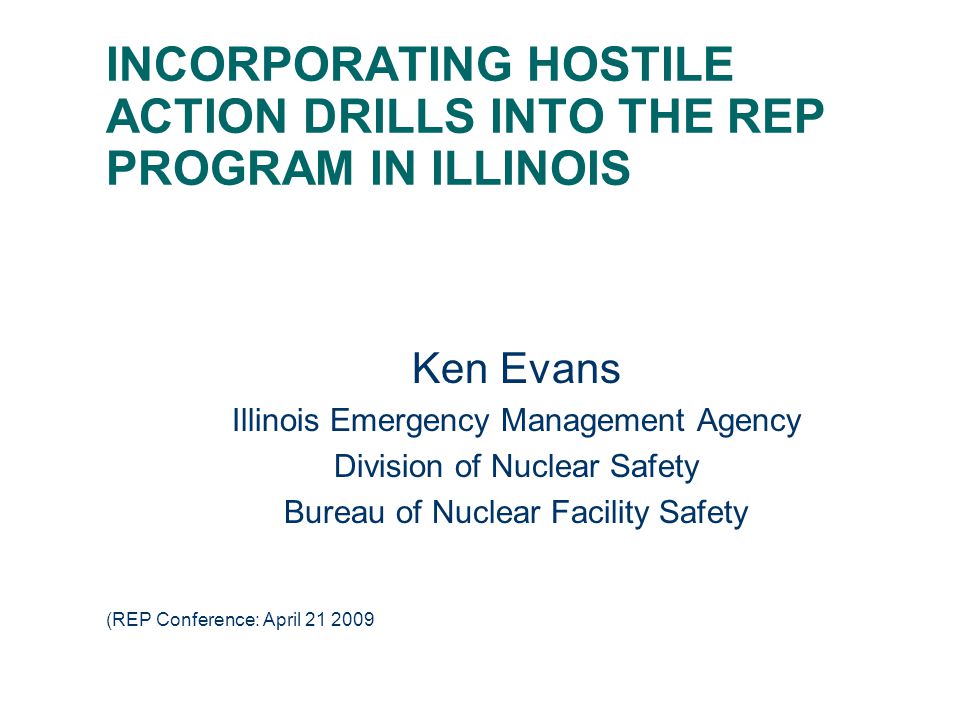

1 INCORPORATING HOSTILE ACTION DRILLS INTO THE REP PROGRAM IN ILLINOIS Ken Evans Illinois Emergency Management Agency Division of Nuclear Safety Bureau of Nuclear Facility Safety (REP Conference: April

2 OVERVIEW: State of Illinois conducts many exercises – Six nuclear plant sites in Illinois – Three exercises per year, plus three practice drills, for a total of six drills a year – In 2007, 2008 and 2009, this increased with two tabletops and two hostile action-based EP drills added We can not and should not be required to do everything in every drill

3 March 2007-Quad Cities NPP conducts the first official Phase III Threat-Based tabletop in the nation

4 THE ROOM WAS CROWDED, ESPECIALLY WHEN EVERYONE WAS MOVING AROUND

5 HERE IS A TABLE WITH EVERYONE AT THE TABLE. THIS IS UNUSUAL BECAUSE NO INFORMATION IS EXCHANGED THIS WAY.

6 WE ALL LEARNED FROM SHARING THOUGHTS WITH THOSE NOT NORMALLY PRESENT AT THE TABLE

7 April 2007 – Quad Cities Threat- Based drill

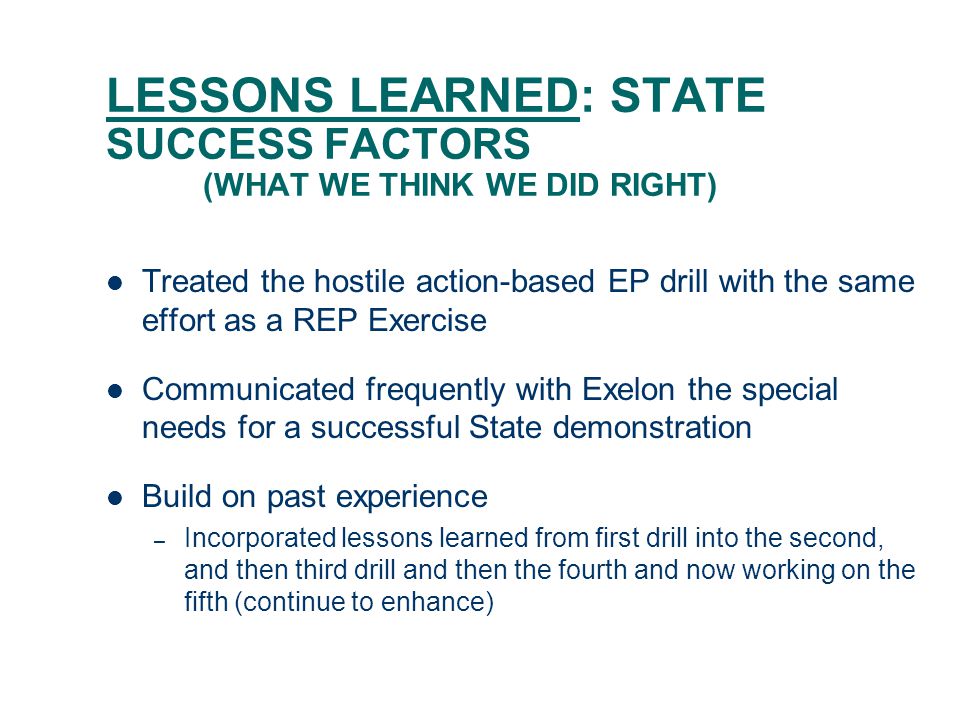

8 LESSONS LEARNED: STATE SUCCESS FACTORS (WHAT WE THINK WE DID RIGHT) Treated the hostile action-based EP drill with the same effort as a REP Exercise Communicated frequently with Exelon the special needs for a successful State demonstration Build on past experience – Incorporated lessons learned from first drill into the second, and then third drill and then the fourth and now working on the fifth (continue to enhance)

9 LESSONS LEARNED: WHAT WENT WRONG Scheduling is harder than you think April 22, 2009 LaSalle Tabletop Here I am I was to be there

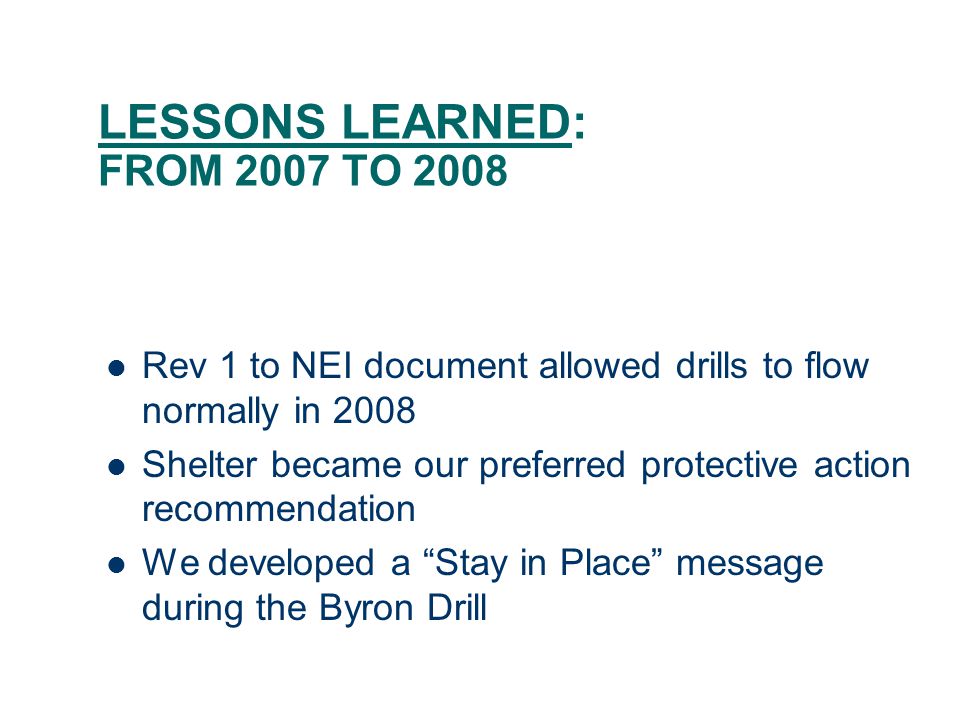

10 LESSONS LEARNED: FROM 2007 TO 2008 Rev 1 to NEI document allowed drills to flow normally in 2008 Shelter became our preferred protective action recommendation We developed a Stay in Place message during the Byron Drill

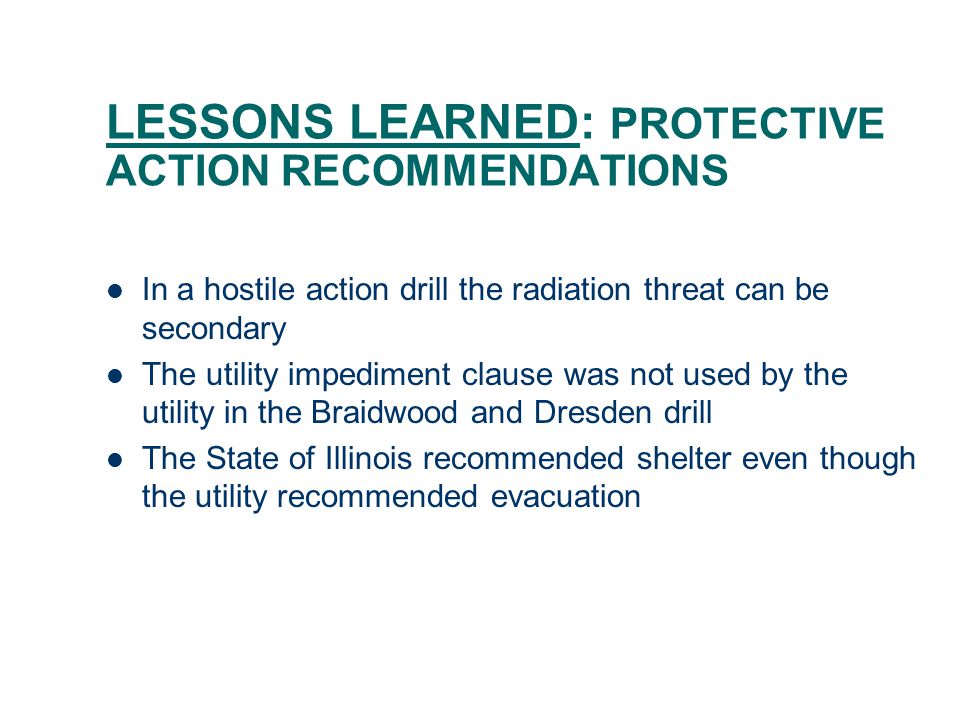

11 In a hostile action drill the radiation threat can be secondary The utility impediment clause was not used by the utility in the Braidwood and Dresden drill The State of Illinois recommended shelter even though the utility recommended evacuation LESSONS LEARNED: PROTECTIVE ACTION RECOMMENDATIONS

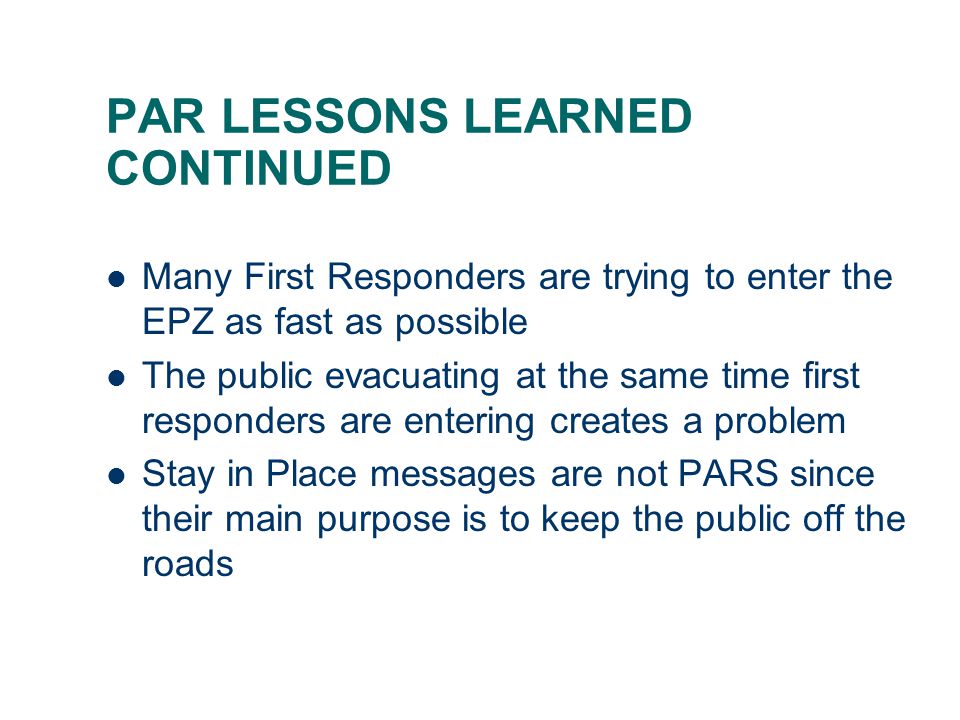

12 PAR LESSONS LEARNED CONTINUED Many First Responders are trying to enter the EPZ as fast as possible The public evacuating at the same time first responders are entering creates a problem Stay in Place messages are not PARS since their main purpose is to keep the public off the roads

13 SOME PAR OBSERVATIONS Hostile Action Drills can introduce additional risks to PAR decisions REP Exercises have viewed evacuations as a no risk decision We used stay in place messages not as a PAR but as a tool to increase response time

14 LESSONS LEARNED: COMMUNICATIONS Adding an Incident Command Post (ICP) created a new challenge for communications At the first drill there was not a utility representative At the second drill we added a utility representative to the ICP There are now two representatives one from security and one from operations

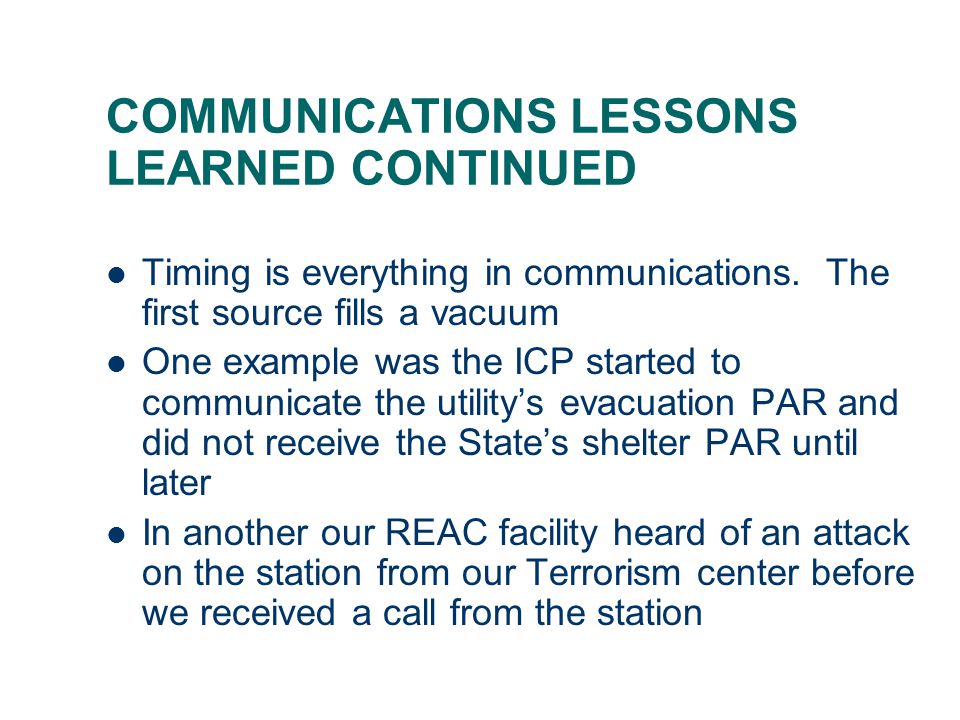

15 COMMUNICATIONS LESSONS LEARNED CONTINUED Timing is everything in communications. The first source fills a vacuum One example was the ICP started to communicate the utilitys evacuation PAR and did not receive the States shelter PAR until later In another our REAC facility heard of an attack on the station from our Terrorism center before we received a call from the station

16 COMMUNICATIONS CONTINUED Hostile Action Drills present more communications challenges because more organizations participate than in a normal REP Exercise It is important that communication channels be formally defined In Illinois the use of the StarCom radio system has solved some of these problems

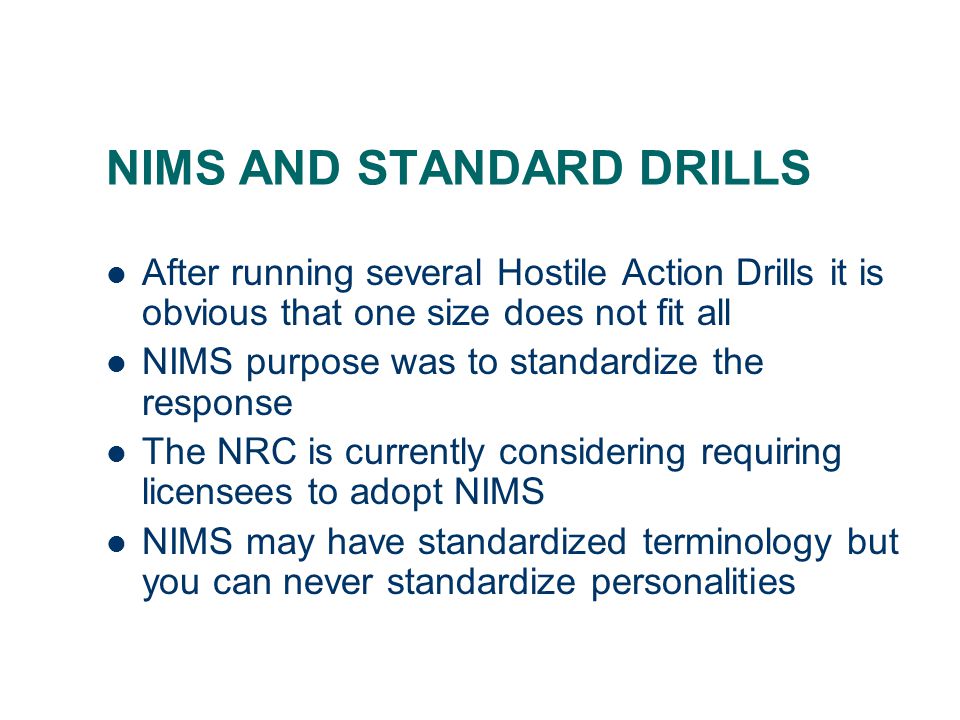

17 NIMS AND STANDARD DRILLS After running several Hostile Action Drills it is obvious that one size does not fit all NIMS purpose was to standardize the response The NRC is currently considering requiring licensees to adopt NIMS NIMS may have standardized terminology but you can never standardize personalities

18 PLANNING FOR A HOSTILE ACTION DRILL Today as we plan for the LaSalle drill we use many of the same tools we would for a REP Exercise The big difference is that the Tabletop is part of the planning process The tabletop is more important than the Dress Rehearsal has been for the Exercise because you have organizations that normally do not participate in a REP Exercise

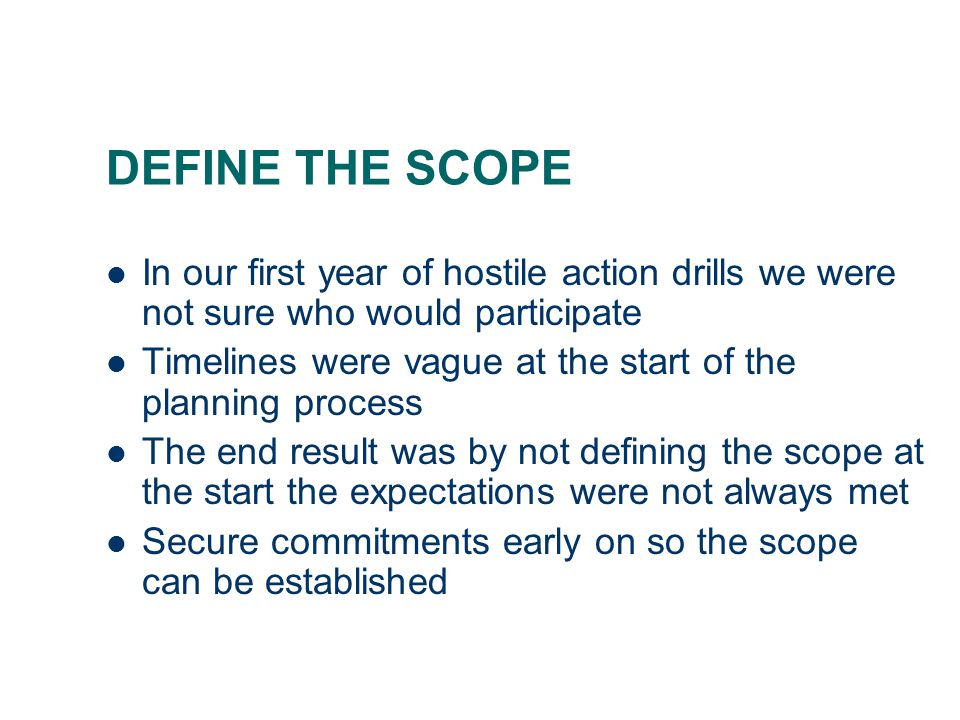

19 DEFINE THE SCOPE In our first year of hostile action drills we were not sure who would participate Timelines were vague at the start of the planning process The end result was by not defining the scope at the start the expectations were not always met Secure commitments early on so the scope can be established

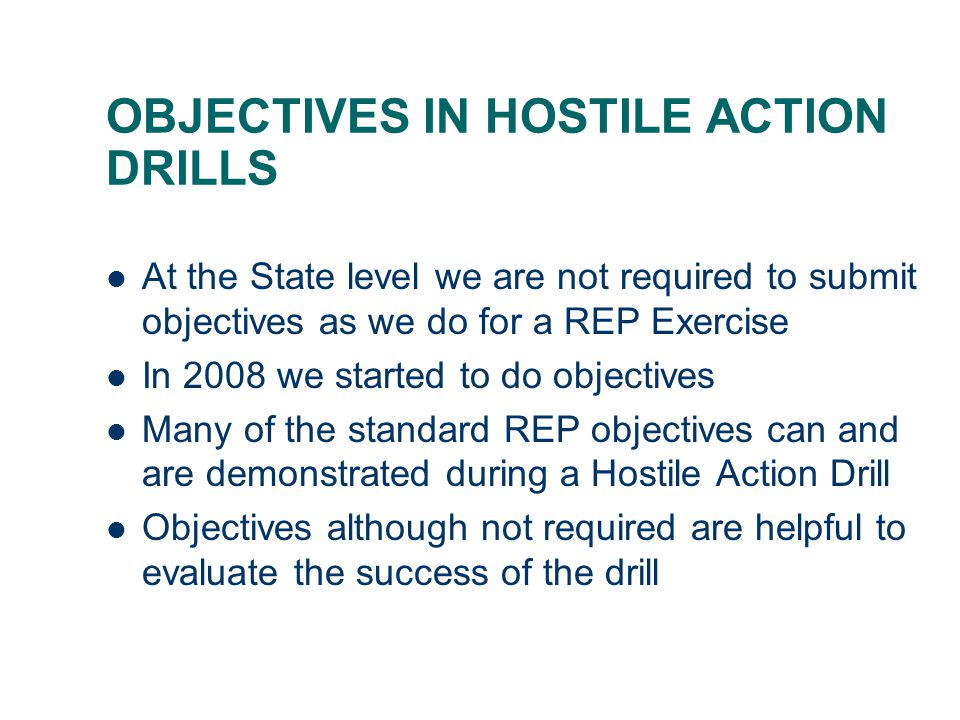

20 OBJECTIVES IN HOSTILE ACTION DRILLS At the State level we are not required to submit objectives as we do for a REP Exercise In 2008 we started to do objectives Many of the standard REP objectives can and are demonstrated during a Hostile Action Drill Objectives although not required are helpful to evaluate the success of the drill

21 TIMELINE FOR A HOSTILE ACTION DRILL Timelines are critical for a Hostile Action Drill Use of a timeline is the quickest way to determine if participants will have adequate time to play and accomplish their objectives One problem noted has been most timelines have not supported UAC participation

22 MESSAGES FOR A HOSTILE ACTION DRILL The tabletop has proven to be a valuable tool for identifying agencies that may require special messages to drive their actions in a manner to support the drill Our experience has been that Hostile Action Drills initially require more coordination to develop messages than a REP Exercise

23 MESSAGES CONTINUED Use the tabletop to identify normal lines of communication Messages take the place of information that would have been provided in a real event by an organization or individuals that are not able to participate in a drill

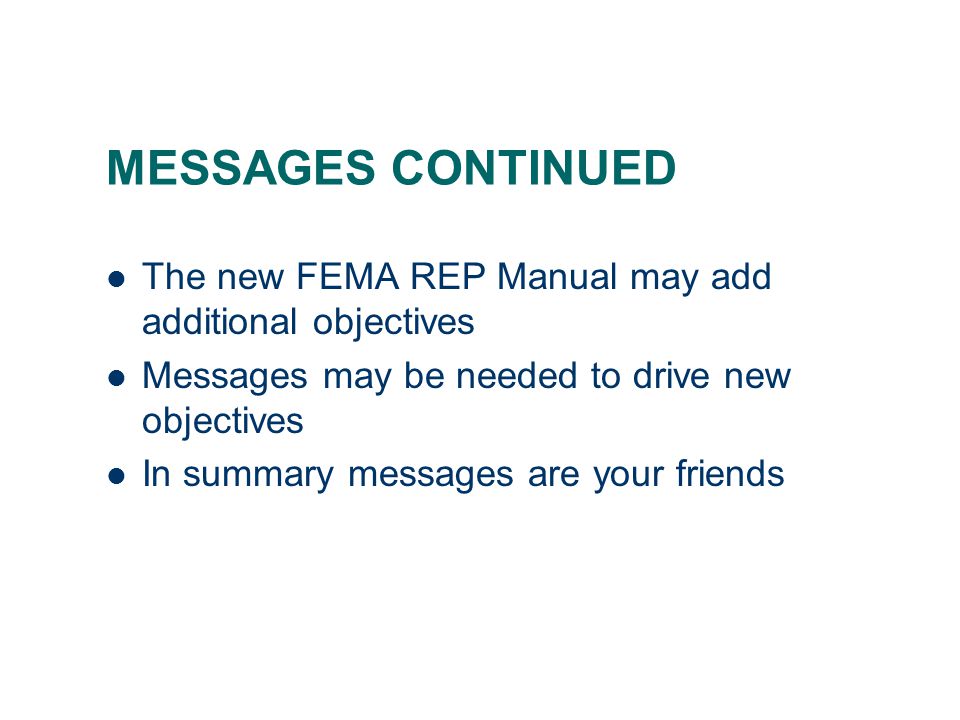

24 MESSAGES CONTINUED The new FEMA REP Manual may add additional objectives Messages may be needed to drive new objectives In summary messages are your friends

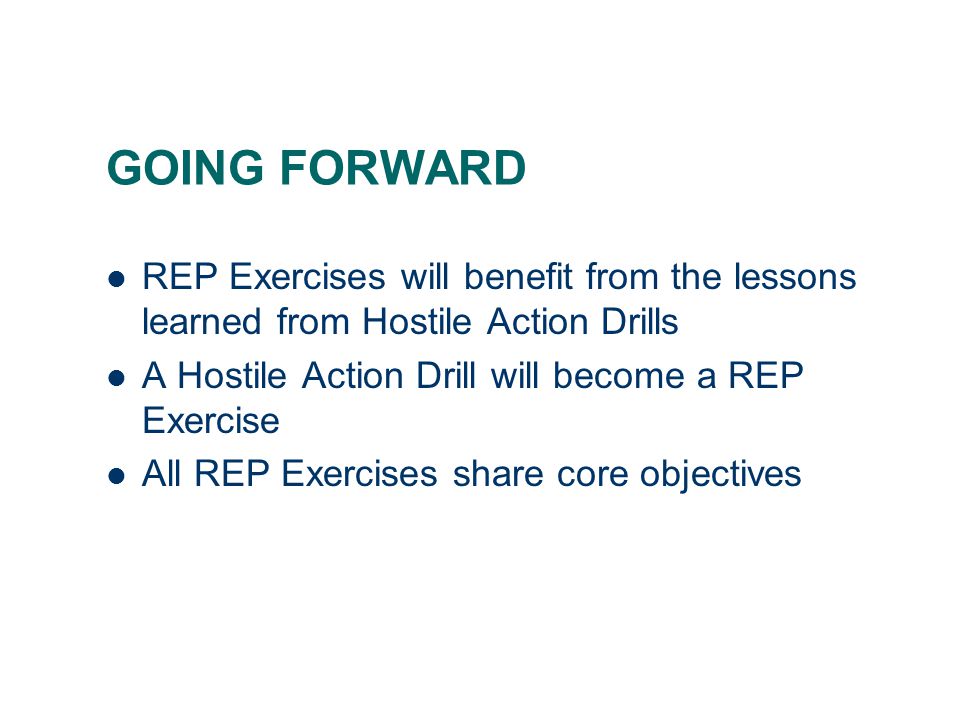

25 GOING FORWARD REP Exercises will benefit from the lessons learned from Hostile Action Drills A Hostile Action Drill will become a REP Exercise All REP Exercises share core objectives

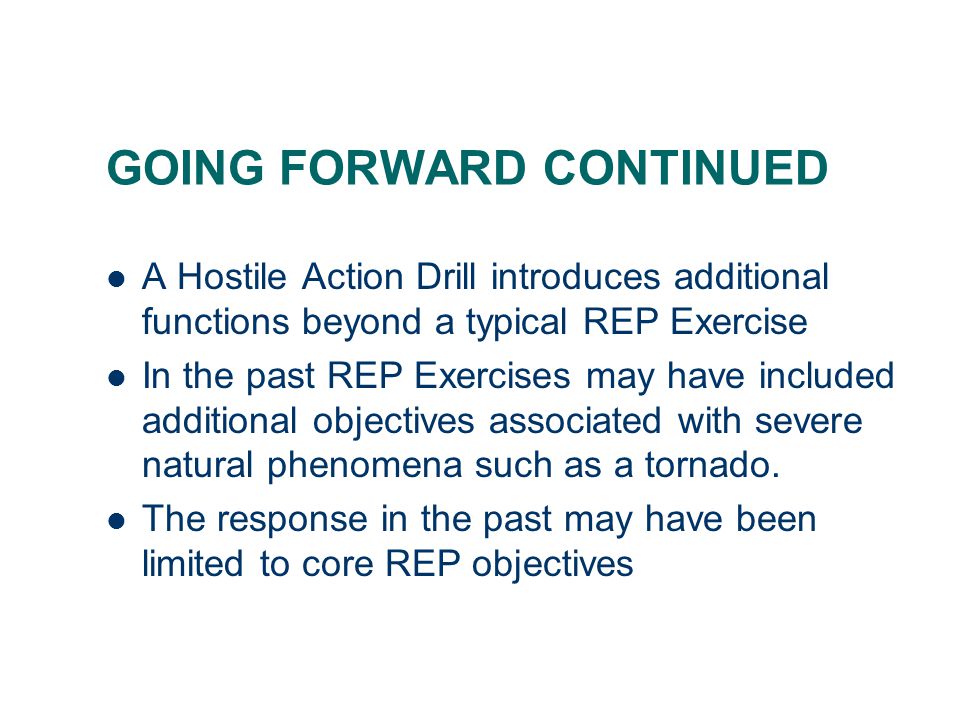

26 GOING FORWARD CONTINUED A Hostile Action Drill introduces additional functions beyond a typical REP Exercise In the past REP Exercises may have included additional objectives associated with severe natural phenomena such as a tornado. The response in the past may have been limited to core REP objectives

27 GOING FORWARD CONTINUED Hostile Action Drills have expanded the scope of a REP Exercise As we go forward we need to remember that not every Exercise requires everyone to play Realistic Exercises like real events are limited to certain key responders. This is why it may take an eight year cycle to exercise all agencies

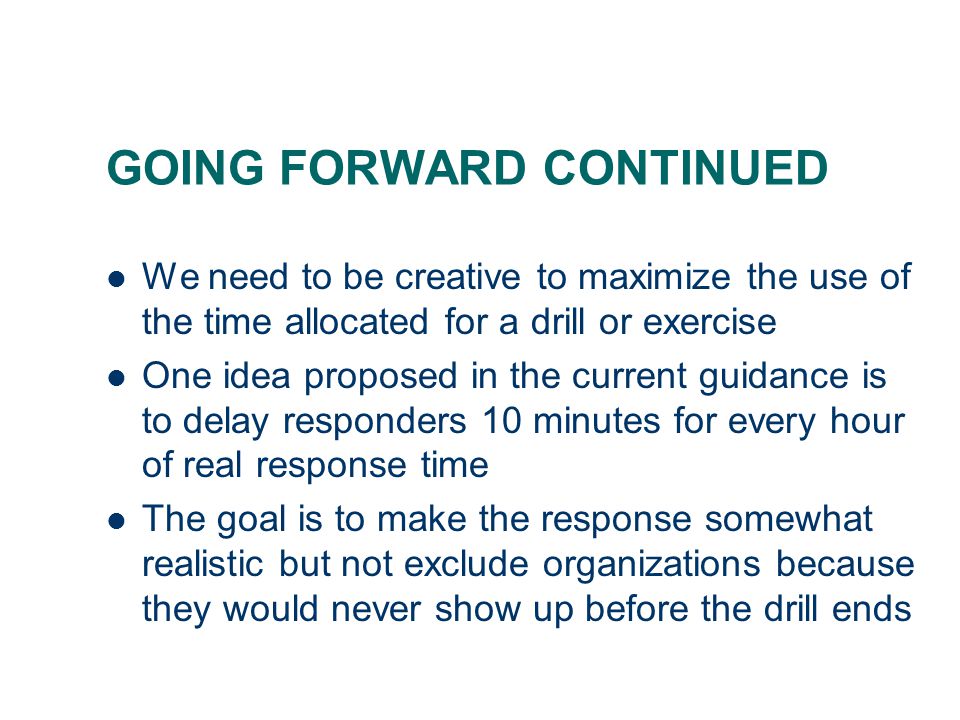

28 GOING FORWARD CONTINUED We need to be creative to maximize the use of the time allocated for a drill or exercise One idea proposed in the current guidance is to delay responders 10 minutes for every hour of real response time The goal is to make the response somewhat realistic but not exclude organizations because they would never show up before the drill ends

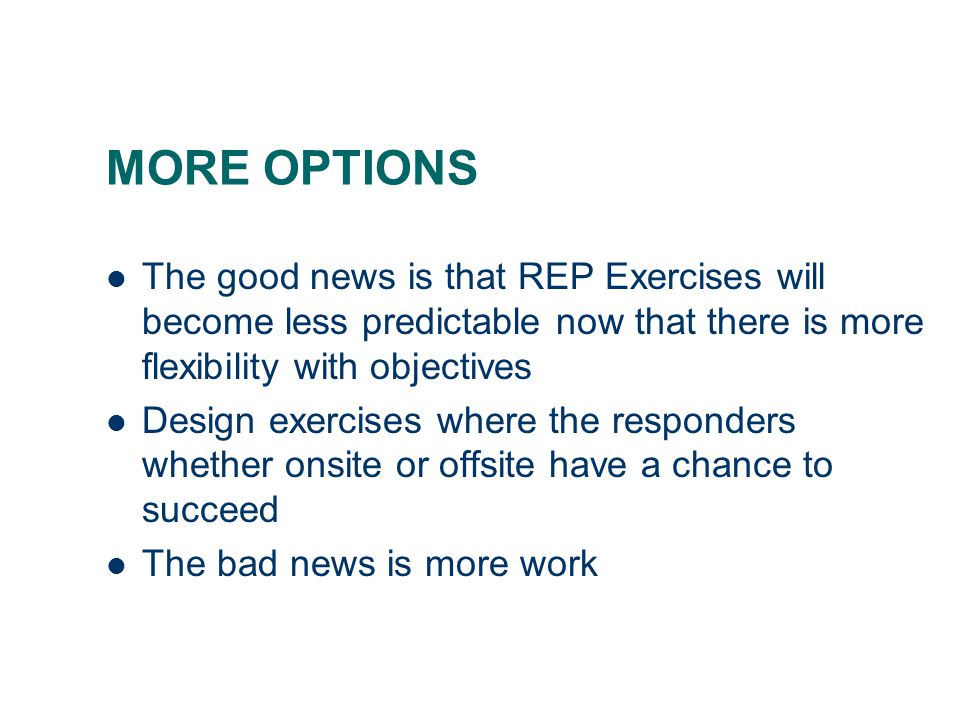

29 MORE OPTIONS The good news is that REP Exercises will become less predictable now that there is more flexibility with objectives Design exercises where the responders whether onsite or offsite have a chance to succeed The bad news is more work

30 THE CHALLENGE Everyone is already busy with required exercises and real events We are expanding the universe of participants We can not expect everyone to play all the time Balance the eight year exercise cycle

31 END RESULT More realistic and less predictable drills Vertical integration of federal state and local responders Clearly defined lines of communication Partnerships established among the utility and all response organizations

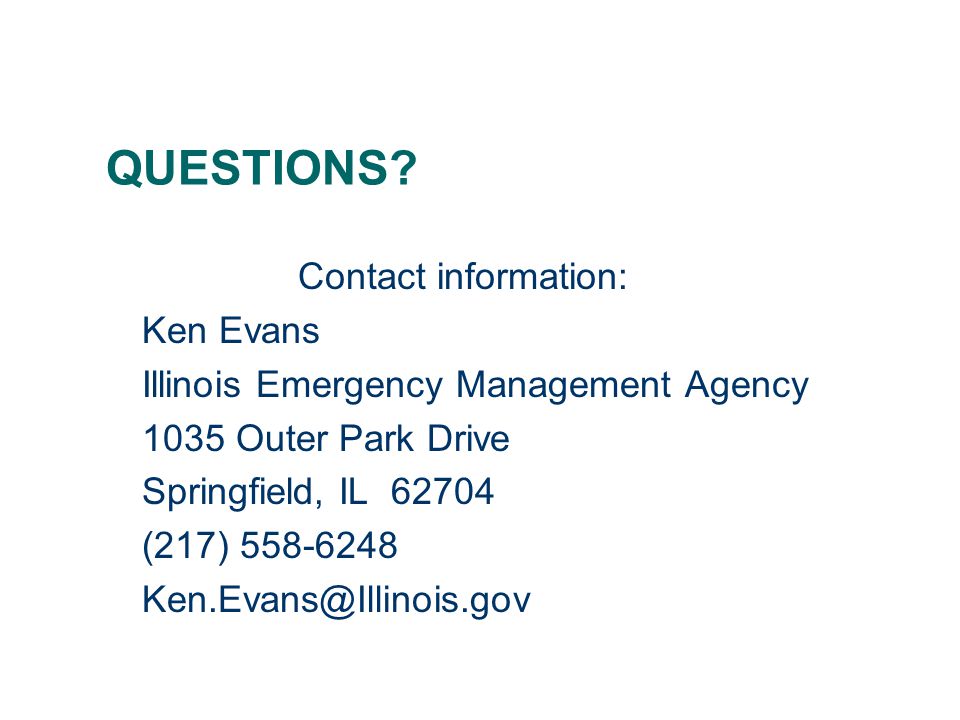

32 QUESTIONS? Contact information: Ken Evans Illinois Emergency Management Agency 1035 Outer Park Drive Springfield, IL (217)
