1 LED LIGHTING SUVEG ELECTRONICS An ISO 9001:2008 Company Life Long Brilliance A C ON S i n c e % Energy Saving

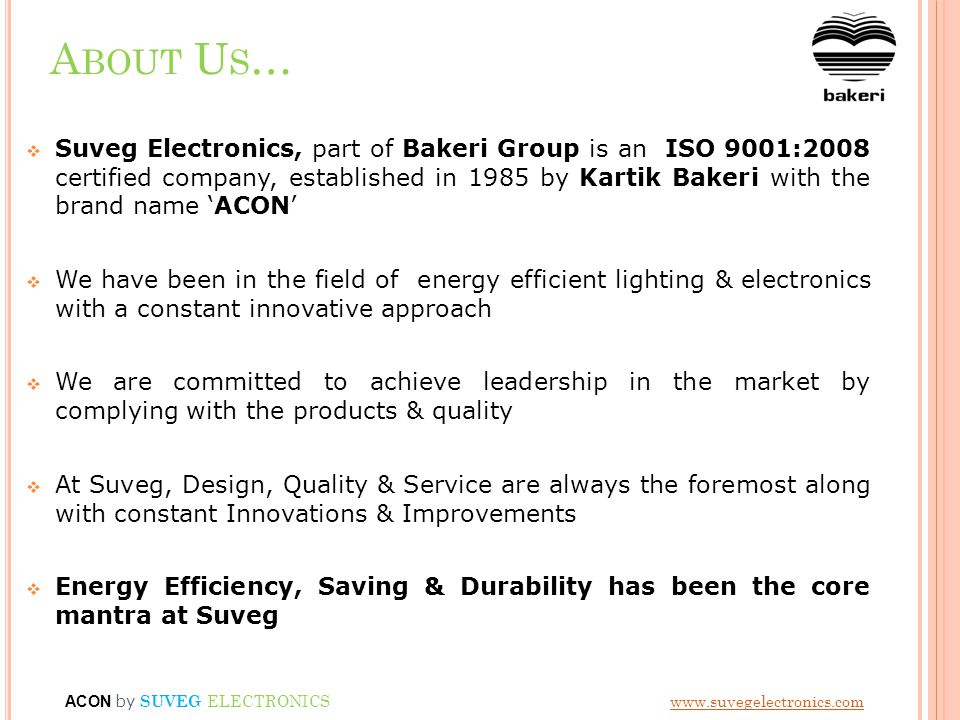

2 A BOUT U S … Suveg Electronics, part of Bakeri Group is an ISO 9001:2008 certified company, established in 1985 by Kartik Bakeri with the brand name ACON We have been in the field of energy efficient lighting & electronics with a constant innovative approach We are committed to achieve leadership in the market by complying with the products & quality At Suveg, Design, Quality & Service are always the foremost along with constant Innovations & Improvements Energy Efficiency, Saving & Durability has been the core mantra at Suveg ACON by SUVEG ELECTRONICS

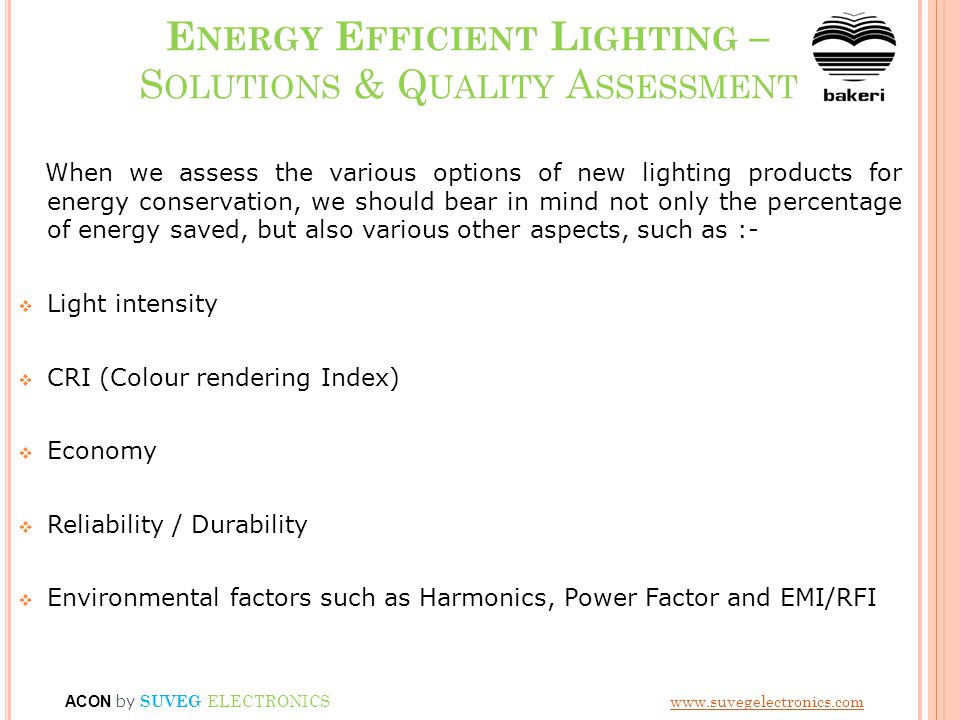

3 E NERGY E FFICIENT L IGHTING – S OLUTIONS & Q UALITY A SSESSMENT When we assess the various options of new lighting products for energy conservation, we should bear in mind not only the percentage of energy saved, but also various other aspects, such as :- Light intensity CRI (Colour rendering Index) Economy Reliability / Durability Environmental factors such as Harmonics, Power Factor and EMI/RFI ACON by SUVEG ELECTRONICS

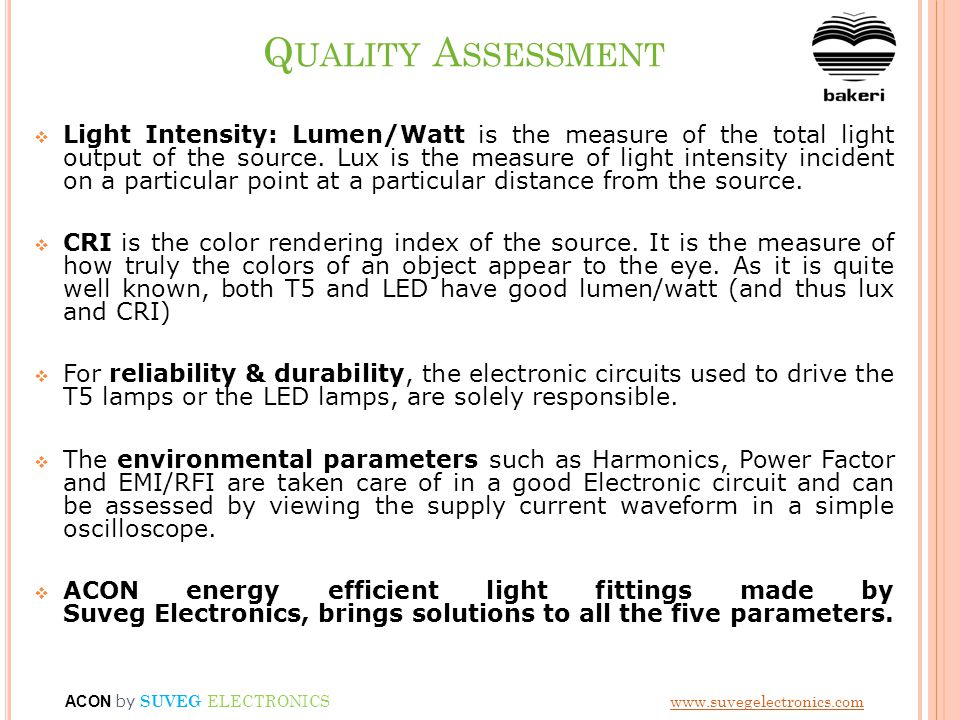

4 Q UALITY A SSESSMENT Light Intensity: Lumen/Watt is the measure of the total light output of the source. Lux is the measure of light intensity incident on a particular point at a particular distance from the source. CRI is the color rendering index of the source. It is the measure of how truly the colors of an object appear to the eye. As it is quite well known, both T5 and LED have good lumen/watt (and thus lux and CRI) For reliability & durability, the electronic circuits used to drive the T5 lamps or the LED lamps, are solely responsible. The environmental parameters such as Harmonics, Power Factor and EMI/RFI are taken care of in a good Electronic circuit and can be assessed by viewing the supply current waveform in a simple oscilloscope. ACON energy efficient light fittings made by Suveg Electronics, brings solutions to all the five parameters. ACON by SUVEG ELECTRONICS

5 ACON S i n c e ACON ENERGY EFFICIENT SOLUTIONS FOR OUTDOOR & INDUSTRIAL APPLICATIONS

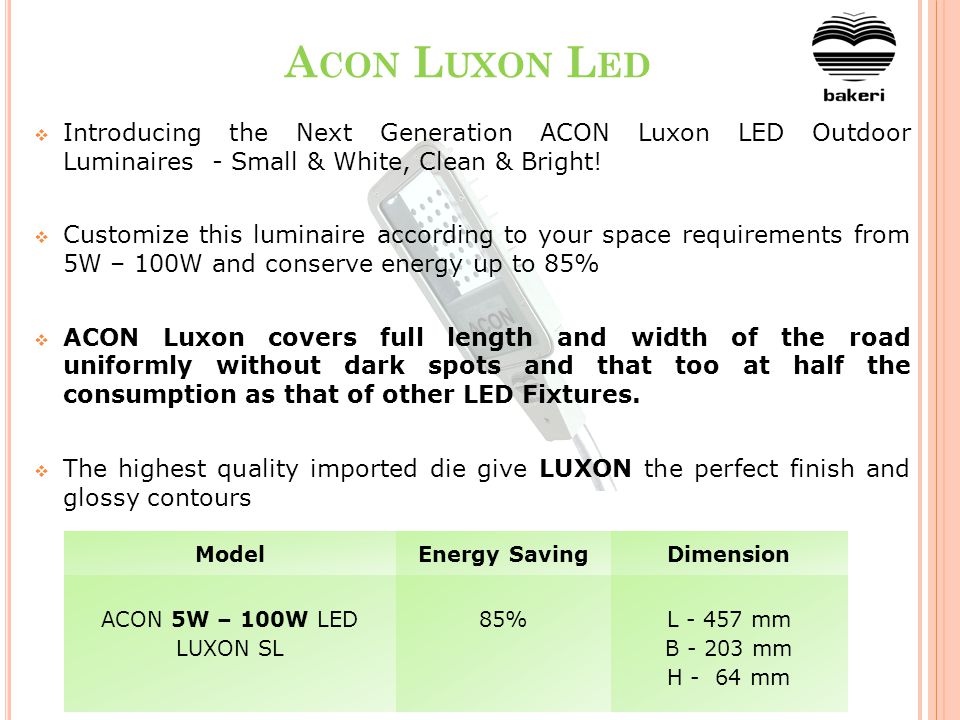

6 A CON L UXON L ED Introducing the Next Generation ACON Luxon LED Outdoor Luminaires - Small & White, Clean & Bright! Customize this luminaire according to your space requirements from 5W – 100W and conserve energy up to 85% ACON Luxon covers full length and width of the road uniformly without dark spots and that too at half the consumption as that of other LED Fixtures. The highest quality imported die give LUXON the perfect finish and glossy contours ModelEnergy SavingDimension ACON 5W – 100W LED LUXON SL 85%L mm B mm H - 64 mm

7 A CON LUXON LED 75% Energy Saving Highly Energy Efficient Over hours of operational life Long Life, No maintenance No mercury or other heavy metals Eco-Friendly Luminaire Constant Current type LED Driver Better Heat Dissipation High Power Factor Low Harmonics Superior Lighting & Aesthetic good looks Classy Louvers for enhanced light Die Cast Aluminum Body Conforming to IP65 5 Years Guarantee Zero Maintenance

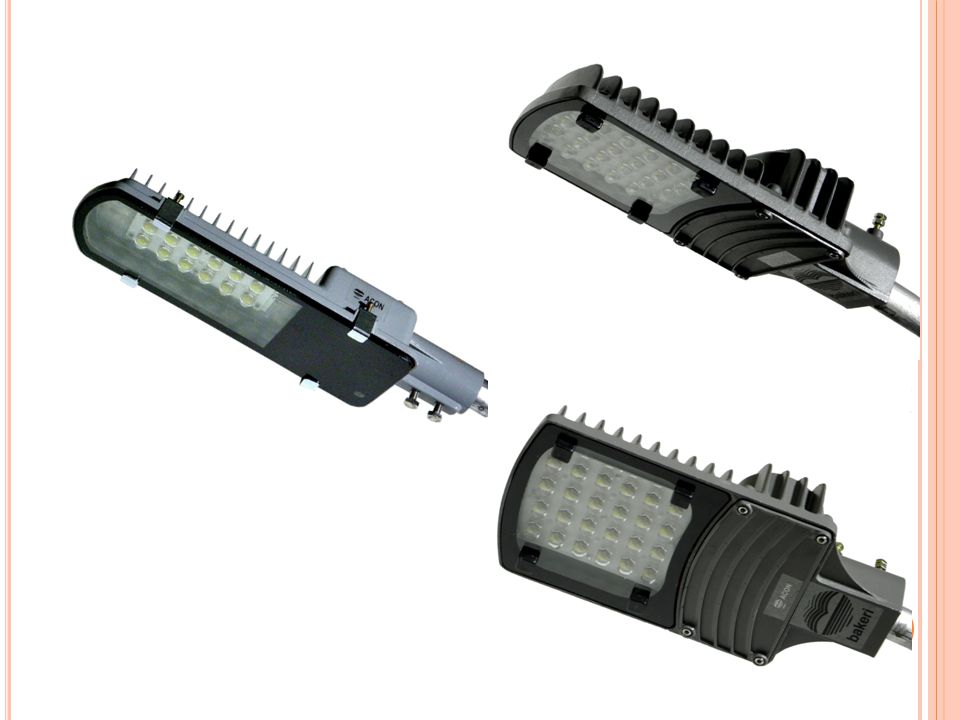

8

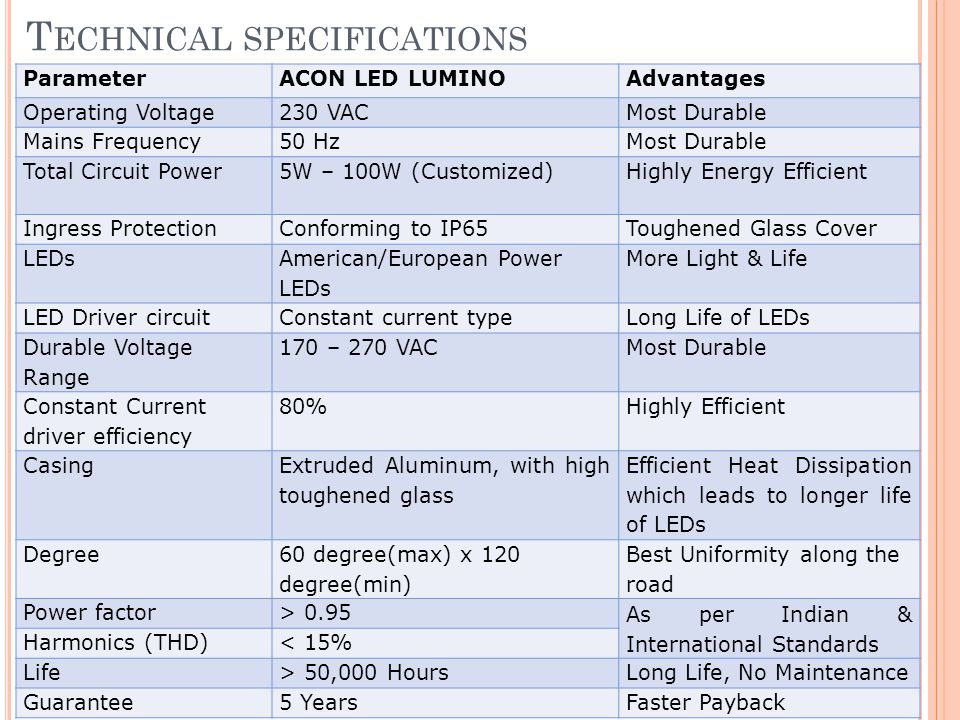

9 T ECHNICAL SPECIFICATIONS ParameterACON LED LUMINOAdvantages Operating Voltage230 VACMost Durable Mains Frequency50 HzMost Durable Total Circuit Power5W – 100W (Customized)Highly Energy Efficient Ingress ProtectionConforming to IP65Toughened Glass Cover LEDs American/European Power LEDs More Light & Life LED Driver circuitConstant current typeLong Life of LEDs Durable Voltage Range 170 – 270 VACMost Durable Constant Current driver efficiency 80%Highly Efficient Casing Extruded Aluminum, with high toughened glass Efficient Heat Dissipation which leads to longer life of LEDs Degree 60 degree(max) x 120 degree(min) Best Uniformity along the road Power factor> 0.95 As per Indian & International Standards Harmonics (THD)< 15% Life> 50,000 HoursLong Life, No Maintenance Guarantee5 YearsFaster Payback

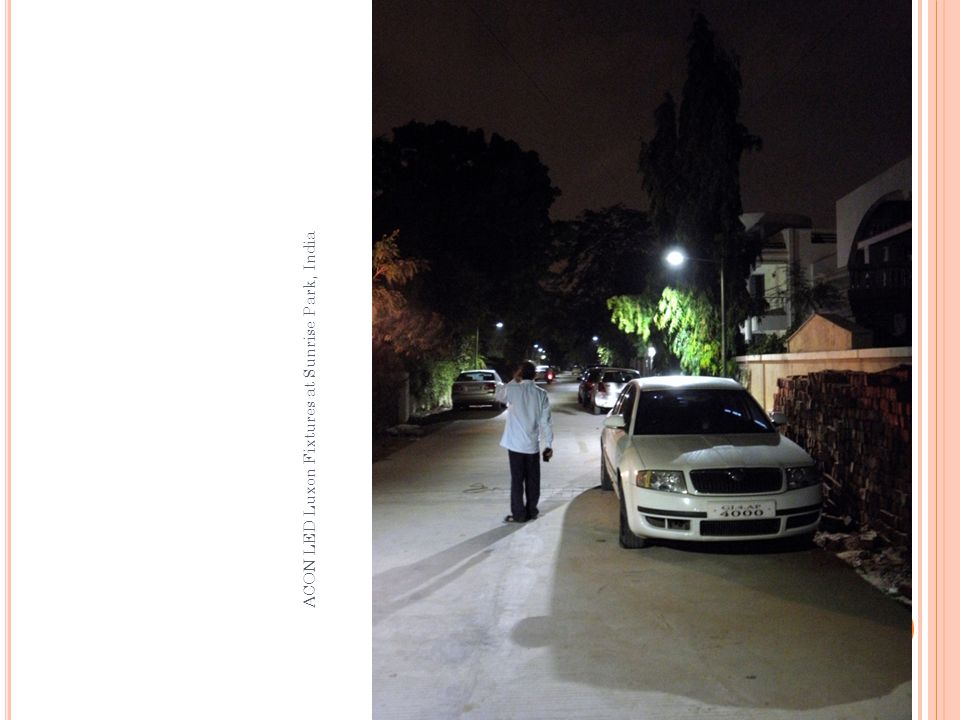

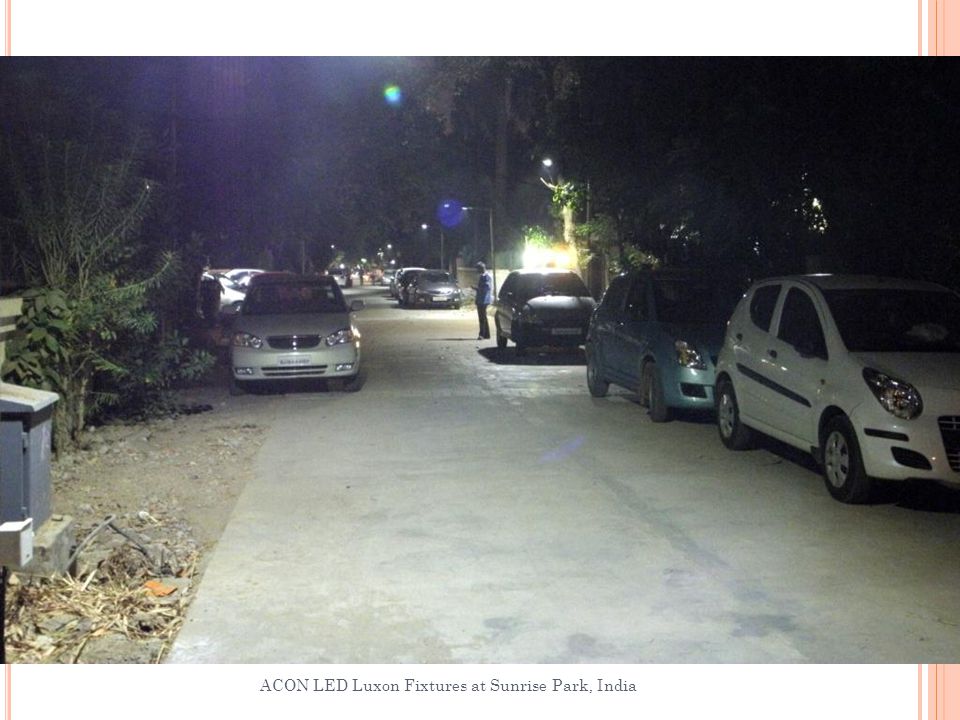

10 ACON LED Luxon Fixtures at Sunrise Park, India

11

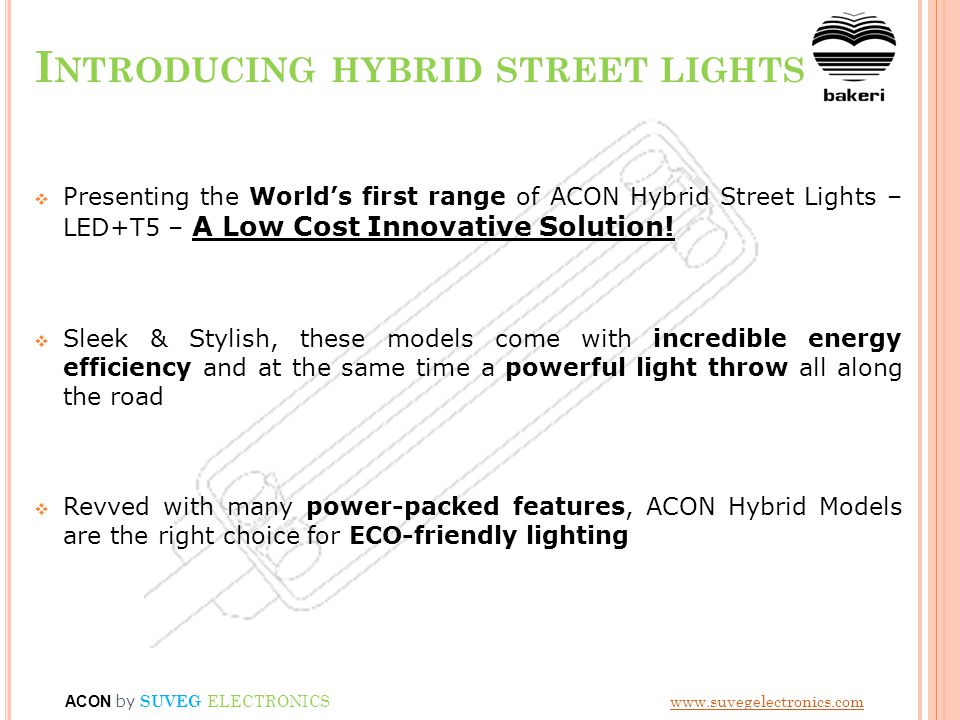

12 I NTRODUCING HYBRID STREET LIGHTS Presenting the Worlds first range of ACON Hybrid Street Lights – LED+T5 – A Low Cost Innovative Solution! Sleek & Stylish, these models come with incredible energy efficiency and at the same time a powerful light throw all along the road Revved with many power-packed features, ACON Hybrid Models are the right choice for ECO-friendly lighting ACON by SUVEG ELECTRONICS

13 A CON HYBRID STREET LIGHTS Simple looking product to a great height of technology The ACON LED-Hybrid Street Light is set to revolutionize the lighting industry by eliminating all the disadvantages of T5 & LED Comprises of both LED & T5 which are complimentary to each other Substitute for 70/125/150/250/400W HPSV, Mercury, Metal Halide Energy Saving: 60-80% (Depending on the Model) Not only this, it shall give a bright, uniform light output ALL THIS AT A LOW COST! ACON by SUVEG ELECTRONICS

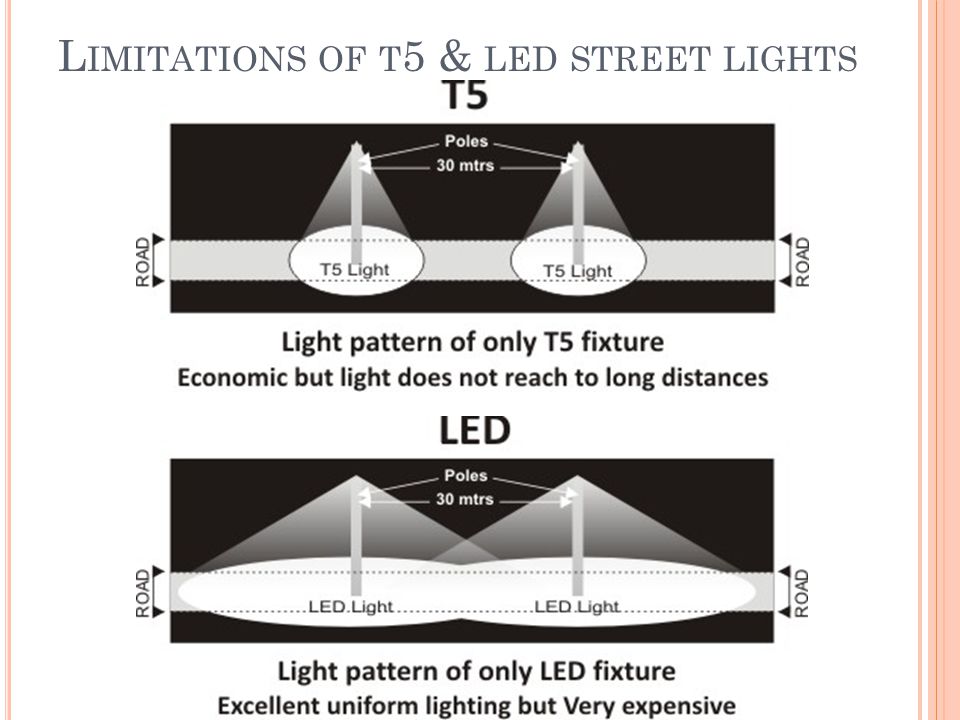

14 L IMITATIONS OF T 5 & LED STREET LIGHTS

15 D IAGRAM SHOWING LIGHT PATTERN OF ACON HYBRID MODEL LEDs in combination with lenses shall eliminate the dark spot at the center between adjacent light poles

16 A CON HYBRID STREET LIGHT High Energy Saving 65-80% Highly Energy Efficient Bright,Uniform & Pleasant Light Output Powerful Light Throw Low Product Cost Low Capital Investment Low Cable Cost & capacity generation Highly Cost Effective Faster Payback Economic Lighting Solution Life > 5 Years Long Life, Better Productivity 2 Years Guarantee Zero Maintenance

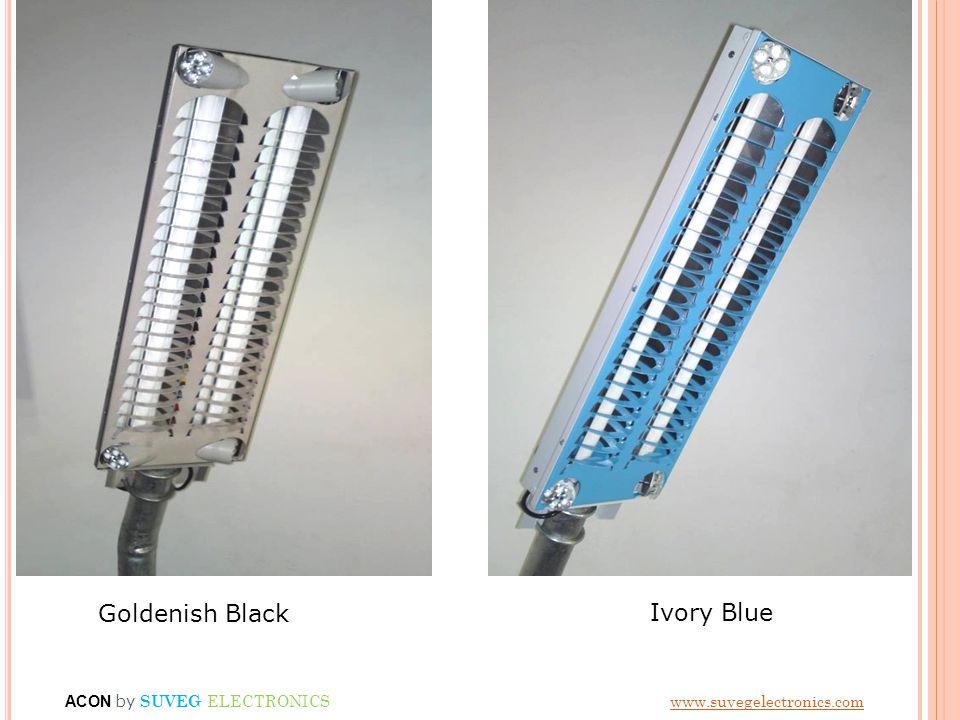

17 ACON by SUVEG ELECTRONICS Goldenish Black Ivory Blue

18 ACON by SUVEG ELECTRONICS Cool SilverMetallic Black

19 150W HPSV installed at Kankaria – Dark Spots

20 150W HPSV installed at Kankaria – CRI of Objects

21 60W ACON HYBRID installed at Kankaria – Uniform Light Output

22

23 S TATEMENT SHOWING ENERGY COST AT THE END OF 2 YEARS – ACON 40/60 W HYBRID V / S 150 W HPSV Parameter150W HPSV40W ACON HYBRID 60W ACON HYBRID Voltage range200 – 240VAC165 – 265VAC Consumption180W40W60W Energy Saving0W140W120W Eye Pupil RatioPoorGood Lumen Maintenance50%90% Power Factor0.60> 0.95 Life6 months> 5 years GuaranteeNil2 Years Energy Consumption of 150W HPSV in 2 years Energy Consumption of 40W HYBRID in 2 years Energy Consumption of 60W HYBRID in 2 years 180W x 12 Hours x 30 Days x 24 Months / W x 12 Hours x 30 Days x 24 Months / w x 12 hours x 30 days x 24 months / 1000 =1555 units x Rs / unit= 346 units x Rs /unit= 518 units x Rs / unit = 8,550/-= 1,903 = 2,850/- Total Energy Saving by ACON HYBRID PST = 8,550 – 1,903=. 8,550 – 2,850 6,647/- 5,700/- + Additional Saving due to reduction in cabling cost & Low Capacity Generation + Additional Saving due to ZERO Maintenance (Lamp, Igniter, Starter & Labour)

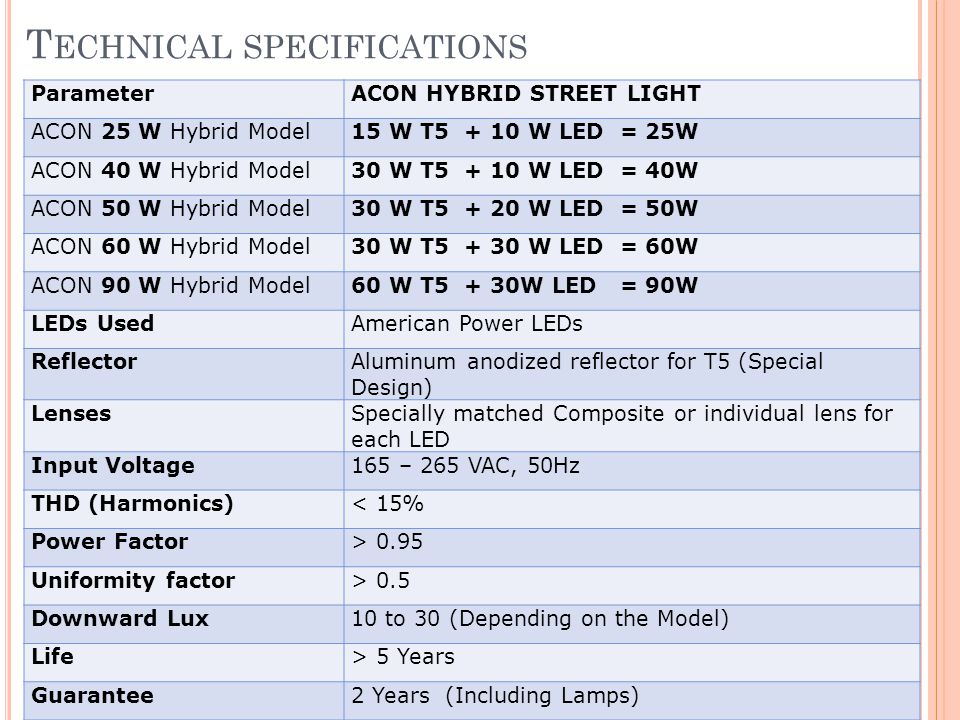

24 T ECHNICAL SPECIFICATIONS ParameterACON HYBRID STREET LIGHT ACON 25 W Hybrid Model15 W T W LED = 25W ACON 40 W Hybrid Model30 W T W LED = 40W ACON 50 W Hybrid Model30 W T W LED = 50W ACON 60 W Hybrid Model30 W T W LED = 60W ACON 90 W Hybrid Model60 W T5 + 30W LED = 90W LEDs UsedAmerican Power LEDs ReflectorAluminum anodized reflector for T5 (Special Design) LensesSpecially matched Composite or individual lens for each LED Input Voltage165 – 265 VAC, 50Hz THD (Harmonics)< 15% Power Factor> 0.95 Uniformity factor> 0.5 Downward Lux10 to 30 (Depending on the Model) Life> 5 Years Guarantee2 Years (Including Lamps)

25 A CON LUMINO LED Our experience across the world guides our development of LED Lumino Model We bring you the most advanced technology that is most energy efficient With over 70,000 hours of optimal operational lifespan, this model ensures perfect uniformity & intensity of light The classic and compact design of louvers perfectly suits every style of the modern exteriors ModelSubstitute For Energy Saving Dimension ACON 35W LED LUMINO 70W HPSV / 125W HPMV75% L mm B mm H mm ACON 55W LED LUMINO 150 HPSV/ 250W HPMV80% ACON by SUVEG ELECTRONICS

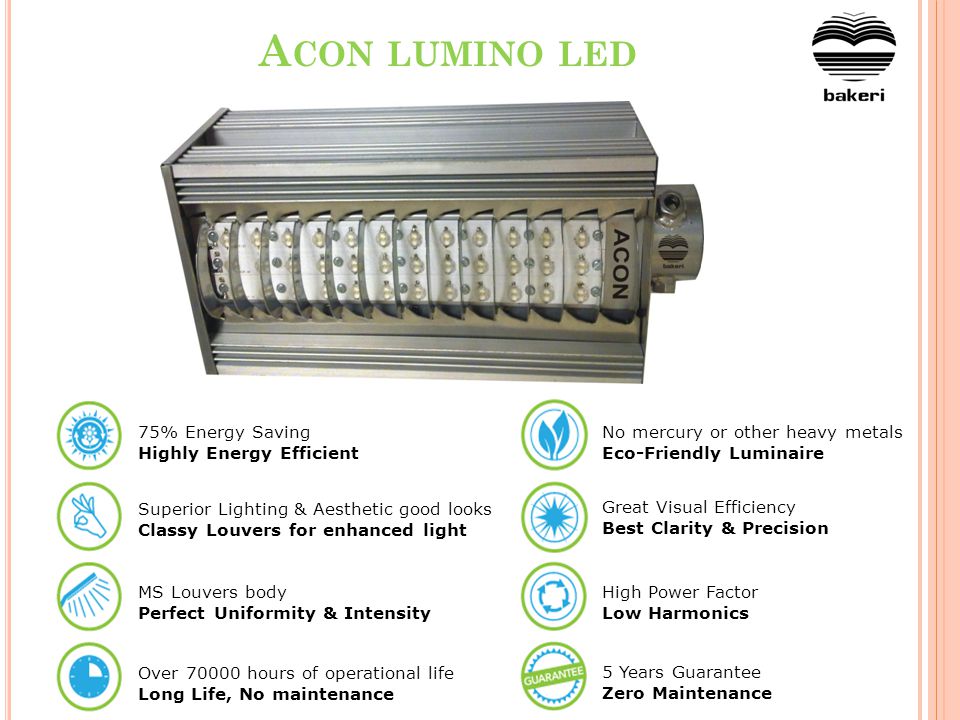

26 A CON LUMINO LED 75% Energy Saving Highly Energy Efficient Over hours of operational life Long Life, No maintenance No mercury or other heavy metals Eco-Friendly Luminaire Great Visual Efficiency Best Clarity & Precision High Power Factor Low Harmonics Superior Lighting & Aesthetic good looks Classy Louvers for enhanced light MS Louvers body Perfect Uniformity & Intensity 5 Years Guarantee Zero Maintenance

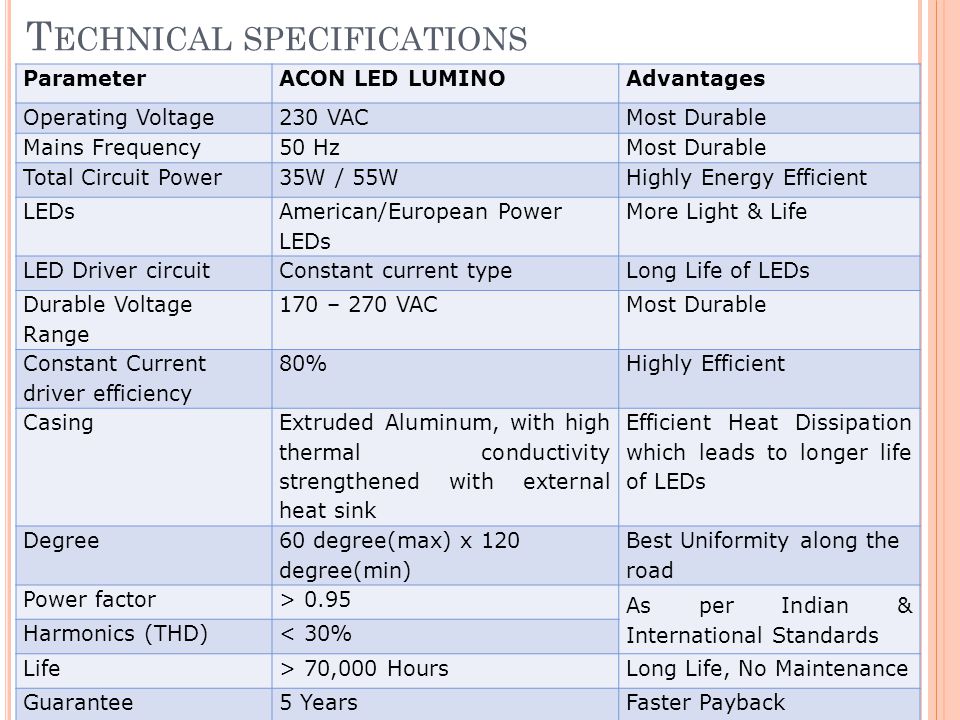

27 T ECHNICAL SPECIFICATIONS ParameterACON LED LUMINOAdvantages Operating Voltage230 VACMost Durable Mains Frequency50 HzMost Durable Total Circuit Power35W / 55WHighly Energy Efficient LEDs American/European Power LEDs More Light & Life LED Driver circuitConstant current typeLong Life of LEDs Durable Voltage Range 170 – 270 VACMost Durable Constant Current driver efficiency 80%Highly Efficient Casing Extruded Aluminum, with high thermal conductivity strengthened with external heat sink Efficient Heat Dissipation which leads to longer life of LEDs Degree 60 degree(max) x 120 degree(min) Best Uniformity along the road Power factor> 0.95 As per Indian & International Standards Harmonics (THD)< 30% Life> 70,000 HoursLong Life, No Maintenance Guarantee5 YearsFaster Payback

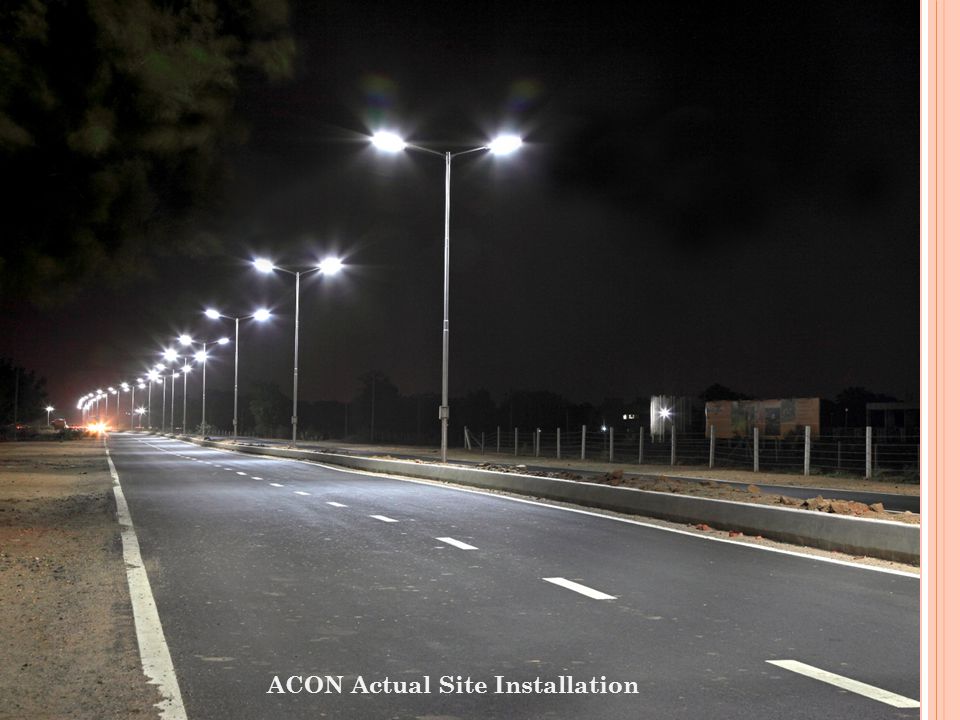

28 ACON Actual Site Installation

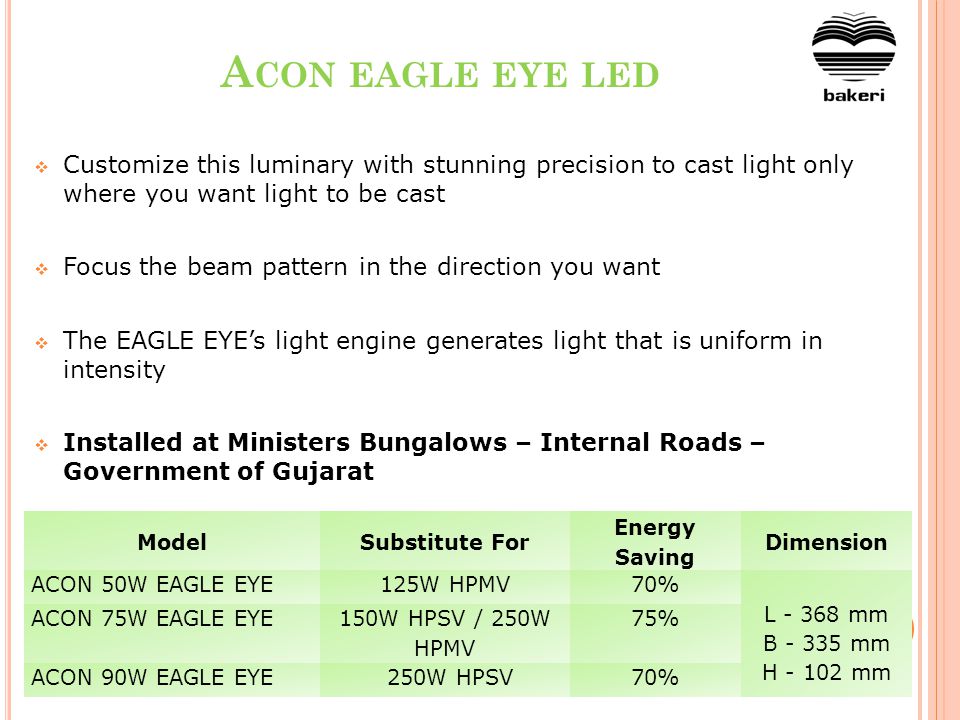

29 A CON EAGLE EYE LED Customize this luminary with stunning precision to cast light only where you want light to be cast Focus the beam pattern in the direction you want The EAGLE EYEs light engine generates light that is uniform in intensity Installed at Ministers Bungalows – Internal Roads – Government of Gujarat ModelSubstitute For Energy Saving Dimension ACON 50W EAGLE EYE125W HPMV70% L mm B mm H mm ACON 75W EAGLE EYE 150W HPSV / 250W HPMV 75% ACON 90W EAGLE EYE 250W HPSV70%

30 A CON EAGLE EYE LED 75% Energy Saving Highly Energy Efficient Specially Matched Lens Optimum Spread & Focus Retractable Channels Best Directivity & Uniformity Over hours of operational life Long Life, No maintenance No mercury or other heavy metals Eco-Friendly Luminaire Great Visual Efficiency Best Clarity & Precision 5 Years Guarantee Zero Maintenance

31 T ECHNICAL SPECIFICATIONS ParameterACON LED EAGLE EYEAdvantages Operating Voltage230 VACMost Durable Mains Frequency50 HzMost Durable Total Circuit Power75W (Customizable)Highly Energy Efficient LEDs American/European Power LEDs More Light & Life LED Driver circuitConstant current typeLong Life of LEDs Durable Voltage Range 170 – 270 VACMost Durable Constant Current driver efficiency 80%Highly Efficient Casing Extruded Aluminum or CRC Sheet, with high thermal conductivity strengthened with external heat sink Efficient Heat Dissipation which leads to longer life of LEDs ChannelsAdjustableBetter Focus & Directivity DegreeAdjustable Best Uniformity along the road Power factor> 0.95 As per Indian & International Standards Harmonics (THD)< 30% Life> 70,000 HoursLong Life, No Maintenance Guarantee5 YearsFaster Payback

32 ACON Actual Site Installation

33 A CON LED INDUSTRIAL LIGHTING Lighting – Most Crucial Factor for an industrial space Retractable Channels – Superior Focus & Directivity High Performance, energy efficient & long lasting large-area LED Lighting The ACON LED Industrial Fixtures consume nearly half the energy as compared to other LED Fixtures and deliver not just cool white light but clean white light with outstanding visibility Applications: Industrial Areas Factories & Godowns Dairies Power Stations Malls Exhibition Halls Sports Stadium ACON by SUVEG ELECTRONICS

34 A CON LED INDUSTRIAL LIGHTING 75% Energy Saving Highly Energy Efficient Specially Matched Lens Optimum Spread & Focus Retractable Channels Best Directivity & Uniformity Covers a Vast Area Perfect Uniformity & Intensity Over hours of operational life Long Life, No maintenance No mercury or other heavy metals Eco-Friendly Luminaire Great Visual Efficiency Best Clarity & Precision 5 Years Guarantee Zero Maintenance

35 ACON 35W LED HIGHBAY FIXTURES

36 ACON S i n c e ACON LED RADIANCE For all types of Hoardings / Back Lits / Sign Boards

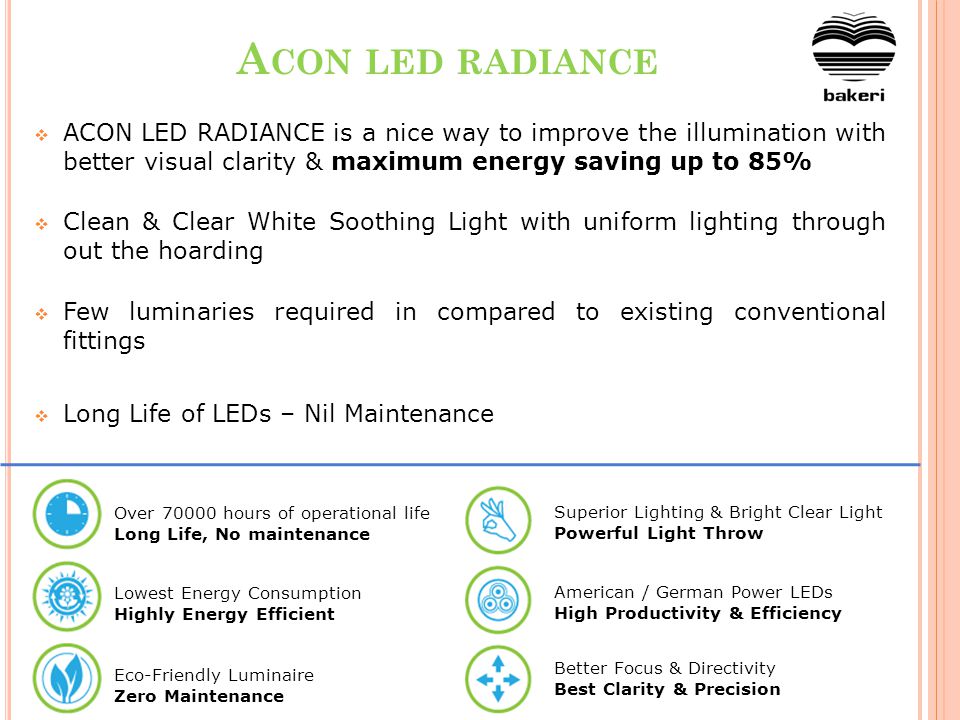

37 A CON LED RADIANCE ACON LED RADIANCE is a nice way to improve the illumination with better visual clarity & maximum energy saving up to 85% Clean & Clear White Soothing Light with uniform lighting through out the hoarding Few luminaries required in compared to existing conventional fittings Long Life of LEDs – Nil Maintenance Over hours of operational life Long Life, No maintenance Lowest Energy Consumption Highly Energy Efficient Eco-Friendly Luminaire Zero Maintenance Superior Lighting & Bright Clear Light Powerful Light Throw American / German Power LEDs High Productivity & Efficiency Better Focus & Directivity Best Clarity & Precision

38 ACON by SUVEG ELECTRONICS

39

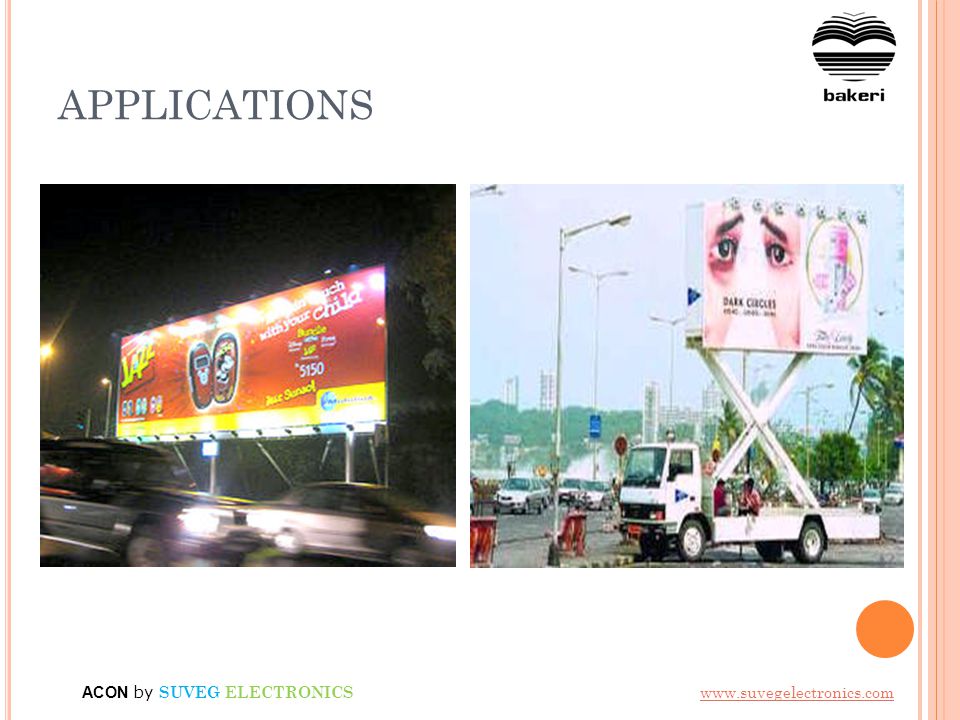

40 APPLICATIONS ACON by SUVEG ELECTRONICS

41 APPLICATIONS ACON by SUVEG ELECTRONICS

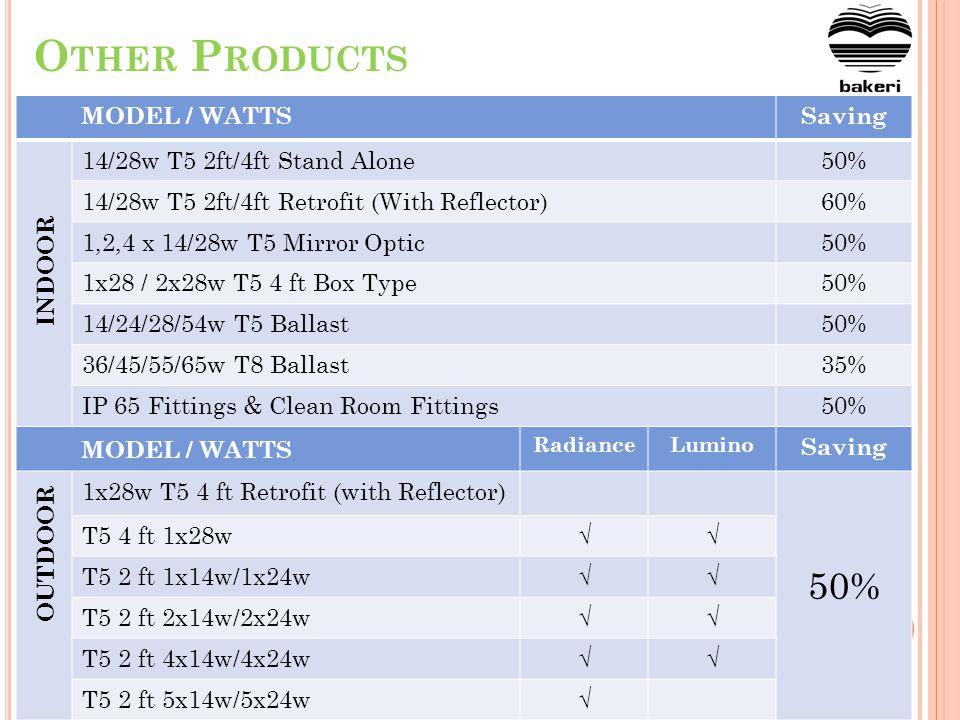

42 O THER P RODUCTS MODEL / WATTSSaving INDOOR 14/28w T5 2ft/4ft Stand Alone50% 14/28w T5 2ft/4ft Retrofit (With Reflector)60% 1,2,4 x 14/28w T5 Mirror Optic50% 1x28 / 2x28w T5 4 ft Box Type50% 14/24/28/54w T5 Ballast50% 36/45/55/65w T8 Ballast35% IP 65 Fittings & Clean Room Fittings50% MODEL / WATTS RadianceLumino Saving OUTDOOR 1x28w T5 4 ft Retrofit (with Reflector) 50% T5 4 ft 1x28w T5 2 ft 1x14w/1x24w T5 2 ft 2x14w/2x24w T5 2 ft 4x14w/4x24w T5 2 ft 5x14w/5x24w

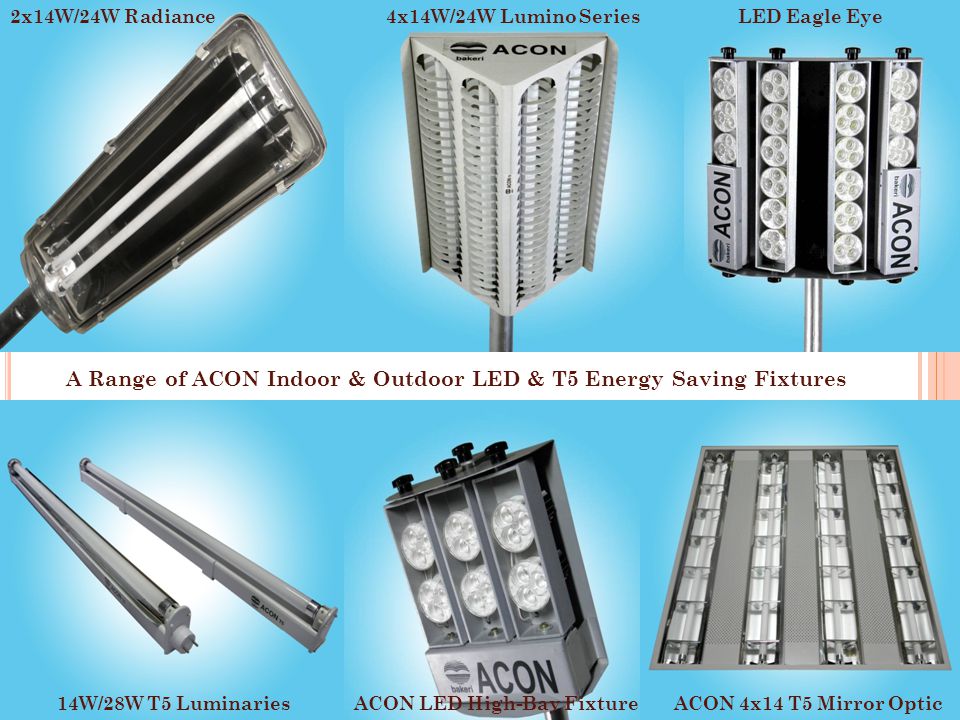

43 2x14W/24W Radiance 4x14W/24W Lumino SeriesLED Eagle Eye 14W/28W T5 Luminaries ACON LED High-Bay Fixture A Range of ACON Indoor & Outdoor LED & T5 Energy Saving Fixtures ACON 4x14 T5 Mirror Optic

44 S OME OF OUR SATISFIED CUSTOMERS Reliance Cadila Pharmaceuticals Essar Power L&T Mombasa Cement Company, Kenya IIM-A Torrent Cable Birla Copper O.N.G.C. Times Of India GEDA GNVFC Nirma Minister Bungalows, Gujarat GEB GSECL Indian Railways Kolkota Corporation Gujarat High Court R&B – Govt. Of Gujarat International Airport, Ahmedabad Nuclear Power Corporation of India Ammunition Factory Ingersol Rand ACON by SUVEG ELECTRONICS

45 S UVEG E LECTRONICS AT A GLANCE Vast Product Range aesthetically designed Many of the products patented Unique concepts and specifications Tests carried out at ERDA & EQDC as per IS Part 1 & 2, IS 6842 for Electronic Ballasts and IS for Outdoor Luminaries Product Testing done at 3 stages for ensuring quality Suveg Electronics is the only company to offer guarantee on lamps as well and assuring highest uniformity along with maximum energy saving Offering energy efficient lighting solutions worldwide! ACON by SUVEG ELECTRONICS

46 ACON S i n c e SUVEG ELECTRONICS Sorab Villa, Nr. Popular House, Ashram Road, Ahmedabad – India Tel: Fax: Cell: URL: THANK YOU! Visit us on
