1 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting designers and those involved in technical production need to have a thorough working knowledge of both electricity and electronics

2 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lenses Double Plano-Convex Lens Train This consists of two plano-convex lenses placed with their convex surfaces toward each other This double configuration provides the same optical properties as a single lens of greater thickness and curvature, and the total thickness of the two lenses is less than the thickness of the optically comparable single lens

3 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lenses Step Lens A step lens retains the optical characteristics and shape of a plano- convex lens, but the glass on the flat side is cut away in steps The stepping process gives the lens the optical properties of a thick, short-focal- length, plano-convex lens while eliminating its negative characteristics Finishing the edges of the steps with a flat-black ceramic coating eliminates the spectral breakdown

4 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lenses Fresnel Lens The Fresnel lens is a type of step lens with the glass cut away from the convex face of the lens instead of its plano side The advantages of this lens include reduction of the thickness of the lens, which allows more light transmission and lessens the chance of heat fracture Fresnel lenses are primarily used in Fresnel spotlight

5 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Incandescent Lamp The standard incandescent lamp contains a tungsten filament that is place in an inert gas environment inside the lamp bulb The average life expectancy of a regular incandescent lamp used in stage lighting is hours

6 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Tungsten-Halogen Lamp The T-H lamp is primarily the same as the standard incandescent lamp except that the atmosphere inside the bulb is a halogen, or chemically active, gas instead of inert gas Many T-H lamps designed for stage lighting are rated from 150-2,000 hours

7 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Arc Sources An electronic arc that produces brilliantly blue white light is created when an electric current jumps the air gap between two electrodes An arc is used as the source of some followspots Neither arc nor encapsulated arc sources can be dimmed, so they are normally not used in nonautomated stage-lighting instruments

8 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Color Temperature All the standard light sources appear to be white; however, they are actually a variety of colors These colors can be identified using the color- temperature scale The color-temperature scale is measured in Kelvin (K) The higher the light output of a lamp, the higher its color temperature and shorter its rated life Instruments that are gelled are generally equipped with lamps of the same color temperature Gelto put a color filter into a color frame and place it in the color-frame holder of a lighting instrument

9 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Lamp Structure All lamps are composed of three basic parts Bulbthe Pyrex or synthetic quartz envelope that encases the filament and acts as a container for the gas-filled atmosphere of the lamp Basethe lamp base secures the lamp in the socket and provides the electrical contact points between the socket and the filament Filamentfor stage lighting, the lamps are make of a tungsten-wire, tightly coiled, and strung in one of the general configurations

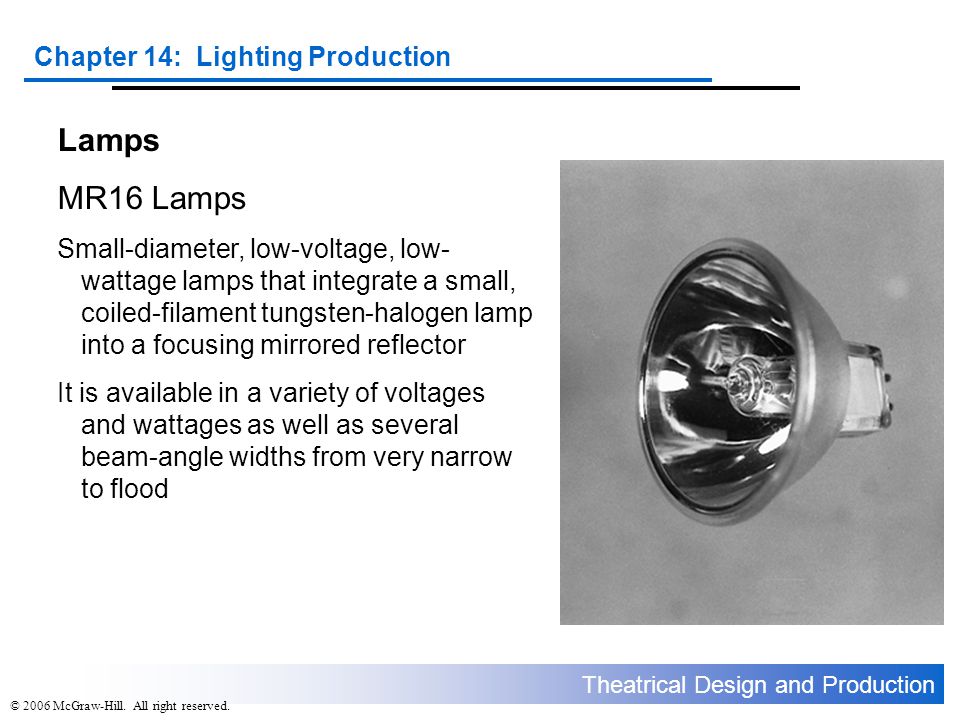

10 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps MR16 Lamps Small-diameter, low-voltage, low- wattage lamps that integrate a small, coiled-filament tungsten-halogen lamp into a focusing mirrored reflector It is available in a variety of voltages and wattages as well as several beam-angle widths from very narrow to flood

11 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Light Output of Lamps The light output of an incandescent lamp is primarily a function of the size and composition of the filament This output is measured in lumens

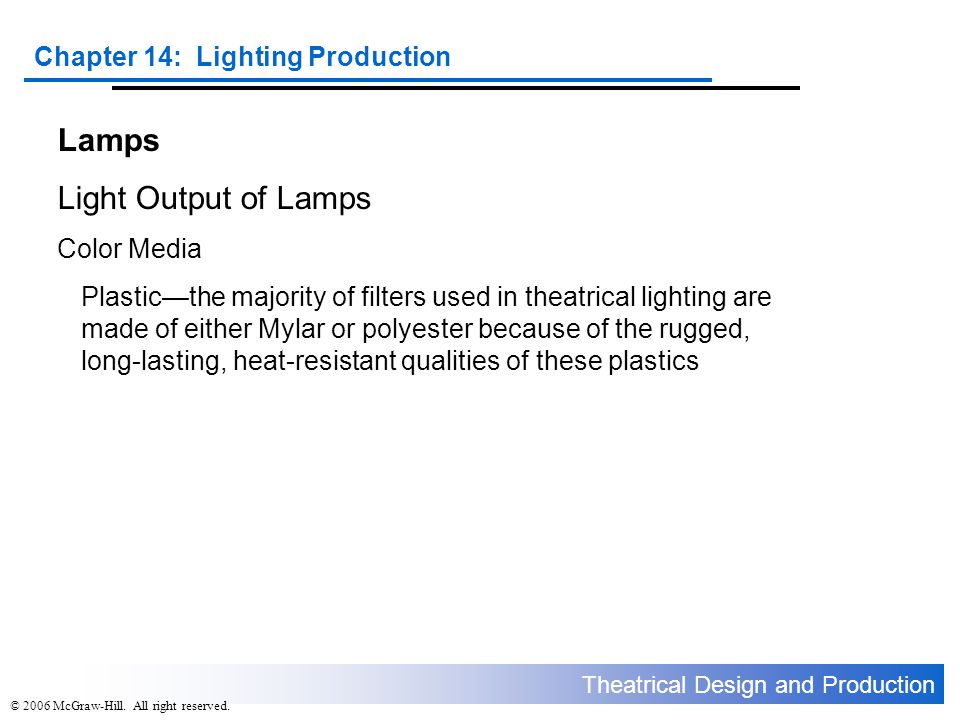

12 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Light Output of Lamps Color Media Plasticthe majority of filters used in theatrical lighting are made of either Mylar or polyester because of the rugged, long-lasting, heat-resistant qualities of these plastics

13 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Light Output of Lamps Color Media Glass These filters are used infrequently because they are heavy, expensive, and shatter if dropped They are most often used in roundels, the glass filters used with striplights

14 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lamps Light Output of Lamps Color Media Dichroic They are a relatively new addition to theatrical color media While plastic and glass filters allow their color to pass through the filter while absorbing the undesired color, dichroic filters reflect the unwanted colors To produce a particular color, you use the filter to remove its complementary

15 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Ellipsoidal Reflector Spotlight This light has a narrow beam width and is capable of traveling long distances Known as a Leko, the quality of light produced is hard edged with little diffusion The shape of the light is controlled by internally mounted shutters The spill from an ERS is minimal

16 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Ellipsoidal Reflector Spotlight Accessories Color frame a lightweight metal holder for plastic colored media Goboa lightweight metal cutout that turns the ERS into a pattern projector Irisa device with movable overlapping metal plates used to change the size of the circular pattern of light

17 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Fresnel Spotlight This spotlight produces a soft, diffused, luminescent light The standard Fresnel spotlight is equipped with a Fresnel lens producing a circular beam of light Oval-beam Fresnel lenses produce an oval beam of light

18 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Fresnel Spotlight Accessories Barn doormovable flippers swung into the beam to control the spotlight Funnelmasks the beam to create a circular pattern, also called a snoot or top hat

19 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Striplight This light is used to create a smooth wash of light It resembles a long trough with a series of lamps inside The individual lights within the instrument are wired in parallel to form three or four circuits, allowing for mixing and blending of color Striplights are primarily used to light background drops and cycloramas

20 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Cyc Light The cyc light is superior to the striplight for creating a smooth wash of light over the expanse of a cyc or drop The cyc light emits a much smoother light than does the stripight and is equiped with a color- frame holder so the light can be colored as desired

21 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Ellipsoidal Reflector Floodlight Also known as the scoop, this light is used to light drops and cycloramas It is a lensless instrument that provides a wide, smooth wash of light

22 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments PAR Can The parabolic aluminized reflector (PAR) is a sealed-beam lamp similar to the headlight of an automobile The PAR can performs no function other than safely holding the lamp and its color media It is used in dance and concert light and is finding increased usage in the theatre

23 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Lighting Instruments Followspot The followspot is used when a high- intensity, hard-edged beam of light is required to follow a moving performer Portions of the system can be adjusted to focus the light and adjust the crispness of the edge of the beam Some followspots are equipped with a dimming device called a douser Followspots are also equipped with a color boomerang to control color Dousera dimming device that can be used to achieve a slow fade-in or out of the light

24 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Specialty Instruments Low-Voltage Sources A number of specialty lamps use a voltage lower than the 120 output volts of most stage dimmers A number of lighting instruments and projectors have been designed to take advantage of the properties of low-voltage lamps

25 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Specialty Instruments Intelligent or Kinetic Instruments Moving light fixtures provide punch, emphasis, and focus Kinetic fixtures and digital control equipment provide the LD with the capabilities to create the in-your-face lighting that supports the production concepts and mood of many concert productions Kinetic fixture beams pan the stage, zoom in and out, change shape, change color, diffuse and sharpen, gobos materialize, spin around, and change patterns

26 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Specialty Instruments Color Changers Color changing is accomplished with either a color scroller or a dichroic color changer The color scroller is used with an ERS, Fresnel, PAR,,or any other instrument that doesnt have internal color changing abilities

27 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Mechanical Dimmer Control Older types of dimmers require direct mechanical manipulation of an axle running through the central core of the dimmer to adjust the intensity of a lamp This method of dimmer control is awkward

28 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Electronic Dimmer Control When you move a controller to increase or decrease the intensity of lights connected to an electronic dimmer, you are using a low-voltage control circuit to manipulate the high-voltage output of that dimmer Until recently, analog control systems were the only method available, now digital is the standard

29 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Autotransformer Dimmer These dimmers increase or decrease lamp intensity by varying the voltage within the circuit This type of dimmer is only rarely used to control stage lights, but houselights in some theatres are controlled this way

30 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Silicon-Controlled Rectifier Dimmer The SCR dimmer is the most reliable and efficient unit The SCR dimmer operates on a gating principle, which is a rapid switching on and off of the power These properties result in a dimmer that is rugged, long lived, compact, relatively lightweight, moderate in cost, and reasonably quiet in operation

31 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Insulated Gate Bipolar Transistor Dimmer The IGBT dimmer is the latest in the continuing line of dimmer development The IGBT dimmer is lighter and quieter in operation than the SCR It has a relatively slow power ramp which reduces the amount of filament hum of an y lamp being dimmed by it

32 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Control Consoles Group Masterindividual dimmers are controlled by a submaster, which is subsequently controlled by a grand master Presetallows you to keep ahead of the onstage action by presetting the intensity levels for each dimmer before it is needed

33 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Dimmers Dimmer-Control Techniques Control Consoles Combinationa fusion of the previous two, each dimmer channel has an associated switch capable of assigning the dimmer to preset, group-master, or independent control Computer Memorythe standard for the industry, the computer electronically stores the levels of all dimmers on each cue

34 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Cables and Connectors Electrical Cable for Stage Use The National Electrical Code (NEC) stipulates that the only electrical cables approved for temporary stage wiring are types S, SO, ST, STO These cables have stranded copper conductors and are insulated with rubber or thermoplastic

35 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Cables and Connectors Wire Gauge The American Wire Gauge (AWG) system rates wire according to the amount of current that a conductor of a particular size and composition can safely carry The NEC stipulates that receptacles used to supply incandescent lamps on stage must be rated at not less than 20 amperes and must be supplied by wires of not less than 12 gauge

36 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Cables and Connectors Connecting Devices Several different styles are used in stage lighting Twist-lock connectors Pin connectors Grounded pin connectors The Edison, or parallel blade, plug The NEC stipulates that each plug should be equipped with an effective cable- clamping device to secure the connector to the jacket of the cable

37 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Cables and Connectors Extension Cables Extension cables can be purchased or made in the electrical shop in any reasonable length A two-fer is used to connect two instruments to the same circuit

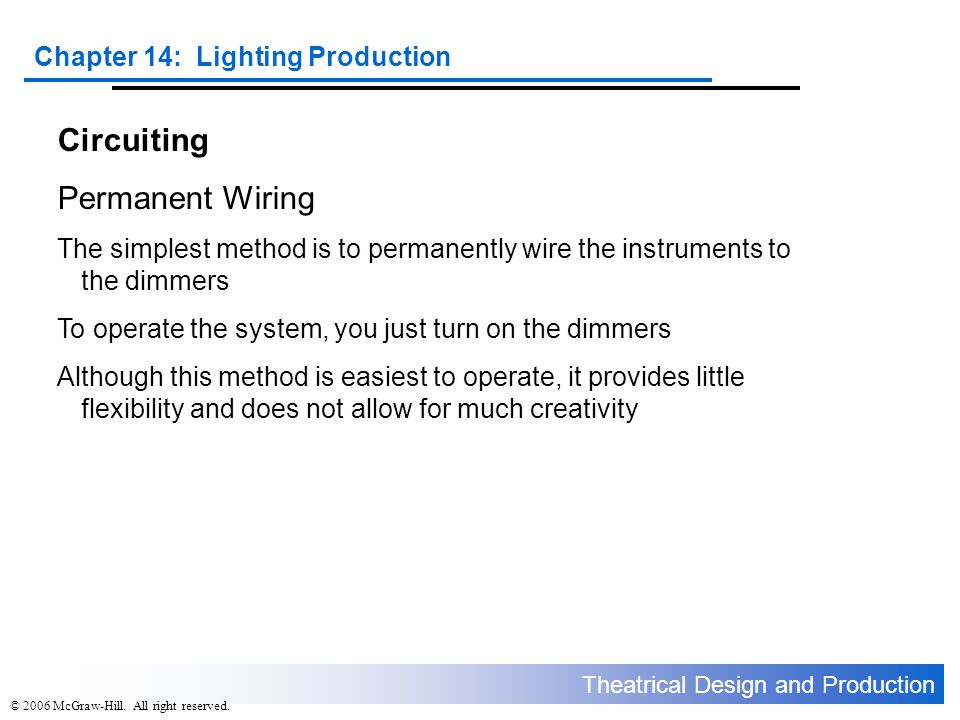

38 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Circuiting Permanent Wiring The simplest method is to permanently wire the instruments to the dimmers To operate the system, you just turn on the dimmers Although this method is easiest to operate, it provides little flexibility and does not allow for much creativity

39 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Circuiting Spidering Also known as direct cabling, it involves running a cable from each lighting instrument directly to the dimmer to which it is assigned Used extensively in Broadway theatres and on tour, it provides the greatest flexibility because it allows the designer to put an instrument wherever it is needed

40 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Circuiting Connecting Strips and Patch Panels Two advantages: The light plot can be hung and circuited quite rapidly The system provides a great deal of flexibility by enabling you to patch any circuit into any dimmer

41 Theatrical Design and Production Chapter 14: Lighting Production © 2006 McGraw-Hill. All right reserved. Circuiting Dimmer per Circuit The dimmer-per-circuit configuration combines the efficiency in hanging and circuiting of the connecting strip with the ease of operation of the permanently wired system The onstage end of each circuit terminates in an outlet on a connecting strip The other end is directly wired to a dimmer
