The first recorded impact crater on the Earth: Carancas, Peru G. Tancredi and several colleagues from Peru and many other countries Dpto. Astronomía, Fac.

Similar presentations


Presentation on theme: "The first recorded impact crater on the Earth: Carancas, Peru G. Tancredi and several colleagues from Peru and many other countries Dpto. Astronomía, Fac."— Presentation transcript:

1 The first recorded impact crater on the Earth: Carancas, Peru G. Tancredi and several colleagues from Peru and many other countries Dpto. Astronomía, Fac. Ciencias, Montevideo, Uruguay

2 ¿What did happen? 15/9/2007 – ~ 11:45 LT (16:45 UT) a bright fireball was observed in the sky, leaving behind an smoke trail. Strong explosions lasting several seconds were heard in an area of several tens of km long. An explosion was observed as well as the formation of a thick cloud of dust like a mushroom cloud. The shock wave produce the vibration of several houses and some animals were knocked down due to the shock wave. The roof of a shed was impacted by ejecta. In the site where the explosion and the dust cloud was observed, the local people found a ~15m crater. The crater was half-fill by underground water. The water was bubbling and noxious fumes were coming out the water. Several pieces of atypical material was collected from inside and outside the crater. Several persons got sick.

3

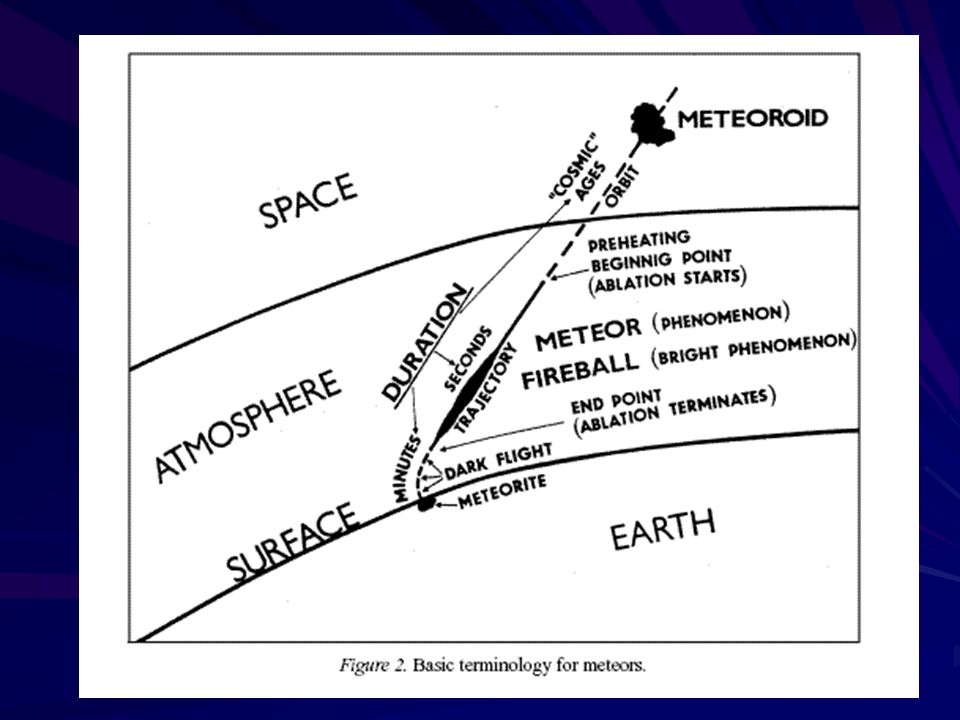

4 Preliminary considerations A stony meteorite enter the upper atmosphere at velocities ~12-20 km/s. As a consequence of the friction with the air molecules, the body heats up and material from the surface is vaporized. The hot gas cloud that is formed around the body is observed as a fireball crossing the sky at high speed. The phenomena last just a few seconds. In its passage it leaves behind a smoke trail. Due to the supersonic speeds and possible fragmentations, the shock wave produces a sonic boom that last for several seconds. Though the body is largely decelerated in the passage through the atmosphere, it retains an important fraction of its original spped and it impacts the ground producing a crater.

5

6 The sounds

7 The witness

8 Photo of the smoke trail

9 Crater: diameter 14m

10 Carancas meteorites Photo José Ishitsuka

11

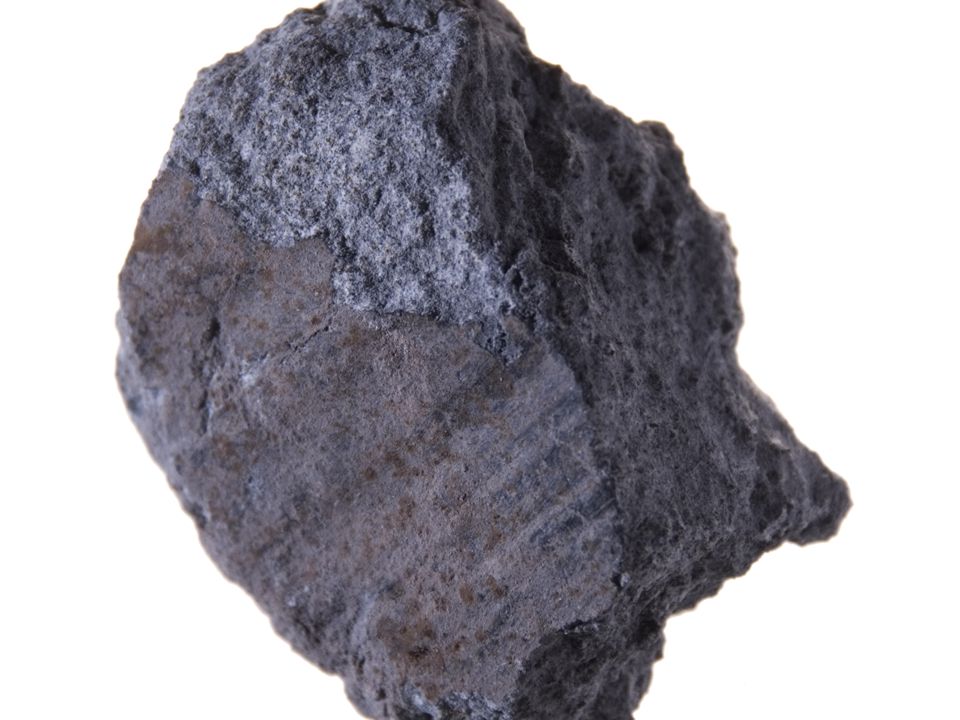

12 Other meteorites found 60 gr 22 gr 20 gr

13 Chondrite Achondrite Iron

14 Photo 1: Transmitted light optical image. In the center a radiating pyroxene chondrule. Plane polarized light Photo2: Detail of the radiating pyroxene chondrule. Cross polarized light Photo3: Olivine rich object characterized by having a barred-olivine texture in the center and a thick olivine rim. Plane polarized light

15 MINERALOGY COMPOSITION Piroxene 1 40 % Olivine20 % Feldespat10 % Piroxene 210 % Opaque minerals accounting for 20 % of the mass, they inlcude: Kamacite 15% Troilite5 % Cromitetraces Cupper nativetraces Analysis from INGEMMET, Peru

16 Ferrosilite in Ortopiroxene Fayalite in Olivine Clasification (M. E. Varela et al.) Ordinary Chondrite type H4/5

17 Crater Aristarco, Moon Impact Crateres by comets and asteroids

18 Meteor Crater Barringer, Arizona 1.2 km, yr Crater Double Clearwater, Canada kkm, 290 Myr Crater Manicouagan, Canada 100 km, 212 Myr

19 Tunguska, 1908 (photo taken by Kulik in 1928)

20 Recent records of impact craters Year Location of the crater Diameter of largest crater Number of craters or pits Total mass of found meteorites Meteorite type 1998 Kunya-Urgench, Turkmenistan 6 mSingle1.1 tonsChondrite H Sterlitamak, Russia 10 mSingle0.3 tonsIron IIIAB 1976Jilin, China4mMultiple4 tonsChondrite H Sikhote-Alin, Russia 27 mMultiple23 tonsIron IIAB

21 Jilin, China (1976) Penetration hole

22 Sterlitamak, Rusia (1990)

23 Sikhote-Alin (1947)

24 Sikhote-Alin strewn field

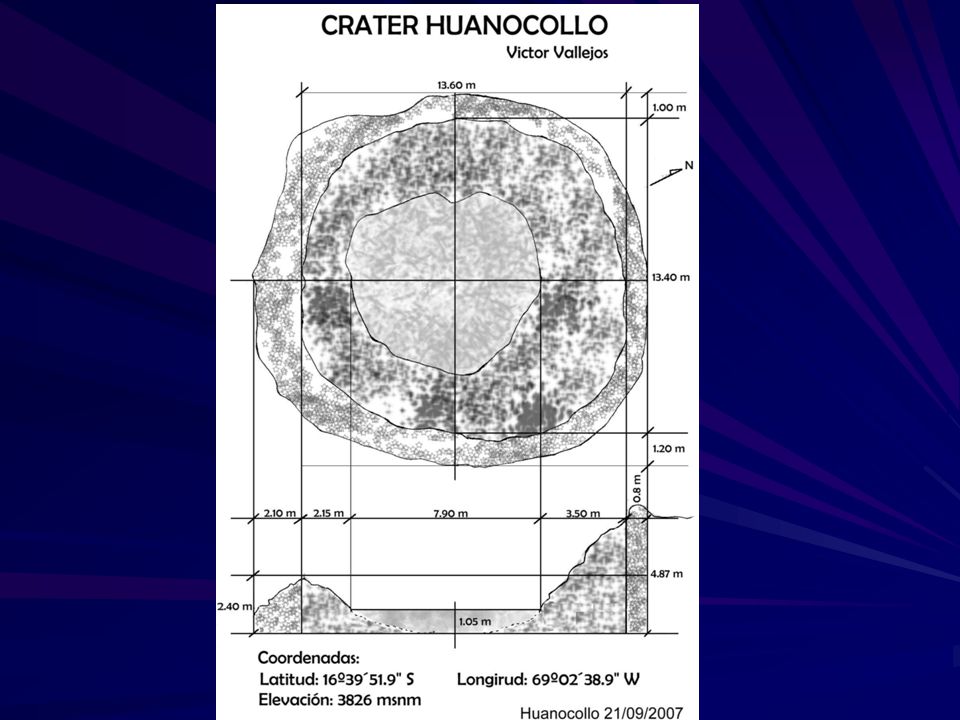

25 Carancas crater

26

27 Impact regimes

28 The size of the projectile

29 Impact Energy on the surface

30 Home experiment

31

32 Ejecta at 300m in SW direction The ejected material Big size ejecta at 100m in NE direction Location of ejecta in NE direction

33 Roof of a shed at ~75m from the crater impacted by ejecta Roof of a shed at ~75m from the crater impacted by ejecta

34 Distribution of ejected material (Rosales et al. 2008)

35 Speed of the ejected material

36 Shock Metamorphism of the target material and the projectile French (1998)

37 Meteorites fragments embedded in the soil (Harris et al. 2008)

38 Quartz grains with shock metamorphism due to impact (Harris et al. 2008)

39 Conclusions about the petrology studies The meteoritic mass penetrated deeply at a high speed while coupling its energy to the subsurface to produce surface spalls, inverted rim ejecta, injection of meteoritic debris between contrasting soil horizons, long crater rays, and excavation of horizons not exposed on the surface. Regarding the level of shock metamorphism of the target material, we estimate Pressures > 10GPa The impact velocity was > 3 km/s and possibly on the order of 4 to 6 km/s

40 Infrasound and Seismic detections

41 Infrasound detection (Brown et al. 2008) Infrasound station I08BO in La Paz, Bolivia (80 km from crater) Infrasound station I41PY in Asuncíon, Paraguay (1617 km from crater)

42 Seismic detections (LePichon et al. 2008) First seismic detection of an extraterrestrial impact on Earth

43 Estimate of the trajectory through the atmosphere Facts to take into account Backazimuth from infrasound station I08BO determined from the array of detectors Arrival time in the seismic waves and of the air shoch waves at the seismic and infrasound stations Witnesses that saw the fireball Distribution of ejected material, concentration in the SW direction

44

45 Orbital elements of the meteoroid Impact time: 16h 40m 14s UT Radiant: Az ~ ° Alt ~ 45-60° Pre-atmospheric velocity: km/s

46 Location of the radiants in equatorial coordinates relative to the Sun (Tancredi et al. 2008) Radiants of NEAs Sun Anti-Sun

47 Elements compared with NEAs

48 Direct Entry Modeling Results: Example (D. Revelle et al.)

49 Why is this event so relevant? 1. Fresh fall with many witnesses 2. An impact crater was formed 3. Impact at high latitude, less deceleration in the atmosphere 4. Ordinary chondrite meteorite that survives the passage through the atmosphere 5. Several records of infrasound and seismic data 6. Collection of material from the ground and the meteorite with shock metamorphism

50 Preliminary Conclusions Initial Mass of the meteoroid: 7 to 12 ton –Initial Diameter: 1.6 – 2 m Initial Velocity: 12 – 17 km/s –Initial Energy: 0.12 – 0.41 kT TNT Trayectory with Az: 80° - 110°, Alt: 45° - 60° Impact Velocity on the ground: ~> 3 km/s Mass of the impactor: 1 – 2.5 ton –Diameter: 0.8–1.1m ; Impact Energy: ~2–4 tons TNT There is no indications of large remnants of the meteorite inside the crater (see Ishitsuka presentation)

51 What else do we want to know? Confirm the pressure and temperatures reached at the time of impact and the velocity of the impactor What does happen with the original meteorite? Was it fragmented and totally dispersed during the impact? How was it possible that a chondrite meteorite of just a few meters in size could get through the atmosphere without being completely disrupted? In which conditions could this event happen again?

52 Research Team G. Tancredi - Dpto. Astronomía, Fac. Ciencias, Iguá 4225, Montevideo, Uruguay, J. Ishitsuka, D. Rosales, E. Vidal - Instituto Geofísico del Perú, Lima, Perú P. Schultz, R. S. Harris - Dept. Geological Sciences, Brown University, Rhode Island, USA. P. Brown - Dept. of Physics and Astronomy, University of Western Ontario, London, ON N6A 3K7 Canada D. Revelle - EES-2, Atmospheric, Climate and Environmental Dynamics Group – Meteorological Modeling Team, Los Alamos National Laboratory, P.O. Box 1663, MS D401, Los Alamos, NM USA K. Antier, A. Le Pichon - Commissariat à lEnergie Atomique, Centre DAM - Ile de France, Département Analyse Surveillance Environnement, Bruyères-le- Châtel, Arpajon Cedex, France. S. Benavente - Universidad Nacional del Altiplano, Puno, Perú P. Miranda, G. Pereira - Planetario Max Schreier, Universidad Mayor de San Andrés, La Paz, Bolivia M. E. Varela - Complejo Astronómico El Leoncito – CASLEO, San Juan, Argentina F. Brandstätter - Naturhistorisches Museum, Vienna, Austria L. Sánchez - Inst. Ciencias de la Tierra, Fac. Ciencias, Iguá 4225, Montevideo, Uruguay

53

54
