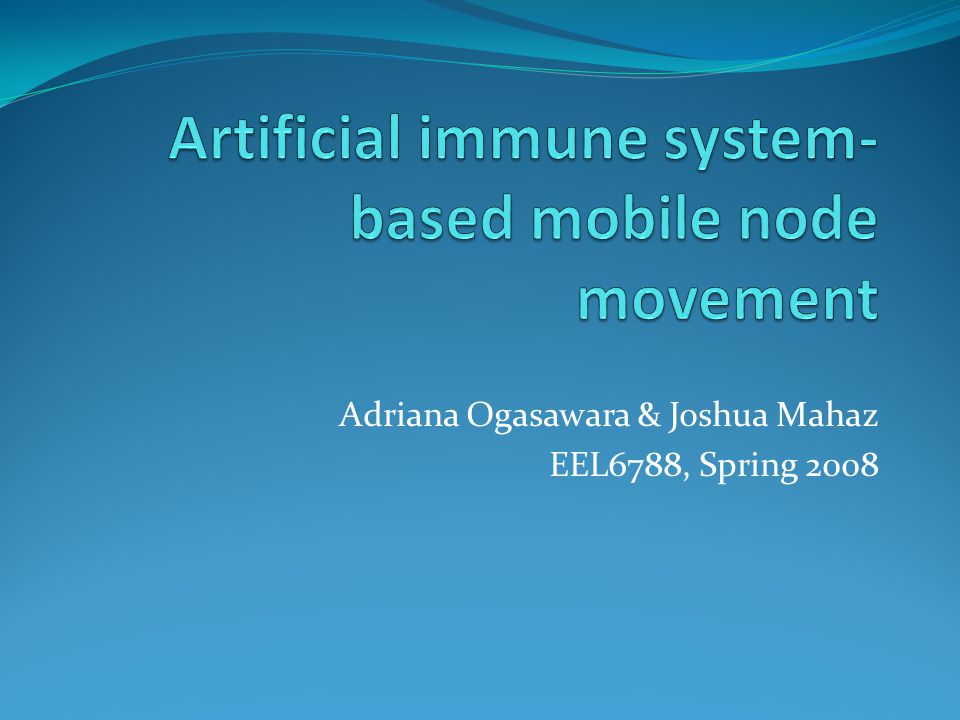

1 Adriana Ogasawara & Joshua Mahaz EEL6788, Spring 2008

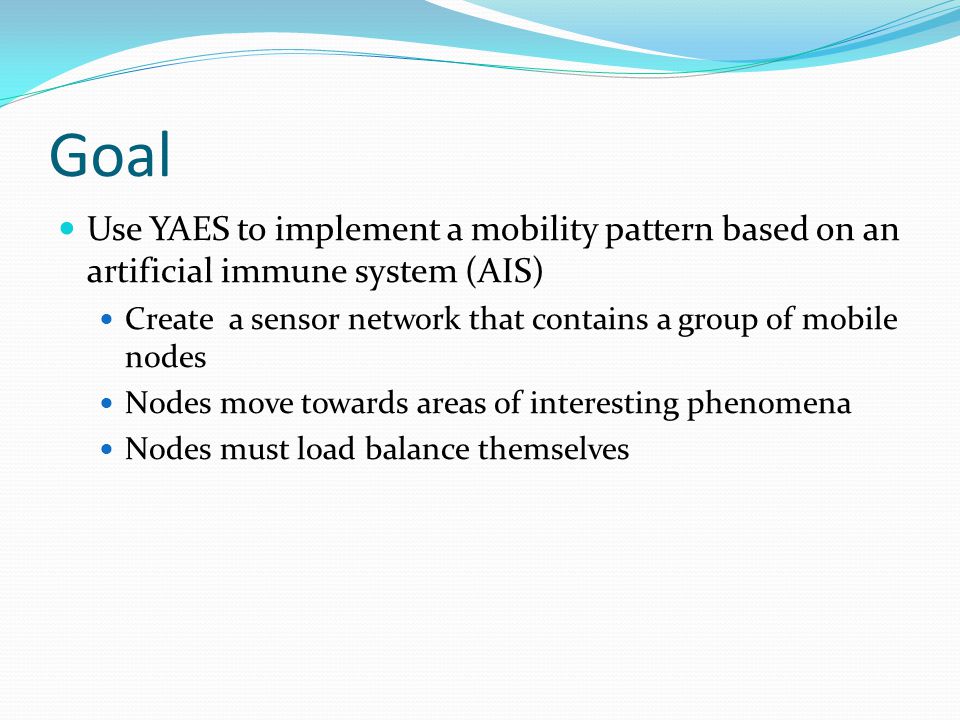

2 Goal Use YAES to implement a mobility pattern based on an artificial immune system (AIS) Create a sensor network that contains a group of mobile nodes Nodes move towards areas of interesting phenomena Nodes must load balance themselves

3 What is AIS? Algorithmic process based on the vertebrate immune system Based on how the immune system is self-protecting and adaptable Immune system can distinguish between self (other white blood cells) and non-self (antigens) Can learn to recognize and respond to new microbes and retain a memory of these microbes to facilitate future immune responses This is how vaccinations work

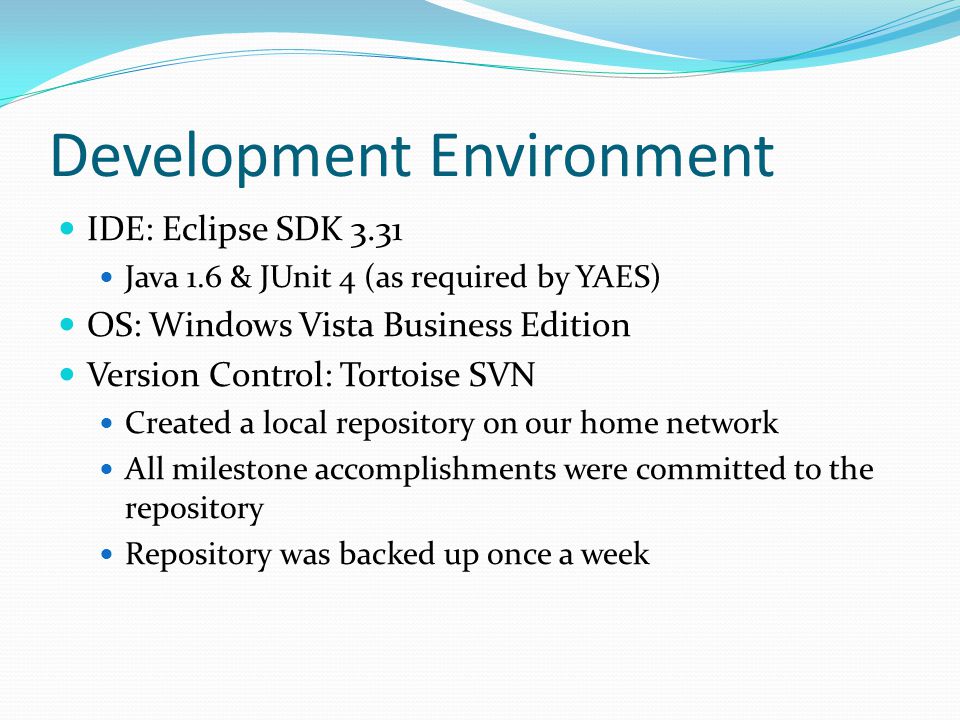

4 Development Environment IDE: Eclipse SDK 3.31 Java 1.6 & JUnit 4 (as required by YAES) OS: Windows Vista Business Edition Version Control: Tortoise SVN Created a local repository on our home network All milestone accomplishments were committed to the repository Repository was backed up once a week

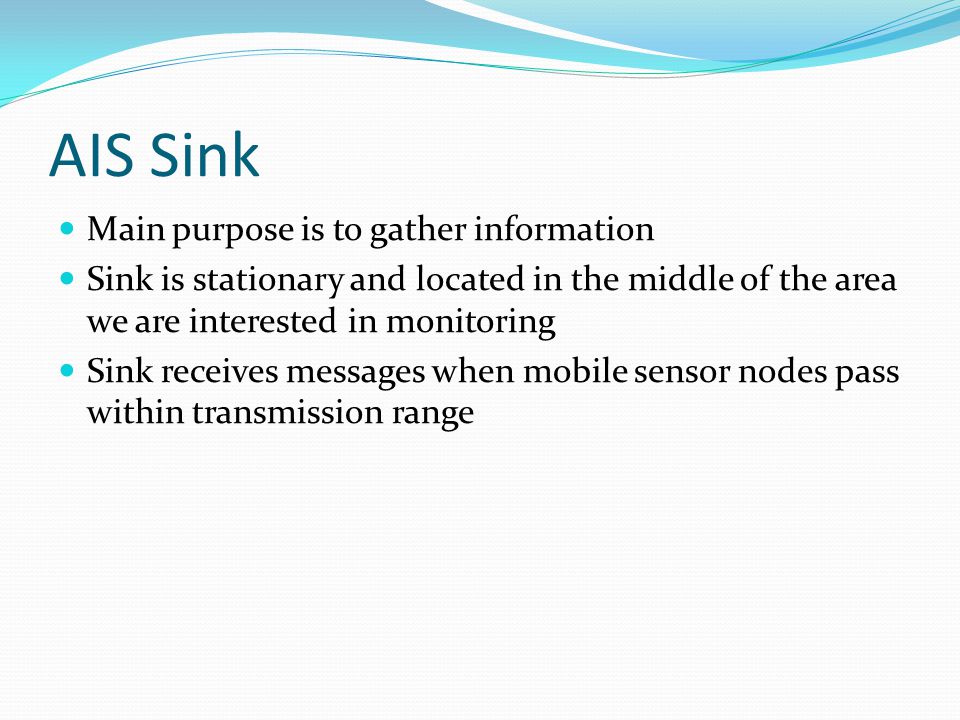

5 AIS Sink Main purpose is to gather information Sink is stationary and located in the middle of the area we are interested in monitoring Sink receives messages when mobile sensor nodes pass within transmission range

6 AIS Intruders In this project, intruders are analogous to pathogens that invade the body AIS Intruders use the ActuatorNode & ActuatorAgent classes built into YAES Intruders are dumb & are not capable of creating diversions Intruders move randomly using the random_waypoint actuator movement also integrated into YAES Randomly placed within the sensor network world using arrangeRandomlyInARectangle() within ArrangementHelper.java Intruders have the freedom to wander throughout the entire defined sensor network world

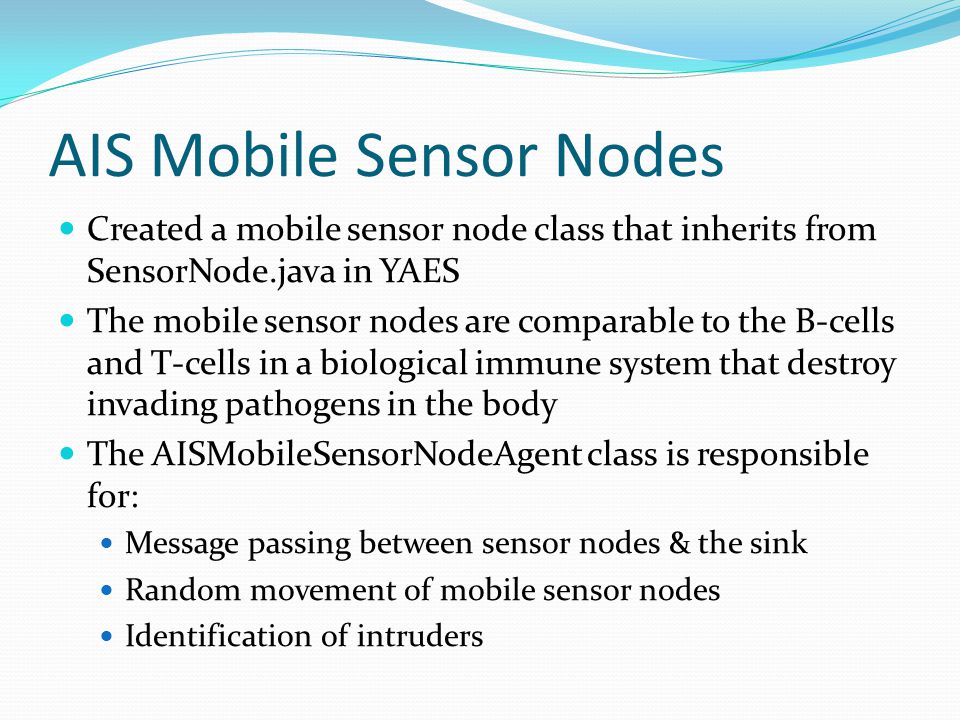

7 AIS Mobile Sensor Nodes Created a mobile sensor node class that inherits from SensorNode.java in YAES The mobile sensor nodes are comparable to the B-cells and T-cells in a biological immune system that destroy invading pathogens in the body The AISMobileSensorNodeAgent class is responsible for: Message passing between sensor nodes & the sink Random movement of mobile sensor nodes Identification of intruders

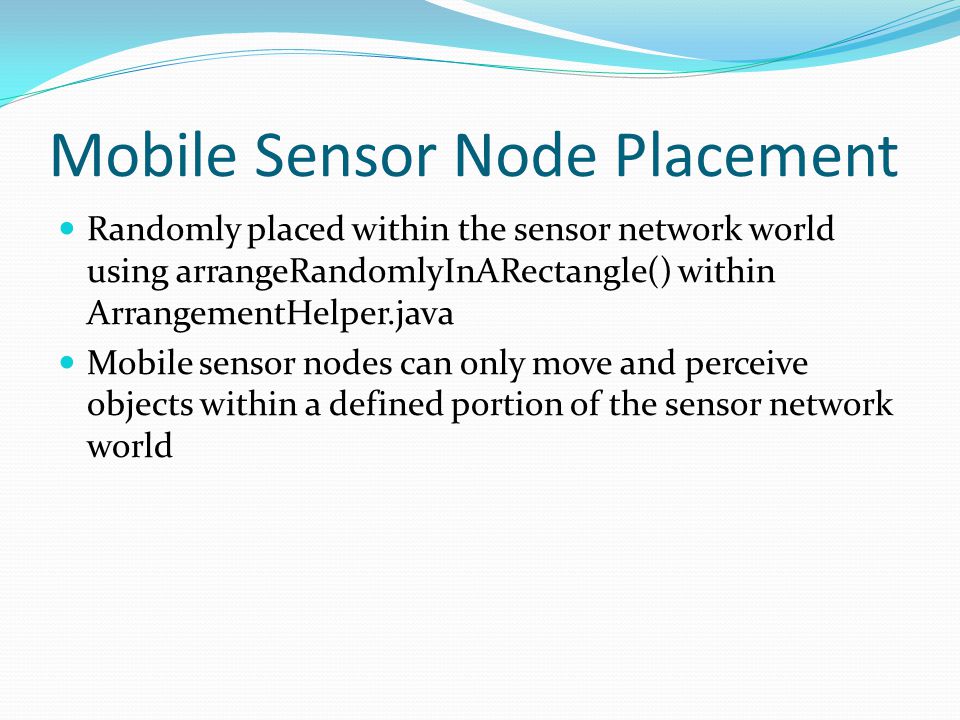

8 Mobile Sensor Node Placement Randomly placed within the sensor network world using arrangeRandomlyInARectangle() within ArrangementHelper.java Mobile sensor nodes can only move and perceive objects within a defined portion of the sensor network world

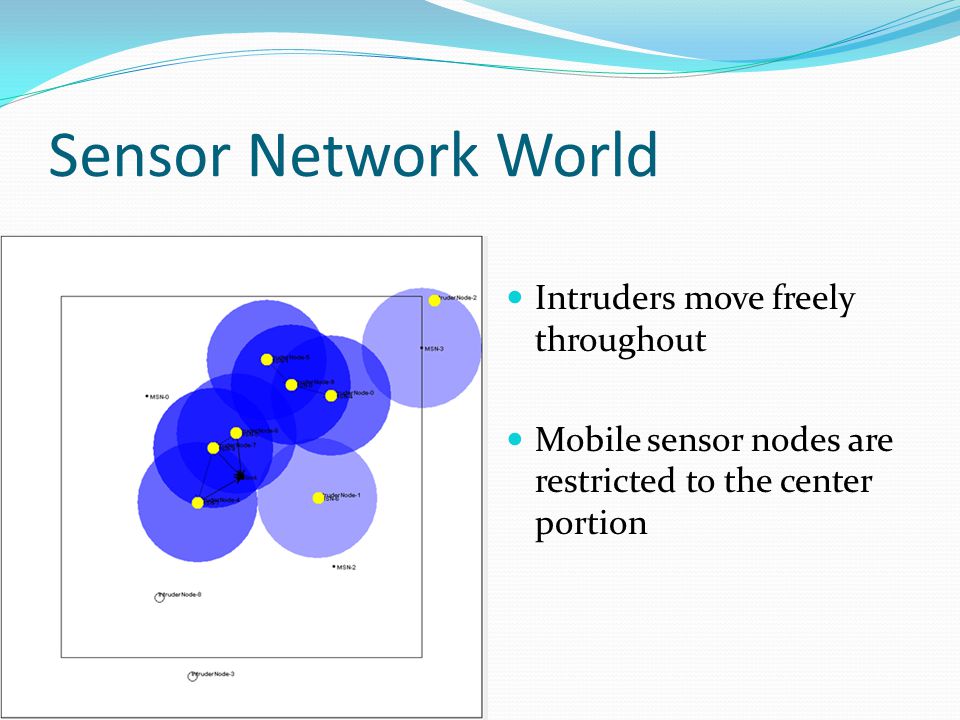

9 Sensor Network World Intruders move freely throughout Mobile sensor nodes are restricted to the center portion

10 Mobile Sensor Node Movement Agent calls moveRandomly() The method generates a random int using the random number generator This number corresponds to one of the eight cardinal or intercardinal directions (N, S, E, W, NE, NW, SE, SW) The mobile sensor node then moves in this direction for 100 steps until a new direction is chosen If a mobile sensor node reaches the edges of the boundary, it declares itself stuck and moveRandomly() changes the direction of the node to the opposite of which it was moving before it became stuck Gives the appearance that the node bounces off the wall

11 Mobile Sensor Node Movement If a mobile sensor node senses an intruder and does not see another mobile sensor node following it, moveRandomly() stops and the method followTheLeader() is called once the perception is processed The location of the intruder is passed with the perception Once an intruder is perceived, the mobile sensor node accelerates until it catches up to the intruder followTheLeader() measure the distance between the node and the intruder for each call of the agent and divides this by a speed factor which is added to its normal step to apply a slight increase in speed

12 Mobile Sensor Node Movement Once the mobile sensor node reaches the intruder, it places a lock on the intruder to help with load balancing so no other mobile sensor nodes begin following it From here on out, the mobile sensor node will continuously follow the intruder around the world as long as it does not leave the defined area of interest

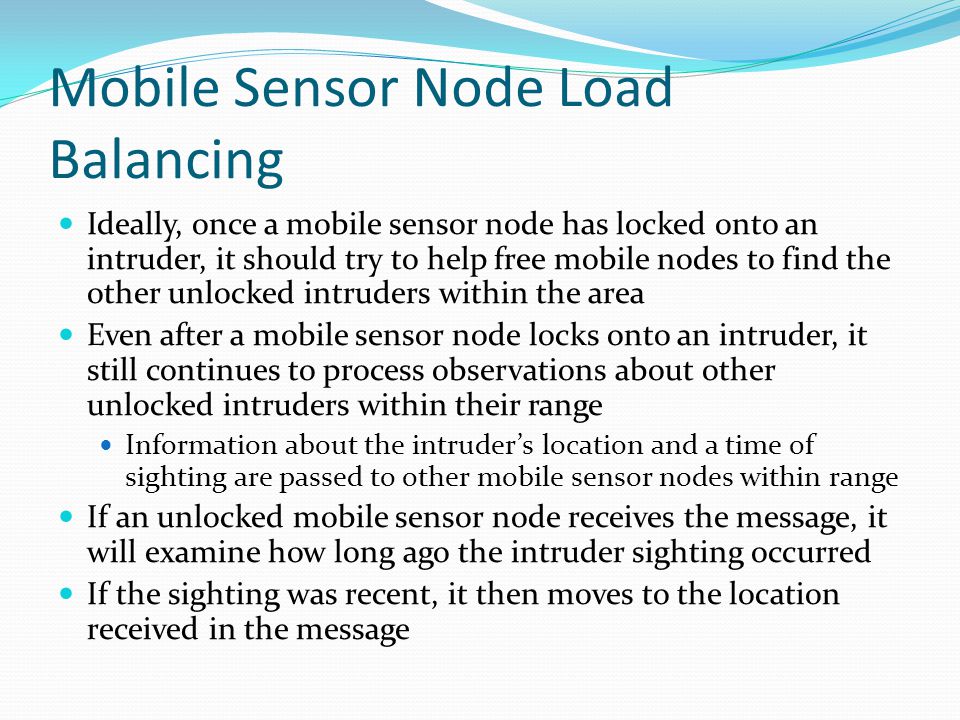

13 Mobile Sensor Node Load Balancing Ideally, once a mobile sensor node has locked onto an intruder, it should try to help free mobile nodes to find the other unlocked intruders within the area Even after a mobile sensor node locks onto an intruder, it still continues to process observations about other unlocked intruders within their range Information about the intruders location and a time of sighting are passed to other mobile sensor nodes within range If an unlocked mobile sensor node receives the message, it will examine how long ago the intruder sighting occurred If the sighting was recent, it then moves to the location received in the message

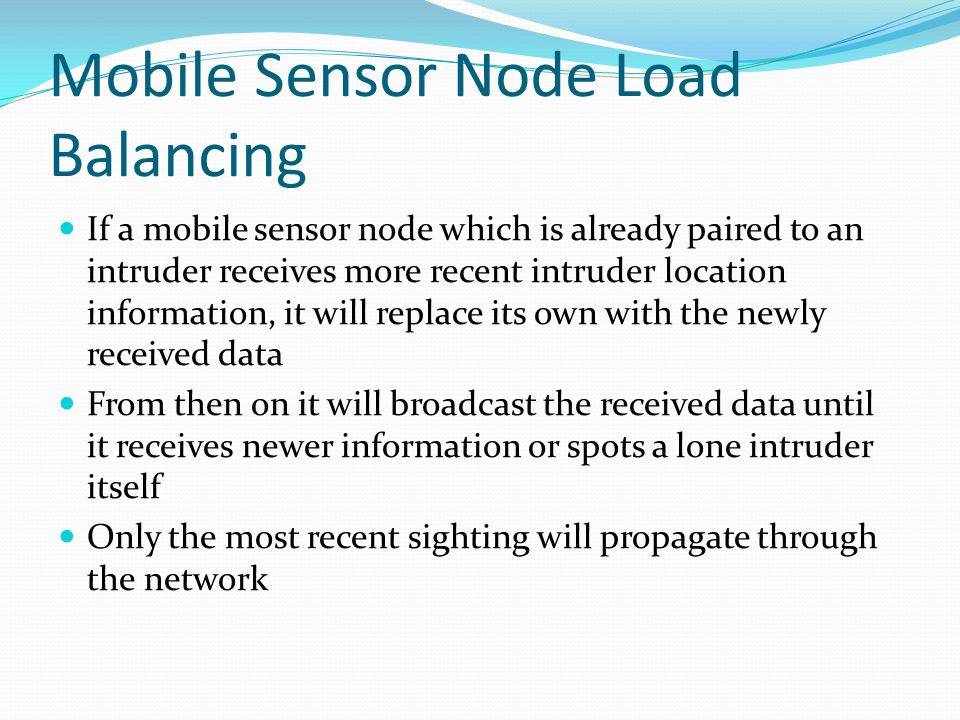

14 Mobile Sensor Node Load Balancing If a mobile sensor node which is already paired to an intruder receives more recent intruder location information, it will replace its own with the newly received data From then on it will broadcast the received data until it receives newer information or spots a lone intruder itself Only the most recent sighting will propagate through the network

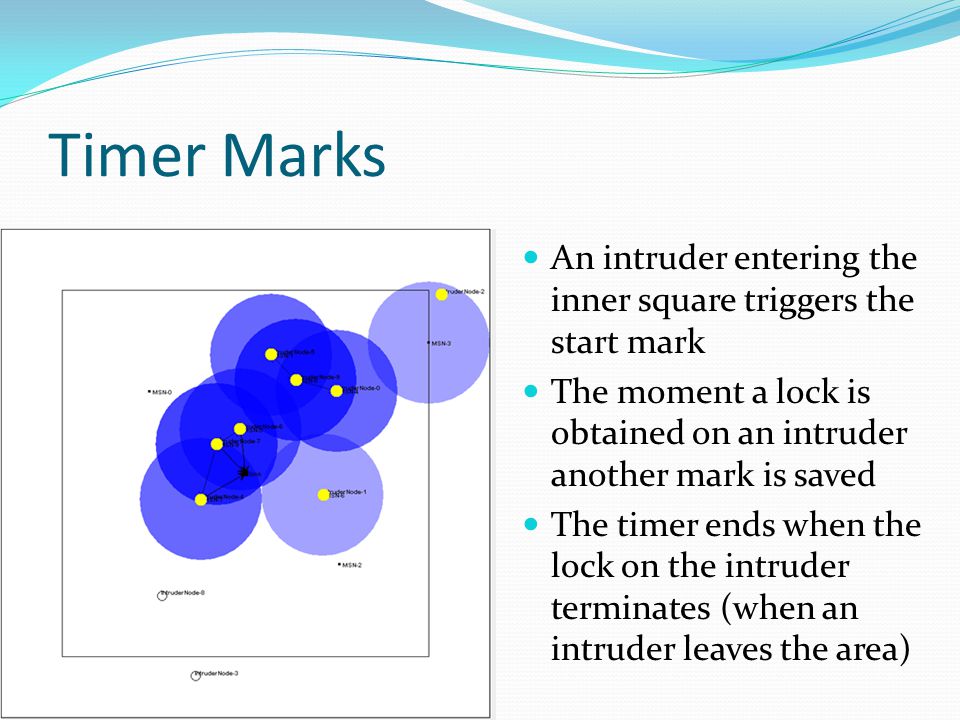

15 Timer Marks An intruder entering the inner square triggers the start mark The moment a lock is obtained on an intruder another mark is saved The timer ends when the lock on the intruder terminates (when an intruder leaves the area)

16 Timer Marks T start Time intruder enters the designated area T end Time intruder leaves the designated area TL start Time a mobile sensor node obtains a lock on an intruder TL end Time a mobile sensor node loses its lock on an intruder

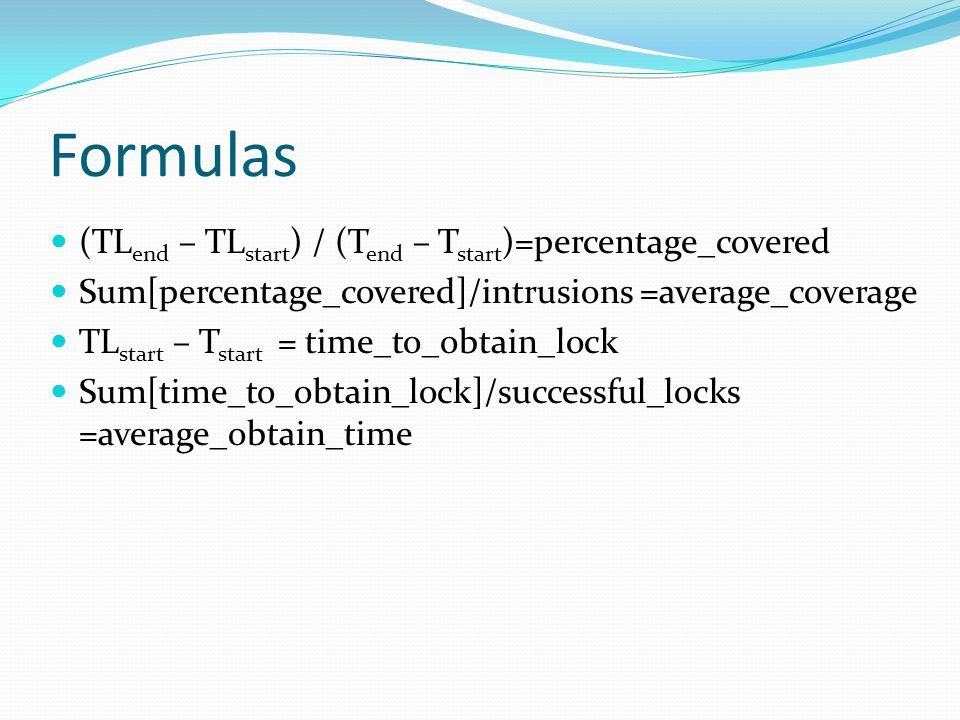

17 Formulas (TL end – TL start ) / (T end – T start )=percentage_covered Sum[percentage_covered]/intrusions =average_coverage TL start – T start = time_to_obtain_lock Sum[time_to_obtain_lock]/successful_locks =average_obtain_time

18 Testing Performed 10 runs with 5, 10, and 20 intruder/mobile node pairs respectively Each run the Timer Marks were recorded and processed with our defined formulas

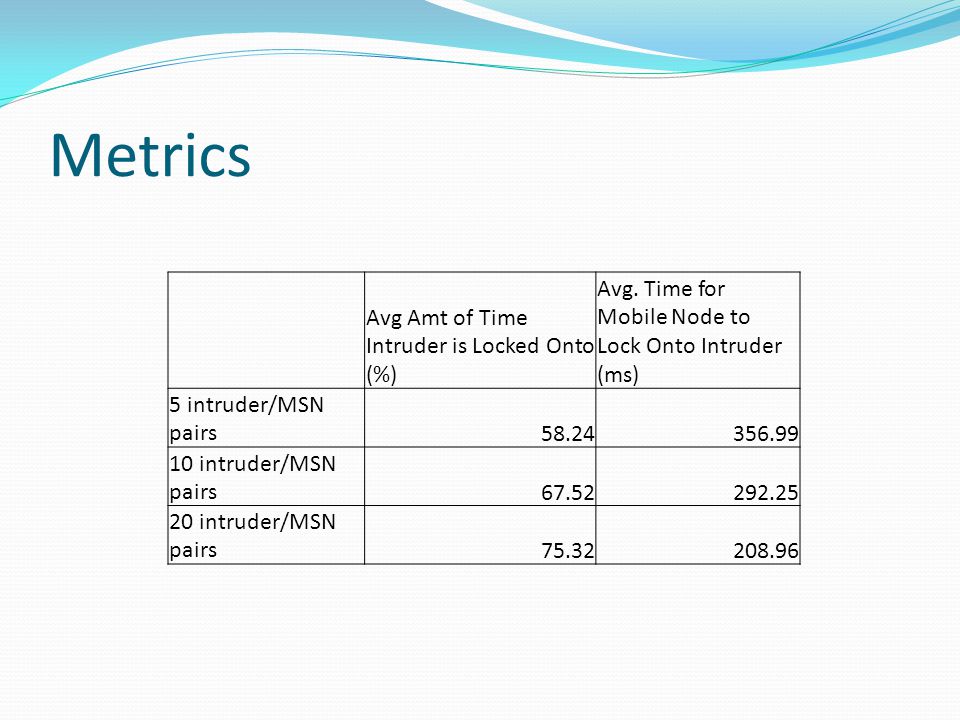

19 Metrics Avg Amt of Time Intruder is Locked Onto (%) Avg. Time for Mobile Node to Lock Onto Intruder (ms) 5 intruder/MSN pairs intruder/MSN pairs intruder/MSN pairs

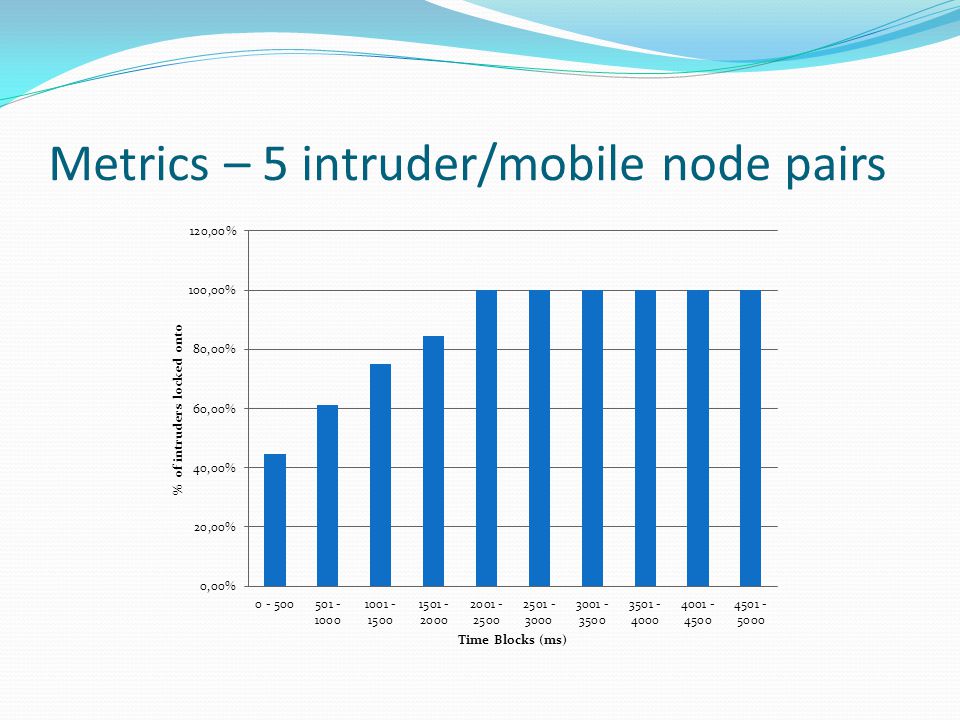

20 Metrics – 5 intruder/mobile node pairs

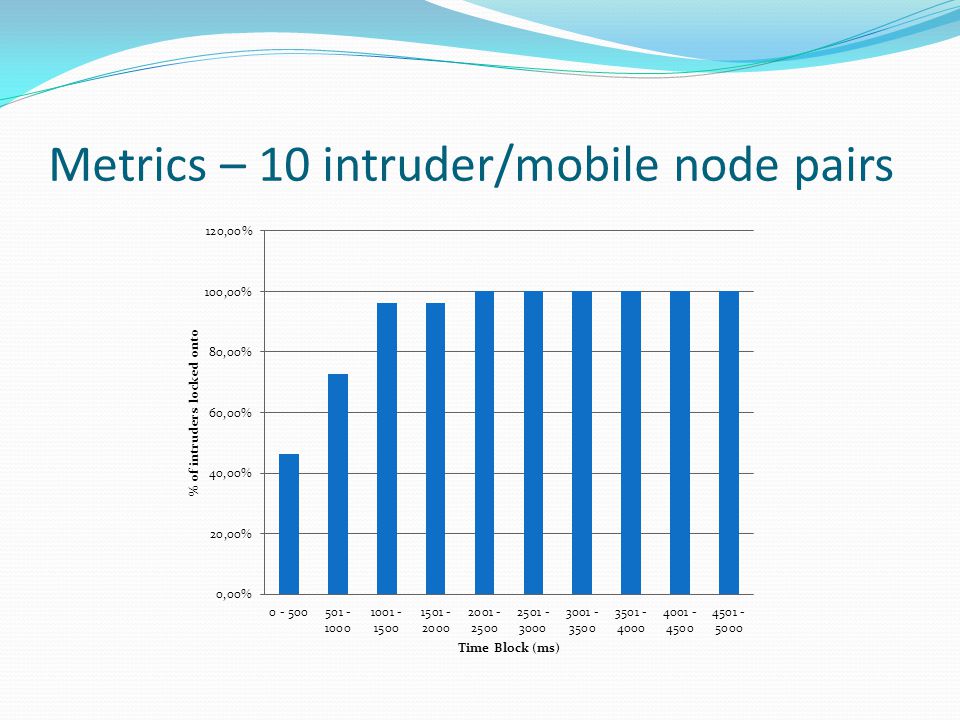

21 Metrics – 10 intruder/mobile node pairs

22 Metrics – 20 intruder/mobile node pairs

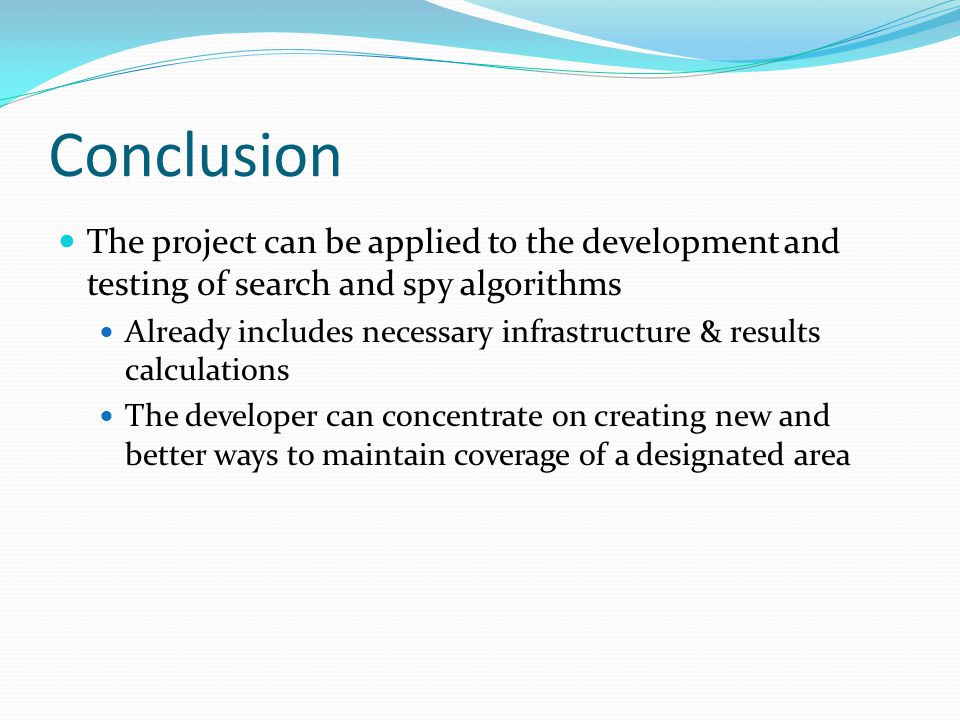

23 Conclusion The project can be applied to the development and testing of search and spy algorithms Already includes necessary infrastructure & results calculations The developer can concentrate on creating new and better ways to maintain coverage of a designated area

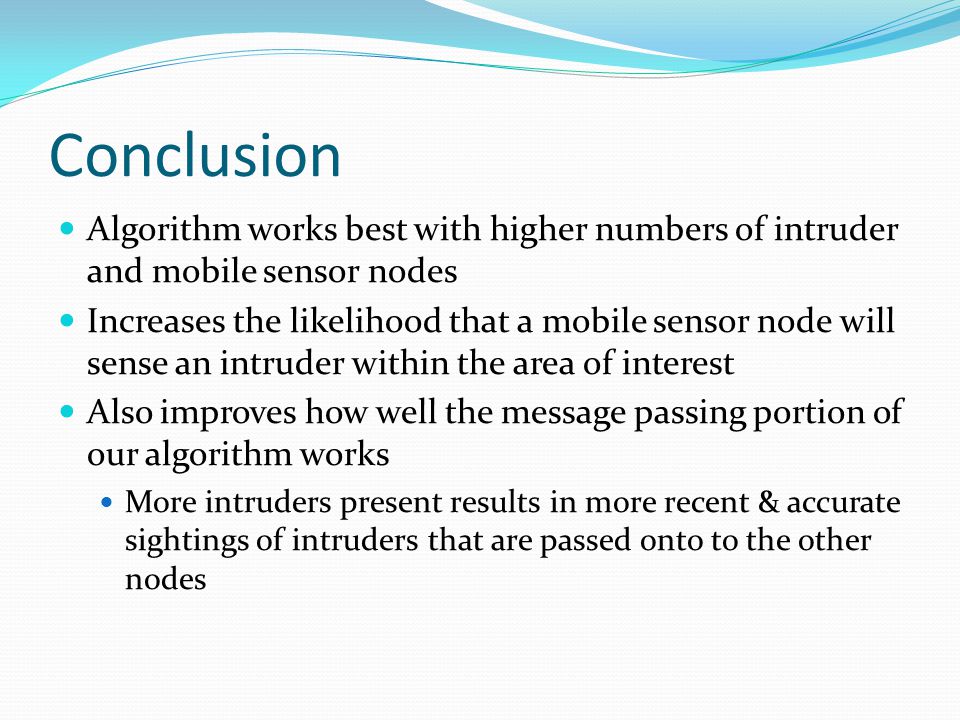

24 Conclusion Algorithm works best with higher numbers of intruder and mobile sensor nodes Increases the likelihood that a mobile sensor node will sense an intruder within the area of interest Also improves how well the message passing portion of our algorithm works More intruders present results in more recent & accurate sightings of intruders that are passed onto to the other nodes

25 Future Work Create a more sophisticated random movement algorithm Create intelligent intruders or intruders capable of creating a diversion Allow mobile sensor nodes to recognize the likelihood of diversions and in turn command free mobile sensor nodes to cover vulnerable areas.

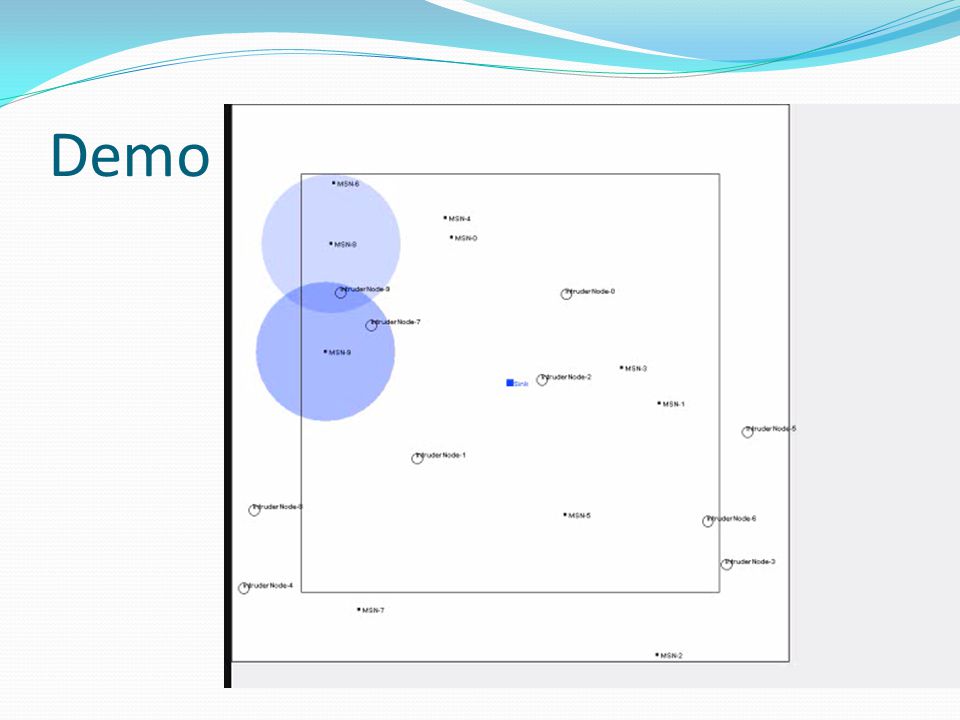

26 Demo
